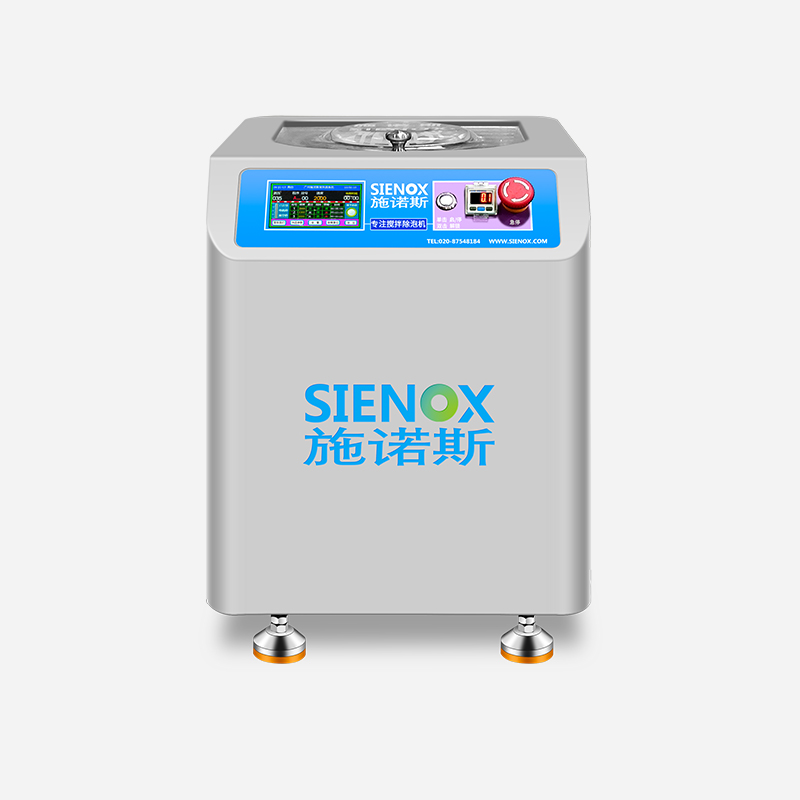

SIENOX Planetary Vacuum Mixer‑Defoamer SIE‑MIX650
Vacuum Mixer‑Defoamer · Nano‑Scale Bubble Removal
500 mL Medium‑Capacity Dual‑Cup + Built‑In Maintenance‑Free Vacuum — 99.9% Nano‑Scale Bubble Removal
The SIE‑MIX650 vacuum mixing‑defoaming unit covers mixing and defoaming requirements from 0‑500 mL. Equipped with a maintenance‑free built‑in vacuum system and dual‑driven planetary revolution‑rotation mixing‑defoaming, it delivers consistent density, homogeneous dispersion and residue‑free defoaming for multi‑material processing. Suitable for epoxy resin, conductive adhesive, electronic paste, adhesives, gels and more. Customization available with one‑stop solutions.
✓ CE Certified ✓ ISO9001 Quality System ✓ RoHS Compliant ✓ Custom Voltage Support (110V/220V)

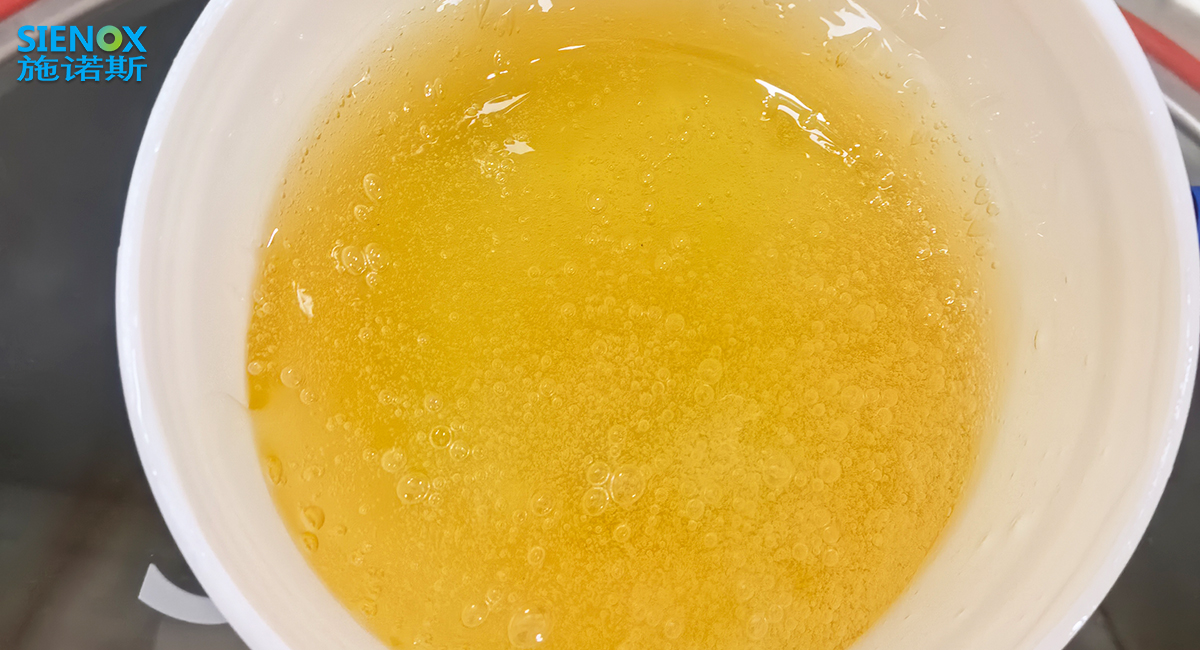

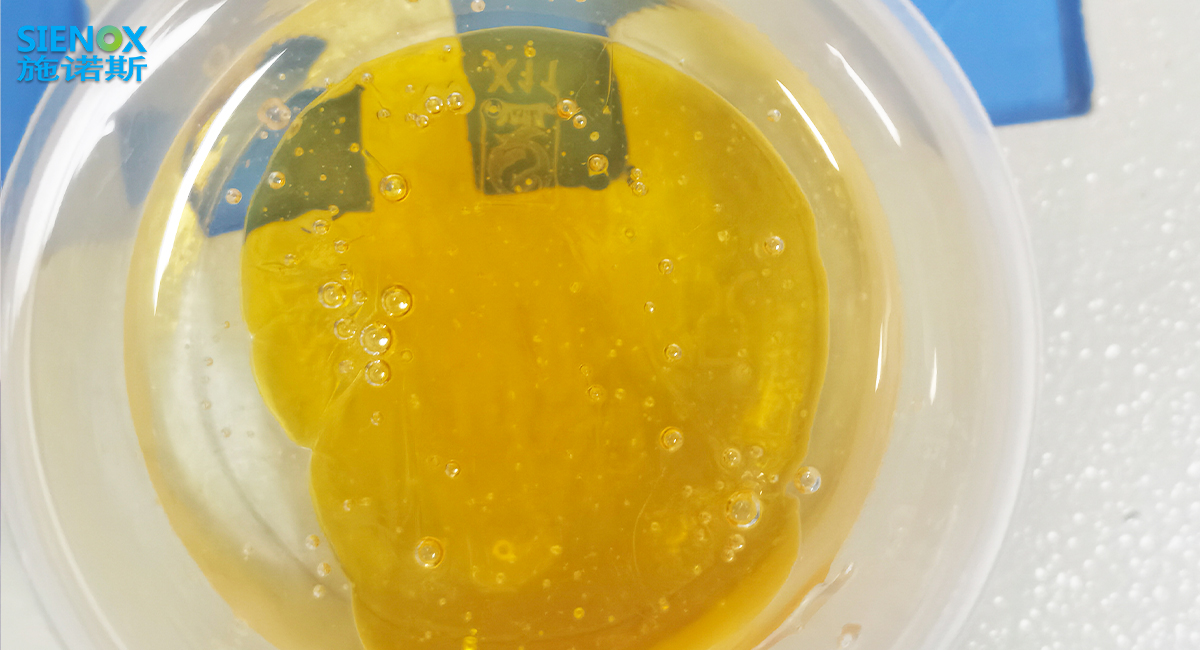

Why Must Microbubbles in Materials Be Eliminated?
Residual microbubbles in materials directly affect the yield and performance stability of end‑products.
Electronics IndustryBubbles in potting compounds create cavities and voids after electronic component encapsulation, impairing heat dissipation and insulation reliability. Bubbles in conductive silver paste cause circuit breakpoints and resistance fluctuation, while bubbles in circuit‑board bonding adhesives trigger interface defects and reduce product yield. Medium‑ and high‑viscosity adhesives tend to entrain air during conventional mixing; bubbles escape slowly, undermining the consistency of encapsulation quality. | Medical Device IndustryBubbles in medical adhesives weaken bonding strength and biocompatibility. Bubbles within encapsulants for catheters and sensors lead to seal failure and signal interference, and bubbles in carriers for in‑vitro diagnostic reagents compromise detection accuracy. Medical devices demand high material purity; residual bubbles may cause batch‑to‑batch performance variation and raise quality‑related risks. | Aerospace & Defense IndustryBubbles in composite matrix resins reduce interlaminar shear strength and fatigue resistance. Bubbles in structural adhesives induce stress concentration at bonding interfaces and compromise long‑term reliability, whereas bubbles in radar‑absorbing coatings alter electromagnetic performance parameters. The aerospace sector has low tolerance for internal material defects; residual micro‑bubbles may trigger structural‑part failure under extreme operating conditions. |
✨ Limitations of traditional defoaming methods: Manual or impeller stirring entrains more air bubbles; static defoaming is time‑consuming and ineffective for high‑viscosity materials; conventional vacuum treatment can only remove surface bubbles rather than internal microbubbles. The planetary mixer‑defoamer separates bubbles via centrifugal force while mixing. Combined with vacuum negative pressure for deep defoaming, it finishes mixing and defoaming in one step.
Why Choose MIX650
Three Core Advantages to Cover Full‑Process Requirements of Medium‑Capacity Vacuum Defoaming
Built‑in Maintenance‑Free Vacuum for Clean DefoamingEquipped with a built‑in vacuum unit, the MIX650 requires no regular pump‑oil replacement for maintenance‑free operation with zero environmental pollution, ideal for clean‑room environments. Vacuum level is adjustable from ‑98 kPa to 0 kPa, allowing flexible parameter setup based on material viscosity and bubble characteristics. The integrated design eliminates external vacuum pump piping and extra space occupation. Featuring high integration, the unit starts vacuum defoaming right after power‑on to reduce production‑line change‑over time. | 500 mL Medium‑Capacity with Wide‑Range Speed Control500 mL dual‑cup configuration fits pilot‑scale R&D and continuous production‑line sampling. Synchronized dual‑cup operation improves batch efficiency. Wide‑range speed adjustment from 0‑2000 rpm accommodates low‑, medium‑ and high‑viscosity materials. Low‑speed settings enable gentle mixing and defoaming for high‑viscosity adhesives, while high‑speed modes deliver fast dispersion for low‑viscosity coating liquids. Synchronized dual‑driven revolution‑rotation completes mixing and defoaming in one step within approximately 1 minute. | Flexible Multi‑Segment Program Process ConfigurationThe microcomputer control system supports storage of up to 100 programs. Each program contains multiple segments with independently configurable time and speed for multi‑stage process parameter setup. User permission management and fault‑code display suit shared‑equipment scenarios with multiple operators. Program‑driven operation minimizes manual adjustment errors and guarantees consistent performance across batches. |
✨ The MIX650 integrates three core capabilities: built‑in vacuum for maintenance‑free operation, medium‑capacity dual‑cup design up to 500 mL with wide‑range speed adjustment, and flexible multi‑segment programming. It is suitable for pilot‑scale R&D and production line sampling of materials for electronic packaging, medical device bonding, aerospace composite materials and more.

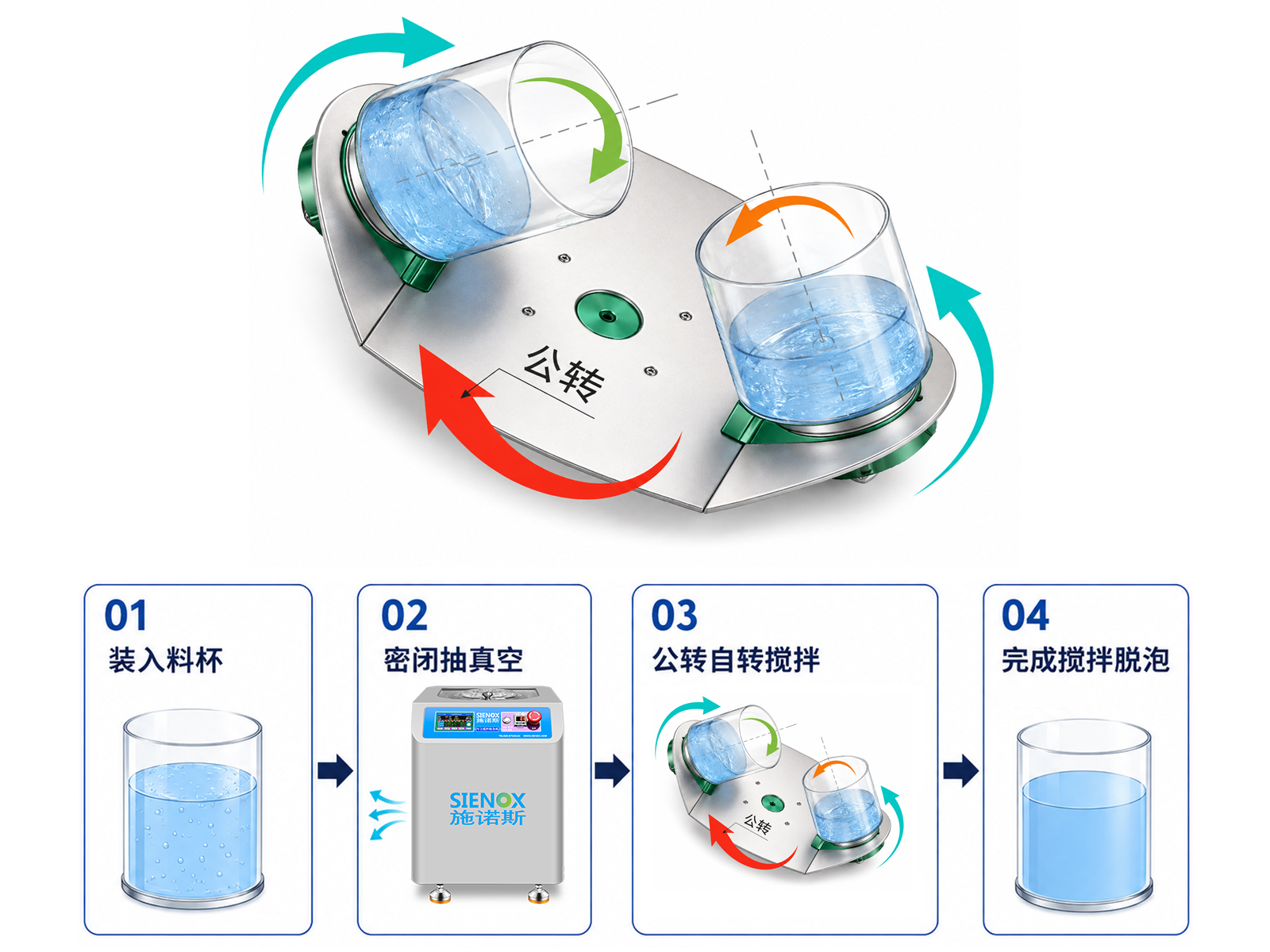

Working Principle
Synchronized operation of dual‑driven revolution and rotation enables one‑step completion of mixing and defoaming.
Step 1: Centrifugal Force from Revolution The rotating revolution plate drives the container and materials to generate strong centrifugal force, triggering full convection of materials for macro mixing. Meanwhile, centrifugal force pushes low-density bubbles toward the rotation axis, gathering and releasing large bubbles. Step 2: Shear Force from Rotation The container rotates around its own axis to produce directional shear force, breaking up agglomerated particles for micro dispersion. High speed up to 3000rpm creates powerful shear for efficient full-volume mixing, thinning bubble membranes and accelerating bubble rupture. Step 3: Vacuum Negative Pressure Boosts Defoaming While revolution and rotation proceed, the vacuum system reduces chamber pressure to -98kPa. Under low pressure, pressure difference inside and outside bubbles expands nano-sized microbubbles and speeds up their floating and release. Vacuum defoaming compensates the limitation of centrifugal force on tiny bubbles, achieving full-range defoaming from large bubbles down to nanoscale bubbles. Revolution, rotation and vacuum work simultaneously. Materials complete the full process of "Mixing → Dispersion → Deep Defoaming" inside the sealed container. 3000rpm high speed combined with -98kPa vacuum balances mixing efficiency and defoaming depth. |  |
Technical Specifications
Complete Technical Specifications Overview, Customizable on Demand
| Model | SIE‑MIX650 |
| Mixing Capacity | 0–500 mL (standard container) * Larger volume customizable |
| Container Type | Tubes / Jars / Cups; adapters for syringes and cartridges supported |
| Number of Containers | 1 or 2 jars (user‑selectable) |
| Max Speed | 0 – 2000 RPM (stepless adjustable) |
| Revolution / Rotation Ratio | Fixed planetary ratio |
| Vacuum Level | Standard: –98 kPa / Optional: –100 kPa |
| Control System | Touch‑screen, stores up to 100 recipe sets |
| Power Supply | 220V, 50/60Hz (110V US/JP standard customizable) |
| Dimensions (W×D×H) | 580 × 560 × 760 mm |
| Net Weight | 145 kg |
| Certifications | CE, ISO9001, RoHS Compliant |
Our Partners
Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide
FAQ - Frequently Asked Questions
Answers to common questions about product performance and everyday process selection
-
What is the working principle of a centrifugal defoaming machine?
Principle of centrifugal defoaming machine: The bubbles are released by the downward principle of gravity.
-
How is the after-sales service?
The company has professional after-sales service personnel, 24-hour dedicated service, and one-on-one technical support to solve your worries.
-
Why choose SIENOX?
There are many reasons for choosing SIENOX, and the following are some of the main reasons:
1. Professionalism: Our team consists of a group of professional individuals with rich experience and knowledge in their respective fields. We not only understand industry trends and best practices, but also provide practical and feasible solutions.
2. Service quality: We focus on customer needs and satisfaction, and are always committed to providing high-quality services. We not only respond quickly to customer needs, but also provide customized services according to their requirements.
3. Reliability: We adhere to the principles of integrity and professionalism, always adhering to commitments and agreements. Our work methods and deliverables comply with industry standards and best practices, enabling our clients to trust us.
4. Innovation: We continuously explore new methods and tools to provide better services and meet customer needs. We encourage innovation and experimentation, and are willing to accept challenges and change.
5. Cost effectiveness: We provide cost-effective services that not only help customers save costs, but also improve efficiency and productivity. We always prioritize the interests of our customers and provide them with the best solutions.
6. Teamwork: We believe in the power and value of teamwork, and our team members support, collaborate, and respect each other. We establish close cooperative relationships with customers, partners, and other stakeholders to achieve common goals.
The above are just some of the reasons for choosing us. We believe there are many other advantages and values that can be provided to customers. If you are looking for a professional, reliable, and high-quality service provider, we look forward to working with you.
-
How does the stirring and defoaming machine work?
The SIENOX stirring and defoaming machine performs defoaming through centrifugal force at revolution and stirring through shear force formed by revolution and rotation,
Assisted by a vacuum pump to extract gas and achieve a vacuum state, removing nanoscale tiny bubbles. No contact with materials, no secondary pollution, and no secondary waste.
-
What is the function of a defoaming machine?
A defoaming machine is a device used to remove bubbles from liquids. Its function is to assist in the liquid mixing, reaction, coating, printing, infusion and other process steps in the production process, avoiding the generation of bubbles and their impact on the final product. In many industrial and laboratory environments, removing bubbles is essential as they may have a negative impact on product quality, such as affecting surface tension and stability. Defoaming machines typically use various techniques such as vibration, ultrasound, centrifugation, etc. to achieve effective bubble removal. It has a wide range of applications, including but not limited to semiconductors, solar energy, optics, biotechnology, materials science, etc.
Technical Specification List
Compare specifications of vacuum‑series models to support accurate product selection.
| Model | SIE‑MIX60 | SIE‑MIX650 | SIE‑MIX90 |
| Mixing Capacity | 0–300 mL (standard container) * Customizable | 0–500 mL (standard container) * Customizable | 0–1000 mL (standard container) * Customizable |
| Container Type | Tubes / Jars / Cups; adapters for syringes and cartridges supported | Tubes / Jars / Cups; adapters for syringes and cartridges supported | Tubes / Jars / Cups; adapters for syringes and cartridges supported |
| Number of Containers | 1 or 2 jars (user‑selectable) | 1 or 2 jars (user‑selectable) | 1 or 2 jars (user‑selectable) |
| Max Speed | 0 – 3000 RPM (stepless adjustable) | 0 – 2000 RPM (stepless adjustable) | 0 – 2000 RPM (stepless adjustable) |
| Revolution / Rotation Ratio | Fixed planetary ratio | Fixed planetary ratio | Fixed planetary ratio |
| Vacuum Level | Standard: –98 kPa / Optional: –100 kPa | Standard: –98 kPa / Optional: –100 kPa | Standard: –98 kPa / Optional: –100 kPa |
| Control System | Touch‑screen, stores up to 100 recipe sets | Touch‑screen, stores up to 100 recipe sets | Touch‑screen, stores up to 100 recipe sets |
| Power Supply | 220V, 50/60Hz (110V US/JP standard customizable) | 220V, 50/60Hz (110V US/JP standard customizable) | 220V, 50/60Hz (110V US/JP standard customizable) |
| Dimensions (W×D×H) | 510 × 430 × 500 mm | 580 × 560 × 760 mm | 610 × 560 × 780 mm |
| Net Weight | 95 kg | 145 kg | 153 kg |
| Certifications | CE | CE | CE |
*** The above are typical models only. Customized solutions are available upon customer requirements.
Multi‑Industry Solutions
Customized solutions are available to meet comprehensive requirements ranging from cutting‑edge R&D to mass‑scale production.
Electronics IndustryEpoxy potting adhesive, conductive silver adhesive, electronic slurry, UV adhesive, thermal conductive gel |
Aerospace & Defense IndustryComposite matrix resin, structural adhesive, radar absorbing coating, functional coating liquid |
Medical Device IndustryMedical adhesive, sensor encapsulation adhesive, catheter coating liquid, diagnostic reagent carrier |
Chemical IndustryResin casting compound, resin solution, catalyst slurry, reactive adhesive |
Adhesive & Sealant IndustryStructural adhesive, sealant, conductive adhesive, high-temperature adhesive |
3D Printing IndustryPhotosensitive resin, functional ink, ceramic slurry, composite prepreg |
Comprehensive Equipment Operation Demo Videos
Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.

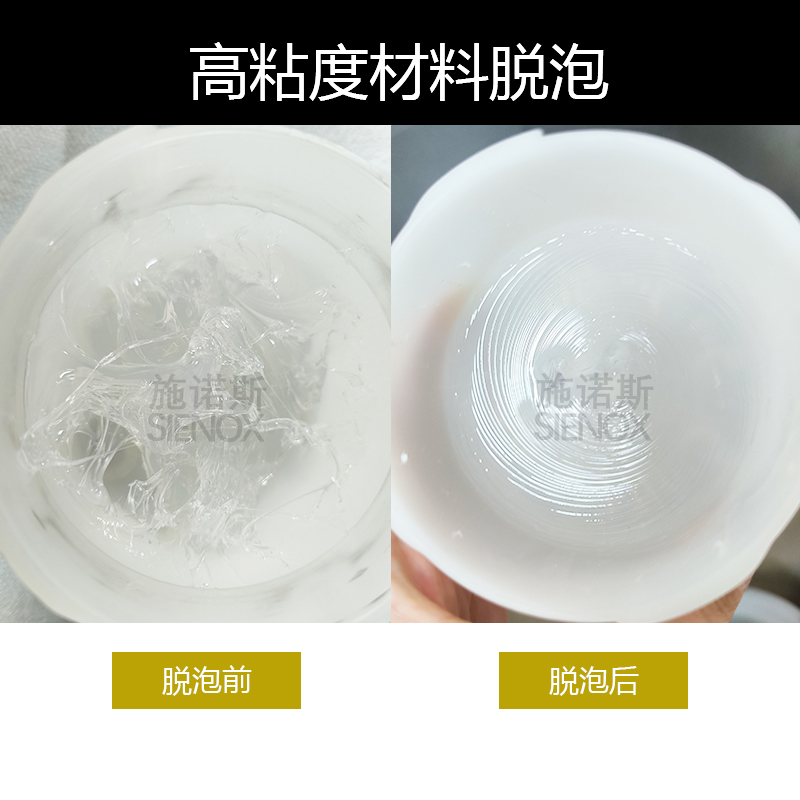

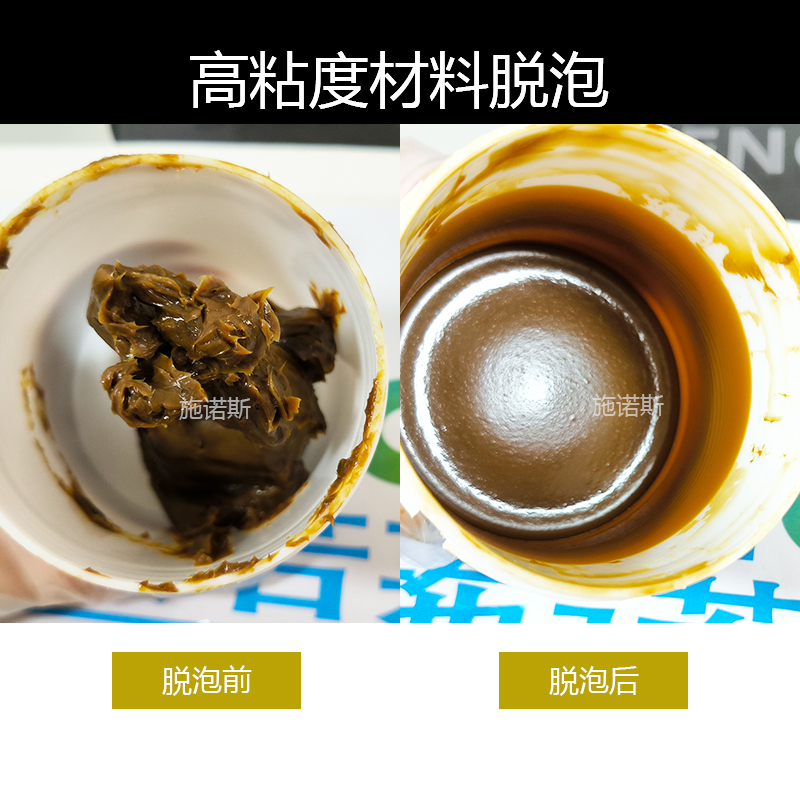

Actual Test Results of Defoaming Process
Completely get rid of material bubble voids and delamination.

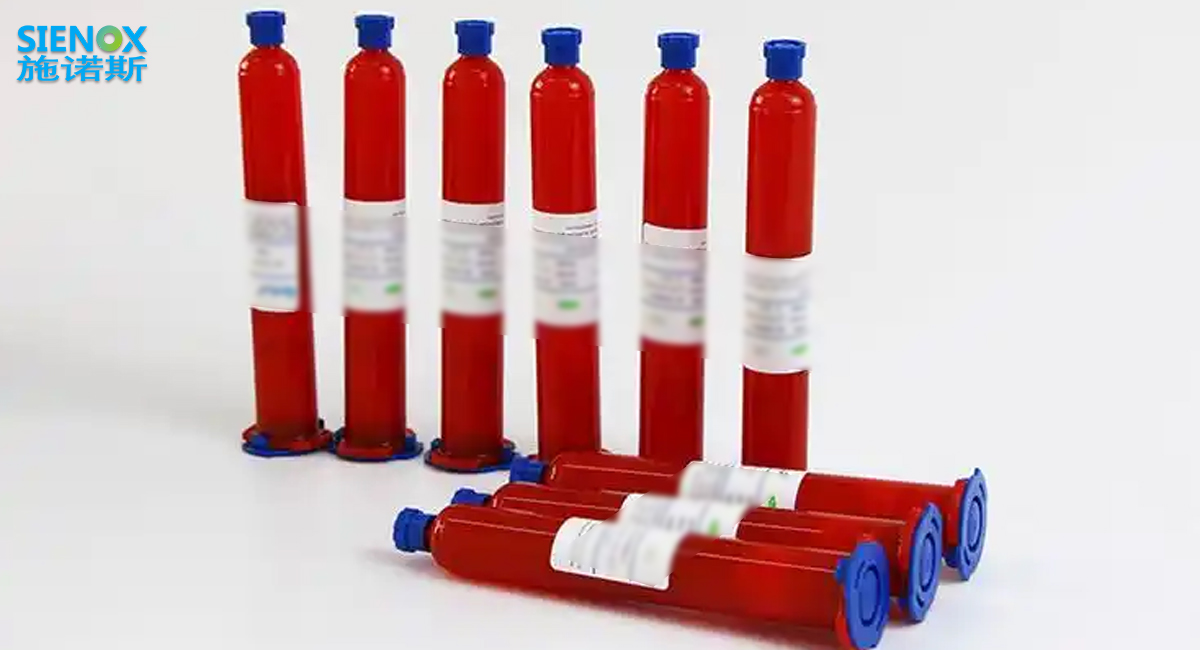

UV Adhesive |
Epoxy Resin |
Polymer Materials |
Pharmaceutical Gel |
Silver Paste |
Battery Slurry |
Measured Data Comparison
Data‑Backed · Quantifiable Performance
| Material Type | Status Before Treatment | After MIX650 Treatment |
| Epoxy Potting Compound | Dense internal bubbles, approx. 5% encapsulation void rate, unstable insulation performance | Bubbles eliminated, encapsulation void rate <0.5%, stable insulation performance |
| Lithium‑ion Battery Cathode Slurry | Abundant internal bubbles, approx. 6% coating pinhole rate, large thickness deviation | Bubbles eliminated, coating pinhole rate <1%, uniform thickness |
| Thermal‑Conductive Grease | Numerous internal bubbles, thermal powder agglomeration, thermal conductivity deviation ±15% | Homogeneously dispersed powder, bubbles eliminated, thermal conductivity deviation ±3% |
* Internal laboratory test data. Actual improvement varies with material formulation. Real‑world customer references are available upon request from sales.
