Supports a wide range of materials, including high-viscosity materials and nano fillers

Wide variety of adapters for using various containers

High-specific-weight materials such as fluorescent material can be evenly dispersed and deaerated without sedimentation

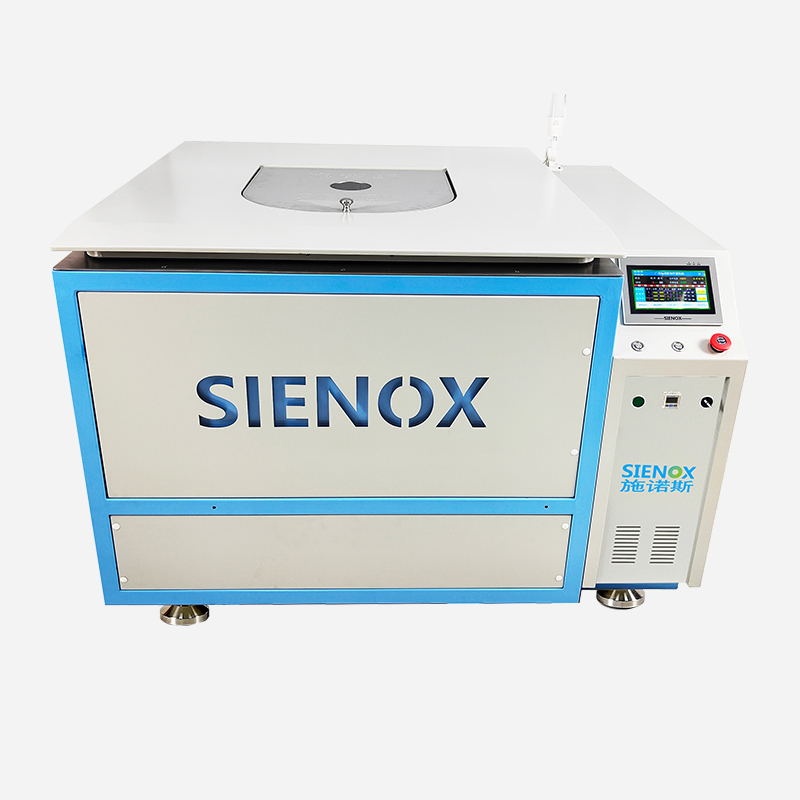

The Vacuum Planetary Centrifugal Defoaming Machine is designed for mixing and deaerating various kinds of liquid, slurry, paste, and powder materials. It could be used for mixing and homogenizing nanopowders, nanotubes, ceramics powders, battery powder/slurry, metal powders, and especially high viscosity slurry/paste.

Main features:

1. The Star shaped defoaming function does not come into contact with external substances and does not alter the chemical properties of the product.

2. The unique patented design generates strong centrifugal force, resulting in superior defoaming effect, cleanliness, and efficiency.

3. Has security detection function.

4. Digital display of time and speed.

5. Suitable for needles of different specifications.

6. Beautiful and elegant appearance, sturdy and durable.

7. Convenient and fast to use, saving time, and improving efficiency.

8. Customized as needed, laboratory silent and industrial high-capacity models meet the needs of different types of customers.

Sienox is a leading manufacturer specializing in the research and production of defoaming equipment. We can customize vacuum, mixing, and temperature control functions, with advanced technology and rich experience, providing customers with one-stop solutions. Free samples and trial prototypes are available, and various types of containers such as syringe/mixing cup/mixing tank can be used for defoaming and stirring. Contact customer service for detailed information!

The vacuum stirring defoaming machine is an advanced defoaming equipment with planetary defoaming function, which does not require external substances to contact the product and does not change the chemical properties of the product. The unique patented design generates strong centrifugal force, making the material defoaming clean and efficient. Integrating into production management, supporting MES system integration, and providing personalized customization services according to different customer needs. It has a wide range of application scenarios, beautiful and elegant appearance, and is sturdy and durable.

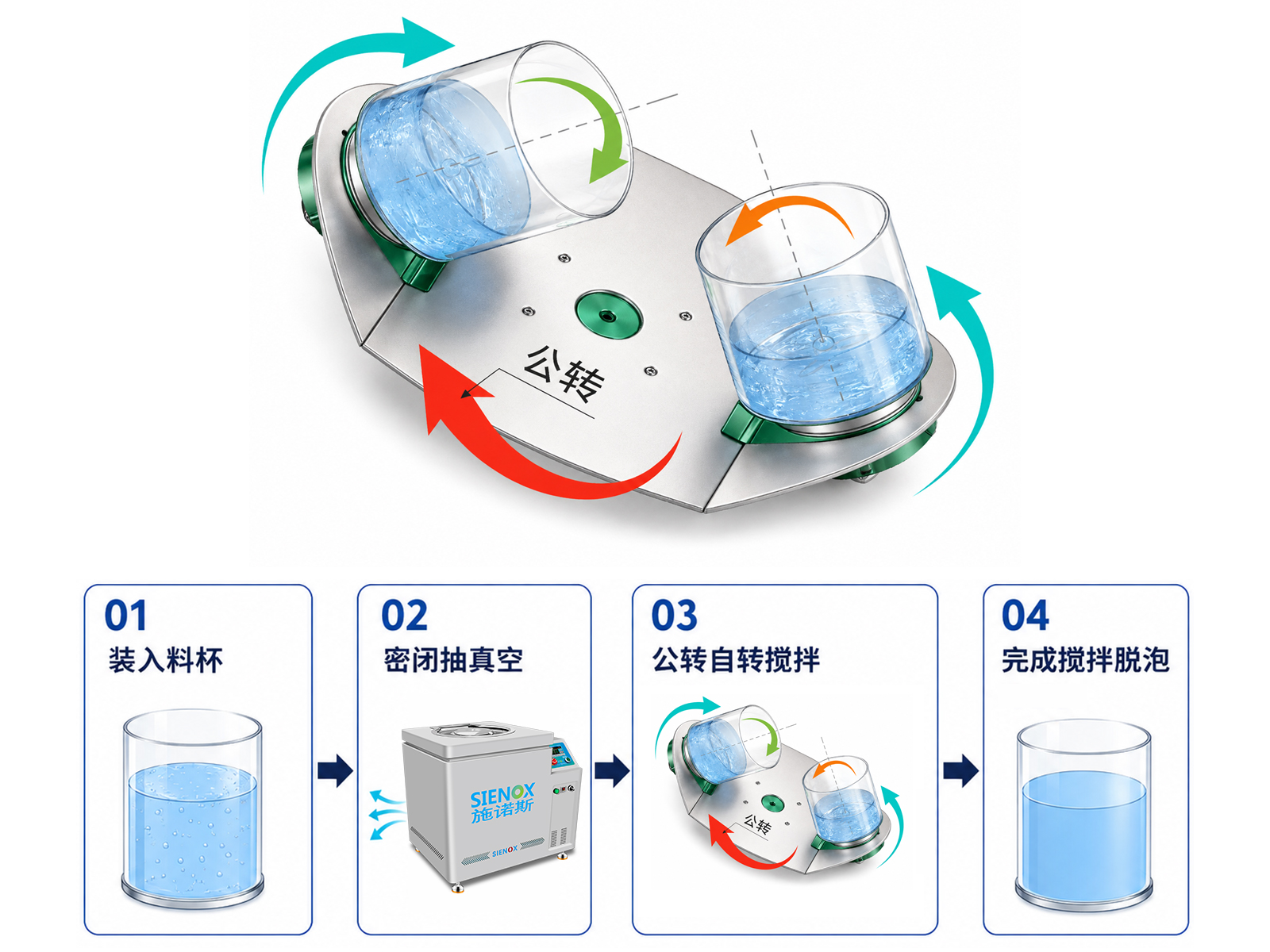

Working principle

By using the centrifugal force from planetary rotation and the shearing force from rotation for mixing, supplemented by a vacuum pump to extract gases, tiny bubbles in the liquid can be efficiently removed, improving product quality.

Comparison of Material Effects

Our equipment can be applied to various materials, including but not limited to fluorescent powders, adhesives, silicone gel, silver paste, aluminum paste, adhesives, inks, silver nanoparticles, silver nanowires, conductive silver paste, insulating adhesive, battery paste, etc. It can be stirred from liquid to solid, liquid to liquid, and solid to solid substances.

Only partial cases are displayed/materials are welcome to be brought to SIENOX for sample testing and machine testing

Product parameters table

***The above are just typical models, and we can provide personalized solutions according to customer needs.

6 core advantages

-High speed

0-3000RPM adjustable

-High vacuum degree

The vacuum degree can reach -100KPA

-High altitude physical quantity

0-30L can be customized

-Low noise

The noise can be as low as 50DB

-Revolution rotation ratio

Optional fixed speed ratio/freely adjustable

-Suitable for various containers

Compatible with various tubes/cans/cups/own containers

application area

Our cooperative clients

***Only partial successful customer information is displayed. We need more case studies and product selection materials. Please feel free to contact us

 Sienox Defoaming Machine Product Selection Table

***The above are just typical models, and we can provide personalized solutions according to customer needs.

Main features:

1. The Star shaped defoaming function does not come into contact with external substances and does not alter the chemical properties of the product.

2. The unique patented design generates strong centrifugal force, resulting in superior defoaming effect, cleanliness, and efficiency.

3. Has security detection function.

4. Digital display of time and speed.

5. Suitable for needles of different specifications.

6. Beautiful and elegant appearance, sturdy and durable.

7. Convenient and fast to use, saving time, and improving efficiency.

8. Customized as needed, laboratory silent and industrial high-capacity models meet the needs of different types of customers.

Sienox is a leading manufacturer specializing in the research and production of defoaming equipment. We can customize vacuum, mixing, and temperature control functions, with advanced technology and rich experience, providing customers with one-stop solutions. Free samples and trial prototypes are available, and various types of containers such as syringe/mixing cup/mixing tank can be used for defoaming and stirring. Contact customer service for detailed information!
