Vacuum Planetary Mixing Defoamer

TEL:18925129293

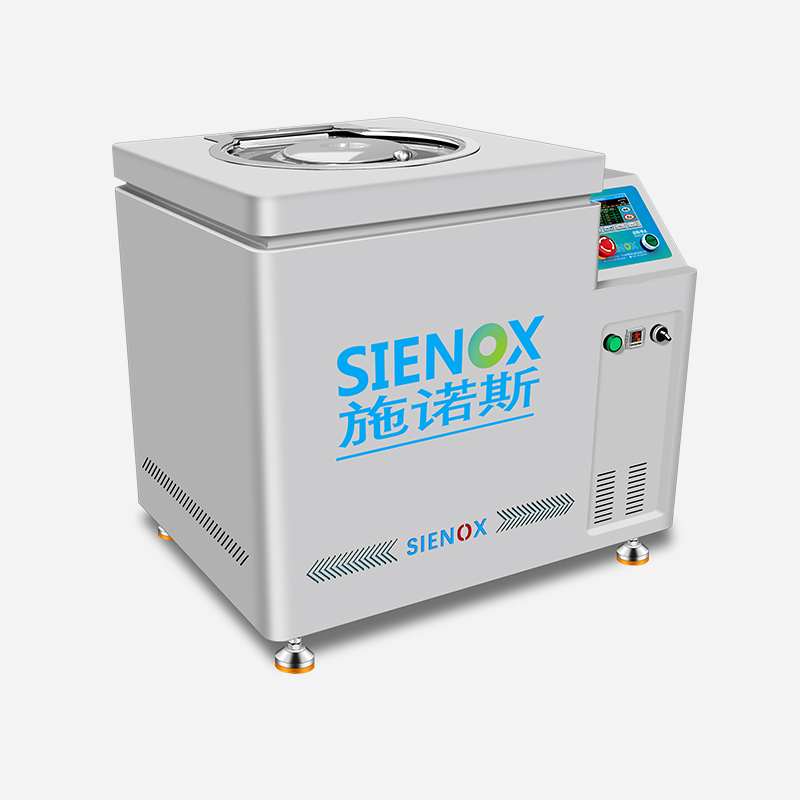

SIENOX Planetary Vacuum Mixer SIE‑MIX1000plus


Non-contact, blade-less mixing – suitable for small-scale, pilot-scale, and deep microbubble processing

1000mL laboratory/small-scale trial + -98kPa vacuum standard + 0-2000rpm variable speed

The SIE-MIX1000plus planetary vacuum degasser is designed to meet mixing and degassing needs from 0-1000mL. It features both rotary and self-rotating stirring mechanisms in a -98kPa vacuum environment, enabling consistent mixing density, uniform dispersion, and deep degassing for materials such as lithium batteries, photovoltaic conductive slurries, and medical high-molecular gels. It is suitable for small-scale pilot production of these materials and offers customization options.

✓ CE certification ✓ ISO9001 quality management system ✓ RoHS compliance ✓ Customizable voltage (110V/220V)

Online Message Free Sample Testing Engineer Hotline: 189-2512-9293

Why is it necessary to eliminate microbubbles in the material?

The presence of nanoscale microbubbles within the material directly impacts product yield and performance stability.

The new energy lithium battery industry

The internal layers of the positive and negative electrodes contain microscopic bubbles that are not visible to the naked eye. During coating and heating, these bubbles expand and break, leading to pinholes, indentations, and powder shedding on the electrodes. Variations in the viscosity of the slurry can cause inconsistent internal resistance within the cell, which negatively impacts the battery's cycle life. During charging and discharging, stress concentrations can form in the bubble areas, leading to localized temperature increases and an increased risk of cell failure, ultimately raising production costs.

The silver paste industry for solar photovoltaic (PV) applications.

Internal bubbles in the silver paste block conductive paths and undermine the stability of power‑generation efficiency for PV modules. After coating, bubbles produce pits and color differences, which easily cause appearance inspection failures. Bubbles reduce bonding strength between silver paste and silicon‑wafer substrates. Silver layer peeling may occur under long‑term outdoor exposure and shorten the service life of photovoltaic panels.

Medical high-molecular weight gel industry

Bubbles trapped in raw materials for medical gels and biological dressings form cavities after curing and impair the uniformity of drug sustained release. Surface pinholes on gels weaken sealing and protection performance and bring risks of microbial growth. Bubbles inside high‑transparency medical consumables trigger light scattering, making it difficult for light‑transmission parameters to meet medical‑device testing standards.

✨ Traditional de-gassing challenges: Conventional planetary mixers rely on centrifugal force to remove bubbles, with limited effectiveness in removing nanometer-sized bubbles in high-viscosity materials. Static de-gassing is time-consuming and incomplete. Vacuum-assisted mixing applies a -98kPa vacuum, reducing the pressure difference between the inside and outside of the bubbles, promoting the expansion and release of microbubbles, achieving a deep de-gassing effect that conventional mixing cannot.

Why Choose SIE‑MIX1000plus

Designed specifically for vacuum defoaming in small‑batch production scenarios

Large‑Capacity Dual‑Station Design

Standard 1000 mL dual‑station simultaneous processing among comparable models, supporting up to 1000 mL material per batch. Wide adjustable speed range from 100‑2000 rpm, compatible with various materials ranging from low‑viscosity inks to high‑viscosity metal slurries. Optional heating and cooling assemblies are available for heat‑sensitive and easily‑cured experimental materials. Multiple material tests can be completed without switching different devices.

Vacuum Planetary Decanting

Fully sealed chamber equipped with vacuum pressure gauge maintains stable ‑98 kPa negative pressure. Planetary revolution together with container counter‑rotation generates composite centrifugal force for full‑range material tumbling, accelerating precipitation and floating‑up of deep‑layer micro‑bubbles. Compared with centrifugal‑only defoaming equipment, the combined vacuum‑planetary effect reduces residual micro‑bubbles and minimizes finished‑product defects such as voids and pinholes.

Intelligent Programmable Control System

Touch‑screen operation panel supports saving 100 groups of custom mixing programs. Optional MES industrial data interface fully records process parameters including rotation speed, vacuum level and running duration for batch‑to‑batch data traceability. Equipped with mechanical safety lock, emergency‑stop button and overload power‑off protection, the machine meets daily‑use requirements for university laboratories and factory pilot workshops.


✨ When vacuum defoaming is required and production volume reaches the 1000 mL level, SIE‑MIX1000plus serves as the preferred pilot‑scale option within the planetary vacuum mixer‑defoamer series for small‑batch applications.

Working Principle

Adopt synergistic process of planetary revolution + container rotation + sealed high‑vacuum environment

The rotating revolution plate drives the container and materials to generate strong centrifugal force, triggering full convection of materials for macro mixing. Meanwhile, centrifugal force pushes low-density bubbles toward the rotation axis, gathering and releasing large bubbles.

Container rotation: The container rotates in the opposite direction of the material feed, creating a 360° fluid turbulence within the container, resulting in uniform mixing throughout. The absence of an internal stirring paddle minimizes the risk of contamination from metal particles.

Sealed Vacuum De-aeration: The sealed chamber creates a vacuum of -98kPa, significantly increasing the pressure difference between the material and the surrounding environment. This allows for the gradual expansion, rising, and removal of microscopic bubbles, resulting in a single-stage process that simultaneously mixes and de-airs the material, achieving a higher degree of homogeneity and superior de-airing performance compared to conventional open-type mixing equipment.

Vacuum Mixing Defoaming Machine Working Principle.jpg

Technical Specifications and parameters

Alignment of core hardware performance metrics data

ModelSIE-MIX1000Plus
Mixing Capacity0-1000 mL (standard container) * Customizable
Container typesTest tube/can/cup; Support syringe and cartridge adapter
Number of containers1 or 2 cans (user selectable)
Maximum RPM100-2000 RPM (infinitely adjustable)
Revolution/Rotation RatioFixed planetary ratio
Vacuum levelStandard: -98 kPa/Optional: -100 kPa
Control SystemTouchscreen,capable of storing 100 sets of recipe parameters
Power supply220V, 50/60Hz (customizable 110V according to US and Japanese standards)
Dimensions (W × D × H)820 × 610 × 760 mm
Net weight165 kg
Certification CE,ISO9001,and RoHS compliance


Our Partners

Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide

Partner Showcase

FAQ - Frequently Asked Questions

Answers to common questions about product performance and everyday process selection

  • What is the working principle of a centrifugal defoaming machine?

    Principle of centrifugal defoaming machine: The bubbles are released by the downward principle of gravity.

  • How is the after-sales service?

    The company has professional after-sales service personnel, 24-hour dedicated service, and one-on-one technical support to solve your worries.

  • Why choose SIENOX?

    There are many reasons for choosing SIENOX, and the following are some of the main reasons:

    1. Professionalism: Our team consists of a group of professional individuals with rich experience and knowledge in their respective fields. We not only understand industry trends and best practices, but also provide practical and feasible solutions.

    2. Service quality: We focus on customer needs and satisfaction, and are always committed to providing high-quality services. We not only respond quickly to customer needs, but also provide customized services according to their requirements.

    3. Reliability: We adhere to the principles of integrity and professionalism, always adhering to commitments and agreements. Our work methods and deliverables comply with industry standards and best practices, enabling our clients to trust us.

    4. Innovation: We continuously explore new methods and tools to provide better services and meet customer needs. We encourage innovation and experimentation, and are willing to accept challenges and change.

    5. Cost effectiveness: We provide cost-effective services that not only help customers save costs, but also improve efficiency and productivity. We always prioritize the interests of our customers and provide them with the best solutions.

    6. Teamwork: We believe in the power and value of teamwork, and our team members support, collaborate, and respect each other. We establish close cooperative relationships with customers, partners, and other stakeholders to achieve common goals.

    The above are just some of the reasons for choosing us. We believe there are many other advantages and values that can be provided to customers. If you are looking for a professional, reliable, and high-quality service provider, we look forward to working with you.


  • How does the stirring and defoaming machine work?

    The SIENOX stirring and defoaming machine performs defoaming through centrifugal force at revolution and stirring through shear force formed by revolution and rotation,

    Assisted by a vacuum pump to extract gas and achieve a vacuum state, removing nanoscale tiny bubbles. No contact with materials, no secondary pollution, and no secondary waste.

  • What is the function of a defoaming machine?

    A defoaming machine is a device used to remove bubbles from liquids. Its function is to assist in the liquid mixing, reaction, coating, printing, infusion and other process steps in the production process, avoiding the generation of bubbles and their impact on the final product. In many industrial and laboratory environments, removing bubbles is essential as they may have a negative impact on product quality, such as affecting surface tension and stability. Defoaming machines typically use various techniques such as vibration, ultrasound, centrifugation, etc. to achieve effective bubble removal. It has a wide range of applications, including but not limited to semiconductors, solar energy, optics, biotechnology, materials science, etc.

Technical Specification Overview

Comprehensive parameter specifications to help you accurately evaluate and select the right manufacturing process

ModelSIE-MIXF301SIE-MIX90SIE-MIX1000Plus
Mixed capacity0-300 mL (standard container) * Customizable0-1000 mL (standard container) * Customizable0-1000 mL (standard container) * Customizable
Container typeTest tube/can/cup; Support syringes and cartridge adaptersTest tube/can/cup; Support syringes and cartridge adaptersTest tube/can/cup; Support syringes and cartridge adapters
Number of containers1 or 2 cans (user selectable)1 or 2 cans (user selectable)1 or 2 cans (user selectable)
Maximum RPM0-2000 RPM (infinitely adjustable)0-2000 RPM (infinitely adjustable)100-2000 RPM (infinitely adjustable)
Orbital/Rotati RatioFree adjustableFixed planetary ratioFixed planetary ratio
Vaccum levelStandard: -98 kPa/Optional: -100 kPaStandard: -98 kPa/Optional: -100 kPaStandard: -98 kPa/Optional: -100 kPa
Control SystemTouchscreen, capable of storing 100 sets of recipe parametersTouchscreen, capable of storing 100 sets of recipe parametersTouchscreen, capable of storing 100 sets of recipe parameters
Power supply220V, 50/60Hz (customizable 110V according to US and Japanese standards)220V, 50/60Hz (customizable 110V according to US and Japanese standards)220V, 50/60Hz (customizable 110V according to US and Japanese standards)
Dimensions (W × D × H)510 × 430 × 500 mm610 × 560 × 780 mm820 × 610 × 760 mm
Net weight115kg153 kg165 kg
CertificationCECECE

***The above are only typical models, and we can provide personalized solutions according to customer needs.


Multi‑Industry Solutions

We offer customized solutions to meet the full range of needs, from cutting-edge research and development to large-scale production.


The New Energy Lithium‑battery Industry

Lithium‑ion battery cathode & anode slurries, conductive agents, insulating potting adhesives, thermal‑conductive greases, auxiliary electrolyte materials


The Photovoltaic & Optoelectronic Industry

PV silver paste, aluminum paste, encapsulating adhesive films, optical coatings, phosphor powders, conductive nano‑slurries


The Electronics & Semiconductor Industry

Epoxy conductive adhesives, UV encapsulation adhesives, insulating black adhesives, silver nanowires, thermal‑conductive gels, chip underfill adhesives


The Advanced‑Material R&D Industry

Nano‑powder dispersions, polymer composite materials, ceramic slurries, high‑filler pastes, fluorescent color pastes


The Medical & Biological Industry

Medical transparent gels, biological dressing raw materials, dental resins, sterile bonding adhesives, pharmaceutical ointments


The Ink, Coating & Chemical Industry

Conductive inks, anti‑corrosion coatings, color pastes, lubricating greases, high‑viscosity resins, various industrial adhesives

Comprehensive demonstration video of device operation

Experience the intuitive, clear, and dynamic appeal of the innovative technology that synchronizes planetary motion with high-pressure foam removal

Actual Test Results of Defoaming Process

Eliminate Material Bubbles, Voids and Delamination Completely

Potting Adhesive Defoaming.jpg

Potting Adhesive

Photoresist Mixing & Defoaming.jpg

Photoresist

Structural Adhesive Defoaming Comparison.jpg

Structural Adhesive

Cosmetic Serum Defoaming.jpg

Cosmetic Serum

Lubricant Oil Mixing & Defoaming.jpg

Lubricant Oil

Tricolor Ink Mixing & Defoaming.jpg

Ink



Actual data comparison

Data‑Driven Validation · Quantifiable Performance

Material TypePre processing statusMIX1000PLUS processed
Photovoltaic conductive silver pasteFine and tiny bubbles in the slurry, uneven surface of the paste, weak flowability, and easy occurrence of pinhole defects during coatingThe paste is uniformly transparent, with no obvious bubbles observed by the naked eye, and flows smoothly without powder agglomeration. The coating film layer is smooth and continuous
Lithium battery positive and negative electrode pastePowder is prone to agglomeration, with a large number of microbubbles wrapped inside the raw materials, uneven thickness of the slurry, and easy layering after standingThe active substance is evenly dispersed, the layering phenomenon is alleviated, the bubble content is significantly reduced, and the pinholes and powder falling defects in the coated and formed electrode pieces are reduced
Epoxy encapsulation resinColloids are wrapped in air, and solidification molding is prone to cavities and fine cracks, which can easily affect the bonding strengthThe resin molding texture is dense, the probability of cavities is reduced, the cured surface is flat and smooth, and the insulation, sealing, and bonding properties are more stable

*Internal laboratory testing data shows that the specific increase varies depending on the material formula. Real customer cases can be obtained by contacting sales.

Customer Delivery & Application Cases

Rooted in manufacturing frontlines, empowering benchmark production lines and key national research institutions across diverse industries.



Stirring‑Defoaming Solution for Glue Materials in Consumer‑Electronics Industry



Vacuum Defoaming Solution for Consumer Electronics Adhesives



Industrial University Solves Bubble Challenges of Coating‑Film Materials with SIENOX Defoaming Machine
