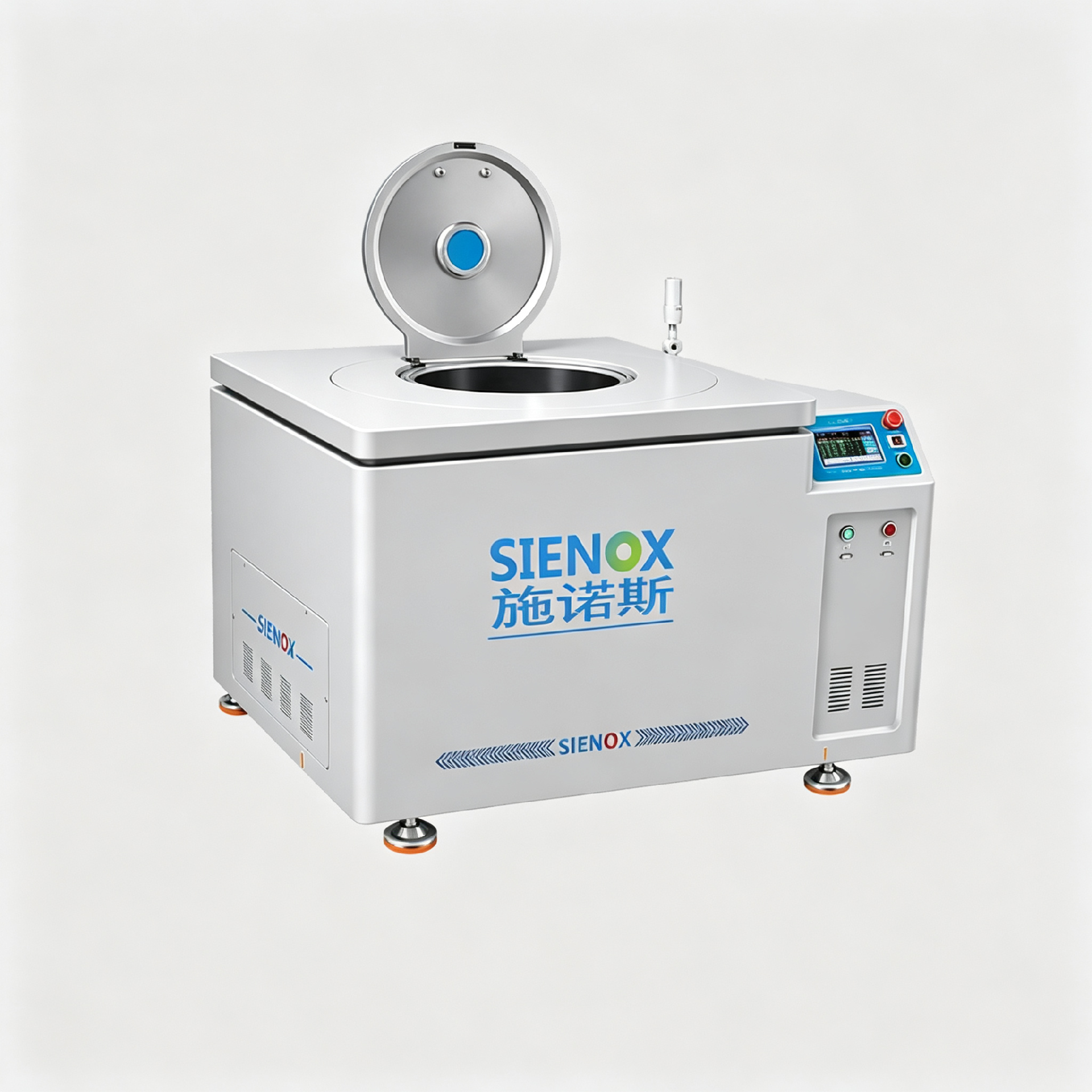

SIENOX Large‑Capacity Planetary Mixer‑Defoamer SIE‑CV5000
5000mL Dual‑Cup Planetary Mixing · Wide Speed Range for Flexible Mass Production of Multi‑Viscosity Materials
5000mL Large‑Capacity Dual‑Cup + 0‑1200rpm Stepless Speed Adjustment + 100‑Set Recipe Storage
SIE‑CV5000 is a large‑capacity mass‑production unit in SIENOX CV series. Equipped with 5000mL dual‑cup and 0‑1200rpm wide‑range mixing, it meets flexible mass‑production requirements for materials of various viscosities. Built with 304 stainless‑steel structure, the machine comes standard with safety interlock and inertia‑delay protection. Optional expansions include vacuum, temperature control and MES system integration.
✓ CE Certification ✓ ISO9001 Quality System ✓ RoHS Compliance ✓ Customizable Voltage (110V/220V)
Why Must Microbubbles in Materials Be Eliminated?
Residual micro‑bubbles in materials directly affect product yield and performance stability.
Lithium‑battery ManufacturingBubbles in lithium‑battery anode and cathode slurries cause uneven coating areal density, impairing conductive networks and ion‑transport paths, and reducing battery capacity, cycle life and safety performance. | Synthetic Resin IndustryEntrapped bubbles in synthetic resins trigger internal voids and surface defects after curing, lowering transparency, mechanical strength and chemical resistance, and harming quality consistency of downstream products. | Optoelectronic & Communications IndustryBubbles in optoelectronic packaging materials lead to light‑signal scattering and transmission loss, degrading coupling efficiency and signal stability of fiber‑optic connectors and optical lenses. |
✨ Traditional Defoaming Pain Points: Manual mixing yields poor homogeneity and incomplete defoaming for medium‑to‑high‑viscosity materials; conventional equipment with fixed speed struggles with varied viscosities; insufficient capacity requires repeated batches and compromises batch‑to‑batch consistency.
Why Choose SIE-CV5000
Three Core Features Built for Mass‑Production of High‑Viscosity Materials at Extra‑Large Volume
Flexible Dual‑Cup OutputSuited for medium‑scale production workflows. Adjustable runtime from 0‑30 minutes together with 100‑set recipe storage enables fast process switching for diverse materials and reduces downtime for material change‑over. | Multi‑Speed Material Compatibility0‑1200rpm stepless adjustment covers medium to medium‑high speed range. Low‑speed operation prevents splashing for medium‑to‑high‑viscosity slurries while higher‑speed mode disperses low‑viscosity liquids. One unit fulfills multi‑material process requirements and cuts multi‑equipment investment costs. | Balanced Heavy‑Duty Stable PlatformStainless‑steel cabinet balances production capacity and footprint. Standard multi‑protections include safety interlock, inertia delay and fault indication. Micro‑computer control supports operator permission management and 100‑set recipe storage for multi‑shift production. Vacuum, temperature control and MES networking are available as optional upgrades. |
✨ When production demand ranges from 2L to 10L or flexible mass production of multi-viscosity materials is required, the SIE-CV5000 serves as a balanced 5L-level option in the CV series.
Working Principle
Synchronized dual-power revolution and rotation operation, with a wide speed range, enables efficient mixing and defoaming for materials of various viscosities.
Step 1: Centrifugal force from revolution Step 2: Shear force from rotation Revolution and rotation run simultaneously. Materials complete the full cycle of "Mixing → Dispersion → Defoaming" inside the sealed container. Constant speed ratio maintained by gear transmission guarantees consistency and repeatability of test data across batches. | ![]() |
Technical Specifications
Complete Technical Specifications Overview, Customizable on Demand
| Model | SIE‑CV5000 |
| Mixing Capacity | 0–5000 mL (standard vessel) * Larger volume customizable |
| Vessel Type | Test tube / can / cup; adapters for syringes & cartridges available |
| Vessel Quantity | 1 or 2 cans (user‑selectable) |
| Max Speed | 0 – 1200 RPM (stepless adjustable) |
| Revolution / Rotation Ratio | Fixed speed ratio |
| Vacuum Degree | Optional: –98 kPa / –100 kPa |
| Control System | Touch screen, stores up to 100 recipe sets |
| Power Supply | 220V, 50/60Hz (110V US/JP standard customizable) |
| Dimensions(W×D×H) | 1100×780×880mm |
| Net Weight | Approx. 225kg |
| Certifications | CE, ISO9001, RoHS Compliance |
Our Partners
Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide
FAQ - Frequently Asked Questions
Answers to common questions about product performance and everyday process selection
-
What is the working principle of a centrifugal defoaming machine?
Principle of centrifugal defoaming machine: The bubbles are released by the downward principle of gravity.
-
How is the after-sales service?
The company has professional after-sales service personnel, 24-hour dedicated service, and one-on-one technical support to solve your worries.
-
Why choose SIENOX?
There are many reasons for choosing SIENOX, and the following are some of the main reasons:
1. Professionalism: Our team consists of a group of professional individuals with rich experience and knowledge in their respective fields. We not only understand industry trends and best practices, but also provide practical and feasible solutions.
2. Service quality: We focus on customer needs and satisfaction, and are always committed to providing high-quality services. We not only respond quickly to customer needs, but also provide customized services according to their requirements.
3. Reliability: We adhere to the principles of integrity and professionalism, always adhering to commitments and agreements. Our work methods and deliverables comply with industry standards and best practices, enabling our clients to trust us.
4. Innovation: We continuously explore new methods and tools to provide better services and meet customer needs. We encourage innovation and experimentation, and are willing to accept challenges and change.
5. Cost effectiveness: We provide cost-effective services that not only help customers save costs, but also improve efficiency and productivity. We always prioritize the interests of our customers and provide them with the best solutions.
6. Teamwork: We believe in the power and value of teamwork, and our team members support, collaborate, and respect each other. We establish close cooperative relationships with customers, partners, and other stakeholders to achieve common goals.
The above are just some of the reasons for choosing us. We believe there are many other advantages and values that can be provided to customers. If you are looking for a professional, reliable, and high-quality service provider, we look forward to working with you.
-
How does the stirring and defoaming machine work?
The SIENOX stirring and defoaming machine performs defoaming through centrifugal force at revolution and stirring through shear force formed by revolution and rotation,
Assisted by a vacuum pump to extract gas and achieve a vacuum state, removing nanoscale tiny bubbles. No contact with materials, no secondary pollution, and no secondary waste.
-
What is the function of a defoaming machine?
A defoaming machine is a device used to remove bubbles from liquids. Its function is to assist in the liquid mixing, reaction, coating, printing, infusion and other process steps in the production process, avoiding the generation of bubbles and their impact on the final product. In many industrial and laboratory environments, removing bubbles is essential as they may have a negative impact on product quality, such as affecting surface tension and stability. Defoaming machines typically use various techniques such as vibration, ultrasound, centrifugation, etc. to achieve effective bubble removal. It has a wide range of applications, including but not limited to semiconductors, solar energy, optics, biotechnology, materials science, etc.
Technical Specification List
Compare Models in the Same Series for Accurate Selection
| Model | SIE‑CV5000 | SIE‑CV10L | SIE‑CV20L |
| Mixing Capacity | 0–5000 mL (standard vessel) * Customizable | 0–10000 mL (standard vessel) * Customizable | 0–20000 mL (standard vessel) * Customizable |
| Vessel Type | Test tube / can / cup; adapters for syringes & cartridges available | Test tube / can / cup; adapters for syringes & cartridges available | Test tube / can / cup; adapters for syringes & cartridges available |
| Vessel Quantity | 1 or 2 cans (user‑selectable) | 1 or 2 cans (user‑selectable) | 1 or 2 cans (user‑selectable) |
| Max Speed | 0 – 1200 RPM (stepless adjustable) | 0 – 800 RPM (stepless adjustable) | 0 – 600 RPM (stepless adjustable) |
| Revolution / Rotation Ratio | Fixed speed ratio | Fixed speed ratio | Fixed speed ratio |
| Vacuum Degree | Optional: –98 kPa / –100 kPa | Optional: –98 kPa / –100 kPa | Optional: –98 kPa / –100 kPa |
| Control System | Touch screen, stores up to 100 recipe sets | Touch screen, stores up to 100 recipe sets | Touch screen, stores up to 100 recipe sets |
| Power Supply | 220V, 50/60Hz (110V US/JP standard customizable) | 220V, 50/60Hz (110V US/JP standard customizable) | 220V, 50/60Hz (110V US/JP standard customizable) |
| Dimensions(W×D×H) | 1100 × 780 × 880 mm | 1100 × 780 × 880 mm | 1100 × 780 × 880 mm |
| Net Weight | 225 kg | 225 kg | 225 kg |
| Certifications | CE | CE | CE |
***Above are typical models only. SIENOX provides customized solutions according to customer requirements. For model‑selection consultation: 189‑2512‑9293
Multi‑Industry Solutions
Covers typical lab‑scale mixing and degassing applications for R&D materials across six major industries.
Lithium‑ion Battery Electrode MaterialsCathode slurry, anode slurry |
Synthetic Resin MaterialsEpoxy resin, phenolic resin, unsaturated polyester |
Optoelectronic & Communication MaterialsOptical fiber coating adhesive, optical bonding adhesive, display encapsulation adhesive |
![]() Medical Catheter MaterialsMedical catheter adhesive, medical sensor encapsulation adhesive |
Coatings & ChemicalsIndustrial baking paint, powder coating |
Industrial SealantsPolysulfide sealant, butyl sealant |
Comprehensive Equipment Operation Demo Videos
Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.

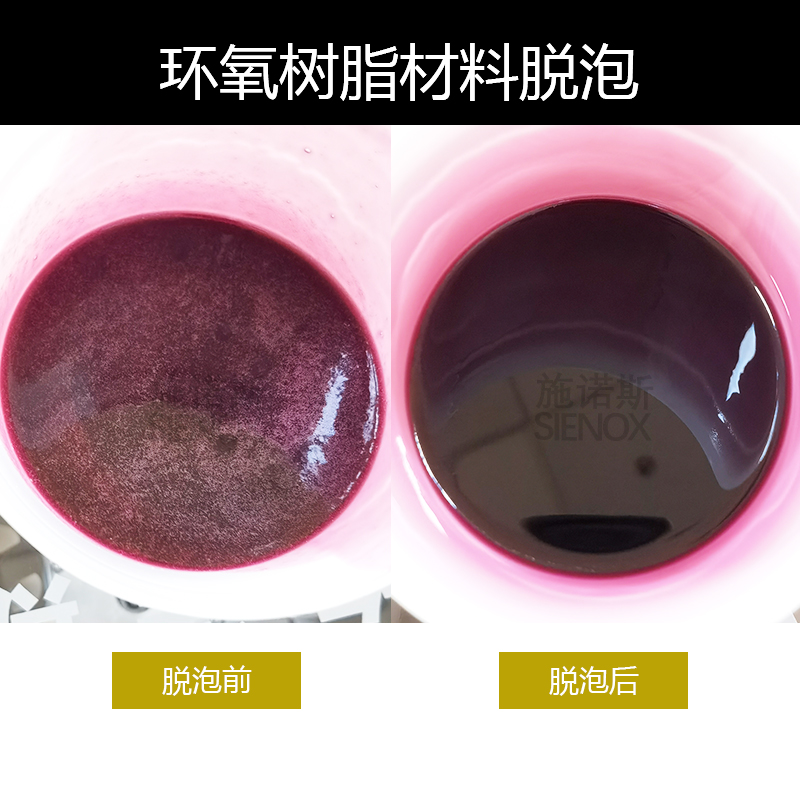

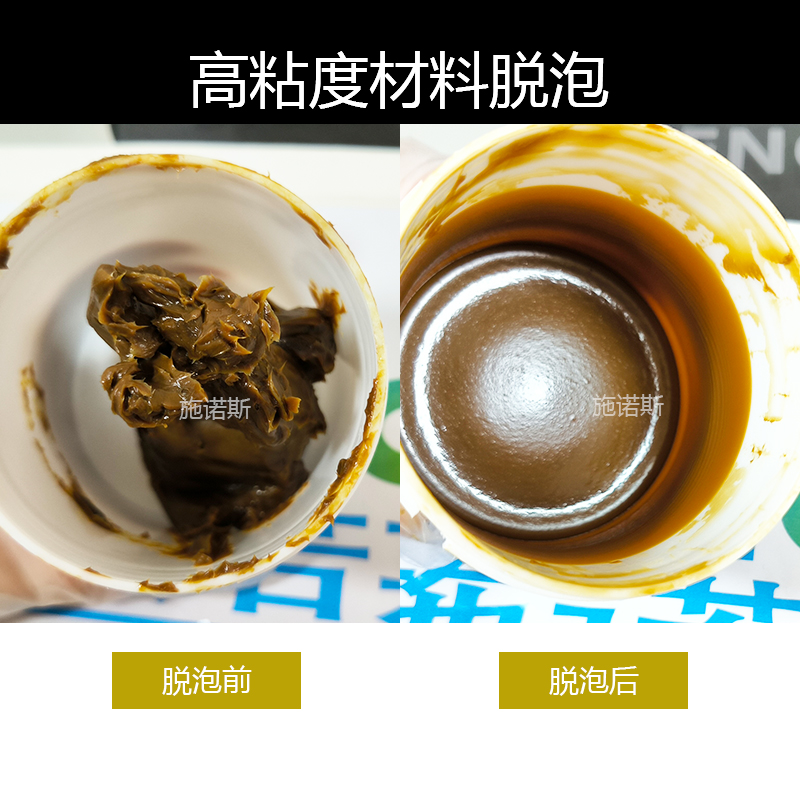

Actual Test Results of Defoaming Process
Measured Processing Results for Six Typical Materials

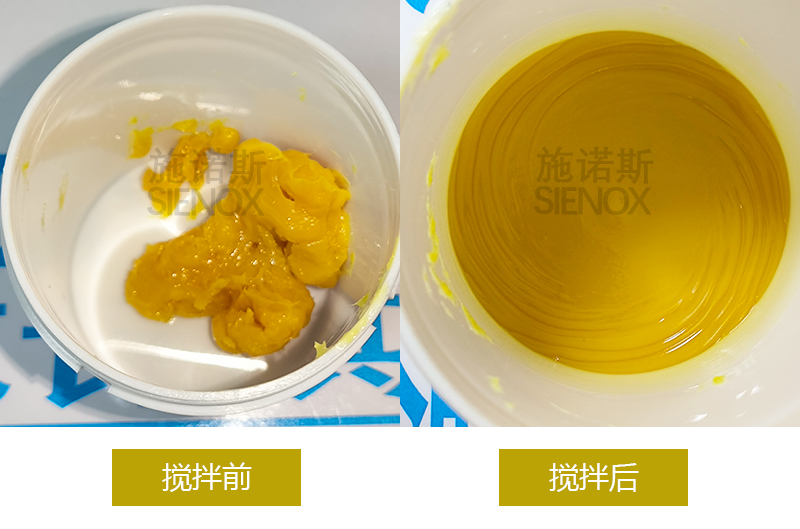

Paste‑form Materials |

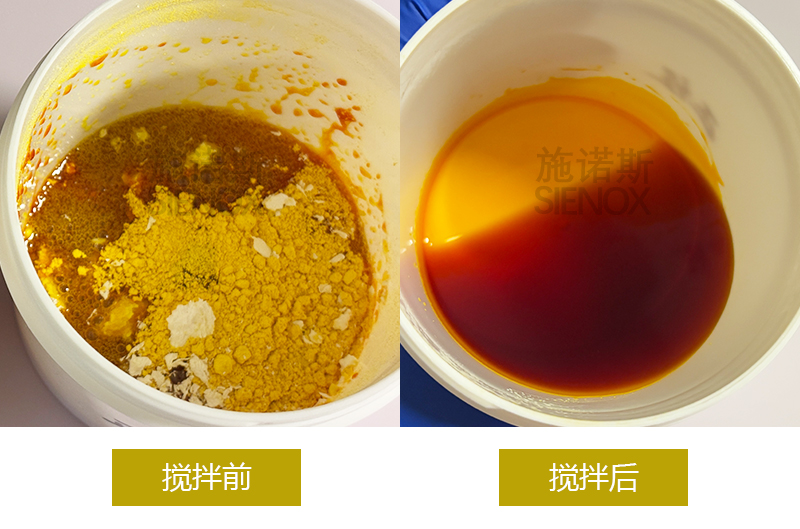

Adhesive + Powder |

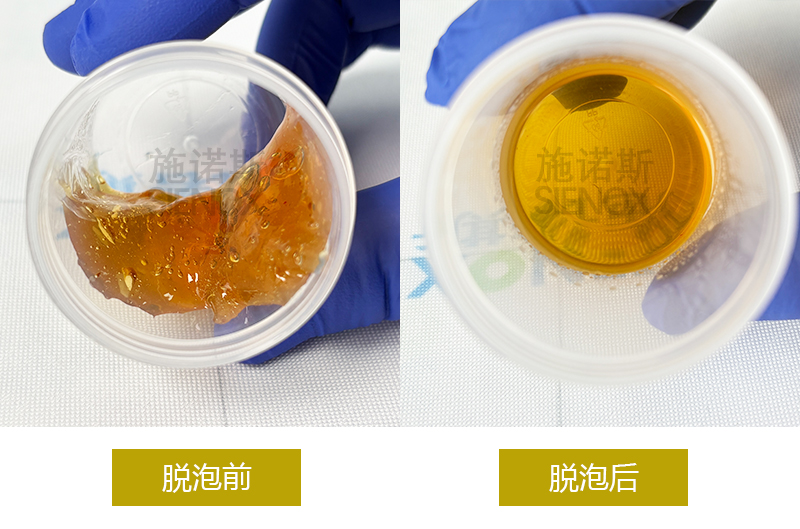

Polymer Materials |

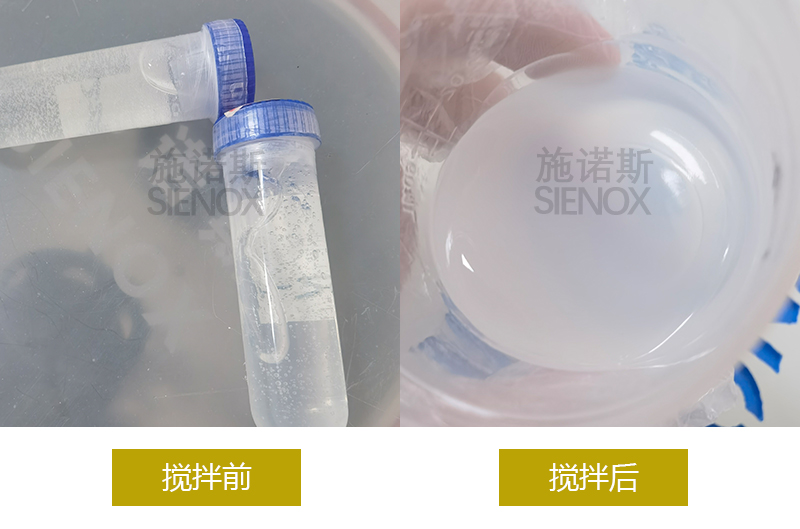

Medical Gel |

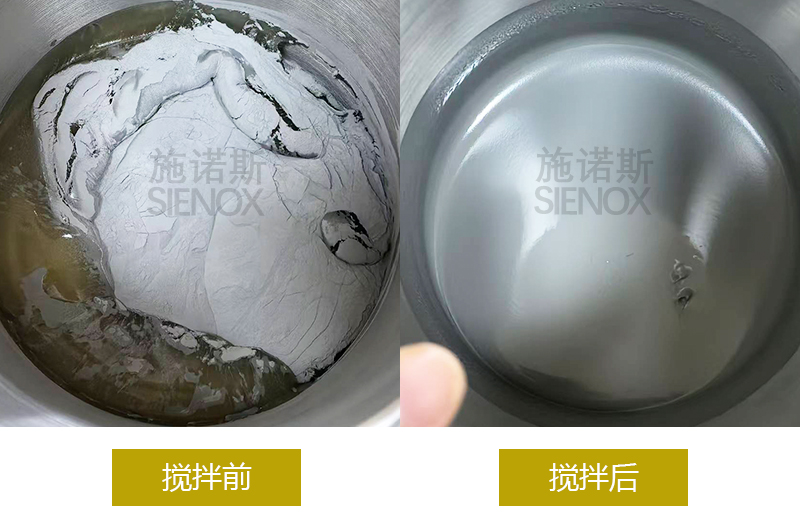

Silver Paste |

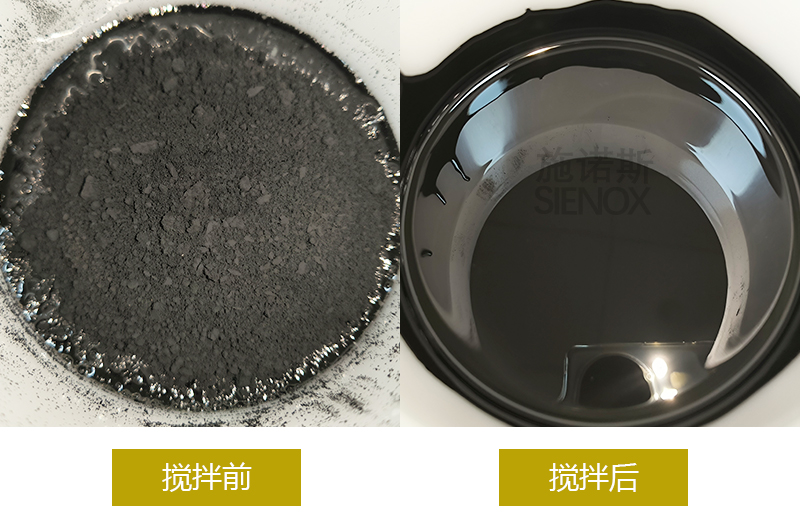

Battery Slurry |
Measured Data Comparison
Material Before‑and‑after Degassing Comparison
| Material Type | Before Treatment | After CV5000 Treatment |
| Lithium‑battery Cathode Slurry | Coating areal density deviation ±8% | Coating areal density deviation ±2% |
| Phenolic Resin | Numerous pores and low transparency after curing | Dense and transparent after curing |
| Optical‑fiber Coating Adhesive | Coating thickness deviation ±3μm | Coating thickness deviation ±0.5μm |
* Internal lab test data. Actual improvement varies with material formula. Contact sales for real‑world customer references.
Customer Delivery & Application Cases
Rooted in manufacturing frontlines, empowering benchmark production lines and key national research institutions across diverse industries.
Stirring & Defoaming Solution for Powders and Fluids | AB Structural Adhesive Mixing & Defoaming Solution | High-Viscosity Colloid & Phosphor Material Mixing and Defoaming Solution |
