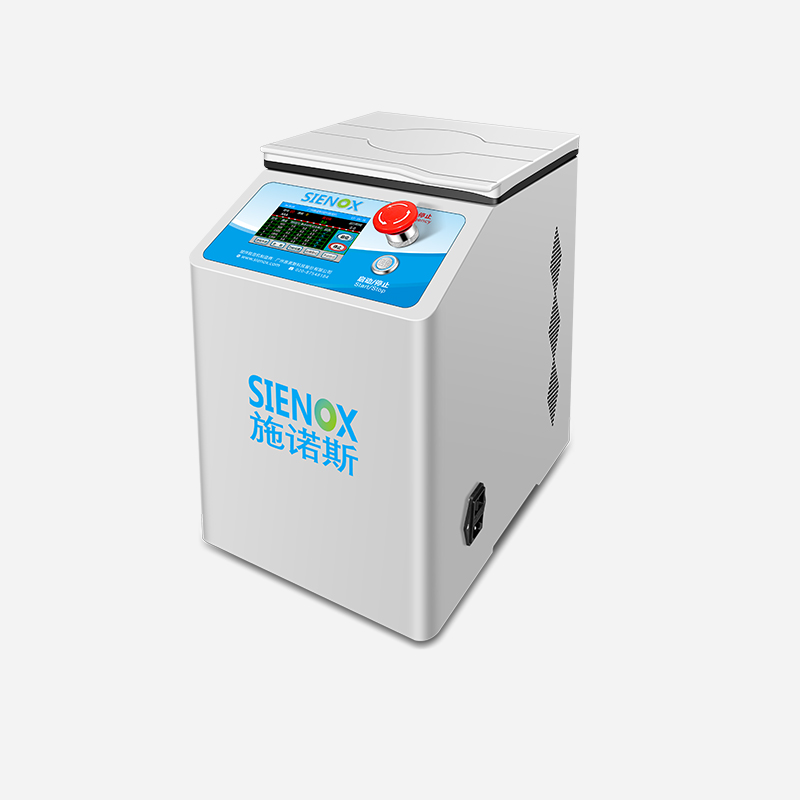

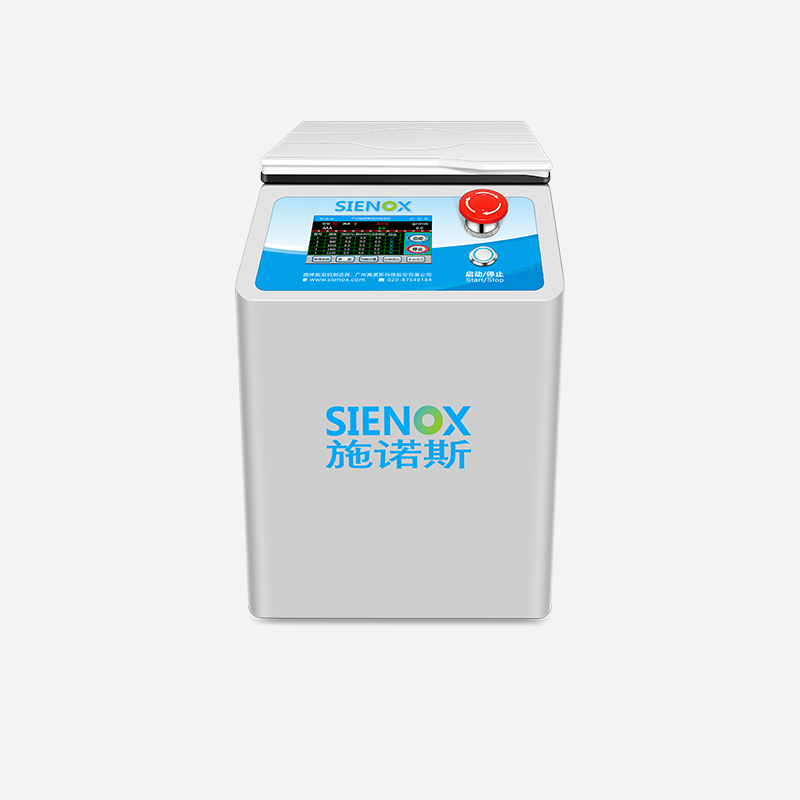

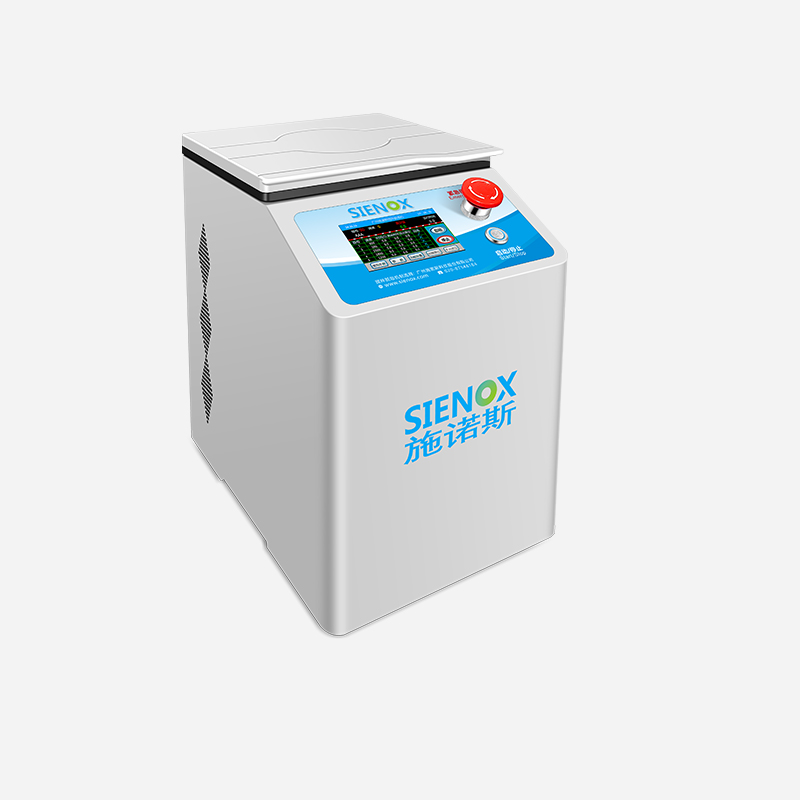

Lab Planetary Mixer‑Degasser SIE‑CV200


Lab‑Oriented Design · Bench‑top for Direct Lab‑bench Placement

200mL R&D Sample Size | 3000rpm Gear‑Driven Precise Mixing | 100‑set Multi‑segment Programming

SINOS SIE‑CV200 is a bench‑top planetary mixer‑degasser developed for lab research and sample testing. It fits directly on lab benches with no extra space required. The 200 mL sample capacity matches routine lab usage and reduces material waste.

Contact‑free mixing lowers material contamination risk, suitable for phosphor powder, epoxy resin, ceramic slurries, photosensitive resins and other common lab materials.

✓ CE Certification   ✓ ISO9001 ✓ RoHS Compliance ✓ Custom Voltage (110V/220V)

Online Message Free Sample Testing Engineer Hotline: 189-2512-9293

Why Must Microbubbles in Materials Be Eliminated?

Residual micro‑bubbles in materials directly compromise test‑data accuracy and research‑conclusion reliability.

University & Lab Research

Bubbles introduced during mixing impair product purity and structure in new‑material synthesis. In polymer research, bubbles create internal voids and skew mechanical test data. For nanomaterial dispersion, bubbles trap agglomerated particles and distort evaluation results, undermining research reliability.

Biopharma R&D

Micro‑bubbles in diagnostic reagents cause concentration deviations and unstable test repeatability. Bubbles in sustained‑release drugs lead to uneven dosage and distorted release‑curve measurement. Poor dispersion of vaccine adjuvants biases immune‑effect assessment and delays R&D progress.

Fine Chemical R&D

Bubbles trigger pinholes and orange‑peel defects in coating formulation tests. Trapped pigment agglomerates cause color deviation and reduced tinting strength. In adhesive development, mixing bubbles lower bonding‑strength readings and result in wrong formula judgements.

✨ Limitations of conventional methods: Manual/impeller stirring draws extra air bubbles; static degassing is slow and inefficient. Professional contact‑free planetary mixers‑degassers separate bubbles by centrifugal force for consistent, repeatable lab test data.

Why Choose the SIE‑CV200

Three Core Advantages for Lab‑scale R&D


Compact Bench‑top Lab‑Oriented Design


Needs no extra space and sits directly on lab benches. The 200 mL capacity fits regular lab sampling to avoid material waste. Single‑cup structure enables easy loading/unloading for frequent researcher operations.




Gear‑Driven for Repeatable Test Data



High‑efficiency precision gear drive delivers stable, accurate speed ratio with low noise & vibration and low maintenance. Consistent mixing‑degassing parameters ensure repeatable experimental results critical for R&D. Fault indicator alerts abnormalities to secure continuous tests.




Multi‑Segment Programming for Complex Processes



Stores 100 programs with 3‑step independent time & speed settings. Pre‑set variable‑speed profiles simulate production‑grade stepped processes for complex‑material tests. User permission management supports multi‑user lab scenarios for standardized parameter control.



✨ The SIE‑CV200 integrates compact bench‑top layout, gear‑driven mixing and multi‑segment programming. Optimized for space saving, reliable repeatable data and flexible processes, it fully meets lab R&D and sample‑testing requirements.

Working Principle

Synchronized dual‑drive revolution‑rotation ensures consistent experimental conditions for every test.

Step 1: Centrifugal force from revolution
The revolving plate rotates at high speed, generating strong centrifugal force for materials inside the container to trigger full convection and achieve macro mixing. Meanwhile, bubbles of lower density migrate toward the rotation axis under centrifugal force and converge for release.

Step 2: Shear force from rotation
The container spins around its own axis to generate directional shear force, breaking up agglomerated particles for micro dispersion. Gear transmission ensures precise and stable revolution‑rotation speed ratio for efficient full-range mixing. The shear force also thins bubble membranes and accelerates bubble rupture.


Revolution and rotation run simultaneously. Materials complete the full cycle of "Mixing → Dispersion → Defoaming" inside the sealed container. Constant speed ratio maintained by gear transmission guarantees consistency and repeatability of test data across batches.


Mixing and Defoaming Working Principle 03.jpg

Technical Specifications

Rigorous Equipment Performance Index Data Alignment

ModelSIE‑CV200
Mixing Capacity0–200 mL (standard vessel) * Larger volume customizable
Vessel TypeTest tube / jar / cup; adapters for syringes & cartridges available
Vessel Quantity1 jar
Max Speed0 – 3000 RPM (stepless adjustable)
Revolution / Rotation RatioFixed planetary ratio
Vacuum LevelOptional: –99 kPa
Control SystemTouch screen, stores 100 recipe sets
Power Supply220V, 50/60Hz (110V US/JP standard customizable)
Dimensions(W×D×H)340 × 240 × 370 mm
Net WeightApprox. 30 kg
Certifications CE, ISO9001, RoHS Compliance



Our Partners

Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide

Partner Showcase

FAQ - Frequently Asked Questions

Answers to common questions about product performance and everyday process selection

  • What is the working principle of a centrifugal defoaming machine?

    Principle of centrifugal defoaming machine: The bubbles are released by the downward principle of gravity.

  • How is the after-sales service?

    The company has professional after-sales service personnel, 24-hour dedicated service, and one-on-one technical support to solve your worries.

  • Why choose SIENOX?

    There are many reasons for choosing SIENOX, and the following are some of the main reasons:

    1. Professionalism: Our team consists of a group of professional individuals with rich experience and knowledge in their respective fields. We not only understand industry trends and best practices, but also provide practical and feasible solutions.

    2. Service quality: We focus on customer needs and satisfaction, and are always committed to providing high-quality services. We not only respond quickly to customer needs, but also provide customized services according to their requirements.

    3. Reliability: We adhere to the principles of integrity and professionalism, always adhering to commitments and agreements. Our work methods and deliverables comply with industry standards and best practices, enabling our clients to trust us.

    4. Innovation: We continuously explore new methods and tools to provide better services and meet customer needs. We encourage innovation and experimentation, and are willing to accept challenges and change.

    5. Cost effectiveness: We provide cost-effective services that not only help customers save costs, but also improve efficiency and productivity. We always prioritize the interests of our customers and provide them with the best solutions.

    6. Teamwork: We believe in the power and value of teamwork, and our team members support, collaborate, and respect each other. We establish close cooperative relationships with customers, partners, and other stakeholders to achieve common goals.

    The above are just some of the reasons for choosing us. We believe there are many other advantages and values that can be provided to customers. If you are looking for a professional, reliable, and high-quality service provider, we look forward to working with you.


  • How does the stirring and defoaming machine work?

    The SIENOX stirring and defoaming machine performs defoaming through centrifugal force at revolution and stirring through shear force formed by revolution and rotation,

    Assisted by a vacuum pump to extract gas and achieve a vacuum state, removing nanoscale tiny bubbles. No contact with materials, no secondary pollution, and no secondary waste.

  • What is the function of a defoaming machine?

    A defoaming machine is a device used to remove bubbles from liquids. Its function is to assist in the liquid mixing, reaction, coating, printing, infusion and other process steps in the production process, avoiding the generation of bubbles and their impact on the final product. In many industrial and laboratory environments, removing bubbles is essential as they may have a negative impact on product quality, such as affecting surface tension and stability. Defoaming machines typically use various techniques such as vibration, ultrasound, centrifugation, etc. to achieve effective bubble removal. It has a wide range of applications, including but not limited to semiconductors, solar energy, optics, biotechnology, materials science, etc.

Technical Specification List

Full‑line standardized specifications for accurate process evaluation and equipment selection

ModelSIE‑CV200SIE‑CV300SIE‑CV1000
Mixing Capacity0–200 mL (standard vessel) * Customizable0–300 mL (standard vessel) * Customizable0–1000 mL (standard vessel) * Customizable
Vessel TypeTest tube / jar / cup; adapters for syringes & cartridges availableTest tube / jar / cup; adapters for syringes & cartridges availableTest tube / jar / cup; adapters for syringes & cartridges available
Vessel Quantity1  jar1  or 2 jars (optional)1  or 2 jars (optional)
Max Speed0 – 3000 RPM (stepless adjustable)0 – 3000 RPM (stepless adjustable)0 – 2000 RPM (stepless adjustable)
Revolution / Rotation RatioFixed planetary ratioFixed planetary ratioFixed planetary ratio
Vacuum LevelOptional: –99 kPaOptional: –99 kPaOptional: –99 kPa
Control SystemTouch screen, stores 100 recipe setsTouch screen, stores 100 recipe setsTouch screen, stores 100 recipe sets
Power Supply220V, 50/60Hz (110V US/JP standard customizable)220V, 50/60Hz (110V US/JP standard customizable)220V, 50/60Hz (110V US/JP standard customizable)
Dimensions(W×D×H)340 × 240 × 370 mm510 × 430 × 500 mm610 × 560 × 780 mm
Net Weight30 kg95 kg153 kg
CertificationsCECECE

*** Above are typical models. SINOS provides customized solutions upon request. For selection consultation: 189‑2512‑9293


Multi‑Industry Solutions

Covers typical lab‑scale mixing and degassing applications for R&D materials across six major industries.

University Research.jpg

University Research

New‑material synthesis, nanomaterial dispersion, polymer research, alumina slurries, functional materials


Biopharmaceuticals

Diagnostic reagents, sustained‑release formulations, pharmaceutical gels, vaccine adjuvants, biological adhesives

Ink & Coatings.jpg

Fine Chemicals

Coating formulation, pigment dispersion, adhesive R&D, surface treatment agents, catalyst slurries

LED Raw Materials.jpg

LED Packaging

Phosphor dispersion, packaging silicone, optical adhesives, color‑matching slurries, reflective adhesives


Aerospace

Conductive adhesives, structural adhesives, composite resins, coating materials, high‑temperature adhesives

Testing Institutes.jpg

Testing Institutes

Standard sample preparation, reference sample production, incoming inspection, quality‑analysis samples


Comprehensive Equipment Operation Demo Videos

Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.

Actual‑test Performance Demonstration

Lab Sample Actual Test Results

AB Glue Mixing & Degassing.jpg

AB Glue

Glue & Powder Mixing & Degassing.jpg

Glue + Powder

Glass Powder Mixing & Degassing.jpg

Glass Powder

Electronic Adhesive & Powder Mixing & Degassing.jpg

Electronic Adhesive + Powder

Black Epoxy Resin Mixing & Degassing.jpg

Epoxy Resin

Battery Slurry Powder Mixing & Degassing.jpg

Battery Slurry Powder



Actual‑test Effect Comparison

Material Before‑and‑after Degassing Comparison

Material Type
Status Before Treatment
After SIE‑CV200 Treatment
Phosphor Slurry
Obvious phosphor agglomeration, turbid slurry with bubbles, uneven luminescence after coating
Well‑dispersed phosphor, fine & dense slurry, greatly improved luminescence consistency
Ceramic Slurry
Uneven particle distribution, internal bubbles, poor fluidity, high porosity of sintered parts
Uniform particle dispersion, bubble‑free fluent slurry, higher density of sintered components
Photoresin
Dense micro‑bubbles inside resin with slight turbidity, surface pits after curing
Dense micro‑bubbles inside resin with slight turbidity, surface pits after curing

* Internal lab test data. Actual improvement varies with material formulas. Contact sales for real customer cases.

Customer Delivery & Application Cases

Rooted in manufacturing frontlines, empowering benchmark production lines and key national research institutions across diverse industries.



Stirring & Defoaming Solution for Powders and Fluids


AB Structural Adhesive Mixing & Defoaming Solution.jpg

AB Structural Adhesive Mixing & Defoaming Solution


SIENOX Planetary Defoaming Machine: Tackle Industry Challenges of Ink Mixing and Deaeration.jpg

High-Viscosity Colloid & Phosphor Material Mixing and Defoaming Solution
