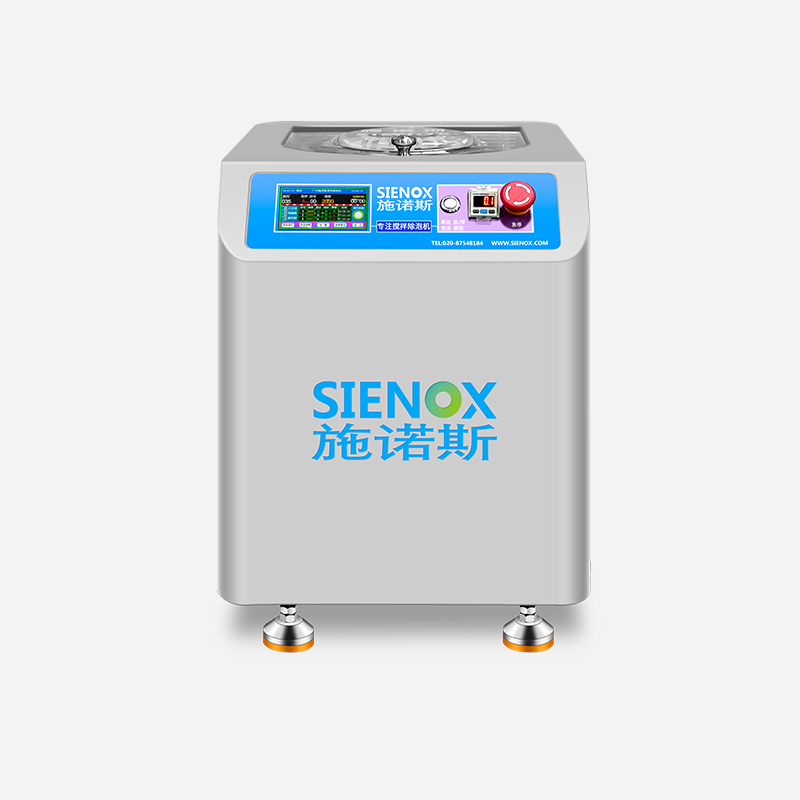

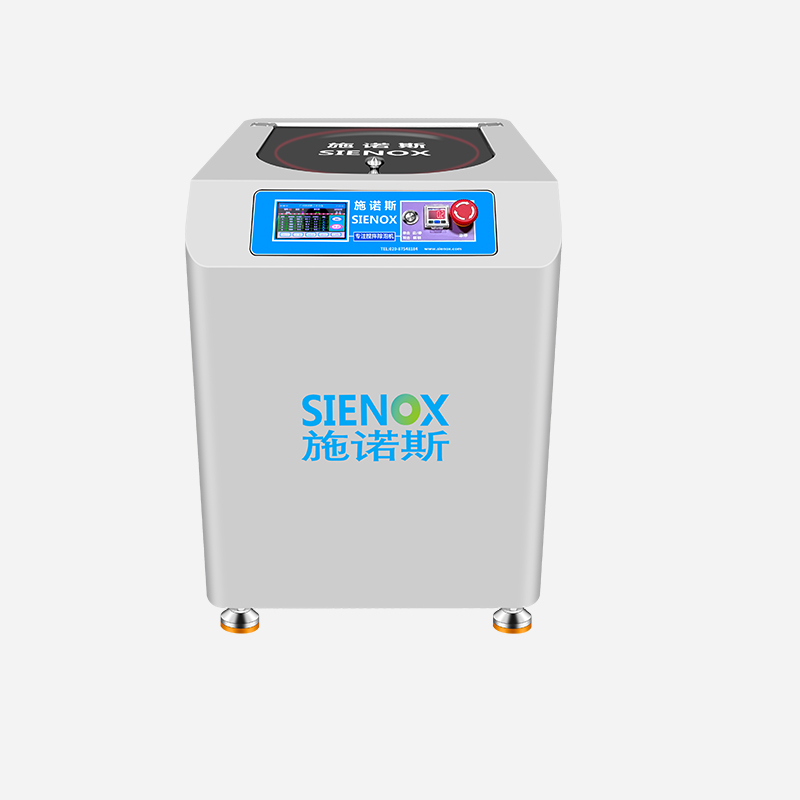

SIENOX Planetary Mixing‑Defoaming Machine SIE‑CV1000
1000mL Large‑Capacity Planetary Mixing · One‑Step Solution for Pilot‑Scale Production
0‑2000rpm Stepless Speed + Optional Vacuum / Temperature Control / MES, Flexible for Production Processes
SIENOX SIE‑CV1000 is a planetary mixing‑defoaming machine designed for pilot‑scale validation and small‑batch production. Its 1000 mL large capacity meets transition requirements from lab R&D to production launch. Adopting synchronous dual‑power revolution‑rotation technology: revolution generates strong centrifugal force for full‑range material convection, while rotation delivers directional shear force for thorough high‑efficiency mixing. Centrifugal force removes bubbles simultaneously, finishing mixing and defoaming in one step.
Optional modules: vacuum module (-98kPa), heating / cooling temperature control, and MES networking system for custom configurations. 304 stainless‑steel frame with imported core components, 153 kg heavy‑duty chassis for stable and reliable long‑term batch operation.
✓ CE Certified ✓ FCC Certified ✓ ISO9001 Quality System ✓ RoHS Compliance ✓ Custom Voltage Available (110V/220V)
Why Must Microbubbles in Materials Be Eliminated?
Residual micro‑bubbles in materials directly affect the yield and performance of end‑products.
Electronic Component ManufacturingMicro‑bubbles in solder paste for SMT processes cause voids and cold solder joints, reducing soldering reliability. Bubble expansion during reflow soldering leads to spattering and bridging. Excessive voids in precision components trigger failures under thermal cycling and lower overall board yield. | Medical Device ManufacturingBubbles in medical silicone and bio‑glue compromise dosage accuracy and consistency, risking dosing deviation. Bubbles in ointment gels cause uneven filling and inconsistent net content. For implant‑grade materials, tiny bubbles may bring biocompatibility risks. | 3D‑Printing ManufacturingMicro‑bubbles in photosensitive resin create layer defects and degrade mechanical strength & surface finish. In large‑volume printing, bubbles produce visible streaks and pits on cured surfaces. Bubbles in metal powder slurry raise porosity of sintered parts and reduce final density. |
✨ Limitations of conventional methods: Manual stirring or standard impeller mixing draws in air, generating more bubbles during agitation. Static degassing takes long hours with limited performance. Therefore, a non‑contact planetary mixing‑defoaming solution is required, which separates bubbles via centrifugal force while mixing materials.
Why Choose SIE‑CV1000
Three Core Advantages Cover the Entire Pilot Production Process
Large‑Capacity Production1000 mL processing capacity meets pilot‑scale up‑scaling and small‑batch production requirements per cycle. Dual‑cup design enables simultaneous processing of two materials or doubled throughput to boost production‑line efficiency. 2000 rpm with fixed speed ratio ensures consistency and repeatability for batch processing. | Modular ExpansionOptional modules including vacuum (-98 kPa), heating/cooling temperature control and MES networking system for flexible configuration according to process requirements. One unit covers multiple scenarios from pilot validation to production launch and reduces redundant equipment investment. Temperature‑control module suits heat‑sensitive and high‑viscosity materials; vacuum module improves micro‑bubble removal performance. | Reliable & DurableRobust unit with stainless‑steel frame; optimized transmission reduces vibration and noise. Balance sensor corrects running eccentricity in real‑time for stable long‑term batch operation. Imported core components deliver high durability, lowering maintenance frequency and operating costs. |
✨ The SIE‑CV1000 integrates three core capabilities: large‑capacity processing, modular expansion and stable operation. It is the ideal equipment from pilot‑scale validation to small‑batch production.
Working Principle
Synchronous revolution‑rotation operation; optional vacuum module enhances defoaming performance.

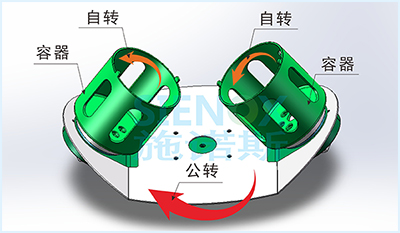

Step 1: Centrifugal Force from Revolution The rotating revolution plate generates strong centrifugal force on materials inside the container to drive full‑range convection for macro‑mixing. Centrifugal force pushes low‑density bubbles toward the rotation axis for bubble aggregation and release. Step 2: Shear Force from Rotation Containers rotate around their own axis to produce directional shear force, breaking up agglomerated particles for micro‑dispersion. Precisely calculated revolution‑rotation speed ratio ensures thorough mixing. Shear force thins bubble membranes and accelerates bubble rupture. Step 3 (Optional): Vacuum‑Assisted Enhancement With optional vacuum module, chamber pressure drops to ‑98 kPa. Higher pressure difference makes micro‑scale bubbles expand and burst rapidly. The vacuum system continuously exhausts gas to further improve material density. Synchronous revolution‑rotation completes the full “mixing → dispersion → defoaming” workflow inside sealed containers. Optional vacuum module improves micro‑bubble removal performance. | ![]() |
Technical Specifications
Complete Technical Specifications Overview, Customizable on Demand
| Model | SIE‑CV1000 |
| Mixing Capacity | 0‑1000 mL (standard container) * Customizable |
| Container Type | Tubes / Jars / Cups; adapters for syringes & cartridges supported |
| Container Quantity | 1 or 2 jars (user selectable) |
| Max Speed | 0‑2000 RPM (stepless adjustable) |
| Revolution / Rotation Ratio | Fixed planetary ratio |
| Vacuum Degree | Optional: −98 kPa |
| Control System | Touch screen, stores up to 100 recipe sets |
| Power Supply | 220V, 50/60Hz (110V US/JP standard optional) |
| Dimensions (W×D×H) | 610 × 560 × 780 mm |
| Net Weight | 153 kg |
| Certifications | CE, FCC, ISO9001, RoHS Compliance |
Our Partners
Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide
FAQ - Frequently Asked Questions
Answers to common questions about product performance and everyday process selection
-
脱泡机的作用是什么?
脱泡机是一种用于去除液体中的气泡的设备。它的作用在于帮助生产过程中的液体混合、反应、涂布、印刷、灌注等工艺环节,避免气泡的产生和对最终产品的影响。在许多工业和实验室环境中,去除气泡是非常必要的,因为气泡可能会对产品质量产生负面影响,如影响表面张力和稳定性等问题。脱泡机通常采用各种不同的技术,如振动、超声波、离心等,以实现有效的气泡去除。它的应用领域广泛,包括但不限于半导体、太阳能、光学、生物技术、材料科学等。
-
售后服务怎么样?
公司拥有专业的售后服务人员,24小时专人服务,一对一提供技术支持,解决您的后顾之忧。
-
为什么要选择施诺斯?
选择施诺斯的原因有很多,以下是一些主要的原因:
1. 专业性:我们的团队由一群专业的人士组成,他们在各自的领域拥有丰富的经验和知识。我们不仅了解行业趋势和最佳实践,而且还能提供切实可行的解决方案。
2. 服务质量:我们注重客户的需求和满意度,始终致力于提供高质量的服务。我们不仅快速响应客户需求,而且还能根据客户的要求进行定制化服务。
3. 可靠性:我们以诚信和专业精神为宗旨,始终遵守承诺和协议。我们的工作方法和交付成果均符合行业标准和最佳实践,使得我们的客户能够信任我们。
4. 创新性:我们不断探索新的方法和工具,以提供更好的服务并满足客户的需求。我们鼓励创新和实验,并愿意接受挑战和改变。
5. 成本效益:我们提供高性价比的服务,不仅能够帮助客户节省成本,而且还能提高效率和生产力。我们始终以客户的利益为出发点,为客户提供最优的解决方案。
6. 团队合作:我们相信团队的力量和合作的价值,我们的团队成员之间互相支持、协作和尊重。我们与客户、合作伙伴和其他利益相关者建立紧密的合作关系,以实现共同的目标。
以上只是选择我们的部分原因,我们相信还有很多其他的优点和价值可以为客户提供。如果您正在寻找一家专业、可靠、高质量的服务提供商,我们非常期待与您的合作。
-
搅拌脱泡机的工作原理?
施诺斯搅拌脱泡机通过公转的离心力进行脱泡,通过公转与自转形成的剪切力进行搅拌,
再辅助以真空泵抽取气体以达到真空状态,去除纳米级微小气泡。 不接触物料,无二次污染,无二次浪费。
-
施诺斯能提供工程咨询技术服务吗?
施诺斯能为广大客户提供全面的工程和现代化的咨询服务。施诺斯近二十年的搅拌经验,可以为你提供高效的咨询服务。
想要让搅拌机性能更上一层楼,提升系统的整体效能?我们有全面的咨询、工程以及现代化改造服务,为您量身打造解决方案。 在如今竞争激烈的全球化浪潮中,唯有不断创新、持续优化,才能始终跑在对手前面。您的生产工艺和产品日新月异,我们就为您提供最适配的混合技术。不管是新的产品参数,还是既有的工艺条件,我们都能对现有系统和搅拌设备进行全方位的检查与评估,挖掘其中潜藏的流程优化空间和机械性能提升潜力,并且帮您把这些改进切实落地。 要是您的搅拌设备已经跟不上时代步伐,能耗居高不下,或是维护成本让您头疼不已,那就别犹豫,我们的咨询、工程设计和现代化改造服务,就是为您排忧解难的良方。欢迎随时联系我们,携手开启高效生产新征程!

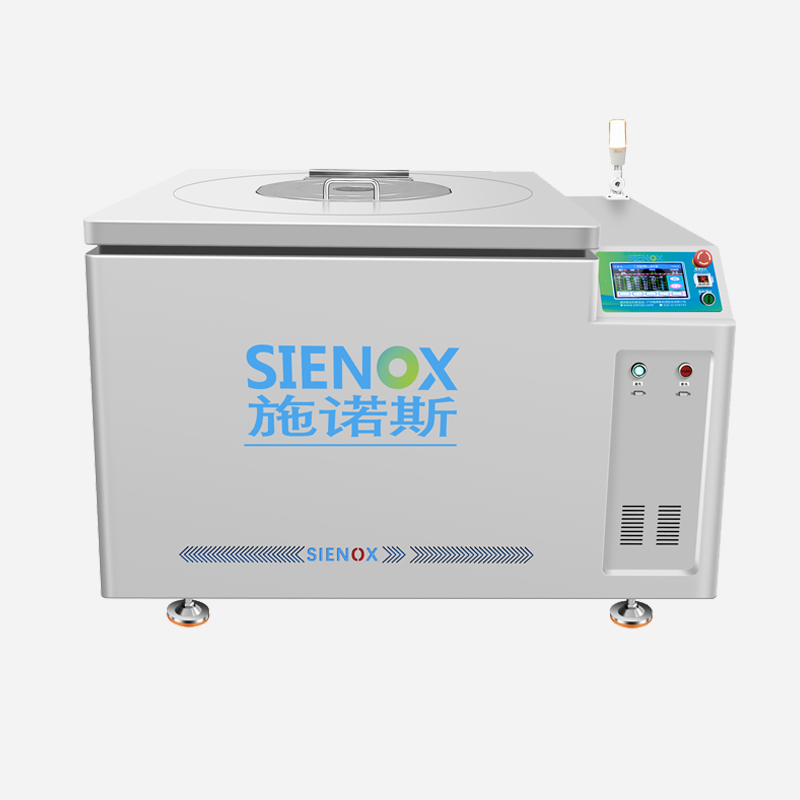

Multi‑Model Specification Comparison Table
Compare Models in the Same Series for Accurate Selection
Multi‑Model Specification Comparison Table
| Model | SIE‑CV300 | SIE‑CV1000 | SIE‑CV1000 |
| Mixing Capacity | 0‑300 mL (standard container) * Customizable | 0‑1000 mL (standard container) * Customizable | 0‑1000 mL (standard container) * Customizable |
| Container Type | Tubes / Jars / Cups; adapters for syringes & cartridges supported | Tubes / Jars / Cups; adapters for syringes & cartridges supported | Tubes / Jars / Cups; adapters for syringes & cartridges supported |
| Container Quantity | 1 or 2 jars (user selectable) | 1 or 2 jars (user selectable) | 1 or 2 jars (user selectable) |
| Max Speed | 0‑3000 RPM (stepless adjustable) | 0‑2000 RPM (stepless adjustable) | 0‑2500 RPM (stepless adjustable) |
| Revolution / Rotation Ratio | Fixed planetary ratio | Fixed planetary ratio | Freely adjustable |
| Vacuum Degree | Optional: −98 kPa | Optional: −98 kPa | Optional: −98 kPa |
| Control System | Touch screen, stores up to 100 recipe sets | Touch screen, stores up to 100 recipe sets | Touch screen, stores up to 100 recipe sets |
| Power Supply | 220V, 50/60Hz (110V US/JP standard optional) | 220V, 50/60Hz (110V US/JP standard optional) | 220V, 50/60Hz (110V US/JP standard optional) |
| Dimensions (W×D×H) | 510 × 430 × 500 mm | 610 × 560 × 780 mm | 610 × 560 × 780 mm |
| Net Weight | 95 kg | 153 kg | 163 kg |
| Certifications | CE, FCC | CE, FCC | CE, FCC |
***Above are typical models only. Customized solutions are available upon customer requirements.
Multi‑Industry Solutions
Covers Mixing & Defoaming Applications for Typical Materials in Six Major Industries
SMT Electronics ManufacturingSolder paste, red glue, flux, underfill adhesive, SMT mounting adhesive |
Photovoltaic ManufacturingSilver paste, aluminum paste, EVA film adhesive, silicone sealant, conductive adhesive |
Automotive ManufacturingStructural adhesive, sealant, thermal‑conductive silicone, primer, anaerobic adhesive |

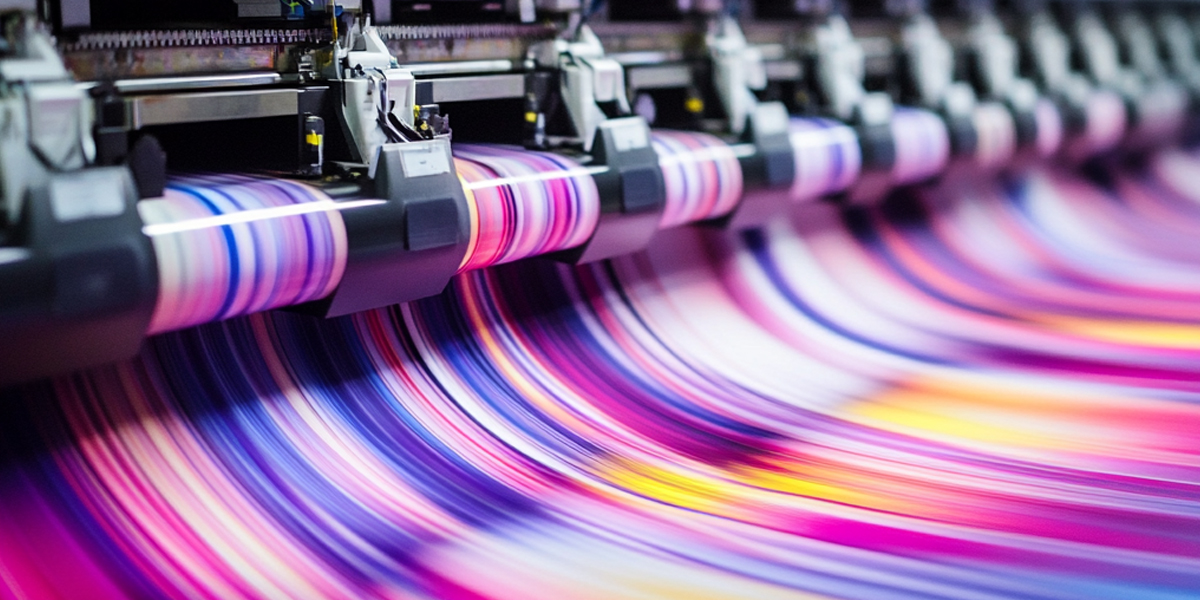

Printing & PackagingUV ink, water‑based ink, varnish, laminating adhesive, screen‑printing ink |
Cosmetics & Personal CareLotion, cream, gel, foundation, sunscreen |
Ceramic ProcessingAlumina slurry, zirconia slurry, ceramic glaze, electronic ceramic slurry, ceramic binder |
Comprehensive Equipment Operation Demo Videos
Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.
Actual‑test Performance Demonstration
Measured Processing Results for Six Typical Materials
Slurry & Powder |
Adhesive |
Hydrogen Energy Materials |
Adhesive |
Base Material & Filler |
Adhesive & Ceramic Powder |
Actual‑test Effect Comparison
Material Before‑and‑after Degassing Comparison
| Material Type | Condition Before Processing | After Processing by SIE‑CV1000 |
| Solder Paste | Numerous micro‑bubbles inside paste; uneven tin‑powder distribution. Tailing and bridging tend to occur during printing. | Smooth and dense paste with well‑dispersed tin powder. Clean release during printing, full solder joints without voids. |
| Conductive Silver Paste | Severe silver‑powder agglomeration, turbid colloid with bubbles; discontinuous conductive paths. | Uniformly dispersed silver powder, clear and dense colloid. Stable conductivity and qualified bonding strength. |
| Ink | Poor pigment dispersion with particles and residual bubbles, resulting in inconsistent printing color shade. | Evenly dispersed pigment, free of particles and bubbles. Consistent printing color and good adhesion. |
* Internal laboratory test data. Actual improvement varies with material formulation. Real‑world customer references are available upon request from sales.
