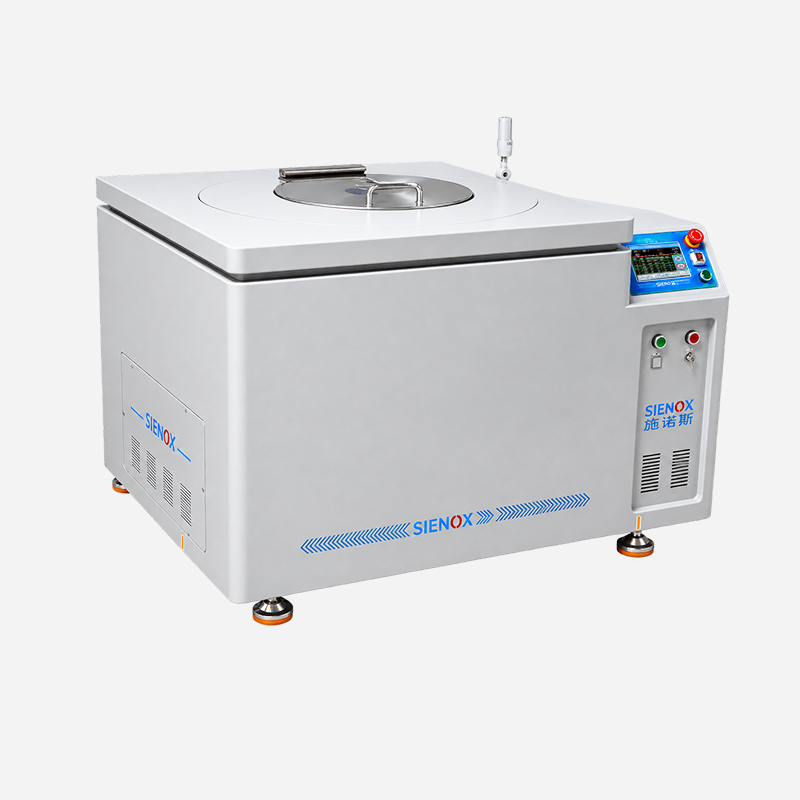

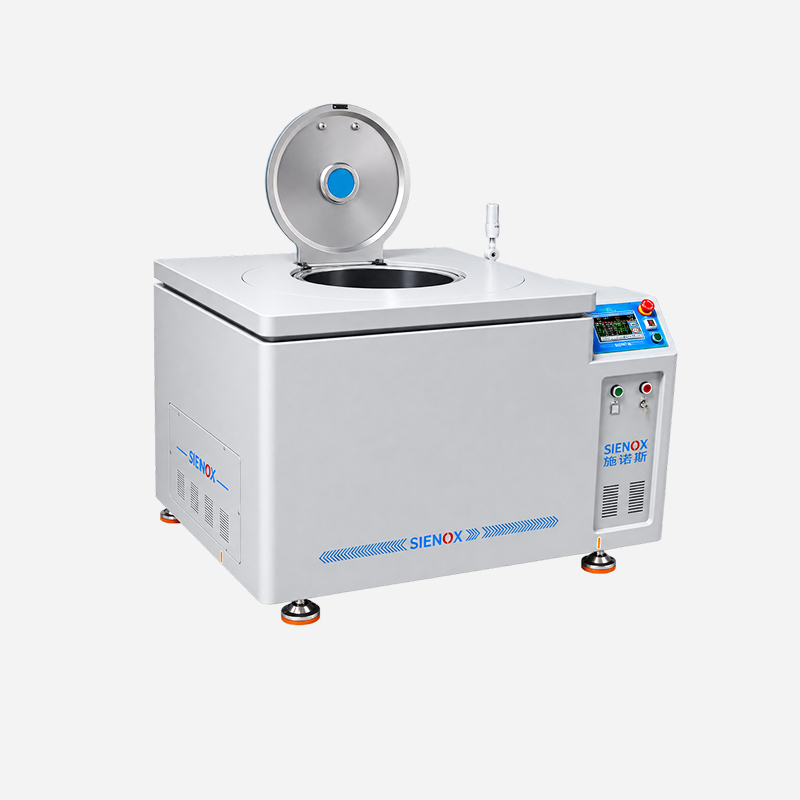

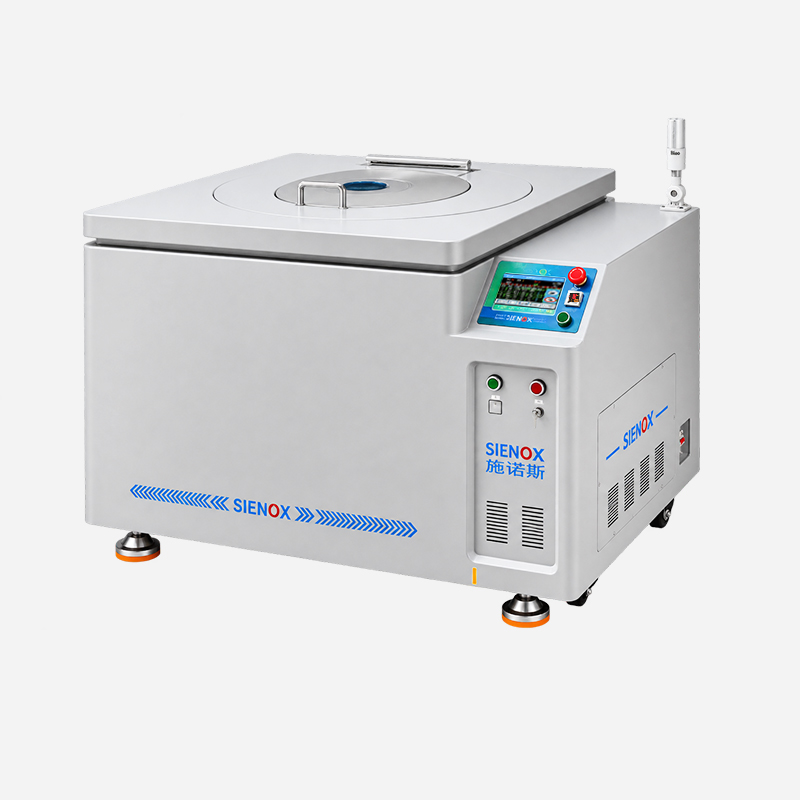

SIENOX Large‑Capacity Planetary Mixer‑Defoamer SIE‑CV10L
10L Large‑Capacity Dual‑Cup Planetary Mixing · Medium‑Low Speed Wide‑Range for Mass Production of Medium‑to‑High‑Viscosity Materials
10L Large‑Capacity Dual‑Cup + 0‑800rpm Stepless Speed Adjustment + 100 Recipe Sets Storage
SIE‑CV10L is the upgraded large‑capacity mass‑production equipment of SIENOX CV series. Equipped with 10L dual‑cup and medium‑low‑speed mixing ranging from 0‑800rpm, it is specially designed for continuous mass production of medium‑to‑high‑viscosity materials. The machine comes standard with safety interlock and inertia delay protection, with optional extensions for vacuum, temperature control and MES system.
✓ CE Certification ✓ FCC Certification ✓ ISO9001 Quality Management System ✓ RoHS Compliance ✓ Custom Voltage Available (110V/220V)
Why Must Microbubbles in Materials Be Eliminated?
Residual micro‑bubbles in materials directly affect product yield and performance stability.
Polyurethane IndustryBubbles in PU foam cause uneven cell structure, impairing foam density, elasticity and thermal insulation, and reducing finished‑product quality & yield. | Cosmetics ManufacturingBubbles in cosmetic lotion lead to inaccurate filling and bottle swelling, harming appearance, shelf‑life and user experience. | Energy‑Material IndustryBubbles in supercapacitor electrode slurry result in uneven coating and abnormal electrode porosity, lowering energy density and cycle life. |
✨ Traditional defoaming challenges: Manual stirring brings high resistance and poor mixing for high‑viscosity materials; ordinary equipment tends to cause material splashing at excessive rotating speed; insufficient capacity requires repeated batch processing with low efficiency and poor batch‑to‑batch consistency.
Why Choose SIE-CV10L
Three Core Features Built for Large‑Volume Mass Production of Medium‑to‑High‑Viscosity Materials
Large‑Volume Batch Processing2000 mL dual‑cup configuration delivers twice the throughput of 1000 mL models. With adjustable runtime from 0‑30 minutes, it supports continuous large‑batch processing, reduces material‑change downtime and improves production‑line throughput. | Wide‑Range Medium‑Low‑Speed Mixing0‑800 rpm stepless adjustment covers broad medium‑low speed range. It provides sufficient shear force to disperse medium‑to‑high‑viscosity materials while avoiding temperature rise and splashing caused by high‑speed mixing, suitable for adhesives, slurries, coatings and other processes. | Production‑Grade Continuous OperationMicro‑computer control supports operator‑permission settings for multi‑shift production. Fault‑code display enables quick troubleshooting. Safety interlock and inertia‑delay protection ensure safe continuous operation. Vacuum, temperature control and MES networking are optional for production‑line integration. |
✨ When production demand exceeds 2L level or mass‑production of medium‑to‑high‑viscosity materials is required, SIE‑CV10L serves as the 10‑liter capacity upgrade option within the CV series.
Working Principle
Synchronized dual‑driven revolution‑rotation delivers high‑torque at medium‑low speed for efficient mixing of medium‑to‑high‑viscosity materials.
Step 1: Revolution Mixing Centrifugal force generated by revolution drives full‑range turnover flow of large‑volume materials inside the bowl. Medium‑low‑speed operation prevents splashing of high‑viscosity materials and realizes macro‑level homogeneous mixing. Step 2: Rotation Dispersion Shear force generated by rotation continuously disperses medium‑to‑high‑viscosity materials, gradually breaking agglomerates and eliminating deep micro‑bubbles to guarantee processing consistency for large‑batch materials. Revolution and rotation run synchronously to complete the full‑cycle “mixing‑dispersion‑defoaming” inside sealed containers. The dual‑cup design processes two groups of materials simultaneously to boost production efficiency. |  |
Technical Specifications
Complete Technical Specifications Overview, Customizable on Demand
| Model | SIE‑CV10L |
| Mixing Capacity | 0–10000 mL (standard vessel) * Larger volume customizable |
| Vessel Type | Test tube / can / cup; adapters for syringes & cartridges available |
| Vessel Quantity | 1 or 2 cans (user‑selectable) |
| Max Speed | 0 – 800 RPM (stepless adjustable) |
| Revolution / Rotation Ratio | Fixed speed ratio |
| Vacuum Degree | Optional: –98 kPa / –100 kPa |
| Control System | Touch screen, stores up to 100 recipe sets |
| Power Supply | 220V, 50/60Hz (110V US/JP standard customizable) |
| Dimensions(W×D×H) | 1100×780×880mm |
| Net Weight | Approx. 225kg |
| Certifications | CE, FCC, ISO9001, RoHS Compliance |
Our Partners
Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide
FAQ - Frequently Asked Questions
Answers to common questions about product performance and everyday process selection
-
脱泡机的作用是什么？
脱泡机是一种用于去除液体中的气泡的设备。它的作用在于帮助生产过程中的液体混合、反应、涂布、印刷、灌注等工艺环节，避免气泡的产生和对最终产品的影响。在许多工业和实验室环境中，去除气泡是非常必要的，因为气泡可能会对产品质量产生负面影响，如影响表面张力和稳定性等问题。脱泡机通常采用各种不同的技术，如振动、超声波、离心等，以实现有效的气泡去除。它的应用领域广泛，包括但不限于半导体、太阳能、光学、生物技术、材料科学等。
-
售后服务怎么样？
公司拥有专业的售后服务人员，24小时专人服务，一对一提供技术支持，解决您的后顾之忧。
-
为什么要选择施诺斯？
选择施诺斯的原因有很多，以下是一些主要的原因：
1. 专业性：我们的团队由一群专业的人士组成，他们在各自的领域拥有丰富的经验和知识。我们不仅了解行业趋势和最佳实践，而且还能提供切实可行的解决方案。
2. 服务质量：我们注重客户的需求和满意度，始终致力于提供高质量的服务。我们不仅快速响应客户需求，而且还能根据客户的要求进行定制化服务。
3. 可靠性：我们以诚信和专业精神为宗旨，始终遵守承诺和协议。我们的工作方法和交付成果均符合行业标准和最佳实践，使得我们的客户能够信任我们。
4. 创新性：我们不断探索新的方法和工具，以提供更好的服务并满足客户的需求。我们鼓励创新和实验，并愿意接受挑战和改变。
5. 成本效益：我们提供高性价比的服务，不仅能够帮助客户节省成本，而且还能提高效率和生产力。我们始终以客户的利益为出发点，为客户提供最优的解决方案。
6. 团队合作：我们相信团队的力量和合作的价值，我们的团队成员之间互相支持、协作和尊重。我们与客户、合作伙伴和其他利益相关者建立紧密的合作关系，以实现共同的目标。
以上只是选择我们的部分原因，我们相信还有很多其他的优点和价值可以为客户提供。如果您正在寻找一家专业、可靠、高质量的服务提供商，我们非常期待与您的合作。
-
搅拌脱泡机的工作原理？
施诺斯搅拌脱泡机通过公转的离心力进行脱泡，通过公转与自转形成的剪切力进行搅拌，
再辅助以真空泵抽取气体以达到真空状态，去除纳米级微小气泡。 不接触物料，无二次污染，无二次浪费。
-
施诺斯能提供工程咨询技术服务吗？
施诺斯能为广大客户提供全面的工程和现代化的咨询服务。施诺斯近二十年的搅拌经验，可以为你提供高效的咨询服务。
想要让搅拌机性能更上一层楼，提升系统的整体效能？我们有全面的咨询、工程以及现代化改造服务，为您量身打造解决方案。 在如今竞争激烈的全球化浪潮中，唯有不断创新、持续优化，才能始终跑在对手前面。您的生产工艺和产品日新月异，我们就为您提供最适配的混合技术。不管是新的产品参数，还是既有的工艺条件，我们都能对现有系统和搅拌设备进行全方位的检查与评估，挖掘其中潜藏的流程优化空间和机械性能提升潜力，并且帮您把这些改进切实落地。 要是您的搅拌设备已经跟不上时代步伐，能耗居高不下，或是维护成本让您头疼不已，那就别犹豫，我们的咨询、工程设计和现代化改造服务，就是为您排忧解难的良方。欢迎随时联系我们，携手开启高效生产新征程！
Technical Specification List
Compare Models in the Same Series for Accurate Selection
| Model | SIE‑CV1000 | SIE‑CV2000 | SIE‑CV10L |
| Mixing Capacity | 0–1000 mL (standard vessel) * Customizable | 0–2000 mL (standard vessel) * Customizable | 0–10000 mL (standard vessel) * Customizable |
| Vessel Type | Test tube / can / cup; adapters for syringes & cartridges available | Test tube / can / cup; adapters for syringes & cartridges available | Test tube / can / cup; adapters for syringes & cartridges available |
| Vessel Quantity | 1 or 2 cans (user‑selectable) | 1 or 2 cans (user‑selectable) | 1 or 2 cans (user‑selectable) |
| Max Speed | 0 – 2000 RPM (stepless adjustable) | 0 – 2000 RPM (stepless adjustable) | 0 – 800 RPM (stepless adjustable) |
| Revolution / Rotation Ratio | Fixed speed ratio | Fixed speed ratio | Fixed speed ratio |
| Vacuum Degree | Optional: –98 kPa / –100 kPa | Optional: –98 kPa / –100 kPa | Optional: –98 kPa / –100 kPa |
| Control System | Touch screen, stores up to 100 recipe sets | Touch screen, stores up to 100 recipe sets | Touch screen, stores up to 100 recipe sets |
| Power Supply | 220V, 50/60Hz (110V US/JP standard customizable) | 220V, 50/60Hz (110V US/JP standard customizable) | 220V, 50/60Hz (110V US/JP standard customizable) |
| Dimensions(W×D×H) | 610 × 560 × 780 mm | 1100 × 780 × 880 mm | 1100 × 780 × 880 mm |
| Net Weight | 115kg | 225 kg | 225 kg |
| Certifications | CE, FCC | CE, FCC | CE, FCC |
***Above are typical models only. SIENOX provides customized solutions according to customer requirements. For model‑selection consultation: 189‑2512‑9293
Multi‑Industry Solutions
Covers typical lab‑scale mixing and degassing applications for R&D materials across six major industries.
Polyurethane Foam MaterialsPU foam material, rigid‑foam compound |
Cosmetics ManufacturingCosmetic lotions, cream bases |
Energy‑Storage MaterialsSupercapacitor electrode slurry, lithium‑battery slurry |
 Printing InksUV printing ink, water‑based ink |
Structural AdhesivesPolyurethane structural adhesive, acrylic structural adhesive |
Silicone Rubber ProductsSilicone rubber compound, silicone resin |
Comprehensive Equipment Operation Demo Videos
Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.
Actual Test Results of Defoaming Process
Measured Processing Results for Six Typical Materials

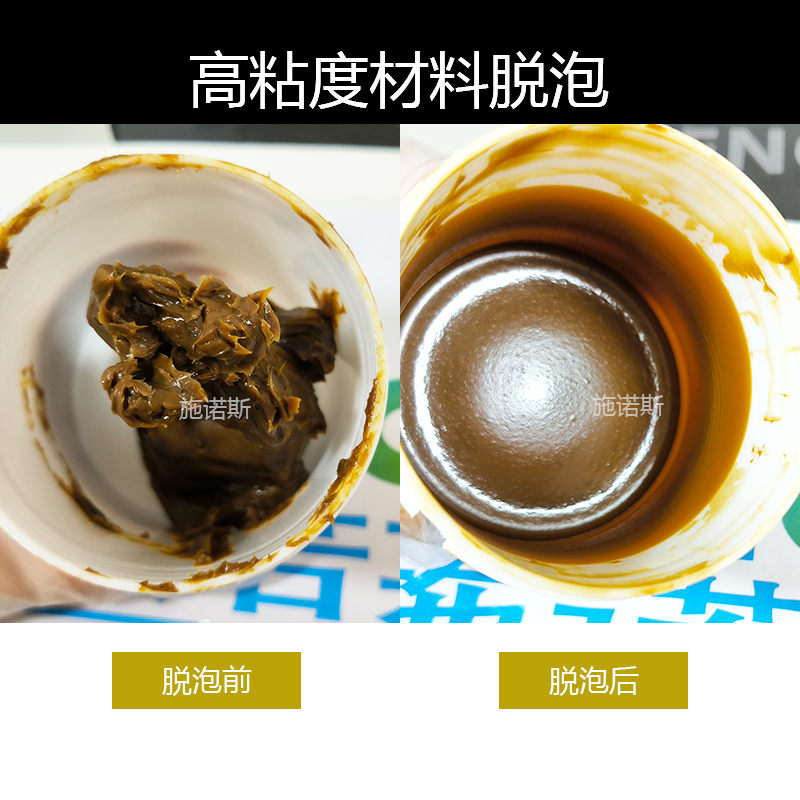

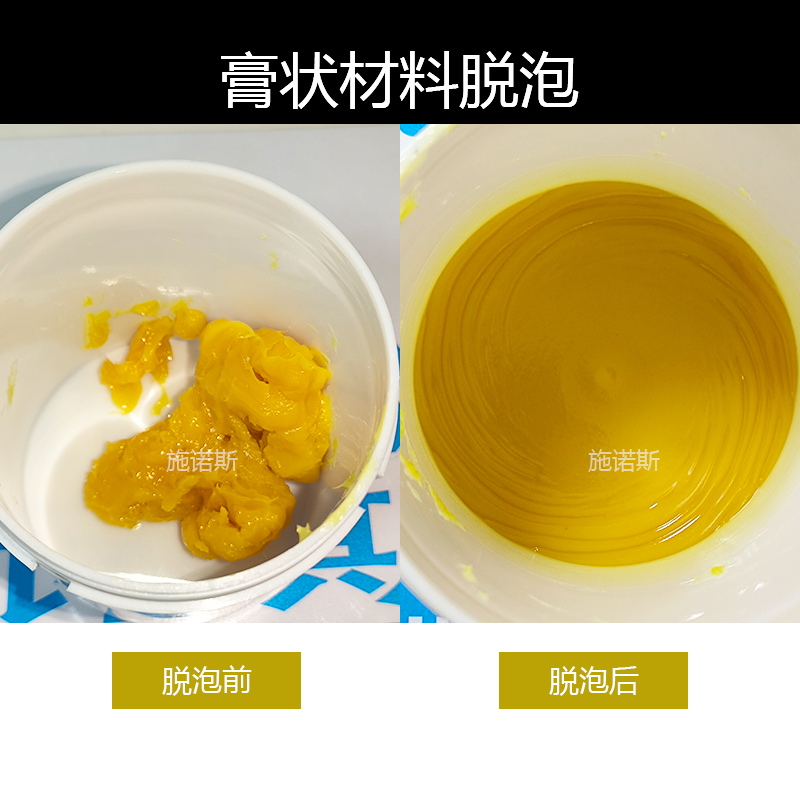

Paste‑form Materials |

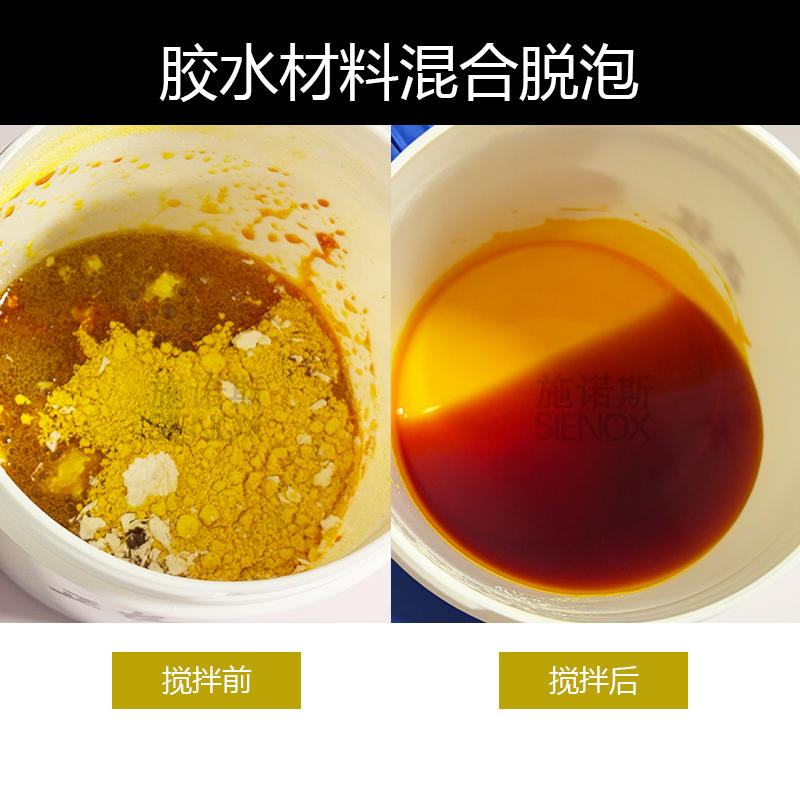

Adhesive + Powder |

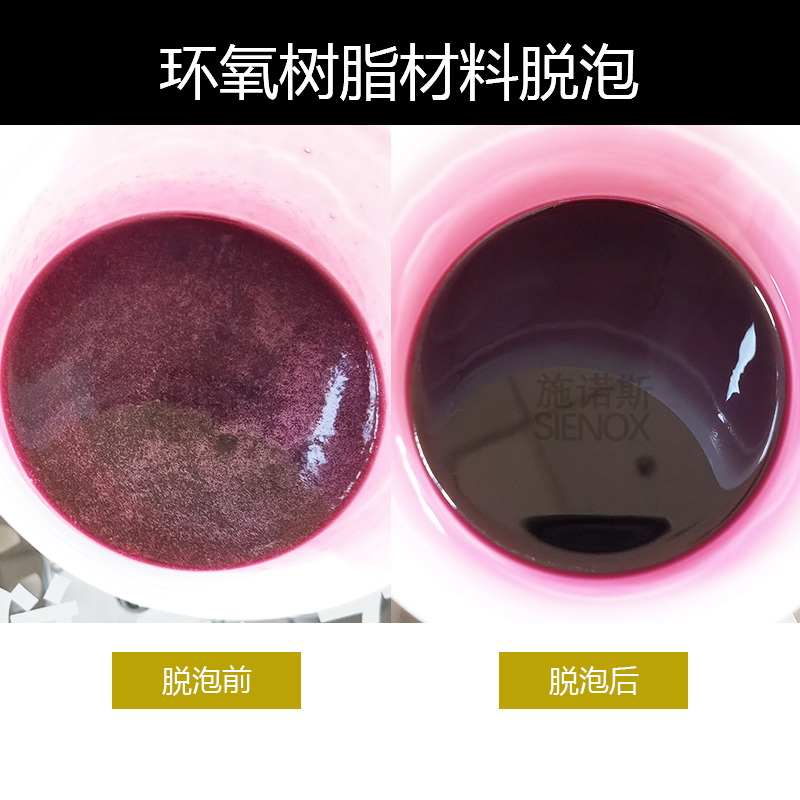

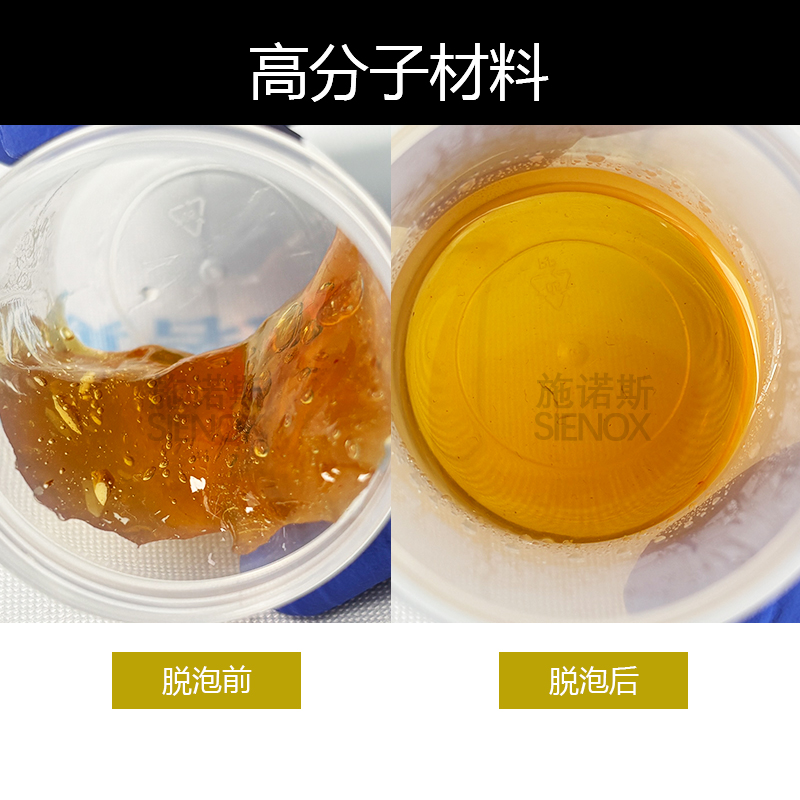

Polymer Materials |

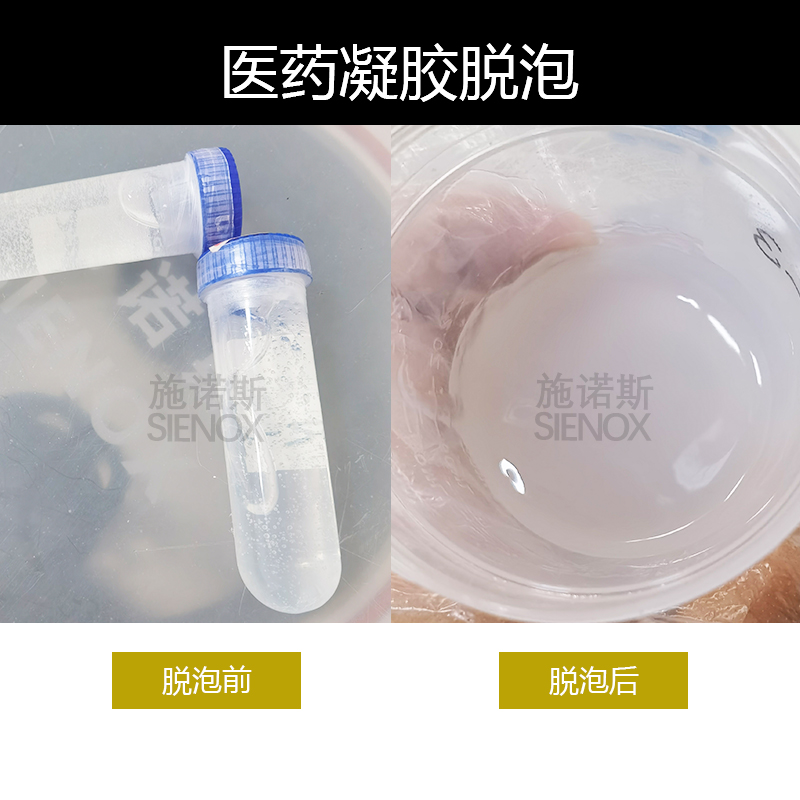

Medical Gel |

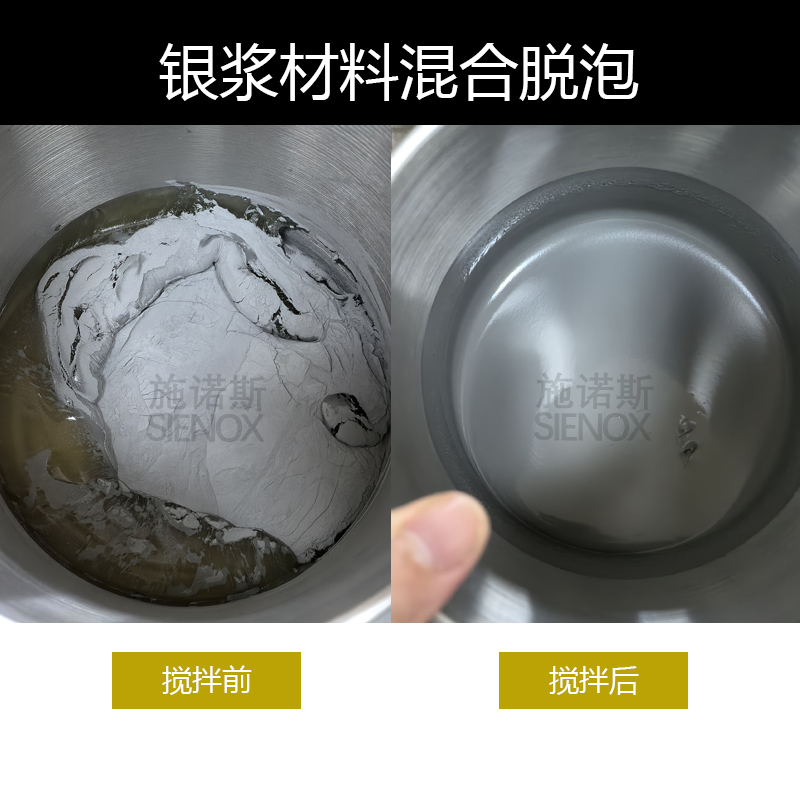

Silver Paste |

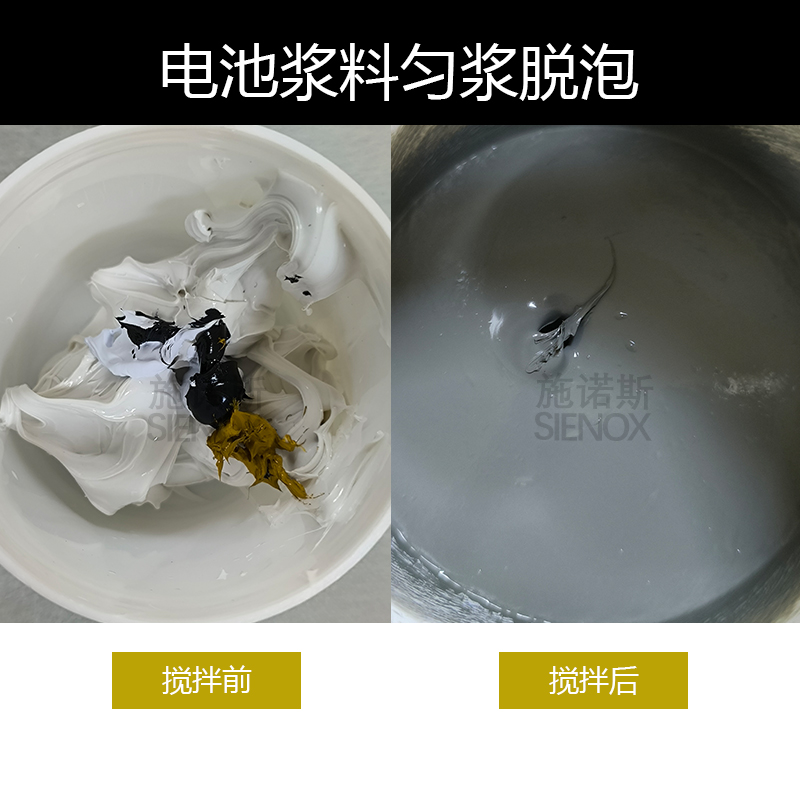

Battery Slurry |
Measured Data Comparison
Material Before‑and‑after Degassing Comparison
Material Type | Before Treatment | After CV10L Treatment |
Polyurethane Foam | Uneven cell structure, density deviation ±15% | Uniform cell structure, density deviation ±3% |
Supercapacitor Electrode Slurry | Coating thickness deviation ±10μm | Coating thickness deviation ±2μm |
Silicone Rubber Compound | Many pores after vulcanization, large tensile‑strength fluctuation | Dense after vulcanization, stable tensile strength |
* Internal lab test data. Actual improvement varies with material formula. Contact sales for real‑world customer references.
