Pressure Degassing Autoclave

TEL:18925129293

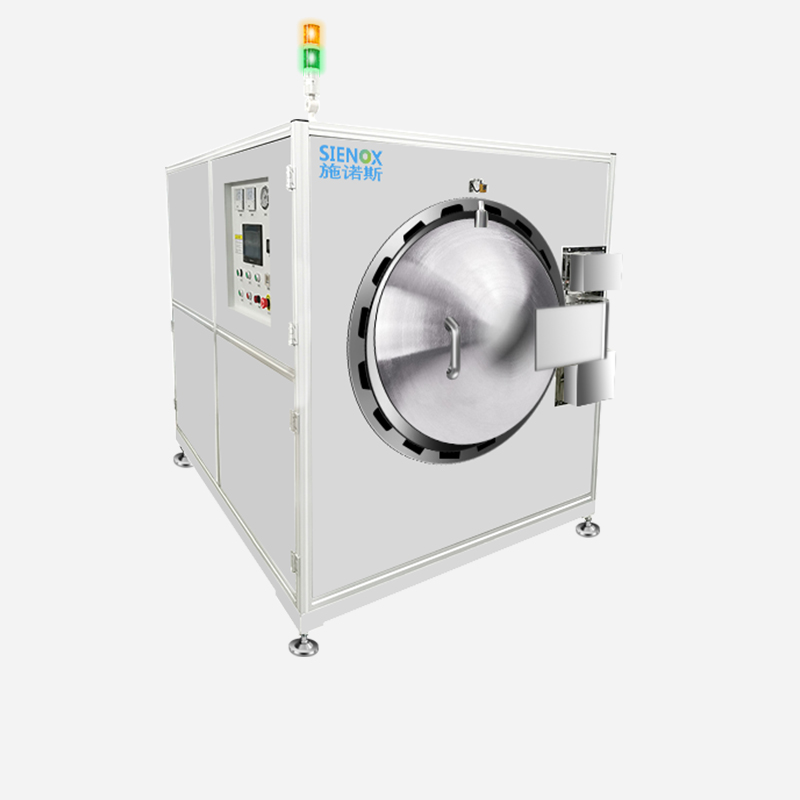

Pressurized Debubbling Machine SIE‑RX8‑1200


Three‑mode Programmable Process Storage · Quick Recall for Mid‑batch Production Changeover

Three‑mode Operation with Microcomputer Programmable Storage + 600L Chamber for Efficient Turnover with Fast Pressure Rise & Release

SINOS SIE‑RX8‑1200 Pressurized Debubbling Machine adopts φ800×1200 mm cylindrical chamber of approx. 600L with three programmable operation modes via microcomputer. SMC digital pressure gauge delivers ±0.01 MPa accuracy, Omron PID temperature control achieves ±1.0 ℃ precision. Pressure rises to 0.6 MPa within 5 min and pressure release completes in 2‑3 min, with single cycle lasting 35‑40 min. It eliminates bubbles generated in lamination process by pressure and temperature to enhance interfacial bonding strength.

✓ ISO9001 Quality System ✓ RoHS Compliance ✓ Custom‑voltage support (110V/220V)

Online Message Free Sample Testing Engineer Hotline: 189-2512-9293

Why Must Microbubbles in Materials Be Eliminated?

Residual micro‑bubbles degrade end‑product quality directly

TFT LCD Substrate Lamination Industry

During lamination of TFT LCD glass substrate and polarizer, residual bubbles within OCA optical adhesive cause defective display, light leakage and uneven color. The pressurized debubbler compresses and dissolves bubbles on lamination interface via pressure, while temperature reduces OCA adhesive viscosity to facilitate bubble removal. The φ800 chamber is ideal for mid‑batch debubbling of medium‑size TFT LCD substrates. Three programmable modes adapt to process parameters of different‑specification substrates.

OCA Optical Adhesive Lamination Industry

Bubbles generated during OCA lamination reduce light transmittance and destabilize optical performance. Frequent parameter switching is required for mid‑batch multi‑variant production. Microcomputer‑based programmable storage saves multiple sets of process parameters for one‑click recall upon production changeover. Three operation modes are selectable according to OCA adhesive models. It fits mid‑batch multi‑variety OCA lamination debubbling with high changeover efficiency and traceable process records.

New Energy Material Industry

Bubbles in new‑energy materials such as battery paste and conductive silver paste impair conductivity and coating uniformity. Stable debubbling is required to secure material performance for mid‑volume production. SMC precise pressure control cooperates with Omron PID temperature control to achieve stable and reproducible pressure‑temperature parameters. Precision filter avoids secondary material contamination, suitable for pressurized debubbling production of mid‑batch new‑energy materials.

✨ Traditional Debubbling Pain Points: Frequent line changes are required in mid-batch and multi-variety production. Conventional devices cannot store process parameters, leading to time-consuming repeated debugging. Unaccurate pressure control causes batch fluctuations and inconsistent debubbling results. Without precision filtration and safety certifications, materials face high contamination risks and production safety cannot be guaranteed.

Why Choose SIE‑RX8‑1200

Solves efficiency and quality pain points of mid‑batch & multi‑variety production via three advantages: triple‑mode programmability, fast cycle turnover, and safe & clean guarantee

Three‑mode Programmable Process

Three operation modes (pressurize first then heat, simultaneous heating and pressurization, heat first then pressurize) are programmable by microcomputer, and multiple groups of process parameters can be stored. For mid‑batch multi‑variety production changeover, recall corresponding process parameters with one click without repeated debugging. Changeover time is shortened from hours to minutes, greatly improving production efficiency.

Fast Pressure Rise & Release for Efficient Turnover

Pressure rises to 0.6 MPa within 5 minutes, pressure release takes 2‑3 minutes. The 600L chamber features a 35‑40 min full cycle with 15‑30 min effective debubbling time. The φ800‑mm chamber offers moderate loading capacity to satisfy mid‑batch production requirements. Fast pressurization and depressurization reduce waiting time and achieve high hourly throughput.

Precision Filter for Anti‑Contamination

Incoming air is filtered by precision filter before entering the chamber to avoid dust and impurities contaminating prototype samples. R&D samples are high‑value with small quantity; one‑time contamination may waste the entire batch. Precision filtration maintains a clean prototyping environment and increases prototyping success rate.

✨ If your mid‑batch production requires frequent line changes with demands for process‑parameter storage and safety, RX8‑1200 delivers high‑efficiency production via three‑mode programmability and fast cycle turnover.

Working Principle

Remove bubbles generated during lamination by pressure and temperature to enhance bonding strength between different materials.

Step 1: Pressurization & Heating (3 modes optional): Select pressure-first then heating, simultaneous heating & pressurization, or heating-first then pressurization according to material properties. Resistive heating combined with pressure builds the defoaming environment.

Step 2: Pressure-maintained Defoaming: Hold constant pressure and temperature. Pressure compresses and dissolves bubbles on bonding interfaces, while temperature reduces material viscosity to help bubbles escape from the bonding surface.

Step 3: Pressure Relief & Stabilization: Slowly release pressure to atmospheric pressure. Adhesion between materials increases and interfacial bubbles are eliminated.


Simple three steps: Pressurization & Heating → Pressure-maintained Defoaming → Pressure Relief & Stabilization, eliminate bonding bubbles and boost adhesion strength.

Working Principle of Pressure Defoamer.png

Technical Specifications

Complete Technical Specifications Overview, Customizable on Demand

ModelSIE‑RX8‑1200
Chamber Sizeφ800×1200mm (Cylindrical)
Effective VolumeApprox. 600L
Working Pressure0~0.8MPa (Standard), 0~2.5MPa (Optional)
Working TemperatureAmbient ~80℃ (Standard), Ambient ~180℃ (Optional)
Heating MethodResistive Heating
Operation ModesA. Pressurize first then heat  B. Simultaneous heating & pressurization  C. Heat first then pressurize
Control ModeMicrocomputer Control
Vessel MaterialS30408 Stainless Steel or Carbon Steel
Overall Dimension(W×D×H)Approx. 1100×1500×1800mm (Subject to actual product)
Net Weight1000 kg
CertificationsISO9001, RoHS Compliance

Our Partners

Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide

Partner Showcase

FAQ - Frequently Asked Questions

Answers to common questions about product performance and everyday process selection

  • What is the working principle of a centrifugal defoaming machine?

    Principle of centrifugal defoaming machine: The bubbles are released by the downward principle of gravity.

  • How is the after-sales service?

    The company has professional after-sales service personnel, 24-hour dedicated service, and one-on-one technical support to solve your worries.

  • Why choose SIENOX?

    There are many reasons for choosing SIENOX, and the following are some of the main reasons:

    1. Professionalism: Our team consists of a group of professional individuals with rich experience and knowledge in their respective fields. We not only understand industry trends and best practices, but also provide practical and feasible solutions.

    2. Service quality: We focus on customer needs and satisfaction, and are always committed to providing high-quality services. We not only respond quickly to customer needs, but also provide customized services according to their requirements.

    3. Reliability: We adhere to the principles of integrity and professionalism, always adhering to commitments and agreements. Our work methods and deliverables comply with industry standards and best practices, enabling our clients to trust us.

    4. Innovation: We continuously explore new methods and tools to provide better services and meet customer needs. We encourage innovation and experimentation, and are willing to accept challenges and change.

    5. Cost effectiveness: We provide cost-effective services that not only help customers save costs, but also improve efficiency and productivity. We always prioritize the interests of our customers and provide them with the best solutions.

    6. Teamwork: We believe in the power and value of teamwork, and our team members support, collaborate, and respect each other. We establish close cooperative relationships with customers, partners, and other stakeholders to achieve common goals.

    The above are just some of the reasons for choosing us. We believe there are many other advantages and values that can be provided to customers. If you are looking for a professional, reliable, and high-quality service provider, we look forward to working with you.


  • How does the stirring and defoaming machine work?

    The SIENOX stirring and defoaming machine performs defoaming through centrifugal force at revolution and stirring through shear force formed by revolution and rotation,

    Assisted by a vacuum pump to extract gas and achieve a vacuum state, removing nanoscale tiny bubbles. No contact with materials, no secondary pollution, and no secondary waste.

  • What is the function of a defoaming machine?

    A defoaming machine is a device used to remove bubbles from liquids. Its function is to assist in the liquid mixing, reaction, coating, printing, infusion and other process steps in the production process, avoiding the generation of bubbles and their impact on the final product. In many industrial and laboratory environments, removing bubbles is essential as they may have a negative impact on product quality, such as affecting surface tension and stability. Defoaming machines typically use various techniques such as vibration, ultrasound, centrifugation, etc. to achieve effective bubble removal. It has a wide range of applications, including but not limited to semiconductors, solar energy, optics, biotechnology, materials science, etc.

Multi‑Model Specification Comparison Table

Compare Models in the Same Series for Accurate Selection

ModelSIE‑RX4‑600SIE‑RX6‑900SIE‑RX8‑1200
Chamber Sizeφ400×600mmφ600×900mmφ800×1200mm
Effective Volume75L255L600L
Pressure Range0~2.5MPa (Optional)0~2.5MPa (Optional)0~2.5MPa (Optional)
Temperature RangeAmbient ~180℃ (Optional)Ambient ~180℃ (Optional)Ambient ~180℃ (Optional)
Pressure Accuracy±0.01MPa±0.01MPa±0.01MPa
Temperature Control Accuracy±1.0℃±1.0℃±1.0℃
Power Supply220V, 50/60Hz (110V US/JP standard customizable)220V, 50/60Hz (110V US/JP standard customizable)220V, 50/60Hz (110V US/JP standard customizable)
Overall Dimension(W×D×H)510 × 430 × 500 mm610 × 560 × 780 mm1100×1500×1800mm
Net Weight95 kg153 kg1000kg

*** Above are typical models only. Customized solutions are available according to customer requirements.

Multi‑Industry Solutions

Covering stirring and debubbling applications of typical materials across six major industries


TFT LCD Substrate Lamination

OCA optical adhesive for medium‑size TFT substrates, LCD glass bonding adhesive


OCA Optical Adhesive Lamination

OCA optical adhesive, optically clear adhesive film


New Energy Materials

Battery slurry, conductive silver adhesive


Printed Electronic Materials

Conductive ink, printed electronic slurry


Conductive Silver Adhesive

Conductive silver adhesive, silver nanowire adhesive


Insulating Adhesive

Insulating adhesive, electronic encapsulation adhesive

Comprehensive Equipment Operation Demo Videos

Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.

Actual‑test Performance Demonstration

Measured Processing Results for Six Typical Materials

Red Slurry Mixing & Debubbling.jpg

Slurry & Powder

Adhesive Before‑after Debubbling Comparison 02.jpg

Adhesive

Hydrogen Energy Materials.jpg

Hydrogen Energy Materials

Adhesive Before‑after Debubbling Comparison 01.jpg

Adhesive

Substrate & Filler Mixing & Debubbling.jpg

Substrate & Filler

Adhesive & Ceramic Powder Mixing & Debubbling.jpg

Adhesive & Ceramic Powder

Actual‑test Effect Comparison

Comparison of Material Status Before and After Pressurized Debubbling

Material TypeStatus Before TreatmentAfter Treatment by SIE‑RX8‑1200
Polarizer OCA Optical AdhesiveNumerous bubbles inside adhesive, uneven light transmission & mottling after laminationBubble‑free transparent adhesive with uniform light transmission after lamination
Component Encapsulation AdhesiveDense internal bubbles, voids formed in encapsulation layer after curingDense void‑free adhesive for complete and reliable encapsulation layer
Medical Bonding AdhesiveInternal bubbles, bonding‑surface defects impair biocompatibilityDense adhesive with intact bonding surface and qualified biocompatibility

* Internal laboratory test data. Actual improvement varies with material formulations. Contact sales for real‑world customer cases.

Customer Delivery & Application Cases

Rooted in manufacturing frontlines, empowering benchmark production lines and key national research institutions across diverse industries.



Solder paste bubbles solved in one go! Measured degassing solution for SMT soldering.



Complete AB Glue Bubble Elimination | Verified Solutions for 3 Mixing Ratios



Thermal conductive glue defoaming solution
