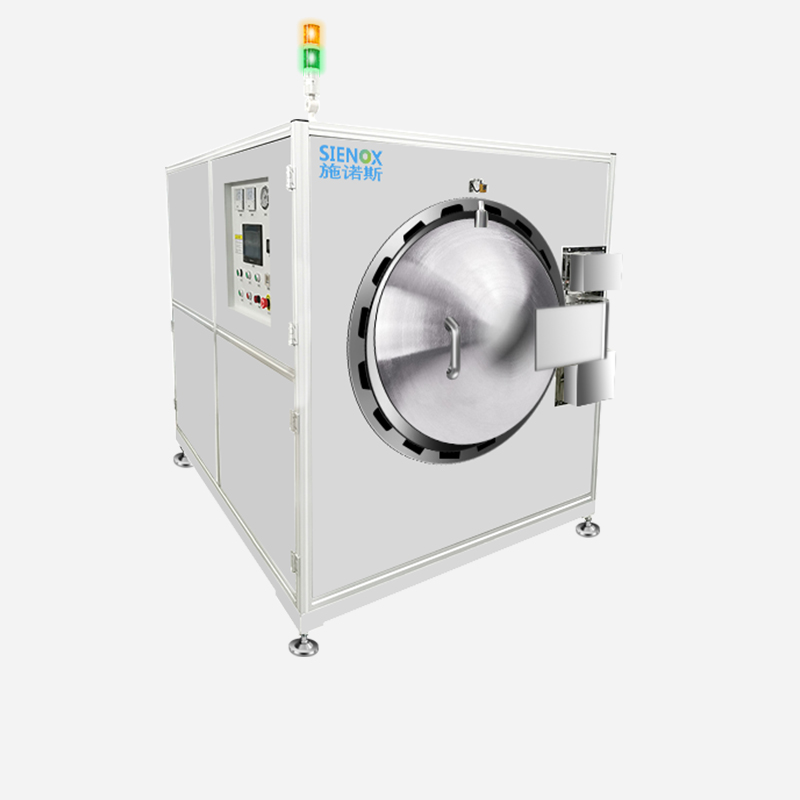

Pressurized Debubbling Machine SIE‑RX16‑2600


Oversized Chamber for Whole‑panel Loading · Fully‑automatic Production‑grade Control with Redundant Safety Design

Oversized chamber and large‑size panel whole‑unit loading without batch processing + Fully‑automatic microcomputer production‑grade control with MES system connection support

SIENOX SIE‑RX16‑2600 Pressurized Debubbling Machine supports whole‑panel loading. Adopting fully‑automatic microcomputer control compatible with MES system connection, it is equipped with SMC digital pressure gauge with accuracy of ±0.01MPa and OMRON PID temperature control with accuracy of ±1.0℃. Multiple redundant safety measures include pressure vessel safety certificate, audio‑visual alarm and precision filter. It removes bubbles generated during laminating process by pressure and temperature to improve bonding strength between materials.

✓ ISO9001 Quality Management System ✓ RoHS Compliance ✓ Customizable voltage (110V/220V)

Online Message Free Sample Testing Engineer Hotline: 189-2512-9293

Why Must Microbubbles in Materials Be Eliminated?

Residual micro‑bubbles degrade end‑product quality directly

Large‑Panel Lamination Industry

During lamination of large‑size LCD, commercial display and touch panels, large‑area OCA adhesive generates abundant bubbles. Batch‑split processing raises working steps and secondary‑bubble risks, bringing high loss from full‑panel scrapping. The 5230L large‑chamber pressurized debubbler realizes one‑shot debubbling for whole panels without splitting. Precise SMC pressure control ensures uniform force across full panel surface, ideal for mass‑production debubbling of large‑panel lamination.

New‑Energy Battery Slurry Industry

Bubbles in high‑volume battery slurry impair coating uniformity and battery safety. Mass production demands stable large‑volume debubbling for consistent batch quality. Its 5230L large chamber processes massive slurry containers in one run. Resistive heating reaches 60 ℃ within 5 min with internal temperature deviation of ±3 ℃. Fully‑automatic microcomputer control stores and reproduces process parameters, suitable for high‑volume debubbling of battery slurry.

Semiconductor Packaging Industry

Bubbles in packaging adhesive cause voids and chip failure from moisture intrusion. High‑volume packaging requires stable debubbling for reliability. Three operating modes are selectable for different adhesives. Precision filters avoid secondary material contamination. The 5230L large chamber handles numerous packaging components per cycle. Audio‑visual alarm ensures long‑term safe mass‑production operation for high‑volume semiconductor packaging debubbling.

✨ Dilemmas of traditional debubbling: Oversized‑panel products exceed regular‑equipment chamber size and have to be processed in split batches, bringing extra procedures and high secondary‑bubble risks. Mass‑volume production requires repeated batch processing, and long queuing time delays delivery. Large‑volume pressure vessels lack multi‑redundant safety systems, posing major risks for large‑scale production. Equipment failures may cause extremely high losses for high‑value products.

Why Choose SIE‑RX16‑2600

Solve capacity, management and safety pain points for large‑panel and high‑volume mass production

5230L Oversized Chamber

The oversized cylindrical chamber reaches a capacity of 5230L, more than doubling the volume from the 1990L of RX13-1500 model. It supports one-time processing of oversized panels and mass-volume products without batch splitting. Ideal for one-step debubbling of large-size LCD panels, commercial display screens, high-volume battery slurries and semiconductor packaging components, it avoids efficiency loss and secondary bubble risks caused by batch processing.

Fully-automatic Production-grade Microcomputer Control

Adopting fully-automatic microcomputer control and supporting MES system docking, the equipment enables storage and traceability of process parameters, with one-click parameter invocation for mass production without manual intervention. In high-volume production, the automatic control eliminates manual operation errors. MES connection realizes traceable and manageable batch parameters, meeting factory audit and quality management requirements and supporting production data analysis and optimization.

Multiple Safety Redundancies & Complete Certifications

Equipped with complete pressure vessel safety certifications, audio-visual alarm system, precision filter and microcomputer fault display & alarm functions, the machine features a multi-redundancy safety design. Safety is the top priority for large-capacity pressure vessels. Complete certifications and multi-level alarms ensure long-term safe operation in large-scale mass production, effectively reducing safety risks for high-value oversized panels and mass-volume products.

✨ If you need to process oversized‑panel products, conduct high‑volume mass production, or require high‑level safety redundancy and automation, the RX16‑2600’s oversized chamber and production‑grade control can meet your large‑scale production requirements.

Working Principle

Remove bubbles generated during lamination by pressure and temperature to enhance bonding strength between different materials.

Step 1: Pressurization & Heating (3 modes optional): Select pressure first then heating, simultaneous heating & pressurization or heating first then pressure according to material properties. Resistive heating combined with pressurization builds the defoaming environment.

Step 2: Pressure Holding & Defoaming: Maintain constant pressure and temperature. Pressure compresses and dissolves bubbles on bonding surfaces; heat reduces material viscosity to help bubbles escape from bonding interfaces.

Step 3: Pressure Relief & Stabilization: Slowly release pressure to atmospheric pressure. The adhesion between materials is enhanced, and bubbles on bonding surfaces are eliminated.


Three simple steps: Pressurization & Heating → Pressure Holding & Defoaming → Pressure Relief & Stabilization, eliminating bonding bubbles and boosting adhesive strength.

Pressurization Defoamer Working Principle.png

Technical Specifications

Complete Technical Specifications Overview, Customizable on Demand

ModelSIE‑RX16‑2600
Chamber Sizeφ1600×2600mm (Cylindrical)
Effective VolumeApprox. 5230L
Working Pressure0~0.8MPa (Standard), 0~2.5MPa (Optional)
Working TemperatureAmbient ~80℃ (Standard), Ambient ~180℃ (Optional)
Heating MethodResistive Heating
Operation ModesA. Pressurize First Then Heat B. Simultaneous Heating & Pressurization C. Heat First Then Pressurize
Control ModeMicrocomputer Control
Vessel MaterialS30408 Stainless Steel or Carbon Steel
Overall Dimension(W×D×H)Approx. 2000×2900×2600mm (Subject to actual product)
Net Weight5000 kg
CertificationsISO9001, RoHS Compliance


Our Partners

Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide

Partner Showcase

FAQ - Frequently Asked Questions

Answers to common questions about product performance and everyday process selection

  • What is the working principle of a centrifugal defoaming machine?

    Principle of centrifugal defoaming machine: The bubbles are released by the downward principle of gravity.

  • How is the after-sales service?

    The company has professional after-sales service personnel, 24-hour dedicated service, and one-on-one technical support to solve your worries.

  • Why choose SIENOX?

    There are many reasons for choosing SIENOX, and the following are some of the main reasons:

    1. Professionalism: Our team consists of a group of professional individuals with rich experience and knowledge in their respective fields. We not only understand industry trends and best practices, but also provide practical and feasible solutions.

    2. Service quality: We focus on customer needs and satisfaction, and are always committed to providing high-quality services. We not only respond quickly to customer needs, but also provide customized services according to their requirements.

    3. Reliability: We adhere to the principles of integrity and professionalism, always adhering to commitments and agreements. Our work methods and deliverables comply with industry standards and best practices, enabling our clients to trust us.

    4. Innovation: We continuously explore new methods and tools to provide better services and meet customer needs. We encourage innovation and experimentation, and are willing to accept challenges and change.

    5. Cost effectiveness: We provide cost-effective services that not only help customers save costs, but also improve efficiency and productivity. We always prioritize the interests of our customers and provide them with the best solutions.

    6. Teamwork: We believe in the power and value of teamwork, and our team members support, collaborate, and respect each other. We establish close cooperative relationships with customers, partners, and other stakeholders to achieve common goals.

    The above are just some of the reasons for choosing us. We believe there are many other advantages and values that can be provided to customers. If you are looking for a professional, reliable, and high-quality service provider, we look forward to working with you.


  • How does the stirring and defoaming machine work?

    The SIENOX stirring and defoaming machine performs defoaming through centrifugal force at revolution and stirring through shear force formed by revolution and rotation,

    Assisted by a vacuum pump to extract gas and achieve a vacuum state, removing nanoscale tiny bubbles. No contact with materials, no secondary pollution, and no secondary waste.

  • What is the function of a defoaming machine?

    A defoaming machine is a device used to remove bubbles from liquids. Its function is to assist in the liquid mixing, reaction, coating, printing, infusion and other process steps in the production process, avoiding the generation of bubbles and their impact on the final product. In many industrial and laboratory environments, removing bubbles is essential as they may have a negative impact on product quality, such as affecting surface tension and stability. Defoaming machines typically use various techniques such as vibration, ultrasound, centrifugation, etc. to achieve effective bubble removal. It has a wide range of applications, including but not limited to semiconductors, solar energy, optics, biotechnology, materials science, etc.

Multi‑Model Specification Comparison Table

Compare Models in the Same Series for Accurate Selection

ModelSIE-RX10-1800SIE-RX13-1500SIE-RX16-2600
Chamber Sizeφ1000×1800mmφ1300×1500mmφ1600×2600mm
Effective Volume1410L1990L5230L
Pressure Range0~2.5MPa(Optional)0~2.5MPa(Optional)0~2.5MPa(Optional)
Temperature RangeAmbient ~180℃(Optional)Ambient ~180℃(Optional)Ambient ~180℃(Optional)
Pressure Accuracy±0.01MPa±0.01MPa±0.01MPa
Temperature Control Accuracy±1.0℃±1.0℃±1.0℃
Power Supply380V, 50/60Hz (Customizable for 110V US/JP standard)380V, 50/60Hz (Customizable for 110V US/JP standard)380V, 50/60Hz (Customizable for 110V US/JP standard)
Overall Dimension(W×D×H)1300×2100×2000mm1600×1800×2300mm2000×2900×2600mm
Net Weight2000 kg3000 kg5000 kg

***The above are typical models only. Customized solutions are available upon customer requirements.

Multi‑Industry Solutions

Covering stirring and debubbling applications of typical materials across six major industries


LCD Polarizer Lamination

OCA optical adhesive for small‑size polarizers, lamination adhesive for LCD glass substrates


Electronic Component Packaging

Component encapsulant, chip potting adhesive


Medical Devices

Medical bonding adhesive, medical‑device lamination adhesive


LED Packaging

LED encapsulant, phosphor paste


Fine Chemicals

Fine chemical materials, nano‑powders


New‑Energy Materials

R&D samples of new‑energy materials, battery slurry samples

Comprehensive Equipment Operation Demo Videos

Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.

Actual‑test Performance Demonstration

Measured Processing Results for Six Typical Materials

Red Slurry Stirring & Debubbling.jpg

Slurry & Powder

Glue Before‑after Debubbling Comparison 02.jpg

Adhesive

Hydrogen‑Energy Materials.jpg

Hydrogen‑Energy Materials

Glue Before‑after Debubbling Comparison 01.jpg

Adhesive

Substrate & Filler Stirring & Debubbling.jpg

Substrate & Filler

Adhesive & Ceramic Powder Stirring & Debubbling.jpg

Adhesive & Ceramic Powder


Actual‑test Effect Comparison

Comparison of Material Status Before and After Pressurized Debubbling

Material TypeState Before TreatmentAfter Treatment by SIE-RX16-2600
Polarizer OCA Optical AdhesiveMany bubbles inside adhesive; uneven light transmission and mottling after laminationTransparent adhesive without bubbles; uniform light transmission after lamination
Component Encapsulation AdhesiveDense bubbles inside adhesive, voids appear in encapsulation layer after curingDense adhesive without voids; complete and reliable encapsulation layer
Medical AdhesiveInternal bubbles, bonding surface defects affect biocompatibilityDense adhesive with intact bonding surface and qualified biocompatibility

* Internal laboratory test data. Actual improvement varies with material formulation. Contact sales for real customer cases.
