Temperature‑Controlled Vacuum Mixing Defoamer SIE‑MIX650WK


Built‑in Vacuum & Temperature‑control Assisted Defoaming · 500 mL Medium‑capacity with Wide‑range Speed Regulation

500 mL Medium‑capacity Dual‑cup + Maintenance‑free Built‑in Vacuum + Ambient Heating & Cooling Temperature Control

SIENOX SIE‑MIX650WK is a temperature‑controlled vacuum mixing defoamer developed for pilot‑scale R&D of temperature‑sensitive materials, equipped with 500 mL medium‑capacity dual‑cup. Maintenance‑free built‑in vacuum combined with heating/cooling temperature control and dual‑power planetary mixing realizes one‑step mixing, temperature control and defoaming.

✓ CE Certification  ✓ FC Certification ✓ ISO9001 Quality System ✓ RoHS Compliance ✓ Custom Voltage Available (110V/220V)

Online Message Free Sample Testing Engineer Hotline: 189-2512-9293

Why Must Microbubbles in Materials Be Eliminated?

Residual micro‑bubbles in materials directly affect finished‑product yield and performance

Electronics Industry

Bubbles in electronic encapsulant, conductive silver paste and bonding adhesive cause encapsulation voids, circuit breakpoints and bonding defects, impairing heat dissipation, insulation and product yield. Most electronic encapsulants are medium‑to‑high viscosity materials. Heating reduces viscosity to improve flowability, yet excessive temperature alters curing properties. Temperature‑controlled defoaming is critical to balance efficiency and material safety.

Polyurethane Industry

Bubbles in polyurethane casting compound, foaming slurry and elastomer prepolymer lead to surface defects after curing, irregular foaming structure and inconsistent elasticity. Polyurethane curing is exothermic; temperature rise accelerates reaction and aggravates bubble generation. Temperature‑controlled mixing‑defoaming removes bubbles while regulating temperature.

Ink & Coating Industry

Bubbles in industrial ink, coating and UV‑curable ink cause printing pinholes, color deviation and reduced film adhesion. Viscosity of ink and coating varies significantly with temperature. Temperature‑controlled mixing‑defoaming completes defoaming while keeping materials within proper viscosity range.

✨ Traditional defoaming challenges: manual mixing entraps air, static defoaming consumes long time, and ordinary vacuum only eliminates surface bubbles, failing to remove internal micro‑bubbles effectively. Conventional devices lack temperature‑control function, and heating tends to degrade heat‑sensitive materials. The temperature‑controlled planetary mixing solution separates bubbles while mixing by centrifugal force. Combined with vacuum negative pressure and precise temperature control, it accomplishes mixing, temperature regulation and defoaming in one single step.

Why Choose SIE‑MIX650WK

Three Core Features Cover Full Workflow of Temperature‑Controlled Vacuum Mixing‑Defoaming

Maintenance‑free Built‑in Vacuum with Synergistic Temperature‑controlled Defoaming

MIX650WK is equipped with built‑in vacuum unit for maintenance‑free and contamination‑free operation, suitable for clean‑room application. Vacuum degree adjustable from ‑98 kPa to 0 kPa, cooperating with dual‑mode temperature control: bubbles are easier to discharge after viscosity reduction by heating; vacuum negative pressure compensates defoaming efficiency during cooling. Built‑in design eliminates external vacuum pump pipelines for plug‑and‑play operation.

500 mL Medium‑capacity & Wide‑range Speed Regulation with Temperature Control

500 mL dual‑cup configuration, 0‑2000 rpm wide‑range speed regulation adapts to pilot R&D and production sampling, covering low‑, medium‑ and high‑viscosity materials. Dual‑mode temperature control delivers precise temperature adjustment during speed variation. Heating reduces viscosity and accelerates powder dispersion; cooling inhibits thermal degradation and controls exothermic reactions. One unit covers two process scenarios.

Multi‑segment Programmable Temperature‑control Process Editing

Microcomputer control system supports storage of 10 programs, each with independent configurable time, speed and temperature‑control parameters for multiple segments. Features operation permission setting and fault display. Programmed operation reduces manual errors and ensures batch‑to‑batch temperature‑control consistency. Exclusive preset programs for different materials can be quickly recalled.

✨ MIX650WK is applicable to pilot R&D and temperature-controlled vacuum defoaming of temperature-sensitive materials such as electronic encapsulation, polyurethane casting, inks and coatings.

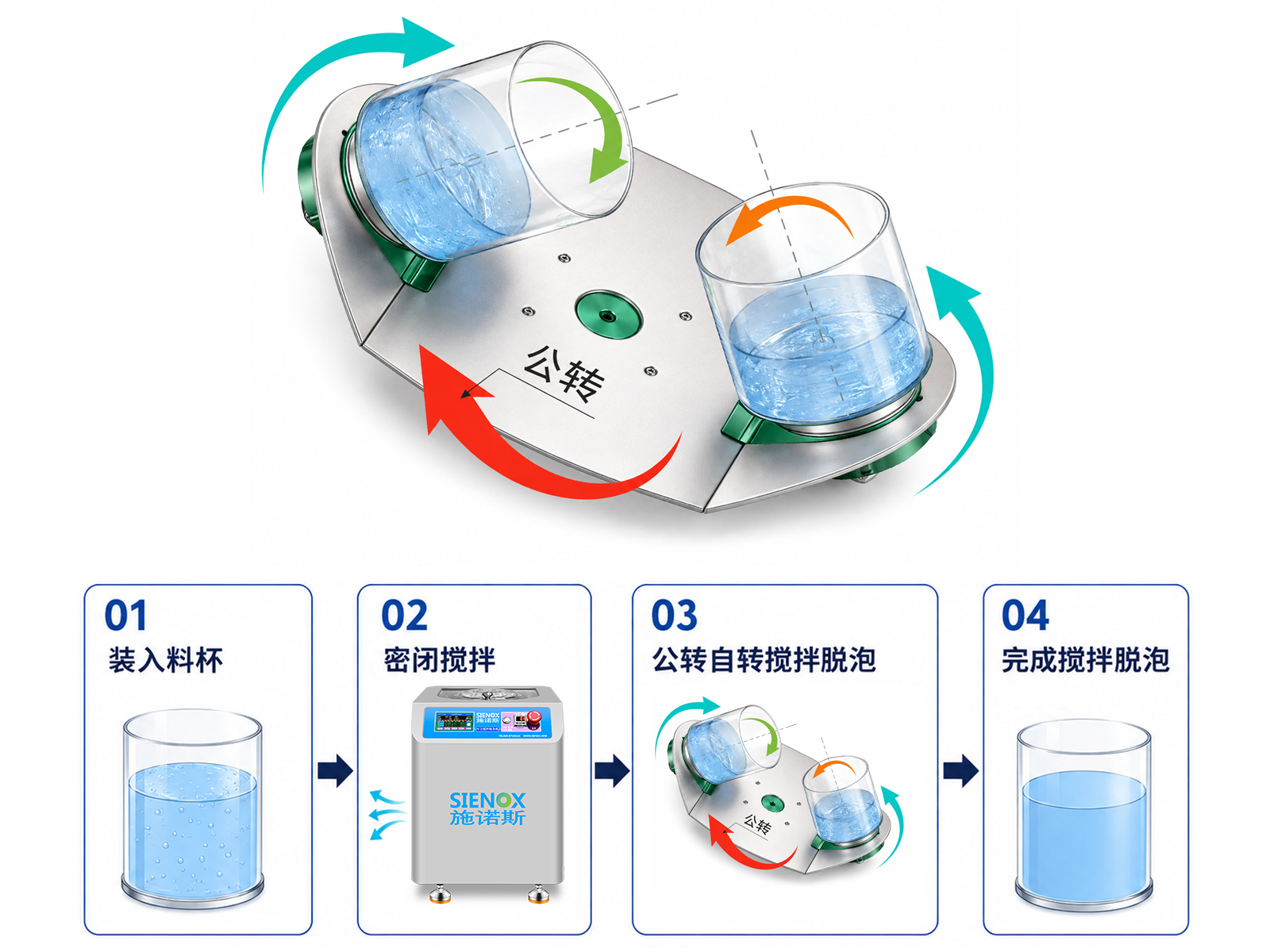

Working Principle

Dual synchronous revolution and rotation power realizes one-step mixing and defoaming.

Step 1: Centrifugal Force Generated by Revolution

High‑speed rotation of the revolution disc generates centrifugal force to drive full‑range material convection for macro‑mixing, meanwhile pushing bubbles toward the shaft for release. The temperature‑control system runs synchronously to keep materials within target temperature range.

Step 2: Shear Force Provided by Rotation

Container rotation produces shear force to break agglomerated particles for micro‑dispersion. Fixed speed ratio ensures full‑range high‑efficiency mixing. Shear force thins bubble film and accelerates bubble rupture. No stirring paddle contacts materials to lower contamination risk.

Step 3: Deep Defoaming Under Vacuum Negative Pressure

Built‑in vacuum unit activates to build negative‑pressure environment, reducing pressure difference inside and outside bubbles so deep‑seated micro‑bubbles expand and escape. Adjustable vacuum degree from ‑98 kPa to 0 kPa adapts to materials of various viscosities, maintenance‑free and contamination‑free operation.

Step 4: Precise Temperature Control for Material Condition
Temperature‑control system works throughout the whole process, ambient‑to‑heat or ambient‑to‑cool mode optional: heating reduces viscosity to improve fluidity and speed up bubble discharge; cooling inhibits thermal degradation and controls exothermic reactions. Temperature control runs simultaneously with mixing‑defoaming without separate temperature‑regulating procedures.


Materials go through the full workflow of "Mixing → Dispersion → Vacuum Defoaming → Temperature Adjustment" inside sealed container, completing temperature‑controlled vacuum defoaming in one single step.

Working Principle of Vacuum Mixer Defoamer.jpg

Technical Specifications

Complete Technical Specifications Overview, Customizable on Demand

Equipment ModelSIE‑MIX650WK
Mixing Capacity0–500 mL (standard container) * Larger volume customizable
Container TypeTest tube / Can / Cup; adapters for syringes & cartridges supported
Container Quantity1 or 2 cans (user‑selectable)
Max Speed0 – 2000 RPM (stepless adjustable)
Temperature‑Control ModeCooling / Heating
Vacuum DegreeStandard: –98 kPa / Optional: –100 kPa
Control SystemTouch screen, stores up to 100 recipe sets
Power Supply220V, 50/60Hz (110V US/JP standard customizable)
Dimension(W×D×H)580 × 560 × 760 mm
Net Weight145 kg
Certifications CE, FC, ISO9001, RoHS Compliance

Our Partners

Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide

Partner Showcase

FAQ - Frequently Asked Questions

Answers to common questions about product performance and everyday process selection

  • 脱泡机的作用是什么?

    脱泡机是一种用于去除液体中的气泡的设备。它的作用在于帮助生产过程中的液体混合、反应、涂布、印刷、灌注等工艺环节,避免气泡的产生和对最终产品的影响。在许多工业和实验室环境中,去除气泡是非常必要的,因为气泡可能会对产品质量产生负面影响,如影响表面张力和稳定性等问题。脱泡机通常采用各种不同的技术,如振动、超声波、离心等,以实现有效的气泡去除。它的应用领域广泛,包括但不限于半导体、太阳能、光学、生物技术、材料科学等。

  • 售后服务怎么样?

    公司拥有专业的售后服务人员,24小时专人服务,一对一提供技术支持,解决您的后顾之忧。

  • 为什么要选择施诺斯?

    选择施诺斯的原因有很多,以下是一些主要的原因:

     1. 专业性:我们的团队由一群专业的人士组成,他们在各自的领域拥有丰富的经验和知识。我们不仅了解行业趋势和最佳实践,而且还能提供切实可行的解决方案。

     2. 服务质量:我们注重客户的需求和满意度,始终致力于提供高质量的服务。我们不仅快速响应客户需求,而且还能根据客户的要求进行定制化服务。

    3. 可靠性:我们以诚信和专业精神为宗旨,始终遵守承诺和协议。我们的工作方法和交付成果均符合行业标准和最佳实践,使得我们的客户能够信任我们。

    4. 创新性:我们不断探索新的方法和工具,以提供更好的服务并满足客户的需求。我们鼓励创新和实验,并愿意接受挑战和改变。

    5. 成本效益:我们提供高性价比的服务,不仅能够帮助客户节省成本,而且还能提高效率和生产力。我们始终以客户的利益为出发点,为客户提供最优的解决方案。

     6. 团队合作:我们相信团队的力量和合作的价值,我们的团队成员之间互相支持、协作和尊重。我们与客户、合作伙伴和其他利益相关者建立紧密的合作关系,以实现共同的目标。

    以上只是选择我们的部分原因,我们相信还有很多其他的优点和价值可以为客户提供。如果您正在寻找一家专业、可靠、高质量的服务提供商,我们非常期待与您的合作。

  • 搅拌脱泡机的工作原理?

    施诺斯搅拌脱泡机通过公转的离心力进行脱泡,通过公转与自转形成的剪切力进行搅拌,

    再辅助以真空泵抽取气体以达到真空状态,去除纳米级微小气泡。 不接触物料,无二次污染,无二次浪费。


  • 施诺斯能提供工程咨询技术服务吗?

    施诺斯能为广大客户提供全面的工程和现代化的咨询服务。施诺斯近二十年的搅拌经验,可以为你提供高效的咨询服务。

    想要让搅拌机性能更上一层楼,提升系统的整体效能?我们有全面的咨询、工程以及现代化改造服务,为您量身打造解决方案。 在如今竞争激烈的全球化浪潮中,唯有不断创新、持续优化,才能始终跑在对手前面。您的生产工艺和产品日新月异,我们就为您提供最适配的混合技术。不管是新的产品参数,还是既有的工艺条件,我们都能对现有系统和搅拌设备进行全方位的检查与评估,挖掘其中潜藏的流程优化空间和机械性能提升潜力,并且帮您把这些改进切实落地。 要是您的搅拌设备已经跟不上时代步伐,能耗居高不下,或是维护成本让您头疼不已,那就别犹豫,我们的咨询、工程设计和现代化改造服务,就是为您排忧解难的良方。欢迎随时联系我们,携手开启高效生产新征程!

Technical Specification List

Full‑line standardized specifications for accurate process evaluation and equipment selection

Equipment ModelSIE‑MIX60ZKSIE‑MIX650ZKSIE‑MIX90ZK
Mixing Capacity0–300 mL (standard container) * Customizable0–500 mL (standard container) * Customizable0–1000 mL (standard container) * Customizable
Container TypeTest tube / Can / Cup; adapters for syringes & cartridges supportedTest tube / Can / Cup; adapters for syringes & cartridges supportedTest tube / Can / Cup; adapters for syringes & cartridges supported
Container Quantity1  or 2 cans (user‑selectable)1  or 2 cans (user‑selectable)1  or 2 cans (user‑selectable)
Max Speed0 – 3000 RPM (stepless adjustable)0 – 2000 RPM (stepless adjustable)0 – 2000 RPM (stepless adjustable)
Temperature‑Control ModeCooling / HeatingCooling / HeatingCooling / Heating
Vacuum DegreeStandard: –98 kPa / Optional: –100 kPaStandard: –98 kPa / Optional: –100 kPaStandard: –98 kPa / Optional: –100 kPa
Control SystemTouch screen, stores up to 100 recipe setsTouch screen, stores up to 100 recipe setsTouch screen, stores up to 100 recipe sets
Power Supply220V, 50/60Hz (110V US/JP standard customizable)220V, 50/60Hz (110V US/JP standard customizable)220V, 50/60Hz (110V US/JP standard customizable)
Dimension(W×D×H)510 × 430 × 500 mm580 × 560 × 760 mm610 × 560 × 780 mm
Net Weight95 kg145 kg153 kg
CertificationsCE, FCCE, FCCE, FC

***The above are typical models only, customized solutions are available upon customer requirements.


Multi‑Industry Solutions

Provide customized solutions to meet comprehensive demands from cutting‑edge R&D to large‑scale mass production


Battery Industry

Lithium‑ion cathode slurry, anode slurry, electrolyte, separator coating liquid, conductive slurry


Chemical Industry

Resin solution, reactive adhesive, catalyst slurry, functional coating liquid

Medical Device 02.jpg

Medical Device Industry

Medical adhesive, sensor encapsulant, catheter coating liquid, diagnostic reagent carrier

Printed Circuit Board.jpg

3D Printing Industry

Photosensitive resin, functional ink, ceramic slurry, composite prepreg


Adhesive & Sealant Industry

Structural adhesive, sealant, conductive adhesive, high‑temperature adhesive

Rubber & Plastic Products.jpg

Silicone Industry

Thermal conductive grease, silicone compound, silicone resin, silane coupling agent

Comprehensive Equipment Operation Demo Videos

Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.

Measured Defoaming‑Process Performance

Thoroughly eliminate material bubbles, voids and stratification

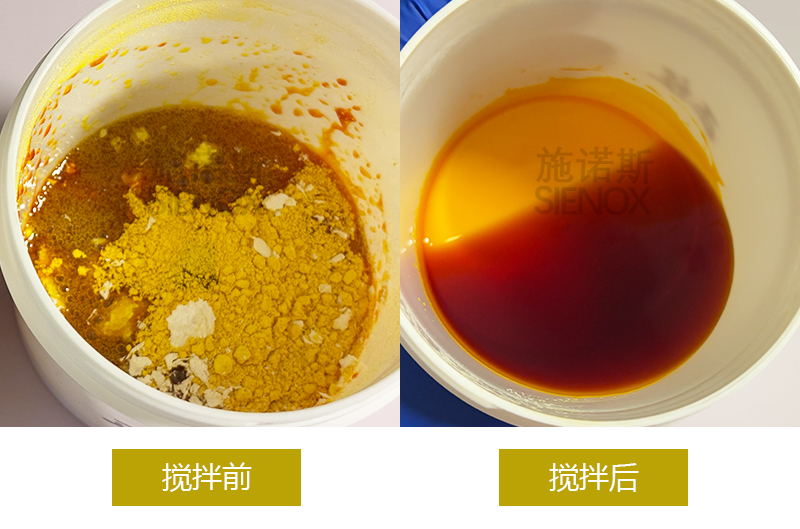

Photoresist Mixing & Defoaming.jpg

Photoresist

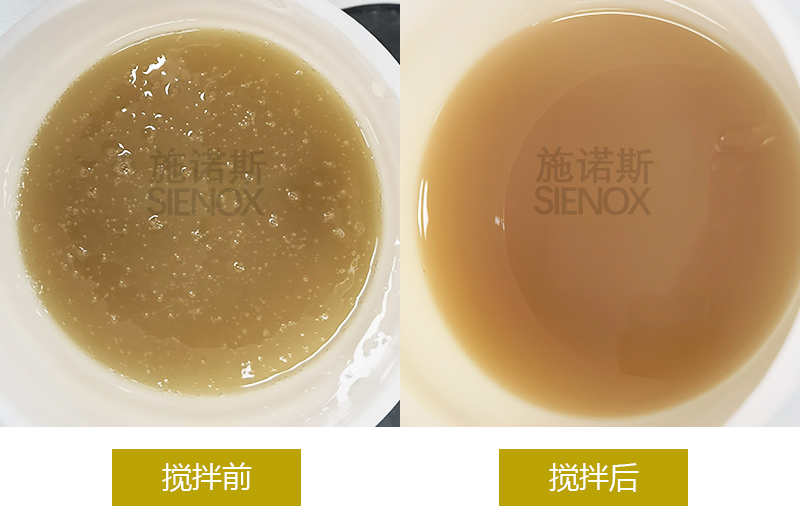

Epoxy Coating Film Mixing & Defoaming.jpg

Epoxy Coating Film

Polymer Material.jpg

Polymer Material

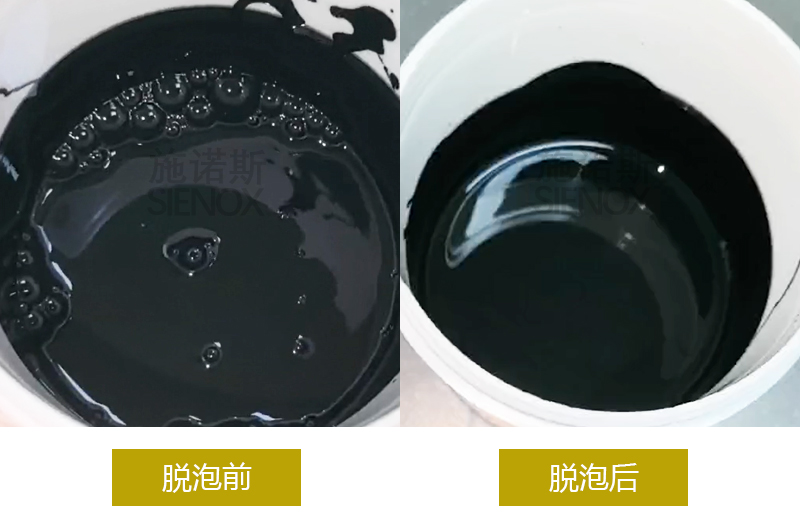

Hydrogen‑energy Material.jpg

Hydrogen‑energy Material

Silver Paste Mixing & Defoaming.jpg

Silver Paste Material

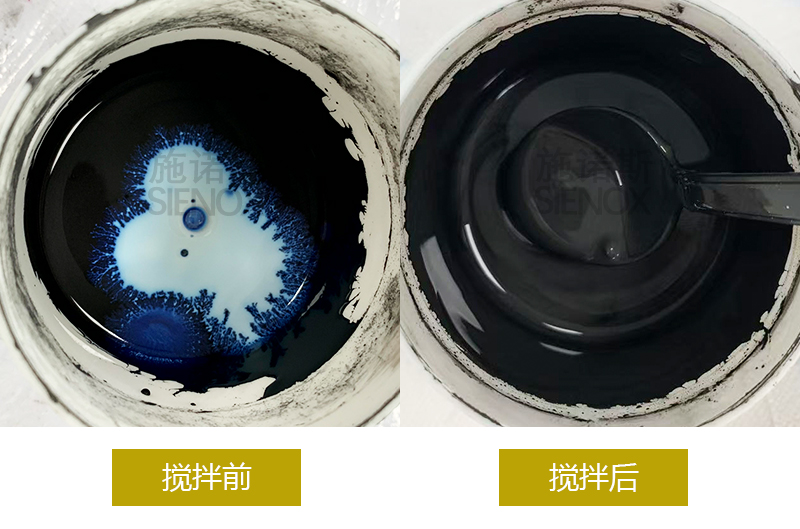

Battery Slurry Mixing & Defoaming 03.jpg

Battery Slurry


Measured Data Comparison

Quantifiable Effects Validated by Test Data

Material TypeStatus Before TreatmentAfter Treatment by MIX650ZK
Epoxy Potting CompoundDense bubbles inside adhesive, encapsulation void rate approx. 5%, fluctuating insulation performanceBubbles eliminated, encapsulation void rate, stable insulation performance
Polyurethane Casting CompoundAbundant bubbles inside casting material, cured surface defect rate approx. 8%, fluctuating mechanical propertiesBubbles eliminated, surface defect rate, stable mechanical properties
UV‑curable InkNumerous bubbles inside ink, printing pinhole rate approx. 7%, obvious color deviationBubbles eliminated, pinhole rate, color deviation removed

* Internal laboratory test data. Actual improvement varies with material formulation. Contact sales for real‑world customer cases.
