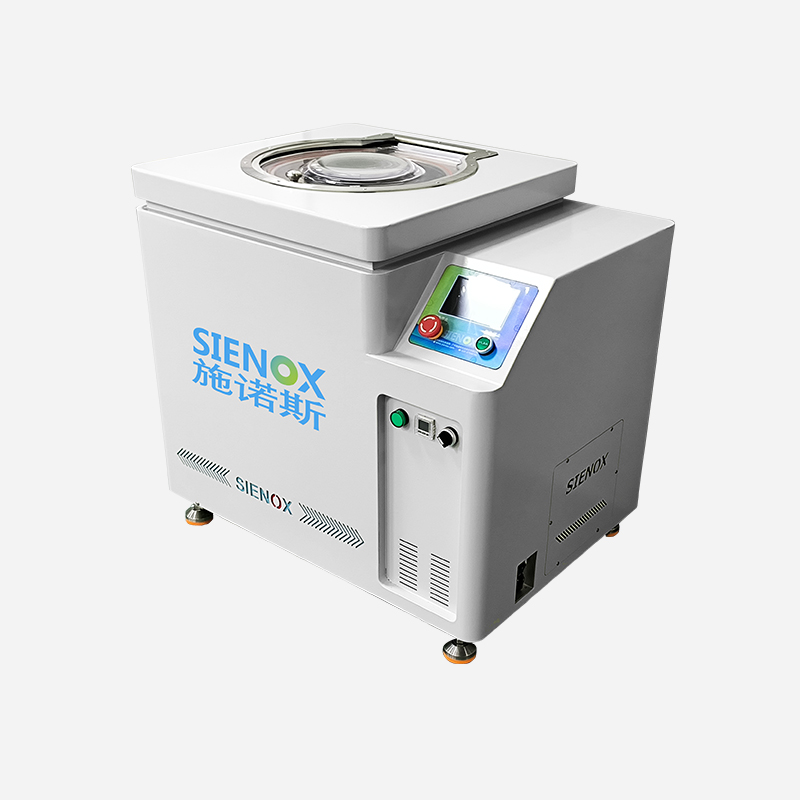

Temperature‑controlled Vacuum Mixer‑Defoamer SIE‑MIX1000WK
Dual‑cup Large‑volume Temp‑controlled Production Platform · Combined Vacuum‑pressure & Temperature Defoaming
1000 mL Dual‑cup, Ambient‑Heating‑Cooling Control, ‑98 kPa Deep Vacuum Defoaming
SIENOX SIE‑MIX1000WK is a temperature‑controlled vacuum mixer‑defoamer for pilot‑scale production of heat‑sensitive materials with dual‑1000 mL cups. Dual‑mode thermal control, ‑98 kPa vacuum and synchronized revolution‑rotation drive deliver one‑step mixing, temperature regulation and defoaming.
✓ CE Certification ✓ ISO9001 Quality System ✓ RoHS Compliance ✓ Customizable Voltage (110V/220V)
Why Must Microbubbles in Materials Be Eliminated?
Residual nano‑scale microbubbles in materials directly affect product yield and performance stability.
Chemical IndustryBubbles in chemical slurries, resin castings and intermediates cause curing voids, reduced mechanical strength and altered reaction rates. Temperature‑sensitive chemicals achieve synchronized mixing and defoaming within proper temperature window via thermal‑controlled mixing‑defoaming. | Silicone IndustryBubbles in silicone rubber mixtures, thermal greases and silicone resins create voids after vulcanization, powder agglomeration and poor coating adhesion. Temperature‑sensitive silicone vulcanization allows bubble removal while regulating curing temperature. | 3D Printing IndustryBubbles in photosensitive resins, ceramic slurries and functional inks trigger layer defects, forming voids and discontinuous ink output. Viscosity governs printing accuracy; temperature‑controlled mixing‑defoaming maintains proper viscosity for effective bubble removal. |
✨ Traditional defoaming bottlenecks: manual stirring entrains air; static degassing is time‑consuming; ordinary vacuum only removes surface bubbles, failing to eliminate internal microbubbles. Conventional devices lack temperature control; heating triggers thermal degradation of heat‑sensitive materials. The temperature‑controlled planetary mixing solution separates bubbles via centrifugal mixing, combined with vacuum and precise thermal regulation for one‑step mixing, temperature adjustment and defoaming.
Why Choose SIE‑MIX1000WK
Three core features cover full‑process temperature‑controlled vacuum mixing‑defoaming requirements.
Dual‑cup Large‑volume Temp‑controlled Production PlatformDual‑1000 mL cups, 100‑2000 rpm wide‑range speed adjustment. Fixed speed ratio ensures batch consistency for pilot‑scale and small‑batch production. Dual‑mode temperature control tunes viscosity by heating to boost powder dispersion, while cooling suppresses thermal degradation and exothermic reactions. One unit covers dual‑process scenarios. | Combined Vacuum‑pressure & Temperature DefoamingStandard‑98 kPa vacuum expands deep‑seated microbubbles for release via pressure difference. Vacuum cooperates with temperature control: heating lowers viscosity for easier bubble discharge; vacuum compensates defoaming efficiency under cooling, delivering stable performance across varied temperatures. | 100‑Recipe Storage & Traceable Thermal DataTouch screen stores 100 recipe sets, logging speed, vacuum level, temperature and runtime for batch traceability. Programmed operation reduces manual error. Optional MES connectivity supports industrial data integration. Robust 165 kg frame ensures long‑term stable operation. |
✨ MIX1000WK enables pilot‑production temperature‑controlled vacuum defoaming for chemical, silicone and 3D‑printing heat‑sensitive materials.

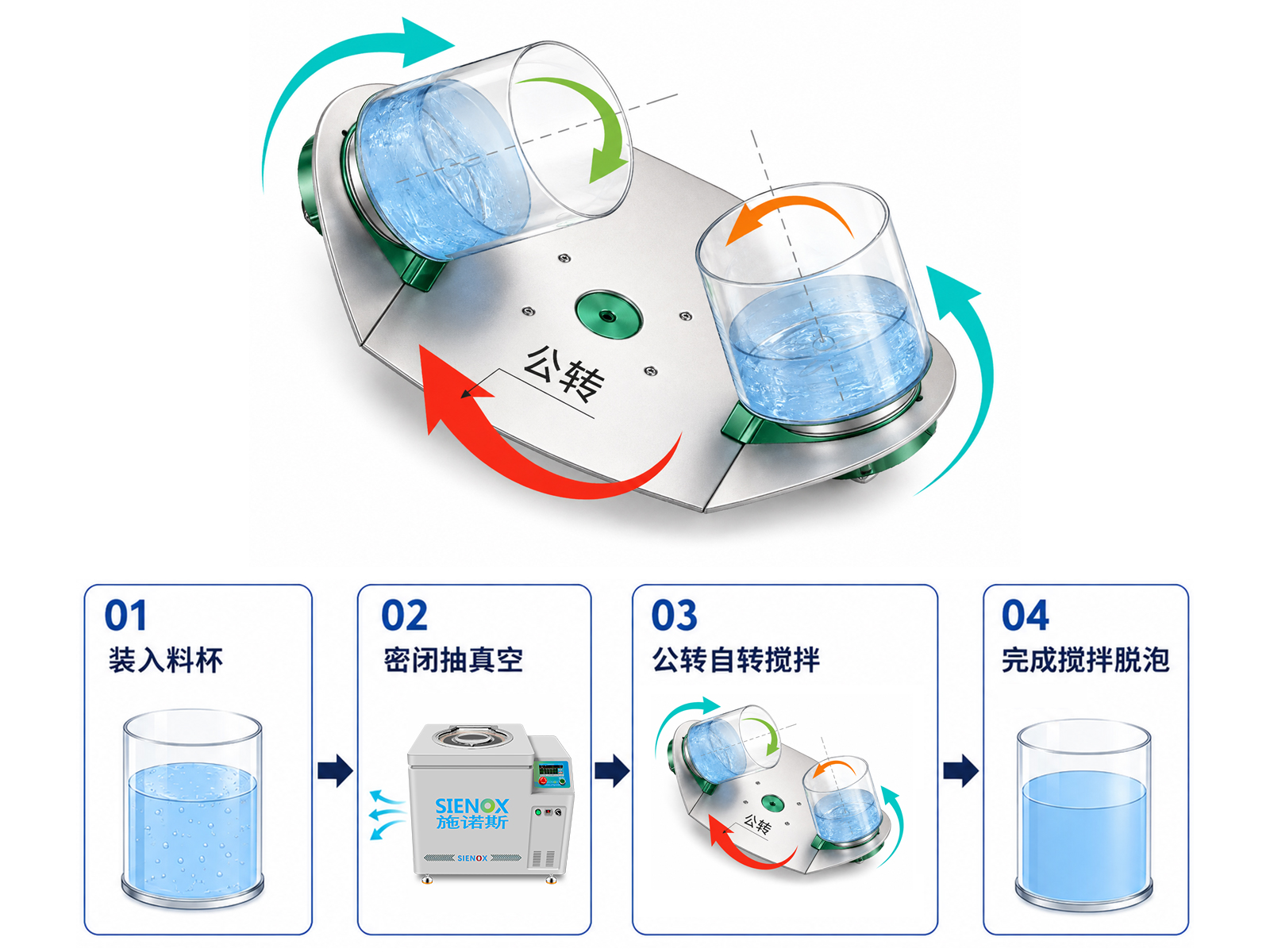

Working Principle
Synchronized revolution‑rotation dual‑drive, combined with deep vacuum defoaming and precise temperature control, realizes one‑step mixing, temperature regulation and defoaming.
Step 1: Centrifugal Force from Revolution High-speed rotation of the rotary plate generates centrifugal force to drive full convection of materials for macro mixing, and pushes bubbles toward the axis for escape. The temperature control system runs simultaneously to keep materials within target temperature range. Step 2: Shear Force from Rotation Container rotation produces shear force to break agglomerated particles for micro dispersion. Fixed speed ratio ensures efficient mixing across the whole chamber. Shear force thins bubble membranes to accelerate rupture. No stirring paddle contacts materials to reduce contamination risk. Step 3: Deep Defoaming under Vacuum Negative Pressure The vacuum system activates to form negative pressure, lowering pressure difference inside and outside bubbles so deep microbubbles expand and escape. -98kPa vacuum level adapts to materials of various viscosities; continuous gas extraction improves material density. Step 4: Precise Temperature Control for Material State The temperature control system works throughout the whole process, with normal-to-heating or normal-to-cooling modes available. Heating reduces viscosity to improve fluidity and speed up bubble removal; cooling suppresses thermal degradation and controls exothermic reactions. Temperature control runs synchronously with stirring and defoaming, no separate temperature adjustment procedure required. Inside the sealed container, materials go through the full workflow of "Mixing → Dispersion → Vacuum Defoaming → Temperature Adjustment", completing temperature-controlled vacuum stirring and defoaming in one step. |  |
Technical Specifications
Complete Technical Specifications Overview, Customizable on Demand
| Equipment Model | SIE‑MIX1000WK |
| Mixing Capacity | 0–1000 mL (standard container) * Customizable |
| Container Type | Tubes / Jars / Cups; adapters for syringes and cartridges supported |
| Container Quantity | 1 or 2 jars (user‑selectable) |
| Max Speed | 100 – 2000 RPM (stepless adjustable) |
| Temperature Control Module | Cooling / Heating |
| Vacuum Level | Standard: –98 kPa / Optional: –100 kPa |
| Control System | Touch screen, stores 100 sets of recipe parameters |
| Power Supply | 220V, 50/60Hz (110V US/JP standard customizable) |
| Overall Dimensions(W×D×H) | 820 × 610 × 760 mm |
| Net Weight | 165 kg |
| Certifications | CE, ISO9001, RoHS Compliance |
Our Partners
Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide
FAQ - Frequently Asked Questions
Answers to common questions about product performance and everyday process selection
-
What is the working principle of a centrifugal defoaming machine?
Principle of centrifugal defoaming machine: The bubbles are released by the downward principle of gravity.
-
How is the after-sales service?
The company has professional after-sales service personnel, 24-hour dedicated service, and one-on-one technical support to solve your worries.
-
Why choose SIENOX?
There are many reasons for choosing SIENOX, and the following are some of the main reasons:
1. Professionalism: Our team consists of a group of professional individuals with rich experience and knowledge in their respective fields. We not only understand industry trends and best practices, but also provide practical and feasible solutions.
2. Service quality: We focus on customer needs and satisfaction, and are always committed to providing high-quality services. We not only respond quickly to customer needs, but also provide customized services according to their requirements.
3. Reliability: We adhere to the principles of integrity and professionalism, always adhering to commitments and agreements. Our work methods and deliverables comply with industry standards and best practices, enabling our clients to trust us.
4. Innovation: We continuously explore new methods and tools to provide better services and meet customer needs. We encourage innovation and experimentation, and are willing to accept challenges and change.
5. Cost effectiveness: We provide cost-effective services that not only help customers save costs, but also improve efficiency and productivity. We always prioritize the interests of our customers and provide them with the best solutions.
6. Teamwork: We believe in the power and value of teamwork, and our team members support, collaborate, and respect each other. We establish close cooperative relationships with customers, partners, and other stakeholders to achieve common goals.
The above are just some of the reasons for choosing us. We believe there are many other advantages and values that can be provided to customers. If you are looking for a professional, reliable, and high-quality service provider, we look forward to working with you.
-
How does the stirring and defoaming machine work?
The SIENOX stirring and defoaming machine performs defoaming through centrifugal force at revolution and stirring through shear force formed by revolution and rotation,
Assisted by a vacuum pump to extract gas and achieve a vacuum state, removing nanoscale tiny bubbles. No contact with materials, no secondary pollution, and no secondary waste.
-
What is the function of a defoaming machine?
A defoaming machine is a device used to remove bubbles from liquids. Its function is to assist in the liquid mixing, reaction, coating, printing, infusion and other process steps in the production process, avoiding the generation of bubbles and their impact on the final product. In many industrial and laboratory environments, removing bubbles is essential as they may have a negative impact on product quality, such as affecting surface tension and stability. Defoaming machines typically use various techniques such as vibration, ultrasound, centrifugation, etc. to achieve effective bubble removal. It has a wide range of applications, including but not limited to semiconductors, solar energy, optics, biotechnology, materials science, etc.
Technical Specification List
Full‑line standardized specifications for accurate process evaluation and equipment selection

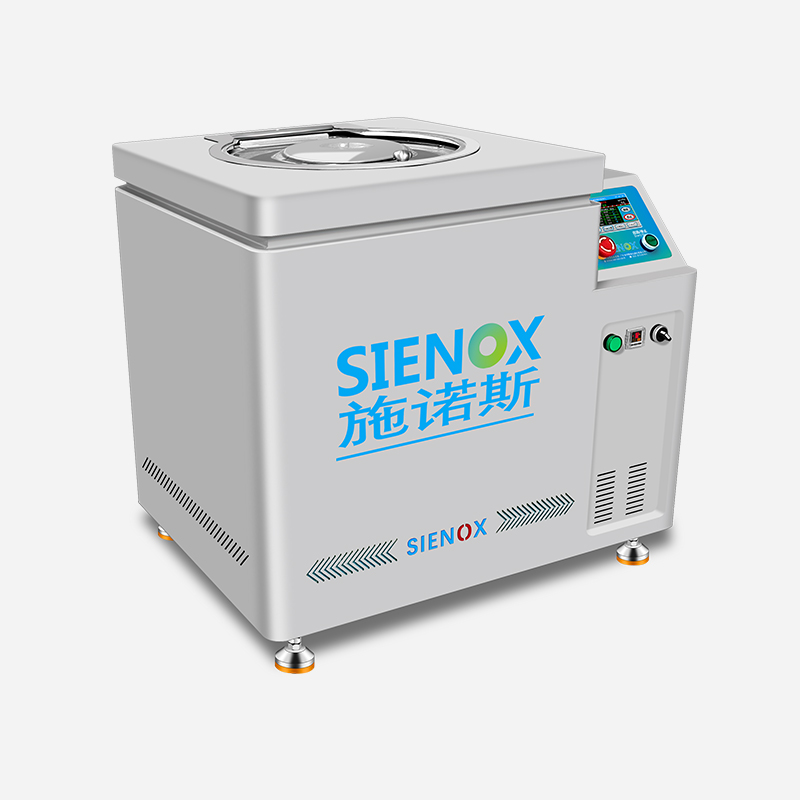

| Equipment Model | SIE‑MIX60ZK | SIE‑MIX90ZK | SIE‑MIX1000ZK |
| Mixing Capacity | 0–300 mL (standard container) * Customizable | 0–1000 mL (standard container) * Customizable | 0–1000 mL (standard container) * Customizable |
| Container Type | Tubes / Jars / Cups; adapters for syringes and cartridges supported | Tubes / Jars / Cups; adapters for syringes and cartridges supported | Tubes / Jars / Cups; adapters for syringes and cartridges supported |
| Container Quantity | 1 or 2 jars (user‑selectable) | 1 or 2 jars (user‑selectable) | 1 or 2 jars (user‑selectable) |
| Max Speed | 0 – 2000 RPM (stepless adjustable) | 0 – 2000 RPM (stepless adjustable) | 100 – 2000 RPM (stepless adjustable) |
| Temperature Control Module | Cooling / Heating | Cooling / Heating | Cooling / Heating |
| Vacuum Level | Standard: –98 kPa / Optional: –100 kPa | Standard: –98 kPa / Optional: –100 kPa | Standard: –98 kPa / Optional: –100 kPa |
| Control System | Touch screen, stores 100 sets of recipe parameters | Touch screen, stores 100 sets of recipe parameters | Touch screen, stores 100 sets of recipe parameters |
| Power Supply | 220V, 50/60Hz (110V US/JP standard customizable) | 220V, 50/60Hz (110V US/JP standard customizable) | 220V, 50/60Hz (110V US/JP standard customizable) |
| Overall Dimensions(W×D×H) | 510 × 430 × 500 mm | 610 × 560 × 780 mm | 820 × 610 × 760 mm |
| Net Weight | 115 kg | 153 kg | 165 kg |
***The above are typical models only, customized solutions are available according to customer requirements.
Multi‑Industry Solutions
Provide customized solutions to meet comprehensive demands from cutting‑edge R&D to large‑scale mass production
Pharmaceutical IndustryMedicinal gels, sustained‑release formulation slurries, pharmaceutical coating liquids, injectable colloids |
Cosmetic IndustryLotions, cream bases, hair dyes, toothpaste, emulsified systems |
Electronics IndustryEpoxy potting adhesives, conductive silver paste, UV encapsulant, thermal conductive gels |
Polyurethane IndustryPolyurethane casting compounds, foaming slurries, elastomer prepolymers, adhesives |
Ink & Coating IndustryIndustrial inks, anti‑corrosion coatings, color pastes, UV‑curable coatings |
Aerospace & Defense IndustryComposite matrix resins, structural adhesives, radar‑absorbing coatings, functional coating liquids |
Comprehensive Equipment Operation Demo Videos
Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.
Measured Defoaming‑Process Performance
Thoroughly eliminate material bubbles, voids and stratification
Potting Adhesive |
Photoresist |
Structural Adhesive |
Cosmetic Essence |
Lubricant |
Ink |
Measured Data Comparison
Quantifiable Effects Validated by Test Data
| Material Type | Pre‑treatment Status | After MIX1000WK Treatment |
| Silicone Rubber Mixture | Dense internal bubbles; ~7% void rate after vulcanization, unstable elasticity | Bubbles eliminated, low void rate, uniform elasticity |
| Lithium‑ion Battery Anode Slurry | Abundant internal bubbles; ~6% coating pinhole rate, large thickness deviation | Bubbles eliminated, low pinhole rate, uniform thickness |
| Medical Sensor Encapsulant | Numerous internal bubbles; ~8% poor‑sealing rate, signal fluctuation | Bubbles eliminated, low sealing‑failure rate, stable signal output |
* Internal lab test data. Actual improvement varies by material formula. Contact sales for real‑world customer cases.
Customer Delivery & Application Cases
Rooted in manufacturing frontlines, empowering benchmark production lines and key national research institutions across diverse industries.
Stirring & Defoaming Solution for Powders and Fluids |
AB Structural Adhesive Mixing & Defoaming Solution |
Mixing and Defoaming Solution for High‑Viscosity Colloid and Phosphor Powder Materials |
