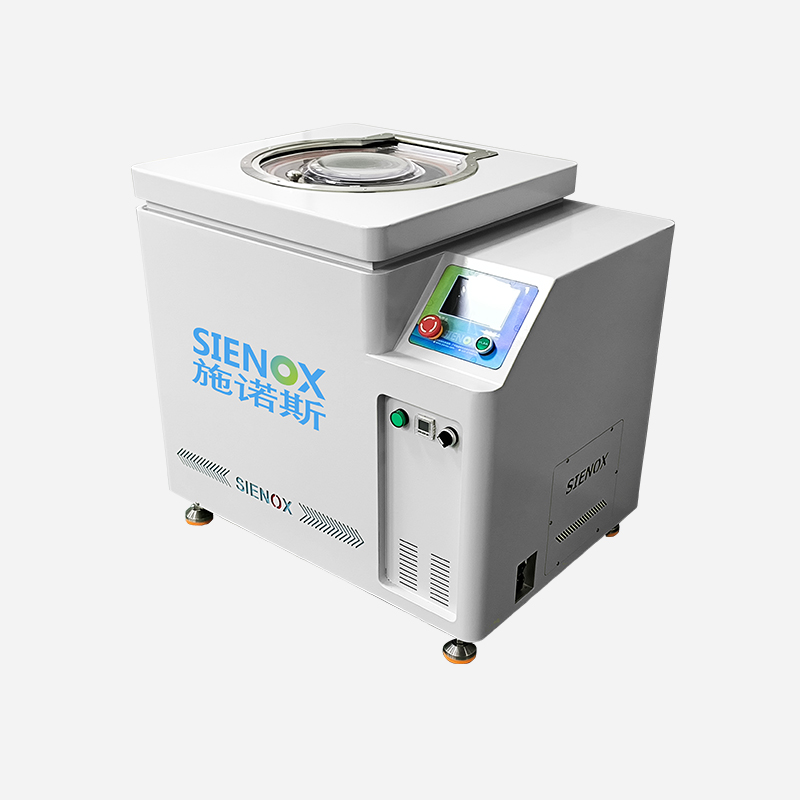

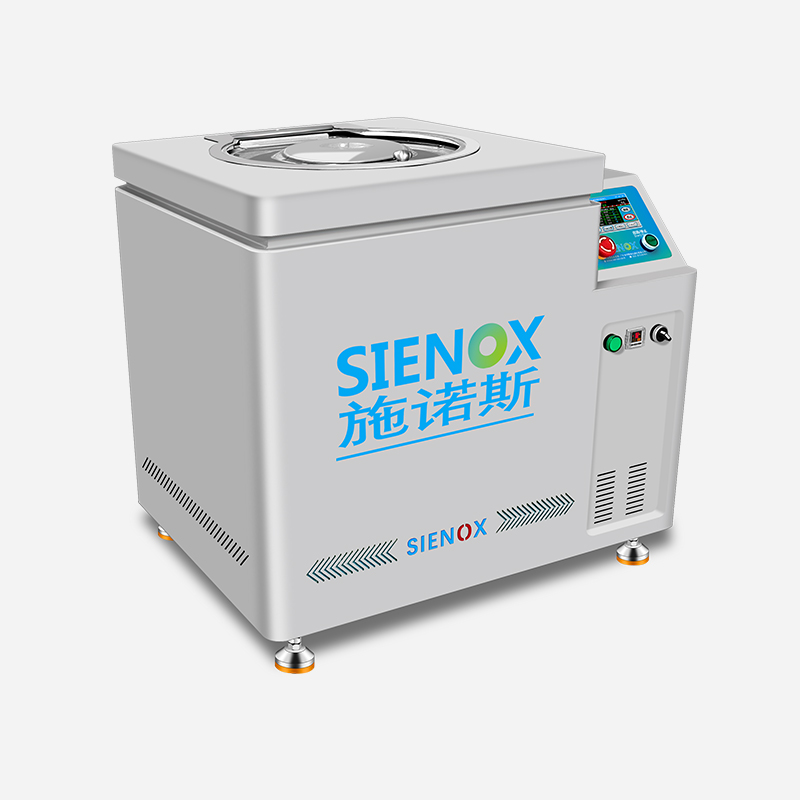

Temperature‑Controlled Vacuum Mixing‑Defoamer SIE‑MIX1000WK


1L Large‑Capacity Dual‑Cup Temperature‑Controlled Production Platform · Combined Defoaming With Vacuum Negative Pressure & Temperature Control

1000mL Large‑Capacity Dual‑Cup + Ambient Heating/Cooling Control + -98kPa Deep Vacuum Defoaming

SIENOX SIE‑MIX1000WK is a temperature‑controlled vacuum mixing‑defoamer built for pilot‑scale production of temperature‑sensitive materials, equipped with 1000mL large‑capacity dual‑cup. Dual‑mode temperature control combined with -98kPa vacuum and dual‑driven planetary‑rotation mixing realizes one‑step mixing, temperature regulation and defoaming.

✓ CE Certification  ✓ ISO9001 Quality System ✓ RoHS Compliance ✓ Customizable Voltage (110V/220V)

Online Message Free Sample Testing Engineer Hotline: 189-2512-9293

Why Must Microbubbles in Materials Be Eliminated?

Residual micro‑bubbles in materials directly affect finished‑product yield and performance

Chemical Industry

Bubbles in chemical slurries, resin castings and chemical intermediates cause curing voids, reduced mechanical strength and altered reaction rates. Since chemical materials are temperature‑sensitive, temperature‑controlled mixing‑defoamer completes mixing and degassing within proper temperature windows.

Opto‑Silicone Industry

Bubbles in silicone rubber mixtures, thermal conductive greases and silicone resins create post‑vulcanization voids, thermal powder agglomeration and reduced coating adhesion. Silicone vulcanization is temperature‑dependent; temperature‑controlled defoamer removes bubbles while regulating curing temperature.

3D Printing Industry

Bubbles in photosensitive resins, ceramic slurries and functional inks trigger printing layer defects, forming voids and discontinuous ink output. Viscosity of 3D‑printing materials directly determines printing accuracy. Temperature‑controlled mixing‑defoamer maintains suitable viscosity for effective degassing.

✨ Traditional defoaming limitations: manual mixing entraps air, static degassing consumes excessive time, and conventional vacuum only eliminates surface bubbles, failing to remove internal micro‑bubbles effectively. Standard equipment lacks temperature‑control function, and heating may degrade heat‑sensitive materials. The temperature‑controlled planetary mixing solution separates bubbles during centrifugal mixing, combined with vacuum negative pressure and precise thermal regulation, to accomplish mixing, temperature adjustment and defoaming in one step.

Why Choose SIE‑MIX1000WK

Three Core Features Cover Full Workflow of Temperature‑Controlled Vacuum Mixing‑Defoaming

Large‑Capacity Dual‑Cup Temperature‑Controlled Pilot Production Platform

1000 mL dual‑cup configuration with 100‑2000rpm wide‑range speed; fixed speed ratio guarantees batch consistency to meet pilot‑scale scale‑up and small‑batch production demands. Dual‑mode temperature control delivers precise thermal regulation: heating reduces viscosity and accelerates powder dispersion; cooling suppresses thermal degradation and controls exothermic reactions. One unit covers two process scenarios.

Combined Defoaming With Vacuum Negative Pressure & Temperature Control

Standard ‑98 kPa vacuum system. Negative pressure reduces pressure difference to expand and release deep‑seated micro‑bubbles. Vacuum works in synergy with temperature control: heating lowers viscosity for easier bubble release; vacuum compensates defoaming efficiency drop under cooling conditions to maintain stable defoaming performance across various temperatures.

Traceable Temperature‑Control Data for 100 Recipe Sets

Touch screen supports storage of up to 100 recipe sets, fully recording speed, vacuum level, temperature parameters and runtime for convenient batch‑data traceability. Programmed operation reduces manual errors. Optional MES network connection enables industrial data interconnection. 165 kg sturdy frame ensures reliable long‑term operation.

✨ MIX1000WK is suitable for pilot‑scale production and temperature‑controlled vacuum defoaming of temperature‑sensitive materials such as chemicals, silicones and 3D‑printing materials.

Working Principle

Synchronized dual‑power operation of revolution and rotation, combined with deep vacuum defoaming and precise temperature control, achieves one‑step mixing, temperature regulation and defoaming.

Step 1: Centrifugal Force from Revolution

The rotary plate spins at high speed and generates strong centrifugal force for materials inside the container, driving full convection to achieve macro mixing. Meanwhile, centrifugal force pushes low-density bubbles toward the rotating axis to gather and escape.

Step 2: Shear Force from Rotation

The container rotates around its own axis to produce directional shear force, breaking agglomerated particles for micro dispersion. Shear force also thins bubble membranes and accelerates bubble rupture.

Step 3: Speed Ratio Adjustment for Optimized Performance

The speed ratio between revolution and rotation can be freely adjusted according to material properties. Higher revolution ratio strengthens centrifugal defoaming for high-viscosity materials; higher rotation ratio enhances shear dispersion for easily agglomerated materials. Tuning the speed ratio balances mixing and defoaming performance.


Revolution and rotation run synchronously. Materials complete the full workflow of "Mixing → Dispersion → Defoaming" inside the sealed container. Adjustable speed ratio enables one machine to fit multiple material processes without purchasing extra equipment.

Stirring and Defoaming Working Principle 03.jpg

Technical Specifications

Complete Technical Specifications Overview, Customizable on Demand

Equipment ModelSIE‑MIX1000WK
Mixing Capacity0‑1000 mL (standard container) * Customizable
Container TypeTest tube / Can / Cup; supports syringe & cartridge adapter
Container Quantity1 or 2 cans (user‑selectable)
Max Speed100‑2000 RPM (stepless adjustable)
Temperature Control ModuleCooling / Heating
Vacuum DegreeStandard: –98 kPa / Optional: –100 kPa
Control SystemTouch screen, stores up to 100 recipe sets
Power Supply220V, 50/60Hz (110V US/JP standard customizable)
Overall Dimension(W×D×H)820 × 610 × 760 mm
Net Weight165 kg
Certifications CE, ISO9001, RoHS Compliance


Our Partners

Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide

Partner Showcase

FAQ - Frequently Asked Questions

Answers to common questions about product performance and everyday process selection

  • What is the working principle of a centrifugal defoaming machine?

    Principle of centrifugal defoaming machine: The bubbles are released by the downward principle of gravity.

  • How is the after-sales service?

    The company has professional after-sales service personnel, 24-hour dedicated service, and one-on-one technical support to solve your worries.

  • Why choose SIENOX?

    There are many reasons for choosing SIENOX, and the following are some of the main reasons:

    1. Professionalism: Our team consists of a group of professional individuals with rich experience and knowledge in their respective fields. We not only understand industry trends and best practices, but also provide practical and feasible solutions.

    2. Service quality: We focus on customer needs and satisfaction, and are always committed to providing high-quality services. We not only respond quickly to customer needs, but also provide customized services according to their requirements.

    3. Reliability: We adhere to the principles of integrity and professionalism, always adhering to commitments and agreements. Our work methods and deliverables comply with industry standards and best practices, enabling our clients to trust us.

    4. Innovation: We continuously explore new methods and tools to provide better services and meet customer needs. We encourage innovation and experimentation, and are willing to accept challenges and change.

    5. Cost effectiveness: We provide cost-effective services that not only help customers save costs, but also improve efficiency and productivity. We always prioritize the interests of our customers and provide them with the best solutions.

    6. Teamwork: We believe in the power and value of teamwork, and our team members support, collaborate, and respect each other. We establish close cooperative relationships with customers, partners, and other stakeholders to achieve common goals.

    The above are just some of the reasons for choosing us. We believe there are many other advantages and values that can be provided to customers. If you are looking for a professional, reliable, and high-quality service provider, we look forward to working with you.


  • How does the stirring and defoaming machine work?

    The SIENOX stirring and defoaming machine performs defoaming through centrifugal force at revolution and stirring through shear force formed by revolution and rotation,

    Assisted by a vacuum pump to extract gas and achieve a vacuum state, removing nanoscale tiny bubbles. No contact with materials, no secondary pollution, and no secondary waste.

  • What is the function of a defoaming machine?

    A defoaming machine is a device used to remove bubbles from liquids. Its function is to assist in the liquid mixing, reaction, coating, printing, infusion and other process steps in the production process, avoiding the generation of bubbles and their impact on the final product. In many industrial and laboratory environments, removing bubbles is essential as they may have a negative impact on product quality, such as affecting surface tension and stability. Defoaming machines typically use various techniques such as vibration, ultrasound, centrifugation, etc. to achieve effective bubble removal. It has a wide range of applications, including but not limited to semiconductors, solar energy, optics, biotechnology, materials science, etc.

Technical Specification List

Full‑line parameter specifications to assist your accurate process‑model selection

Equipment ModelSIE‑MIX60ZKSIE‑MIX90ZKSIE‑MIX1000ZK
Mixing Capacity0‑300 mL (standard container) * Customizable0‑1000 mL (standard container) * Customizable0‑1000 mL (standard container) * Customizable
Container TypeTest tube / Can / Cup; supports syringe & cartridge adapterTest tube / Can / Cup; supports syringe & cartridge adapterTest tube / Can / Cup; supports syringe & cartridge adapter
Container Quantity1  or 2 cans (user‑selectable)1  or 2 cans (user‑selectable)1  or 2 cans (user‑selectable)
Max Speed0‑2000 RPM (stepless adjustable)0‑2000 RPM (stepless adjustable)100‑2000 RPM (stepless adjustable)
Temperature Control ModuleCooling / HeatingCooling / HeatingCooling / Heating
Vacuum DegreeStandard: –98 kPa / Optional: –100 kPaStandard: –98 kPa / Optional: –100 kPaStandard: –98 kPa / Optional: –100 kPa
Control SystemTouch screen, stores up to 100 recipe setsTouch screen, stores up to 100 recipe setsTouch screen, stores up to 100 recipe sets
Power Supply220V, 50/60Hz (110V US/JP standard customizable)220V, 50/60Hz (110V US/JP standard customizable)220V, 50/60Hz (110V US/JP standard customizable)
Overall Dimension(W×D×H)510 × 430 × 500 mm610 × 560 × 780 mm820 × 610 × 760 mm
Net Weight115kg153kg165 kg

*** Above are typical models only. Customized solutions available upon customer requirements.


Multi‑Industry Solutions

Provide customized solutions to meet comprehensive demands from cutting‑edge R&D to large‑scale mass production


Pharmaceutical Industry

Medicinal gel, sustained‑release formulation slurry, pharmaceutical coating liquid, injectable colloid


Cosmetic Industry

Lotion, cream base, hair dye, toothpaste, emulsified system


Electronics Industry

Epoxy potting compound, conductive silver adhesive, UV encapsulating adhesive, thermal conductive gel


Polyurethane Industry

Polyurethane casting compound, foaming slurry, elastomer prepolymer, adhesive


Ink & Coating Industry

Industrial ink, anti‑corrosion coating, color paste, UV curable coating


Aerospace & Defense Industry

Composite matrix resin, structural adhesive, radar absorbing coating, functional coating liquid

Comprehensive Equipment Operation Demo Videos

Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.

Measured Defoaming‑Process Performance

Thoroughly eliminate material bubbles, voids and stratification

Potting Compound Defoaming.jpg

Potting Compound

Photoresist Mixing & Defoaming.jpg

Photoresist

Structural Adhesive Defoaming Comparison.jpg

Structural Adhesive

Cosmetic Essence Defoaming.jpg

Cosmetic Essence

Lubricant Mixing & Defoaming.jpg

Lubricant

Tricolor Ink Mixing & Defoaming.jpg

Ink


Measured Data Comparison

Quantifiable Effects Validated by Test Data

Material TypeState Before TreatmentAfter Treatment by MIX1000WK
Silicone Rubber MixtureDense bubbles in mixture, porosity ~7% after vulcanization with unstable elasticityBubbles removed, low porosity and uniform elasticity after vulcanization
Lithium Battery Anode SlurryPlenty of bubbles in slurry, coating pinhole rate ~6% with large thickness deviationBubbles removed, low pinhole rate and uniform coating thickness
Medical Sensor Encapsulation AdhesiveMany bubbles inside adhesive, sealing failure rate ~8% and fluctuating signalsBubbles removed, low sealing failure rate and stable signals

* Internal laboratory test data. Actual improvement varies with material formulation. Contact sales for real customer cases.
