Temperature‑Controlled Vacuum Mixer‑Defoamer SIE‑MIX650WK
Built‑in Synergistic Vacuum & Temperature‑controlled Defoaming · 500‑mL Medium Capacity with Wide‑range Speed Regulation
500mL Medium‑capacity Dual‑cup · Maintenance‑free Built‑in Vacuum · Ambient‑heating & Cooling Temperature Control
SINOS SIE‑MIX650WK is a temperature‑controlled vacuum mixing‑defoaming machine developed for pilot‑scale R&D of temperature‑sensitive materials, featuring 500 mL medium‑capacity dual‑cup configuration. Adopting maintenance‑free built‑in vacuum, heating/cooling temperature control and revolution‑rotation dual‑power mixing, it completes mixing, temperature regulation and defoaming in one single step.
✓ CE Certification ✓ FC Certification ✓ ISO9001 Quality System ✓ RoHS Compliance ✓ Customizable Voltage (110V/220V)
Why Must Microbubbles in Materials Be Eliminated?
Residual microbubbles in materials directly affect the yield and performance stability of end‑products.
Electronics IndustryBubbles in electronic encapsulation adhesives, conductive silver pastes and laminating adhesives cause encapsulation cavities, circuit breaks and lamination defects, impairing heat dissipation, insulation and product yield. Most electronic encapsulation adhesives are medium‑high viscosity materials. Heating reduces viscosity and improves flowability, yet excessive temperature will change curing properties. Temperature‑controlled defoaming is key to balance efficiency and material safety. | Polyurethane IndustryBubbles in polyurethane casting compounds, foaming slurries and elastomer prepolymers result in post‑curing surface defects, irregular foaming structures and inconsistent elasticity. Polyurethane curing is an exothermic reaction; temperature rise accelerates reaction and worsens bubble formation. Temperature‑controlled mixing‑defoaming removes bubbles while maintaining proper material temperature. | Ink & Coating IndustryBubbles in industrial inks, coatings and UV‑curable inks bring about printing pinholes, color deviation and reduced film adhesion. Viscosity of inks and coatings varies significantly with temperature. Temperature‑controlled mixing‑defoaming completes defoaming while keeping materials within proper viscosity range. |
✨ Traditional defoaming dilemmas: manual stirring entrains air, static defoaming is time‑consuming, and ordinary vacuum only removes surface bubbles, which cannot effectively eliminate internal microbubbles. Conventional devices have no temperature‑control capability, and heating tends to degrade heat‑sensitive materials. The temperature‑controlled planetary mixing solution separates bubbles during centrifugal mixing, and with vacuum negative pressure and precise temperature control, it completes mixing, temperature control and defoaming in one step.
Why Choose SIE‑MIX650WK
Three Core Advantages Cover Full‑process Requirements for Temperature‑Controlled Vacuum Mixing‑Defoaming
Built‑in Maintenance‑free Vacuum for Synergistic Temperature‑controlled DefoamingEquipped with built‑in vacuum unit for maintenance‑free and pollution‑free operation, suitable for clean‑room applications. Adjustable vacuum from ‑98 kPa to 0 kPa works with dual‑mode temperature control. Heating lowers viscosity for easier bubble release; vacuum negative pressure compensates defoaming efficiency during cooling. Built‑in design eliminates external vacuum pump piping for plug‑and‑play operation. | 500 mL Medium Capacity with Wide‑range Speed Regulation & Temperature Control500 mL dual‑cup design with 0‑2000 rpm wide‑range speed regulation for R‑D pilot tests and production sampling, compatible with low‑, medium‑ and high‑viscosity materials. Dual‑mode temperature control delivers precise thermal adjustment during speed variation. Heating reduces viscosity and accelerates powder dispersion; cooling suppresses thermal degradation and manages exothermic reactions. One machine covers two processing scenarios. | Multi‑segment Programmable Temperature‑controlled Process EditingMicrocomputer control system stores 10 programs, each with independent multi‑segment settings for time, speed and temperature parameters. It supports operator permission management and fault indication. Program‑driven operation minimizes manual errors and ensures consistent thermal processes across batches. Preset dedicated profiles for quick recall with different materials. |
✨ MIX650WK suits pilot‑scale R&D and temperature‑controlled vacuum mixing‑defoaming for heat‑sensitive materials such as electronic encapsulants, PU casting compounds and inks & coatings.

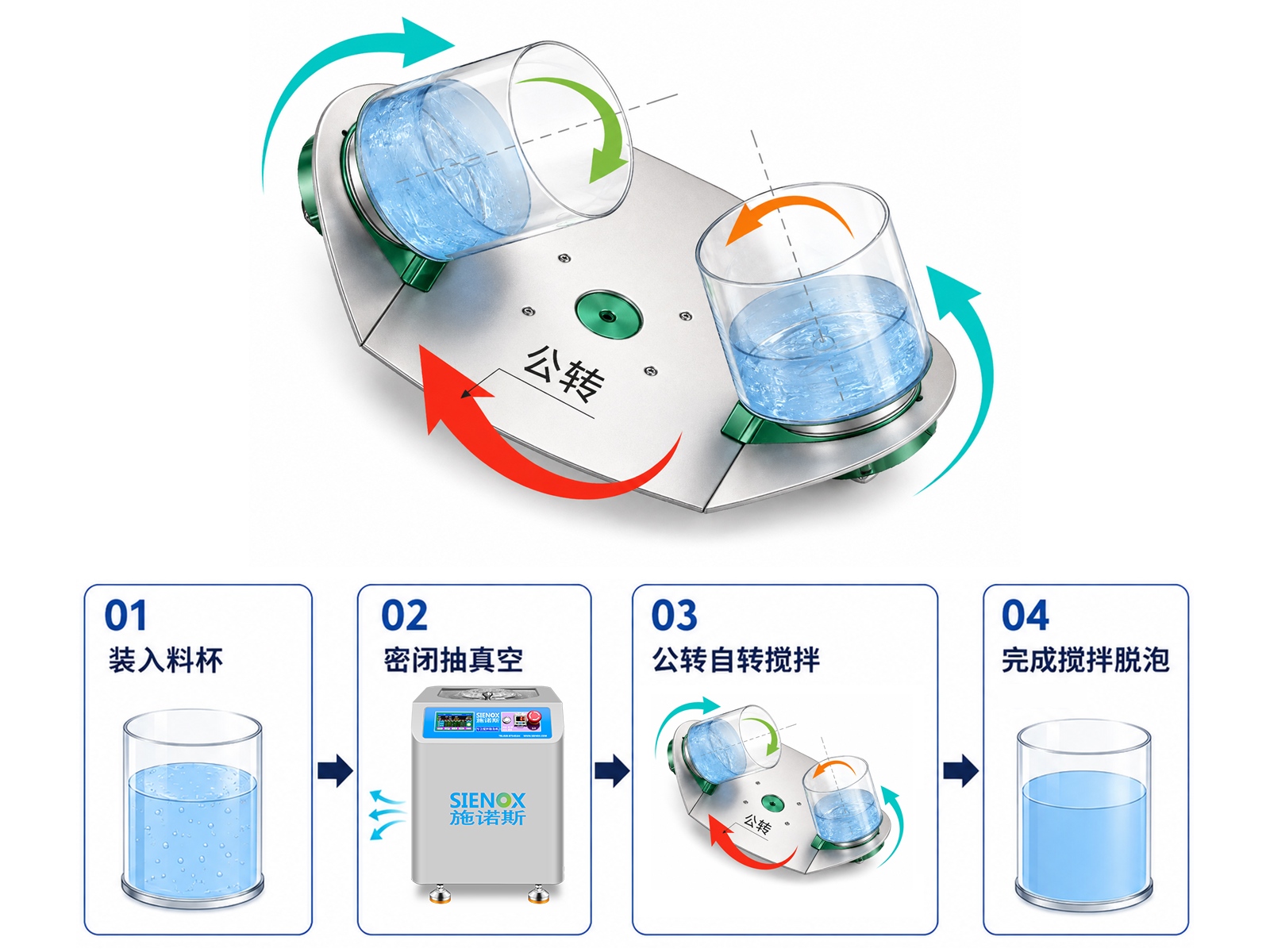

Working Principle
Synchronized revolution‑rotation dual‑power operation realizes one‑step mixing and defoaming.
Step 1: Centrifugal Force Generated by Revolution High‑speed revolution generates centrifugal force to drive full‑range material convection for macro‑mixing, meanwhile pushing bubbles toward the axis for escape. The temperature‑control system runs simultaneously to keep materials within target temperature range. Step 2: Shear Force from Rotation Container rotation produces shear force to break agglomerated particles for micro‑dispersion. Fixed speed ratio ensures uniform high‑efficiency mixing. Shear force thins bubble membranes to accelerate bubble rupture. No stirring paddles contact materials to lower contamination risks. Step 3: Deep Defoaming via Vacuum Negative Pressure The built‑in vacuum unit creates negative‑pressure environment, reducing pressure difference to expand and release deep‑seated microbubbles. Adjustable vacuum from ‑98 kPa to 0 kPa adapts to materials of various viscosities with maintenance‑free and pollution‑free operation. Step 4: Precise Temperature Regulation for Material Status Materials go through the full‑cycle “mixing → dispersion → vacuum defoaming → temperature adjustment” inside sealed containers, completing temperature‑controlled vacuum mixing‑defoaming in one step. |  |
Technical Specifications
Complete Technical Specifications Overview, Customizable on Demand
| Model | SIE‑MIX650WK |
| Mixing Capacity | 0‑500 mL (standard vessel) * Larger volume available upon request |
| Vessel Type | Tubes / Jars / Cups; adapters for syringes & cartridges supported |
| Vessel Quantity | 1 or 2 jars (user‑selectable) |
| Max Speed | 0‑2000 RPM (stepless adjustable) |
| Temperature Mode | Cooling / Heating |
| Vacuum Level | Standard: ‑98 kPa / Optional: ‑100 kPa |
| Control System | Touch screen, stores up to 100 recipe sets |
| Power Supply | 220V, 50/60Hz (110V US/JP standard customizable) |
| Dimension (W×D×H) | 580 × 560 × 760 mm |
| Net Weight | 145 kg |
| Certifications | CE, FC, ISO9001, RoHS Compliance |
Our Partners
Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide
FAQ - Frequently Asked Questions
Answers to common questions about product performance and everyday process selection
-
脱泡机的作用是什么？
脱泡机是一种用于去除液体中的气泡的设备。它的作用在于帮助生产过程中的液体混合、反应、涂布、印刷、灌注等工艺环节，避免气泡的产生和对最终产品的影响。在许多工业和实验室环境中，去除气泡是非常必要的，因为气泡可能会对产品质量产生负面影响，如影响表面张力和稳定性等问题。脱泡机通常采用各种不同的技术，如振动、超声波、离心等，以实现有效的气泡去除。它的应用领域广泛，包括但不限于半导体、太阳能、光学、生物技术、材料科学等。
-
售后服务怎么样？
公司拥有专业的售后服务人员，24小时专人服务，一对一提供技术支持，解决您的后顾之忧。
-
为什么要选择施诺斯？
选择施诺斯的原因有很多，以下是一些主要的原因：
1. 专业性：我们的团队由一群专业的人士组成，他们在各自的领域拥有丰富的经验和知识。我们不仅了解行业趋势和最佳实践，而且还能提供切实可行的解决方案。
2. 服务质量：我们注重客户的需求和满意度，始终致力于提供高质量的服务。我们不仅快速响应客户需求，而且还能根据客户的要求进行定制化服务。
3. 可靠性：我们以诚信和专业精神为宗旨，始终遵守承诺和协议。我们的工作方法和交付成果均符合行业标准和最佳实践，使得我们的客户能够信任我们。
4. 创新性：我们不断探索新的方法和工具，以提供更好的服务并满足客户的需求。我们鼓励创新和实验，并愿意接受挑战和改变。
5. 成本效益：我们提供高性价比的服务，不仅能够帮助客户节省成本，而且还能提高效率和生产力。我们始终以客户的利益为出发点，为客户提供最优的解决方案。
6. 团队合作：我们相信团队的力量和合作的价值，我们的团队成员之间互相支持、协作和尊重。我们与客户、合作伙伴和其他利益相关者建立紧密的合作关系，以实现共同的目标。
以上只是选择我们的部分原因，我们相信还有很多其他的优点和价值可以为客户提供。如果您正在寻找一家专业、可靠、高质量的服务提供商，我们非常期待与您的合作。
-
搅拌脱泡机的工作原理？
施诺斯搅拌脱泡机通过公转的离心力进行脱泡，通过公转与自转形成的剪切力进行搅拌，
再辅助以真空泵抽取气体以达到真空状态，去除纳米级微小气泡。 不接触物料，无二次污染，无二次浪费。
-
施诺斯能提供工程咨询技术服务吗？
施诺斯能为广大客户提供全面的工程和现代化的咨询服务。施诺斯近二十年的搅拌经验，可以为你提供高效的咨询服务。
想要让搅拌机性能更上一层楼，提升系统的整体效能？我们有全面的咨询、工程以及现代化改造服务，为您量身打造解决方案。 在如今竞争激烈的全球化浪潮中，唯有不断创新、持续优化，才能始终跑在对手前面。您的生产工艺和产品日新月异，我们就为您提供最适配的混合技术。不管是新的产品参数，还是既有的工艺条件，我们都能对现有系统和搅拌设备进行全方位的检查与评估，挖掘其中潜藏的流程优化空间和机械性能提升潜力，并且帮您把这些改进切实落地。 要是您的搅拌设备已经跟不上时代步伐，能耗居高不下，或是维护成本让您头疼不已，那就别犹豫，我们的咨询、工程设计和现代化改造服务，就是为您排忧解难的良方。欢迎随时联系我们，携手开启高效生产新征程！
Technical Specification List
Full‑line standardized specifications for accurate process evaluation and equipment selection
| Model | SIE‑MIX60ZK | SIE‑MIX650ZK | SIE‑MIX90ZK |
| Mixing Capacity | 0‑300 mL (standard vessel) * Customizable | 0‑500 mL (standard vessel) * Customizable | 0‑1000 mL (standard vessel) * Customizable |
| Vessel Type | Tubes / Jars / Cups; adapters for syringes & cartridges supported | Tubes / Jars / Cups; adapters for syringes & cartridges supported | Tubes / Jars / Cups; adapters for syringes & cartridges supported |
| Vessel Quantity | 1 or 2 jars (user‑selectable) | 1 or 2 jars (user‑selectable) | 1 or 2 jars (user‑selectable) |
| Max Speed | 0‑3000 RPM (stepless adjustable) | 0‑2000 RPM (stepless adjustable) | 0‑2000 RPM (stepless adjustable) |
| Temperature Mode | Cooling / Heating | Cooling / Heating | Cooling / Heating |
| Vacuum Level | Standard: ‑98 kPa / Optional: ‑100 kPa | Standard: ‑98 kPa / Optional: ‑100 kPa | Standard: ‑98 kPa / Optional: ‑100 kPa |
| Control System | Touch screen, stores up to 100 recipe sets | Touch screen, stores up to 100 recipe sets | Touch screen, stores up to 100 recipe sets |
| Power Supply | 220V, 50/60Hz (110V US/JP standard customizable) | 220V, 50/60Hz (110V US/JP standard customizable) | 220V, 50/60Hz (110V US/JP standard customizable) |
| Dimension (W×D×H) | 510 × 430 × 500 mm | 580 × 560 × 760 mm | 610 × 560 × 780 mm |
| Net Weight | 95 kg | 145 kg | 153 kg |
| Certifications | CE, FC | CE, FC | CE, FC |
*** The above are typical models only. Customized solutions are available according to customer‑specific requirements.
Multi‑Industry Solutions
Provide customized solutions to meet comprehensive demands from cutting‑edge R&D to large‑scale mass production
Battery IndustryLithium‑ion cathode slurry, anode slurry, electrolyte, separator coating liquid, conductive paste |
Chemical IndustryResin solution, reactive adhesive, catalyst slurry, functional coating liquid |
Medical Device IndustryMedical adhesive, sensor encapsulant, catheter coating liquid, diagnostic reagent carrier |
3D Printing IndustryPhotosensitive resin, functional ink, ceramic slurry, composite prepreg |
Adhesive & Sealant IndustryStructural adhesive, sealant, conductive adhesive, high‑temperature adhesive |
Silicone IndustryThermal conductive grease, silicone mixture, silicone resin, silane coupling agent |
Comprehensive Equipment Operation Demo Videos
Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.
Measured Defoaming‑Process Performance
Thoroughly eliminate material bubbles, voids and stratification
Photoresist |
Epoxy Coating |
Polymer Materials |
Hydrogen‑energy Materials |
Silver Paste Materials |
Battery Slurry |
Measured Data Comparison
Quantifiable Effects Validated by Test Data
| Material Type | Status Before Treatment | After MIX650ZK Treatment |
| Epoxy Potting Adhesive | Dense internal bubbles, approx. 5% encapsulation cavity rate, unstable insulation performance | Bubbles eliminated, zero encapsulation cavity rate, stable insulation performance |
| Polyurethane Casting Compound | Abundant internal bubbles, approx. 8% cured‑surface defect rate, fluctuating mechanical properties | Bubbles eliminated, low surface defect rate, stable mechanical properties |
| UV‑curable Ink | Plenty of internal bubbles, approx. 7% printing pinhole rate, obvious color deviation | Bubbles eliminated, low pinhole rate, color deviation removed |
* Internal laboratory test data. Actual improvement varies with material formulations. Contact sales for real‑world customer cases.
