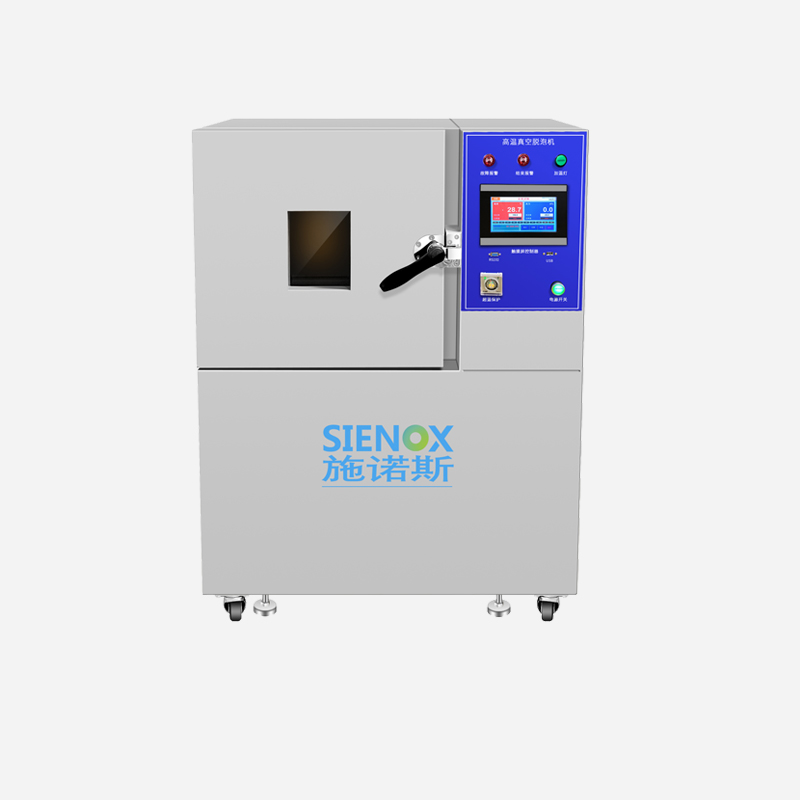

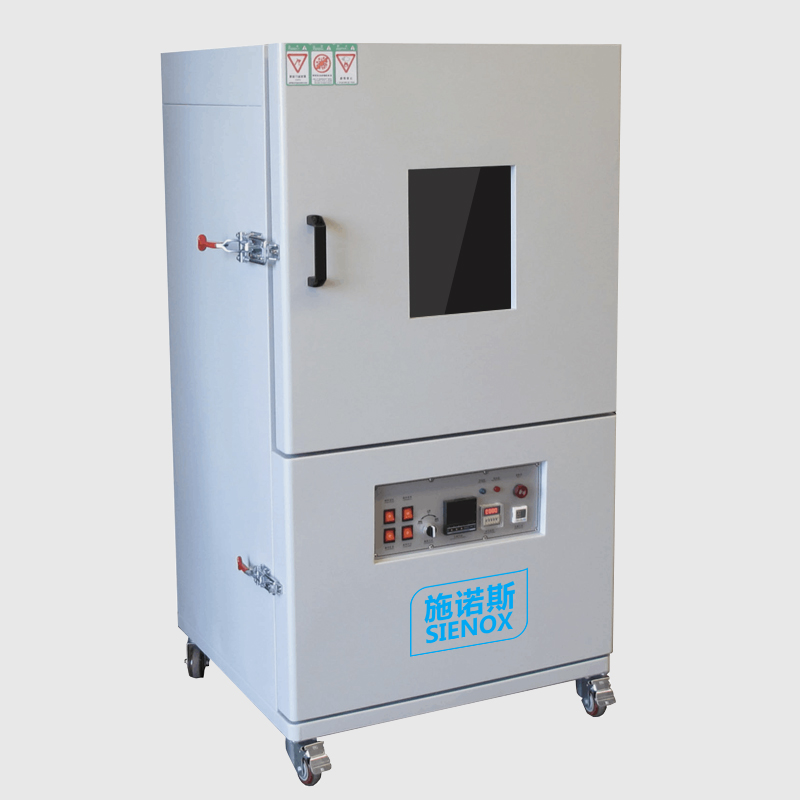

Vacuum Defoamer SIE‑ZK300


Small‑chamber Fast Vacuumizing · Heating‑assisted Deep Defoaming

27L small chamber reaches ‑100kPa within 3min + Multi‑segment temperature control from ambient to 300℃ + Real‑time monitoring via viewing window

SIENOX SIE‑ZK300 vacuum defoamer adopts 27L small‑size chamber with built‑in vacuum pump and reaches ‑100kPa within 3‑5 minutes. Multi‑segment PID temperature control from ambient‑300℃ achieves ±0.5℃ precision. Door‑mounted viewing window supports real‑time observation. Non‑contact vacuum defoaming preserves original chemical properties of materials.

✓ CE Certification  ✓ FC Certification ✓ ISO9001 Quality System ✓ RoHS Compliance ✓ Customizable voltage (110V/220V)

Online Message Free Sample Testing Engineer Hotline: 189-2512-9293

Why Must Microbubbles in Materials Be Eliminated?

Residual micro‑bubbles degrade end‑product quality directly

LED Consumer Electronics Industry

Bubbles in LED epoxy encapsulation reduce luminous efficiency, shift color temperature and even produce black spots in severe cases. Vacuum defoaming expands and releases bubbles under negative pressure. Heating lowers resin viscosity to speed defoaming and ensures light transmittance and consistency for LED encapsulation.

Laboratory & New‑Material R&D Field

Bubbles in R&D samples cause unrepeatable test data and big deviations between duplicate tests for identical formulas. Non‑contact vacuum treatment avoids impurity introduction to guarantee sample purity and reliable data. The compact 27L chamber quickly processes small‑volume samples without waiting for large‑equipment preheating.

Cosmetics & Makeup Industry

Bubbles in cosmetic pastes impair texture uniformity and visual quality and bring inaccurate net content after filling. Negative‑pressure defoaming inside sealed chamber keeps original formula composition and works well for cosmetic pastes and lotions.

✨ Dilemmas of conventional solutions: R&D samples rely on static waiting for bubbles to rise naturally, which takes half an hour or even several hours and greatly slows down experimental progress. Ordinary vacuum chambers have no heating function and cannot handle high‑viscosity materials such as epoxy resin. Without dedicated small‑sample equipment, production‑line units waste excessive energy.

Why Choose SIE‑ZK300

Solve efficiency‑observation pain points for laboratory R&D defoaming

Fast Defoaming With Small‑Sized Chamber

27L small chamber equipped with built‑in vacuum pump reaches ‑100kPa within 3‑5 minutes. Compared with large‑chamber equipment, it delivers faster vacuuming and lower energy consumption for R&D prototype tests without long waiting time. All‑in‑one unit with vacuum pump installed at cabinet bottom for instant startup without external accessories.

Multi‑segment Temperature Control for Diverse Materials

Wide adjustable temperature range from ambient to 300℃. Precise control via PID+SSR solid‑state relay, temperature accuracy ±0.5℃ and display accuracy 0.1℃. Supports variable temperature parameters for materials ranging from low‑temperature silicone to high‑temperature epoxy resin. One unit satisfies defoaming demands of multiple materials.

Real‑Time Monitoring Through Viewing Window

High‑temperature‑resistant viewing window mounted on door allows observation of internal defoaming status without opening door. Defoaming progress can be judged visually instead of empirical guesswork. Stop operation once bubble escape ceases to avoid over‑processing and save time & energy.

✨ ZK300 serves as an ideal choice if you have limited lab bench space, need to process high‑viscosity resin or epoxy, or expect real‑time observation of defoaming procedures.

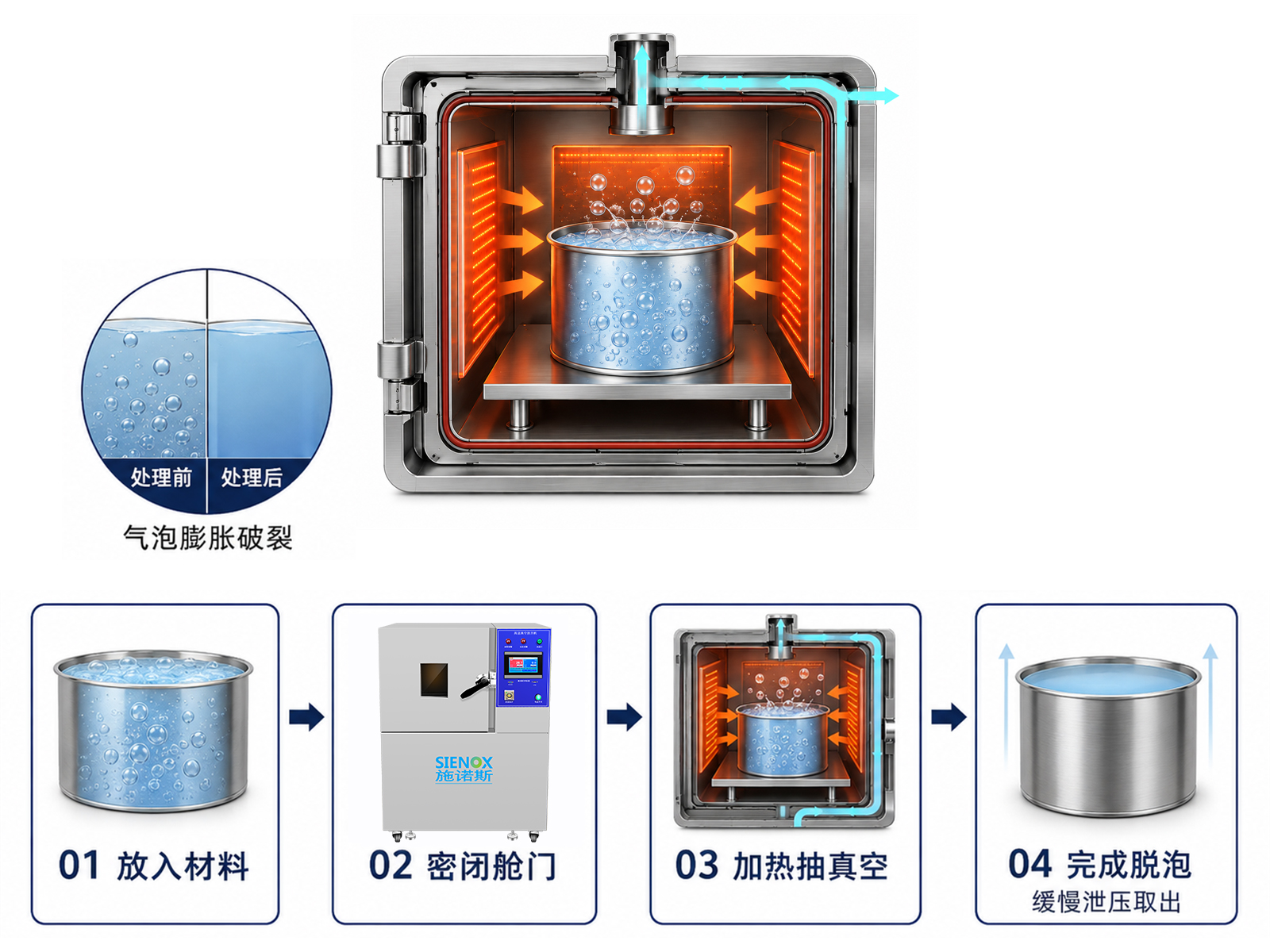

Working Principle

Bubbles expand and burst under negative pressure for gas escape to improve material compactness.

Step 1: Vacuumize to create negative pressure
Built‑in vacuum pump reaches ‑100kPa within 3‑5 min. Negative pressure expands bubbles inside materials.

Step 2: Heating‑assisted defoaming
Adjustable thermal‑radiation heating ranges from ambient to 300℃ to reduce material viscosity and accelerate bubble rupture & escape.

Step 3: Non‑contact purity preservation
Materials stand still inside vacuum chamber without stirrer contact, maintaining original chemical properties.


Three simple steps: Vacuumizing → Heating Assistance → Non‑contact Purity Preservation to improve material compactness.

Working principle of vacuum defoaming mixer.jpg

Technical Specifications

Hardcore Equipment Performance Indicator Data Alignment

ModelSIE‑ZK300
Chamber Size300×300×300mm* Larger volume customizable
Effective Volume27L
Cabinet StructureIntegrated unit with built‑in vacuum pump
Inner Compartment2 inner layers equipped with 2 mesh plates
Heating ModeThermal‑radiation heating, three‑sided (left / right / bottom)
Vacuum Range0.0~‑100.0KPa
Safety ProtectionOver‑temperature protection, overload protection, earth‑ground protection
Power Supply380V/220V, 50/60Hz
Overall Dimension(W×D×H)340 × 240 × 370 mm
Net WeightApprox.30 kg
Certifications CE, FC, ISO9001, RoHS Compliance

Our Partners

Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide

Partner Showcase

FAQ - Frequently Asked Questions

Answers to common questions about product performance and everyday process selection

  • 脱泡机的作用是什么?

    脱泡机是一种用于去除液体中的气泡的设备。它的作用在于帮助生产过程中的液体混合、反应、涂布、印刷、灌注等工艺环节,避免气泡的产生和对最终产品的影响。在许多工业和实验室环境中,去除气泡是非常必要的,因为气泡可能会对产品质量产生负面影响,如影响表面张力和稳定性等问题。脱泡机通常采用各种不同的技术,如振动、超声波、离心等,以实现有效的气泡去除。它的应用领域广泛,包括但不限于半导体、太阳能、光学、生物技术、材料科学等。

  • 售后服务怎么样?

    公司拥有专业的售后服务人员,24小时专人服务,一对一提供技术支持,解决您的后顾之忧。

  • 为什么要选择施诺斯?

    选择施诺斯的原因有很多,以下是一些主要的原因:

     1. 专业性:我们的团队由一群专业的人士组成,他们在各自的领域拥有丰富的经验和知识。我们不仅了解行业趋势和最佳实践,而且还能提供切实可行的解决方案。

     2. 服务质量:我们注重客户的需求和满意度,始终致力于提供高质量的服务。我们不仅快速响应客户需求,而且还能根据客户的要求进行定制化服务。

    3. 可靠性:我们以诚信和专业精神为宗旨,始终遵守承诺和协议。我们的工作方法和交付成果均符合行业标准和最佳实践,使得我们的客户能够信任我们。

    4. 创新性:我们不断探索新的方法和工具,以提供更好的服务并满足客户的需求。我们鼓励创新和实验,并愿意接受挑战和改变。

    5. 成本效益:我们提供高性价比的服务,不仅能够帮助客户节省成本,而且还能提高效率和生产力。我们始终以客户的利益为出发点,为客户提供最优的解决方案。

     6. 团队合作:我们相信团队的力量和合作的价值,我们的团队成员之间互相支持、协作和尊重。我们与客户、合作伙伴和其他利益相关者建立紧密的合作关系,以实现共同的目标。

    以上只是选择我们的部分原因,我们相信还有很多其他的优点和价值可以为客户提供。如果您正在寻找一家专业、可靠、高质量的服务提供商,我们非常期待与您的合作。

  • 搅拌脱泡机的工作原理?

    施诺斯搅拌脱泡机通过公转的离心力进行脱泡,通过公转与自转形成的剪切力进行搅拌,

    再辅助以真空泵抽取气体以达到真空状态,去除纳米级微小气泡。 不接触物料,无二次污染,无二次浪费。


  • 施诺斯能提供工程咨询技术服务吗?

    施诺斯能为广大客户提供全面的工程和现代化的咨询服务。施诺斯近二十年的搅拌经验,可以为你提供高效的咨询服务。

    想要让搅拌机性能更上一层楼,提升系统的整体效能?我们有全面的咨询、工程以及现代化改造服务,为您量身打造解决方案。 在如今竞争激烈的全球化浪潮中,唯有不断创新、持续优化,才能始终跑在对手前面。您的生产工艺和产品日新月异,我们就为您提供最适配的混合技术。不管是新的产品参数,还是既有的工艺条件,我们都能对现有系统和搅拌设备进行全方位的检查与评估,挖掘其中潜藏的流程优化空间和机械性能提升潜力,并且帮您把这些改进切实落地。 要是您的搅拌设备已经跟不上时代步伐,能耗居高不下,或是维护成本让您头疼不已,那就别犹豫,我们的咨询、工程设计和现代化改造服务,就是为您排忧解难的良方。欢迎随时联系我们,携手开启高效生产新征程!

Technical Specification List

Full‑line standardized specifications for accurate process evaluation and equipment selection

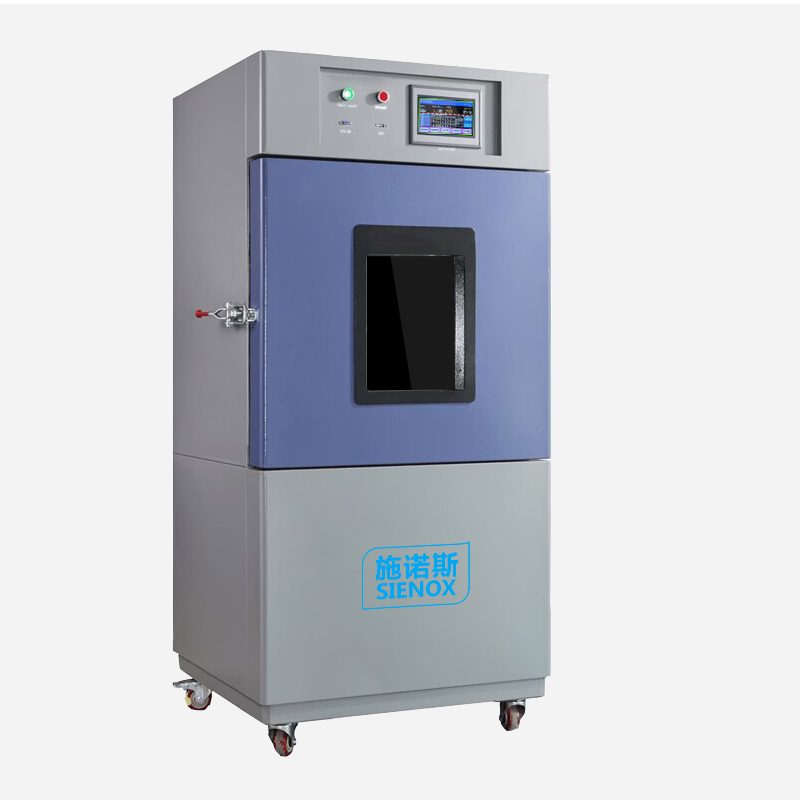

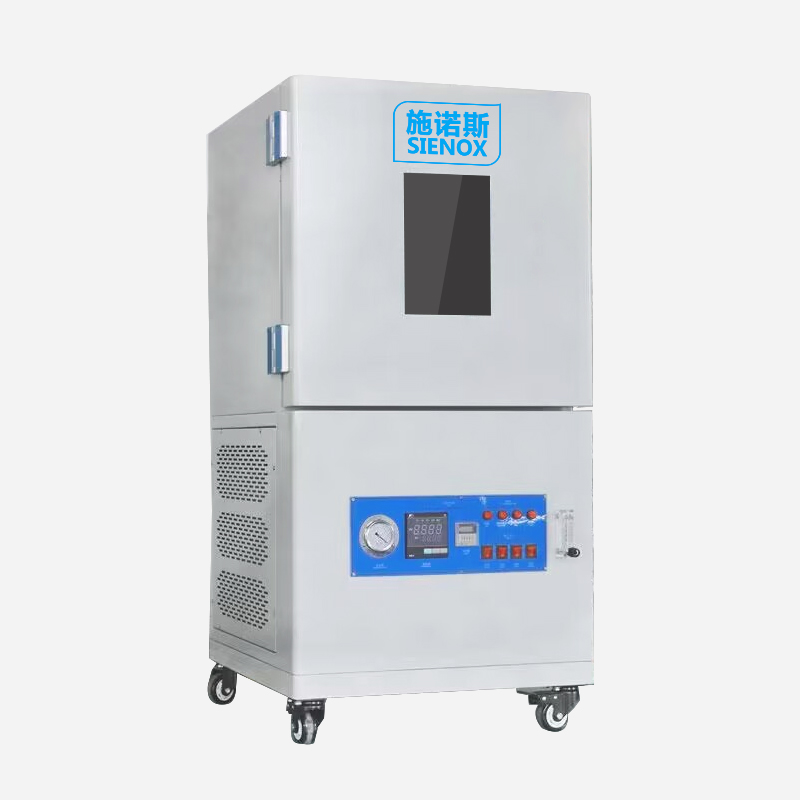

ModelSIE‑ZK300SIE‑ZK400SIE‑ZK500
Chamber Size300×300×300mm400×400×450mm500×500×500mm
Effective Volume27L72L125L
Temperature RangeAmbient+30~300℃Ambient+30~300℃Ambient+30~300℃
Vacuum Degree0~‑100kPa0~‑100kPa0~‑100kPa
Safety ProtectionOver‑temperature protection, overload protection, ground protectionOver‑temperature protection, overload protection, ground protectionOver‑temperature protection, overload protection, ground protection
Power Supply380V/220V, 50/60Hz380V/220V, 50/60Hz380V/220V, 50/60Hz
Overall Dimension(W×D×H)700×680×1530mm(with casters, subject to actual product)510 × 430 × 500 mm610 × 560 × 780 mm
Net Weight30 kg95 kg153 kg
CertificationsCE, FCCE, FCCE, FC

***Above are typical models only. SIENOX provides customized solutions upon client requirements. Contact sales for model selection: 189‑2512‑9293

Multi‑Industry Solutions

Vacuum defoaming applications covering typical materials across six major industries

University‑level scientific research.jpg

LED Consumer Electronics

LED epoxy resin, phosphor powder, UV adhesive


Cosmetics & Makeup

Cosmetic paste, lotion, gel

Ink & coating.jpg

Lab & New‑Material R&D

Reagents, nano‑dispersion liquid, polymer samples

LED raw material 02.jpg

Hardware & Plastics

Plastic potting compound, metal coating


Chemical Coatings

Color paste, printing ink

Testing institution.jpg

Pharmaceuticals

Medical gel, diagnostic reagents

Comprehensive Equipment Operation Demo Videos

Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.

Actual‑test Performance Demonstration

Lab Sample Actual Test Results

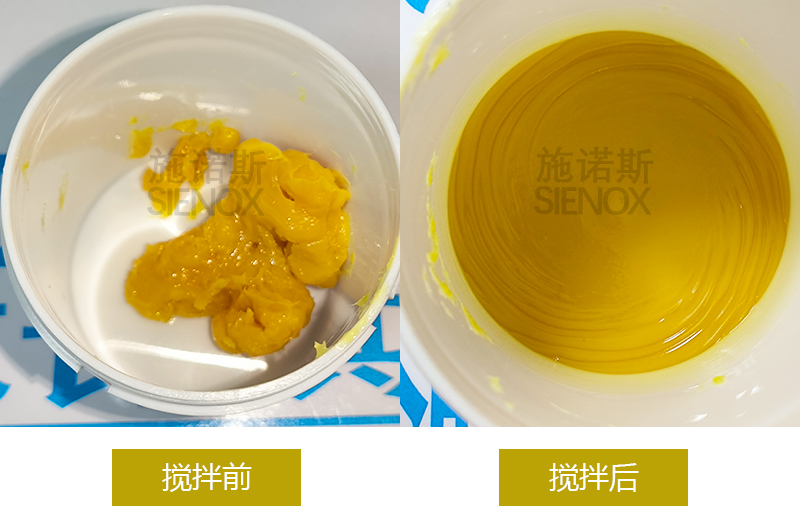

Paste‑like Materials

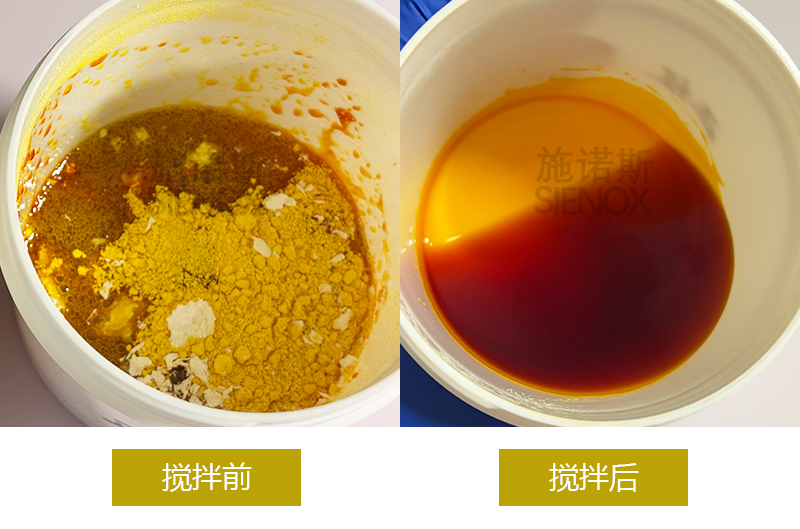

Adhesive & Powder Mixture

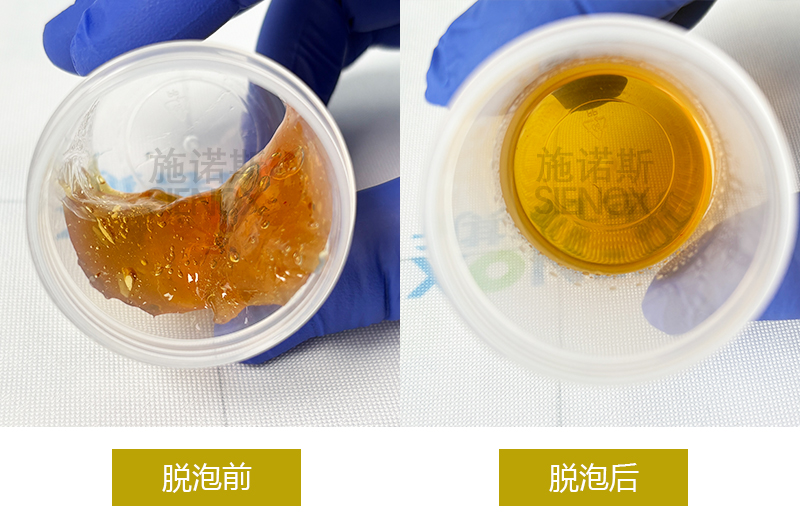

Polymer Materials


Medical Gel

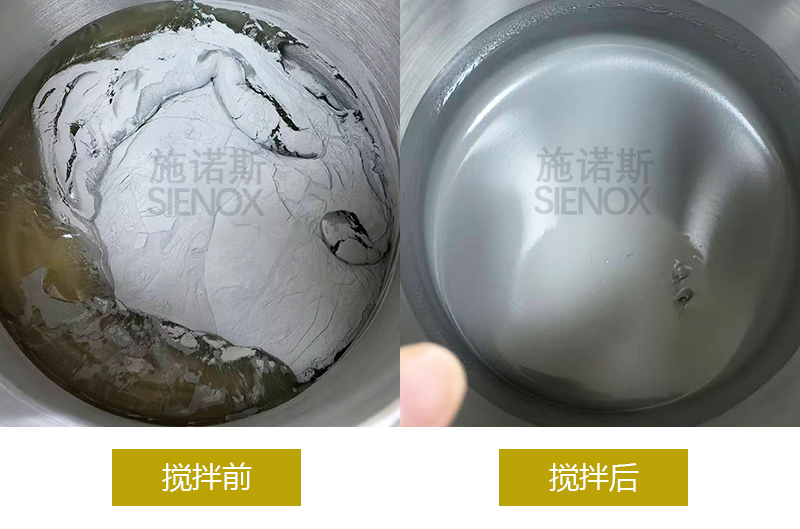

Silver Paste Material

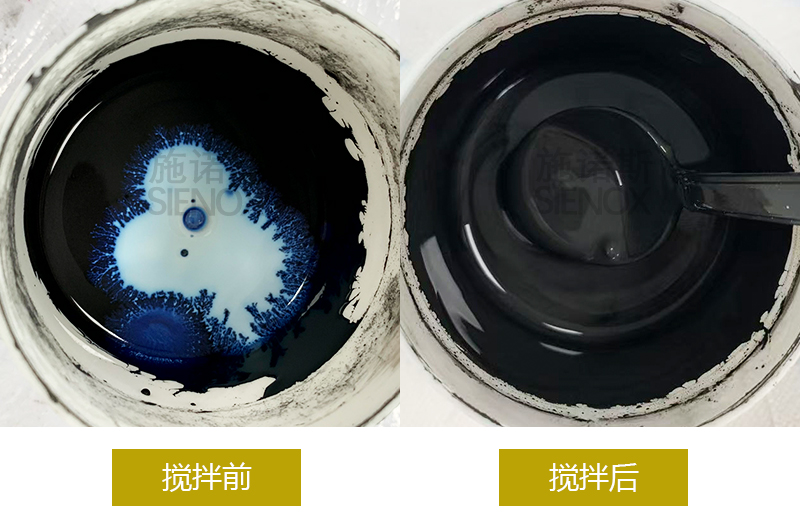

Battery Slurry

Actual‑test Effect Comparison

Material Defoaming Effect Comparison Before & After

Material Type
Pre‑treatment Status
Post‑treatment by ZK300
LED Epoxy ResinDense internal bubbles cause black spots and uneven light transmittance after curingCrystal‑clear resin free of black spots with uniform light transmittance after curing
Cosmetic PasteNumerous internal bubbles result in rough texture and inaccurate filling net contentSmooth bubble‑free paste ensures accurate filling net content
Phosphor SlurryInternal bubbles bring pinholes and streaks after coatingSmooth uniform slurry delivers defect‑free coating surface

* Internal lab test data. Actual improvement varies with material formula. Contact sales for real‑world customer cases.
