Vacuum Degassing Chamber

TEL:18925129293

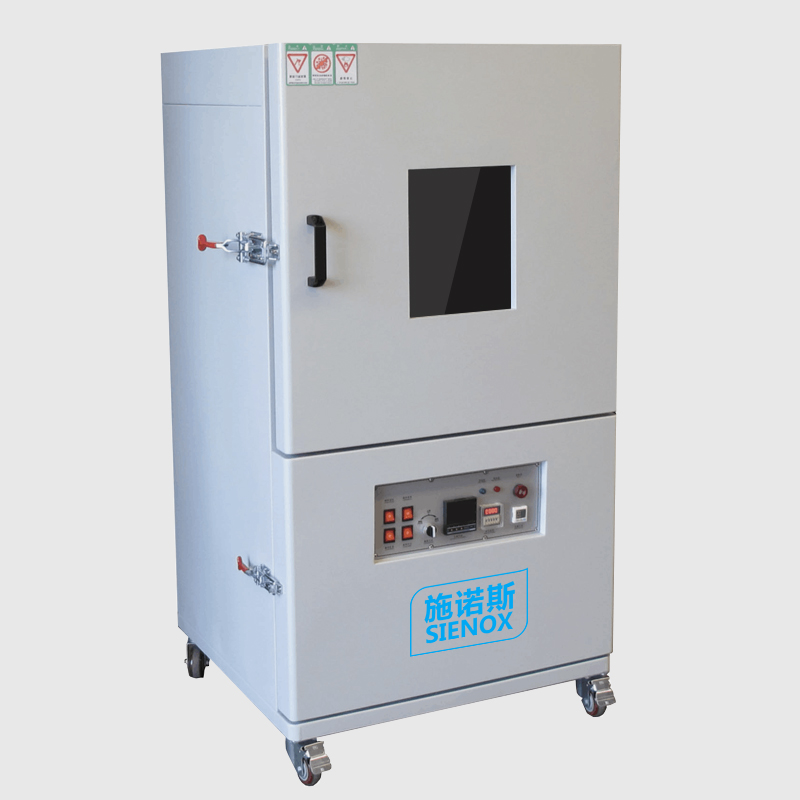

Vacuum Defoamer SIE‑ZK400


Built‑in Pump Integrated Design · Ready‑to‑use for Small‑batch Production

72L standard chamber with built‑in vacuum pump + 1kPa/h pressure‑holding leakage + PID precise ±0.5℃ temperature control

SIENOX SIE‑ZK400 vacuum defoamer adopts 72L 400×400×450 mm chamber. Built‑in pump reaches ‑100kPa within 3‑5 minutes. Pressure‑holding leakage approx.1.0KPa/h. Ambient‑300℃ multi‑segment PID temperature control at ±0.5℃ precision. Non‑contact vacuum defoaming preserves original material chemical properties.

✓ CE Certification  ✓ FC Certification ✓ ISO9001 Quality System ✓ RoHS Compliance ✓ Customizable voltage (110V/220V)

Online Message Free Sample Testing Engineer Hotline: 189-2512-9293

Why Must Microbubbles in Materials Be Eliminated?

Residual micro‑bubbles degrade end‑product quality directly

Resin Craft Industry

Bubbles in epoxy resin crafts create surface pores and internal voids, especially noticeable on transparent parts and trigger customer rejection. Vacuum defoaming expands and releases bubbles under negative pressure. Heating cuts resin viscosity to speed defoaming. The 72L dual‑layer chamber processes multiple crafts simultaneously for one‑batch small‑batch processing without separation.

Plastic Toy Industry

Bubbles in toy potting compounds cause poor encapsulation and weak sealing. Bubbled coatings feature low adhesion and easy peeling with unstable yield in small‑batch runs. Non‑contact vacuum treatment preserves material composition. 72L chamber with dual mesh plates pre‑processes potting and coating materials for higher efficiency.

AB Adhesive Industry

Bubbles generated after two‑component AB‑glue mixing bring voids on bonding surfaces and weaken structural strength. Stable repeatable defoaming is required for small‑batch consistency. Pressure‑holding leakage merely 1kPa/h maintains steady negative pressure. 72L chamber with dual mesh plates handles multiple bonded parts for consistent defoaming results.

✨ Dilemmas of conventional solutions: Large‑size equipment wastes energy and preheating time for small‑batch production, while small‑size devices require multi‑batch queuing, making capacity‑efficiency balance hard to achieve. External vacuum pumps occupy large footprint with complex pipelines and leak‑prone joints. Ordinary units suffer poor pressure retention, frequent pump cycling generates loud noise and shortens pump service life.

Why Choose SIE‑ZK400

Solve efficiency‑stability pain points for small‑batch production

Integrated Built‑in Vacuum Pump

Built‑in vacuum pump requires no external accessories for plug‑and‑play operation to save production‑line space. All‑in‑one structure prevents leakage at pipeline joints for more reliable vacuum system. Reaches ‑100kPa within 3‑5 minutes for fast defoaming startup.

Excellent Pressure‑Holding Performance

Pressure‑holding leakage rate approx.1.0KPa/hour sustains long‑term negative pressure inside chamber. Vacuum pump auto‑stops at target vacuum and restarts below threshold to maintain constant pressure. Low pump‑cycling frequency reduces noise and extends pump service life.

72L Dual‑Layer Operation

400×400×450 mm chamber equipped with 2 mesh plates processes multiple items simultaneously for single‑run small‑batch defoaming. Seamless transition from lab samples to small‑volume production. One unit covers prototype‑to‑mass‑transition demands.

✨ If you run small‑batch production requiring stable pressure retention, compact footprint or simultaneous multi‑item processing, ZK400’s built‑in pump and 72L dual‑layer chamber balance capacity and efficiency.

Working Principle

Bubbles expand and burst under negative pressure for gas escape to improve material compactness.

Step 1: Vacuumize to build negative pressure
Built‑in vacuum pump reaches ‑100kPa within 3‑5 min. Negative pressure expands bubbles inside materials.

Step 2: Heating‑assisted defoaming
Adjustable thermal‑radiation heating from ambient to 300℃ reduces material viscosity and accelerates bubble rupture & escape.

Step 3: Non‑contact purity preservation
Materials stand still inside vacuum chamber without stirrer contact, keeping original chemical properties.


Three simple steps: Vacuumizing → Heating Assistance → Non‑contact Purity Preservation to improve material compactness.


Technical Specifications

Complete Technical Specifications Overview, Customizable on Demand

ModelSIE‑ZK400
Chamber Size400×400×450mm* Larger volume customizable
Effective Volume72L
Cabinet StructureIntegrated unit with built‑in vacuum pump
Inner Compartment2 inner layers with 2 mesh plates
Heating ModeThermal‑radiation heating, three‑sided (left / right / bottom)
Vacuum Range0.0~‑100.0KPa
Safety ProtectionOver‑temperature protection, overload protection, earth‑ground protection
Power Supply380V/220V, 50/60Hz
Overall Dimension(W×D×H)Approx.800×780×1630mm (with casters, subject to actual product)
Net WeightApprox.30 kg
Certifications CE, FC, ISO9001, RoHS Compliance


Our Partners

Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide

Partner Showcase

FAQ - Frequently Asked Questions

Answers to common questions about product performance and everyday process selection

  • 脱泡机的作用是什么?

    脱泡机是一种用于去除液体中的气泡的设备。它的作用在于帮助生产过程中的液体混合、反应、涂布、印刷、灌注等工艺环节,避免气泡的产生和对最终产品的影响。在许多工业和实验室环境中,去除气泡是非常必要的,因为气泡可能会对产品质量产生负面影响,如影响表面张力和稳定性等问题。脱泡机通常采用各种不同的技术,如振动、超声波、离心等,以实现有效的气泡去除。它的应用领域广泛,包括但不限于半导体、太阳能、光学、生物技术、材料科学等。

  • 售后服务怎么样?

    公司拥有专业的售后服务人员,24小时专人服务,一对一提供技术支持,解决您的后顾之忧。

  • 为什么要选择施诺斯?

    选择施诺斯的原因有很多,以下是一些主要的原因:

     1. 专业性:我们的团队由一群专业的人士组成,他们在各自的领域拥有丰富的经验和知识。我们不仅了解行业趋势和最佳实践,而且还能提供切实可行的解决方案。

     2. 服务质量:我们注重客户的需求和满意度,始终致力于提供高质量的服务。我们不仅快速响应客户需求,而且还能根据客户的要求进行定制化服务。

    3. 可靠性:我们以诚信和专业精神为宗旨,始终遵守承诺和协议。我们的工作方法和交付成果均符合行业标准和最佳实践,使得我们的客户能够信任我们。

    4. 创新性:我们不断探索新的方法和工具,以提供更好的服务并满足客户的需求。我们鼓励创新和实验,并愿意接受挑战和改变。

    5. 成本效益:我们提供高性价比的服务,不仅能够帮助客户节省成本,而且还能提高效率和生产力。我们始终以客户的利益为出发点,为客户提供最优的解决方案。

     6. 团队合作:我们相信团队的力量和合作的价值,我们的团队成员之间互相支持、协作和尊重。我们与客户、合作伙伴和其他利益相关者建立紧密的合作关系,以实现共同的目标。

    以上只是选择我们的部分原因,我们相信还有很多其他的优点和价值可以为客户提供。如果您正在寻找一家专业、可靠、高质量的服务提供商,我们非常期待与您的合作。

  • 搅拌脱泡机的工作原理?

    施诺斯搅拌脱泡机通过公转的离心力进行脱泡,通过公转与自转形成的剪切力进行搅拌,

    再辅助以真空泵抽取气体以达到真空状态,去除纳米级微小气泡。 不接触物料,无二次污染,无二次浪费。


  • 施诺斯能提供工程咨询技术服务吗?

    施诺斯能为广大客户提供全面的工程和现代化的咨询服务。施诺斯近二十年的搅拌经验,可以为你提供高效的咨询服务。

    想要让搅拌机性能更上一层楼,提升系统的整体效能?我们有全面的咨询、工程以及现代化改造服务,为您量身打造解决方案。 在如今竞争激烈的全球化浪潮中,唯有不断创新、持续优化,才能始终跑在对手前面。您的生产工艺和产品日新月异,我们就为您提供最适配的混合技术。不管是新的产品参数,还是既有的工艺条件,我们都能对现有系统和搅拌设备进行全方位的检查与评估,挖掘其中潜藏的流程优化空间和机械性能提升潜力,并且帮您把这些改进切实落地。 要是您的搅拌设备已经跟不上时代步伐,能耗居高不下,或是维护成本让您头疼不已,那就别犹豫,我们的咨询、工程设计和现代化改造服务,就是为您排忧解难的良方。欢迎随时联系我们,携手开启高效生产新征程!

Technical Specification List

Compare Models in the Same Series for Accurate Selection

ModelSIE‑ZK300SIE‑ZK400SIE‑ZK500
Chamber Size300×300×300mm400×400×450mm500×500×500mm
Effective Volume27L72L125L
Temperature RangeAmbient+30~300℃Ambient+30~300℃Ambient+30~300℃
Vacuum Level0~‑100kPa0~‑100kPa0~‑100kPa
Safety ProtectionOver‑temperature, overload, earth‑ground protectionOver‑temperature, overload, earth‑ground protectionOver‑temperature, overload, earth‑ground protection
Power Supply380V/220V, 50/60Hz380V/220V, 50/60Hz380V/220V, 50/60Hz
Overall Dimension(W×D×H)700×680×1530mm (with casters, subject to actual product)510 × 430 × 500 mm610 × 560 × 780 mm
Net Weight30 kg95 kg153 kg
CertificationsCE, FCCE, FCCE, FC

***Above are typical models only. SIENOX provides customized solutions upon client requirements. For model selection: 189‑2512‑9293

Multi‑Industry Solutions

Vacuum defoaming applications covering typical materials across six major industries


LED消费电子

LED环氧树脂、荧光粉、UV胶


化妆品彩妆

化妆品膏体、乳液、凝胶


实验室、新材料研发

试剂、纳米分散液、高分子小样


五金塑料

塑料灌封胶、金属涂层


化工涂料

色浆、油墨


医药

医药凝胶、诊断试剂

Comprehensive Equipment Operation Demo Videos

Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.

Actual‑test Performance Demonstration

Lab Sample Actual Test Results


Silicone Rubber


Adhesive


Silver Paste


Medical Gel


UV Adhesive


Battery Slurry

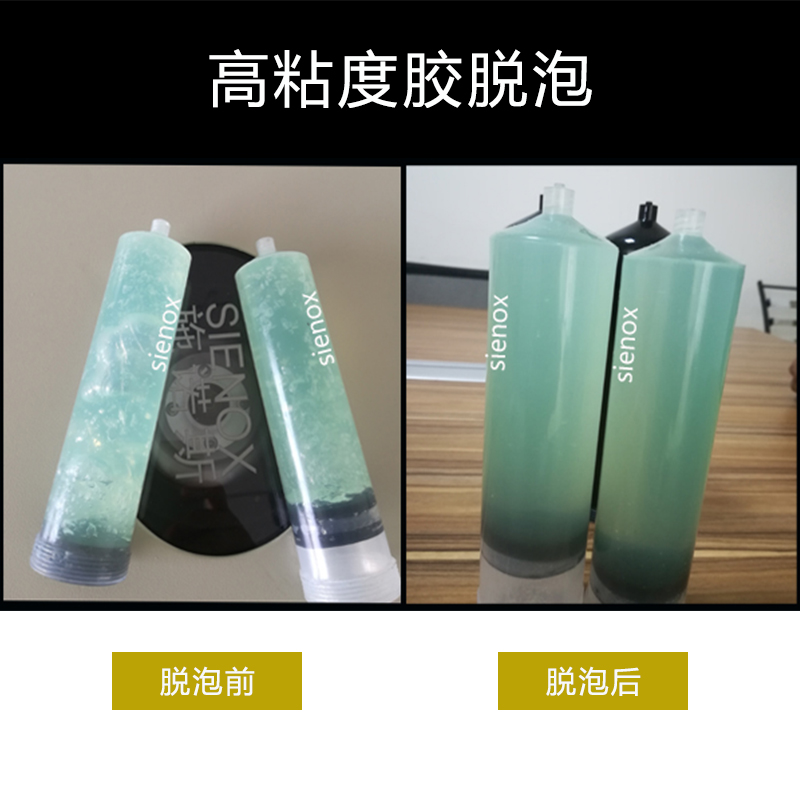

Actual‑test Effect Comparison

Material Defoaming Effect Comparison Before & After

Material Type
Pre‑treatment Status
Post‑treatment by ZK400
Epoxy ResinDense internal bubbles cause surface and internal pores after pouringCrystal‑clear resin with smooth surface and compact interior after pouring
Plastic Potting CompoundAbundant bubbles lead to cavities and poor sealing after encapsulationFull‑bodied void‑free compound delivers reliable sealing performance
AB AdhesivePlenty of bubbles create voids on bonding surfaces and weaken strength after curingVoid‑free dense compound with stable bonding strength

* Internal lab test data. Actual improvement varies with material formula. Contact sales for real‑world customer cases.
