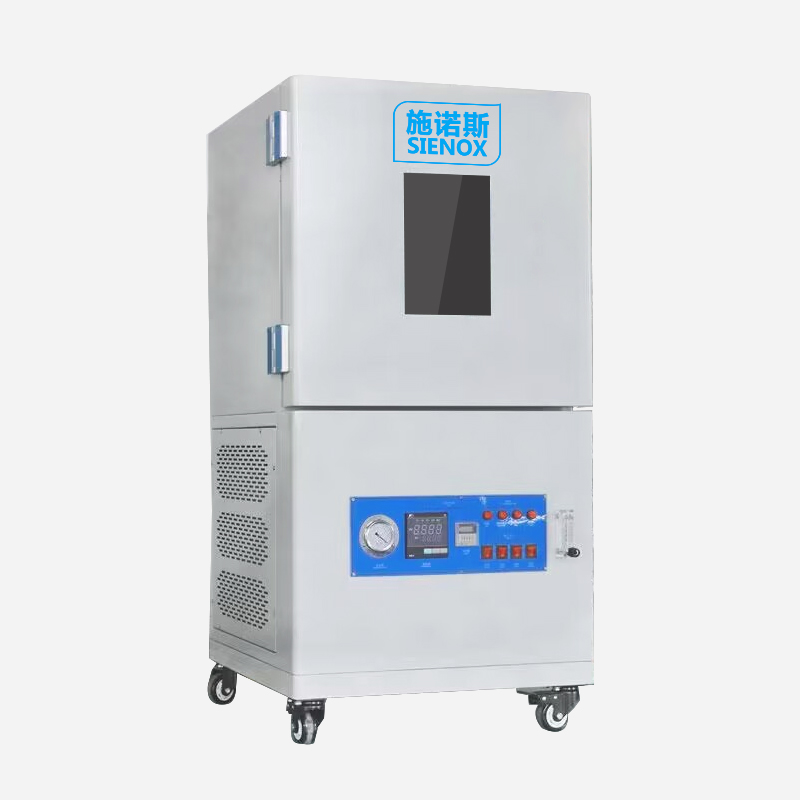

Vacuum Defoamer SIE‑ZK800


Mass‑Production Grade Large Chamber · Whole‑Piece Defoaming for Oversized Workpieces

512L large‑volume chamber for whole‑piece loading without splitting + Customizable partitions for multiple sizes + Full‑range safety detection for reliable mass‑production

SIENOX SIE‑ZK800 Vacuum Defoamer features a 512L large chamber of 800×800×800 mm for whole‑piece defoaming of oversized products. Partition position and quantity can be customized on request. Comprehensive safety protection covers over‑temperature, overload and ground protection. Multi‑stage PID temperature control ranges from ambient to 300℃ with ±0.5℃ accuracy. Non‑contact vacuum defoaming keeps original chemical properties of materials unchanged.

✓ CE Certification  ✓ FC Certification ✓ ISO9001 Quality System ✓ RoHS Compliance ✓ Customizable Voltage (110V/220V)

Online Message Free Sample Testing Engineer Hotline: 189-2512-9293

Why Must Microbubbles in Materials Be Eliminated?

Residual micro‑bubbles degrade end‑product quality directly

Transformer Potting Industry

Bubbles inside potting compound degrade insulation performance of large transformers. Deep‑seated bubbles are hard to eliminate after integral potting. The 512L large‑volume chamber supports whole‑piece loading. Heating‑assisted mode reduces compound viscosity to fully release deep bubbles and ensure reliable insulation for large transformers.

Resin Craft Industry

Internal bubbles are difficult to remove for large integral resin crafts. Splitting brings extra procedures and secondary‑bubble risks. The 512L chamber enables one‑shot whole‑piece defoaming without splitting. Heating assistance lowers resin viscosity for full escape of deep bubbles, delivering smooth surface and compact interior for oversized crafts.

AB Adhesive Industry

Bulk‑mixed AB adhesive generates abundant bubbles, causing voids on bonding surfaces and structural failure after curing. Customizable partitions fit large‑size buckets. Automatic constant‑pressure circulation sustains long‑term stable defoaming. The 512L chamber processes multiple buckets in one batch to boost throughput with consistent defoaming quality.

✨ Dilemmas of conventional solutions: Oversized workpieces cannot be split for loading; standard chambers are insufficiently large. Splitting raises extra processes and secondary‑bubble risks. Insufficient capacity for high‑volume batches causes queue delays and longer lead times. Large‑chamber devices without full‑range safeguards bring hidden safety hazards during mass production.

Why Choose SIE‑ZK800

Solve capacity‑safety pain points for oversized‑workpiece & mass‑production defoaming

512L Extra‑Large Chamber

Whole‑piece defoaming for oversized workpieces without splitting to avoid secondary bubbles. Capacity more than doubles from ZK600’s 216L to ZK800’s 512L. Ideal for one‑shot defoaming of large resin parts, automotive headlight assemblies, battery modules and other large‑size products.

Customizable Partition Adaptation

Partition position and quantity are customizable. Standard configuration includes 2 layers with 2 mesh plates. Extra layers support high‑volume small‑part processing, while adjustable layer spacing accommodates products of varying heights. One machine handles single large‑size pieces as well as batches of medium‑small parts to meet diverse mass‑production demands.

Full‑Range Safety Detection

Triple‑circuit safety: ground protection, quick‑fuse and overload protection. Independent over‑temperature protector cuts power and triggers alarms upon temperature runaway. Digital vacuum gauge monitors chamber negative pressure in real‑time. Complete vacuum‑line safety components include pressure‑relief valve and check valve. Guarantees operator‑equipment safety during long‑hour mass‑production runs.

✨ If you process oversized workpieces, high‑volume batches or custom partition layouts, ZK800’s large chamber & customizable design covers your mass‑production requirements in one unit.

Working Principle

Bubbles expand and burst under negative pressure for gas escape to improve material compactness.

Step 1: Evacuate to build negative pressure
Built‑in vacuum pump reaches ‑100kPa within 3‑5 minutes. Negative pressure expands bubbles inside materials.

Step 2: Heating‑assisted defoaming
Thermal‑radiation heating adjustable from ambient to 300℃ reduces material viscosity to accelerate bubble rupture and escape.

Step 3: Non‑contact property preservation
Materials remain static inside vacuum chamber without agitator contact, keeping original chemical properties.


Three simple steps: Vacuumizing → Heating Assistance → Non‑contact Preservation to improve material compactness.


Technical Specifications

Complete Technical Specifications Overview, Customizable on Demand

ModelSIE‑ZK800
Chamber Dimension800×800×800mm* Larger volume customizable
Effective Volume512L
Cabinet StructureIntegrated unit with built‑in vacuum pump
Internal Partition2 inner layers with 2 mesh plates
Heating ModeThermal‑radiation heating, three‑sided heating(left/right/bottom)
Vacuum Degree Range0.0~‑100.0KPa
Safety ProtectionOver‑temperature protection, overload protection, ground protection
Power Supply380V220V, 50/60Hz
Overall Dimension(W×D×H)Approx.1200×1180×2030mm (with casters, subject to actual product)
Net WeightApprox. 30 kg
Certifications CE, FC, ISO9001, RoHS Compliance


Our Partners

Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide

Partner Showcase

FAQ - Frequently Asked Questions

Answers to common questions about product performance and everyday process selection

  • 脱泡机的作用是什么?

    脱泡机是一种用于去除液体中的气泡的设备。它的作用在于帮助生产过程中的液体混合、反应、涂布、印刷、灌注等工艺环节,避免气泡的产生和对最终产品的影响。在许多工业和实验室环境中,去除气泡是非常必要的,因为气泡可能会对产品质量产生负面影响,如影响表面张力和稳定性等问题。脱泡机通常采用各种不同的技术,如振动、超声波、离心等,以实现有效的气泡去除。它的应用领域广泛,包括但不限于半导体、太阳能、光学、生物技术、材料科学等。

  • 售后服务怎么样?

    公司拥有专业的售后服务人员,24小时专人服务,一对一提供技术支持,解决您的后顾之忧。

  • 为什么要选择施诺斯?

    选择施诺斯的原因有很多,以下是一些主要的原因:

     1. 专业性:我们的团队由一群专业的人士组成,他们在各自的领域拥有丰富的经验和知识。我们不仅了解行业趋势和最佳实践,而且还能提供切实可行的解决方案。

     2. 服务质量:我们注重客户的需求和满意度,始终致力于提供高质量的服务。我们不仅快速响应客户需求,而且还能根据客户的要求进行定制化服务。

    3. 可靠性:我们以诚信和专业精神为宗旨,始终遵守承诺和协议。我们的工作方法和交付成果均符合行业标准和最佳实践,使得我们的客户能够信任我们。

    4. 创新性:我们不断探索新的方法和工具,以提供更好的服务并满足客户的需求。我们鼓励创新和实验,并愿意接受挑战和改变。

    5. 成本效益:我们提供高性价比的服务,不仅能够帮助客户节省成本,而且还能提高效率和生产力。我们始终以客户的利益为出发点,为客户提供最优的解决方案。

     6. 团队合作:我们相信团队的力量和合作的价值,我们的团队成员之间互相支持、协作和尊重。我们与客户、合作伙伴和其他利益相关者建立紧密的合作关系,以实现共同的目标。

    以上只是选择我们的部分原因,我们相信还有很多其他的优点和价值可以为客户提供。如果您正在寻找一家专业、可靠、高质量的服务提供商,我们非常期待与您的合作。

  • 搅拌脱泡机的工作原理?

    施诺斯搅拌脱泡机通过公转的离心力进行脱泡,通过公转与自转形成的剪切力进行搅拌,

    再辅助以真空泵抽取气体以达到真空状态,去除纳米级微小气泡。 不接触物料,无二次污染,无二次浪费。


  • 施诺斯能提供工程咨询技术服务吗?

    施诺斯能为广大客户提供全面的工程和现代化的咨询服务。施诺斯近二十年的搅拌经验,可以为你提供高效的咨询服务。

    想要让搅拌机性能更上一层楼,提升系统的整体效能?我们有全面的咨询、工程以及现代化改造服务,为您量身打造解决方案。 在如今竞争激烈的全球化浪潮中,唯有不断创新、持续优化,才能始终跑在对手前面。您的生产工艺和产品日新月异,我们就为您提供最适配的混合技术。不管是新的产品参数,还是既有的工艺条件,我们都能对现有系统和搅拌设备进行全方位的检查与评估,挖掘其中潜藏的流程优化空间和机械性能提升潜力,并且帮您把这些改进切实落地。 要是您的搅拌设备已经跟不上时代步伐,能耗居高不下,或是维护成本让您头疼不已,那就别犹豫,我们的咨询、工程设计和现代化改造服务,就是为您排忧解难的良方。欢迎随时联系我们,携手开启高效生产新征程!

Technical Specification List

Compare Models in the Same Series for Accurate Selection

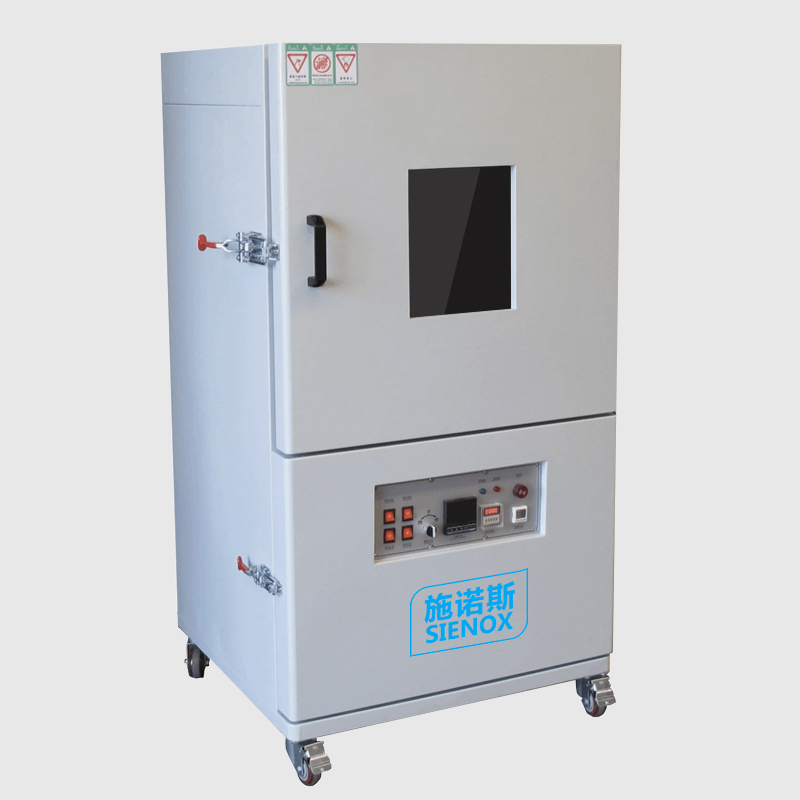

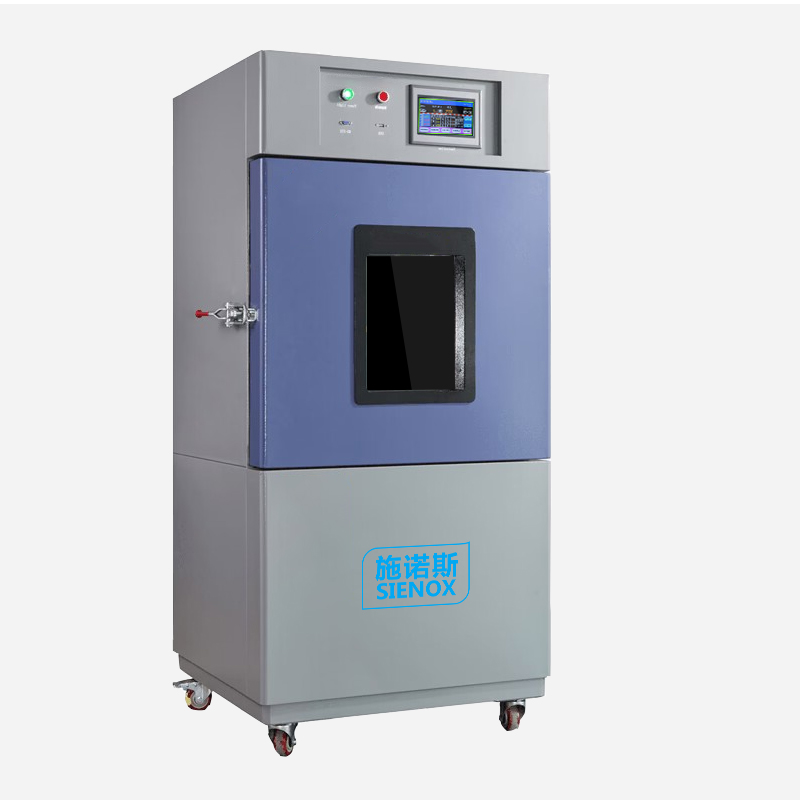

ModelSIE‑ZK500SIE‑ZK600SIE‑ZK800
Chamber Dimension500×500×500mm600×600×600mm800×800×800mm
Effective Volume125L216L512L
Temperature RangeAmbient+30~300℃Ambient+30~300℃Ambient+30~300℃
Vacuum Degree0~‑100kPa0~‑100kPa0~‑100kPa
Safety ProtectionOver‑temperature protection, overload protection, ground protectionOver‑temperature protection, overload protection, ground protectionOver‑temperature protection, overload protection, ground protection
Power Supply380V220V, 50/60Hz380V220V, 50/60Hz380V220V, 50/60Hz
Overall Dimension(W×D×H)610 × 560 × 780 mm1000×980×1830mm1200×1180×2030mm
Net Weight153 kg153 kg153 kg
CertificationsCE, FCCE, FCCE, FC

*** Above are typical models. SIENOX provides customized solutions upon customer requirements. For model selection: 189‑2512‑9293

Multi‑Industry Solutions

Vacuum defoaming applications covering typical materials across six major industries


LED Luminaires

LED strip potting compound, bead‑encapsulation resin


Plastic Toys

Toy potting adhesive, coating materials


Silicone Rubber

Liquid silicone, silicone rubber sealing parts


Transformer Potting

Epoxy potting compound, insulating adhesive


Resin Crafts

Craft resin, AB adhesive


AB Adhesive

Structural AB adhesive, electronic AB adhesive

Comprehensive Equipment Operation Demo Videos

Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.

Actual‑test Performance Demonstration

Lab Sample Actual Test Results


Silicone Rubber


Adhesive


Silver Paste


Medical Gel


UV Adhesive


Battery Slurry

Measured Data Comparison

Material Defoaming Effect Comparison (Before & After)

Material Type
Pre‑Treatment Status
Post‑Treatment by ZK800
Transformer Potting CompoundRich internal bubbles cause voids inside cured insulation layersDense void‑free compound with stable insulation performance
Epoxy ResinDense internal bubbles lead to surface and inner pores after integral castingCrystal‑clear resin with smooth surface and compact interior after casting
AB AdhesiveAbundant bubbles produce bonding‑surface voids after curingDense void‑free adhesive with consistent bonding strength

* Internal lab test data. Actual improvement varies with material formulas. Contact sales for real‑world customer cases.
