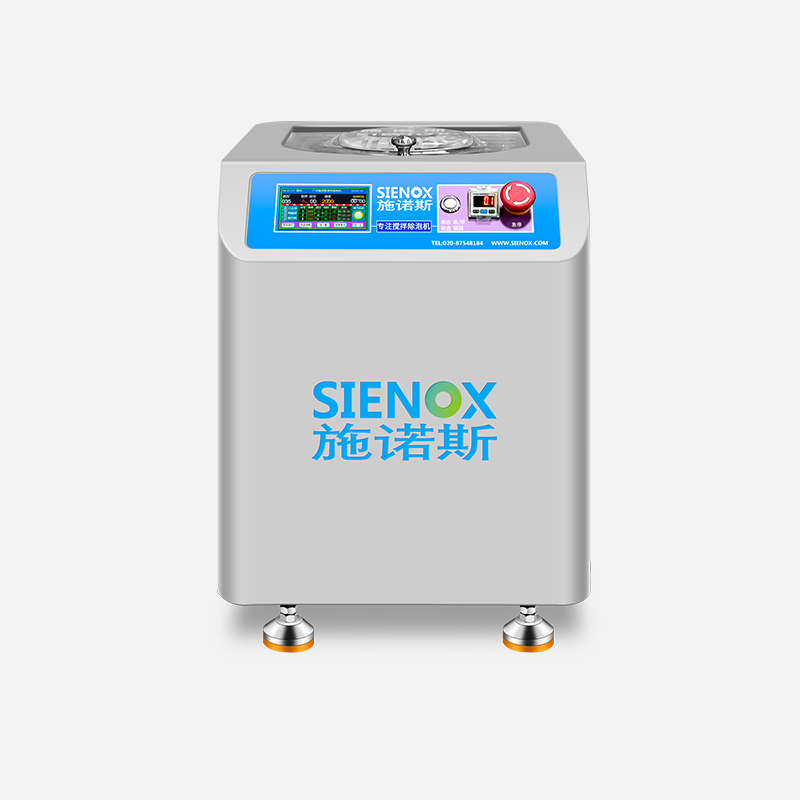

SIENOX Planetary Vacuum Mixer‑Defoamer SIE‑MIX90
Vacuum Mixer‑Defoamer · Nano‑Scale Bubble Removal
Revolution‑Rotation Centrifugal Mixing + Synchronized High‑Vacuum Defoaming — 99.9% Removal of Nano‑Scale Bubbles
The SIE‑MIX90 planetary mixer‑defoamer handles mixing and defoaming from 0‑1000 mL. Dual‑drive revolution‑rotation delivers consistent density and homogeneous dispersion with clean defoaming for multiple materials. Well‑suited for medium‑to‑high‑viscosity materials in pilot‑scale and mass‑production phases. Customization available with one‑stop solutions.
✓ CE Certified ✓ FCC Certified ✓ ISO9001 Quality Management System ✓ RoHS Compliant ✓ Custom‑voltage support (110V/220V)
Why Must Microbubbles in Materials Be Eliminated?
Residual micro‑bubbles within materials directly affect the yield and performance of end‑products.
Electronic Component ManufacturingIn SMT assembly processes, micro‑bubbles inside solder paste cause voids and cold solder joints, reducing soldering reliability. Bubble expansion during reflow soldering leads to defects such as solder splatter and bridging. For precision components, excessive void ratio inside solder joints may trigger device failure under thermal cycling and lower overall board yield. | Medical Device ManufacturingBubbles in medical‑grade silicone and bio‑adhesives compromise dosage accuracy and consistency, which may result in medication deviation. Bubbles inside ointment gels cause uneven filling and inconsistent net content for each unit. For implant‑grade materials, tiny bubbles may also bring risks to biocompatibility. | 3D‑Printing ManufacturingMicro‑bubbles in photosensitive resins form defect spots within printed layers, weakening mechanical strength and surface quality of finished parts. During large‑volume printing, bubbles create visible streaks and pits on cured interfaces. Bubbles in metal‑powder slurries raise internal porosity of sintered components and deteriorate final‑part density. |
✨ Challenges of conventional mixing methods: Manual stirring or standard impeller mixing actively entrains air, generating more bubbles as mixing proceeds. Static degassing takes substantial time with limited effectiveness. Therefore, a "non‑contact" planetary mixing‑defoaming solution is required, which separates bubbles via centrifugal force while completing material mixing.
Why Choose SIE‑MIX90
Three Core Advantages for Medium‑Capacity Full‑Range Vacuum Defoaming
Large‑Capacity for ProductionWith a 1000 mL processing volume, it meets requirements for pilot scale‑up and small‑batch production in a single run. The dual‑cup design enables simultaneous processing of two different materials or doubled throughput to boost production‑line efficiency. Combined with 2000 rpm and fixed speed ratio, it guarantees consistency and repeatability for batch processing. | Modular ExpansionOptional heating/cooling temperature control and MES networking system allow flexible configuration according to process requirements. One single unit covers multiple application scenarios from pilot validation to mass‑production roll‑out and reduces redundant equipment investment. The temperature‑control module fits heat‑sensitive and high‑viscosity materials, while the vacuum module improves micro‑bubble removal performance. | Reliability & DurabilityUnique transmission design reduces vibration and noise. Built‑in balance sensors dynamically correct operational eccentricity to ensure stable performance during long‑term batch runs. Imported key components deliver high durability, lowering maintenance frequency and operating costs. |
✨ The SIE‑MIX90 integrates three core capabilities: large‑volume processing, modular expansion and stable operation. It serves as an ideal equipment for the whole phase from pilot validation to small‑batch mass production.

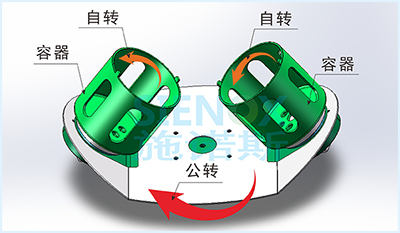

Working Principle
Synchronized operation of dual‑driven revolution and rotation enables one‑step completion of mixing and defoaming.
Step 1: Centrifugal Force Generated by Revolution The revolving plate rotates at high speed to generate strong centrifugal force on materials inside the container, driving full‑volume material convection for macro‑mixing. Meanwhile, centrifugal force pushes low‑density bubbles toward the rotation axis to gather and escape. Step 2: Shear Force Provided by Rotation Containers rotate around their own axis to produce directional shear force, breaking up agglomerated particles to achieve micro‑dispersion. Precisely calculated revolution‑to‑rotation speed ratio ensures high‑efficiency mixing across the whole volume. Shear force thins bubble membranes and accelerates bubble rupture. Step 3: Vacuum Assistance for Enhanced Performance Chamber pressure drops to ‑98 kPa, increasing pressure difference inside and outside bubbles. Micro‑sized bubbles expand and rupture rapidly. The vacuum system continuously exhausts gas to further improve material density. Revolution and rotation run simultaneously. Materials complete the full‑cycle process of "Mixing → Dispersion → Defoaming" inside sealed containers. Optional vacuum module improves micro‑bubble removal performance. | ![]() |
Technical Specifications
Complete Technical Specifications Overview, Customizable on Demand
| Model | SIE‑MIX90 |
| Mixing Capacity | 0–1000 mL (standard container) * Larger volume customizable |
| Container Type | Tubes / Jars / Cups; supports adapters for syringes and cartridges |
| Number of Containers | 1 or 2 jars (user‑selectable) |
| Max Speed | 0 – 2000 RPM (stepless adjustable) |
| Revolution / Rotation Ratio | Fixed planetary ratio |
| Vacuum Level | Standard: –98 kPa / Optional: –100 kPa |
| Control System | Touch‑screen, stores up to 100 recipe sets |
| Power Supply | 220V, 50/60Hz (110V US/JP standard customizable) |
| Dimensions(W×D×H) | 610 × 560 × 780 mm |
| Net Weight | 153 kg |
| Certifications | CE, FCC, ISO9001, RoHS Compliant |
Our Partners
Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide
FAQ - Frequently Asked Questions
Answers to common questions about product performance and everyday process selection
-
脱泡机的作用是什么?
脱泡机是一种用于去除液体中的气泡的设备。它的作用在于帮助生产过程中的液体混合、反应、涂布、印刷、灌注等工艺环节,避免气泡的产生和对最终产品的影响。在许多工业和实验室环境中,去除气泡是非常必要的,因为气泡可能会对产品质量产生负面影响,如影响表面张力和稳定性等问题。脱泡机通常采用各种不同的技术,如振动、超声波、离心等,以实现有效的气泡去除。它的应用领域广泛,包括但不限于半导体、太阳能、光学、生物技术、材料科学等。
-
售后服务怎么样?
公司拥有专业的售后服务人员,24小时专人服务,一对一提供技术支持,解决您的后顾之忧。
-
为什么要选择施诺斯?
选择施诺斯的原因有很多,以下是一些主要的原因:
1. 专业性:我们的团队由一群专业的人士组成,他们在各自的领域拥有丰富的经验和知识。我们不仅了解行业趋势和最佳实践,而且还能提供切实可行的解决方案。
2. 服务质量:我们注重客户的需求和满意度,始终致力于提供高质量的服务。我们不仅快速响应客户需求,而且还能根据客户的要求进行定制化服务。
3. 可靠性:我们以诚信和专业精神为宗旨,始终遵守承诺和协议。我们的工作方法和交付成果均符合行业标准和最佳实践,使得我们的客户能够信任我们。
4. 创新性:我们不断探索新的方法和工具,以提供更好的服务并满足客户的需求。我们鼓励创新和实验,并愿意接受挑战和改变。
5. 成本效益:我们提供高性价比的服务,不仅能够帮助客户节省成本,而且还能提高效率和生产力。我们始终以客户的利益为出发点,为客户提供最优的解决方案。
6. 团队合作:我们相信团队的力量和合作的价值,我们的团队成员之间互相支持、协作和尊重。我们与客户、合作伙伴和其他利益相关者建立紧密的合作关系,以实现共同的目标。
以上只是选择我们的部分原因,我们相信还有很多其他的优点和价值可以为客户提供。如果您正在寻找一家专业、可靠、高质量的服务提供商,我们非常期待与您的合作。
-
搅拌脱泡机的工作原理?
施诺斯搅拌脱泡机通过公转的离心力进行脱泡,通过公转与自转形成的剪切力进行搅拌,
再辅助以真空泵抽取气体以达到真空状态,去除纳米级微小气泡。 不接触物料,无二次污染,无二次浪费。
-
施诺斯能提供工程咨询技术服务吗?
施诺斯能为广大客户提供全面的工程和现代化的咨询服务。施诺斯近二十年的搅拌经验,可以为你提供高效的咨询服务。
想要让搅拌机性能更上一层楼,提升系统的整体效能?我们有全面的咨询、工程以及现代化改造服务,为您量身打造解决方案。 在如今竞争激烈的全球化浪潮中,唯有不断创新、持续优化,才能始终跑在对手前面。您的生产工艺和产品日新月异,我们就为您提供最适配的混合技术。不管是新的产品参数,还是既有的工艺条件,我们都能对现有系统和搅拌设备进行全方位的检查与评估,挖掘其中潜藏的流程优化空间和机械性能提升潜力,并且帮您把这些改进切实落地。 要是您的搅拌设备已经跟不上时代步伐,能耗居高不下,或是维护成本让您头疼不已,那就别犹豫,我们的咨询、工程设计和现代化改造服务,就是为您排忧解难的良方。欢迎随时联系我们,携手开启高效生产新征程!
Technical Specification List
Compare specifications of vacuum‑series models to support accurate product selection.
| Model | SIE‑MIX60 | SIE‑MIXF301 | SIE‑MIX90 |
| Mixing Capacity | 0–300 mL (standard container) * Customizable | 0–300 mL (standard container) * Customizable | 0–1000 mL (standard container) * Customizable |
| Container Type | Tubes / Jars / Cups; supports adapters for syringes and cartridges | Tubes / Jars / Cups; supports adapters for syringes and cartridges | Tubes / Jars / Cups; supports adapters for syringes and cartridges |
| Number of Containers | 1 or 2 jars (user‑selectable) | 1 or 2 jars (user‑selectable) | 1 or 2 jars (user‑selectable) |
| Max Speed | 0 – 3000 RPM (stepless adjustable) | 0 – 2000 RPM (stepless adjustable) | 0 – 2000 RPM (stepless adjustable) |
| Revolution / Rotation Ratio | Fixed planetary ratio | Freely adjustable | Fixed planetary ratio |
| Vacuum Level | Standard: –98 kPa / Optional: –100 kPa | Standard: –98 kPa / Optional: –100 kPa | Standard: –98 kPa / Optional: –100 kPa |
| Control System | Touch‑screen, stores up to 100 recipe sets | Touch‑screen, stores up to 100 recipe sets | Touch‑screen, stores up to 100 recipe sets |
| Power Supply | 220V, 50/60Hz (110V US/JP standard customizable) | 220V, 50/60Hz (110V US/JP standard customizable) | 220V, 50/60Hz (110V US/JP standard customizable) |
| Dimensions(W×D×H) | 510 × 430 × 500 mm | 510 × 430 × 500 mm | 610 × 560 × 780 mm |
| Net Weight | 95 kg | 115 kg | 153 kg |
| Certifications | CE, FCC | CE, FCC | CE, FCC |
*** The above are typical models only. Customized solutions are available according to customer requirements.
Multi‑Industry Solutions
Only partial application scenarios are shown. Free sample testing is welcome with your own materials.
SMT Electronics ManufacturingSolder paste, red adhesive, flux, underfill, SMT adhesive |
Automotive ManufacturingStructural adhesive, sealant, thermal‑conductive silicone, primer, anaerobic adhesive |
PV ManufacturingSilver paste, aluminum paste, EVA adhesive, silicone sealant, conductive adhesive |
Printing & PackagingUV ink, water‑based ink, varnish, laminating adhesive, screen‑printing ink |
Cosmetics & Personal CareLotion, cream, gel, foundation, sunscreen |
Ceramic ProcessingAlumina slurry, zirconia slurry, ceramic glaze, electronic ceramic slurry, ceramic binder |
Comprehensive Equipment Operation Demo Videos
Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.
Actual Test Results of Defoaming Process
Actual Treatment Performance of Typical Materials

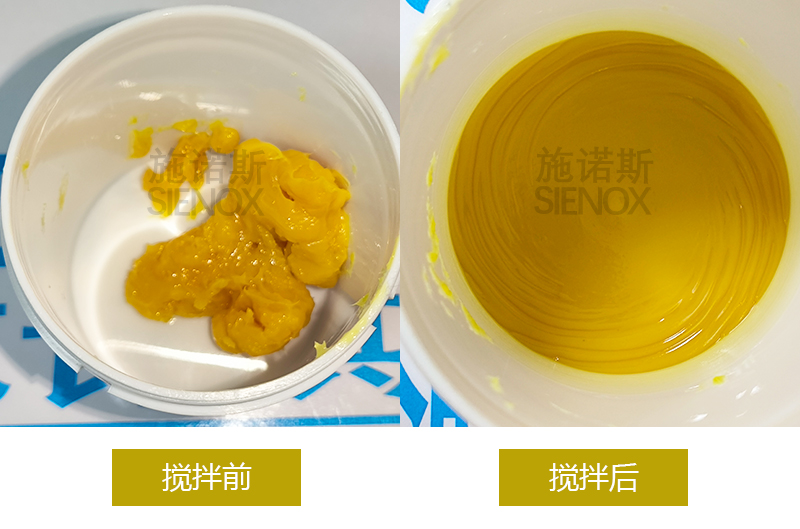

Lubricants |

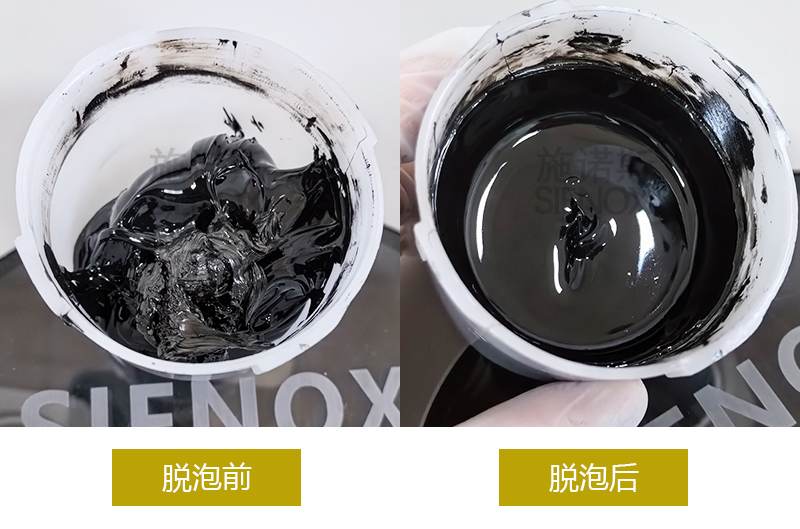

Potting Adhesives |

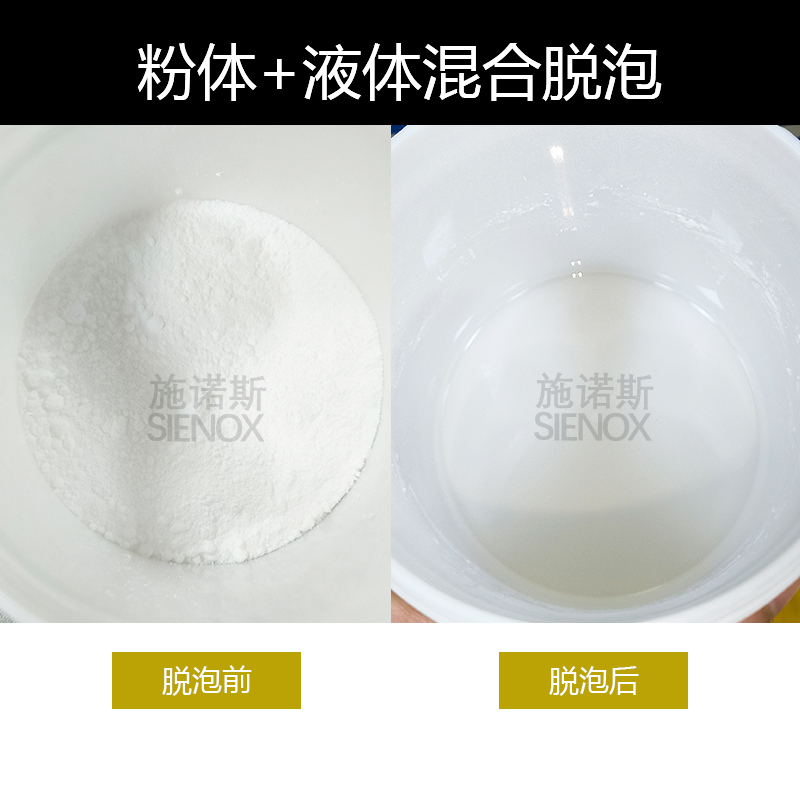

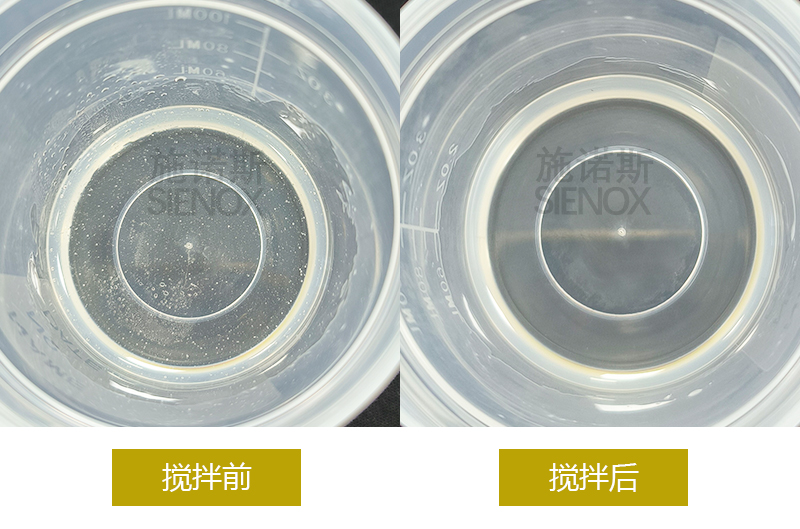

Powder + Adhesive |

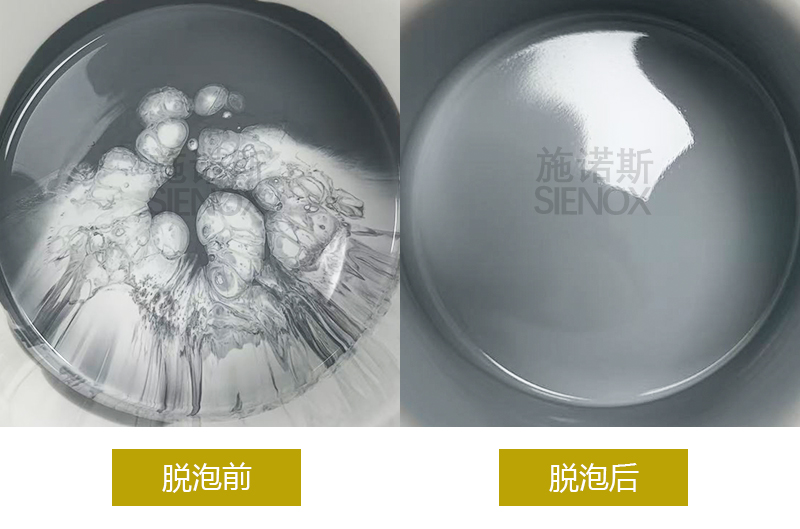

AB Adhesives |

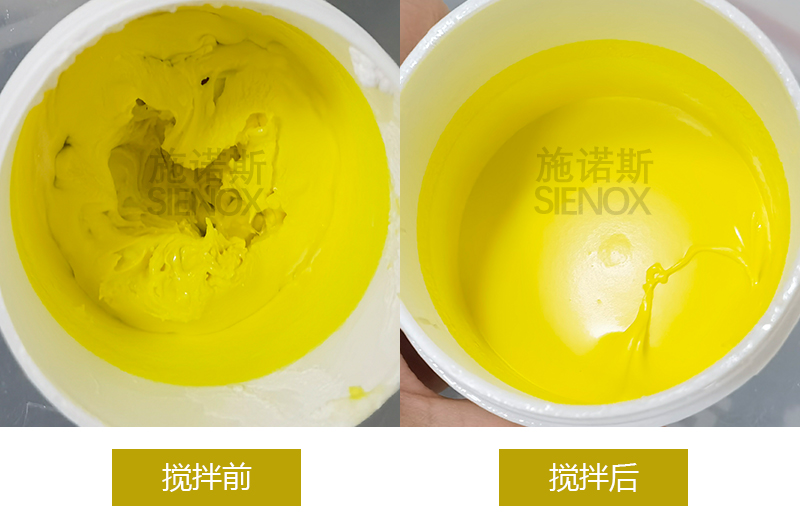

LED Materials |

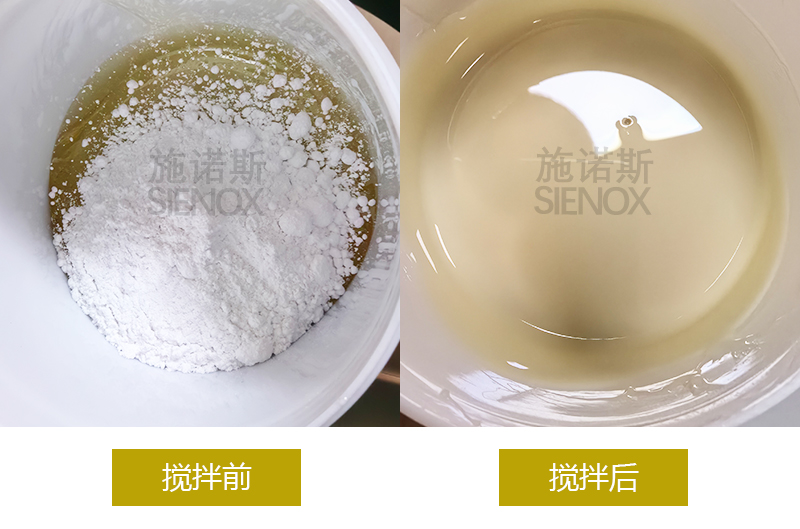

Epoxy Resin + Powder |
Measured Data Comparison
Materials Before‑After Defoaming Comparison
| Material Type | Condition Before Treatment | After MIX90 Treatment |
| Epoxy Resin (50,000 cps) | Visible bubbles, internal voids after curing | Fully bubble‑free & transparent, mechanical strength increased by 22% |
| Conductive Silver Paste | Filler sedimentation, unstable resistivity | Homogeneous filler dispersion, resistivity reduced by 40% |
| Lithium‑Battery Slurry | Coating pinholes, high electrode defect rate | Dense coating, cell energy density improved by 15% |
* Internal lab test data. Actual improvement varies with material formulation. Contact sales for real‑world customer references.
