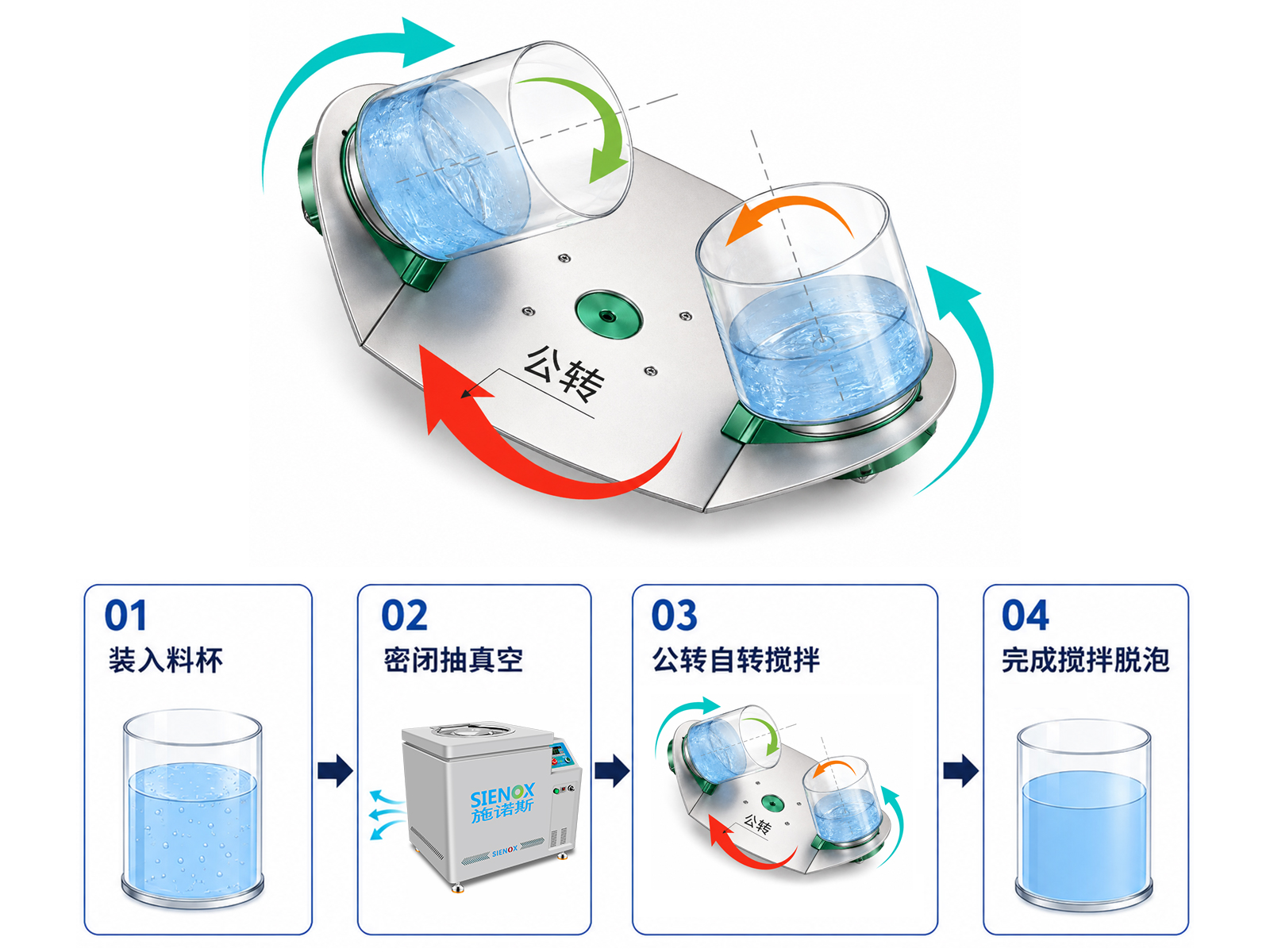

Working principle

By using the centrifugal force from planetary rotation and the shearing force from rotation for mixing, supplemented by a vacuum pump to extract gases, tiny bubbles in the liquid can be efficiently removed, improving product quality.


Comparison of Material Effects


Our equipment can be applied to various materials, including but not limited to fluorescent powders, adhesives, silicone gel, silver paste, aluminum paste, adhesives, inks, silver nanoparticles, silver nanowires, conductive silver paste, insulating adhesive, battery paste, etc. It can be stirred from liquid to solid, liquid to liquid, and solid to solid substances.

Only partial cases are displayed/materials are welcome to be brought to SIENOX for sample testing and machine testing


Product parameters table

Model

SIE-SV200

SIE-MIX80

SIE-MIXF301

SIE-MIXF1000

Speed(rpm)

0-3000

0-3000

0-2000

0-2000

Time(min)

1-30

1-30

1-30

1-30

Container

Tube/Can/Cup

Tube/Can/Cup

Tube/Can/Cup

Tube/Can/Cup

Capacity (mL)

0-200

0-300

0-300

0-1100

Quantity

1*1

1*2

1*2

1*2

Rotation speed ratio during revolution

 fixed

 fixed

Adjustable

Adjustable

vacuum(kpa)

-98

-98

-98

-98

Safety lock

Yes

Yes

Yes

Yes

Refrigeration/Heating

Optional

Optional

Optional

Optional

SEM function

Optional

Optional

Optional

Optional

Size(cm)

34*24*37

42*52*58

42*50*57

62*61*78

Weight(kg)

30

97

105

    170

***The above are just typical models, and we can provide personalized solutions according to customer needs.





6 core advantages

-High speed

0-3000RPM adjustable

-High vacuum degree

The vacuum degree can reach -100KPA

-High altitude physical quantity

0-30L can be customized

-Low noise

The noise can be as low as 50DB

-Revolution rotation ratio

Optional fixed speed ratio/freely adjustable

-Suitable for various containers

Compatible with various tubes/cans/cups/own containers


application area





Our cooperative clients


***Only partial successful customer information is displayed. We need more case studies and product selection materials. Please feel free to contact us

 Sienox Defoaming Machine Product Selection Table

Model

SIE-MIX200

Speed(rpm)

2500

Time(min)

0-30

Container

Tube/Can/Cup

Capacity (mL)

0-200

Quantity

1*2

temperature range

Normal temperature to -10 ℃

Rotation speed ratio during revolution

 Fixed or Adjustable

Operation interface

Microcomputer control system/with   operation permission

 settings/fault display

vacuum (Kpa)

-98kPa/built-in vacuum device, no need to regularly replace

pump oil,   non polluting to the environment, more suitable

for the needs of clean   workshop environment.

memory function

Can store 10 sets of programs, each set of programs

divided into   multiple segments

Safety lock

Yes

Inertial delay

Yes

SEM function

Optional

noise

≤60db

Size(cm)

61*50*60

Weight(kg)

95

***The above are just typical models, and we can provide personalized solutions according to customer needs.

◆ Single cup/Dual cup options available

◆ Vacuum level up to -99kPa

◆ Can store up to 100 sets of operating parameters

◆ Multiple container options: tubes, tanks, and cups

◆ Non-contact design, does not alter the chemical properties of materials

◆ Planetary to rotation speed ratio options (fixed/adjustable)

◆ 0-2500RPM, adjustable for experimentation based on material characteristics

◆ High-speed mixing and defoaming in 1 minute, uniform mixing, eliminates nano-sized bubbles

◆ Customizable capacity, standard configurations include 300mL, 500mL, 1L, 2L, 5L, and 12L

◆ Uses imported components, body made of 304 stainless steel, durable and long-lasting

◆ Vacuum/Temperature control/MES system connectivity options available

◆ Aesthetically pleasing design, durable and robust

The vacuum defoaming mixer meets the mixing and defoaming needs for volumes ranging from 0 to 200 mL. Its adjustable planetary to rotational motion ensures clean and efficient mixing and defoaming. Customized services are offered to meet the diverse requirements of different customers. With a wide range of applications, the machine is aesthetically pleasing, durable, and robust.
