Precision Three‑roll Mill SIE‑SG120


Temperature‑controlled Batch Grinding for Medium‑large Continuous Production · Standard Cooling‑water Circulation

High‑capacity Large Rollers + Heating & Cooling Controlled Grinding + Cooling‑water Circulation for Continuous Operation

SIENOX SIE‑SG120 precision three‑roll mill adopts large‑size 120mm×450mm rollers for high throughput with heating and cooling functions, delivering grinding fineness of 3‑18μm / 3 passes. Equipped with standard cooling‑water circulation for medium‑large‑batch continuous production, temperature control ensures batch‑to‑batch consistency, ideal for ink, plastic, adhesive and other industries.

✓ ISO9001 Quality System ✓ RoHS Compliance ✓ Customizable Voltage (110V/220V)

Online Message Free Sample Testing Engineer Hotline: 189-2512-9293

Why Precision Grinding Is Required

Coarse particles and poor dispersion in slurries directly degrade end‑product quality.

Ink Industry

Uneven pigment dispersion in ink production causes batch color deviation. Inconsistent color across batches affects customer acceptance and printing quality. Three‑roll mill disperses pigments evenly to micron‑level, ensuring stable color consistency and tinting strength in mass production and reducing return risks.

Plastic Industry

Poor pigment dispersion in plastic color masterbatch results in color difference and low tinting strength, with obvious batch variations in large‑scale injection molding. Three‑roll grinding achieves uniform pigment dispersion to guarantee consistent color and tinting performance for continuous production.

Adhesive Industry

Uneven filler dispersion in epoxy and silicone adhesives triggers viscosity fluctuation and inconsistent mechanical properties after curing. Batch variations in mass production influence customer acceptance. Three‑roll mill uniformly distributes fillers to maintain consistent viscosity and curing performance for large‑batch manufacturing.

✨ ### Dilemmas of Traditional Grinding Equipment Small grinding devices feature insufficient capacity, requiring batch processing for large orders and resulting in low efficiency. Equipment without cooling functions suffers from accumulated heat during continuous high-volume operation, undermining product consistency. Ordinary grinding rollers deliver poor wear resistance, leading to frequent replacements, increased production costs and prolonged downtime.

Why Choose SIE‑SG120

Solve Core Pain Points for Medium‑Large Batch Continuous Grinding Production

Large Rollers for High Capacity

The rollers deliver large shearing area and high throughput with large single‑batch output, reducing grinding cycles for medium‑large‑batch continuous production. The 450mm long roller expands effective grinding zone to boost hourly capacity, meet mass‑delivery schedule and avoid time loss from split‑batch processing. Rollers are centrifugally cast chilled alloy cast iron (subject to actual product) with high surface hardness and wear resistance for heavy‑duty continuous production.

Temperature‑controlled Grinding with Heating & Cooling

Roller heating reduces flow resistance of high‑viscosity materials to improve grinding efficiency. Cooling dissipates heat timely during continuous mass production to avoid heat buildup and guarantee batch‑to‑batch consistency. Adjustable temperature range fits diverse material processes. Stable temperature is critical for consistent quality in mass manufacturing.

Cooling‑water Circulation for Continuous Operation

Internal water circulation channels inside rollers adjust cooling water flow via pipelines to suppress temperature rise caused by extrusion and friction during continuous heavy‑duty grinding. Rollers maintain good geometric condition to enhance grinding fineness and efficiency. Return water drains to sewer via water trough, ensuring consistent quality for successive batches.

✨ SG120 is your ideal choice if you require continuous large‑batch grinding, temperature‑controlled batch consistency or high‑viscosity high‑throughput material processing.

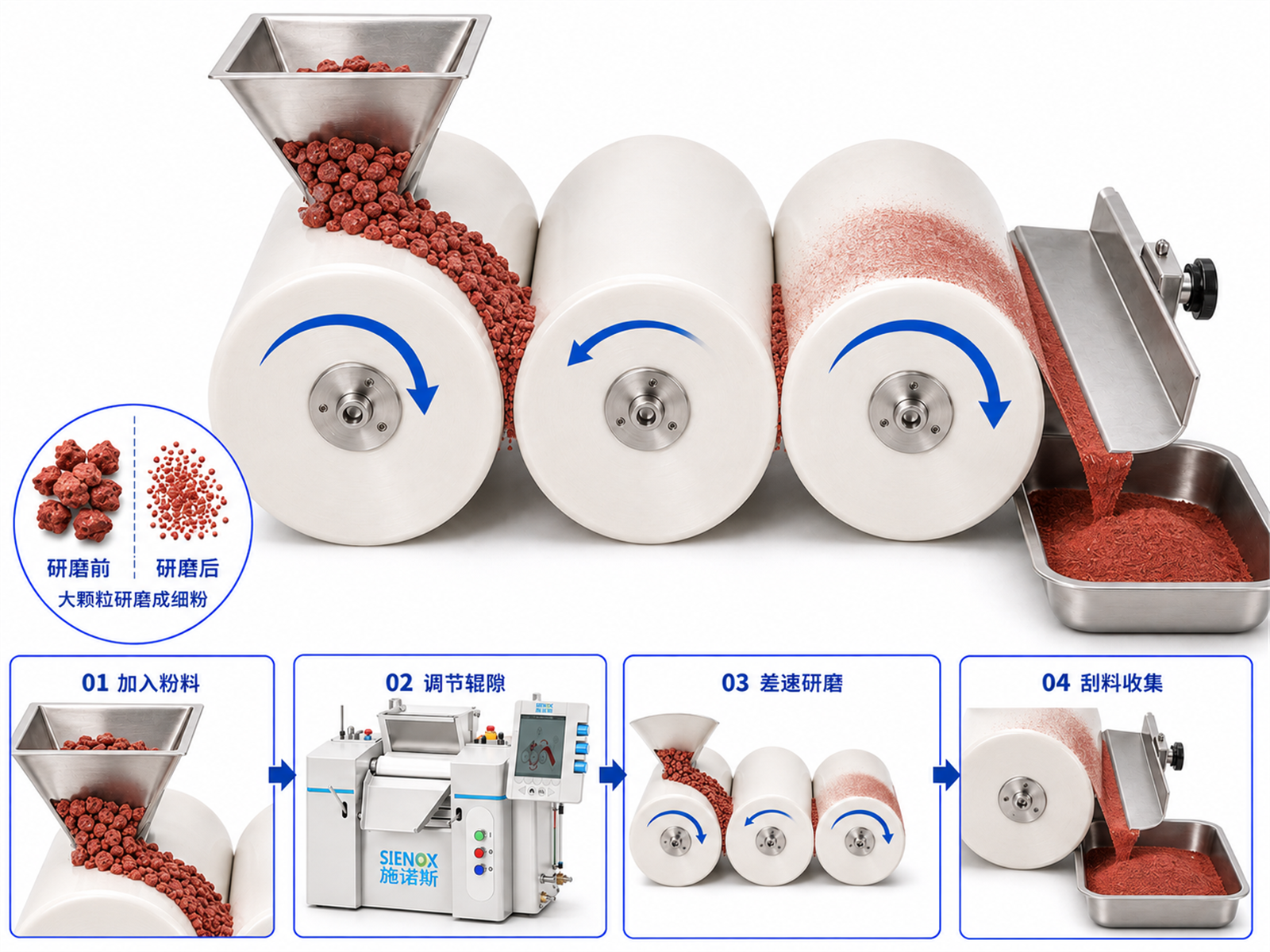

Working Principle

It forces materials under compression and shearing via three rollers at different rotating speeds to achieve mixing and homogenization.

Step 1: Three-roll Shear Grinding
The motor inside the base transmits power to the drive shaft via V-belt. The drive shaft gear drives the fast roller gear, then the fast roller gear drives the middle roller gear, and the middle roller gear drives the slow roller gear, forming a complete transmission system. The three rollers rotate oppositely at a speed ratio of 1:2:4. The slurry is subjected to forced compression and shearing in roller gaps, and is ground and dispersed step by step from the slow roller to the middle roller and then to the fast roller.

Step 2: Particle Size Control by Gap Adjustment
Turn the handwheel to compress or release the spring, so as to move the fast and slow rollers back and forth to adjust roller gaps and control grinding fineness. The slurry is refined step by step from the feeding roller to the middle roller and then to the discharging roller. Various particle sizes of ground materials can be obtained by adjusting roller gaps via the handwheel.

Step 3: Material Collection by Scraper
A scraper blade is mounted on the upper edge of the discharge blade holder. The blade closely fits the fast roller surface with the fitting position slightly above the roller center. It smoothly scrapes and collects refined materials attached to the fast roller. Repeated circulating grinding can be performed until the target fineness is achieved.


Simple three steps: Three-roll shearing → Gap particle control → Scraper discharging, stepwise grinding down to 3-18μm. Cold water circulation channels are built inside rollers. The water flow is adjusted through cooling pipes to suppress temperature rise during dispersion and guarantee grinding quality.

Three-Roll Mill Working Principle.png

Quick View of Technical Specifications

Complete Technical Specifications Overview, Customizable on Demand

ModelSIE‑SG120
Roller Diameter120mm
Roller Working Length450mm
Finished Particle Size3‑18μm/3 passes
Throughput~0.5‑50 L/h
Temperature ControlNone
Roller MaterialChilled Alloy / Bearing Steel
Transmission TypeV‑belt plus Gear Drive
Safety ProtectionYes
Overall Dimension (W×D×H)1500×1000×1200mm
Net WeightApprox. 800kg
CertificationsISO9001, RoHS Compliance

Our Partners

Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide

Partner Showcase

FAQ - Frequently Asked Questions

Answers to common questions about product performance and everyday process selection

  • What is the working principle of a centrifugal defoaming machine?

    Principle of centrifugal defoaming machine: The bubbles are released by the downward principle of gravity.

  • How is the after-sales service?

    The company has professional after-sales service personnel, 24-hour dedicated service, and one-on-one technical support to solve your worries.

  • Why choose SIENOX?

    There are many reasons for choosing SIENOX, and the following are some of the main reasons:

    1. Professionalism: Our team consists of a group of professional individuals with rich experience and knowledge in their respective fields. We not only understand industry trends and best practices, but also provide practical and feasible solutions.

    2. Service quality: We focus on customer needs and satisfaction, and are always committed to providing high-quality services. We not only respond quickly to customer needs, but also provide customized services according to their requirements.

    3. Reliability: We adhere to the principles of integrity and professionalism, always adhering to commitments and agreements. Our work methods and deliverables comply with industry standards and best practices, enabling our clients to trust us.

    4. Innovation: We continuously explore new methods and tools to provide better services and meet customer needs. We encourage innovation and experimentation, and are willing to accept challenges and change.

    5. Cost effectiveness: We provide cost-effective services that not only help customers save costs, but also improve efficiency and productivity. We always prioritize the interests of our customers and provide them with the best solutions.

    6. Teamwork: We believe in the power and value of teamwork, and our team members support, collaborate, and respect each other. We establish close cooperative relationships with customers, partners, and other stakeholders to achieve common goals.

    The above are just some of the reasons for choosing us. We believe there are many other advantages and values that can be provided to customers. If you are looking for a professional, reliable, and high-quality service provider, we look forward to working with you.


  • How does the stirring and defoaming machine work?

    The SIENOX stirring and defoaming machine performs defoaming through centrifugal force at revolution and stirring through shear force formed by revolution and rotation,

    Assisted by a vacuum pump to extract gas and achieve a vacuum state, removing nanoscale tiny bubbles. No contact with materials, no secondary pollution, and no secondary waste.

  • What is the function of a defoaming machine?

    A defoaming machine is a device used to remove bubbles from liquids. Its function is to assist in the liquid mixing, reaction, coating, printing, infusion and other process steps in the production process, avoiding the generation of bubbles and their impact on the final product. In many industrial and laboratory environments, removing bubbles is essential as they may have a negative impact on product quality, such as affecting surface tension and stability. Defoaming machines typically use various techniques such as vibration, ultrasound, centrifugation, etc. to achieve effective bubble removal. It has a wide range of applications, including but not limited to semiconductors, solar energy, optics, biotechnology, materials science, etc.

Technical Specification List

Full‑line standardized specifications for accurate process evaluation and equipment selection

ModelSIE‑SG50SIE‑SG80SIE‑SG120
Roller Diameter50mm80mm120mm
Roller Working Length150mm200mm450mm
Finished Particle Size3‑18μm/3 passes3‑18μm/3 passes3‑18μm/3 passes
Throughput0.02‑5 L/h0.05‑15 L/h0.5‑50 L/h
Temperature ControlNoneHeatable / CoolableHeatable / Coolable
Roller MaterialChilled Alloy / Bearing SteelChilled Alloy / Bearing SteelChilled Alloy / Bearing Steel
Transmission TypeV‑belt plus Gear DriveV‑belt plus Gear DriveV‑belt plus Gear Drive
Power Supply220V, 50/60Hz (Customizable 110V for US‑JP standard)220V, 50/60Hz (Customizable 110V for US‑JP standard)220V, 50/60Hz (Customizable 110V for US‑JP standard)
Overall Dimension (W×D×H)820×610×760mm1000×750×900mm1500×1000×1200mm
Net Weight165 kg300kg800 kg

*** The above are typical models only. SIENOX provides customized solutions upon customer requirements. For model selection: 189‑2512‑9293

Multi‑Industry Solutions

Covering stirring and debubbling applications of typical materials across six major industries


Adhesive R&D

Epoxy structural adhesive, sealant, hot‑melt adhesive, pressure‑sensitive adhesive, modified adhesive

Precision Optics.jpg

Precision Electronic Assembly

Underfill, conductive adhesive, die attach adhesive, dispensing adhesive, chip bonding adhesive

Electronic Materials.jpg

Biosensor

Encapsulation adhesive, reagent immobilization material, microfluidic bonding adhesive, biocompatible adhesive, sensor sealant

Thermal Conductive Silicone.jpg

Microelectronic Packaging

Packaging epoxy, molding compound, lead bonding adhesive, substrate bonding adhesive, passivation layer material

Medical Device 02.jpg

Functional Coating

Hydrophobic coating, conductive coating, insulating coating, anti‑corrosion coating, wear‑resistant coating

Photosensitive Material.jpg

Electronic Paste

Silver paste, copper paste, carbon paste, resistance paste, dielectric paste

Comprehensive Equipment Operation Demo Videos

Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.

Measured Defoaming‑Process Performance

Measured Processing Results for Six Typical Materials

Lubricant Mixing & Defoaming.jpg

Paste‑like Materials

Photoresist Mixing & Defoaming.jpg

Glue & Powder

Polymer Materials.jpg

Polymer Materials

Gel Defoaming 02.jpg

Pharmaceutical Gel

Silver Paste Mixing & Defoaming.jpg

Silver Paste Materials

Battery Slurry & Adhesive Mixing & Defoaming.jpg

Battery Slurry

Measured Data Comparison

State Comparison Before and After Three‑roll Grinding

 Material Type
Condition Before Treatment
After SIE‑SG120 Treatment
Offset Printing InkCoarse and uneven pigment particles, dull hue, obvious batch color difference and unstable printing tonePigments uniformly dispersed to micron‑level, bright and consistent hue, stable batch color and full printing tone
Plastic Color MasterbatchPoor pigment dispersion, obvious color difference on injection‑molded products, low tinting strength and large batch variationsUniform pigment dispersion, eliminated product color difference, improved tinting strength and consistent batch performance
Epoxy AdhesiveVisible unevenly‑dispersed filler particles, heavy viscosity fluctuation, rough cured surface and unstable mechanical propertiesFillers uniformly dispersed to micron‑level, stable viscosity, smooth cured surface and consistent mechanical performance

* Internal lab test data. Actual improvement varies with material formula. Contact sales for real‑world customer cases.
