Precision Three Roll Mill SIE‑BM500


Dual Grinding with Impact & Shear Force · Flexible 1/2/4 Jar Configuration · Continuous Low-loss High-efficiency Pulverization

Output fineness below 0.1μm + continuously adjustable main disc speed 100–650rpm + dry & wet grinding available

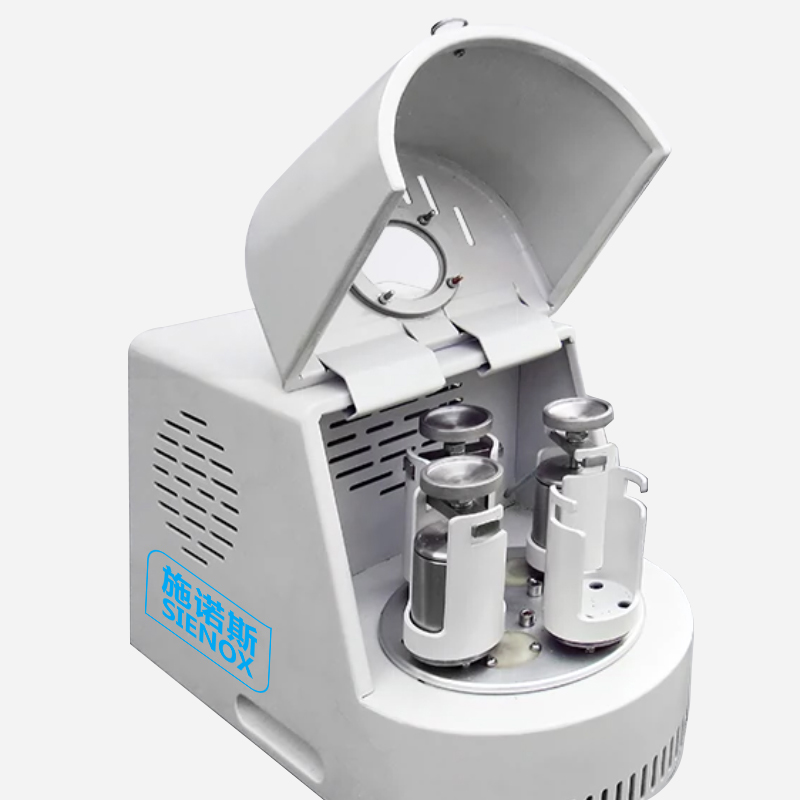

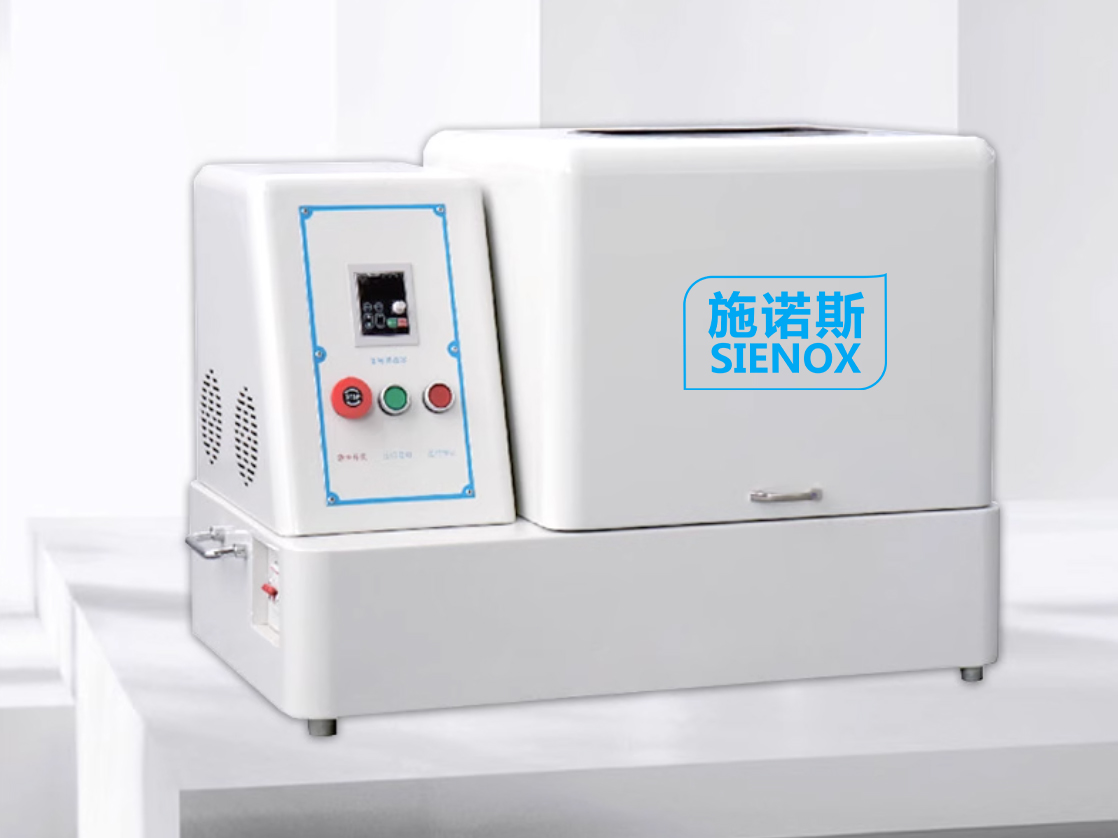

SIENOX SIE-BM500 high-energy planetary ball mill delivers superior performance. The turntable accepts bases for 1, 2 or 4 grinding jars. Compact and easy to operate, it reaches up to 650 rpm to continuously and efficiently grind hard, soft, brittle, dry and wet materials with minimal loss. Beyond regular powder milling, SIE-BM500 meets energy and technical requirements for mechanical alloying and gelatinous material grinding.

Grinding jars in 80mL, 250mL and 500mL sizes cover R&D trials through small-batch production. Jars are mounted on the main revolving disc and spin in reverse at high speed. Grinding balls inside achieve ultra-fine pulverization via high-speed friction and impact. It features a programmable touch LCD for timing, forward/reverse cycling, interval operation and data storage. Dual forced cooling fans ensure stable long-running performance. Ideal for lithium battery material pilot tests, mechanical alloying and small-batch ceramic powder production.

✓ Output fineness below 0.1μm ✓ Multiple jar sizes: 80/250/500mL ✓ Flexible 1/2/4 jar configuration


Online Message Free Sample Testing Engineer Hotline: 189-2512-9293

Why Precision Grinding Is Required

Coarse particles and poor dispersion in slurry directly degrade end‑product quality

Lithium Battery Material Pilot Test

When cathode and anode materials such as NCM, LFP and graphite move from lab-scale tests to pilot trials, larger batch grinding validation is required. Equipped with 500mL grinding jars, SIE-BM500 meets scale-up demands. Zirconia or agate jars prevent metal ion contamination and ensure consistent data between lab and pilot batches.

Mechanical Alloying

Metal powder alloying requires prolonged high-energy ball milling. Ordinary mills deliver insufficient energy and take long processing time. SIE-BM500 reaches up to 650rpm with centrifugal acceleration of 22–29g, supplying enough energy for metal powder alloying and nanocrystallite fabrication.

Small-batch Trial of Ceramic Powder

MLCC dielectric powder and structural ceramic powder require 500mL-scale grinding for formulation verification to evaluate forming and sintering performance. Multi-material grinding jars are available to avoid cross-contamination between ceramic formulations. Small trial batches can verify final product performance.

✨ Limitations of conventional sample pretreatment: High-speed dispersers only mix and disperse instead of performing real grinding; sand mills suit mass production rather than frequent grade switching for small batches; small ball mills have limited capacity and fail to meet R&D scale-up requirements. SIE-BM500 balances grinding fineness and single-batch throughput.

Why Choose SIE‑BM500

Solves Core Pain Points of Laboratory Small‑sample Grinding

Dual Ultra-fine Grinding with Impact & Shear Force

Material pulverization and grinding are mainly realized by high-speed friction and collision among grinding balls. The maximum speed of the main disc reaches 650rpm. As the main disc revolves, the grinding jars loaded with samples and balls spin in the opposite direction at high speed around their own axes. Balls move rapidly inside jars and further crush samples by hitting the jar wall and rubbing against each other. It usually takes no more than 5 minutes to reach analytical-grade fineness, with output particle size below 0.1μm, meeting fineness requirements from R&D to small-batch production.

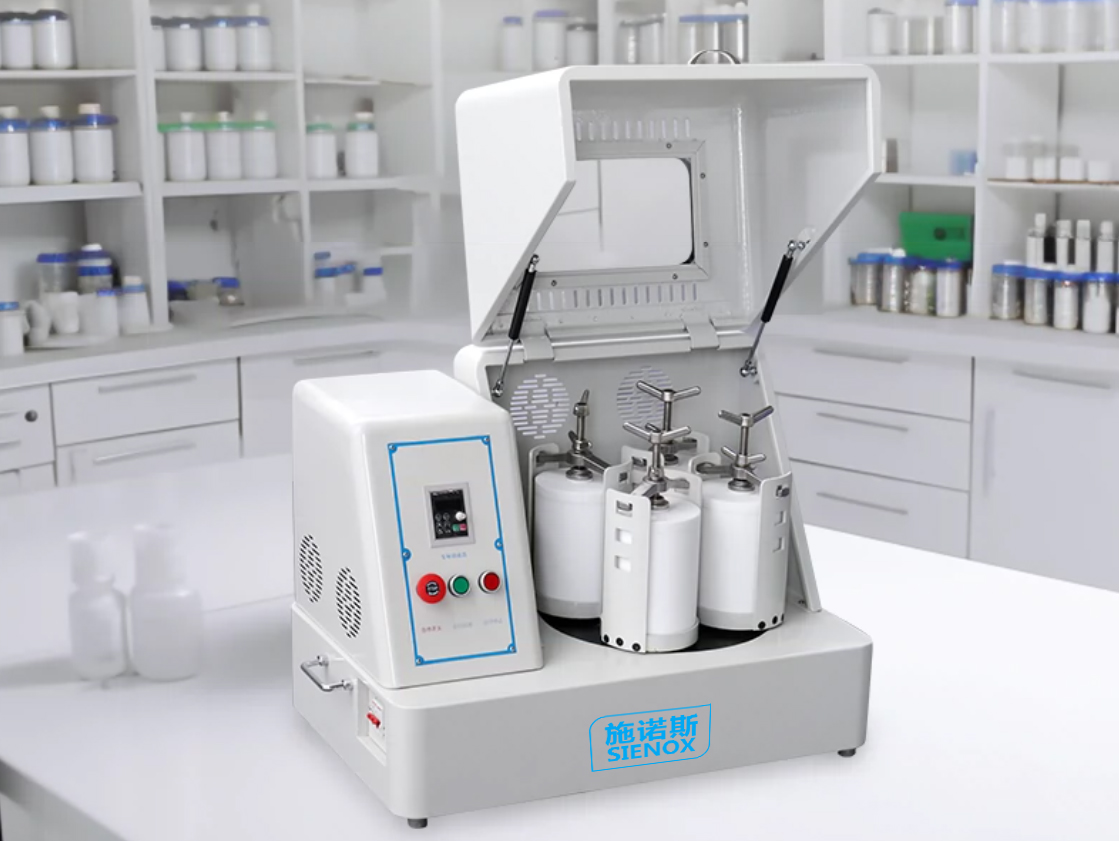

Flexible 1/2/4 Jar Configuration for Variable Batches

One turntable supports 1, 2 or 4 jars. Grinding jars are available in 80mL, 250mL and 500mL sizes. Single jar for small R&D batches, dual or four jars for parallel comparison tests, full four-jar setup for small-scale production. Horizontal guide rail counterweight together with arched counterweight plate requires no re-balancing after jar quantity change, enabling fast material switching.

Suitable for Mechanical Alloying & Gel Material Grinding

SIE-BM500 performs not only routine ultra-fine powder grinding, but also delivers sufficient energy input for mechanical alloying and gel material grinding. Grinding jar materials include stainless steel, vacuum stainless steel, agate, ceramic, zirconia, nylon, PTFE, tungsten carbide and silicon nitride, suitable for metal powder alloying, high-purity materials, corrosive samples and other working conditions.

✨ If your R&D needs scaling up from lab trials to pilot tests or high-energy ball milling processes such as mechanical alloying, SIE-BM500 is your ideal choice.

Working Principle

Based on planetary motion principle

SIENOX SIE-BM500 operates based on the planetary motion principle. Grinding jars are mounted on the main disc (sun wheel). While the main disc revolves around the central axis, the grinding jars spin rapidly on their own axes in the opposite direction. The transmission ratio is 1:1.82 for single jar and 1:2.19 for four jars.



Under this compound motion, the grinding media (balls) inside the jar are subjected to two alternating forces:

Impact Force: The balls are thrown during high-speed movement and deliver strong impact on samples to break coarse particles.

Friction & Shear Force: High-frequency friction and shear occur between balls and between balls and jar walls to grind and disperse fine particles.


When the centrifugal acceleration from revolution exceeds the critical value, balls are pressed against the jar wall and rotate together with the vessel without effective grinding. Therefore, proper speed setting and transmission ratio design are critical to grinding efficiency. With optimized transmission ratios, SIENOX ensures proper centrifugal acceleration under different jar configurations for high-efficiency milling.


Typical Grinding Parameters for Reference:

Sample Loading: ≤ 2/3 of jar volume (including grinding media and sample)

Media Filling Ratio: Usually 1/3 to 1/2 of jar volume

Typical Milling Time: 5–60 minutes (depends on material hardness and target fineness)

Final Output Fineness: Down to <0.1μm (depends on sample material, milling parameters and media selection)

Planetary Ball Mill Working Principle.png

Quick View of Technical Specifications

Complete Technical Specifications Overview, Customizable on Demand

ModelSIE‑SG50
Roller Diameter50mm
Roller Working Length150mm
Finished Particle Size3‑18μm / 3 Passes
Capacity0.02‑5 L/h
Temperature ControlN/A
Roller MaterialChilled Alloy / Bearing Steel
Transmission ModeV‑belt & Gear Drive
Safety ProtectionYes
Overall Dimension(W×D×H)820×610×760 mm
Net WeightApprox. 165 kg
Certifications CE, FC, ISO9001, RoHS Compliance


Our Partners

Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide

Partner Showcase

FAQ - Frequently Asked Questions

Answers to common questions about product performance and everyday process selection

  • What is the working principle of a centrifugal defoaming machine?

    Principle of centrifugal defoaming machine: The bubbles are released by the downward principle of gravity.

  • How is the after-sales service?

    The company has professional after-sales service personnel, 24-hour dedicated service, and one-on-one technical support to solve your worries.

  • Why choose SIENOX?

    There are many reasons for choosing SIENOX, and the following are some of the main reasons:

    1. Professionalism: Our team consists of a group of professional individuals with rich experience and knowledge in their respective fields. We not only understand industry trends and best practices, but also provide practical and feasible solutions.

    2. Service quality: We focus on customer needs and satisfaction, and are always committed to providing high-quality services. We not only respond quickly to customer needs, but also provide customized services according to their requirements.

    3. Reliability: We adhere to the principles of integrity and professionalism, always adhering to commitments and agreements. Our work methods and deliverables comply with industry standards and best practices, enabling our clients to trust us.

    4. Innovation: We continuously explore new methods and tools to provide better services and meet customer needs. We encourage innovation and experimentation, and are willing to accept challenges and change.

    5. Cost effectiveness: We provide cost-effective services that not only help customers save costs, but also improve efficiency and productivity. We always prioritize the interests of our customers and provide them with the best solutions.

    6. Teamwork: We believe in the power and value of teamwork, and our team members support, collaborate, and respect each other. We establish close cooperative relationships with customers, partners, and other stakeholders to achieve common goals.

    The above are just some of the reasons for choosing us. We believe there are many other advantages and values that can be provided to customers. If you are looking for a professional, reliable, and high-quality service provider, we look forward to working with you.


  • How does the stirring and defoaming machine work?

    The SIENOX stirring and defoaming machine performs defoaming through centrifugal force at revolution and stirring through shear force formed by revolution and rotation,

    Assisted by a vacuum pump to extract gas and achieve a vacuum state, removing nanoscale tiny bubbles. No contact with materials, no secondary pollution, and no secondary waste.

  • What is the function of a defoaming machine?

    A defoaming machine is a device used to remove bubbles from liquids. Its function is to assist in the liquid mixing, reaction, coating, printing, infusion and other process steps in the production process, avoiding the generation of bubbles and their impact on the final product. In many industrial and laboratory environments, removing bubbles is essential as they may have a negative impact on product quality, such as affecting surface tension and stability. Defoaming machines typically use various techniques such as vibration, ultrasound, centrifugation, etc. to achieve effective bubble removal. It has a wide range of applications, including but not limited to semiconductors, solar energy, optics, biotechnology, materials science, etc.

Technical Specification List

Full‑line standardized specifications for accurate process evaluation and equipment selection

ModelSIE‑SG50SIE‑SG80SIE‑SG120
Roller Diameter50mm80mm120mm
Roller Working Length150mm200mm450mm
Output Fineness3‑18μm / 3 Passes3‑18μm / 3 Passes3‑18μm / 3 Passes
Capacity0.02‑5 L/h0.05‑15 L/h0.5‑50 L/h
Temperature ControlN/AHeating & Cooling AvailableHeating & Cooling Available
Roller MaterialChilled Alloy / Bearing SteelChilled Alloy / Bearing SteelChilled Alloy / Bearing Steel
Transmission TypeV‑belt & Gear DriveV‑belt & Gear DriveV‑belt & Gear Drive
Power Supply220V, 50/60Hz (110V US/JP Standard Customizable)220V, 50/60Hz (110V US/JP Standard Customizable)220V, 50/60Hz (110V US/JP Standard Customizable)
Overall Dimension(W×D×H)820×610×760mm1000×750×900mm1500×1000×1200mm
Net Weight165 kg300kg800 kg

*** Above are typical models. SIENOX provides customized solutions upon customer requirements. Model Selection Inquiry: 189‑2512‑9293


Multi‑Industry Solutions

Covering stirring and debubbling applications of typical materials across six major industries


Adhesive R&D

Epoxy Structural Adhesive, Sealant, Hot‑melt Adhesive, Pressure‑sensitive Adhesive, Modified Adhesive

Precision Optics.jpg

Precision Electronic Assembly

Underfill, Conductive Adhesive, SMD Adhesive, Dispensing Adhesive, Die‑attach Adhesive

Electronic Materials.jpg

Biosensor

Encapsulant, Reagent Immobilization Material, Microfluidic Bonding Adhesive, Biocompatible Adhesive, Sensor Sealant

Thermal Conductive Silicone.jpg

Microelectronic Packaging

Packaging Epoxy, Molding Compound, Lead Bonding Adhesive, Substrate Bonding Adhesive, Passivation Layer Material

Medical Device 02.jpg

Functional Coating

Hydrophobic Coating, Conductive Coating, Insulating Coating, Anti‑corrosion Coating, Wear‑resistant Coating

Photosensitive Material.jpg

Electronic Paste

Silver Paste, Copper Paste, Carbon Paste, Resistor Paste, Dielectric Paste

Comprehensive Equipment Operation Demo Videos

Visually understand the full operation process of SIE-BM500

Measured Defoaming‑Process Performance

Measured Processing Results for Six Typical Materials

Lubricant Stirring & Defoaming.jpg

Paste‑like Materials

Photoresist Stirring & Defoaming.jpg

Adhesive & Powder Mixtures

Polymer Materials.jpg

Polymer Materials

Gel Defoaming 02.jpg

Pharmaceutical Gels

Silver Paste Stirring & Defoaming.jpg

Silver Paste Materials

Battery Paste & Adhesive Stirring & Defoaming.jpg

Battery Pastes



Measured Data Comparison

Comparison of Material Status Before and After Three‑roll Grinding

 Material Type
Status Before Treatment
After SIE‑SG50 Treatment
Offset Printing InkVisible coarse pigment particles, dull and uneven hue, poor color‑developing performance, grey printed colorPigments dispersed to micron level, bright and uniform hue, excellent color‑developing performance, full printed color
Conductive Silver PasteObvious silver‑powder agglomeration, screen‑printing breaks and pinholes, large sheet‑resistance fluctuation, low yieldUniform silver‑powder dispersion, continuous screen‑printing without breaks, stable sheet resistance, improved yield
Lipstick PasteGrainy paste, uneven application with gritty feel, poor gloss, unsatisfactory consumer experienceSmooth grain‑free paste, even application, favorable gloss and enhanced texture

* Internal lab test data. Actual improvement varies with material formulas. Real‑world customer cases are available upon sales inquiry.
