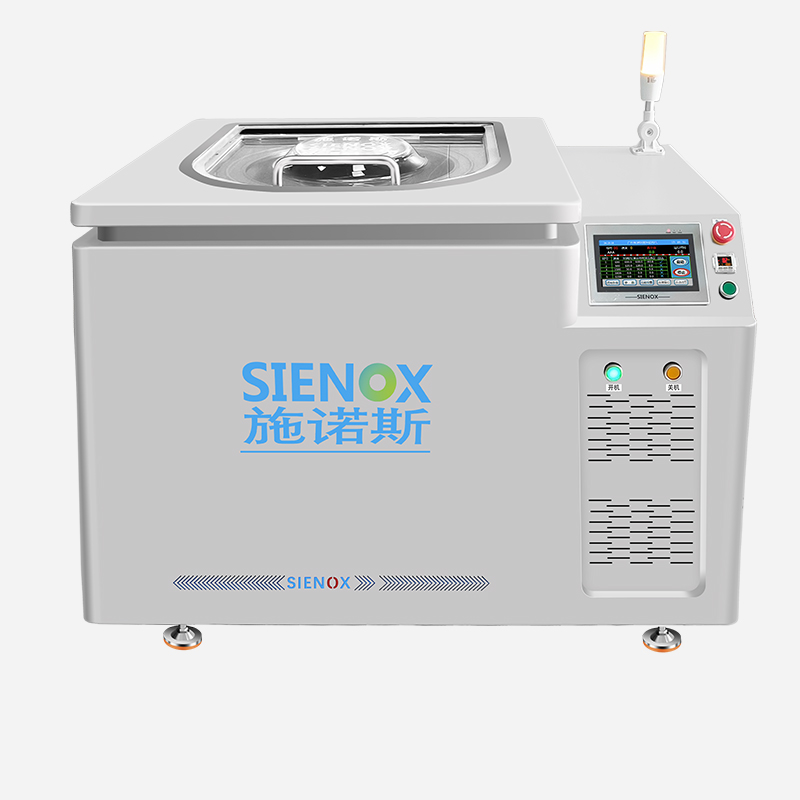

Large‑Capacity Vacuum Mixer‑Defoamer SIE‑MIX2000
Impeller‑free Non‑contact Mixing · For In‑depth Microbubble Treatment in Small‑batch Pilot Tests
0‑50L Customizable Capacity, Homogenizing & Defoaming Equipment for Medium‑large Production Lines
SIE‑MIX2000 planetary vacuum mixer‑defoamer delivers mixing and defoaming for 0‑2000 mL materials. Dual‑drive planetary revolution‑rotation combined with ‑98kPa vacuum negative pressure achieves consistent density, uniform dispersion and in‑depth defoaming for multi‑component materials. Ideal for small‑batch pilot vacuum defoaming of new‑energy lithium‑battery materials, photovoltaic conductive silver paste, medical polymer gels and more. Customization available.
✓ CE Certification ✓ FC Certification ✓ ISO9001 Quality System ✓ RoHS Compliance ✓ Custom Voltage Support (110V/220V)
Why Must Microbubbles in Materials Be Eliminated?
Residual nano‑scale microbubbles in materials directly affect product yield and performance stability.
Polymer Composite Material IndustryMicro‑bubbles inside polymer raw materials such as epoxy resin and silicone may form cavities and micro‑cracks after curing, reducing tensile strength and sealing performance of finished parts. Bubbles degrade light transmittance and surface uniformity, raise reject rate for injection‑molded / cast products and increase raw‑material loss cost. | Cosmetic Paste IndustryBubbles in makeup and skincare pastes cause uneven spreading and patchy color. Compressed bubbles during filling lead to filling‑volume deviation and metering non‑compliance. Internal cavities accelerate raw‑material oxidation and shorten product shelf‑life. | Ceramic Conductive Slurry IndustryBubbles trapped in ceramic slurry produce pinholes and pores after sintering, causing fluctuations in conductive and insulating properties. Bubbles result in uneven coating thickness and scattered resistance parameters of components, making it difficult to unify parameters for mass‑produced parts. |
✨ Traditional Defoaming Dilemma: Conventional planetary mixers rely on centrifugal force to remove bubbles, with limited effect on nano‑microbubbles in high‑viscosity materials. Static defoaming is time‑consuming and incomplete. Vacuum mixing‑defoaming applies ‑98 kPa negative pressure during planetary agitation to expand and release microbubbles via pressure difference, achieving deep‑layer defoaming beyond ordinary mixing.
Why Choose MIX2000
Professionally built for small-batch vacuum defoaming scenarios.
Customizable Capacity on DemandFeaturing a standard 2L dual-station design, the unit supports capacity adjustment within 0-30L. It adapts to single-barrel large-volume materials and multi-batch continuous mass production. Compatible with large-size mixing barrels and customized tooling fixtures, it satisfies both small-batch pilot tests and scaled production lines, and processes paste and liquid materials of different viscosities. | Revolution and Rotation SynergyThe dual-power planetary structure uses revolutionary centrifugal force to spread materials and rotational 360° fluid shear to eliminate powder agglomeration and colloid stratification. With a wide adjustable speed range suitable for adhesives, silver paste, ceramic materials and other materials, it delivers full-range mixing and effectively avoids partial uneven mixing | Industrial Intelligent Management &Equipped with a large touch screen to store multi-stage operation programs. Optional MES industrial data docking records full-process data including rotating speed, vacuum degree, temperature control and running time. Adopting acousto-optic early warning, multiple safety locks and overload power-off protection, it fully meets standardized continuous production requirements of factories. |
✨ When vacuum defoaming is required with a production capacity of up to 2000mL, the MIX2000 serves as an optimal pilot-scale option in the planetary vacuum mixer-defoamer series.
Working Principle
Adopt collaborative process of planetary revolution, container rotation and high‑vacuum sealing
Planetary Revolution: The large tray carrying material cups rotates at high speed around the main shaft to generate centrifugal force, evenly spreading materials toward the container wall, dispersing powder agglomeration and improving colloid stratification. Container Rotation: The material cups perform synchronous reverse rotation to form 360° internal fluid turbulence for full homogeneous mixing. No internal stirring blades touch the materials, effectively reducing the risk of metal debris contamination. Sealed Vacuum Defoaming: The sealed chamber reaches a negative pressure of -98kPa to expand the pressure difference inside and outside materials. Micro and nano-scale bubbles expand gradually, float up and exhaust out of the chamber. It completes mixing and defoaming in one single process, providing superior material uniformity and defoaming performance compared with conventional open stirring equipment. |  |
Technical Specifications
Rigorous Equipment Performance Index Data Alignment
| Model | SIE‑MIX2000 |
| Mixing Capacity | 0–2000 mL (standard container) * Customizable |
| Container Type | Test tube / Can / Cup; adapters for syringes and cartridges available |
| Container Quantity | 1 or 2 cans (user‑selectable) |
| Max Speed | 100 – 2000 RPM (stepless adjustable) |
| Revolution/Rotation Ratio | Fixed planetary ratio |
| Vacuum Degree | Standard: –98 kPa / Optional: –100 kPa |
| Control System | Touch screen, stores 100 sets of recipe parameters |
| Power Supply | 220V, 50/60Hz (110V US/JP standard customizable) |
| Overall Dimension(W×D×H) | 1100 × 780 × 880 mm |
| Net Weight | 225kg |
| Certifications | CE, FC, ISO9001, RoHS Compliance |
Our Partners
Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide
FAQ - Frequently Asked Questions
Answers to common questions about product performance and everyday process selection
-
脱泡机的作用是什么？
脱泡机是一种用于去除液体中的气泡的设备。它的作用在于帮助生产过程中的液体混合、反应、涂布、印刷、灌注等工艺环节，避免气泡的产生和对最终产品的影响。在许多工业和实验室环境中，去除气泡是非常必要的，因为气泡可能会对产品质量产生负面影响，如影响表面张力和稳定性等问题。脱泡机通常采用各种不同的技术，如振动、超声波、离心等，以实现有效的气泡去除。它的应用领域广泛，包括但不限于半导体、太阳能、光学、生物技术、材料科学等。
-
售后服务怎么样？
公司拥有专业的售后服务人员，24小时专人服务，一对一提供技术支持，解决您的后顾之忧。
-
为什么要选择施诺斯？
选择施诺斯的原因有很多，以下是一些主要的原因：
1. 专业性：我们的团队由一群专业的人士组成，他们在各自的领域拥有丰富的经验和知识。我们不仅了解行业趋势和最佳实践，而且还能提供切实可行的解决方案。
2. 服务质量：我们注重客户的需求和满意度，始终致力于提供高质量的服务。我们不仅快速响应客户需求，而且还能根据客户的要求进行定制化服务。
3. 可靠性：我们以诚信和专业精神为宗旨，始终遵守承诺和协议。我们的工作方法和交付成果均符合行业标准和最佳实践，使得我们的客户能够信任我们。
4. 创新性：我们不断探索新的方法和工具，以提供更好的服务并满足客户的需求。我们鼓励创新和实验，并愿意接受挑战和改变。
5. 成本效益：我们提供高性价比的服务，不仅能够帮助客户节省成本，而且还能提高效率和生产力。我们始终以客户的利益为出发点，为客户提供最优的解决方案。
6. 团队合作：我们相信团队的力量和合作的价值，我们的团队成员之间互相支持、协作和尊重。我们与客户、合作伙伴和其他利益相关者建立紧密的合作关系，以实现共同的目标。
以上只是选择我们的部分原因，我们相信还有很多其他的优点和价值可以为客户提供。如果您正在寻找一家专业、可靠、高质量的服务提供商，我们非常期待与您的合作。
-
搅拌脱泡机的工作原理？
施诺斯搅拌脱泡机通过公转的离心力进行脱泡，通过公转与自转形成的剪切力进行搅拌，
再辅助以真空泵抽取气体以达到真空状态，去除纳米级微小气泡。 不接触物料，无二次污染，无二次浪费。
-
施诺斯能提供工程咨询技术服务吗？
施诺斯能为广大客户提供全面的工程和现代化的咨询服务。施诺斯近二十年的搅拌经验，可以为你提供高效的咨询服务。
想要让搅拌机性能更上一层楼，提升系统的整体效能？我们有全面的咨询、工程以及现代化改造服务，为您量身打造解决方案。 在如今竞争激烈的全球化浪潮中，唯有不断创新、持续优化，才能始终跑在对手前面。您的生产工艺和产品日新月异，我们就为您提供最适配的混合技术。不管是新的产品参数，还是既有的工艺条件，我们都能对现有系统和搅拌设备进行全方位的检查与评估，挖掘其中潜藏的流程优化空间和机械性能提升潜力，并且帮您把这些改进切实落地。 要是您的搅拌设备已经跟不上时代步伐，能耗居高不下，或是维护成本让您头疼不已，那就别犹豫，我们的咨询、工程设计和现代化改造服务，就是为您排忧解难的良方。欢迎随时联系我们，携手开启高效生产新征程！
Technical Specification List
Full‑line parameter specifications to assist your accurate process‑model selection
| Model | SIE‑MIX2000 | SIE‑MIX5000 | SIE‑MIX15L |
| Mixing Capacity | 0–2000 mL (standard container) * Customizable | 0–5000 mL (standard container) * Customizable | 0–15L (standard container) * Customizable |
| Container Type | Test tube / Can / Cup; adapters for syringes and cartridges available | Test tube / Can / Cup; adapters for syringes and cartridges available | Test tube / Can / Cup; adapters for syringes and cartridges available |
| Container Quantity | 1 or 2 cans (user‑selectable) | 1 or 2 cans (user‑selectable) | 1 or 2 cans (user‑selectable) |
| Max Speed | 0 – 2000 RPM (stepless adjustable) | 0 – 1200 RPM (stepless adjustable) | 100 – 600 RPM (stepless adjustable) |
| Revolution/Rotation Ratio | Freely adjustable | Fixed planetary ratio | Fixed planetary ratio |
| Vacuum Degree | Standard: –98 kPa / Optional: –100 kPa | Standard: –98 kPa / Optional: –100 kPa | Standard: –98 kPa / Optional: –100 kPa |
| Control System | Touch screen, stores 100 sets of recipe parameters | Touch screen, stores 100 sets of recipe parameters | Touch screen, stores 100 sets of recipe parameters |
| Power Supply | 220V, 50/60Hz (110V US/JP standard customizable) | 220V, 50/60Hz (110V US/JP standard customizable) | 220V, 50/60Hz (110V US/JP standard customizable) |
| Overall Dimension(W×D×H) | 1100 × 780 × 880 mm | 1370 ×1130 × 965mm | 1735 × 1560 × 965 mm |
| Net Weight | 225kg | 550kg | 830 kg |
| Certifications | CE, FC | CE, FC | CE, FC |
***The above are typical models only. Customized solutions are available according to customer requirements.
Multi‑Industry Solutions
Provide customized solutions to meet comprehensive demands from cutting‑edge R&D to large‑scale mass production
Chemical IndustryChemical slurry, resin intermediate, catalyst slurry, reactive adhesive, functional coating liquid |
Adhesive / Sealant IndustryStructural adhesive, industrial sealant, hot‑melt adhesive, epoxy structural glue, polyurethane adhesive |
Ink / Coating IndustryIndustrial coating, conductive ink, color paste, anti‑corrosion coating, UV curable coating |
Electronics IndustryElectronic encapsulation glue, conductive silver adhesive, insulating glue, LED phosphor powder, semiconductor packaging material |
Battery IndustryLithium‑ion battery cathode‑anode slurry, conductive agent, auxiliary electrolyte material, fuel cell catalyst slurry |
Silicone IndustrySilicone rubber compound, silicone resin, silicone oil, silicone thermal conductive adhesive, silicone coating |
Comprehensive Equipment Operation Demo Videos
Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.

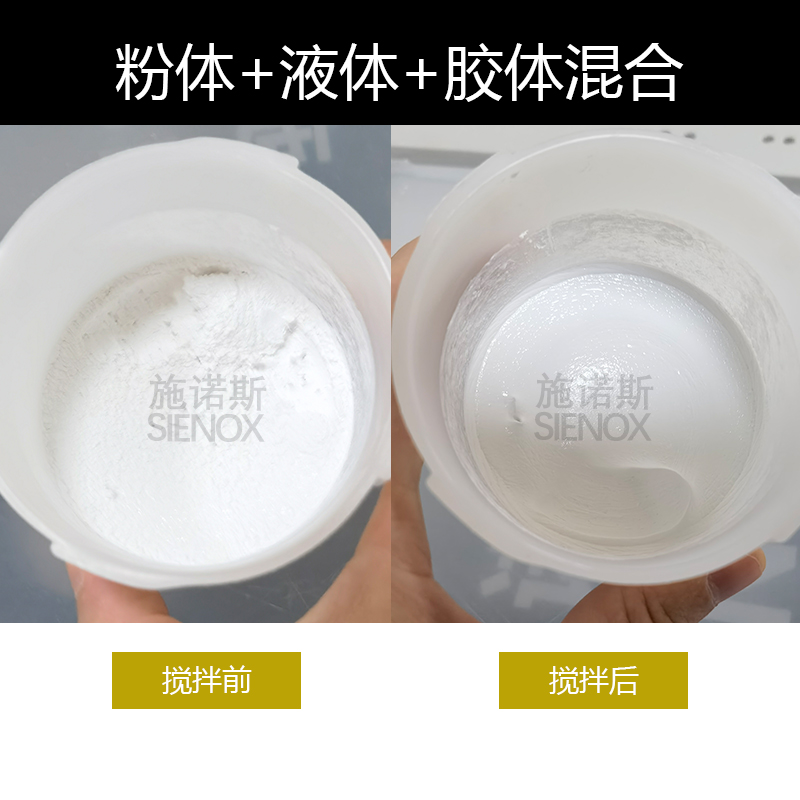

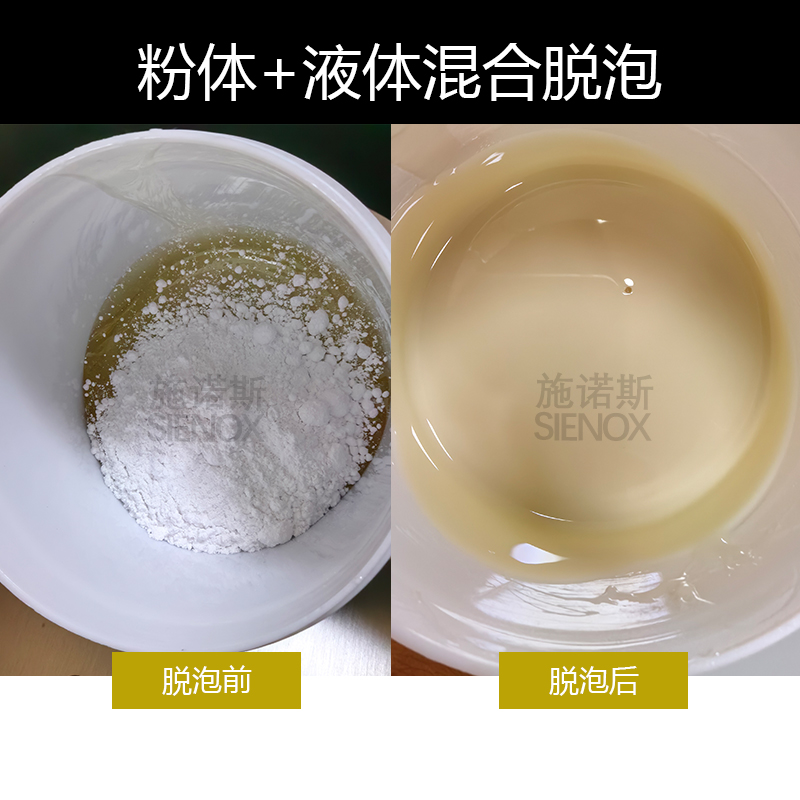

Measured Defoaming‑Process Performance
Thoroughly eliminate material bubbles, voids and stratification

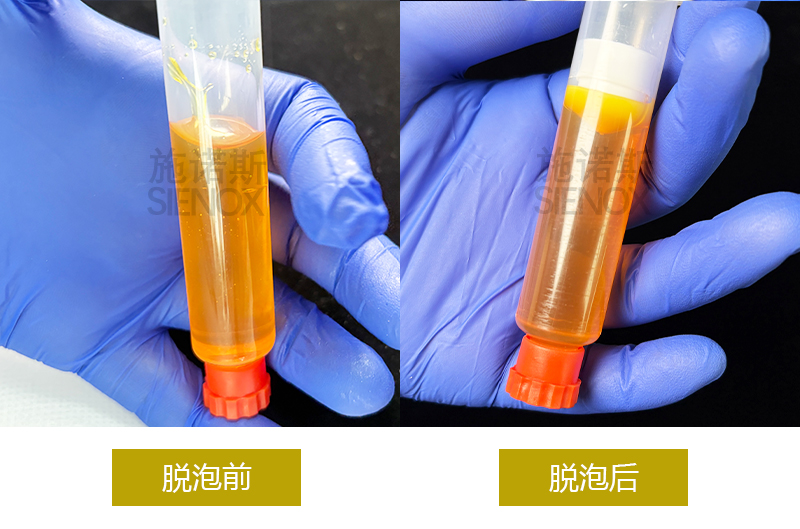

Syringe Glue |
Photoresist |
Biological Gel |
Cosmetic Essence |
Lubricating Oil |
Ink |
Measured Data Comparison
Quantifiable Effects Validated by Test Data
| Material Type | Status Before Treatment | After MIX2000 Treatment |
| Epoxy Resin Slurry | Uneven mixing with dense internal bubbles. Many pores after casting‑curing and low mechanical strength. | Transparent bubble‑free resin. Dense castings without cavities and smooth surface after curing. |
| Silicone Rubber Compound | Numerous bubbles, dense surface pores after vulcanization, uneven elasticity and fluctuating tensile strength. | Bubbles eliminated. Smooth and dense surface with uniform elasticity after vulcanization. |
| Industrial Anti‑corrosion Coating | Plenty of bubbles, dense pinholes on coating film, uneven adhesion and shortened anti‑corrosion service life. | Dense and flat coating film with pinholes removed, uniform adhesion and extended anti‑corrosion service life. |
* Internal laboratory test data. Actual improvement varies with material formulations. Contact sales for real‑world customer cases.
