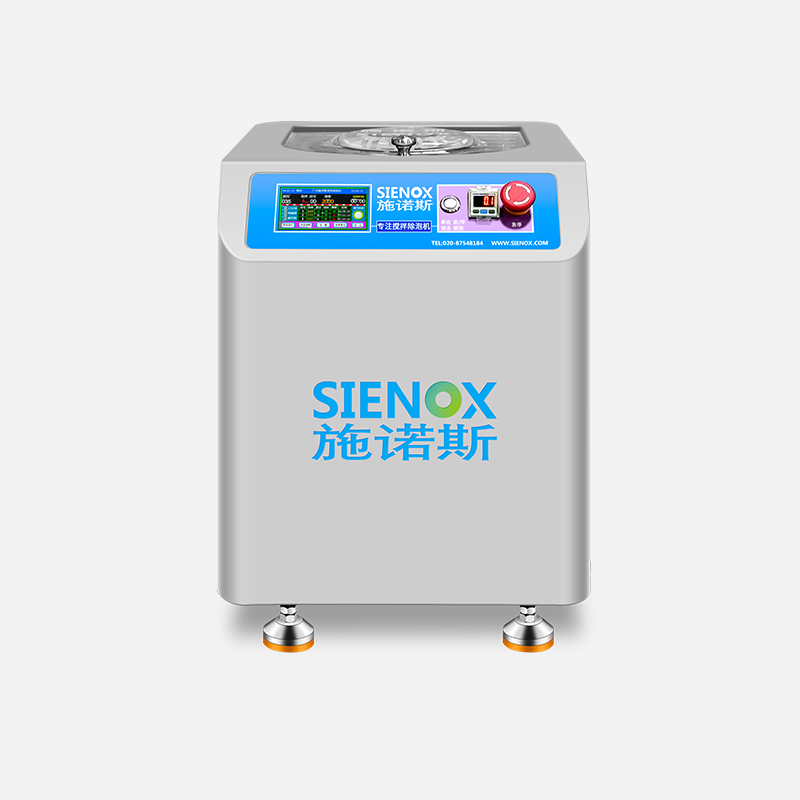

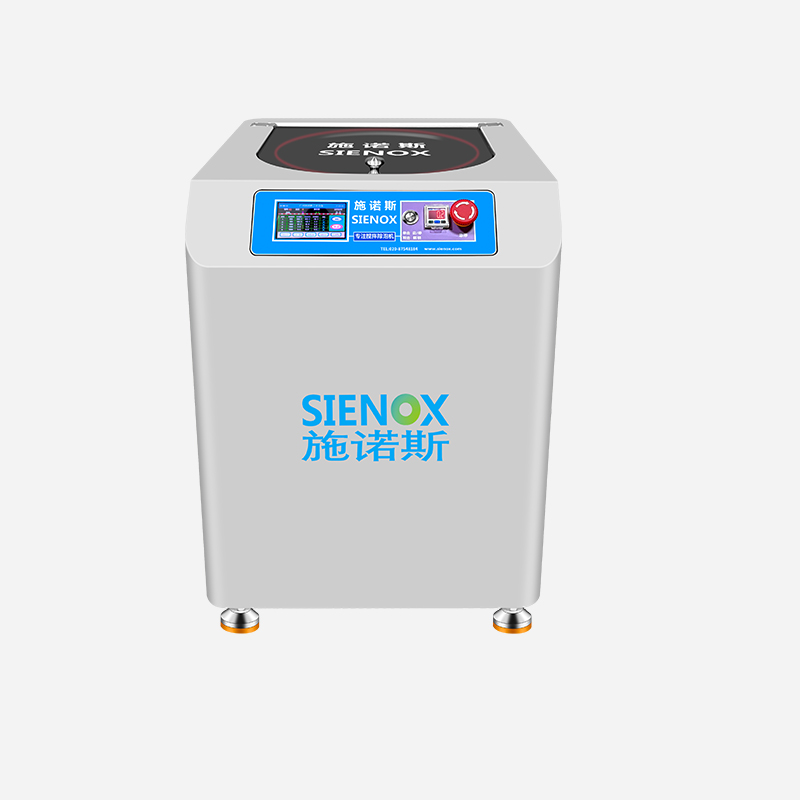

Small‑size Laboratory Planetary Vacuum Mixing‑Defoamer SIE‑MIX80
300 mL Micro‑sample Equipment · Belt‑drive High‑speed Mixing‑Defoaming All‑in‑one Machine
300 mL Laboratory Capacity + Standard Vacuum Function + 0‑3000rpm Stepless Speed Adjustment
SIE‑MIX80 Planetary Mixing‑Defoamer meets mixing and defoaming demands from 0‑300 mL. Low‑noise belt‑drive combined with synchronized revolution‑rotation dual‑power mixing‑defoaming delivers consistent density, uniform dispersion and pure bubble‑free results for various materials. Ideal for small‑batch mixing & defoaming of ink‑coating, silicone and research‑lab samples. Customization available with one‑stop solution provided.
✓ CE Certification ✓ FC Certification ✓ ISO9001 Quality System ✓ RoHS Compliance ✓ Voltage customization supported (110V/220V)
Why Must Microbubbles in Materials Be Eliminated?
Residual micro‑bubbles in materials directly affect finished‑product yield and performance
Research & Academic FieldIn new‑material R&D of universities and research institutes, bubbles inside slurries and gels cause deviation of experimental data and impair accuracy & repeatability of material performance characterization. Bubbles trap agglomerates in nanomaterial dispersion tests and distort dispersion evaluation. High‑reliability requirements for scientific experiments mean tiny residual bubbles may skew experimental conclusions and hinder project progress & paper quality. | Ink & Coating IndustryBubbles in ink bring pinholes and streaks on printed surfaces and degrade print quality & color consistency. Bubbles in coatings trigger film defects and weaken adhesion and weather resistance. For small‑batch lab formula development of ink and coating, bubble issues interfere with formula screening and extend R&D cycle. | Silicone IndustryBubbles in silicone gel reduce transparency and mechanical properties and hurt potting & encapsulation quality. Bubbles in silicone rubber compound lead to surface flaws and internal voids after vulcanization. It is hard to remove bubbles from high‑viscosity silicone during lab sample preparation, which distorts material performance test results. |
✨ Dilemmas of Traditional Methods Manual stirring and conventional impeller mixing inevitably draw in air, generating more bubbles during operation. Standing defoaming consumes long hours with limited results, while high-speed mixing equipment produces loud noise and disrupts the laboratory working environment. The belt-driven planetary mixing and defoaming solution separates bubbles via centrifugal force during mixing, enabling low-noise operation perfectly adapted for laboratory scenarios.
Why Choose SIE‑MIX80?
Three Core Features Cover Full‑process Lab Mixing & Defoaming Requirements
Low‑noise & Stable Belt DriveAdopting belt‑drive design, MIX80 delivers lower operating noise, minor vibration and excellent stability at high speed compared with gear‑driven units, suitable for noise‑sensitive laboratories and R&D centers. With simple belt‑drive structure, daily maintenance only requires belt replacement without professional gear servicing, cutting lab equipment maintenance cost and time. | One‑step Defoaming by High‑speed CentrifugationSynchronized revolution and rotation generate dual centrifugal shear force for uniform dispersion even for medium‑high viscosity materials. Centrifugal force continuously expels bubbles during mixing to finish mixing and defoaming in one step within approx. 1 min, improving efficiency versus traditional separate‑step processes. Flexible belt‑drive cushions high‑speed start‑stop and reduces instant impact on materials. | Non‑contact Clean MixingMaterials are mixed by centrifugal force inside sealed containers without impeller contact. Only replace containers for material switching, no cleaning required to effectively prevent cross‑contamination. Non‑contact mixing reduces shear heat generation and avoids premature curing of heat‑sensitive materials, ideal for high‑cleanliness‑demanding scenarios such as scientific research and pharmaceutical development. Touch screen stores up to 100 recipes for one‑click recall to guarantee process repeatability. |
✨ MIX80 integrates three core capabilities: low‑noise belt‑drive, one‑step high‑speed centrifugal defoaming and non‑contact clean mixing, suitable for lab R&D & small‑batch sampling requiring low noise & easy maintenance.
Working Principle
Synchronized dual‑power of revolution and rotation realizes one‑step mixing and defoaming
Step 1: Centrifugal Force Generated by Revolution The belt‑drive spins the revolution turntable at high speed and generates centrifugal force on materials inside the container to drive full‑range convection for macro‑mixing. Meanwhile, centrifugal force pushes low‑density bubbles toward the rotating axis for aggregation and escape. Flexible belt‑drive ensures smoother high‑speed operation and reduces equipment vibration and noise. Step 2: Shear Force Provided by Rotation The container rotates around its own axis to produce directional shear force for breaking agglomerated particles and achieving micro‑dispersion. Precisely calculated revolution‑rotation speed ratio ensures full‑range high‑efficiency mixing. Shear force thins bubble film and accelerates bubble rupture. No built‑in impeller contacts materials, lowering risk of metal debris contamination and preserving material chemical properties. Revolution and rotation run synchronously. Materials complete the full‑cycle of "mixing → dispersion → defoaming" inside sealed containers, and belt‑drive guarantees low‑noise stable operation. |  |
Quick View of Technical Specifications
Complete Technical Specifications Overview, Customizable on Demand
| Model | SIE‑MIX80 |
| Mixing Volume | 0‑300 mL (standard container) * Larger volume customizable |
| Container Type | Test tube / Jar / Cup; adapters for syringe & cartridge available |
| Container Quantity | 1 or 2 jars (user‑selectable) |
| Max Speed | 0‑3000 RPM (stepless adjustable) |
| Revolution / Rotation Ratio | Fixed planetary ratio |
| Vacuum Degree | Standard: –98 kPa / Optional: –100 kPa |
| Control System | Touch screen, stores up to 100 recipe sets |
| Power Supply | 220V, 50/60Hz (110V US/JP standard customizable) |
| Dimension(W×D×H) | 510 × 430 × 500 mm |
| Net Weight | Approx. 95 kg |
| Certifications | CE, FC, ISO9001, RoHS Compliance |
Our Partners
Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide
FAQ - Frequently Asked Questions
Answers to common questions about product performance and everyday process selection
-
脱泡机的作用是什么？
脱泡机是一种用于去除液体中的气泡的设备。它的作用在于帮助生产过程中的液体混合、反应、涂布、印刷、灌注等工艺环节，避免气泡的产生和对最终产品的影响。在许多工业和实验室环境中，去除气泡是非常必要的，因为气泡可能会对产品质量产生负面影响，如影响表面张力和稳定性等问题。脱泡机通常采用各种不同的技术，如振动、超声波、离心等，以实现有效的气泡去除。它的应用领域广泛，包括但不限于半导体、太阳能、光学、生物技术、材料科学等。
-
售后服务怎么样？
公司拥有专业的售后服务人员，24小时专人服务，一对一提供技术支持，解决您的后顾之忧。
-
为什么要选择施诺斯？
选择施诺斯的原因有很多，以下是一些主要的原因：
1. 专业性：我们的团队由一群专业的人士组成，他们在各自的领域拥有丰富的经验和知识。我们不仅了解行业趋势和最佳实践，而且还能提供切实可行的解决方案。
2. 服务质量：我们注重客户的需求和满意度，始终致力于提供高质量的服务。我们不仅快速响应客户需求，而且还能根据客户的要求进行定制化服务。
3. 可靠性：我们以诚信和专业精神为宗旨，始终遵守承诺和协议。我们的工作方法和交付成果均符合行业标准和最佳实践，使得我们的客户能够信任我们。
4. 创新性：我们不断探索新的方法和工具，以提供更好的服务并满足客户的需求。我们鼓励创新和实验，并愿意接受挑战和改变。
5. 成本效益：我们提供高性价比的服务，不仅能够帮助客户节省成本，而且还能提高效率和生产力。我们始终以客户的利益为出发点，为客户提供最优的解决方案。
6. 团队合作：我们相信团队的力量和合作的价值，我们的团队成员之间互相支持、协作和尊重。我们与客户、合作伙伴和其他利益相关者建立紧密的合作关系，以实现共同的目标。
以上只是选择我们的部分原因，我们相信还有很多其他的优点和价值可以为客户提供。如果您正在寻找一家专业、可靠、高质量的服务提供商，我们非常期待与您的合作。
-
搅拌脱泡机的工作原理？
施诺斯搅拌脱泡机通过公转的离心力进行脱泡，通过公转与自转形成的剪切力进行搅拌，
再辅助以真空泵抽取气体以达到真空状态，去除纳米级微小气泡。 不接触物料，无二次污染，无二次浪费。
-
施诺斯能提供工程咨询技术服务吗？
施诺斯能为广大客户提供全面的工程和现代化的咨询服务。施诺斯近二十年的搅拌经验，可以为你提供高效的咨询服务。
想要让搅拌机性能更上一层楼，提升系统的整体效能？我们有全面的咨询、工程以及现代化改造服务，为您量身打造解决方案。 在如今竞争激烈的全球化浪潮中，唯有不断创新、持续优化，才能始终跑在对手前面。您的生产工艺和产品日新月异，我们就为您提供最适配的混合技术。不管是新的产品参数，还是既有的工艺条件，我们都能对现有系统和搅拌设备进行全方位的检查与评估，挖掘其中潜藏的流程优化空间和机械性能提升潜力，并且帮您把这些改进切实落地。 要是您的搅拌设备已经跟不上时代步伐，能耗居高不下，或是维护成本让您头疼不已，那就别犹豫，我们的咨询、工程设计和现代化改造服务，就是为您排忧解难的良方。欢迎随时联系我们，携手开启高效生产新征程！
Technical Specification List
Full‑line standardized specifications for accurate process evaluation and equipment selection
| Model | SIE‑MIX60 (Gear‑driven) | SIE‑MIX80 (Belt‑driven) | SIE‑MIXF301 |
| Mixing Volume | 0‑300 mL (standard container) * Customizable | 0‑300 mL (standard container) * Customizable | 0‑300 mL (standard container) * Customizable |
| Container Type | Test tube / Jar / Cup; adapters for syringe & cartridge available | Test tube / Jar / Cup; adapters for syringe & cartridge available | Test tube / Jar / Cup; adapters for syringe & cartridge available |
| Container Quantity | 1 or 2 jars (user‑selectable) | 1 or 2 jars (user‑selectable) | 1 or 2 jars (user‑selectable) |
| Max Speed | 0‑3000 RPM (stepless adjustable) | 0‑3000 RPM (stepless adjustable) | 0‑2000 RPM (stepless adjustable) |
| Revolution / Rotation Ratio | Fixed planetary ratio | Fixed planetary ratio | Freely adjustable |
| Vacuum Degree | Standard: –98 kPa / Optional: –100 kPa | Standard: –98 kPa / Optional: –100 kPa | Standard: –98 kPa / Optional: –100 kPa |
| Control System | Touch screen, stores up to 100 recipe sets | Touch screen, stores up to 100 recipe sets | Touch screen, stores up to 100 recipe sets |
| Power Supply | 220V, 50/60Hz (110V US/JP standard customizable) | 220V, 50/60Hz (110V US/JP standard customizable) | 220V, 50/60Hz (110V US/JP standard customizable) |
| Dimension(W×D×H) | 510 × 430 × 500 mm | 510 × 430 × 500 mm | 510 × 430 × 500 mm |
| Net Weight | 95 kg | 95 kg | 115 kg |
| Certifications | CE, FC | CE, FC | CE, FC |
*** Above are typical models only. SIENOX provides customized solutions per customer requirements. Model selection consultation:189‑2512‑9293
Multi‑Industry Solutions
Covering stirring and debubbling applications of typical materials across six major industries
Research & Academic FieldNanomaterial dispersions, polymer solutions, experimental slurries, functional coating liquids, composite prepregs |
Ink & Coating IndustryUV‑curable inks, solvent‑based inks, water‑borne coatings, industrial baking paints, functional coating liquids |
Silicone IndustrySilicone gels, silicone rubber compounds, silicone resins, thermal conductive greases, silicone sealants |
Electronics IndustryConductive silver paste, insulating adhesives, encapsulation adhesives, UV adhesives, thermal conductive gels |
Chemical IndustryChemical slurries, resin solutions, catalyst slurries, reactive adhesives, intermediate solutions |
Battery IndustryCathode slurries, anode slurries, electrolyte additives, separator coating liquids, battery adhesives |
Comprehensive Equipment Operation Demo Videos
Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.
Measured Defoaming‑Process Performance
Measured Processing Results for Six Typical Materials
Gel |

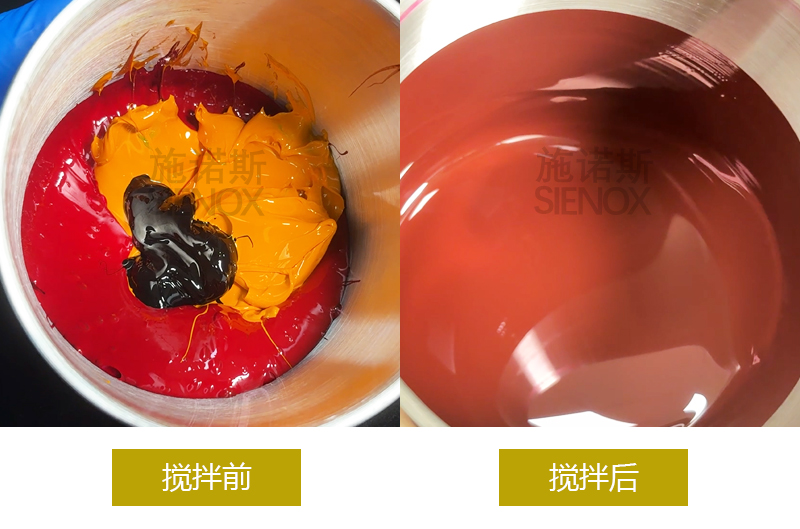

Ink |
Silver Paste |

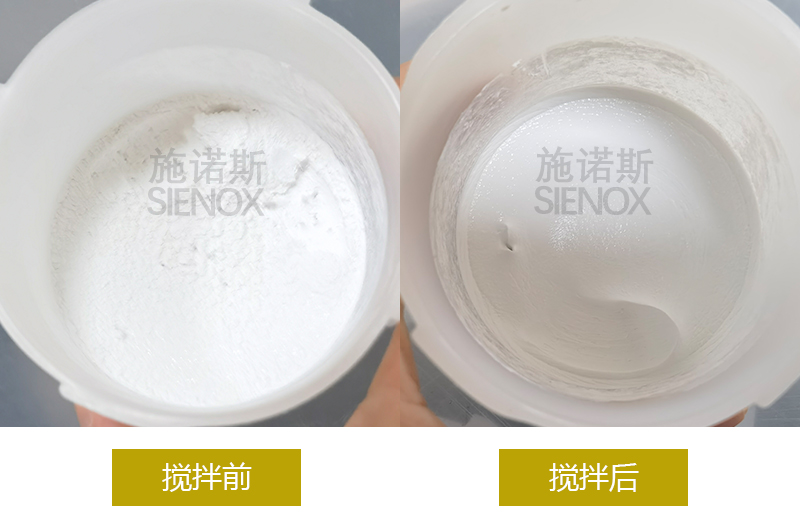

Silicone |
Electronic Adhesive + Powder |

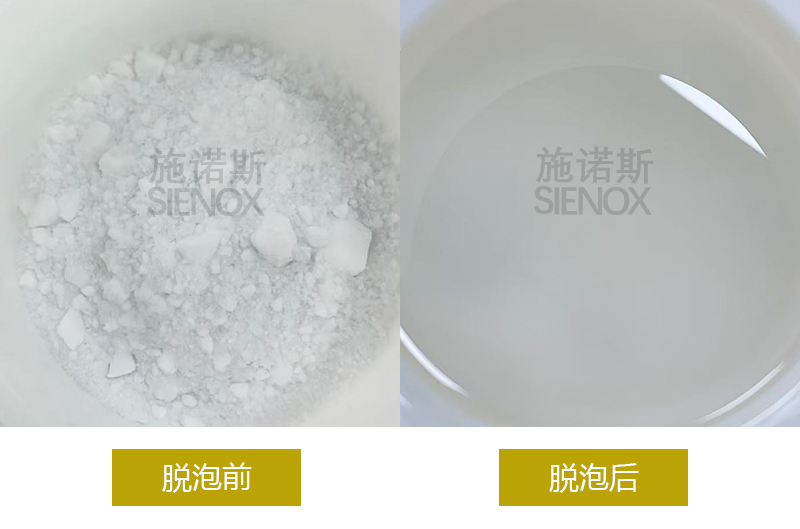

Glass Powder |
Measured Data Comparison
Comparison of Defoaming Effects for Three Representative Materials
Material Type | Status Before Treatment | After MIX80 Treatment |
Silicone Gel | Dense internal bubbles, low transparency, tensile strength deviation ±20% | Bubbles removed, improved transparency, tensile strength deviation ±5% |
UV‑curable Ink | Abundant internal bubbles, approx.8% printing pinhole rate, large color deviation | Bubbles removed, printing pinhole rate <1%, consistent color |
Conductive Silver Adhesive | Obvious silver‑powder agglomeration, numerous internal bubbles, volatile volume resistivity | Uniform silver‑powder dispersion, bubbles removed, stable volume resistivity |
* Internal lab test data. Actual improvement varies with material formula. Contact sales for real‑world customer cases.
