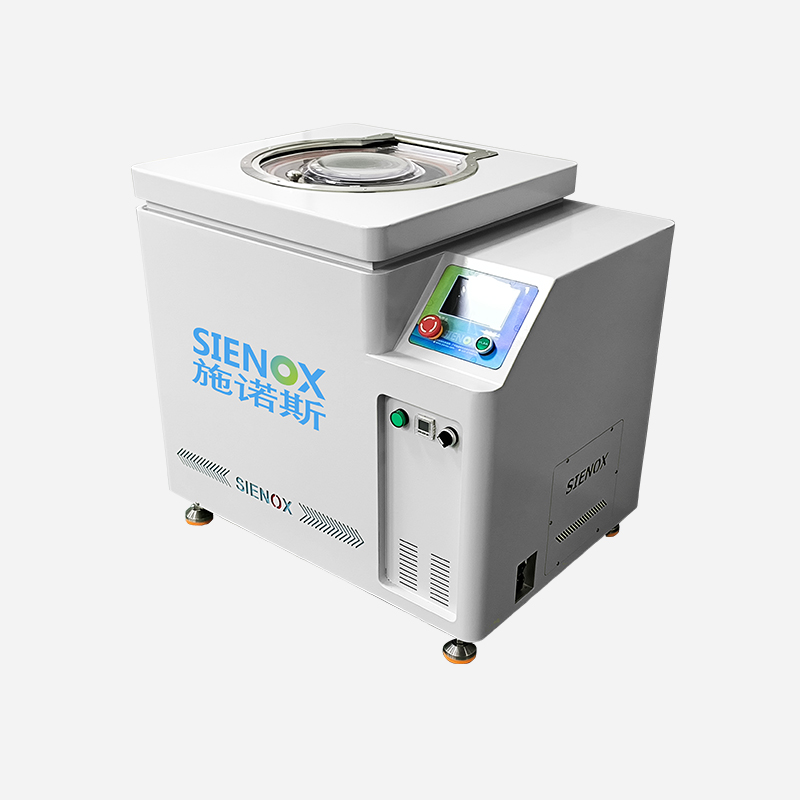

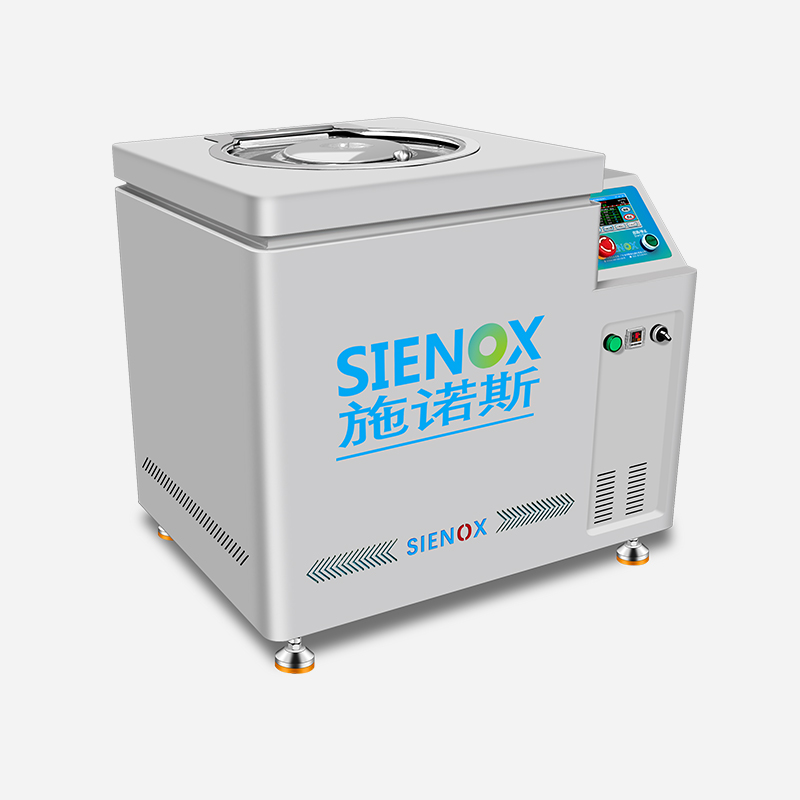

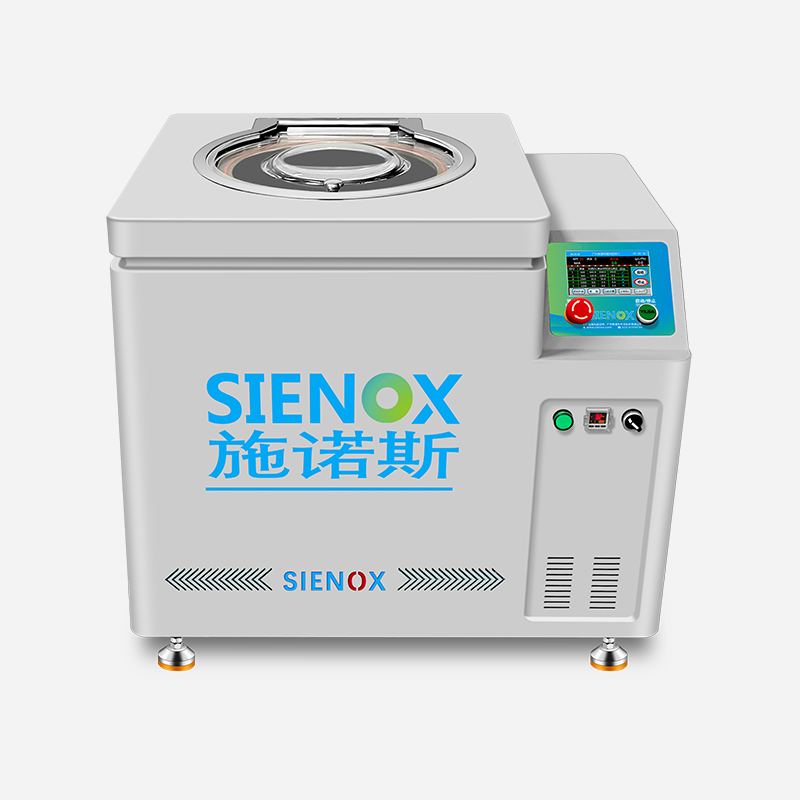

Planetary Vacuum Mixer‑Defoamer SIE‑MIX1000plus
Bladeless Non‑Contact Mixing · For Deep Microbubble Treatment in Small‑Batch Pilot Tests
1000mL Laboratory / Small‑Batch Pilot Test + Standard ‑98kPa Vacuum + 100‑2000rpm Stepless Adjustment
The SIE‑MIX1000plus planetary vacuum mixer‑defoamer meets mixing and defoaming requirements from 0‑1000mL. Dual‑power revolution‑rotation mixing combined with ‑98kPa vacuum negative pressure delivers consistent density, uniform dispersion and deep‑layer defoaming for various materials. It is suitable for small‑batch pilot vacuum defoaming of new‑energy lithium‑ion battery materials, photovoltaic conductive silver paste, medical polymer gels and more. Customization is supported.
✓ CE Certification ✓ FC Certification ✓ ISO9001 Quality System ✓ RoHS Compliance ✓ Customizable Voltage (110V/220V)
Why Must Microbubbles in Materials Be Eliminated?
Residual nano‑microbubbles in materials directly affect product yield and performance stability
New‑Energy Lithium‑ion Battery IndustryMicro‑bubbles invisible to naked eyes exist inside battery cathode‑anode slurries. Bubbles expand and rupture under coating heating, causing pinholes, depressions and powder falling on electrodes. Slurry density inconsistency leads to uneven internal resistance of cells and unstable cyclic capacity. Stress concentration and local overheat occur at bubble areas during charge‑discharge, raising cell failure risks and production costs. | Photovoltaic Conductive Silver Paste IndustryInternal bubbles in silver paste block conductive paths and destabilize power generation efficiency of PV modules. Bubbles form pits and color difference after coating, resulting in appearance inspection failure. Bubbles weaken bonding strength between silver paste and silicon wafers, which may cause silver layer peeling outdoors and shorten PV panel service life. | Medical Polymer Gel IndustryBubbles trapped in medical gel and biological dressing raw materials form cavities after curing and impair uniform drug release. Surface pinholes degrade sealing performance and bring microbial growth risks. Bubbles inside high‑transparency medical consumables cause light scattering, making light transmittance fail medical device test standards. |
✨ Traditional Defoaming Dilemma: Conventional planetary mixers rely on centrifugal force with limited nano‑bubble removal for high‑viscosity materials; static defoaming is slow and incomplete. Vacuum mixing‑defoaming applies ‑98kPa negative pressure during planetary stirring to expand and expel microbubbles, achieving deep defoaming beyond ordinary mixers.
Why Choose MIX1000PLUS
Tailored for vacuum defoaming in small-batch production scenarios
Large‑Capacity Dual‑Station DesignStandard 1000 mL dual‑station synchronous processing among similar models, 1000 mL material loading per batch. 100‑2000rpm wide‑range stepless speed adjustment suits low‑viscosity ink and high‑viscosity metal slurry. Heating and cooling modules are optional for heat‑sensitive and easily‑cured test materials, eliminating the need for multiple devices for different material tests. | Vacuum‑Planetary Composite DefoamingSealed chamber with vacuum gauge stably maintains ‑98 kPa negative pressure. Planetary revolution plus reverse container rotation generates composite centrifugal force for full‑range material tumbling and accelerates precipitation and floating of deep microbubbles. Compared with single centrifugal defoamers, vacuum‑planetary synergy reduces residual microbubbles and minimizes cavity and pinhole defects. | Intelligent Program Control SystemTouch‑screen panel stores 100 sets of custom mixing recipes. Optional MES data interconnection records speed, vacuum level and runtime for batch‑wise data traceability. Equipped with mechanical safety lock, emergency‑stop button and overload power‑off protection, compliant with daily operation requirements for university labs and factory pilot workshops. |
✨ When vacuum defoaming is required for 1000‑mL‑level output, MIX1000plus is the small‑batch pilot‑grade choice within planetary vacuum mixer‑defoamer series.
Working Principle
Adopt collaborative process of planetary revolution, container rotation and high‑vacuum sealing
Planetary Revolution: The large carrier plate with material cups revolves at high‑speed around the main shaft to generate centrifugal force, spreading materials evenly against container walls, breaking powder agglomerates and alleviating colloid stratification; Container Rotation: Material cups rotate reversely synchronously to create 360° fluid turbulence inside containers for full‑range homogeneous mixing. No built‑in mixing blades contact materials to reduce risk of metal‑chip contamination; Sealed Vacuum Defoaming: Negative pressure down to ‑98 kPa is built inside sealed chamber. Expanded pressure difference makes micro‑ and nano‑bubbles expand, float and evacuate. Mixing and defoaming are finished in one single cycle with better homogeneity and defoaming performance than conventional open‑type mixing equipment. |  |
Technical Specifications
Rigorous Equipment Performance Index Data Alignment
| Model | SIE‑MIX1000Plus |
| Mixing Capacity | 0–1000 mL (standard container) * Customizable |
| Container Type | Test tube / Can / Cup; adapters for syringes and cartridges available |
| Container Quantity | 1 or 2 cans (user‑selectable) |
| Max Speed | 100 – 2000 RPM (stepless adjustable) |
| Revolution/Rotation Ratio | Fixed planetary ratio |
| Vacuum Degree | Standard: –98 kPa / Optional: –100 kPa |
| Control System | Touch screen, stores 100 sets of recipe parameters |
| Power Supply | 220V, 50/60Hz (110V US/JP standard customizable) |
| Overall Dimension(W×D×H) | 820 × 610 × 760 mm |
| Net Weight | 165 kg |
| Certifications | CE, FC, ISO9001, RoHS Compliance |
Our Partners
Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide
FAQ - Frequently Asked Questions
Answers to common questions about product performance and everyday process selection
-
脱泡机的作用是什么？
脱泡机是一种用于去除液体中的气泡的设备。它的作用在于帮助生产过程中的液体混合、反应、涂布、印刷、灌注等工艺环节，避免气泡的产生和对最终产品的影响。在许多工业和实验室环境中，去除气泡是非常必要的，因为气泡可能会对产品质量产生负面影响，如影响表面张力和稳定性等问题。脱泡机通常采用各种不同的技术，如振动、超声波、离心等，以实现有效的气泡去除。它的应用领域广泛，包括但不限于半导体、太阳能、光学、生物技术、材料科学等。
-
售后服务怎么样？
公司拥有专业的售后服务人员，24小时专人服务，一对一提供技术支持，解决您的后顾之忧。
-
为什么要选择施诺斯？
选择施诺斯的原因有很多，以下是一些主要的原因：
1. 专业性：我们的团队由一群专业的人士组成，他们在各自的领域拥有丰富的经验和知识。我们不仅了解行业趋势和最佳实践，而且还能提供切实可行的解决方案。
2. 服务质量：我们注重客户的需求和满意度，始终致力于提供高质量的服务。我们不仅快速响应客户需求，而且还能根据客户的要求进行定制化服务。
3. 可靠性：我们以诚信和专业精神为宗旨，始终遵守承诺和协议。我们的工作方法和交付成果均符合行业标准和最佳实践，使得我们的客户能够信任我们。
4. 创新性：我们不断探索新的方法和工具，以提供更好的服务并满足客户的需求。我们鼓励创新和实验，并愿意接受挑战和改变。
5. 成本效益：我们提供高性价比的服务，不仅能够帮助客户节省成本，而且还能提高效率和生产力。我们始终以客户的利益为出发点，为客户提供最优的解决方案。
6. 团队合作：我们相信团队的力量和合作的价值，我们的团队成员之间互相支持、协作和尊重。我们与客户、合作伙伴和其他利益相关者建立紧密的合作关系，以实现共同的目标。
以上只是选择我们的部分原因，我们相信还有很多其他的优点和价值可以为客户提供。如果您正在寻找一家专业、可靠、高质量的服务提供商，我们非常期待与您的合作。
-
搅拌脱泡机的工作原理？
施诺斯搅拌脱泡机通过公转的离心力进行脱泡，通过公转与自转形成的剪切力进行搅拌，
再辅助以真空泵抽取气体以达到真空状态，去除纳米级微小气泡。 不接触物料，无二次污染，无二次浪费。
-
施诺斯能提供工程咨询技术服务吗？
施诺斯能为广大客户提供全面的工程和现代化的咨询服务。施诺斯近二十年的搅拌经验，可以为你提供高效的咨询服务。
想要让搅拌机性能更上一层楼，提升系统的整体效能？我们有全面的咨询、工程以及现代化改造服务，为您量身打造解决方案。 在如今竞争激烈的全球化浪潮中，唯有不断创新、持续优化，才能始终跑在对手前面。您的生产工艺和产品日新月异，我们就为您提供最适配的混合技术。不管是新的产品参数，还是既有的工艺条件，我们都能对现有系统和搅拌设备进行全方位的检查与评估，挖掘其中潜藏的流程优化空间和机械性能提升潜力，并且帮您把这些改进切实落地。 要是您的搅拌设备已经跟不上时代步伐，能耗居高不下，或是维护成本让您头疼不已，那就别犹豫，我们的咨询、工程设计和现代化改造服务，就是为您排忧解难的良方。欢迎随时联系我们，携手开启高效生产新征程！
Technical Specification List
Full‑line parameter specifications to assist your accurate process‑model selection
| Model | SIE‑MIXF301 | SIE‑MIX90 | SIE‑MIX1000Plus |
| Mixing Capacity | 0–300 mL (standard container) * Customizable | 0–1000 mL (standard container) * Customizable | 0–1000 mL (standard container) * Customizable |
| Container Type | Test tube / Can / Cup; adapters for syringes and cartridges available | Test tube / Can / Cup; adapters for syringes and cartridges available | Test tube / Can / Cup; adapters for syringes and cartridges available |
| Container Quantity | 1 or 2 cans (user‑selectable) | 1 or 2 cans (user‑selectable) | 1 or 2 cans (user‑selectable) |
| Max Speed | 0 – 2000 RPM (stepless adjustable) | 0 – 2000 RPM (stepless adjustable) | 100 – 2000 RPM (stepless adjustable) |
| Revolution/Rotation Ratio | Freely adjustable | Fixed planetary ratio | Fixed planetary ratio |
| Vacuum Degree | Standard: –98 kPa / Optional: –100 kPa | Standard: –98 kPa / Optional: –100 kPa | Standard: –98 kPa / Optional: –100 kPa |
| Control System | Touch screen, stores 100 sets of recipe parameters | Touch screen, stores 100 sets of recipe parameters | Touch screen, stores 100 sets of recipe parameters |
| Power Supply | 220V, 50/60Hz (110V US/JP standard customizable) | 220V, 50/60Hz (110V US/JP standard customizable) | 220V, 50/60Hz (110V US/JP standard customizable) |
| Overall Dimension(W×D×H) | 510 × 430 × 500 mm | 610 × 560 × 780 mm | 820 × 610 × 760 mm |
| Net Weight | 115kg | 153 kg | 165 kg |
| Certifications | CE, FC | CE, FC | CE, FC |
***The above are typical models only. Customized solutions are available according to customer requirements.
Multi‑Industry Solutions
Provide customized solutions to meet comprehensive demands from cutting‑edge R&D to large‑scale mass production
New‑Energy Lithium‑ion Battery IndustryLithium‑ion battery cathode‑anode slurry, conductive agent, insulating potting glue, thermal conductive silicone grease, auxiliary electrolyte raw material |
Photovoltaic & Optoelectronic IndustryPhotovoltaic silver paste, aluminum paste, encapsulating adhesive film, optical coating, phosphor powder, conductive nano‑slurry |
Electronic & Semiconductor IndustryEpoxy conductive adhesive, UV encapsulation glue, insulating black glue, nano‑silver wire, thermal conductive gel, chip underfill adhesive |
New‑Material R&D IndustryNano‑powder dispersion liquid, polymer composite material, ceramic slurry, high‑filler paste, fluorescent color paste |
Medical & Biological IndustryMedical transparent gel, biological dressing raw material, dental resin, sterile adhesive glue, medicinal ointment |
Ink, Coating & Chemical IndustryConductive ink, anti‑corrosion coating, color paste, lubricating grease, high‑viscosity resin, various industrial adhesives |
Comprehensive Equipment Operation Demo Videos
Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.
Measured Defoaming‑Process Performance
Thoroughly eliminate material bubbles, voids and stratification
Potting Adhesive |
Photoresist |
Structural Adhesive |
Cosmetic Essence |
Lubricating Oil |
Ink |
Measured Data Comparison
Quantifiable Effects Validated by Test Data
| Material Type | Status Before Treatment | After MIX1000PLUS Treatment |
| Photovoltaic Conductive Silver Paste | Fine micro‑bubbles inside slurry, uneven paste surface, poor fluidity and frequent pinhole defects after coating. | Uniform and transparent paste with no visible bubbles, smooth flow without powder agglomeration for flat continuous coating. |
| Lithium‑ion Battery Cathode‑Anode Slurry | Prone to powder agglomeration with trapped micro‑bubbles. Uneven slurry thickness and easy stratification upon standing. | Evenly dispersed active materials, relieved stratification and greatly reduced bubbles. Fewer pinholes and powder‑dropping defects on coated electrodes. |
| Epoxy Encapsulation Resin | Air trapped in colloid causes cavities and micro‑cracks after curing, weakening bonding strength. | Dense molded resin with lower cavity risk. Smooth cured surface and stable insulation, sealing and bonding performance. |
* Internal laboratory test data. Actual improvement varies with material formulations. Contact sales for real‑world customer cases.
