Vacuum Defoaming Mixer
TEL:18925129293

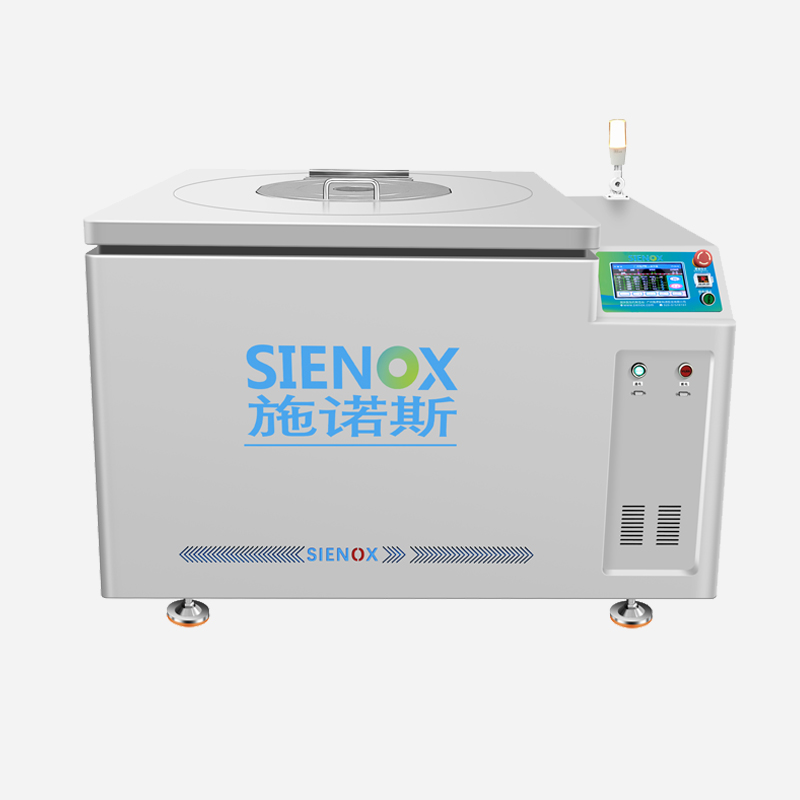

Vacuum Mixer‑Defoamer SIE‑MIX15L
15L Large‑capacity Continuous‑production Planetary Mixing‑Defoaming Equipment
Supports 0‑50L capacity customization, homogenizing and defoaming equipment for medium‑to‑large production‑line materials
The SIE‑MIX15L vacuum mixer‑defoamer delivers 0‑15L mixing and defoaming capacity. Dual‑drive planetary revolution‑rotation mixing works with optional ‑98kPa vacuum negative‑pressure environment. Low‑speed high‑torque performance adapts to large‑volume high‑viscosity materials, achieving consistent mixing density, uniform dispersion and remarkable micro‑bubble reduction. Ideal for mass‑production vacuum defoaming of polyurethane casting materials, 3D‑printing slurries, medical‑device adhesives and more. Custom capacity available with one‑stop solution provided.
✓ CE Certification ✓ FC Certification ✓ ISO9001 Quality System ✓ RoHS Compliance ✓ Custom voltage (110V/220V) supported
Why Must Microbubbles in Materials Be Eliminated?
Residual micro‑bubbles in large‑volume high‑viscosity materials directly affect product yield and performance stability.
Recommend application cases for SIENOX SIE‑MIX15L Vacuum Mixer‑Defoamer.
3D Printing IndustryBubbles in large‑size 3D‑printing resin slurries create inter‑layer voids, weakening interlayer bonding and mechanical strength of printed parts. Bubbles in ceramic 3D‑printing slurries generate internal pores after sintering, impairing dimensional accuracy and density. Bubble issues are amplified in mass‑material production; uneven bubble distribution across batches causes quality fluctuations among multiple printed parts. | Polyurethane IndustryBubbles in cast polyurethane elastomers degrade mechanical properties including elasticity, wear resistance and load‑bearing capacity. Uneven bubble distribution in polyurethane foams produces density gradients and deteriorates thermal‑insulation and cushioning performance. In mass polyurethane production, bubbles directly harm product consistency and yield. 15L large‑volume processing reduces batch‑split cycles and minimizes batch‑to‑batch deviation. | Aerospace & Defense IndustryBubbles in aerospace composite resin matrices form stress‑concentration spots and reduce interlaminar shear strength and anti‑fatigue performance of composites. Bubbles in aerospace thermal‑conductive potting compounds lower heat‑dissipation efficiency and reliability of electronic devices. The aerospace‑defense sector allows extremely low material‑defect tolerance. Residual micro‑bubbles may trigger critical‑component failure, hence strict requirements for defoaming processes. |
✨ **Traditional Defoaming Dilemmas**: Manual stirring for large-capacity and high-viscosity materials features low efficiency and uneven mixing. Conventional small-capacity equipment requires repeated batch processing, making it difficult to guarantee batch consistency. Static defoaming delivers limited results on high-viscosity materials with extremely long processing time. The large-capacity vacuum mixing and defoaming technology applies -98kPa vacuum negative pressure during planetary stirring. It processes 15L materials in a single run, reducing batch operations and ensuring consistent quality for mass production.
Why Choose MIX15L
Specially built for heavy‑industrial mass‑production vacuum defoaming with extra‑large capacity
15L High‑capacity DesignStandard dual‑station loading of 15L per cycle. Low‑speed high‑torque transmission adapts to ultra‑high‑viscosity heavy slurries. 0‑30L expansion customization is available to meet factory 24‑hour continuous batch‑processing requirements. | Planetary Transmission SystemReinforced frame and heavy‑duty gear structure with switchable planetary speed ratio. Strong centrifugal force disperses high‑fill powders to reduce material sedimentation and agglomeration, supporting long‑term non‑stop operation. | Production‑line‑grade Intelligent ControlMulti‑level permission touch screen stores multiple mass‑production recipes. Compatible with factory MES system for full‑process data logging. Equipped with multi‑fold safety protection for overload, vacuum and door interlock, suitable for standardized industrial production lines. |
✨ When vacuum defoaming is required and production volume reaches the 5000 mL level, the MIX5000 serves as a pilot‑scale option for small‑to‑medium batches within the planetary vacuum mixer‑defoamer series.
Working Principle
Adopt collaborative process of planetary revolution, container rotation and high‑vacuum sealing
Planetary Revolution: High‑power main shaft drives the turntable for low‑speed high‑torque revolution, generating steady continuous centrifugal force. It pushes high‑viscosity and high‑filler materials to adhere evenly against vessel walls and suppress sedimentation and delamination of heavy‑weight powders. Container Rotation: Material buckets rotate synchronously in reverse direction, generating extensive fluid shear inside containers. No impeller contacts materials to minimize metallic impurity contamination, ideal for heavy high‑solid‑content slurries. High‑flow Vacuum Defoaming: Large chamber paired with high‑flow vacuum pump builds rapid and stable negative pressure. Deep‑seated micro‑bubbles inside materials rise and separate under pressure difference. Mixing and defoaming proceed simultaneously to eliminate separate defoaming steps, matching the rhythm of continuous mass production. |  |
Technical Specifications
Rigorous Equipment Performance Index Data Alignment
| Model | SIE‑MIX15L |
| Mixing Capacity | 0‑15L (standard vessel) * Customizable |
| Vessel Type | Tubes / Jars / Cups; adapters for syringes and cartridges available |
| Number of Vessels | 1 or 2 jars (user‑selectable) |
| Max Speed | 0‑600 RPM (stepless adjustable) |
| Revolution / Rotation Ratio | Fixed planetary ratio |
| Vacuum Degree | Standard: ‑98 kPa / Optional: ‑100 kPa |
| Control System | Touch screen, stores up to 100 recipe sets |
| Power Supply | 220V, 50/60Hz (110V US/JP standard customizable) |
| Dimensions(W×D×H) | 1735 × 1560 × 965 mm |
| Net Weight | 830kg |
| Certifications | CE, FC, ISO9001, RoHS Compliance |
Our Partners
Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide
FAQ - Frequently Asked Questions
Answers to common questions about product performance and everyday process selection
-
脱泡机的作用是什么？
脱泡机是一种用于去除液体中的气泡的设备。它的作用在于帮助生产过程中的液体混合、反应、涂布、印刷、灌注等工艺环节，避免气泡的产生和对最终产品的影响。在许多工业和实验室环境中，去除气泡是非常必要的，因为气泡可能会对产品质量产生负面影响，如影响表面张力和稳定性等问题。脱泡机通常采用各种不同的技术，如振动、超声波、离心等，以实现有效的气泡去除。它的应用领域广泛，包括但不限于半导体、太阳能、光学、生物技术、材料科学等。
-
售后服务怎么样？
公司拥有专业的售后服务人员，24小时专人服务，一对一提供技术支持，解决您的后顾之忧。
-
为什么要选择施诺斯？
选择施诺斯的原因有很多，以下是一些主要的原因：
1. 专业性：我们的团队由一群专业的人士组成，他们在各自的领域拥有丰富的经验和知识。我们不仅了解行业趋势和最佳实践，而且还能提供切实可行的解决方案。
2. 服务质量：我们注重客户的需求和满意度，始终致力于提供高质量的服务。我们不仅快速响应客户需求，而且还能根据客户的要求进行定制化服务。
3. 可靠性：我们以诚信和专业精神为宗旨，始终遵守承诺和协议。我们的工作方法和交付成果均符合行业标准和最佳实践，使得我们的客户能够信任我们。
4. 创新性：我们不断探索新的方法和工具，以提供更好的服务并满足客户的需求。我们鼓励创新和实验，并愿意接受挑战和改变。
5. 成本效益：我们提供高性价比的服务，不仅能够帮助客户节省成本，而且还能提高效率和生产力。我们始终以客户的利益为出发点，为客户提供最优的解决方案。
6. 团队合作：我们相信团队的力量和合作的价值，我们的团队成员之间互相支持、协作和尊重。我们与客户、合作伙伴和其他利益相关者建立紧密的合作关系，以实现共同的目标。
以上只是选择我们的部分原因，我们相信还有很多其他的优点和价值可以为客户提供。如果您正在寻找一家专业、可靠、高质量的服务提供商，我们非常期待与您的合作。
-
搅拌脱泡机的工作原理？
施诺斯搅拌脱泡机通过公转的离心力进行脱泡，通过公转与自转形成的剪切力进行搅拌，
再辅助以真空泵抽取气体以达到真空状态，去除纳米级微小气泡。 不接触物料，无二次污染，无二次浪费。
-
施诺斯能提供工程咨询技术服务吗？
施诺斯能为广大客户提供全面的工程和现代化的咨询服务。施诺斯近二十年的搅拌经验，可以为你提供高效的咨询服务。
想要让搅拌机性能更上一层楼，提升系统的整体效能？我们有全面的咨询、工程以及现代化改造服务，为您量身打造解决方案。 在如今竞争激烈的全球化浪潮中，唯有不断创新、持续优化，才能始终跑在对手前面。您的生产工艺和产品日新月异，我们就为您提供最适配的混合技术。不管是新的产品参数，还是既有的工艺条件，我们都能对现有系统和搅拌设备进行全方位的检查与评估，挖掘其中潜藏的流程优化空间和机械性能提升潜力，并且帮您把这些改进切实落地。 要是您的搅拌设备已经跟不上时代步伐，能耗居高不下，或是维护成本让您头疼不已，那就别犹豫，我们的咨询、工程设计和现代化改造服务，就是为您排忧解难的良方。欢迎随时联系我们，携手开启高效生产新征程！
Technical Specification List
Full‑line standardized specifications for accurate process evaluation and equipment selection
| Model | SIE‑MIX5000 | SIE‑MIX15L | SIE‑MIX20L |
| Mixing Capacity | 0‑5000 mL (standard vessel) * Customizable | 0‑15L (standard vessel) * Customizable | 0‑20L (standard vessel) * Customizable |
| Vessel Type | Tubes / Jars / Cups; adapters for syringes and cartridges available | Tubes / Jars / Cups; adapters for syringes and cartridges available | Tubes / Jars / Cups; adapters for syringes and cartridges available |
| Number of Vessels | 1 or 2 jars (user‑selectable) | 1 or 2 jars (user‑selectable) | 1 or 2 jars (user‑selectable) |
| Max Speed | 0‑1200 RPM (stepless adjustable) | 0‑600 RPM (stepless adjustable) | 0‑500 RPM (stepless adjustable) |
| Revolution / Rotation Ratio | Fixed planetary ratio | Fixed planetary ratio | Fixed planetary ratio |
| Vacuum Degree | Standard: ‑98 kPa / Optional: ‑100 kPa | Standard: ‑98 kPa / Optional: ‑100 kPa | Standard: ‑98 kPa / Optional: ‑100 kPa |
| Control System | Touch screen, stores up to 100 recipe sets | Touch screen, stores up to 100 recipe sets | Touch screen, stores up to 100 recipe sets |
| Power Supply | 220V, 50/60Hz (110V US/JP standard customizable) | 220V, 50/60Hz (110V US/JP standard customizable) | 220V, 50/60Hz (110V US/JP standard customizable) |
| Dimensions(W×D×H) | 1370 ×1130 × 965mm | 1735 × 1560 × 965 mm | 1870 × 1380 × 1160 mm |
| Net Weight | 550kg | 830 kg | 900 kg |
| Certifications | CE, FC | CE, FC | CE, FC |
***Above are typical models only. Customized solutions are available upon customer requirements.
Multi‑Industry Solutions
Provide customized solutions to meet comprehensive demands from cutting‑edge R&D to large‑scale mass production
3D Printing IndustryLarge‑size photosensitive resin, ceramic printing slurry, dental‑model resin, UV‑curing adhesive, 3D‑printing functional coating |
Polyurethane IndustryCast polyurethane elastomer, polyurethane foam adhesive, polyurethane adhesive, polyurethane sealant, PU roller casting compound |
Aerospace & Defense IndustryAerospace composite resin, aerospace thermal‑conductive potting compound, aerospace sealant, structural adhesive, aerospace coating |
Chemical IndustryChemical slurry, resin intermediate, catalyst slurry, functional coating liquid, reactive adhesive |
Medical Device IndustryMedical catheter adhesive, medical sensor potting adhesive, dental resin, medical transparent gel, sterile bonding adhesive |
Electronics IndustryElectronic potting adhesive, conductive silver paste, insulating black adhesive, LED phosphor powder, semiconductor packaging material |
Comprehensive Equipment Operation Demo Videos
Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.

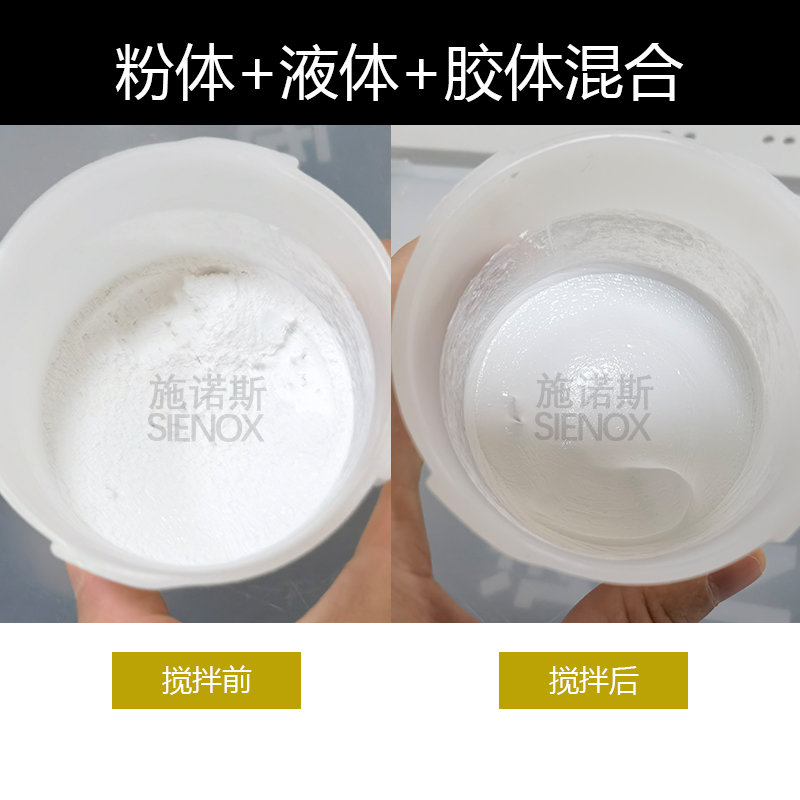

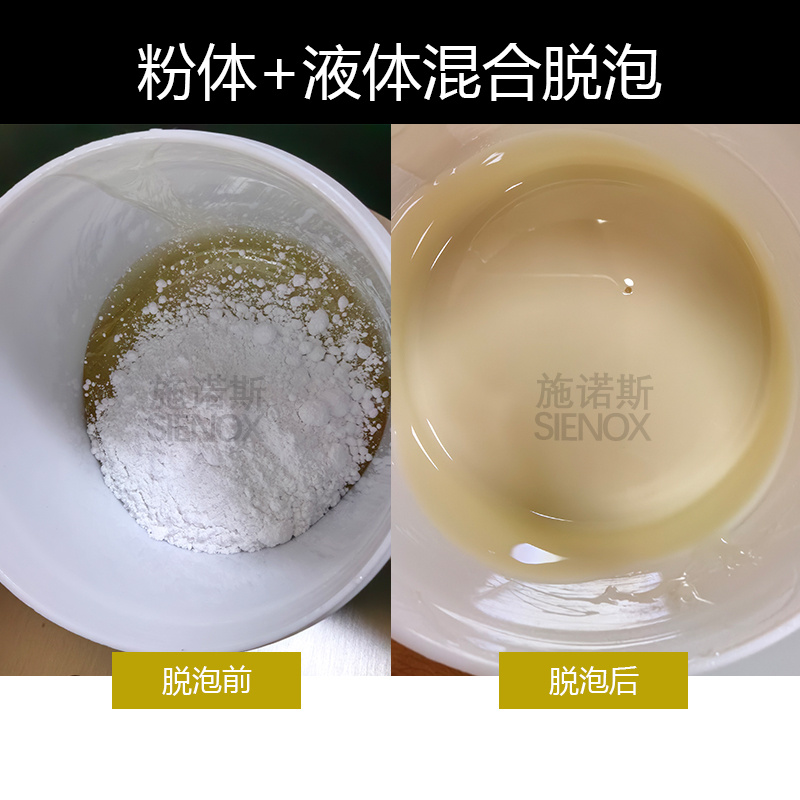

Measured Defoaming‑Process Performance
Thoroughly eliminate material bubbles, voids and stratification
UV Adhesive |
Electronic Adhesive & Powder |
Biogel |
Epoxy Coating Material |
Resin |
Ink |
Measured Data Comparison
Quantifiable Effects Validated by Test Data
| Material Type | Pre‑treatment Status | After MIX15L Treatment |
| Cast Polyurethane Elastomer | Dense bubbles inside casting material; numerous pores after curing, uneven elasticity and fluctuating wear resistance | Bubbles eliminated; cured parts are dense and void‑free with uniform elasticity and stable wear resistance |
| Medical Catheter Adhesive | Abundant bubbles in adhesive result in poor tube‑wall density, unsatisfactory smoothness and leakage risks | Bubbles eliminated for dense, smooth tube walls, good flow performance and qualified sealing property |
| Ceramic 3D‑printing Slurry | Heavy bubbles and obvious powder agglomeration in slurry; inner pores and dimensional deviation after sintering | Uniform dispersion with bubbles removed; sintered parts become dense and dimensional accuracy improved |
* Internal lab test data. Actual improvement varies with material formulation. Contact sales for real‑world customer cases.
