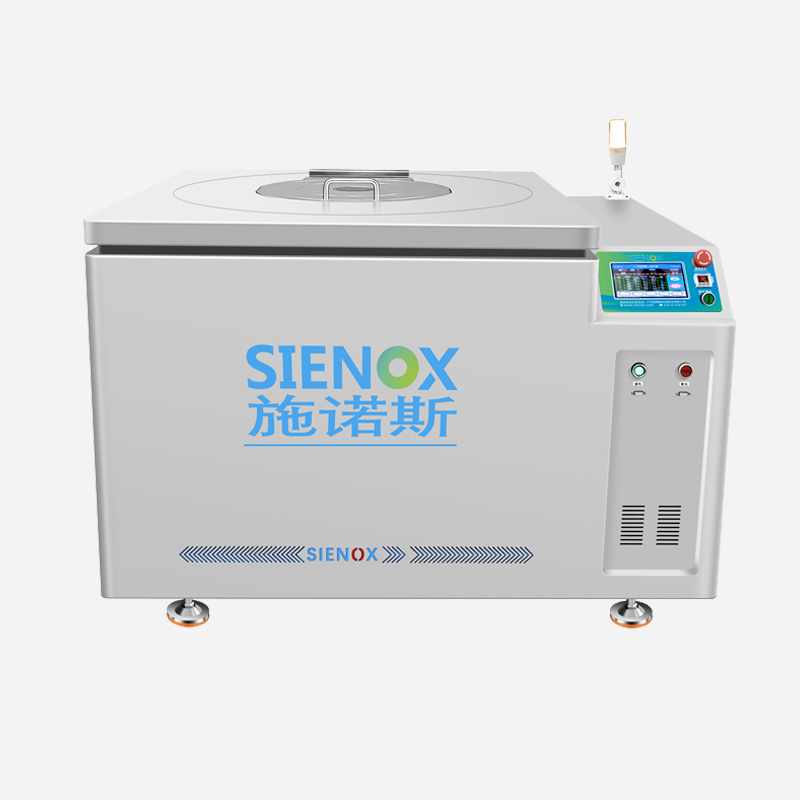

Extra‑large Planetary Vacuum Mixer‑Defoamer SIE‑MIX20L
20L Large‑volume Production‑oriented · Integrated Mixing‑Defoaming Equipment for High‑viscosity Slurries
0‑50L Customizable Volume + Planetary Revolution‑rotation Mixing + Vacuum Negative‑pressure Synergy
SIE‑MIX20L vacuum mixer‑defoamer meets 0‑20L mixing and defoaming requirements. Dual‑power revolution‑rotation mixing works with optional ‑98 kPa vacuum negative‑pressure environment. Low‑speed heavy‑load design adapts to large‑batch high‑viscosity materials, delivering consistent mixing density, uniform dispersion and remarkable microbubble reduction. It is suitable for mass‑production vacuum mixing‑defoaming of lithium‑ion battery electrode slurries, fuel‑cell materials, industrial structural adhesives and other materials. Custom volume available with one‑stop solutions provided.
✓ CE Certification ✓ FC Certification ✓ ISO9001 Quality System ✓ RoHS Compliance ✓ Custom Voltage (110V/220V) Supported
Why Must Microbubbles in Materials Be Eliminated?
Microbubbles in large‑batch high‑viscosity materials hurt yield & performance stability
Battery IndustryBubbles in lithium‑ion battery cathode‑anode slurries cause uneven coating areal density, harming battery capacity consistency and cycle life. Bubbles in solid‑electrolyte slurries trigger poor interfacial contact and reduce ion conduction efficiency. For 20L‑scale mass slurry production, uneven bubble distribution brings batch‑to‑batch battery quality fluctuation, demanding high defoaming‑process consistency. | Energy IndustryBubbles in fuel‑cell catalyst‑layer slurries create uneven catalyst coating, lowering catalytic efficiency and power output. Bubbles in energy‑storage‑material slurries impair electrode coating uniformity and degrade energy density plus charge‑discharge stability. In mass‑production of energy materials, bubbles directly hurt product yield and line efficiency. | Adhesive & Sealant IndustryBubbles inside industrial structural adhesives weaken bonding strength and degrade load‑bearing capacity & durability of structural parts. Bubbles in sealants lead to discontinuous sealing surfaces and leakage risks. During 20L‑large‑batch adhesive production, high‑viscosity materials suffer difficult bubble removal. Batch‑separated processing causes variance in viscosity and bubble content, undermining downstream product consistency. |
✨ Traditional defoaming bottlenecks: Manual stirring is nearly infeasible for large-batch and high-viscosity materials. Conventional small-capacity equipment requires repeated batch processing, while material replacement and cleaning for high-viscosity materials are extremely time-consuming, making consistent batch quality hard to guarantee. Static defoaming delivers limited effects on high-viscosity materials and entails long processing cycles. The 20L large-capacity vacuum mixer-defoamer performs planetary stirring under -98kPa negative vacuum pressure. It processes 20L materials in a single run, minimizes batch segmentation and ensures stable consistency for large-scale production.
Why Choose MIX20L
Tailored for heavy‑industrial mass production with ultra‑large capacity vacuum defoaming
20L Ultra‑large Dual StationStandard dual‑barrel for 20L single‑batch loading. Heavy‑duty transmission supports ultra‑high viscosity materials, expandable to 35L, suitable for full‑day continuous factory mass production. | Heavy‑duty Transmission StructureThickened frame and reinforced gear sets provide low‑speed high‑torque output to suppress heavy powder sedimentation for long‑term uninterrupted stable equipment operation. | Production‑line Intelligent ControlMulti‑level authority touch operation, stores multiple mass‑production processes; supports MES system connection, full‑process data recording and multiple safety interlock protections. |
✨ When production reaches 20L level for large‑batch high‑viscosity materials, MIX20L is the flagship vacuum mixer‑defoamer for this capacity class.
Working Principle
Adopts planetary revolution + container rotation + optional sealed vacuum synergy process
Planetary Revolution: High‑power heavy‑load main shaft drives the carrier plate for low‑speed high‑torque revolution, delivering steady centrifugal force to push high‑solid‑content heavy‑powder materials against container inner walls and mitigate sedimentation and delamination of high‑density powders; Container Rotation: Dual containers rotate synchronously in reverse directions to generate extensive 3D fluid shear field inside vessels. No impeller contacts materials, lowering risk of metal debris contamination, suitable for heavy pastes and slurries; High‑flow Vacuum Defoaming: Widened sealed chamber paired with high‑power vacuum pump rapidly maintains stable ‑98kPa negative pressure. Micro‑ and nano‑bubbles deep inside materials rise, separate and discharge under pressure difference. Mixing and defoaming complete simultaneously to eliminate separate defoaming procedures, matching high‑speed mass‑production rhythm of large‑scale factories. |  |
Technical Specifications
Complete Technical Specifications Overview, Customizable on Demand
| Model | SIE‑MIX20L |
| Mixing Volume | 0–15L (standard vessel) * Customizable |
| Vessel Type | Tubes / Jars / Cups; adapters for syringes & cartridges available |
| Vessel Quantity | 1 or 2 jars (user‑selectable) |
| Max Speed | 0‑600 RPM (stepless adjustable) |
| Revolution‑to‑Rotation Ratio | Fixed planetary ratio |
| Vacuum Level | Standard: –98 kPa / Optional: –100 kPa |
| Control System | Touch screen, stores 100 recipe sets |
| Power Supply | 220V, 50/60Hz (110V US/JP standard customizable) |
| Dimensions(W×D×H) | 1735 × 1560 × 965 mm |
| Net Weight | 830kg |
| Certifications | CE, FC, ISO9001, RoHS Compliance |
Our Partners
Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide
FAQ - Frequently Asked Questions
Answers to common questions about product performance and everyday process selection
-
脱泡机的作用是什么？
脱泡机是一种用于去除液体中的气泡的设备。它的作用在于帮助生产过程中的液体混合、反应、涂布、印刷、灌注等工艺环节，避免气泡的产生和对最终产品的影响。在许多工业和实验室环境中，去除气泡是非常必要的，因为气泡可能会对产品质量产生负面影响，如影响表面张力和稳定性等问题。脱泡机通常采用各种不同的技术，如振动、超声波、离心等，以实现有效的气泡去除。它的应用领域广泛，包括但不限于半导体、太阳能、光学、生物技术、材料科学等。
-
售后服务怎么样？
公司拥有专业的售后服务人员，24小时专人服务，一对一提供技术支持，解决您的后顾之忧。
-
为什么要选择施诺斯？
选择施诺斯的原因有很多，以下是一些主要的原因：
1. 专业性：我们的团队由一群专业的人士组成，他们在各自的领域拥有丰富的经验和知识。我们不仅了解行业趋势和最佳实践，而且还能提供切实可行的解决方案。
2. 服务质量：我们注重客户的需求和满意度，始终致力于提供高质量的服务。我们不仅快速响应客户需求，而且还能根据客户的要求进行定制化服务。
3. 可靠性：我们以诚信和专业精神为宗旨，始终遵守承诺和协议。我们的工作方法和交付成果均符合行业标准和最佳实践，使得我们的客户能够信任我们。
4. 创新性：我们不断探索新的方法和工具，以提供更好的服务并满足客户的需求。我们鼓励创新和实验，并愿意接受挑战和改变。
5. 成本效益：我们提供高性价比的服务，不仅能够帮助客户节省成本，而且还能提高效率和生产力。我们始终以客户的利益为出发点，为客户提供最优的解决方案。
6. 团队合作：我们相信团队的力量和合作的价值，我们的团队成员之间互相支持、协作和尊重。我们与客户、合作伙伴和其他利益相关者建立紧密的合作关系，以实现共同的目标。
以上只是选择我们的部分原因，我们相信还有很多其他的优点和价值可以为客户提供。如果您正在寻找一家专业、可靠、高质量的服务提供商，我们非常期待与您的合作。
-
搅拌脱泡机的工作原理？
施诺斯搅拌脱泡机通过公转的离心力进行脱泡，通过公转与自转形成的剪切力进行搅拌，
再辅助以真空泵抽取气体以达到真空状态，去除纳米级微小气泡。 不接触物料，无二次污染，无二次浪费。
-
施诺斯能提供工程咨询技术服务吗？
施诺斯能为广大客户提供全面的工程和现代化的咨询服务。施诺斯近二十年的搅拌经验，可以为你提供高效的咨询服务。
想要让搅拌机性能更上一层楼，提升系统的整体效能？我们有全面的咨询、工程以及现代化改造服务，为您量身打造解决方案。 在如今竞争激烈的全球化浪潮中，唯有不断创新、持续优化，才能始终跑在对手前面。您的生产工艺和产品日新月异，我们就为您提供最适配的混合技术。不管是新的产品参数，还是既有的工艺条件，我们都能对现有系统和搅拌设备进行全方位的检查与评估，挖掘其中潜藏的流程优化空间和机械性能提升潜力，并且帮您把这些改进切实落地。 要是您的搅拌设备已经跟不上时代步伐，能耗居高不下，或是维护成本让您头疼不已，那就别犹豫，我们的咨询、工程设计和现代化改造服务，就是为您排忧解难的良方。欢迎随时联系我们，携手开启高效生产新征程！
Technical Specification List
Technical Specification List
| Model | SIE‑MIX5000 | SIE‑MIX15L | SIE‑MIX20L |
| Mixing Volume | 0–5000 mL (standard vessel) * Customizable | 0–15L (standard vessel) * Customizable | 0–20L (standard vessel) * Customizable |
| Vessel Type | Tubes / Jars / Cups; adapters for syringes & cartridges available | Tubes / Jars / Cups; adapters for syringes & cartridges available | Tubes / Jars / Cups; adapters for syringes & cartridges available |
| Vessel Quantity | 1 or 2 jars (user‑selectable) | 1 or 2 jars (user‑selectable) | 1 or 2 jars (user‑selectable) |
| Max Speed | 0‑1200 RPM (stepless adjustable) | 0‑800 RPM (stepless adjustable) | 0‑600 RPM (stepless adjustable) |
| Revolution‑to‑Rotation Ratio | Fixed planetary ratio | Fixed planetary ratio | Fixed planetary ratio |
| Vacuum Level | Standard: –98 kPa / Optional: –100 kPa | Standard: –98 kPa / Optional: –100 kPa | Standard: –98 kPa / Optional: –100 kPa |
| Control System | Touch screen, stores 100 recipe sets | Touch screen, stores 100 recipe sets | Touch screen, stores 100 recipe sets |
| Power Supply | 220V, 50/60Hz (110V US/JP standard customizable) | 220V, 50/60Hz (110V US/JP standard customizable) | 220V, 50/60Hz (110V US/JP standard customizable) |
| Dimensions(W×D×H) | 1370 ×1130 × 965mm | 1735 × 1560 × 965 mm | 1870 × 1380 × 1160 mm |
| Net Weight | 550kg | 830 kg | 900 kg |
| Certifications | CE, FC | CE, FC | CE, FC |
***Above are typical models only. Customized solutions available upon customer requirements.
Multi‑Industry Solutions
Provide customized solutions to meet comprehensive demands from cutting‑edge R&D to large‑scale mass production
Battery IndustryLithium‑ion cathode slurry, lithium‑ion anode slurry, solid electrolyte slurry, battery separator coating liquid, battery conductive slurry |
Energy IndustryFuel‑cell catalyst layer slurry, proton exchange membrane slurry, energy‑storage electrode slurry, supercapacitor slurry, electrolyte additives |
Adhesive & Sealant IndustryIndustrial structural adhesive, epoxy sealant, polysulfide sealant, silicone structural adhesive, hot‑melt adhesive slurry |
Chemical IndustryChemical slurry, resin intermediate, catalyst slurry, functional coating liquid, reactive adhesive |
Electronics IndustryElectronic encapsulation adhesive, conductive silver paste, insulating black adhesive, LED phosphor, semiconductor encapsulation material |
Medical Device IndustryMedical catheter adhesive, medical sensor encapsulation adhesive, dental resin, medical transparent gel, sterile bonding adhesive |
Comprehensive Equipment Operation Demo Videos
Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.

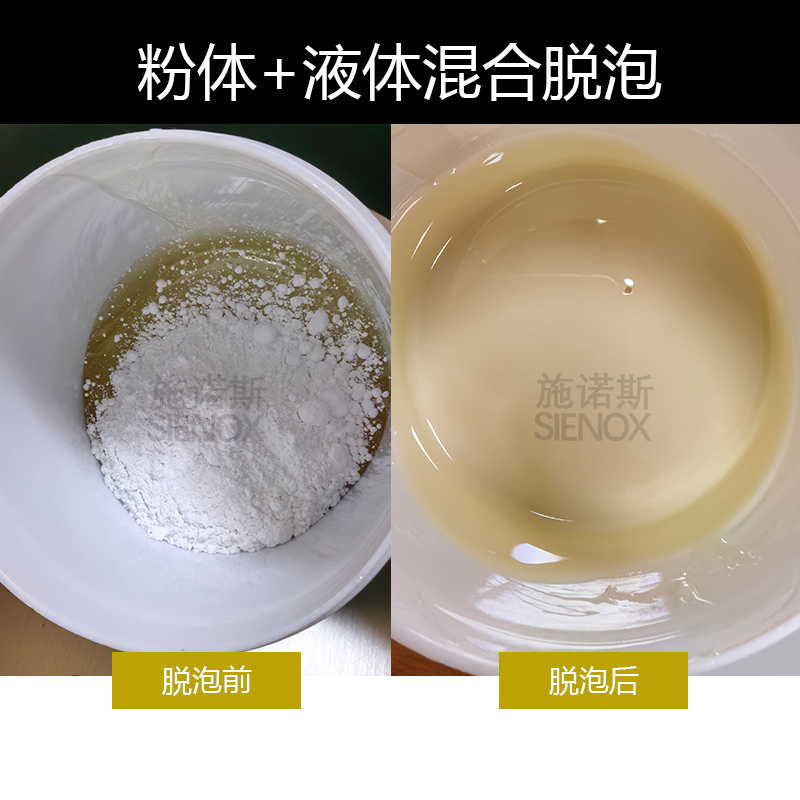

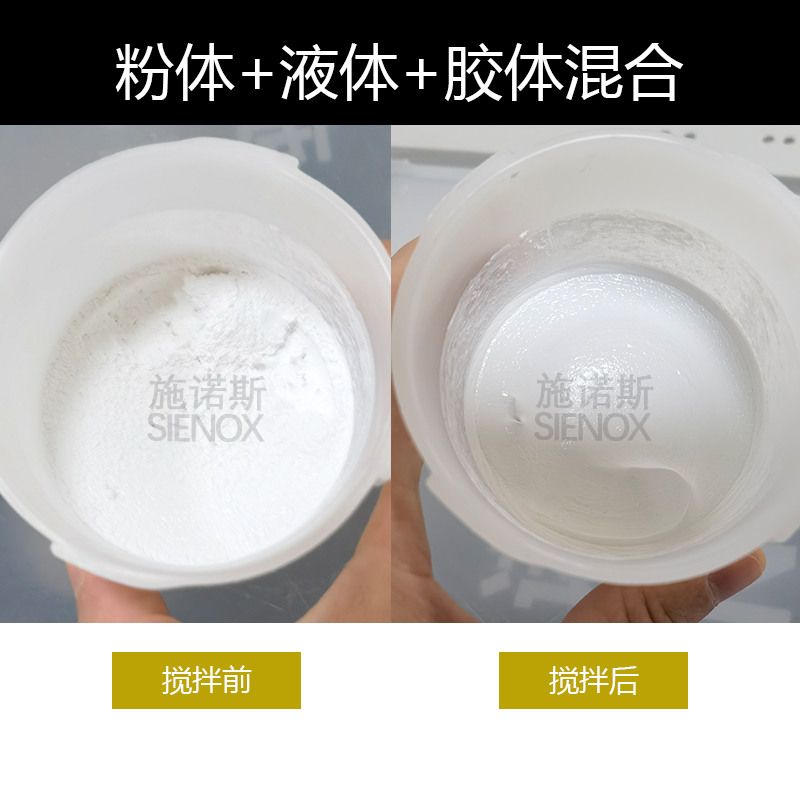

Measured Defoaming‑Process Performance
Thoroughly eliminate material bubbles, voids and stratification
AB Glue |
Potting Compound |
Electronic Slurry & Adhesive |
Structural Adhesive |
Gel |
Biogel |
Measured Data Comparison
Quantifiable Effects Validated by Test Data
| Material Type | Status Before Treatment | After MIX20L Treatment |
| Lithium‑ion Battery Cathode Slurry | Heavy internal bubbles, ±15% deviation in coating areal density, large battery capacity fluctuation | Bubbles eliminated, ±3% deviation in coating areal density, improved battery capacity consistency |
| Industrial Structural Adhesive | Dense internal bubbles, ±25% bonding‑strength deviation, cavities on load‑bearing surfaces | Bubbles eliminated, ±5% bonding‑strength deviation, continuous cavity‑free load‑bearing surfaces |
| Fuel‑cell Catalyst‑layer Slurry | Heavy internal bubbles, uneven catalyst‑layer coating, ±20% catalytic‑efficiency deviation | Uniform dispersion with bubbles removed, ±5% catalytic‑efficiency deviation |
* Internal lab test data. Actual improvement varies with material formulation. Contact sales for real‑world customer references.
