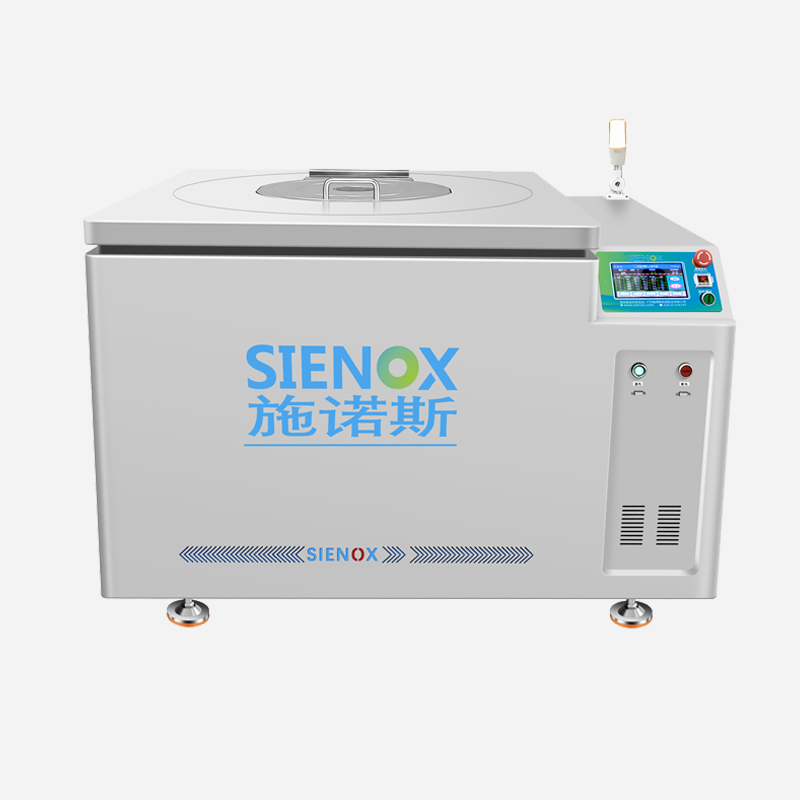

Temperature‑controlled Vacuum Mixer‑Defoamer SIE‑MIX5000WK


5L Large‑capacity Temperature‑controlled Mass‑production Platform · Nano‑level Deep Vacuum‑temperature‑controlled Defoaming

5000mL Large‑capacity Dual Cups + Ambient‑range Heating/Cooling Temperature Control + ‑98kPa Deep Vacuum Defoaming

SIENOX SIE‑MIX5000WK is a temperature‑controlled vacuum mixer‑defoamer engineered for large‑batch production of temperature‑sensitive materials. Dual 5000 mL cups meet continuous inline processing demands. Dual‑mode temperature control precisely regulates material temperature. ‑98kPa vacuum defoaming works with dual‑power planetary mixing to finish mixing and defoaming in one single cycle.

✓ CE Certification  ✓ ISO9001 Quality System ✓ RoHS Compliance ✓ Customizable Voltage (110V/220V)


Online Message Free Sample Testing Engineer Hotline: 189-2512-9293

Why Must Microbubbles in Materials Be Eliminated?

Micro/nano residual bubbles in materials directly affect product yield and performance stability.

New Energy Industry

Bubbles in lithium‑battery slurries impair coating uniformity and degrade consistency of battery capacity and cycle life. Bubbles in PV EVA films trigger lamination defects and delamination risks. Heat generated during new‑energy slurry mixing alters rheological properties. Temperature‑controlled defoaming stabilizes temperature window to guarantee coating quality.

Semiconductor Industry

Bubbles in semiconductor encapsulants create internal voids and poor heat dissipation. Bubbles inside conductive silver adhesives cause circuit open‑points and resistance fluctuation. Semiconductor materials are temperature‑sensitive; excessive heat changes curing behavior. Temperature‑controlled defoaming balances defoaming efficiency and material safety.

Adhesive Industry

Bubbles in structural adhesives lead to unstable bonding strength and discontinuous load‑bearing surfaces. Bubbles in sealants result in sealing leakage. Most adhesives cure via exothermic reactions; temperature rise accelerates curing and aggravates bubble formation. Temperature‑controlled mixing‑defoaming removes bubbles while maintaining proper temperature.

✨ Traditional defoaming bottlenecks: Manual mixing causes uneven blending and air entrapment, while conventional equipment delivers limited centrifugal force and fails to eliminate microbubbles. Without precise temperature control, ordinary devices easily trigger thermal degradation of temperature-sensitive materials via simple heating. This integrated solution adopts centrifugal mixing, negative vacuum pressure and accurate temperature control to complete mixing, temperature regulation and defoaming in one step.

Why Choose MIX5000

Three Core Features Cover Full‑process Demands of Temperature‑controlled Vacuum Defoaming

5L Large‑capacity Temp‑controlled Production Platform

Equipped with dual 5000 mL cups, 0‑1200 rpm wide‑range speed adjustment covers low‑to‑high viscosity materials. 100‑recipe storage supports multi‑product switching. 550 kg rigid frame with 304‑stainless‑steel enclosure ensures stable long‑time temperature‑controlled operation.

Nano‑level Deep Vacuum‑temperature‑controlled Defoaming

Standard‑98 kPa vacuum system. Centrifugal force removes large bubbles while vacuum eliminates nano‑microbubbles. Vacuum works synchronously with temperature control: heating reduces viscosity for faster bubble release; vacuum compensates low‑temperature defoaming efficiency loss for consistent results.

Precise Temperature Control Across Multiple Speed Ranges

Selectable fixed/adjustable planetary speed ratio. Fixed ratio guarantees production consistency; adjustable mode fits R‑D trials. Dual‑mode heating‑cooling reduces viscosity by heating and suppresses thermal degradation by cooling. One unit handles both heated mixing and low‑temperature defoaming processes.

✨ MIX5000WK suits large‑capacity temperature‑controlled production and vacuum defoaming for temp‑sensitive materials including new energy, semiconductors, adhesives and advanced materials.

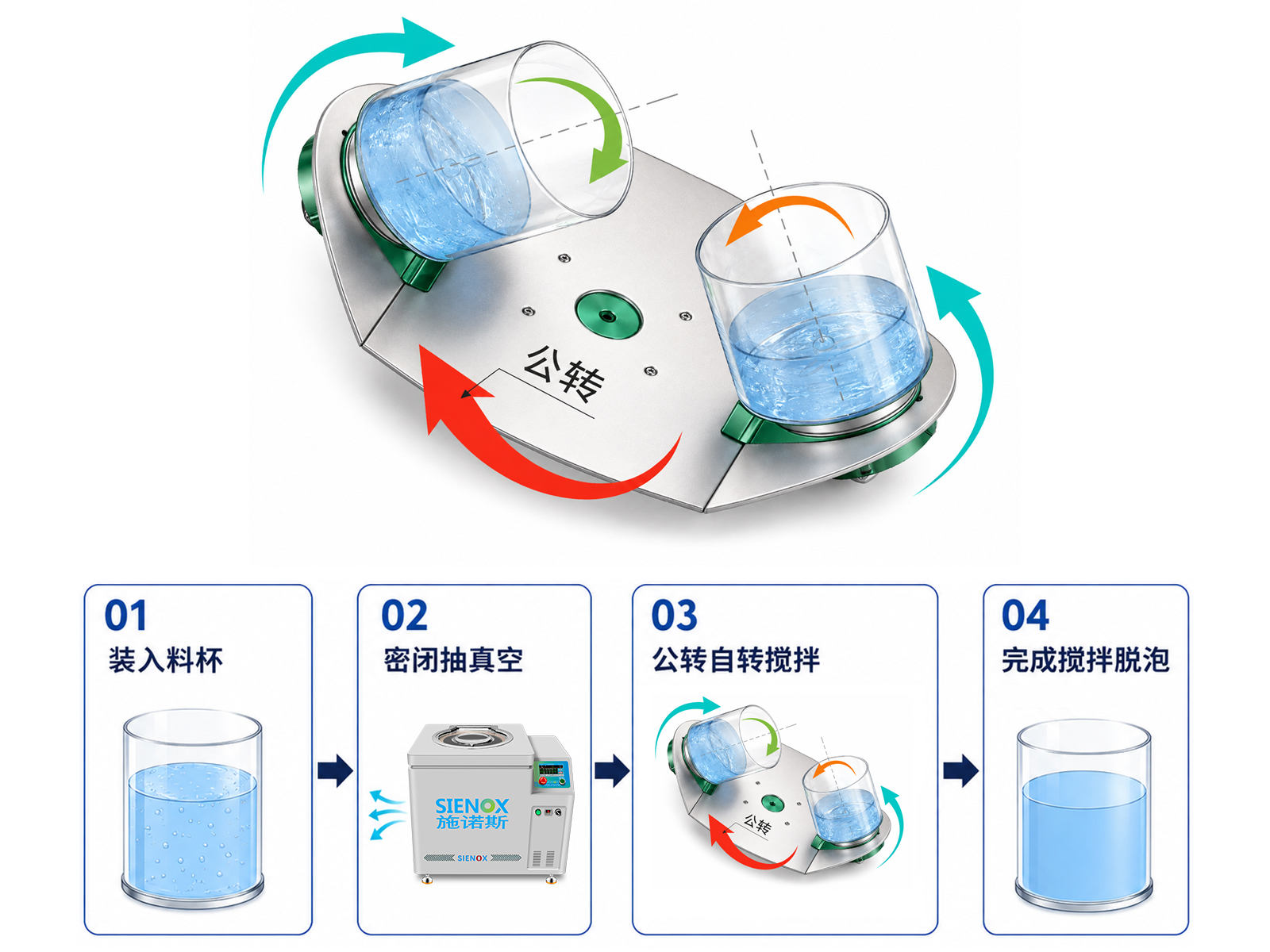

Working Principle

Adopts coordinated process of planetary revolution, container rotation, sealed vacuum defoaming and temperature control to realize one‑step mixing, temperature regulation and defoaming.

Planetary Revolution

Centrifugal force generated by main‑plate revolution spreads materials toward vessel wall, breaks powder agglomerates and mitigates stratification. The temperature‑control system runs simultaneously to keep materials within target temperature range.

Vessel Rotation

Reverse vessel rotation creates 360° fluid turbulence for full‑range homogeneous mixing. No impeller contact avoids material contamination. Optional fixed/adjustable revolution‑rotation ratio adapts to various‑viscosity materials.

Sealed Vacuum Defoaming

Sealed chamber pulls negative pressure to ‑98 kPa. Pressure difference expands micro‑/nano‑bubbles for floating‑out removal. Mixing and defoaming are accomplished within one single process segment.

Precise Temperature Control for Material Status

Temperature control runs through the whole mixing‑defoaming cycle: heating reduces viscosity for better fluidity and faster bubble release; cooling suppresses thermal degradation and manages exothermic reactions. Temperature regulation works inline without separate thermal‑control steps.


Coordinated planetary revolution, vessel rotation, sealed vacuum defoaming and dual‑mode temperature control complete the full workflow: mixing → dispersion → vacuum defoaming → thermal regulation in one step.



Technical Specifications

Complete Technical Specifications Overview, Customizable on Demand

ModelSIE‑MIX5000WK
Mixing Capacity0–5000 mL (standard vessel) * Customizable
Vessel TypeTubes / Jars / Cups; adapters for syringes & cartridges available
Vessel Quantity1 or 2 jars (optional)
Max Speed0‑1200 RPM (stepless adjustable)
Temperature ModeCooling / Heating
Vacuum LevelStandard:‑98 kPa / Optional:‑100 kPa
Control SystemTouch screen, stores 100 recipe sets
Power Supply220V, 50/60Hz (110V US/JP standard customizable)
Dimension(W×D×H)1370 × 1130 × 965 mm
Net Weight550 kg
CertificationsCE, ISO9001, RoHS Compliance


Our Partners

Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide

Partner Showcase

FAQ - Frequently Asked Questions

Answers to common questions about product performance and everyday process selection

  • What is the working principle of a centrifugal defoaming machine?

    Principle of centrifugal defoaming machine: The bubbles are released by the downward principle of gravity.

  • How is the after-sales service?

    The company has professional after-sales service personnel, 24-hour dedicated service, and one-on-one technical support to solve your worries.

  • Why choose SIENOX?

    There are many reasons for choosing SIENOX, and the following are some of the main reasons:

    1. Professionalism: Our team consists of a group of professional individuals with rich experience and knowledge in their respective fields. We not only understand industry trends and best practices, but also provide practical and feasible solutions.

    2. Service quality: We focus on customer needs and satisfaction, and are always committed to providing high-quality services. We not only respond quickly to customer needs, but also provide customized services according to their requirements.

    3. Reliability: We adhere to the principles of integrity and professionalism, always adhering to commitments and agreements. Our work methods and deliverables comply with industry standards and best practices, enabling our clients to trust us.

    4. Innovation: We continuously explore new methods and tools to provide better services and meet customer needs. We encourage innovation and experimentation, and are willing to accept challenges and change.

    5. Cost effectiveness: We provide cost-effective services that not only help customers save costs, but also improve efficiency and productivity. We always prioritize the interests of our customers and provide them with the best solutions.

    6. Teamwork: We believe in the power and value of teamwork, and our team members support, collaborate, and respect each other. We establish close cooperative relationships with customers, partners, and other stakeholders to achieve common goals.

    The above are just some of the reasons for choosing us. We believe there are many other advantages and values that can be provided to customers. If you are looking for a professional, reliable, and high-quality service provider, we look forward to working with you.


  • How does the stirring and defoaming machine work?

    The SIENOX stirring and defoaming machine performs defoaming through centrifugal force at revolution and stirring through shear force formed by revolution and rotation,

    Assisted by a vacuum pump to extract gas and achieve a vacuum state, removing nanoscale tiny bubbles. No contact with materials, no secondary pollution, and no secondary waste.

  • What is the function of a defoaming machine?

    A defoaming machine is a device used to remove bubbles from liquids. Its function is to assist in the liquid mixing, reaction, coating, printing, infusion and other process steps in the production process, avoiding the generation of bubbles and their impact on the final product. In many industrial and laboratory environments, removing bubbles is essential as they may have a negative impact on product quality, such as affecting surface tension and stability. Defoaming machines typically use various techniques such as vibration, ultrasound, centrifugation, etc. to achieve effective bubble removal. It has a wide range of applications, including but not limited to semiconductors, solar energy, optics, biotechnology, materials science, etc.

Technical Specification List

Full‑line standardized specifications for accurate process evaluation and equipment selection

ModelSIE‑MIX2000WKSIE‑MIX5000WKSIE‑MIX15LWK
Mixing Capacity0‑2000 mL (standard vessel) * Customizable0‑5000 mL (standard vessel) * Customizable0‑15L (standard vessel) * Customizable
Vessel TypeTubes / Jars / Cups; adapters for syringes & cartridges availableTubes / Jars / Cups; adapters for syringes & cartridges availableTubes / Jars / Cups; adapters for syringes & cartridges available
Vessel Quantity1 or 2 jars (optional)1 or 2 jars (optional)1 or 2 jars (optional)
Max Speed0‑2000 RPM (stepless adjustable)0‑1200 RPM (stepless adjustable)100‑600 RPM (stepless adjustable)
Temperature ModeCooling / HeatingCooling / HeatingCooling / Heating
Vacuum LevelStandard:‑98 kPa / Optional:‑100 kPaStandard:‑98 kPa / Optional:‑100 kPaStandard:‑98 kPa / Optional:‑100 kPa
Control SystemTouch screen, stores 100 recipe setsTouch screen, stores 100 recipe setsTouch screen, stores 100 recipe sets
Power Supply220V, 50/60Hz (110V US/JP standard customizable)220V, 50/60Hz (110V US/JP standard customizable)220V, 50/60Hz (110V US/JP standard customizable)
Dimension(W×D×H)1100 × 780 × 880 mm1370 ×1130 × 965 mm1735 × 1560 × 965 mm
Net Weight225 kg550 kg830 kg

***Above are typical models, customized solutions available upon customer requirements.


Multi‑Industry Solutions

Provide customized solutions to meet comprehensive demands from cutting‑edge R&D to large‑scale mass production


Lithium‑battery Industry

Lithium‑battery cathode slurry, anode slurry, electrolyte, diaphragm coating liquid, conductive slurry

New Energy.jpg

PV & Energy Storage Industry

PV EVA film, energy‑storage electrode slurry, fuel‑cell catalyst‑layer slurry, proton‑exchange‑membrane slurry

LED Raw Material 02.jpg

Encapsulation Material Industry

Semiconductor encapsulant, LED phosphor powder, insulating black glue, molding compound, underfill adhesive

Semiconductor Encapsulation.jpg

Conductive Material Industry

Conductive silver adhesive, conductive silver paste, gold paste, electronic solder paste, conductive ceramic slurry

Polyurethane Structural Adhesive.jpg

Adhesive Industry

Structural adhesive, epoxy sealant, silicone sealant, hot‑melt adhesive, polyurethane adhesive

Composite Material.jpg

Advanced‑material Industry

Resin intermediate, catalyst slurry, functional coating liquid, ceramic slurry, nano‑composite material

Comprehensive Equipment Operation Demo Videos

Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.

Measured Defoaming‑Process Performance

Thoroughly eliminate material bubbles, voids and stratification

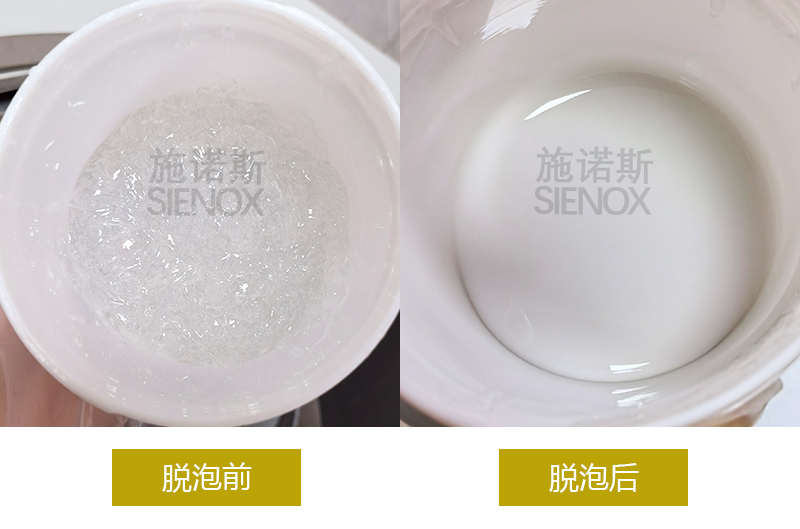

High‑viscosity Resin.jpg

High‑viscosity Resin

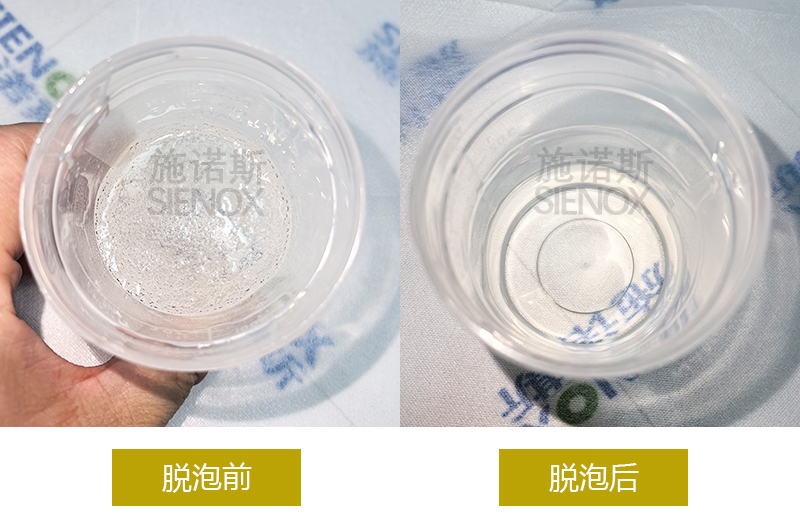

Optoelectronic Epoxy Resin.jpg

Optoelectronic Epoxy Resin

Biogel Mixing & Defoaming.jpg

Biogel

High‑viscosity Adhesive Before‑after Defoaming.jpg

High‑viscosity Adhesive

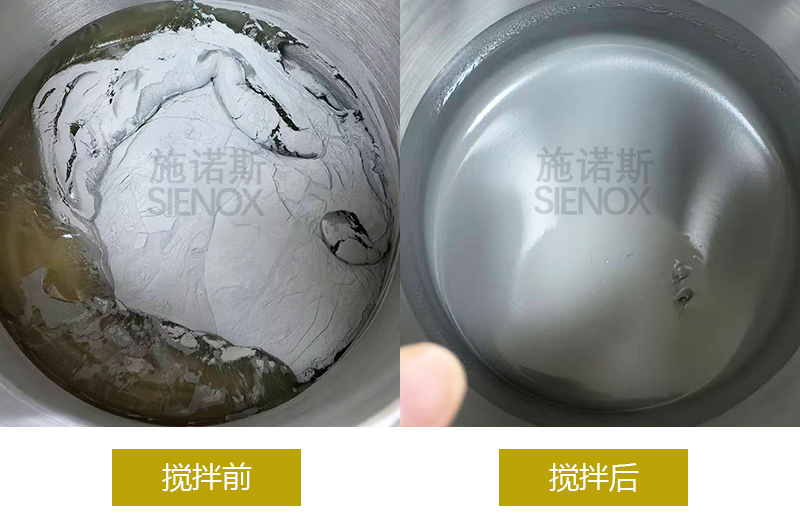

Silver Paste Mixing & Defoaming.jpg

Silver Paste

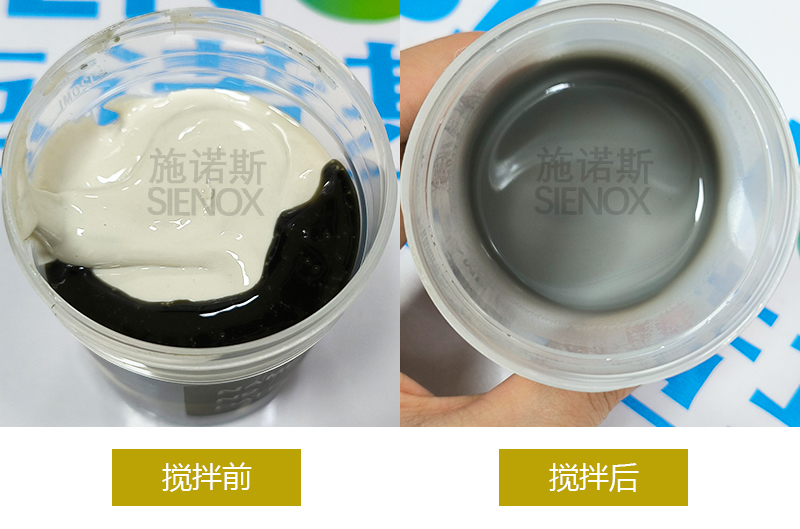

Structural Adhesive Defoaming Comparison.jpg

Structural Adhesive


Measured Data Comparison

Quantifiable Effects Validated by Test Data

Material TypePre‑treatment StatusAfter MIX5000WK Treatment
Lithium‑battery Cathode SlurryHeavy internal bubbles, ~6% coating pinhole rate, large thickness deviationBubbles removed, low pinhole rate, uniform coating thickness
Semiconductor EncapsulantDense internal bubbles, ~5% encapsulation void rate, unstable heat dissipationBubbles removed, low void rate, stable heat dissipation
Epoxy Structural AdhesiveDense internal bubbles, ±25% bonding‑strength deviation, voids on load‑bearing surfaceBubbles removed, ±5% bonding‑strength deviation, continuous load‑bearing surface

* Internal lab test data. Actual improvement varies with material formulation. Contact sales for real‑world customer cases.

Customer Delivery & Application Cases

Rooted in manufacturing frontlines, empowering benchmark production lines and key national research institutions across diverse industries.



Stirring‑Defoaming Solution for Glue Materials in Consumer‑Electronics Industry



Vacuum Defoaming Solution for Consumer Electronics Adhesives



Industrial University Solves Bubble Challenges of Coating‑Film Materials with SIENOX Defoaming Machine
