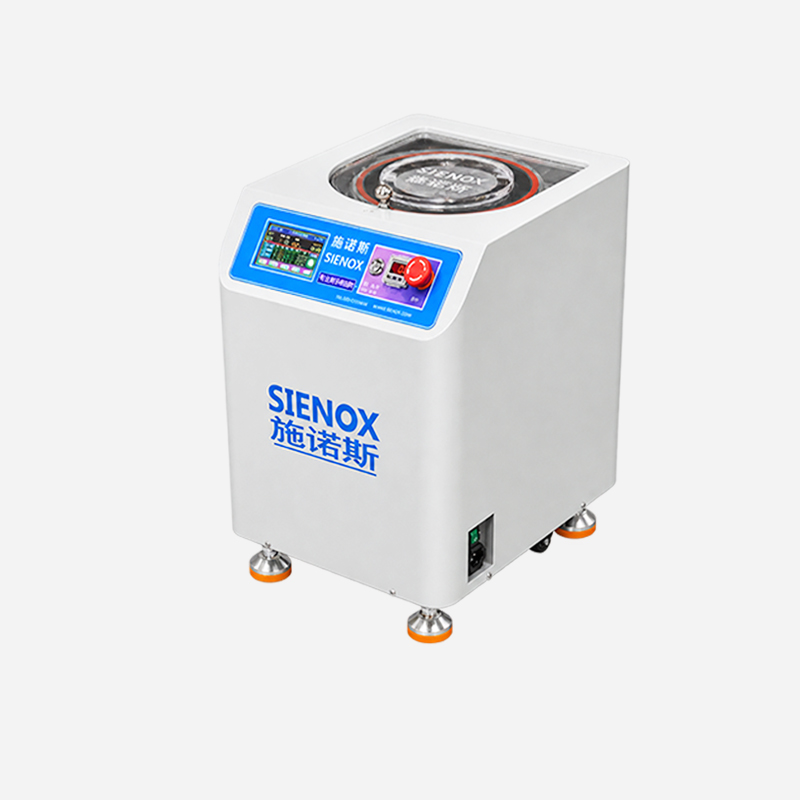

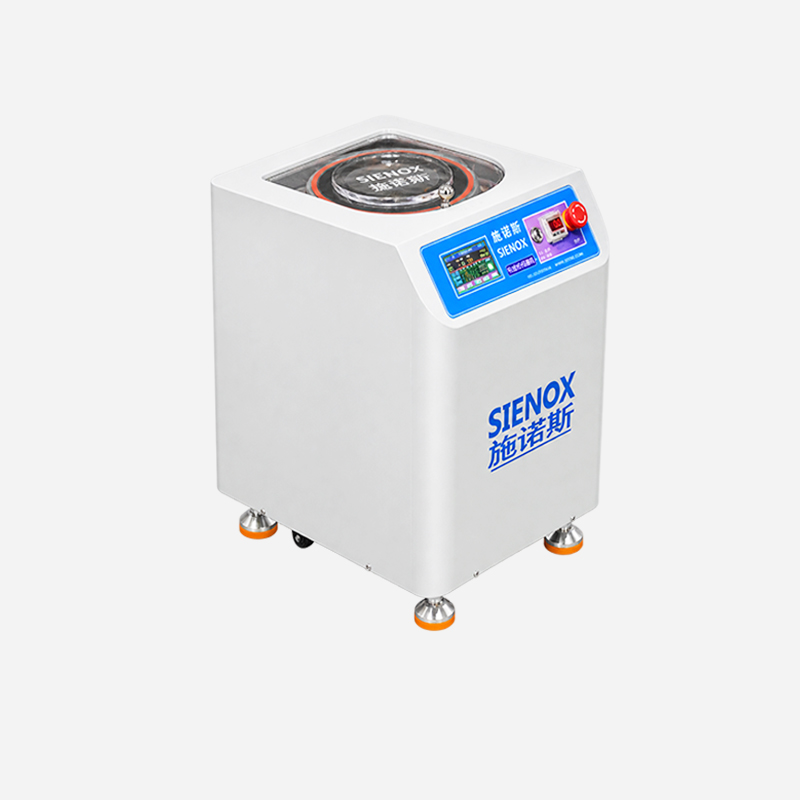

SIENOX Planetary Mixer‑Defoamer, SIE‑MIXF301
Freely‑Adjustable Revolution‑Rotation Ratio · One Unit for Multiple Material Processes
300 mL R&D Capacity + Adjustable Speed Ratio + 100 Recipe Memory
SIENOX SIE‑MIXF301 is a planetary mixer‑defoamer with adjustable revolution‑rotation ratio, designed for R&D and pilot‑test scenarios requiring flexible parameter tuning. Built upon MIX60 platform with added adjustable‑ratio function, it allows researchers to modify the ratio between revolution and rotation according to material properties, so as to obtain optimized mixing intensity and dispersion performance.
✓ CE Certification ✓ FCC Certification ✓ ISO9001 Quality Management System ✓ RoHS Compliance ✓ Custom voltage available (110V/220V)
Why Must Microbubbles in Materials Be Eliminated?
Micro bubbles trapped inside materials directly impair product performance and the accuracy of process validation
Automotive ElectronicsBubbles in epoxy potting compounds for automotive ECUs and sensors cause partial discharge and degraded insulation, leading to component failure under long‑term vehicle vibration. Automotive‑grade standards demand void‑free potting layers; micro‑bubbles directly result in failed reliability tests. | Wearable DevicesIn dispensing processes for smartwatches and TWS earbuds, adhesive bubbles weaken bonding strength and trigger detachment during drop tests. Miniature packaging requires highly uniform glue layers; invisible micro‑bubbles also reduce production yield. | Composite MaterialsBubbles inside resin‑based composites turn into internal voids after curing, lowering interlaminar shear strength and impact resistance. Bubbles within prepreg resin impair fiber wet‑out and cause unsatisfactory mechanical performance of finished composites. |
✨ Drawbacks of traditional methods: Manual / impeller mixing entrains air; static degassing is slow and ineffective. Fixed‑ratio machines yield inconsistent results. Adjustable‑ratio planetary system tunes speed ratio for material‑specific mixing‑defoaming.
Why Choose SIE-MIXF301
Three Core Highlights for R&D Pilot Process Optimization
Adjustable Speed RatioThe key advantage of MIXF301 lies in freely adjustable revolution‑rotation speed ratio. Materials vary greatly in viscosity, particle size and density, and fixed‑ratio machines cannot deliver satisfactory mixing‑defoaming performance for all materials. With tunable speed ratio, researchers can set proper revolution‑rotation proportion for each material, strike a balance between mixing efficiency and defoaming effect, and realize process parameter optimization. | Process ValidationThe 300 mL capacity fits sample preparation in R&D and pilot‑scale tests. It provides sufficient volume for parameter verification without excessive material waste. 100‑recipe memory saves tuned speed‑ratio settings in one click. Different parameters for various materials can be quickly recalled for result reproduction. One unit covers the whole workflow from R&D exploration to pilot validation. | Wide CompatibilitySingle MIXF301 can replace multiple fixed‑ratio units. Tunable speed ratio adapts to adhesives, slurries, resins and other materials. Dual‑jar design processes two samples simultaneously for comparative experiments. Non‑contact mixing lowers contamination risk. Switch between materials simply by changing vessels without cleaning, ideal for frequent material‑switching in R&D labs. |
✨ Integrating adjustable speed ratio, process validation and flexible compatibility, the MIXF301 serves as an ideal device for material process parameter optimization and verification in R&D and pilot-scale stages.
Working Principle
Dual synchronous revolution and rotation drive with adjustable speed ratio enables flexible optimization for various materials.
Step 1: Centrifugal Force from Revolution High‑speed rotating revolution plate generates strong centrifugal force on materials inside vessels to drive full‑range convection for macro‑mixing. Meanwhile, centrifugal force pushes low‑density bubbles toward the rotating axis for bubble aggregation and release. Step 2: Shear Force from Rotation Vessels spin around their own axis to produce directional shear force, breaking agglomerated particles for micro‑dispersion. Shear force also thins bubble membranes to accelerate bubble collapse. Step 3: Speed‑Ratio Tuning for Optimized Performance Revolution‑rotation speed ratio can be freely adjusted according to material properties. Higher revolution proportion strengthens centrifugal defoaming for high‑viscosity materials; higher rotation proportion boosts shear dispersion for easily‑agglomerated substances. Tuning the ratio finds proper parameters to balance mixing and defoaming performance. Revolution and rotation run synchronously to complete the full workflow of "mixing → dispersion → defoaming" inside sealed vessels. Adjustable speed ratio enables one single unit to handle multiple material processes without investing in multiple machines. |  |
Technical Specifications at a Glance
Complete Technical Specifications Overview, Customizable on Demand
| Model | SIE‑MIXF301 |
| Mixing Capacity | 0‑300 mL (standard vessel) * Larger volume upon custom request |
| Vessel Type | Tube / Can / Jar; adapters for syringes & cartridges available |
| Vessel Quantity | 1 or 2 jars (user‑selectable) |
| Max Speed | 0‑3000 RPM (stepless adjustable) |
| Revolution / Rotation Ratio | Freely adjustable |
| Vacuum Level | Standard: –98 kPa / Optional: –100 kPa |
| Control System | Touch‑screen, stores up to 100 recipe sets |
| Power Supply | 220V, 50/60Hz (110V US/JP standard optional) |
| Dimensions (W×D×H) | 510 × 430 × 500 mm |
| Net Weight | Approx. 115 kg |
| Certifications | CE, FCC, ISO9001, RoHS Compliance |
Our Partners
Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide
FAQ - Frequently Asked Questions
Answers to common questions about product performance and everyday process selection
-
脱泡机的作用是什么？
脱泡机是一种用于去除液体中的气泡的设备。它的作用在于帮助生产过程中的液体混合、反应、涂布、印刷、灌注等工艺环节，避免气泡的产生和对最终产品的影响。在许多工业和实验室环境中，去除气泡是非常必要的，因为气泡可能会对产品质量产生负面影响，如影响表面张力和稳定性等问题。脱泡机通常采用各种不同的技术，如振动、超声波、离心等，以实现有效的气泡去除。它的应用领域广泛，包括但不限于半导体、太阳能、光学、生物技术、材料科学等。
-
售后服务怎么样？
公司拥有专业的售后服务人员，24小时专人服务，一对一提供技术支持，解决您的后顾之忧。
-
为什么要选择施诺斯？
选择施诺斯的原因有很多，以下是一些主要的原因：
1. 专业性：我们的团队由一群专业的人士组成，他们在各自的领域拥有丰富的经验和知识。我们不仅了解行业趋势和最佳实践，而且还能提供切实可行的解决方案。
2. 服务质量：我们注重客户的需求和满意度，始终致力于提供高质量的服务。我们不仅快速响应客户需求，而且还能根据客户的要求进行定制化服务。
3. 可靠性：我们以诚信和专业精神为宗旨，始终遵守承诺和协议。我们的工作方法和交付成果均符合行业标准和最佳实践，使得我们的客户能够信任我们。
4. 创新性：我们不断探索新的方法和工具，以提供更好的服务并满足客户的需求。我们鼓励创新和实验，并愿意接受挑战和改变。
5. 成本效益：我们提供高性价比的服务，不仅能够帮助客户节省成本，而且还能提高效率和生产力。我们始终以客户的利益为出发点，为客户提供最优的解决方案。
6. 团队合作：我们相信团队的力量和合作的价值，我们的团队成员之间互相支持、协作和尊重。我们与客户、合作伙伴和其他利益相关者建立紧密的合作关系，以实现共同的目标。
以上只是选择我们的部分原因，我们相信还有很多其他的优点和价值可以为客户提供。如果您正在寻找一家专业、可靠、高质量的服务提供商，我们非常期待与您的合作。
-
搅拌脱泡机的工作原理？
施诺斯搅拌脱泡机通过公转的离心力进行脱泡，通过公转与自转形成的剪切力进行搅拌，
再辅助以真空泵抽取气体以达到真空状态，去除纳米级微小气泡。 不接触物料，无二次污染，无二次浪费。
-
施诺斯能提供工程咨询技术服务吗？
施诺斯能为广大客户提供全面的工程和现代化的咨询服务。施诺斯近二十年的搅拌经验，可以为你提供高效的咨询服务。
想要让搅拌机性能更上一层楼，提升系统的整体效能？我们有全面的咨询、工程以及现代化改造服务，为您量身打造解决方案。 在如今竞争激烈的全球化浪潮中，唯有不断创新、持续优化，才能始终跑在对手前面。您的生产工艺和产品日新月异，我们就为您提供最适配的混合技术。不管是新的产品参数，还是既有的工艺条件，我们都能对现有系统和搅拌设备进行全方位的检查与评估，挖掘其中潜藏的流程优化空间和机械性能提升潜力，并且帮您把这些改进切实落地。 要是您的搅拌设备已经跟不上时代步伐，能耗居高不下，或是维护成本让您头疼不已，那就别犹豫，我们的咨询、工程设计和现代化改造服务，就是为您排忧解难的良方。欢迎随时联系我们，携手开启高效生产新征程！
Technical Specification List
Compare Models in the Same Series for Accurate Selection
| Model | SIE‑MIX60 | SIE‑MIXF301 | SIE‑MIX90 |
| Mixing Capacity | 0‑300 mL (standard vessel) * Customizable | 0‑300 mL (standard vessel) * Customizable | 0‑1000 mL (standard vessel) * Customizable |
| Vessel Type | Tube / Can / Jar; adapters for syringes & cartridges available | Tube / Can / Jar; adapters for syringes & cartridges available | Tube / Can / Jar; adapters for syringes & cartridges available |
| Vessel Quantity | 1 or 2 jars (user‑selectable) | 1 or 2 jars (user‑selectable) | 1 or 2 jars (user‑selectable) |
| Max Speed | 0‑3000 RPM (stepless adjustable) | 0‑2000 RPM (stepless adjustable) | 0‑2000 RPM (stepless adjustable) |
| Revolution / Rotation Ratio | Fixed planetary ratio | Freely adjustable | Fixed planetary ratio |
| Vacuum Level | Standard: –98 kPa / Optional: –100 kPa | Standard: –98 kPa / Optional: –100 kPa | Standard: –98 kPa / Optional: –100 kPa |
| Control System | Touch‑screen, stores up to 100 recipe sets | Touch‑screen, stores up to 100 recipe sets | Touch‑screen, stores up to 100 recipe sets |
| Power Supply | 220V, 50/60Hz (110V US/JP standard optional) | 220V, 50/60Hz (110V US/JP standard optional) | 220V, 50/60Hz (110V US/JP standard optional) |
| Dimensions (W×D×H) | 510 × 430 × 500 mm | 510 × 430 × 500 mm | 610 × 560 × 780 mm |
| Net Weight | 95 kg | 115 kg | 153 kg |
| Certifications | CE, FCC | CE, FCC | CE, FCC |
*** Models shown are typical configurations. SIENOX provides customized solutions according to customer requirements for model selection.
Multi‑Industry Solutions
Covers Mixing & Defoaming Applications for Typical Materials in Six Major Industries
Automotive ElectronicsEpoxy potting compound, thermal conductive gel, sealant, automotive‑grade adhesive, sensor encapsulation adhesive |
Wearable DevicesDispensing adhesive, encapsulation glue, UV adhesive, conductive adhesive, micro‑component bonding glue |
Composite MaterialsEpoxy resin system, prepreg resin, structural adhesive, fiber impregnating glue, interlayer adhesive |
Precision OpticsOptical adhesive, lens bonding glue, refractive index matching adhesive, optical silicone, UV‑curing adhesive |
Advanced Building MaterialsSealant, waterproof coating, structural adhesive, grouting material, functional coating |
Textile CoatingCoating adhesive, finishing agent, waterproof agent, flame‑retardant coating, functional coating slurry |
Comprehensive Equipment Operation Demo Videos
Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.
Actual Test Results of Defoaming Process
Measured Processing Results for Six Typical Materials
Paste‑like Materials |
Adhesive & Powder |
Polymer Materials |
Pharmaceutical Gels |
Silver Paste Materials |
Battery Slurries |
Measured Data Comparison
Material Before‑and‑after Degassing Comparison
Material Type | Condition Before Treatment | After MIX60 Treatment |
Thermal Conductive Gel | Dense micro‑bubbles unevenly distributed inside gel, unstable thermal conductivity | Smooth bubble‑free gel with qualified thermal conductivity and uniform heat distribution |
Epoxy Potting Compound | Plenty of bubbles inside adhesive, poor fluidity, obvious internal voids after curing | Smooth and fluent slurry without residual bubbles, flat coated surface with consistent coating thickness |
Copper Paste | Severe copper‑powder agglomeration & sedimentation, surface bubbles, unstable electrical conductivity | Evenly dispersed copper powder, smooth bubble‑free slurry, stable electrical performance |
* Internal lab test data. Actual improvement varies by material formulation. Contact sales for real‑world customer references.
