Extra‑Large Planetary Vacuum Mixer‑Degasser SIE‑MIX20L
20L Large‑Volume Production‑Oriented · Integrated Mixing & Degassing Equipment for High‑Viscosity Slurries
0‑50L Customizable Capacity + Planetary Revolution‑Rotation Mixing + Synergistic Vacuum Negative Pressure
The SIE‑MIX20L Vacuum Mixer‑Degasser covers 0‑20L mixing and degassing applications. Dual‑drive revolution‑rotation mixing is combined with optional ‑98 kPa vacuum environment. Its low‑speed heavy‑duty structure handles high‑viscosity large‑batch materials, achieving consistent mixing density, uniform dispersion and significant micro‑bubble removal. It is ideal for mass‑production vacuum degassing of lithium‑ion battery electrode slurries, fuel‑cell materials, industrial structural adhesives and more. Capacity customization is available with complete one‑stop solutions.
✓ CE Certification ✓ FC Certification ✓ ISO9001 Quality Management System ✓ RoHS Compliance ✓ Customizable Voltage (110V/220V)
Why Must Microbubbles in Materials Be Eliminated?
Residual micro‑bubbles in ultra‑large‑batch high‑viscosity materials directly affect product yield and performance stability.
Battery IndustryBubbles in lithium‑ion battery cathode and anode slurries cause uneven coating areal density, impairing battery capacity consistency and cycle life. Bubbles in solid‑electrolyte slurries result in poor interfacial contact and reduced ion‑conducting efficiency. For mass‑production of 20L‑grade large‑batch slurries, uneven bubble distribution across bulk material triggers quality fluctuations among battery batches, placing high demands on degassing‑process consistency. | Energy IndustryBubbles in fuel‑cell catalyst‑layer slurries bring about uneven catalyst‑layer coating, lowering catalytic efficiency and battery power output. Bubbles in energy‑storage‑material slurries degrade electrode‑coating uniformity and reduce energy density as well as charge‑discharge stability. In mass production of energy materials, bubble issues directly affect product yield and production‑line efficiency. | Adhesive & Sealant IndustryBubbles inside industrial structural adhesives weaken bonding strength and undermine load‑bearing capacity and durability of structural components. Bubbles in sealants create discontinuous sealing surfaces and bring leakage risks. During 20L‑scale mass production of adhesives, high‑viscosity materials suffer difficult bubble removal. Batch‑to‑batch processing leads to discrepancies in viscosity and bubble content, hurting downstream‑product consistency. |
✨ Challenges of conventional degassing: Manual mixing is barely feasible for ultra‑large‑batch high‑viscosity materials. Conventional small‑capacity equipment requires multiple batch processing. High‑viscosity materials involve extremely time‑consuming material change‑over and cleaning, and batch‑to‑batch consistency is hard to guarantee. Static degassing delivers limited effect for high‑viscosity materials and takes substantial time. The 20L large‑volume vacuum mixer‑degasser applies ‑98 kPa negative vacuum pressure alongside planetary mixing. It processes 20L materials in a single run, minimizing batch‑splitting times and ensuring consistency for ultra‑large‑volume production.
Why choose MIX20L
Engineered for ultra‑large‑capacity heavy‑industrial‑grade vacuum degassing mass‑production scenarios
20L Ultra‑Large Dual‑StationStandard dual‑bucket loading of 20L per cycle. Heavy‑duty transmission handles ultra‑high‑viscosity materials, expandable up to 35L large‑volume capacity for round‑the‑clock continuous factory mass production. | Heavy‑Duty Transmission StructureReinforced frame and enhanced gear set deliver high torque at low rotating speed, restraining sedimentation of heavy powders and enabling long‑term uninterrupted stable operation. | Production‑Line‑Grade Intelligent ControlMulti‑level authority touch‑screen operation with multiple stored production recipes. MES system integration available, full‑process data logging and multi‑channel safety interlock protection. |
✨ When production requirements reach the 20L scale and high‑viscosity ultra‑large‑batch materials need to be processed, the MIX20L stands as the flagship option within the vacuum mixer‑degasser series for this capacity class.
Working Principle
Adopts synergistic process combining planetary revolution, vessel rotation and closed high‑vacuum environment.
Planetary Revolution: The high‑power heavy‑duty main shaft drives the carrier plate for low‑speed high‑torque revolution, delivering steady centrifugal force to press high‑solid‑content and heavy‑powder materials against vessel inner walls and mitigate sedimentation and delamination of high‑density powders. Vessel Rotation: Dual vessels rotate synchronously in reverse directions to generate extensive 3‑D fluid shear fields inside containers. No mixing impellers contact materials, lowering risks of metal particle contamination, suitable for heavy pastes and slurries. High‑Flow Vacuum Defoaming: The widened sealed chamber paired with a high‑power vacuum pump rapidly maintains stable ‑98kPa negative pressure. Deep‑seated micro and nano‑bubbles inside materials rise, separate and exhaust under pressure difference. Mixing and defoaming proceed simultaneously to eliminate separate defoaming steps and satisfy high‑speed mass‑production demands of large‑scale factories. |  |
Technical Specifications
Complete Technical Specifications Overview, Customizable on Demand
| Model | SIE‑MIX20L |
| Mixing Capacity | 0–15L (standard vessel) * Customizable |
| Vessel Type | Test tube / can / cup; adapters for syringes & cartridges available |
| Vessel Quantity | 1 or 2 cans (user‑selectable) |
| Max Speed | 0 – 600 RPM (stepless adjustable) |
| Revolution / Rotation Ratio | Fixed planetary ratio |
| Vacuum Degree | Standard: –98 kPa / Optional: –100 kPa |
| Control System | Touch screen, stores up to 100 recipe sets |
| Power Supply | 220V, 50/60Hz (110V US/JP standard customizable) |
| Dimensions(W×D×H) | 1735 × 1560 × 965 mm |
| Net Weight | 830kg |
| Certifications | CE, FCC, ISO9001, RoHS Compliance |
Our Partners
Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide
FAQ - Frequently Asked Questions
Answers to common questions about product performance and everyday process selection
-
脱泡机的作用是什么？
脱泡机是一种用于去除液体中的气泡的设备。它的作用在于帮助生产过程中的液体混合、反应、涂布、印刷、灌注等工艺环节，避免气泡的产生和对最终产品的影响。在许多工业和实验室环境中，去除气泡是非常必要的，因为气泡可能会对产品质量产生负面影响，如影响表面张力和稳定性等问题。脱泡机通常采用各种不同的技术，如振动、超声波、离心等，以实现有效的气泡去除。它的应用领域广泛，包括但不限于半导体、太阳能、光学、生物技术、材料科学等。
-
售后服务怎么样？
公司拥有专业的售后服务人员，24小时专人服务，一对一提供技术支持，解决您的后顾之忧。
-
为什么要选择施诺斯？
选择施诺斯的原因有很多，以下是一些主要的原因：
1. 专业性：我们的团队由一群专业的人士组成，他们在各自的领域拥有丰富的经验和知识。我们不仅了解行业趋势和最佳实践，而且还能提供切实可行的解决方案。
2. 服务质量：我们注重客户的需求和满意度，始终致力于提供高质量的服务。我们不仅快速响应客户需求，而且还能根据客户的要求进行定制化服务。
3. 可靠性：我们以诚信和专业精神为宗旨，始终遵守承诺和协议。我们的工作方法和交付成果均符合行业标准和最佳实践，使得我们的客户能够信任我们。
4. 创新性：我们不断探索新的方法和工具，以提供更好的服务并满足客户的需求。我们鼓励创新和实验，并愿意接受挑战和改变。
5. 成本效益：我们提供高性价比的服务，不仅能够帮助客户节省成本，而且还能提高效率和生产力。我们始终以客户的利益为出发点，为客户提供最优的解决方案。
6. 团队合作：我们相信团队的力量和合作的价值，我们的团队成员之间互相支持、协作和尊重。我们与客户、合作伙伴和其他利益相关者建立紧密的合作关系，以实现共同的目标。
以上只是选择我们的部分原因，我们相信还有很多其他的优点和价值可以为客户提供。如果您正在寻找一家专业、可靠、高质量的服务提供商，我们非常期待与您的合作。
-
搅拌脱泡机的工作原理？
施诺斯搅拌脱泡机通过公转的离心力进行脱泡，通过公转与自转形成的剪切力进行搅拌，
再辅助以真空泵抽取气体以达到真空状态，去除纳米级微小气泡。 不接触物料，无二次污染，无二次浪费。
-
施诺斯能提供工程咨询技术服务吗？
施诺斯能为广大客户提供全面的工程和现代化的咨询服务。施诺斯近二十年的搅拌经验，可以为你提供高效的咨询服务。
想要让搅拌机性能更上一层楼，提升系统的整体效能？我们有全面的咨询、工程以及现代化改造服务，为您量身打造解决方案。 在如今竞争激烈的全球化浪潮中，唯有不断创新、持续优化，才能始终跑在对手前面。您的生产工艺和产品日新月异，我们就为您提供最适配的混合技术。不管是新的产品参数，还是既有的工艺条件，我们都能对现有系统和搅拌设备进行全方位的检查与评估，挖掘其中潜藏的流程优化空间和机械性能提升潜力，并且帮您把这些改进切实落地。 要是您的搅拌设备已经跟不上时代步伐，能耗居高不下，或是维护成本让您头疼不已，那就别犹豫，我们的咨询、工程设计和现代化改造服务，就是为您排忧解难的良方。欢迎随时联系我们，携手开启高效生产新征程！
Technical Specification List
Compare specifications of vacuum‑series models to support accurate product selection.
| Model | SIE‑MIX5000 | SIE‑MIX15L | SIE‑MIX20L |
| Mixing Capacity | 0–5000 mL (standard vessel) * Customizable | 0–15L (standard vessel) * Customizable | 0–20L (standard vessel) * Customizable |
| Vessel Type | Test tube / can / cup; adapters for syringes & cartridges available | Test tube / can / cup; adapters for syringes & cartridges available | Test tube / can / cup; adapters for syringes & cartridges available |
| Vessel Quantity | 1 or 2 cans (user‑selectable) | 1 or 2 cans (user‑selectable) | 1 or 2 cans (user‑selectable) |
| Max Speed | 0 – 1200 RPM (stepless adjustable) | 0 – 800 RPM (stepless adjustable) | 0 – 600 RPM (stepless adjustable) |
| Revolution / Rotation Ratio | Fixed planetary ratio | Fixed planetary ratio | Fixed planetary ratio |
| Vacuum Degree | Standard: –98 kPa / Optional: –100 kPa | Standard: –98 kPa / Optional: –100 kPa | Standard: –98 kPa / Optional: –100 kPa |
| Control System | Touch screen, stores up to 100 recipe sets | Touch screen, stores up to 100 recipe sets | Touch screen, stores up to 100 recipe sets |
| Power Supply | 220V, 50/60Hz (110V US/JP standard customizable) | 220V, 50/60Hz (110V US/JP standard customizable) | 220V, 50/60Hz (110V US/JP standard customizable) |
| Dimensions(W×D×H) | 1370 ×1130 × 965mm | 1735 × 1560 × 965 mm | 1870 × 1380 × 1160 mm |
| Net Weight | 550kg | 830 kg | 900 kg |
| Certifications | CE, FCC | CE, FCC | CE, FCC |
***Above are typical models only. Customized solutions are available upon customer requirements.
Multi‑Industry Solutions
Customized solutions are available to meet comprehensive requirements ranging from cutting‑edge R&D to mass‑scale production.
电池行业锂电池正极浆料、锂电池负极浆料、固体电解质浆料、电池隔膜涂层液、电池导电浆料 |
能量行业燃料电池催化层浆料、质子交换膜浆料、储能电极浆料、超级电容器浆料、电解液添加剂 |
粘合剂和密封剂行业工业结构胶、环氧密封胶、聚硫密封胶、硅酮结构胶、热熔胶浆料 |
化工行业化工浆料、树脂中间体、催化剂浆料、功能涂层液、反应型胶粘剂 |
电子行业电子封装胶、导电银胶、绝缘黑胶、LED荧光粉、半导体封装料 |
医疗器械行业医用导管胶、医用传感器封装胶、牙科树脂、医用透明凝胶、无菌粘接胶 |
Comprehensive Equipment Operation Demo Videos
Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.

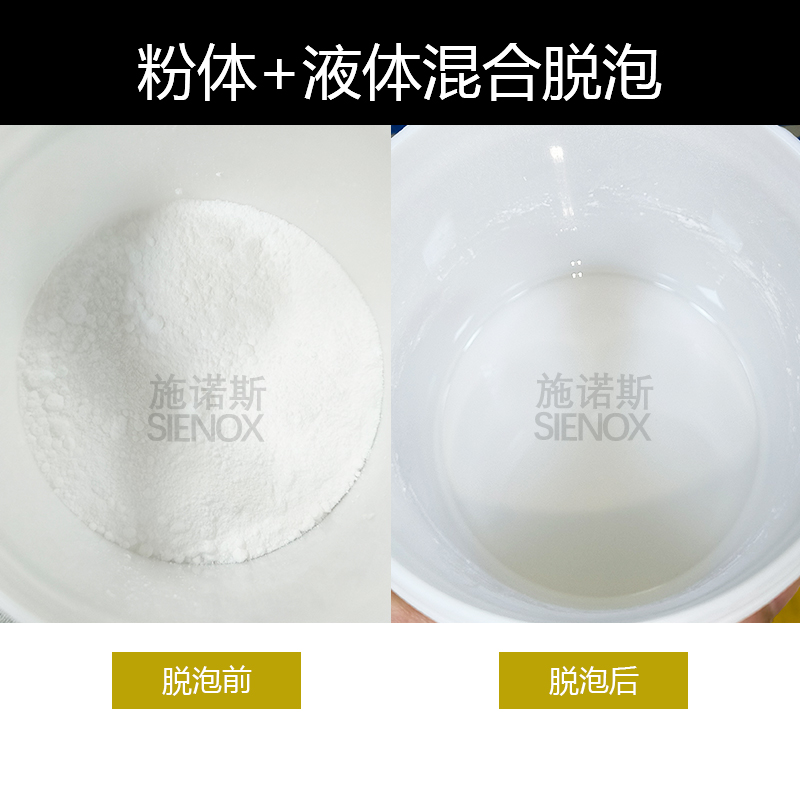

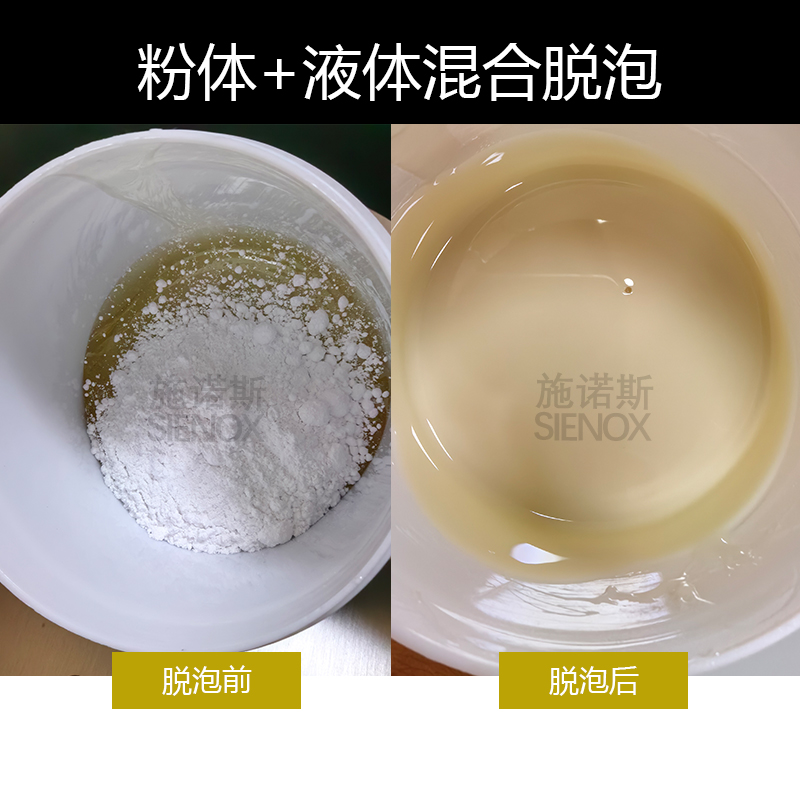

Actual Test Results of Defoaming Process
Actual Test Results of Defoaming Process
AB胶水 |
灌封胶 |
电子浆料+胶粘剂 |
结构胶 |
凝胶 |
生物凝胶 |
Measured Data Comparison
Verified by Data · Quantifiable Performance
| Material Type | Condition Before Processing | After MIX20L Processing |
| Lithium‑ion Battery Cathode Slurry | Numerous bubbles inside slurry, coating areal density deviation ±15%, large fluctuation in battery capacity | Bubbles eliminated, coating areal density deviation ±3%, improved battery capacity consistency |
| Industrial Structural Adhesive | Dense bubbles in adhesive, bonding‑strength deviation ±25%, cavities exist on load‑bearing surfaces | Bubbles eliminated, bonding‑strength deviation ±5%, continuous cavity‑free load‑bearing surfaces |
| Fuel‑Cell Catalyst‑Layer Slurry | Numerous bubbles within slurry, uneven catalyst‑layer coating, catalytic‑efficiency deviation ±20% | Homogeneous dispersion and bubble removal, catalytic‑efficiency deviation ±5% |
* Internal laboratory test data. Actual improvement varies with material formulation. Contact sales for real‑world customer case references.
