Structural Adhesive Defoaming Machine


Eliminate Mixing Bubbles and Bonding Voids in Structural Adhesives · Dense Adhesive Layer & Stable Bonding Strength

Simultaneous Mixing & Defoaming + Dense Adhesive Layer with Stable Strength + Non-contact Operation Without Changing Mixing Ratio

SIENOX structural adhesive defoaming solution addresses air entrapment and void formation in adhesive layers after mixing structural adhesives such as acrylic and modified epoxy. Mixing and defoaming are performed synchronously under vacuum to achieve dense and uniform adhesive layers with stable and reliable bonding strength.

✓ CE Certification  ✓ ISO9001 Quality System ✓ RoHS Compliance ✓ Custom Voltage Available (110V/220V)

Online Message Free Sample Testing Engineer Hotline: 189-2512-9293

Why Structural Adhesive Defoaming Machine Is Required

Metal Structural Bonding

When structural adhesives are used for bonding metal parts and sheet metals, trapped air after mixing creates voids in the adhesive layer. Stress concentration occurs under load, resulting in reduced bonding strength, cracking and debonding.

Automotive & Transportation

Structural bonding for vehicle bodies and battery packs requires high bonding strength. Bubbles and voids degrade durability and impact resistance, making batch consistency hard to guarantee.

Composite Material Bonding

Structural adhesive layers for carbon fiber and composite materials need to be dense. Bubble defects impair overall structural strength and fatigue life.

✨ Traditional Dilemma: Manual mixing of two-part adhesives causes both air entrapment and uneven blending, leading to voids in adhesive layers and inconsistent bonding strength. Synchronous vacuum mixing and defoaming is therefore required.

Why Choose SIENOX Structural Adhesive Defoaming Solution

Integrated Mixing & Defoaming

Mixing and defoaming proceed simultaneously under vacuum. Uniform blending and bubble removal are completed in one single process for dense adhesive layers.

Stable Bonding Strength

Non-contact mixing keeps the mixing ratio unchanged. Bonding strength remains consistent batch-to-batch after curing, reducing false bonding and debonding.

Scalable Process

C/ZK series supports small sample formulation development, while MIX series serves mass production. Process parameters can be scaled up smoothly.

✨

Equipment Supporting Description

SIENOX AB adhesive defoaming solution can be combined with other equipment to form a complete potting process chain.

SIENOX AB adhesive defoaming solution can work with other equipment to form a complete potting process chain:

Integrated Mixing & Defoaming: MIX series planetary mixers blend AB adhesives and perform synchronous defoaming under vacuum, finishing mixing and bubble removal in one single process.

Temperature-controlled Defoaming: WK series temperature-controlled defoamers operate at preset temperatures. They are suitable for high-viscosity AB adhesives which can be heated to reduce viscosity for higher defoaming efficiency.

Defoaming & Dispensing Linkage: Directly connect to SIE-301/302/303 dispensers for potting after defoaming to minimize new bubbles generated during intermediate transfer.

Pressurized Fine Defoaming: For applications demanding high defoaming rate, materials can go through secondary fine defoaming in RX pressurized defoamers after planetary vacuum mixing for superior bubble removal performance.

Mixing and Defoaming Working Principle 03.jpg

Specifications & Parameters

Selection Guide

Structural Adhesive TypeTypical StateRecommended Defoaming MethodRecommended Equipment
Formulation R&D / Small SamplingSmall Volume AdhesiveCentrifugal / Vacuum Mixing & DefoamingC Series / ZK Series
Acrylic Structural AdhesiveMedium ViscosityVacuum Mixing & DefoamingMIX60 / MIX80
Modified Epoxy Structural AdhesiveMedium to High ViscosityVacuum Mixing & DefoamingMIX Series / MIX1000plus
High-strength Structural Adhesive LayerHigh ViscosityVacuum Mixing + Pressurized Fine DefoamingMIX1000plus / RX Series

Our Partners

Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide

Partner Showcase

FAQ - Frequently Asked Questions

Answers to common questions about product performance and everyday process selection

  • What is the working principle of a centrifugal defoaming machine?

    Principle of centrifugal defoaming machine: The bubbles are released by the downward principle of gravity.

  • How is the after-sales service?

    The company has professional after-sales service personnel, 24-hour dedicated service, and one-on-one technical support to solve your worries.

  • Why choose SIENOX?

    There are many reasons for choosing SIENOX, and the following are some of the main reasons:

    1. Professionalism: Our team consists of a group of professional individuals with rich experience and knowledge in their respective fields. We not only understand industry trends and best practices, but also provide practical and feasible solutions.

    2. Service quality: We focus on customer needs and satisfaction, and are always committed to providing high-quality services. We not only respond quickly to customer needs, but also provide customized services according to their requirements.

    3. Reliability: We adhere to the principles of integrity and professionalism, always adhering to commitments and agreements. Our work methods and deliverables comply with industry standards and best practices, enabling our clients to trust us.

    4. Innovation: We continuously explore new methods and tools to provide better services and meet customer needs. We encourage innovation and experimentation, and are willing to accept challenges and change.

    5. Cost effectiveness: We provide cost-effective services that not only help customers save costs, but also improve efficiency and productivity. We always prioritize the interests of our customers and provide them with the best solutions.

    6. Teamwork: We believe in the power and value of teamwork, and our team members support, collaborate, and respect each other. We establish close cooperative relationships with customers, partners, and other stakeholders to achieve common goals.

    The above are just some of the reasons for choosing us. We believe there are many other advantages and values that can be provided to customers. If you are looking for a professional, reliable, and high-quality service provider, we look forward to working with you.


  • How does the stirring and defoaming machine work?

    The SIENOX stirring and defoaming machine performs defoaming through centrifugal force at revolution and stirring through shear force formed by revolution and rotation,

    Assisted by a vacuum pump to extract gas and achieve a vacuum state, removing nanoscale tiny bubbles. No contact with materials, no secondary pollution, and no secondary waste.

  • What is the function of a defoaming machine?

    A defoaming machine is a device used to remove bubbles from liquids. Its function is to assist in the liquid mixing, reaction, coating, printing, infusion and other process steps in the production process, avoiding the generation of bubbles and their impact on the final product. In many industrial and laboratory environments, removing bubbles is essential as they may have a negative impact on product quality, such as affecting surface tension and stability. Defoaming machines typically use various techniques such as vibration, ultrasound, centrifugation, etc. to achieve effective bubble removal. It has a wide range of applications, including but not limited to semiconductors, solar energy, optics, biotechnology, materials science, etc.

Technical Specification List

Full‑line standardized specifications for accurate process evaluation and equipment selection

Structural Adhesive TypeTypical StateRecommended Defoaming MethodRecommended Equipment
Formulation R&D / Small SamplesSmall volume adhesiveCentrifugal / Vacuum Mixing & DefoamingC Series / ZK Series
Acrylic Structural AdhesiveMedium ViscosityVacuum Mixing & DefoamingMIX60 / MIX80
Modified Epoxy Structural AdhesiveMedium to High ViscosityVacuum Mixing & DefoamingMIX Series / MIX1000plus
High-strength Structural Adhesive LayerHigh ViscosityVacuum Mixing + Pressurized Fine DefoamingMIX1000plus / RX Series

Multi‑Industry Solutions

Covering stirring and debubbling applications of typical materials across six major industries

Metal Structure.jpg

Metal Structure

Structural bonding for metals and sheet metals

Automotive Body.jpg

Automotive Body

Structural bonding for vehicle bodies and battery packs

Composite Materials.jpg

Composite Materials

Structural bonding for carbon fiber and composites

Electronic Structural Parts.jpg

Electronic Structural Components

Bonding and fixing of electronic structural parts

Rail Transit.jpg

Rail Transit

Structural bonding for rail vehicles

Structural Adhesive Manufacturers.jpg

Structural Adhesive Manufacturers

R&D, production and filling of structural adhesives

Full-range Equipment Operation Demo Videos

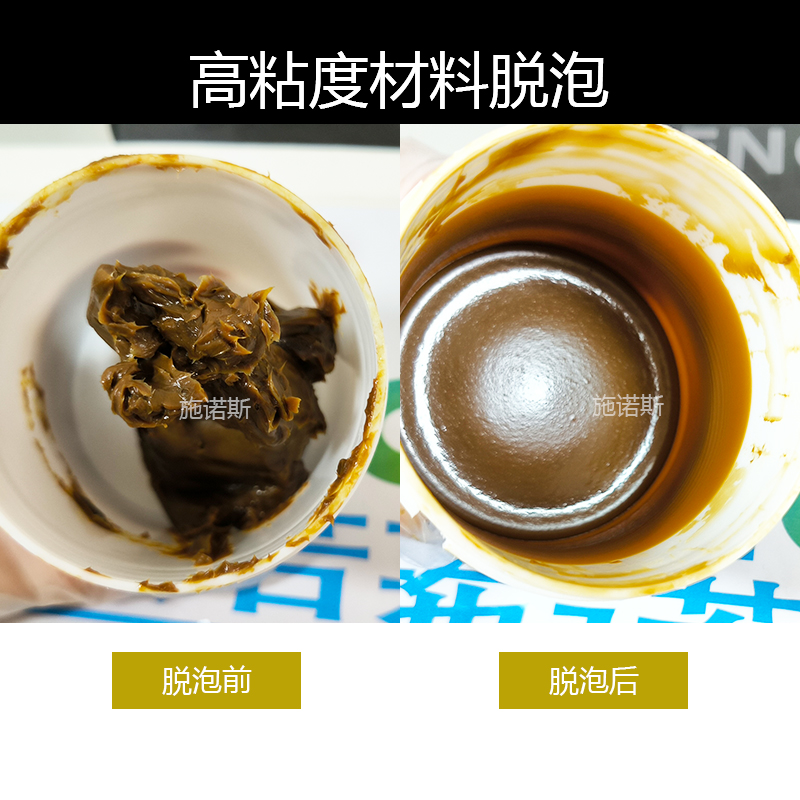

Measured Defoaming‑Process Performance

Measured Processing Results for Six Typical Materials

Lubricant Mixing & Defoaming.jpg

Paste Materials

Photoresist Mixing & Defoaming.jpg

Adhesives & Powders

Polymer Materials.jpg

Polymer Materials

Gel Defoaming 02.jpg

Pharmaceutical Gels

Silver Paste Mixing & Defoaming.jpg

Silver Paste Materials

Battery Slurry & Adhesive Mixing Defoaming.jpg

Battery Slurries



Precautions for Use

PrecautionsOperating Instructions
Proportioning & FeedingWeigh component A and component B accurately according to the ratio before mixing and defoaming. Incorrect ratio will affect curing and bonding strength.
Pot LifeComplete defoaming and bonding within the pot life after mixing. The adhesive will thicken and cure once expired.
Slow Pressure ReliefRelease pressure slowly after defoaming to avoid re‑foaming and splashing of adhesive.
Timely BondingApply adhesive and finish bonding promptly after mixing and defoaming to prevent air entrapment or thickening during standing.

* Internal laboratory test data. Actual results vary depending on adhesive formulation and bonding process. Contact sales for real customer cases.

Customer Delivery & Application Cases

Rooted in manufacturing frontlines, empowering benchmark production lines and key national research institutions across diverse industries.



Stirring‑Defoaming Solution for Glue Materials in Consumer‑Electronics Industry



Vacuum Defoaming Solution for Consumer Electronics Adhesives



Industrial University Solves Bubble Challenges of Coating‑Film Materials with SIENOX Defoaming Machine
