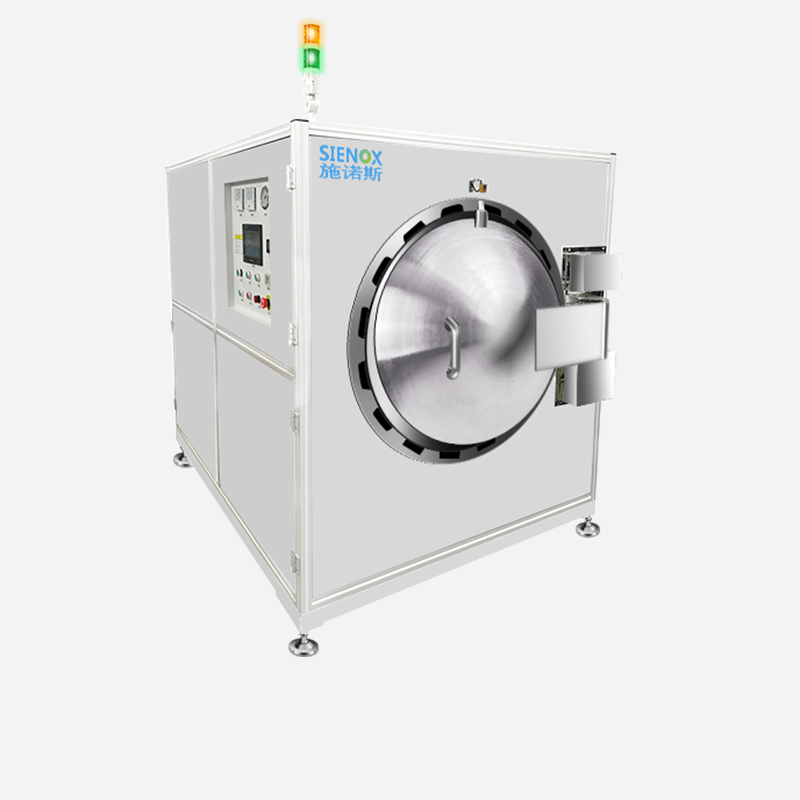

Pressurized Defoaming Machine SIE-RX3-300


Small Chamber Rapid Pressurization · 3 Flexible Modes for R&D Samples

φ300 Small Chamber with 5-min Fast Pressurization + Switchable 3 Pressure & Heating Modes + Precision Filter to Prevent Secondary Sample Contamination

SIENOX SIE-RX3-300 Pressurized Defoaming Machine features a φ300×300mm cylindrical chamber of approx.75L, reaching 0.6MPa within 5 minutes. Three working modes are optional. SMC digital pressure gauge offers ±0.01MPa accuracy, and OMRON PID temperature control achieves ±1.0℃ precision. Pressure and heat eliminate bubbles generated during lamination and improve adhesion between materials.

✓ CE Certification ✓ FC Certification ✓ ISO9001 Quality System ✓ RoHS Compliance ✓ Custom Voltage (110V/220V)

Online Message Free Sample Testing Engineer Hotline: 189-2512-9293

Why Remove Bubbles From Materials

Microbubbles remaining during material lamination directly impair product quality.

LCD Polarizer Lamination Industry

Residual bubbles in OCA optical adhesive cause uneven light transmission and mottled display when laminating LCD polarizers and glass substrates, degrading screen quality. Pressurized defoaming shrinks and dissolves bubbles under pressure; heat reduces OCA viscosity to discharge bubbles. The φ300 small chamber fits small polarizer samples for fast R&D parameter verification.

Electronic Component Packaging Industry

Bubbles inside encapsulation glue create voids. Moisture intrusion leads to component failure, requiring repeated R&D parameter debugging. Three selectable working modes match adhesive properties: pressurize-first or heat-pressurize sync. Fast small-chamber cycling shortens trials to find optimal encapsulation processes.

Medical Device Industry

Bubbles in medical bonding lamination hurt biocompatibility and structural strength; small batches are used for trial validation. The precision filter prevents secondary contamination. The φ300 chamber suits small medical sample lamination, with audible & visual alarms for safe operation.


✨ Dilemmas of conventional defoaming: R&D trials lack dedicated pressurized defoamers. Natural bubble escape by standing takes long with low efficiency; ordinary ovens heat without pressure and cannot remove interfacial bubbles. Poor temperature accuracy causes unstable OCA flow and unrepeatable parameters.

Why Choose SIE-RX3-300

Solves R&D efficiency & quality pain points via fast pressurization, flexible modes and clean trials.

Small Chamber Rapid Pressurization

φ300×300mm cylindrical chamber of approx.75L, pressurizes to 0.6MPa in 5 mins and depressurizes within 2-3 mins. Single cycle takes 35-40 mins for fast turnaround. Fast pressure rise/drop enables quick iteration of process parameters, multiple test runs per day to shorten R&D cycles.

3 Switchable Working Modes

Three working modes available: A.Pressurize first then heat; B.Heat and pressurize simultaneously; C.Heat first then pressurize. Materials respond differently to pressure & temperature. Select modes by material features, microcomputer saves repeatable parameters to identify optimal processes.

Precision Filter for Contamination Prevention

Inlet air passes through precision filter before entering chamber to protect samples from dust impurities. R&D samples are costly and limited; single contamination may ruin the whole batch. Precision filtration maintains clean environment and improves test success rate.

✨ If your work involves R&D trials, sample lamination & parameter tuning, RX3-300 enables fast iteration with rapid pressurization and 3 switchable modes.

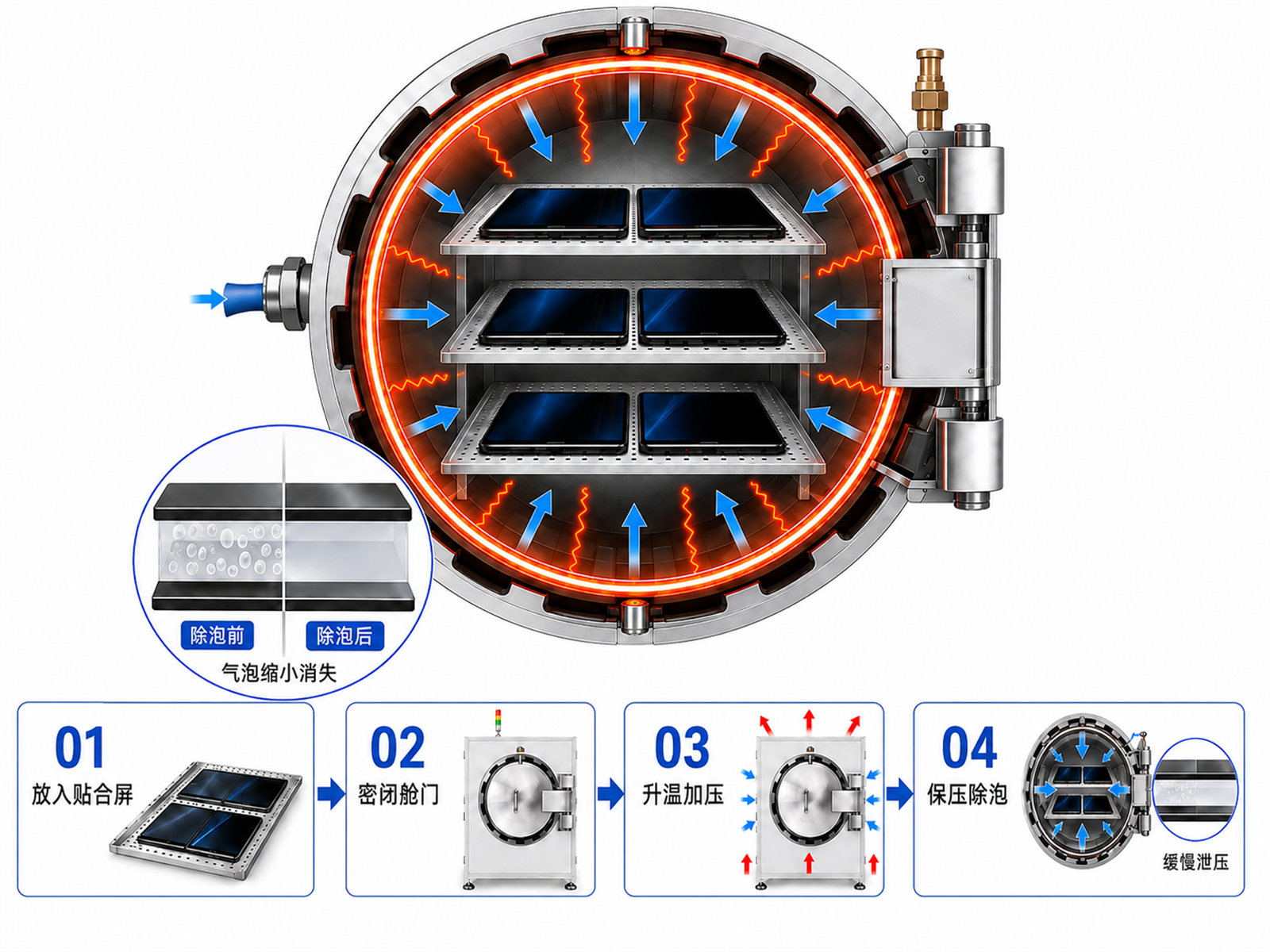

Working Principle

Pressure and heat remove lamination bubbles and boost adhesion between diverse materials.

Step 1: Pressurization & Heating (3 optional modes): Choose pressurize-first, heat-pressurize sync or heat-first according to material properties. Resistive heating plus pressure builds defoaming environment.

Step 2: Pressure Holding for Defoaming: Maintain constant pressure & temperature. Pressure shrinks and dissolves interfacial bubbles; heat reduces material viscosity to release bubbles.

Step 3: Pressure Relief & Stabilization: Slowly release pressure to atmospheric level. Material adhesion improves and lamination bubbles are eliminated.


Simple 3 steps: Pressurize & Heat → Hold Pressure for Defoaming → Depressurize & Stabilize, remove lamination bubbles and strengthen adhesion.

Pressurized Defoaming Machine Working Principle.png

Technical Specifications

Complete Technical Specifications Overview, Customizable on Demand

ModelSIE-RX3-300
Chamber Sizeφ300×300mm (Cylindrical)
Effective VolumeApprox. 75L
Working Pressure0~0.8MPa (Standard), 0~2.5MPa (Optional)
Working TemperatureAmbient ~80℃ (Standard), Ambient ~180℃ (Optional)
Heating MethodResistive Heating
Working ModesA. Pressurize then heat B. Heat & pressurize simultaneously C. Heat then pressurize
Control SystemMicrocomputer Control
Vessel MaterialS30408 Stainless Steel or Carbon Steel
Overall Dimension(W×D×H)Approx.700×900×1300mm (Subject to actual product)
Net Weight200 kg
CertificationsCE, FC, ISO9001, RoHS Compliance


Our Partners

Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide

Partner Showcase

FAQ - Frequently Asked Questions

Answers to common questions about product performance and everyday process selection

  • What is the working principle of a centrifugal defoaming machine?

    Principle of centrifugal defoaming machine: The bubbles are released by the downward principle of gravity.

  • How is the after-sales service?

    The company has professional after-sales service personnel, 24-hour dedicated service, and one-on-one technical support to solve your worries.

  • Why choose SIENOX?

    There are many reasons for choosing SIENOX, and the following are some of the main reasons:

    1. Professionalism: Our team consists of a group of professional individuals with rich experience and knowledge in their respective fields. We not only understand industry trends and best practices, but also provide practical and feasible solutions.

    2. Service quality: We focus on customer needs and satisfaction, and are always committed to providing high-quality services. We not only respond quickly to customer needs, but also provide customized services according to their requirements.

    3. Reliability: We adhere to the principles of integrity and professionalism, always adhering to commitments and agreements. Our work methods and deliverables comply with industry standards and best practices, enabling our clients to trust us.

    4. Innovation: We continuously explore new methods and tools to provide better services and meet customer needs. We encourage innovation and experimentation, and are willing to accept challenges and change.

    5. Cost effectiveness: We provide cost-effective services that not only help customers save costs, but also improve efficiency and productivity. We always prioritize the interests of our customers and provide them with the best solutions.

    6. Teamwork: We believe in the power and value of teamwork, and our team members support, collaborate, and respect each other. We establish close cooperative relationships with customers, partners, and other stakeholders to achieve common goals.

    The above are just some of the reasons for choosing us. We believe there are many other advantages and values that can be provided to customers. If you are looking for a professional, reliable, and high-quality service provider, we look forward to working with you.


  • How does the stirring and defoaming machine work?

    The SIENOX stirring and defoaming machine performs defoaming through centrifugal force at revolution and stirring through shear force formed by revolution and rotation,

    Assisted by a vacuum pump to extract gas and achieve a vacuum state, removing nanoscale tiny bubbles. No contact with materials, no secondary pollution, and no secondary waste.

  • What is the function of a defoaming machine?

    A defoaming machine is a device used to remove bubbles from liquids. Its function is to assist in the liquid mixing, reaction, coating, printing, infusion and other process steps in the production process, avoiding the generation of bubbles and their impact on the final product. In many industrial and laboratory environments, removing bubbles is essential as they may have a negative impact on product quality, such as affecting surface tension and stability. Defoaming machines typically use various techniques such as vibration, ultrasound, centrifugation, etc. to achieve effective bubble removal. It has a wide range of applications, including but not limited to semiconductors, solar energy, optics, biotechnology, materials science, etc.

Multi‑Model Specification Comparison Table

Full‑line standardized specifications for accurate process evaluation and equipment selection

ModelSIE-RX3-300SIE-RX6-900SIE-RX8-1200
Chamber Sizeφ300×300mmφ600×900mmφ800×1200mm
Effective Volume75L255L600L
Pressure Range0~2.5MPa(Optional)0~2.5MPa(Optional)0~2.5MPa(Optional)
Temperature RangeAmbient ~180℃(Optional)Ambient ~180℃(Optional)Ambient ~180℃(Optional)
Pressure Accuracy±0.01MPa±0.01MPa±0.01MPa
Temperature Accuracy±1.0℃±1.0℃±1.0℃
Power Supply220V, 50/60Hz (Custom 110V for US & Japan available)220V, 50/60Hz (Custom 110V for US & Japan available)220V, 50/60Hz (Custom 110V for US & Japan available)
Overall Dimension(W×D×H)510 × 430 × 500 mm610 × 560 × 780 mm610 × 560 × 780 mm
Net Weight95 kg153 kg163 kg
CertificationsCE, FCCE, FCCE, FC

***The above are typical models only. Customized solutions are available upon customer requirements.

Multi‑Industry Solutions

Covers mixing & defoaming for typical materials across six major industries

Electronic Materials.jpg

LCD Polarizer Lamination

Small-size polarizer OCA optical adhesive, LCD glass substrate lamination adhesive

New Energy.jpg

Electronic Component Packaging

Component encapsulation adhesive, chip encapsulation compound

Medical Device 02.jpg

Medical Devices

Medical bonding adhesive, medical device lamination adhesive

Printing & Packaging.jpg

LED Packaging

LED encapsulation adhesive, phosphor paste

Metal Powder Metallurgy.jpg

Fine Chemicals

Fine chemical materials, nano powders


New Energy Materials

R&D samples of new energy materials, battery slurry test samples

Comprehensive Equipment Operation Demo Videos

Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.

Actual‑test Performance Demonstration

Measured Processing Results for Six Typical Materials

Red Slurry Mixing & Defoaming.jpg

Slurry & Powder

Adhesive Before & After Defoaming 02.jpg

Adhesive

Hydrogen Energy Materials.jpg

Hydrogen Energy Materials

Adhesive Before & After Defoaming 01.jpg

Adhesive

Substrate & Filler Mixing & Defoaming.jpg

Substrate & Filler

Adhesive & Ceramic Powder Mixing & Defoaming.jpg

Adhesive & Ceramic Powder

Measured Data Comparison

Comparison of Material Status Before and After Pressurized Debubbling

Material TypePre-Treatment StatusAfter RX3-300 Treatment
Polarizer OCA Optical AdhesiveHeavy bubbles, uneven light transmission & mottled display after laminationBubble-free transparent adhesive with uniform light transmission
Electronic Component Encapsulation AdhesiveDense bubbles causing voids after curingVoid-free solid adhesive for reliable encapsulation
Medical Bonding AdhesiveBubbles harm bonding interface & biocompatibilityCompact adhesive, intact interface and qualified biocompatibility

* Internal lab test data. Actual improvement varies by formulation. Contact sales for real customer cases.
