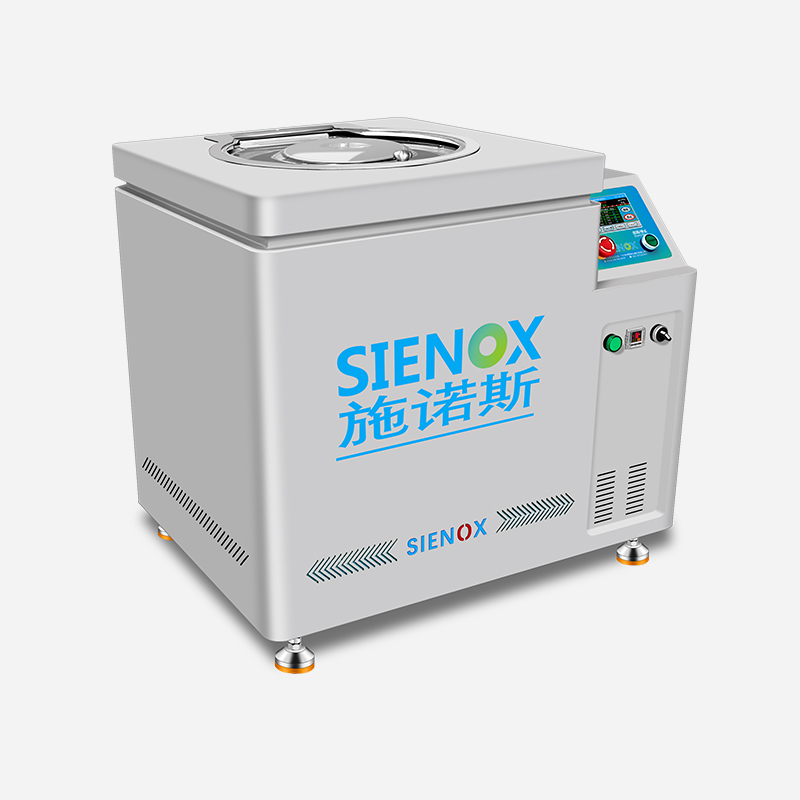

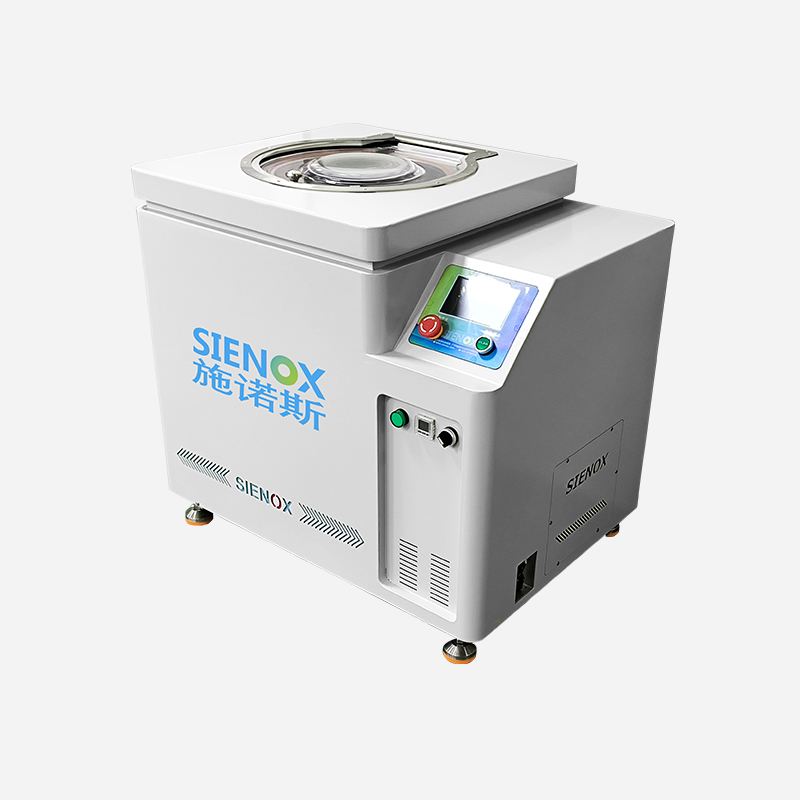

Vacuum Homogenizing Emulsifier SIE‑MIXF1000


Integrated Pilot‑scale Vacuum Emulsification & Defoaming · One‑stop Solution for Complex Formulas

Flexible Adjustable Revolution‑rotation Ratio + 1000mL Pilot‑scale Vacuum Emulsification + One‑stop Processing for Complex Materials

SIE‑MIXF1000 vacuum homogenizing emulsifier is a pilot‑scale emulsification device with freely adjustable revolution‑rotation ratio, 0‑1000 mL processing volume and ‑98 kPa vacuum degree. The adjustable‑speed design flexibly matches emulsification parameters for diverse materials, ideal for complex‑process scenarios such as electronic slurry, ceramic slurry and new‑energy materials.

✓ ISO9001 Quality System ✓ RoHS Compliance ✓ Customizable Voltage (110V/220V)

Online Message Free Sample Testing Engineer Hotline: 189-2512-9293

Why Do You Need Vacuum Homogenizing Emulsifier

Residual micro‑bubbles in materials directly affect finished‑product yield and performance

Electronic Materials Industry

Emulsification and dispersion of electronic materials such as conductive silver adhesive, insulating adhesive and battery slurry demand high uniformity. Conductive performance of silver paste depends on silver particle dispersion, while dielectric property of insulating adhesive relies on even filler distribution. MIXF1000 features freely adjustable revolution‑rotation ratio to match optimal emulsification parameters for different slurries and deliver precise dispersion results.

Ceramic & New‑energy Material Industry

Ceramic slurries, lithium‑battery slurries and other materials feature high solid content and hard particles. Shear force shall be precisely controlled during emulsification & dispersion. Excessive shear may damage particle structure, while insufficient shear leads to poor dispersion.

Fine Chemical Industry

Adhesives, composite materials, functional coatings and other products usually involve multi‑phase material emulsification and compounding. Materials of different phases require respective emulsification modes for sufficient integration.

✨ Traditional Dilemma: Homogenizers with fixed speed ratios struggle with complex formulas. Adjusting speed results in improper ratio; fixed ratio delivers insufficient intensity. Phased emulsification is unavailable due to limited parameter freedom. Users have to try different devices for each new material. A freely‑adjustable emulsifier turns blind trial into precise control.

Why Choose MIX1000PLUS

Solve Core Pain Points in Emulsification & Dispersion of Complex Materials

Flexible Matching of Process Parameters

For materials of different viscosity, phases and dispersion requirements, operators can flexibly match optimal emulsification parameters. Increase rotation to enhance shear for high‑viscosity materials, adjust revolution to promote macro‑mixing for multi‑phase materials. Greater parameter freedom brings wider process adaptability.

Integrated Vacuum Emulsification & Defoaming

Vacuum degree: ‑98 kPa, realizing simultaneous defoaming during emulsification. For bubble‑prone high‑viscosity slurries and pastes, emulsification and defoaming are completed in one step without separate post‑emulsification defoaming procedure. It shortens process flow and lowers contamination risk during material transfer.

Efficient Verification with Dual‑tank Synchronization

0‑1000 mL processing volume covers typical pilot‑scale batches. 1×2‑tank synchronous configuration enables parallel verification of two formulas or two sets of parameters. For complex processes requiring repeated parameter debugging, dual‑tank synchronization doubles the efficiency of comparative tests.

✨ If you process a wide variety of materials with greatly‑varying process parameters, you need a pilot‑scale device featuring freely adjustable emulsification parameters and integrated vacuum emulsification & defoaming.

Product Features

Freely‑adjustable Revolution‑rotation Ratio

Core advantage of MIXF1000 — revolution‑rotation ratio is no longer fixed and can be adjusted freely according to material properties. Suitable emulsification parameters can be matched for materials with different viscosity, phases and dispersion requirements, delivering process flexibility unavailable from fixed‑ratio equipment.

Integrated Vacuum Emulsification & Defoaming

Vacuum degree of ‑98kPa for simultaneous defoaming during emulsification. High‑viscosity slurries and pastes tend to trap air bubbles during emulsification; bubbles are efficiently removed under vacuum for denser and more uniform slurries. One‑step operation fulfills both emulsification and defoaming for higher process efficiency.

0‑1000 mL Pilot‑scale Processing Volume

0‑1000 mL processing volume covers common pilot‑scale batches. One unit handles formula verification of several hundred milliliters as well as process scale‑up close to 1 liter. 1×2‑tank synchronous design completes comparative experiments in a single run.

0‑2000rpm Adjustable Rotation Speed

0‑2000rpm adjustable speed paired with freely‑adjustable revolution‑rotation ratio expands emulsification parameter adjustment range. Wide adjustment scope meets diverse process demands from gentle emulsification to intensive dispersion, for low‑ to high‑viscosity materials.

Optional Heating / Cooling

Heating or cooling modules are optional. Electronic slurries may require room‑temperature emulsification; ceramic slurries may need heating to reduce viscosity; certain functional materials require low‑temperature protection for active ingredients. Temperature‑control modules enable adaptation to more process conditions.

Expandable Network Function

Optional network function supports operating data logging and remote monitoring. For industries requiring process parameter traceability, network function facilitates standardized production‑data management and quality traceability.



Technical Specifications

Alignment of Core Equipment Performance Indicators

ModelSIE‑MIX1000Plus
Mixing Volume0–1000 mL (standard container) * Customizable
Vessel TypeTest tube / Can / Cup; Syringe & cartridge adapter supported
Vessel Quantity1 or 2 vessels (user‑selectable)
Max Speed100 – 2000 RPM (stepless adjustable)
Revolution / Rotation RatioFixed planetary ratio
Vacuum DegreeStandard: –98 kPa / Optional: –100 kPa
Control SystemTouch screen, stores 100 sets of recipe parameters
Power Supply220V, 50/60Hz (110V US/JP standard customizable)
Dimensions(W×D×H)820 × 610 × 760 mm
Net Weight165 kg
CertificationsISO9001, RoHS Compliance


Our Partners

Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide

Partner Showcase

FAQ - Frequently Asked Questions

Answers to common questions about product performance and everyday process selection

  • What is the working principle of a centrifugal defoaming machine?

    Principle of centrifugal defoaming machine: The bubbles are released by the downward principle of gravity.

  • How is the after-sales service?

    The company has professional after-sales service personnel, 24-hour dedicated service, and one-on-one technical support to solve your worries.

  • Why choose SIENOX?

    There are many reasons for choosing SIENOX, and the following are some of the main reasons:

    1. Professionalism: Our team consists of a group of professional individuals with rich experience and knowledge in their respective fields. We not only understand industry trends and best practices, but also provide practical and feasible solutions.

    2. Service quality: We focus on customer needs and satisfaction, and are always committed to providing high-quality services. We not only respond quickly to customer needs, but also provide customized services according to their requirements.

    3. Reliability: We adhere to the principles of integrity and professionalism, always adhering to commitments and agreements. Our work methods and deliverables comply with industry standards and best practices, enabling our clients to trust us.

    4. Innovation: We continuously explore new methods and tools to provide better services and meet customer needs. We encourage innovation and experimentation, and are willing to accept challenges and change.

    5. Cost effectiveness: We provide cost-effective services that not only help customers save costs, but also improve efficiency and productivity. We always prioritize the interests of our customers and provide them with the best solutions.

    6. Teamwork: We believe in the power and value of teamwork, and our team members support, collaborate, and respect each other. We establish close cooperative relationships with customers, partners, and other stakeholders to achieve common goals.

    The above are just some of the reasons for choosing us. We believe there are many other advantages and values that can be provided to customers. If you are looking for a professional, reliable, and high-quality service provider, we look forward to working with you.

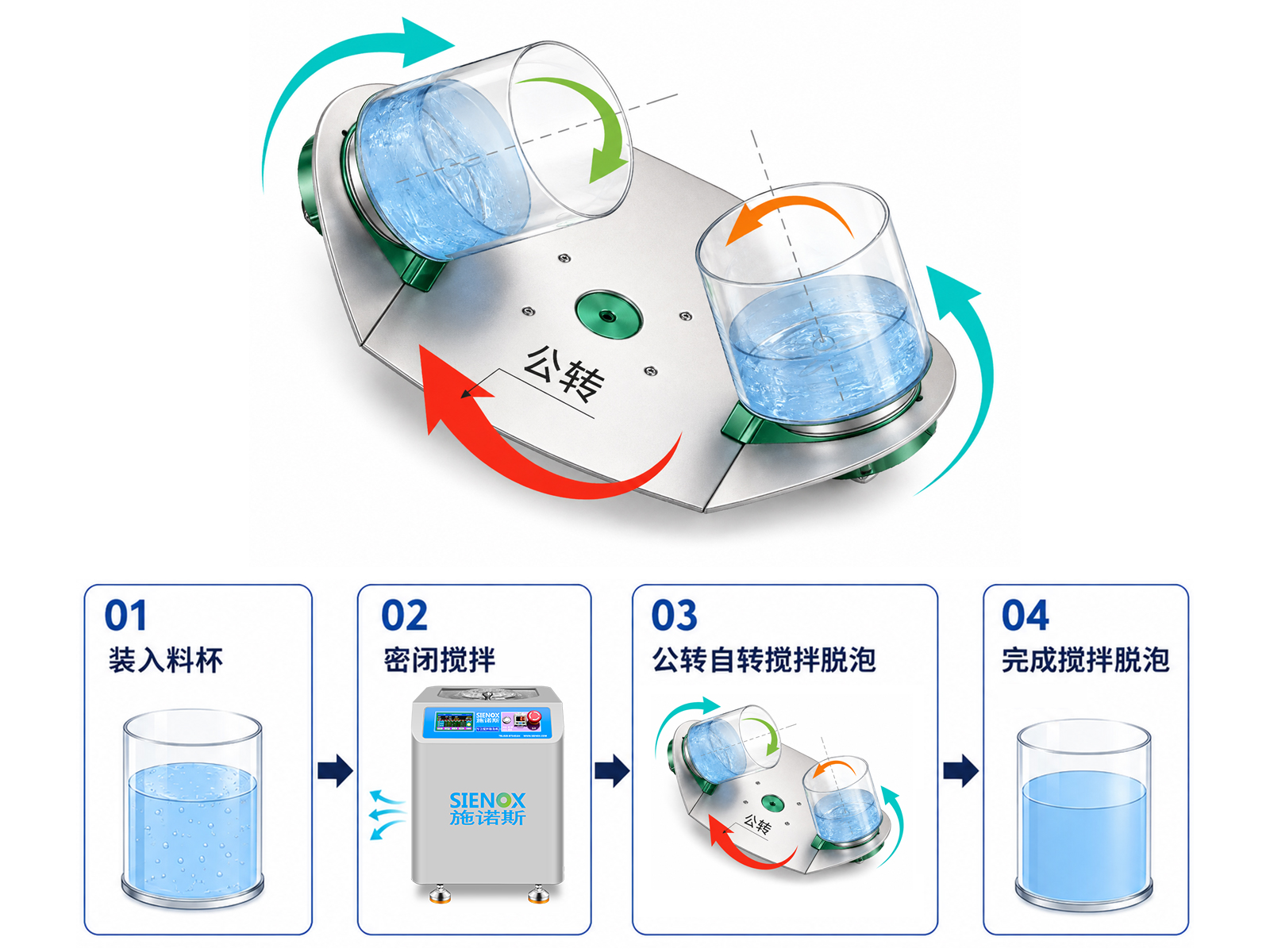

  • How does the stirring and defoaming machine work?

    The SIENOX stirring and defoaming machine performs defoaming through centrifugal force at revolution and stirring through shear force formed by revolution and rotation,

    Assisted by a vacuum pump to extract gas and achieve a vacuum state, removing nanoscale tiny bubbles. No contact with materials, no secondary pollution, and no secondary waste.

  • What is the function of a defoaming machine?

    A defoaming machine is a device used to remove bubbles from liquids. Its function is to assist in the liquid mixing, reaction, coating, printing, infusion and other process steps in the production process, avoiding the generation of bubbles and their impact on the final product. In many industrial and laboratory environments, removing bubbles is essential as they may have a negative impact on product quality, such as affecting surface tension and stability. Defoaming machines typically use various techniques such as vibration, ultrasound, centrifugation, etc. to achieve effective bubble removal. It has a wide range of applications, including but not limited to semiconductors, solar energy, optics, biotechnology, materials science, etc.

Technical Specification List

Full‑line parameter specifications to assist your accurate process‑model selection

ModelSIE‑MIXF301SIE‑MIX90SIE‑MIX1000Plus
Mixing Volume0–300 mL (standard container) * Customizable0–1000 mL (standard container) * Customizable0–1000 mL (standard container) * Customizable
Vessel TypeTest tube / Can / Cup; Syringe & cartridge adapter supportedTest tube / Can / Cup; Syringe & cartridge adapter supportedTest tube / Can / Cup; Syringe & cartridge adapter supported
Vessel Quantity1  or 2 vessels (user‑selectable)1  or 2 vessels (user‑selectable)1  or 2 vessels (user‑selectable)
Max Speed0 – 2000 RPM (stepless adjustable)0 – 2000 RPM (stepless adjustable)100 – 2000 RPM (stepless adjustable)
Revolution / Rotation RatioFreely AdjustableFixed Planetary RatioFixed Planetary Ratio
Vacuum DegreeStandard: –98 kPa / Optional: –100 kPaStandard: –98 kPa / Optional: –100 kPaStandard: –98 kPa / Optional: –100 kPa
Control SystemTouch screen, stores 100 sets of recipe parametersTouch screen, stores 100 sets of recipe parametersTouch screen, stores 100 sets of recipe parameters
Power Supply220V, 50/60Hz (110V US/JP standard customizable)220V, 50/60Hz (110V US/JP standard customizable)220V, 50/60Hz (110V US/JP standard customizable)
Dimensions(W×D×H)510 × 430 × 500 mm610 × 560 × 780 mm820 × 610 × 760 mm
Net Weight115kg153 kg165 kg

*** Above are typical models only. Customized solutions available upon customer requirements.


Multi‑Industry Solutions

Provide customized solutions to meet comprehensive demands from cutting‑edge R&D to large‑scale mass production


New‑energy Lithium‑battery Industry

Lithium‑battery cathode & anode slurries, conductive agents, insulating potting adhesives, thermal‑conductive silicone grease, auxiliary raw materials for electrolyte

Semiconductor Packaging.jpg

Photovoltaic & Optoelectronic Industry

PV silver paste, aluminum paste, encapsulating adhesive film, optical coating, phosphor powder, conductive nano‑slurry

Electronic Materials.jpg

Electronic & Semiconductor Industry

Epoxy conductive adhesive, UV potting adhesive, insulating black glue, nano‑silver wire, thermal‑conductive gel, chip underfill adhesive

Metal Powder Metallurgy.jpg

New‑material R&D Industry

Nano‑powder dispersion liquid, polymer composite material, ceramic slurry, high‑filled paste, fluorescent color paste

Medical Device 02.jpg

Medical & Biological Industry

Medical transparent gel, biological dressing raw material, dental resin, sterile bonding adhesive, medicinal ointment

Ink & Coating.jpg

Ink, Coating & Chemical Industry

Conductive ink, anti‑corrosive coating, color paste, lubricating grease, high‑viscosity resin, various industrial adhesives

Comprehensive Equipment Operation Demo Videos

Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.

Measured Defoaming‑Process Performance

Thoroughly eliminate material bubbles, voids and stratification

Potting Adhesive Defoaming.jpg

Potting Adhesive

Photoresist Mixing & Defoaming.jpg

Photoresist

Structural Adhesive Defoaming Comparison.jpg

Structural Adhesive

Cosmetic Essence Defoaming.jpg

Cosmetic Essence

Lubricant Mixing & Defoaming.jpg

Lubricant Oil

Tricolor Ink Mixing & Defoaming.jpg

Ink


Measured Data Comparison

Quantifiable Effects Validated by Test Data

Material TypeStatus Before TreatmentAfter MIX1000PLUS Treatment
PV Conductive Silver PasteFine micro‑bubbles inside slurry, uneven paste surface, poor fluidity, pinhole defects easily occur during coatingUniform and transparent paste, no visible bubbles, smooth flow without powder agglomeration, flat and continuous coated film
Lithium‑battery Cathode & Anode SlurryProne to powder agglomeration, plenty of trapped micro‑bubbles, uneven slurry thickness, easy delamination after standingUniform dispersion of active materials, relieved delamination, greatly reduced bubble content, fewer pinholes and powder‑dropping defects on coated electrodes
Epoxy Potting ResinAir trapped in colloid, cavities and micro‑cracks tend to form after curing, bonding strength may be affectedDense cured resin, lower cavity risk, smooth cured surface, more stable insulation, sealing and bonding performance

* Internal lab test data. Actual improvement varies with material formulas. Contact sales for real customer cases.

Customer Delivery & Application Cases

Rooted in manufacturing frontlines, empowering benchmark production lines and key national research institutions across diverse industries.



Stirring‑Defoaming Solution for Glue Materials in Consumer‑Electronics Industry



Vacuum Defoaming Solution for Consumer Electronics Adhesives



Industrial University Solves Bubble Challenges of Coating‑Film Materials with SIENOX Defoaming Machine
