High‑Speed Emulsifying Homogenizer SIE‑EM20


All-round Partner for Dispersion & Emulsification from Lab to Pilot Scale

Laboratory High-speed Disperser + 6-segment Precise Program Programming + Multi-size Rotors for Full Viscosity Range

The SIE-EM20 High-speed Homogenizer is an all-round pilot dispersion and emulsification equipment with processing volume ranging from 10mL to 20L. Equipped with a 7-inch touchscreen supporting 6-segment program programming, electric lifting and 14-40mm multi-size rotors. It is suitable for laboratory and pilot applications in cosmetics, electronic materials, new chemical materials and other industries.

✓ 10mL–20L Full Range ✓ Reproducible 6-step Program Formulas ✓ 14–40mm Multiple Rotors for Full Viscosity Coverage

Online Message Free Sample Testing Engineer Hotline: 189-2512-9293

Why High‑Speed Emulsifying Homogenizer Is Required

Different industries vary greatly in requirements for emulsification fineness, viscosity range and batch‑to‑batch consistency.

What is the price of SIE‑EM20 High‑Speed Emulsifying Homogenizer? .

Cosmetics & Daily‑use Chemical Industry

Product range covers free‑flowing essence water to high‑viscosity mud masks and liquid foundations. Formulators often need repeated adjustment of emulsification parameters during R&D. If equipment only handles a single viscosity range, re‑exploration with different devices for each formula leads to extremely low efficiency.

Electronic Materials Industry

Materials such as conductive silver adhesive, silver paste and aluminum paste demand high dispersion uniformity. Nano‑particle agglomeration directly affects electrical conductivity. Conventional stirring fails to fully break up nano‑agglomerates and causes unstable product performance. The high‑speed emulsifying homogenizer breaks agglomerates effectively via high‑shear dispersion and improves slurry consistency.

Chemical & New‑material Industry

Silicone, adhesives and high‑solid‑content coatings are difficult to emulsify and disperse. Due to high viscosity and high solid content, ordinary equipment tends to yield uneven dispersion and insufficient emulsification.

✨ Traditional pain points: Laboratories are usually equipped with multiple homogenizers of different models for separate use — one for low-viscosity materials and another for high-viscosity products. It is hard to record all parameters after repeated formula adjustments, requiring full reset for repeated tests. Besides, there is no process-matching equipment for scaling up from pilot tests to mass production. All these problems can be solved by one programmable homogenizer with full viscosity coverage.

Why Choose SIE‑EM20

Solve Core Pain Points of Dispersion & Emulsification from Lab to Pilot Scale

Multi‑segment Recipes Improve Test Efficiency

The 7‑inch touch screen supports 6‑segment program setting for segmented control of temperature, linear speed, timing and other parameters. Complex emulsification processes can be divided into multiple stages for sequential execution. Recipe parameters can be saved and recalled with one‑click to guarantee batch‑to‑batch consistency. For formula R&D, manual parameter reset is no longer required for each run, which effectively boosts experimental efficiency.

Full‑viscosity Coverage & Easy Operation

Electric lifting stand paired with multi‑size rotor‑stator heads ranging from 14 mm to 40 mm covers processing volumes from 10 mL micro‑samples to 20 L pilot batches. Low‑viscosity essences and lotions, medium‑viscosity creams, high‑viscosity mud masks and liquid foundations can all be processed on one unit. Just select matching rotor‑stator head and rotating speed without switching equipment.

Flexible Compatibility with Various Processes

Optional replaceable rotor‑stator heads: cylindrical, single‑shaft, three‑shaft, lidded and lid‑free types. Different heads deliver distinct shear modes and dispersion effects. From gentle emulsification to high‑power dispersion, from lab small‑batch samples to pilot scale‑up, one main unit with multiple heads flexibly meets diverse process requirements.

✨ If you need one unit to handle dispersion‑emulsification across full viscosity range, enable formula reproduction via program programming, and support flexible rotor‑stator head swap for diverse processes

Product Features

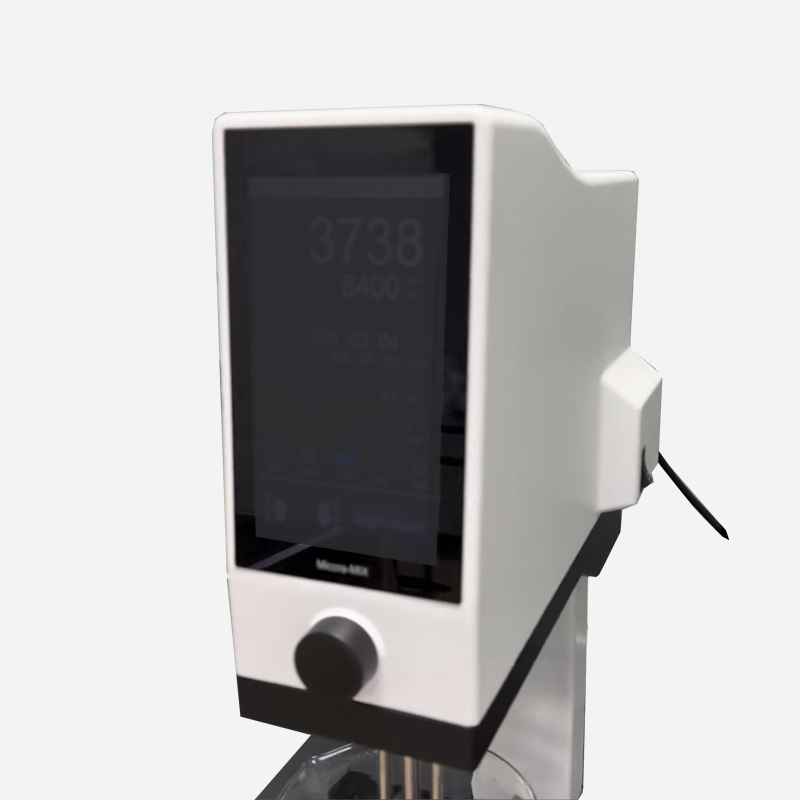

7‑inch Touch Screen with 6‑segment Program Programming

Touch‑screen operation interface supports 6‑segment program setting. Rotation speed, temperature and time can be configured independently for each segment. Complex emulsification processes can be controlled in segments, and formulas can be saved with one‑click without re‑configuration for subsequent runs. For R&D scenarios requiring repeated formula verification, the programming function greatly improves experimental efficiency.

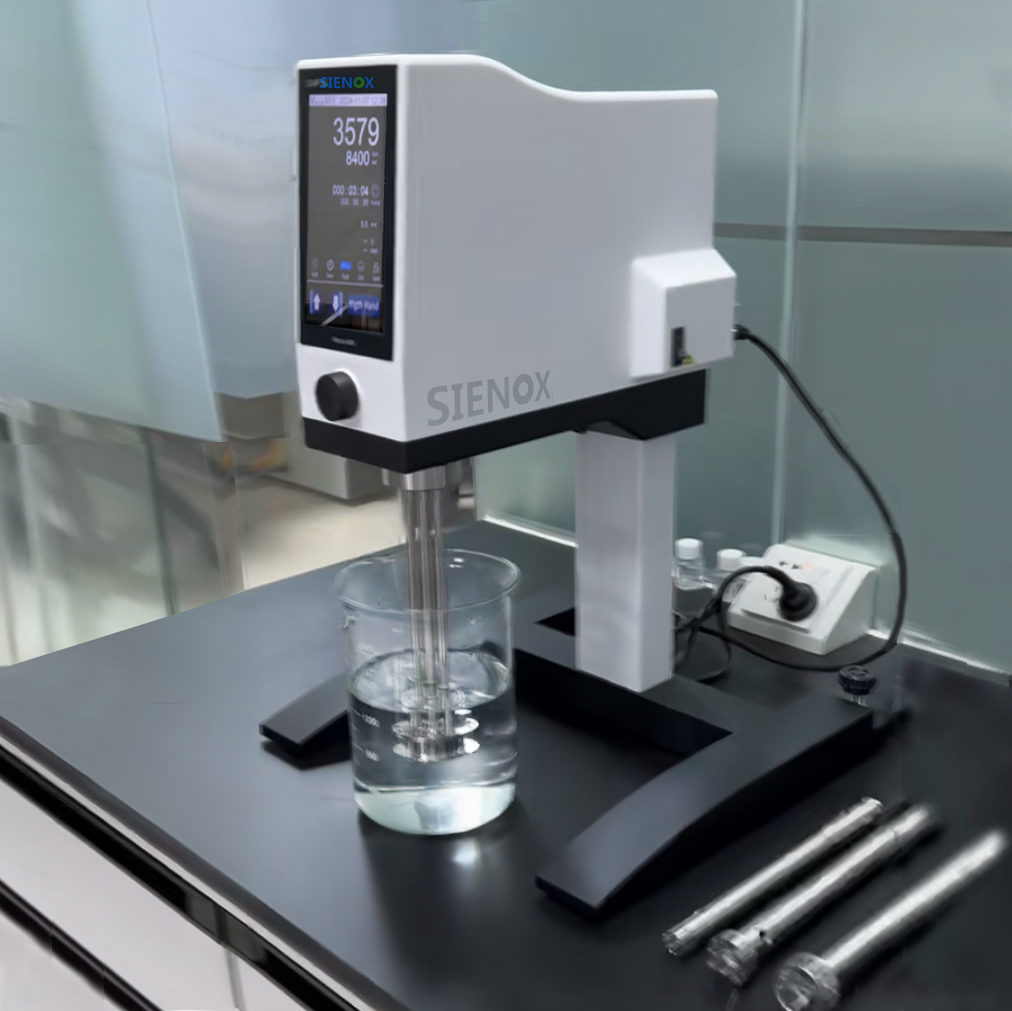

Electric Lifting Stand & Modular Rotor‑stator Heads

Electric lifting enables effortless and convenient head movement for better operation consistency. Rotor‑stator heads range from 14 mm to 40 mm in diameter, with optional cylindrical, single‑shaft, three‑shaft, lidded and lid‑free types. Quick head switching adapts flexibly from lab small samples to pilot‑scale batches.

Full Viscosity Range Coverage

One homogenizer covers most dispersion and emulsification applications. It handles low‑viscosity essences, creams and lotions focusing on skin feel, as well as high‑viscosity mud masks and liquid foundations requiring uniform dispersion. Processing volume from 10 mL to 20 L meets demands from micro‑samples to pilot scale‑up.

Broad Material Compatibility

Applicable to phosphor powder, adhesives, silicone, silver paste, aluminum paste, ink, silver nanoparticles, silver nanowires, conductive silver glue, insulating glue, battery slurry and more. It performs stirring and emulsification for liquid‑liquid, solid‑liquid and solid‑solid material systems.

LED Lighting for Convenient Observation

Built‑in LED light provides clear view of emulsification progress for real‑time material status monitoring. Visible observation helps make timely adjustments for processes needing emulsification‑degree monitoring and endpoint judgment.

Safety‑lock Design

Equipped with safety‑lock mechanism. The unit cannot start if rotor‑stator head is improperly installed or container is unfixed to protect operators. The safety‑lock brings higher reliability for multi‑user laboratory environments.



Quick View of Technical Specifications

Complete Technical Specifications Overview, Customizable on Demand

ModelSIE‑EM20
Control Mode7‑inch Touch Screen
Program Setting6‑segment programmable (Temperature / Linear Speed / Timer)
Lifting MethodElectric Lifting
Rotor‑stator Head SizeDiameter 14mm‑40mm (multiple options available)
Rotor‑stator Head TypeCylindrical / Single‑shaft / Three‑shaft, lidded / lid‑free
Processing Volume10mL‑20L
Heating / CoolingOptional
Network FunctionOptional
Applicable MaterialsFluid / Semi‑fluid / Paste / Solid‑liquid Mixture
Overall Dimension(W×D×H)Subject to actual product
Certifications CE, FC, ISO9001, RoHS Compliance

Our Partners

Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide

Partner Showcase

FAQ - Frequently Asked Questions

Answers to common questions about product performance and everyday process selection

  • What is the working principle of a centrifugal defoaming machine?

    Principle of centrifugal defoaming machine: The bubbles are released by the downward principle of gravity.

  • How is the after-sales service?

    The company has professional after-sales service personnel, 24-hour dedicated service, and one-on-one technical support to solve your worries.

  • Why choose SIENOX?

    There are many reasons for choosing SIENOX, and the following are some of the main reasons:

    1. Professionalism: Our team consists of a group of professional individuals with rich experience and knowledge in their respective fields. We not only understand industry trends and best practices, but also provide practical and feasible solutions.

    2. Service quality: We focus on customer needs and satisfaction, and are always committed to providing high-quality services. We not only respond quickly to customer needs, but also provide customized services according to their requirements.

    3. Reliability: We adhere to the principles of integrity and professionalism, always adhering to commitments and agreements. Our work methods and deliverables comply with industry standards and best practices, enabling our clients to trust us.

    4. Innovation: We continuously explore new methods and tools to provide better services and meet customer needs. We encourage innovation and experimentation, and are willing to accept challenges and change.

    5. Cost effectiveness: We provide cost-effective services that not only help customers save costs, but also improve efficiency and productivity. We always prioritize the interests of our customers and provide them with the best solutions.

    6. Teamwork: We believe in the power and value of teamwork, and our team members support, collaborate, and respect each other. We establish close cooperative relationships with customers, partners, and other stakeholders to achieve common goals.

    The above are just some of the reasons for choosing us. We believe there are many other advantages and values that can be provided to customers. If you are looking for a professional, reliable, and high-quality service provider, we look forward to working with you.

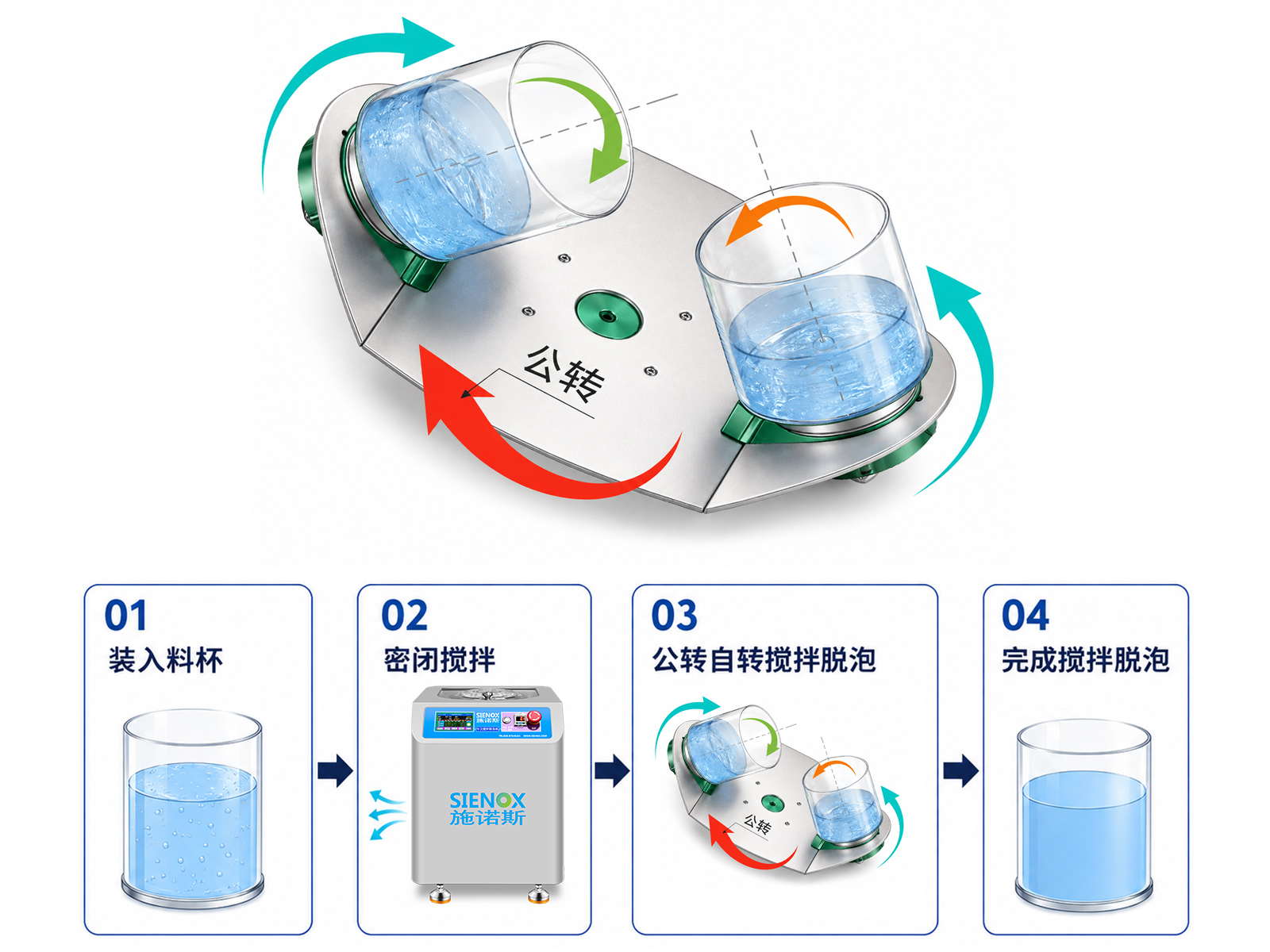

  • How does the stirring and defoaming machine work?

    The SIENOX stirring and defoaming machine performs defoaming through centrifugal force at revolution and stirring through shear force formed by revolution and rotation,

    Assisted by a vacuum pump to extract gas and achieve a vacuum state, removing nanoscale tiny bubbles. No contact with materials, no secondary pollution, and no secondary waste.

  • What is the function of a defoaming machine?

    A defoaming machine is a device used to remove bubbles from liquids. Its function is to assist in the liquid mixing, reaction, coating, printing, infusion and other process steps in the production process, avoiding the generation of bubbles and their impact on the final product. In many industrial and laboratory environments, removing bubbles is essential as they may have a negative impact on product quality, such as affecting surface tension and stability. Defoaming machines typically use various techniques such as vibration, ultrasound, centrifugation, etc. to achieve effective bubble removal. It has a wide range of applications, including but not limited to semiconductors, solar energy, optics, biotechnology, materials science, etc.

Technical Specification List

Full‑line standardized specifications for accurate process evaluation and equipment selection

ModelSIE‑EM20
Control Mode7‑inch Touch Screen
Program Setting6‑segment programmable (Temperature / Linear Speed / Timer)
Lifting MethodElectric Lifting
Rotor‑stator Head SizeDiameter 14mm‑40mm (multiple options available)
Rotor‑stator Head TypeCylindrical / Single‑shaft / Three‑shaft, lidded / lid‑free
Processing Volume10mL‑20L
Heating / CoolingOptional
Network FunctionOptional
Applicable MaterialsFluid / Semi‑fluid / Paste / Solid‑liquid Mixture
Overall Dimension(W×D×H)Subject to actual product

Multi‑Industry Solutions

Customized solutions available upon customer requirements


Cosmetics & Daily Chemicals

Lotions, creams, essences, mud masks, foundation, shampoo

Electronic Adhesives.jpg

Electronic Materials

Silver paste, aluminum paste, conductive silver adhesive, battery slurry, insulating glue

New Building Materials.jpg

New Chemical Materials

Silicone, adhesives, inks, coatings, powder coatings

University Research.jpg

Pharmaceutical & Medical Aesthetics

Ointments, gels, reagent dispersion, suspensions

Advanced Materials.jpg

Nanomaterials

Silver nanoparticles, silver nanowires, phosphor powder, graphene slurry


Electronic Slurries

Silver paste, copper paste, carbon paste, resistor paste, dielectric paste

Comprehensive Equipment Operation Demo Videos

Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.







Measured Defoaming‑Process Performance

Measured Processing Results for Six Typical Materials

Lubricant Mixing & Defoaming.jpg

Paste‑like Materials

Photoresist Mixing & Defoaming.jpg

Adhesive & Powder Mixtures

Polymer Materials.jpg

Polymer Materials

Gel Defoaming 02.jpg

Pharmaceutical Gels

Silver Paste Mixing & Defoaming.jpg

Silver Paste Materials

Battery Slurry & Adhesive Mixing Defoaming.jpg

Battery Slurries

Equipment Supporting Instructions

The high‑speed emulsifying homogenizer can be used standalone or combined with other SIENOX equipment to form a complete dispersion‑emulsification production line.

Supporting EquipmentSupporting Function
Planetary MixerLarge‑volume pre‑mixing → EM20 fine emulsification & dispersion → vacuum defoaming, suitable for complete process chain from pilot test to mass production.
Three‑roll MillInitial emulsification and dispersion by EM20 → fine grinding via three‑roll mill, ideal for electronic paste, ink and other scenarios requiring high fineness.
Optional Rotor‑stator HeadsSelect suitable rotor‑stator heads according to material viscosity and dispersion requirements. SIENOX supplies full‑series head accessories.
Temperature Control ModuleOptional heating or cooling module for emulsification processes with temperature control demands.
