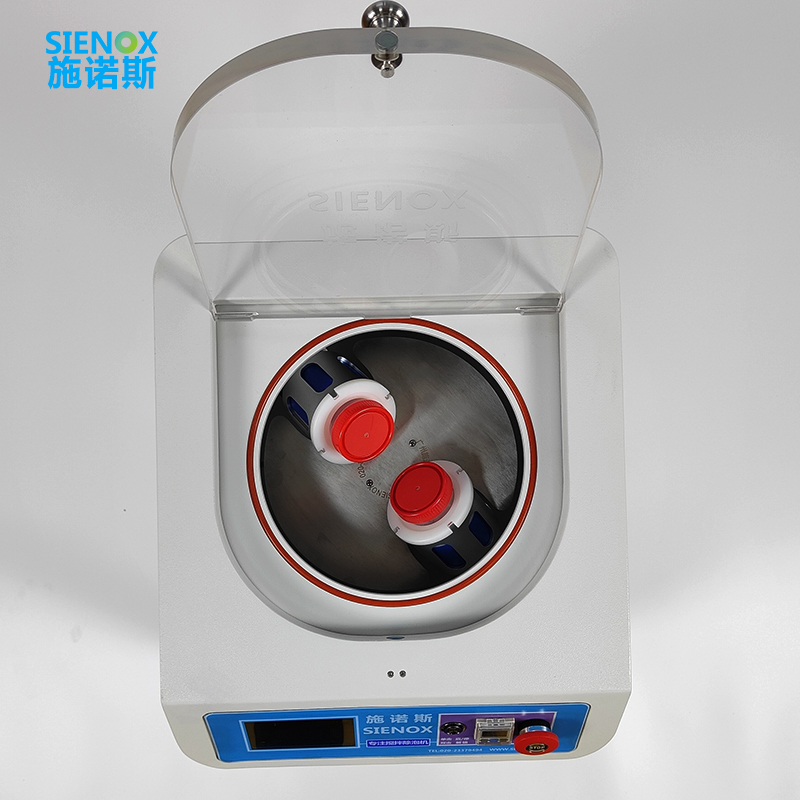

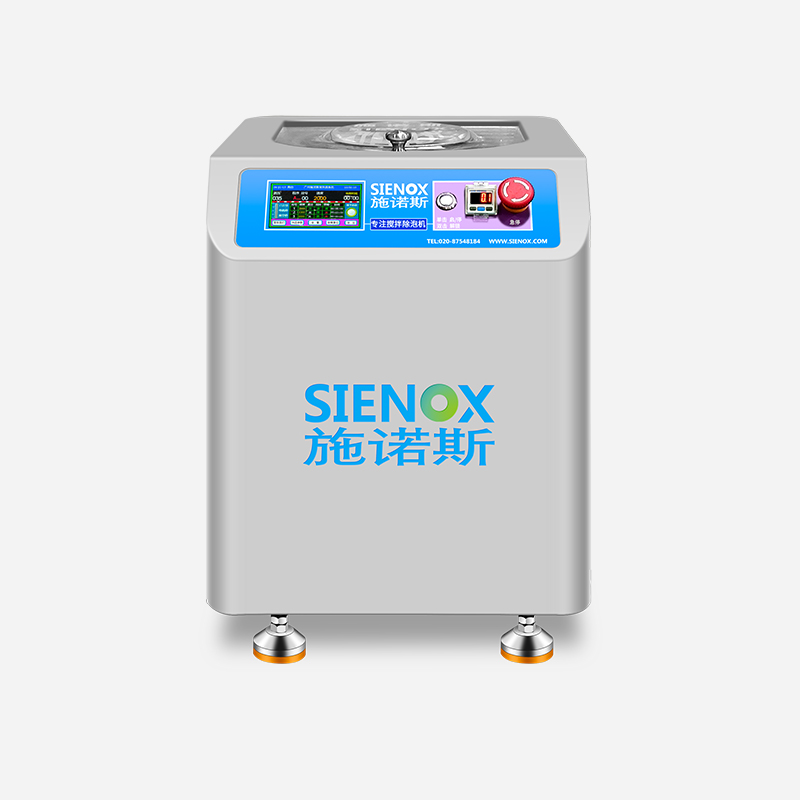

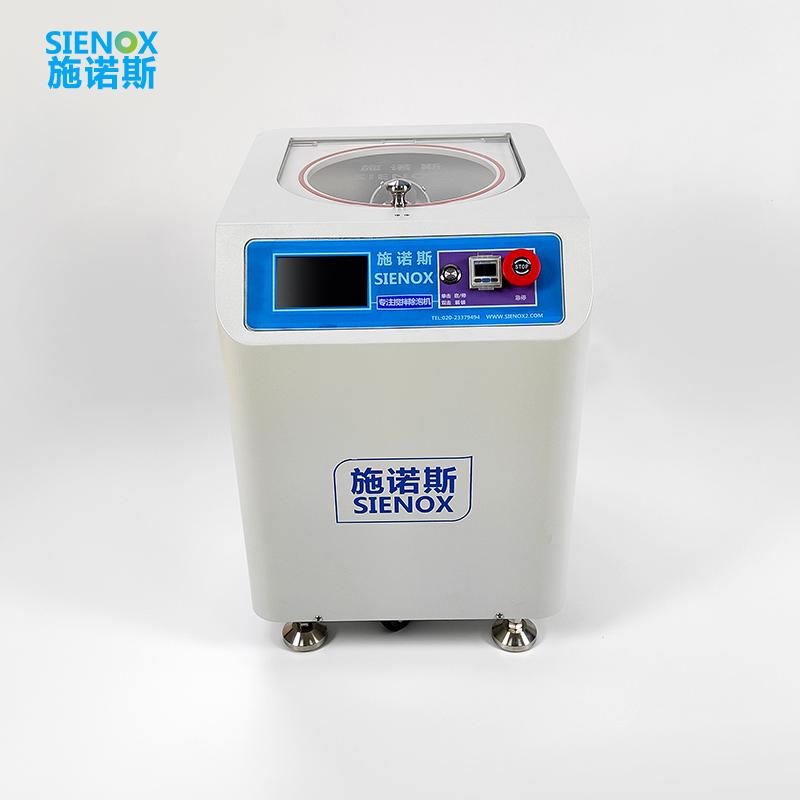

Laboratory Homogenizer SIE‑MIX60
High‑speed Emulsification & Dispersion · Precision Assistant for Laboratory Formula R&D
High‑speed emulsification + 0‑300mL micro dual‑tank processing + compact body for plug‑and‑play operation
SIE‑MIX60 Laboratory Homogenizer is a compact emulsifying and dispersing device for laboratory R&D. Adjustable speed ranges from 0‑3000rpm with 0‑300mL processing volume. Dual‑tank simultaneous design supports comparative experiments. Featuring compact structure and easy operation, it is suitable for formula development and small‑batch verification in cosmetics, pharmaceuticals, nanomaterials and other industries.
✓ CE Certification ✓ FC Certification ✓ ISO9001 Quality System ✓ RoHS Compliance ✓ Customizable Voltage (110V/220V)
Why Laboratory Homogenizer is Required
Small‑batch Design with Precisely Adjustable Rotation Speed
Pharmaceutical & Biotechnology IndustryR&D of pharmaceutical preparations such as creams, ointments and suspensions requires repeated formula adjustment, with experimental volumes ranging from tens to hundreds of milliliters. Large‑scale equipment delivers insufficient emulsification for small samples due to low filling volume; manual grinding fails to guarantee batch‑to‑batch consistency. | Cosmetics & Daily‑chemical IndustryNew product development of essences, lotions and creams requires continuous adjustment of emulsifiers and process parameters. Researchers expect to compare emulsification performance of different formulas under identical batch conditions. Sequential testing will double the experimental cycle. | Nanomaterials & Scientific Research IndustryDispersion tests for nanomaterials such as silver nanoparticles and phosphors demand high‑precision equipment. Small sample volumes are required with strict standards for dispersion uniformity. |
✨ Traditional dilemmas: Poor emulsification caused by insufficient filling when using large‑scale equipment for small lab samples; time‑consuming manual grinding with prominent batch variations; sequential testing required for comparing two formulas. A small‑batch laboratory homogenizer with dual‑tank simultaneous‑processing solves the above problems effectively.
Why Choose the Laboratory Homogenizer
Solve core pain points of emulsification and dispersion in laboratory R&D
High Speed for Sufficient Emulsification of Micro‑samplesAdjustable speed: 0‑3000rpm, the highest‑speed model in this series. High rotating speed generates stronger shear force, achieving uniform dispersion in short time for materials requiring intensive emulsification such as low‑viscosity essences and nanoparticle suspensions. Fixed‑speed‑ratio design ensures stable operation and favorable parameter reproducibility for reliable formula verification results. | Dual‑tank Simultaneous Processing, Complete Comparative Tests in One Run1‑by‑2 tank configuration allows simultaneous emulsification of two samples under identical rotating speed and time parameters. For experiments comparing different emulsifier dosages or formula ratios, dual‑tank simultaneous processing obtains comparative data under identical conditions, ensuring experimental efficiency and data comparability. | Compact Body, Plug‑and‑Play on Laboratory BenchOverall dimension: only 51×43×50 cm, weight 95 kg. Fits standard laboratory bench without extra rack or dedicated space. Compatible with tubes, tanks, cups and other vessels to flexibly meet loading requirements of diverse experiments. Heating / cooling module and network connectivity are optional for on‑demand expansion. |
✨ Suitable for scenarios such as cosmetic formula screening, small‑batch pharmaceutical preparation and nanomaterial dispersion verification.
Product Features
3000rpm High‑speed Emulsification Adjustable speed ranges from 0‑3000rpm, representing a high‑speed range among laboratory homogenizers. High rotating speed delivers stronger shear force and finer emulsified particle size. For materials requiring sufficient emulsification such as essences and nano‑suspensions, uniform and fine emulsification effect can be achieved within short time. Fixed speed ratio design ensures stable operation and favorable parameter reproducibility. Dual‑tank Simultaneous Design 1×2‑tank configuration enables simultaneous processing of two samples. No queuing is required for comparative experiments, and two sets of data under identical conditions can be obtained in one run. Compatible with tubes, tanks and cups for flexible vessel selection according to experimental volume. 0‑300mL Precisely Matches Laboratory Volume Processing volume 0‑300mL covers common laboratory volumes from micro‑verification to small‑batch preparation. Avoid insufficient emulsification caused by under‑filling and material waste brought by oversized equipment. Compact Body Design Overall dimension 51×43×50cm, weight 95kg, fits standard laboratory bench. Small footprint and easy movement, ideal for R&D laboratories with limited space. Optional Vacuum & Temperature‑control Expansion ‑98kPa vacuum degree enables synchronous debubbling during emulsification to reduce subsequent procedures. Heating / cooling module is optional for temperature‑dependent emulsification processes; network function is available for data logging and remote monitoring. Safety Lock Protection Equipped with safety lock, the device cannot start if vessels are not properly fixed to guarantee operational safety. The safety design brings reliable operation for multi‑user laboratory scenarios. |  |
Quick View of Technical Specifications
Complete Technical Specifications Overview, Customizable on Demand
| Model | SIE‑MIX60 |
| Mixing Volume | 0–300 mL (standard vessel) * Larger volume customizable |
| Vessel Type | Test tube / tank / cup; compatible with syringe & cartridge adapters |
| Vessel Quantity | 1 or 2 tanks (user‑selectable) |
| Max Rotation Speed | 0 – 3000 RPM (stepless adjustable) |
| Revolution / Rotation Ratio | Fixed planetary ratio |
| Vacuum Degree | Standard: –98 kPa / Optional: –100 kPa |
| Control System | Touch screen, stores 100 sets of recipe parameters |
| Power Supply | 220V, 50/60Hz (110V US/JP standard customizable) |
| Dimensions(W×D×H) | 510 × 430 × 500 mm |
| Net Weight | Approx. 95 kg |
| Certifications | CE, FC, ISO9001, RoHS Compliance |
Our Partners
Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide
FAQ - Frequently Asked Questions
Answers to common questions about product performance and everyday process selection
-
脱泡机的作用是什么？
脱泡机是一种用于去除液体中的气泡的设备。它的作用在于帮助生产过程中的液体混合、反应、涂布、印刷、灌注等工艺环节，避免气泡的产生和对最终产品的影响。在许多工业和实验室环境中，去除气泡是非常必要的，因为气泡可能会对产品质量产生负面影响，如影响表面张力和稳定性等问题。脱泡机通常采用各种不同的技术，如振动、超声波、离心等，以实现有效的气泡去除。它的应用领域广泛，包括但不限于半导体、太阳能、光学、生物技术、材料科学等。
-
售后服务怎么样？
公司拥有专业的售后服务人员，24小时专人服务，一对一提供技术支持，解决您的后顾之忧。
-
为什么要选择施诺斯？
选择施诺斯的原因有很多，以下是一些主要的原因：
1. 专业性：我们的团队由一群专业的人士组成，他们在各自的领域拥有丰富的经验和知识。我们不仅了解行业趋势和最佳实践，而且还能提供切实可行的解决方案。
2. 服务质量：我们注重客户的需求和满意度，始终致力于提供高质量的服务。我们不仅快速响应客户需求，而且还能根据客户的要求进行定制化服务。
3. 可靠性：我们以诚信和专业精神为宗旨，始终遵守承诺和协议。我们的工作方法和交付成果均符合行业标准和最佳实践，使得我们的客户能够信任我们。
4. 创新性：我们不断探索新的方法和工具，以提供更好的服务并满足客户的需求。我们鼓励创新和实验，并愿意接受挑战和改变。
5. 成本效益：我们提供高性价比的服务，不仅能够帮助客户节省成本，而且还能提高效率和生产力。我们始终以客户的利益为出发点，为客户提供最优的解决方案。
6. 团队合作：我们相信团队的力量和合作的价值，我们的团队成员之间互相支持、协作和尊重。我们与客户、合作伙伴和其他利益相关者建立紧密的合作关系，以实现共同的目标。
以上只是选择我们的部分原因，我们相信还有很多其他的优点和价值可以为客户提供。如果您正在寻找一家专业、可靠、高质量的服务提供商，我们非常期待与您的合作。
-
搅拌脱泡机的工作原理？
施诺斯搅拌脱泡机通过公转的离心力进行脱泡，通过公转与自转形成的剪切力进行搅拌，
再辅助以真空泵抽取气体以达到真空状态，去除纳米级微小气泡。 不接触物料，无二次污染，无二次浪费。
-
施诺斯能提供工程咨询技术服务吗？
施诺斯能为广大客户提供全面的工程和现代化的咨询服务。施诺斯近二十年的搅拌经验，可以为你提供高效的咨询服务。
想要让搅拌机性能更上一层楼，提升系统的整体效能？我们有全面的咨询、工程以及现代化改造服务，为您量身打造解决方案。 在如今竞争激烈的全球化浪潮中，唯有不断创新、持续优化，才能始终跑在对手前面。您的生产工艺和产品日新月异，我们就为您提供最适配的混合技术。不管是新的产品参数，还是既有的工艺条件，我们都能对现有系统和搅拌设备进行全方位的检查与评估，挖掘其中潜藏的流程优化空间和机械性能提升潜力，并且帮您把这些改进切实落地。 要是您的搅拌设备已经跟不上时代步伐，能耗居高不下，或是维护成本让您头疼不已，那就别犹豫，我们的咨询、工程设计和现代化改造服务，就是为您排忧解难的良方。欢迎随时联系我们，携手开启高效生产新征程！
Technical Specification List
Full‑line standardized specifications for accurate process evaluation and equipment selection
| Model | SIE‑MIX60 | SIE‑MIXF301 | SIE‑MIX90 |
| Mixing Volume | 0–300 mL (standard vessel) * Customizable | 0–300 mL (standard vessel) * Customizable | 0–1000 mL (standard vessel) * Customizable |
| Vessel Type | Test tube / tank / cup; compatible with syringe & cartridge adapters | Test tube / tank / cup; compatible with syringe & cartridge adapters | Test tube / tank / cup; compatible with syringe & cartridge adapters |
| Vessel Quantity | 1 or 2 tanks (user‑selectable) | 1 or 2 tanks (user‑selectable) | 1 or 2 tanks (user‑selectable) |
| Max Rotation Speed | 0 – 3000 RPM (stepless adjustable) | 0 – 2000 RPM (stepless adjustable) | 0 – 2000 RPM (stepless adjustable) |
| Revolution / Rotation Ratio | Fixed planetary ratio | Freely adjustable | Fixed planetary ratio |
| Vacuum Degree | Standard: –98 kPa / Optional: –100 kPa | Standard: –98 kPa / Optional: –100 kPa | Standard: –98 kPa / Optional: –100 kPa |
| Control System | Touch screen, stores 100 sets of recipe parameters | Touch screen, stores 100 sets of recipe parameters | Touch screen, stores 100 sets of recipe parameters |
| Power Supply | 220V, 50/60Hz (110V US/JP standard customizable) | 220V, 50/60Hz (110V US/JP standard customizable) | 220V, 50/60Hz (110V US/JP standard customizable) |
| Dimensions(W×D×H) | 510 × 430 × 500 mm | 510 × 430 × 500 mm | 610 × 560 × 780 mm |
| Net Weight | 95 kg | 115kg | 153 kg |
| Certifications | CE, FC | CE, FC | CE, FC |
***The above are typical models only. SIENOX provides customized solutions upon customer requirements. For model selection: 189‑2512‑9293
Multi‑Industry Solutions
Covering stirring and debubbling applications of typical materials across six major industries
Adhesive R&DEpoxy structural adhesive, sealant, hot‑melt adhesive, pressure‑sensitive adhesive, modified adhesive |
Precision Electronic AssemblyUnderfill, conductive adhesive, die attach adhesive, dispensing adhesive, chip bonding adhesive |
BiosensorsEncapsulant, reagent immobilization material, microfluidic bonding adhesive, biocompatible adhesive, sensor sealant |
Microelectronic PackagingPackaging epoxy, molding compound, lead bonding adhesive, substrate bonding adhesive, passivation layer material |
Functional CoatingsHydrophobic coating, conductive coating, insulating coating, anti‑corrosion coating, wear‑resistant coating |
Electronic PastesSilver paste, copper paste, carbon paste, resistance paste, dielectric paste |
Comprehensive Equipment Operation Demo Videos
Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.
Measured Defoaming‑Process Performance
Measured Processing Results for Six Typical Materials
Paste‑like Materials |
Adhesive with Powder |
Polymer Materials |
Pharmaceutical Gels |
Silver Paste Materials |
Battery Slurries |
Measured Data Comparison
Comparison of Defoaming Effects for Three Representative Materials
| Material Type | Status Before Treatment | After MIX60 Treatment |
| Silver Paste | Visible bubbles cover slurry surface, uneven silver‑powder distribution with obvious agglomeration and sedimentation | Smooth and dense slurry surface, silver powder evenly dispersed without agglomeration, good fluidity and stable conductivity |
| Battery Cathode Slurry | Numerous internal bubbles and poor fluidity, causing streaks and pinholes during coating | Uniform and smooth slurry without residual bubbles, flat coated surface with consistent coating thickness |
| Epoxy Adhesive (AB Glue) | Dense micro‑bubbles inside mixed adhesive with milky turbidity, uneven surface after curing | Transparent clear adhesive with no visible bubbles, smooth surface after curing and dense cross‑section without voids |
* Internal lab test data. Actual improvement varies with material formulas. Contact sales for real‑world customer cases.
