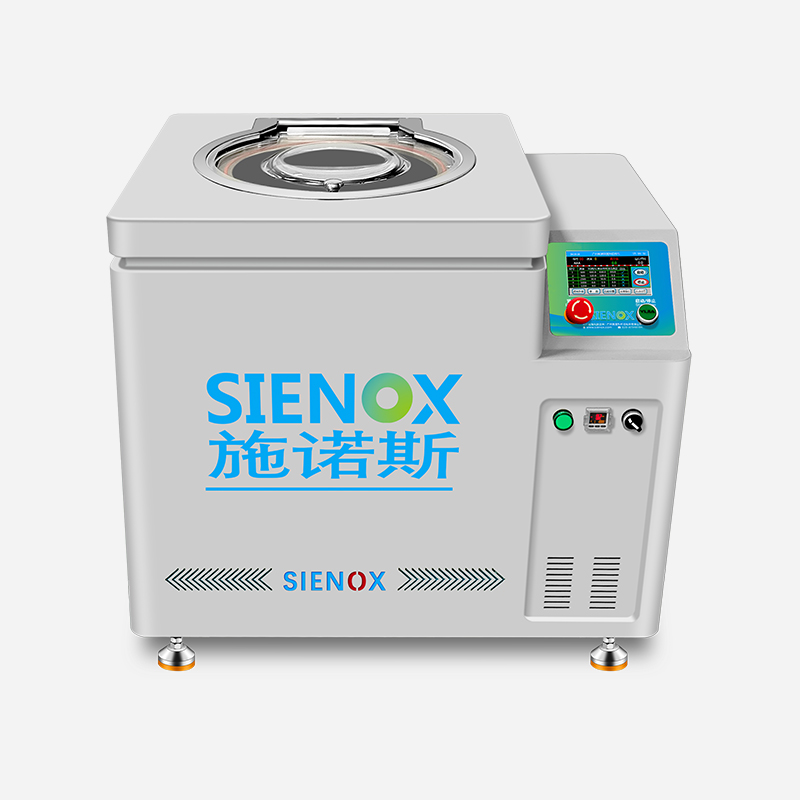

Homogenizing Emulsifier SIE‑MIX90


Pilot‑scale Dual‑can Synchronous Emulsification · One Unit Covers Formula Validation to Small‑batch Production

1000 mL Pilot‑scale Dual‑can Synchronous + Precise Emulsification + Seamless Transition from Formula to Small‑batch Production

SIE‑MIX90 Homogenizing Emulsifier is a dual‑can emulsification & dispersion equipment for pilot‑scale applications. Processing volume ranges from 0‑1000 mL with adjustable speed 0‑2000 rpm. Stable operation at fixed speed ratio and ‑98 kPa vacuum degree, suitable for formula validation and small‑batch production in cosmetics, chemical raw materials, food and other industries.

✓ CE Certification  ✓ FC Certification ✓ ISO9001 Quality System ✓ RoHS Compliance ✓ Custom Voltage Available (110V/220V)

Online Message Free Sample Testing Engineer Hotline: 189-2512-9293

Why Do You Need a Homogenizing Emulsifier

Precise processing volume for pilot‑scale requirements

Cosmetics & Daily‑care Industry

For creams, lotions, mask liquids and other products, batches of several hundred milliliters to one liter are often required for transition from pilot‑scale to mass production. Formulators verify emulsification stability, adjust texture and confirm process parameters at this stage.

Chemical Raw Material Industry

Pilot‑scale processing of adhesives, coating additives, resin emulsions requires stable and controllable emulsification conditions. High raw‑material cost makes over‑sized pilot batches wasteful, while undersized batches cannot validate processes properly.

Food Industry

Pilot‑scale processing for sauces, flavored emulsions and edible emulsions demands both hygiene standards and good emulsifying performance. The vacuum function of MIX90 realizes simultaneous defoaming during emulsification to avoid bubbles impairing taste and shelf life. Dual‑can synchronous processing enables parallel validation of different flavor formulas to boost R&D efficiency.

✨ Traditional Dilemma: The awkward pilot‑scale stage. Lab equipment requires multiple runs for 1L samples with potential batch‑to‑batch parameter deviations; production‑line units start at dozens of liters, where hundreds of milliliters cannot even submerge the rotor‑stator head. An emulsifier with pilot‑targeted processing capacity ensures reliable formula validation.

Why Choose MIX90

Solve Core Pain Points of Emulsification & Dispersion at Pilot‑scale Stage

Precise 0‑1000 mL Pilot‑scale Coverage

Processing volume 0‑1000 mL, accurately matching typical batch demands at pilot‑scale stage. Pilot tests for creams of several hundred milliliters and lotion scale‑up within 1 L can be finished in one run. No repeated multi‑batch runs for small batches, nor raw material waste from oversized equipment.

Stable Fixed‑speed‑ratio Operation with Reproducible Parameters

Fixed revolution‑to‑rotation speed ratio ensures stable and reliable performance. Verified emulsification parameters can be precisely reproduced in later batches — vital for pilot‑scale work, since parameter consistency directly determines smooth scale‑up from formula to process.

Synchronous Dual‑tank Design for Doubled Efficiency

2‑tank configuration processes two samples at the same time. Pilot‑scale work often compares different formulas or process parameters. Synchronous dual‑tank enables one‑run comparative tests under identical conditions for comparable data and higher R&D efficiency.

✨ If your pilot‑scale processing volume falls within 0‑1000 mL and you require stable reproducible emulsification parameters plus dual‑tank parallel efficiency

Product Features

0‑1000 mL Pilot‑scale Processing Volume

Processing volume 0‑1000 mL, accurately covering typical pilot‑scale batches. It handles formula validation of several hundred milliliters and small‑batch production up to nearly 1 L with one single unit. It prevents efficiency loss from repeated batches on small‑size equipment and raw‑material waste caused by under‑filled large‑size equipment.

Precisely Adjustable Speed: 0‑2000 rpm

0‑2000 rpm adjustable speed with stable fixed‑speed‑ratio operation. Suitable rotating speed can be selected according to material viscosity and emulsification requirements, covering gentle emulsification to high‑intensity dispersion. Stable and reproducible parameters enable pilot‑scale results to guide mass‑production directly.

Synchronous Dual‑tank Design

1×2‑tank configuration for simultaneous emulsification of two samples. Formula comparison and parameter verification in pilot‑scale can be conducted in parallel under identical conditions to guarantee consistent data and double R&D efficiency. Tubes, tanks and cups are all compatible.

Integrated Vacuum Defoaming

‑98 kPa vacuum degree enables simultaneous defoaming during emulsification. For bubble‑prone products such as creams and lotions, emulsification and defoaming are finished in one step to reduce subsequent procedures and deliver more stable product quality.

Optional Heating / Cooling
Optional heating or cooling module for emulsification processes requiring temperature control. Heating melting for cream emulsification and low‑temperature emulsification for certain bio‑active ingredients are supported, enhancing equipment adaptability.
Extended Network‑access Function
Optional network‑access function realizes operation data recording and remote monitoring. For industries requiring process‑parameter traceability such as pharmaceutical and food industries, network‑access function helps standardize production‑record management.

Working Principle of Vacuum Defoaming Mixer.jpg

Technical Specifications

Complete Technical Specifications Overview, Customizable on Demand

ModelSIE‑MIX90
Mixing Volume0–1000 mL (standard container) * Larger volume customizable
Vessel TypeTest tube / tank / cup; adapters for syringes & cartridges supported
Vessel Quantity1 or 2 tanks (user‑selectable)
Max Speed0 – 2000 RPM (stepless adjustable)
Revolution / Rotation RatioFixed planetary ratio
Vacuum DegreeStandard: –98 kPa / Optional: –100 kPa
Control SystemTouch screen, stores 100 sets of recipe parameters
Power Supply220V, 50/60Hz (110V US/Japan standard customizable)
Overall Dimension(W×D×H)610 × 560 × 780 mm
Net Weight153 kg
Certifications CE, FC, ISO9001, RoHS Compliance

Our Partners

Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide

Partner Showcase

FAQ - Frequently Asked Questions

Answers to common questions about product performance and everyday process selection

  • 脱泡机的作用是什么?

    脱泡机是一种用于去除液体中的气泡的设备。它的作用在于帮助生产过程中的液体混合、反应、涂布、印刷、灌注等工艺环节,避免气泡的产生和对最终产品的影响。在许多工业和实验室环境中,去除气泡是非常必要的,因为气泡可能会对产品质量产生负面影响,如影响表面张力和稳定性等问题。脱泡机通常采用各种不同的技术,如振动、超声波、离心等,以实现有效的气泡去除。它的应用领域广泛,包括但不限于半导体、太阳能、光学、生物技术、材料科学等。

  • 售后服务怎么样?

    公司拥有专业的售后服务人员,24小时专人服务,一对一提供技术支持,解决您的后顾之忧。

  • 为什么要选择施诺斯?

    选择施诺斯的原因有很多,以下是一些主要的原因:

     1. 专业性:我们的团队由一群专业的人士组成,他们在各自的领域拥有丰富的经验和知识。我们不仅了解行业趋势和最佳实践,而且还能提供切实可行的解决方案。

     2. 服务质量:我们注重客户的需求和满意度,始终致力于提供高质量的服务。我们不仅快速响应客户需求,而且还能根据客户的要求进行定制化服务。

    3. 可靠性:我们以诚信和专业精神为宗旨,始终遵守承诺和协议。我们的工作方法和交付成果均符合行业标准和最佳实践,使得我们的客户能够信任我们。

    4. 创新性:我们不断探索新的方法和工具,以提供更好的服务并满足客户的需求。我们鼓励创新和实验,并愿意接受挑战和改变。

    5. 成本效益:我们提供高性价比的服务,不仅能够帮助客户节省成本,而且还能提高效率和生产力。我们始终以客户的利益为出发点,为客户提供最优的解决方案。

     6. 团队合作:我们相信团队的力量和合作的价值,我们的团队成员之间互相支持、协作和尊重。我们与客户、合作伙伴和其他利益相关者建立紧密的合作关系,以实现共同的目标。

    以上只是选择我们的部分原因,我们相信还有很多其他的优点和价值可以为客户提供。如果您正在寻找一家专业、可靠、高质量的服务提供商,我们非常期待与您的合作。

  • 搅拌脱泡机的工作原理?

    施诺斯搅拌脱泡机通过公转的离心力进行脱泡,通过公转与自转形成的剪切力进行搅拌,

    再辅助以真空泵抽取气体以达到真空状态,去除纳米级微小气泡。 不接触物料,无二次污染,无二次浪费。


  • 施诺斯能提供工程咨询技术服务吗?

    施诺斯能为广大客户提供全面的工程和现代化的咨询服务。施诺斯近二十年的搅拌经验,可以为你提供高效的咨询服务。

    想要让搅拌机性能更上一层楼,提升系统的整体效能?我们有全面的咨询、工程以及现代化改造服务,为您量身打造解决方案。 在如今竞争激烈的全球化浪潮中,唯有不断创新、持续优化,才能始终跑在对手前面。您的生产工艺和产品日新月异,我们就为您提供最适配的混合技术。不管是新的产品参数,还是既有的工艺条件,我们都能对现有系统和搅拌设备进行全方位的检查与评估,挖掘其中潜藏的流程优化空间和机械性能提升潜力,并且帮您把这些改进切实落地。 要是您的搅拌设备已经跟不上时代步伐,能耗居高不下,或是维护成本让您头疼不已,那就别犹豫,我们的咨询、工程设计和现代化改造服务,就是为您排忧解难的良方。欢迎随时联系我们,携手开启高效生产新征程!

Technical Specification List

Full‑line standardized specifications for accurate process evaluation and equipment selection

ModelSIE‑MIX60SIE‑MIXF301SIE‑MIX90
Mixing Volume0–300 mL (standard container) * Customizable0–300 mL (standard container) * Customizable0–1000 mL (standard container) * Customizable
Vessel TypeTest tube / tank / cup; adapters for syringes & cartridges supportedTest tube / tank / cup; adapters for syringes & cartridges supportedTest tube / tank / cup; adapters for syringes & cartridges supported
Vessel Quantity1  or 2 tanks (user‑selectable)1  or 2 tanks (user‑selectable)1  or 2 tanks (user‑selectable)
Max Speed0 – 3000 RPM (stepless adjustable)0 – 2000 RPM (stepless adjustable)0 – 2000 RPM (stepless adjustable)
Revolution / Rotation RatioFixed planetary ratioFreely adjustableFixed planetary ratio
Vacuum DegreeStandard: –98 kPa / Optional: –100 kPaStandard: –98 kPa / Optional: –100 kPaStandard: –98 kPa / Optional: –100 kPa
Control SystemTouch screen, stores 100 sets of recipe parametersTouch screen, stores 100 sets of recipe parametersTouch screen, stores 100 sets of recipe parameters
Power Supply220V, 50/60Hz (110V US/Japan standard customizable)220V, 50/60Hz (110V US/Japan standard customizable)220V, 50/60Hz (110V US/Japan standard customizable)
Overall Dimension(W×D×H)510 × 430 × 500 mm510 × 430 × 500 mm610 × 560 × 780 mm
Net Weight95 kg115 kg153 kg
CertificationsCE, FCCE, FCCE, FC

*** The above are typical models only. Customized solutions are available upon customer requirements.


Multi‑Industry Solutions

Only partial application scenarios are shown. Free sample testing with your materials is welcome.

Electronic Materials.jpg

SMT Electronic Manufacturing

Solder paste, red glue, flux, underfill adhesive, SMT adhesive

Automotive Electronics.jpg

Automobile Manufacturing

Structural adhesive, sealant, thermal‑conductive silicone, primer, anaerobic adhesive

New Energy.jpg

Photovoltaic Manufacturing

Silver paste, aluminum paste, EVA film adhesive, silicone sealant, conductive adhesive

Printing & Packaging.jpg

Printing & Packaging

UV ink, water‑based ink, varnish, laminating adhesive, screen‑printing ink


Cosmetics & Daily‑care

Lotion, cream, gel, foundation, sunscreen


Ceramic Processing

Alumina slurry, zirconia slurry, ceramic glaze, electronic ceramic slurry, ceramic binder


Comprehensive Equipment Operation Demo Videos

Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.

Measured Defoaming‑Process Performance

Actual Stirring & Defoaming Performance of Typical Materials

Lubricant Mixing & Defoaming.jpg

Lubricant

Potting Adhesive Defoaming.jpg

Potting Adhesive

Powder‑Adhesive Mixing & Defoaming.jpg

Powder + Adhesive

AB Glue Mixing & Defoaming.jpg

AB Glue

LED Materials.jpg

LED Materials

Epoxy Resin & Powder Mixing & Defoaming.jpg

Epoxy Resin + Powder

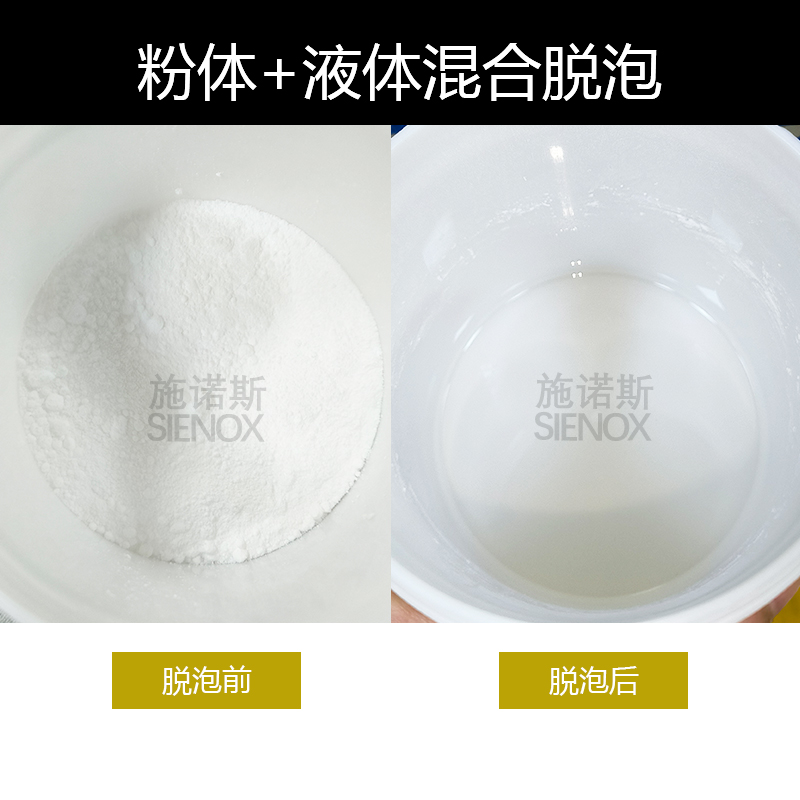

Measured Data Comparison

Material Defoaming Effect Comparison Before & After

Material TypeCondition Before TreatmentAfter MIX90 Treatment
Epoxy Resin (50,000cps)Visible bubbles, internal voids after curingFully bubble‑free & transparent, 22% higher mechanical strength
Conductive Silver PasteFiller sedimentation, unstable resistivityUniform filler dispersion, 40% lower resistivity
Lithium‑battery SlurryCoating pinholes, high electrode defect rateDense coating, 15% higher cell energy density

* Internal lab test data. Actual improvement varies with material formula. Contact sales for real‑world customer cases.
