Planetary Mixing Defoamer
TEL:18925129293

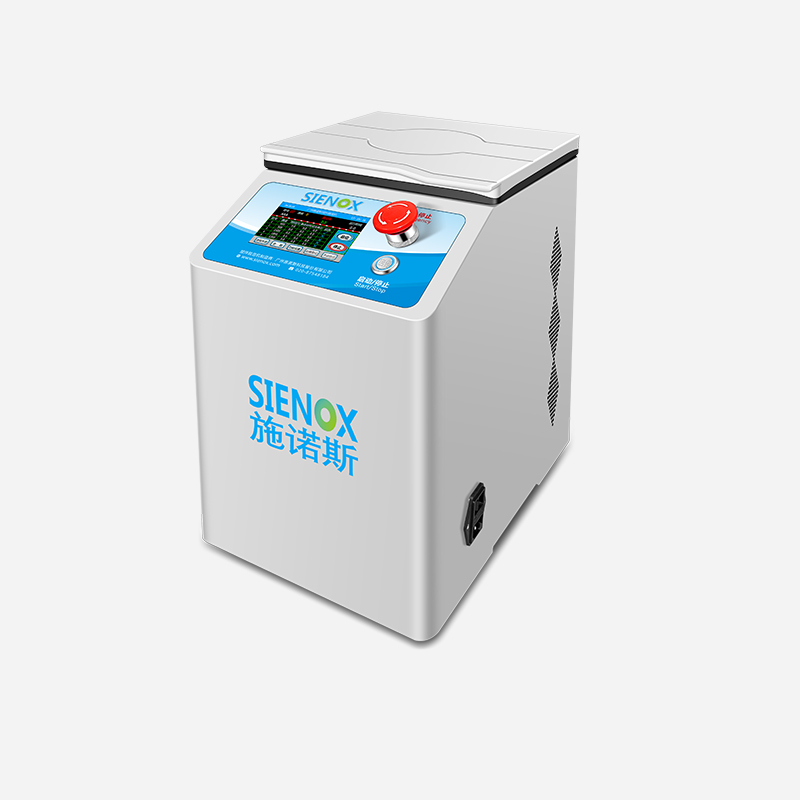

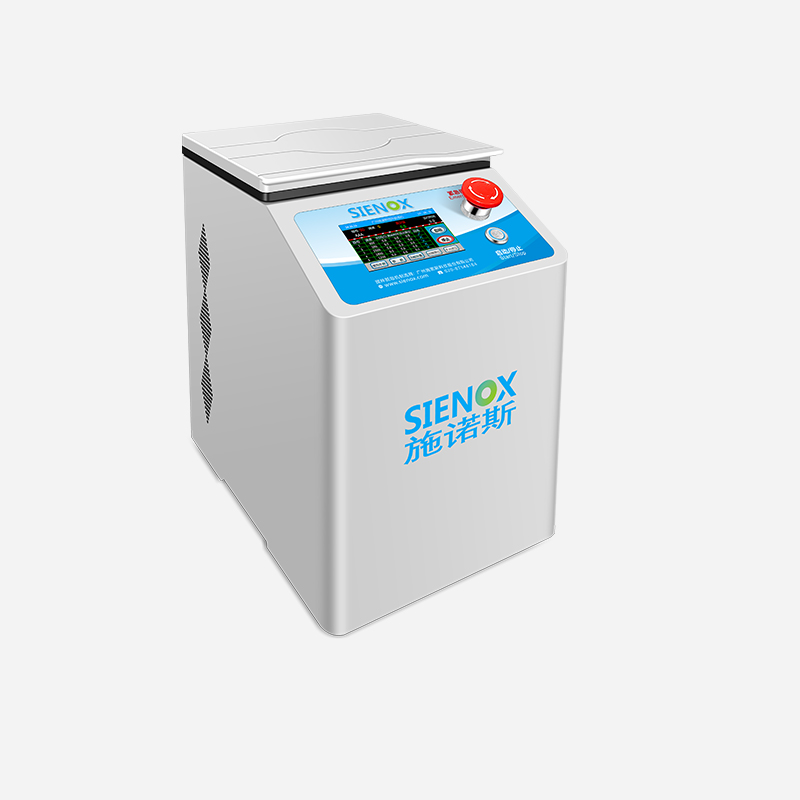

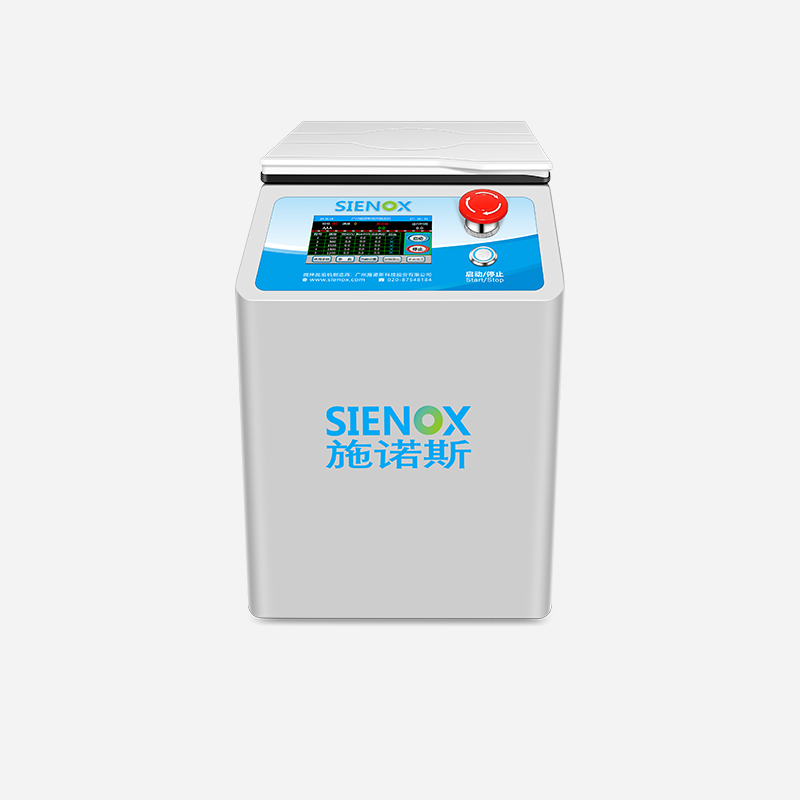

Lab Planetary Mixer‑Degasser SIE‑CV200
Lab‑Oriented Design · Bench‑top for Direct Lab‑bench Placement
200mL R&D Sample Size | 3000rpm Gear‑Driven Precise Mixing | 100‑set Multi‑segment Programming
SINOS SIE‑CV200 is a bench‑top planetary mixer‑degasser developed for lab research and sample testing. It fits directly on lab benches with no extra space required. The 200 mL sample capacity matches routine lab usage and reduces material waste.
Contact‑free mixing lowers material contamination risk, suitable for phosphor powder, epoxy resin, ceramic slurries, photosensitive resins and other common lab materials.
✓ CE Certification ✓ FC Certification ✓ ISO9001 ✓ RoHS Compliance ✓ Custom Voltage (110V/220V)
Why Must Microbubbles in Materials Be Eliminated?
Residual micro‑bubbles in materials directly compromise test‑data accuracy and research‑conclusion reliability.
University & Lab ResearchBubbles introduced during mixing impair product purity and structure in new‑material synthesis. In polymer research, bubbles create internal voids and skew mechanical test data. For nanomaterial dispersion, bubbles trap agglomerated particles and distort evaluation results, undermining research reliability. | Biopharma R&DMicro‑bubbles in diagnostic reagents cause concentration deviations and unstable test repeatability. Bubbles in sustained‑release drugs lead to uneven dosage and distorted release‑curve measurement. Poor dispersion of vaccine adjuvants biases immune‑effect assessment and delays R&D progress. | Fine Chemical R&DBubbles trigger pinholes and orange‑peel defects in coating formulation tests. Trapped pigment agglomerates cause color deviation and reduced tinting strength. In adhesive development, mixing bubbles lower bonding‑strength readings and result in wrong formula judgements. |
✨ Limitations of conventional methods: Manual/impeller stirring draws extra air bubbles; static degassing is slow and inefficient. Professional contact‑free planetary mixers‑degassers separate bubbles by centrifugal force for consistent, repeatable lab test data.
Why Choose the SIE‑CV200
Three Core Advantages for Lab‑scale R&D
Compact Bench‑top Lab‑Oriented Design
|
|
|
✨ The SIE‑CV200 integrates compact bench‑top layout, gear‑driven mixing and multi‑segment programming. Optimized for space saving, reliable repeatable data and flexible processes, it fully meets lab R&D and sample‑testing requirements.
Working Principle
Synchronized dual‑drive revolution‑rotation ensures consistent experimental conditions for every test.
Step 1: Centrifugal Force from Revolution Step 2: Shear Force from Rotation Synchronized revolution‑rotation completes the full “mixing‑dispersion‑degassing” process inside sealed containers. Constant gear‑driven speed ratio guarantees consistent and repeatable test data across batches. |  |
Technical Specifications
Rigorous Equipment Performance Index Data Alignment
| Model | SIE‑CV200 |
| Mixing Capacity | 0–200 mL (standard vessel) * Larger volume customizable |
| Vessel Type | Test tube / jar / cup; adapters for syringes & cartridges available |
| Vessel Quantity | 1 jar |
| Max Speed | 0 – 3000 RPM (stepless adjustable) |
| Revolution / Rotation Ratio | Fixed planetary ratio |
| Vacuum Level | Optional: –99 kPa |
| Control System | Touch screen, stores 100 recipe sets |
| Power Supply | 220V, 50/60Hz (110V US/JP standard customizable) |
| Dimensions(W×D×H) | 340 × 240 × 370 mm |
| Net Weight | Approx. 30 kg |
| Certifications | CE, FC, ISO9001, RoHS Compliance |
Our Partners
Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide
FAQ - Frequently Asked Questions
Answers to common questions about product performance and everyday process selection
-
脱泡机的作用是什么？
脱泡机是一种用于去除液体中的气泡的设备。它的作用在于帮助生产过程中的液体混合、反应、涂布、印刷、灌注等工艺环节，避免气泡的产生和对最终产品的影响。在许多工业和实验室环境中，去除气泡是非常必要的，因为气泡可能会对产品质量产生负面影响，如影响表面张力和稳定性等问题。脱泡机通常采用各种不同的技术，如振动、超声波、离心等，以实现有效的气泡去除。它的应用领域广泛，包括但不限于半导体、太阳能、光学、生物技术、材料科学等。
-
售后服务怎么样？
公司拥有专业的售后服务人员，24小时专人服务，一对一提供技术支持，解决您的后顾之忧。
-
为什么要选择施诺斯？
选择施诺斯的原因有很多，以下是一些主要的原因：
1. 专业性：我们的团队由一群专业的人士组成，他们在各自的领域拥有丰富的经验和知识。我们不仅了解行业趋势和最佳实践，而且还能提供切实可行的解决方案。
2. 服务质量：我们注重客户的需求和满意度，始终致力于提供高质量的服务。我们不仅快速响应客户需求，而且还能根据客户的要求进行定制化服务。
3. 可靠性：我们以诚信和专业精神为宗旨，始终遵守承诺和协议。我们的工作方法和交付成果均符合行业标准和最佳实践，使得我们的客户能够信任我们。
4. 创新性：我们不断探索新的方法和工具，以提供更好的服务并满足客户的需求。我们鼓励创新和实验，并愿意接受挑战和改变。
5. 成本效益：我们提供高性价比的服务，不仅能够帮助客户节省成本，而且还能提高效率和生产力。我们始终以客户的利益为出发点，为客户提供最优的解决方案。
6. 团队合作：我们相信团队的力量和合作的价值，我们的团队成员之间互相支持、协作和尊重。我们与客户、合作伙伴和其他利益相关者建立紧密的合作关系，以实现共同的目标。
以上只是选择我们的部分原因，我们相信还有很多其他的优点和价值可以为客户提供。如果您正在寻找一家专业、可靠、高质量的服务提供商，我们非常期待与您的合作。
-
搅拌脱泡机的工作原理？
施诺斯搅拌脱泡机通过公转的离心力进行脱泡，通过公转与自转形成的剪切力进行搅拌，
再辅助以真空泵抽取气体以达到真空状态，去除纳米级微小气泡。 不接触物料，无二次污染，无二次浪费。
-
施诺斯能提供工程咨询技术服务吗？
施诺斯能为广大客户提供全面的工程和现代化的咨询服务。施诺斯近二十年的搅拌经验，可以为你提供高效的咨询服务。
想要让搅拌机性能更上一层楼，提升系统的整体效能？我们有全面的咨询、工程以及现代化改造服务，为您量身打造解决方案。 在如今竞争激烈的全球化浪潮中，唯有不断创新、持续优化，才能始终跑在对手前面。您的生产工艺和产品日新月异，我们就为您提供最适配的混合技术。不管是新的产品参数，还是既有的工艺条件，我们都能对现有系统和搅拌设备进行全方位的检查与评估，挖掘其中潜藏的流程优化空间和机械性能提升潜力，并且帮您把这些改进切实落地。 要是您的搅拌设备已经跟不上时代步伐，能耗居高不下，或是维护成本让您头疼不已，那就别犹豫，我们的咨询、工程设计和现代化改造服务，就是为您排忧解难的良方。欢迎随时联系我们，携手开启高效生产新征程！
Technical Specification List
Full‑line standardized specifications for accurate process evaluation and equipment selection
| Model | SIE‑CV200 | SIE‑CV300 | SIE‑CV1000 |
| Mixing Capacity | 0–200 mL (standard vessel) * Customizable | 0–300 mL (standard vessel) * Customizable | 0–1000 mL (standard vessel) * Customizable |
| Vessel Type | Test tube / jar / cup; adapters for syringes & cartridges available | Test tube / jar / cup; adapters for syringes & cartridges available | Test tube / jar / cup; adapters for syringes & cartridges available |
| Vessel Quantity | 1 jar | 1 or 2 jars (optional) | 1 or 2 jars (optional) |
| Max Speed | 0 – 3000 RPM (stepless adjustable) | 0 – 3000 RPM (stepless adjustable) | 0 – 2000 RPM (stepless adjustable) |
| Revolution / Rotation Ratio | Fixed planetary ratio | Fixed planetary ratio | Fixed planetary ratio |
| Vacuum Level | Optional: –99 kPa | Optional: –99 kPa | Optional: –99 kPa |
| Control System | Touch screen, stores 100 recipe sets | Touch screen, stores 100 recipe sets | Touch screen, stores 100 recipe sets |
| Power Supply | 220V, 50/60Hz (110V US/JP standard customizable) | 220V, 50/60Hz (110V US/JP standard customizable) | 220V, 50/60Hz (110V US/JP standard customizable) |
| Dimensions(W×D×H) | 340 × 240 × 370 mm | 510 × 430 × 500 mm | 610 × 560 × 780 mm |
| Net Weight | 30 kg | 95 kg | 153 kg |
| Certifications | CE, FC | CE, FC | CE, FC |
*** Above are typical models. SINOS provides customized solutions upon request. For selection consultation: 189‑2512‑9293
Multi‑Industry Solutions
Covers typical lab‑scale mixing and degassing applications for R&D materials across six major industries.
University ResearchNew‑material synthesis, nanomaterial dispersion, polymer research, alumina slurries, functional materials |
BiopharmaceuticalsDiagnostic reagents, sustained‑release formulations, pharmaceutical gels, vaccine adjuvants, biological adhesives |
Fine ChemicalsCoating formulation, pigment dispersion, adhesive R&D, surface treatment agents, catalyst slurries |
LED PackagingPhosphor dispersion, packaging silicone, optical adhesives, color‑matching slurries, reflective adhesives |  AerospaceConductive adhesives, structural adhesives, composite resins, coating materials, high‑temperature adhesives |
Testing InstitutesStandard sample preparation, reference sample production, incoming inspection, quality‑analysis samples |
Comprehensive Equipment Operation Demo Videos
Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.
Actual‑test Performance Demonstration
Lab Sample Actual Test Results
AB Glue |
Glue + Powder |
Glass Powder |
Electronic Adhesive + Powder |
Epoxy Resin |
Battery Slurry Powder |
Actual‑test Effect Comparison
Material Before‑and‑after Degassing Comparison
| Material Type | Status Before Treatment | After SIE‑CV200 Treatment |
| Phosphor Slurry | Obvious phosphor agglomeration, turbid slurry with bubbles, uneven luminescence after coating | Well‑dispersed phosphor, fine & dense slurry, greatly improved luminescence consistency |
| Ceramic Slurry | Uneven particle distribution, internal bubbles, poor fluidity, high porosity of sintered parts | Uniform particle dispersion, bubble‑free fluent slurry, higher density of sintered components |
| Photoresin | Dense micro‑bubbles inside resin with slight turbidity, surface pits after curing | Dense micro‑bubbles inside resin with slight turbidity, surface pits after curing |
* Internal lab test data. Actual improvement varies with material formulas. Contact sales for real customer cases.
