Ink Degasser

TEL:18925129293

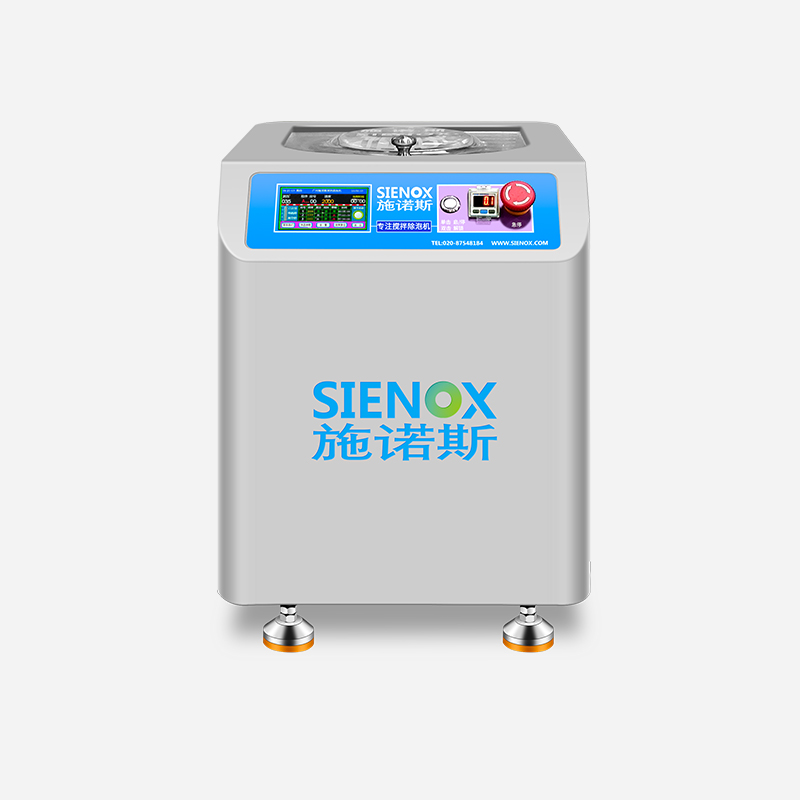

Screen Printing Ink Defoaming Machine


Resolve bubbles and screen clogging of screen printing ink · Uniform ink film, pinhole-free and excellent mesh passing property

Vacuum stirring and defoaming for high-viscosity ink + Deagglomerate fillers to improve mesh passing + Suitable for milliliter-level sampling

SIENOX screen printing ink defoaming solution solves the pain points of screen printing ink including high viscosity, large amount of pigment fillers and air entrapment during scraping and stirring. Stirring and defoaming are completed simultaneously under vacuum to break filler agglomerates, forming uniform thick ink films and smooth mesh penetration, lowering the occurrence of screen clogging, pinholes and local ink shortage.

✓ CE certification  ✓ ISO9001 Quality Management System ✓ RoHS compliance ✓ Custom voltage available (110V/220V)

Online Message Free Sample Testing Engineer Hotline: 189-2512-9293

Why Do We Need a Screen Printing Ink Defoaming Machine

General Screen Printing

Screen printing ink has high viscosity and abundant pigment fillers. Air trapped during scraping and ink mixing leads to screen clogging, pits and pinholes on ink film, damaging pattern integrity.

Thick-film Printed Parts

For thick-film printing on membrane switches, nameplates, PC and glass, bubbles cause local ink shortage and pinholes, reducing ink film adhesion and weather resistance.

Multi-variety & Small-batch Production

Screen printing orders are often multi-variety, small-batch with frequent color changes. A fast sampling defoaming method with reproducible parameters is required.

✨ Traditional challenges: Manual stirring of high-viscosity ink still entraps air after long mixing. Screen clogging and pinholes occur once printing starts, leading to high scrap rates. Vacuum stirring is required for high-viscosity screen printing ink.

Why Choose SIENOX Screen Printing Ink Defoaming Solution

Defoaming for High-viscosity Ink

Vacuum stirring handles high-viscosity screen printing ink, treating bubbles and filler agglomerates at the same time for smoother mesh passing.

Uniform Ink Film

Breaks up pigment filler agglomerates to achieve consistent ink film thickness without pinholes or pits, and provides stronger adhesion for thick films.

Sampling-friendly

C/ZK series supports milliliter-scale sampling, enabling fast color switching for multi-variety small batches. MIX series for scale-up mass production.

✨ The MIX series serves as an ideal defoaming device for offset printing ink from color matching to bulk ink supply.

Equipment Supporting Description

Supporting Process Workflow

Weigh resin and powder → Vacuum stirring, mixing and degassing → Discharging for pressing / casting → Curing / sintering.

Stirring and Defoaming Working Principle 03.jpg

Specifications & Parameters

Selection Guide

Screen Printing Ink TypeTypical StateRecommended Defoaming MethodRecommended Equipment
Sampling / Small-batch Ink MixingSmall amount of high-viscosity inkCentrifugal / vacuum defoamingC Series / ZK Series
General Screen Printing InkHigh viscosityVacuum stirring & defoamingMIX60 / MIX80
Thick-film / High-filler InkHigh-viscosity pasteVacuum stirring & defoamingMIX1000plus
High-precision Screen Printing with Strict RequirementsHigh viscosityVacuum stirring + pressure fine defoamingMIX1000plus / RX Series

Our Partners

Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide

Partner Showcase

FAQ - Frequently Asked Questions

Answers to common questions about product performance and everyday process selection

  • What is the working principle of a centrifugal defoaming machine?

    Principle of centrifugal defoaming machine: The bubbles are released by the downward principle of gravity.

  • How is the after-sales service?

    The company has professional after-sales service personnel, 24-hour dedicated service, and one-on-one technical support to solve your worries.

  • Why choose SIENOX?

    There are many reasons for choosing SIENOX, and the following are some of the main reasons:

    1. Professionalism: Our team consists of a group of professional individuals with rich experience and knowledge in their respective fields. We not only understand industry trends and best practices, but also provide practical and feasible solutions.

    2. Service quality: We focus on customer needs and satisfaction, and are always committed to providing high-quality services. We not only respond quickly to customer needs, but also provide customized services according to their requirements.

    3. Reliability: We adhere to the principles of integrity and professionalism, always adhering to commitments and agreements. Our work methods and deliverables comply with industry standards and best practices, enabling our clients to trust us.

    4. Innovation: We continuously explore new methods and tools to provide better services and meet customer needs. We encourage innovation and experimentation, and are willing to accept challenges and change.

    5. Cost effectiveness: We provide cost-effective services that not only help customers save costs, but also improve efficiency and productivity. We always prioritize the interests of our customers and provide them with the best solutions.

    6. Teamwork: We believe in the power and value of teamwork, and our team members support, collaborate, and respect each other. We establish close cooperative relationships with customers, partners, and other stakeholders to achieve common goals.

    The above are just some of the reasons for choosing us. We believe there are many other advantages and values that can be provided to customers. If you are looking for a professional, reliable, and high-quality service provider, we look forward to working with you.


  • How does the stirring and defoaming machine work?

    The SIENOX stirring and defoaming machine performs defoaming through centrifugal force at revolution and stirring through shear force formed by revolution and rotation,

    Assisted by a vacuum pump to extract gas and achieve a vacuum state, removing nanoscale tiny bubbles. No contact with materials, no secondary pollution, and no secondary waste.

  • What is the function of a defoaming machine?

    A defoaming machine is a device used to remove bubbles from liquids. Its function is to assist in the liquid mixing, reaction, coating, printing, infusion and other process steps in the production process, avoiding the generation of bubbles and their impact on the final product. In many industrial and laboratory environments, removing bubbles is essential as they may have a negative impact on product quality, such as affecting surface tension and stability. Defoaming machines typically use various techniques such as vibration, ultrasound, centrifugation, etc. to achieve effective bubble removal. It has a wide range of applications, including but not limited to semiconductors, solar energy, optics, biotechnology, materials science, etc.

Technical Specification List

Full‑line standardized specifications for accurate process evaluation and equipment selection

Screen Printing Ink TypeTypical StateRecommended Defoaming MethodRecommended Equipment
Sampling / Small-batch Ink MixingSmall amount of high-viscosity inkCentrifugal / vacuum defoamingC Series / ZK Series
General Screen Printing InkHigh viscosityVacuum stirring and defoamingMIX60 / MIX80
Thick-film / High-filler InkHigh-viscosity pasteVacuum stirring and defoamingMIX1000plus
High-demand Precision Screen PrintingHigh viscosityVacuum stirring + pressure fine defoamingMIX1000plus / RX Series

Multi‑Industry Solutions

Covering stirring and debubbling applications of typical materials across six major industries

Membrane Switches.jpg

Membrane Switches

Screen printing for key panels and PC films

Nameplates & Labels.jpg

Nameplates

Printing for nameplates, signs and panels

PCB Markings.jpg

PCB Markings

Screen printing for circuit board legends and solder mask

Glass Printing.jpg

Glass Printing

Screen printing on glass, acrylic and nameplates

Textile Printing.jpg

Textile Printing

Printing on garments, fabrics and bags

Screen Printing Ink Factory.jpg

Ink Factory

Production, color matching and filling of screen printing ink

Comprehensive Equipment Operation Demo Videos

Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.

Measured Defoaming‑Process Performance

Measured Processing Results for Six Typical Materials

Lubricant Stirring & Defoaming.jpg

Paste Materials

Photoresist Stirring & Defoaming.jpg

Adhesive with Powder

Polymer Materials.jpg

Polymer Materials

Gel Defoaming 02.jpg

Pharmaceutical Gel

Silver Paste Powder Stirring & Defoaming.jpg

Silver Paste Materials

Battery Slurry & Adhesive Stirring & Defoaming.jpg

Battery Slurry



Precautions for Use

NotesOperation Instructions
Heating to Reduce ViscosityHigh-viscosity screen printing ink can be properly heated to lower viscosity before defoaming, improving mesh passing and dispersion performance.
Standing Before PrintingIt is recommended to stand for several minutes after defoaming to allow residual microbubbles to rise before screen printing, reducing pinholes.
Loading CapacityMatch the cup loading volume with rotation speed to prevent sedimentation and uneven dispersion of high-filler ink.
Slow Pressure ReliefRelease pressure slowly after defoaming to avoid re-foaming and splashing of paste ink.

* Internal laboratory test data. Actual results vary with ink formula and printing process. Contact sales for real customer cases.

Customer Delivery & Application Cases

Rooted in manufacturing frontlines, empowering benchmark production lines and key national research institutions across diverse industries.



Stirring‑Defoaming Solution for Glue Materials in Consumer‑Electronics Industry



Vacuum Defoaming Solution for Consumer Electronics Adhesives



Industrial University Solves Bubble Challenges of Coating‑Film Materials with SIENOX Defoaming Machine
