Ink Degasser

TEL:18925129293

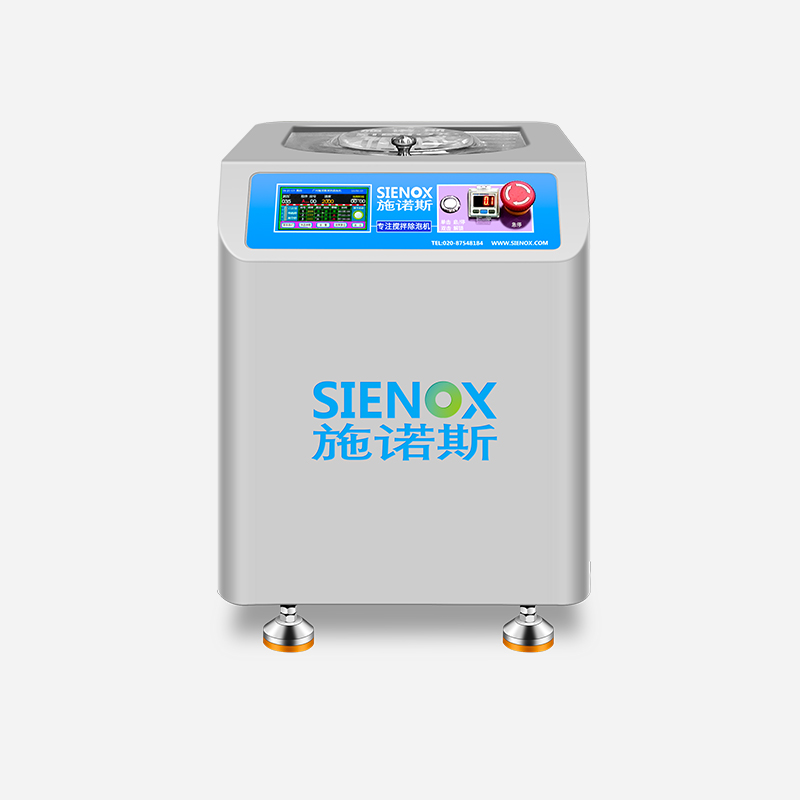

Conductive Ink Defoaming Machine


Solve bubbles and agglomeration of conductive ink · Dense circuit, stable printing and consistent sheet resistance

Vacuum defoaming + Disperse agglomerated conductive particles + Non-contact design for cleanliness and no contamination

SIENOX conductive ink defoaming solution addresses the problems of air entrapment and particle agglomeration during stirring caused by conductive particles contained in conductive ink. It performs stirring, defoaming and dispersion simultaneously under vacuum, delivering dense and uniform conductive circuits with stable printing performance, reducing broken lines, pinholes and sheet resistance fluctuation.

✓ CE certification  ✓ ISO9001 Quality Management System ✓ RoHS compliance ✓ Custom voltage available (110V/220V)

Online Message Free Sample Testing Engineer Hotline: 189-2512-9293

Why a Conductive Ink Defoaming Machine Is Required

Printed Electronic Circuits

When conductive ink is used to print flexible circuits, air bubbles and particle agglomerates generated during stirring will cause broken lines, pinholes and circuit defects, directly impairing the integrity of conductive paths.

Consistent Electrical Performance

Bubbles and agglomeration lead to uneven printed film thickness and sheet resistance fluctuation, causing unstable batch performance of devices such as sensors and heating films and reducing product yield.

High Cleanliness & High-value Material

Conductive ink is high-cost and sensitive to impurities and cleanliness. No contamination or change of particle dispersion state shall be introduced during defoaming.

✨ Traditional challenges: Manual stirring entrains air and causes particle agglomeration, resulting in unstable sheet resistance and intermittent conductivity of printed circuits. Synchronous vacuum defoaming and dispersion is therefore required.

Why Choose SIENOX Conductive Ink Defoaming Solution

Integrated Defoaming & Dispersion

Vacuum stirring achieves defoaming and breaks up agglomerated conductive particles simultaneously for denser circuits and better printability.

Clean Non-contact Design

No impeller contact with materials. It will not contaminate conductive systems and ensures consistent sheet resistance and conductive performance across batches.

Scalable from R&D to Mass Production

C/ZK series supports milliliter-level formula development, while MIX1000plus scales up for mass production with seamless replication of process parameters.

✨ The MIX series serves as ideal defoaming equipment for offset printing ink from color matching to bulk ink supply.

Equipment Supporting Description

Supporting Process Workflow

Weigh resin and powder → Vacuum stirring, mixing and degassing → Discharging for pressing / casting → Curing / sintering.

Stirring and Defoaming Working Principle 03.jpg

Specifications & Parameters

Selection Guide

Conductive Ink ApplicationTypical StateRecommended Defoaming MethodRecommended Equipment
Formula R&D / SamplingSmall amount of conductive inkCentrifugal / vacuum defoaming and dispersionC Series / ZK Series
Printed conductive circuitsMedium to high viscosityVacuum stirring, defoaming and dispersionMIX60 / MIX1000plus
Mass printing productionBulk ink materialVacuum stirring, defoaming and dispersionMIX1000plus
High-precision conductive partsMedium to high viscosityVacuum stirring + pressure fine defoamingMIX1000plus / RX Series

Our Partners

Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide

Partner Showcase

FAQ - Frequently Asked Questions

Answers to common questions about product performance and everyday process selection

  • What is the working principle of a centrifugal defoaming machine?

    Principle of centrifugal defoaming machine: The bubbles are released by the downward principle of gravity.

  • How is the after-sales service?

    The company has professional after-sales service personnel, 24-hour dedicated service, and one-on-one technical support to solve your worries.

  • Why choose SIENOX?

    There are many reasons for choosing SIENOX, and the following are some of the main reasons:

    1. Professionalism: Our team consists of a group of professional individuals with rich experience and knowledge in their respective fields. We not only understand industry trends and best practices, but also provide practical and feasible solutions.

    2. Service quality: We focus on customer needs and satisfaction, and are always committed to providing high-quality services. We not only respond quickly to customer needs, but also provide customized services according to their requirements.

    3. Reliability: We adhere to the principles of integrity and professionalism, always adhering to commitments and agreements. Our work methods and deliverables comply with industry standards and best practices, enabling our clients to trust us.

    4. Innovation: We continuously explore new methods and tools to provide better services and meet customer needs. We encourage innovation and experimentation, and are willing to accept challenges and change.

    5. Cost effectiveness: We provide cost-effective services that not only help customers save costs, but also improve efficiency and productivity. We always prioritize the interests of our customers and provide them with the best solutions.

    6. Teamwork: We believe in the power and value of teamwork, and our team members support, collaborate, and respect each other. We establish close cooperative relationships with customers, partners, and other stakeholders to achieve common goals.

    The above are just some of the reasons for choosing us. We believe there are many other advantages and values that can be provided to customers. If you are looking for a professional, reliable, and high-quality service provider, we look forward to working with you.


  • How does the stirring and defoaming machine work?

    The SIENOX stirring and defoaming machine performs defoaming through centrifugal force at revolution and stirring through shear force formed by revolution and rotation,

    Assisted by a vacuum pump to extract gas and achieve a vacuum state, removing nanoscale tiny bubbles. No contact with materials, no secondary pollution, and no secondary waste.

  • What is the function of a defoaming machine?

    A defoaming machine is a device used to remove bubbles from liquids. Its function is to assist in the liquid mixing, reaction, coating, printing, infusion and other process steps in the production process, avoiding the generation of bubbles and their impact on the final product. In many industrial and laboratory environments, removing bubbles is essential as they may have a negative impact on product quality, such as affecting surface tension and stability. Defoaming machines typically use various techniques such as vibration, ultrasound, centrifugation, etc. to achieve effective bubble removal. It has a wide range of applications, including but not limited to semiconductors, solar energy, optics, biotechnology, materials science, etc.

Technical Specification List

Full‑line standardized specifications for accurate process evaluation and equipment selection

Conductive Ink ApplicationTypical StateRecommended Defoaming MethodRecommended Equipment
Formula R&D / SamplingSmall amount of conductive inkCentrifugal / vacuum defoaming and dispersionC Series / ZK Series
Printed conductive circuitsMedium to high viscosityVacuum stirring, defoaming and dispersionMIX60 / MIX1000plus
Mass printing productionBulk ink materialVacuum stirring, defoaming and dispersionMIX1000plus
High-precision conductive partsMedium to high viscosityVacuum stirring + pressure fine defoamingMIX1000plus / RX Series

Multi‑Industry Solutions

Covering stirring and debubbling applications of typical materials across six major industries

Printed Electronics.jpg

Printed Electronics

Flexible circuits, printed circuits, conductive patterns

Flexible Sensor.jpg

Flexible Sensors

Printing of pressure, temperature and strain sensors

Printed Antenna.jpg

Printed Antennas

NFC/RFID antenna and conductive circuit printing

Membrane Switch.jpg

Membrane Switches

Printing of conductive keys and flexible circuits

Heating Film.jpg

Heating Films

Printing of flexible heating films and electric heating sheets

Conductive Ink Factory.jpg

Conductive Ink Factory

Conductive ink R&D, color matching and filling

Comprehensive Equipment Operation Demo Videos

Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.

Measured Defoaming‑Process Performance

Measured Processing Results for Six Typical Materials

Lubricant Stirring & Defoaming.jpg

Paste Materials

Photoresist Stirring & Defoaming.jpg

Adhesive with Powder

Polymer Materials.jpg

Polymer Materials

Gel Defoaming 02.jpg

Pharmaceutical Gel

Silver Paste Stirring & Defoaming.jpg

Silver Paste Materials

Battery Slurry & Adhesive Stirring & Defoaming.jpg

Battery Slurry



Precautions for Use

NotesOperation Instructions
Loading & Rotation SpeedMatch loading capacity and rotation speed for high-solid-content conductive ink to prevent sedimentation and uneven dispersion of conductive particles.
Anti-oxidation & Anti-contaminationAvoid oxidation of metallic conductive particles and cross-contamination; keep tools and containers clean.
Slow Pressure ReliefRelease pressure slowly after defoaming to prevent re-foaming and splashing of high-solid ink.
Prompt PrintingPerform printing as soon as possible after defoaming and dispersion to avoid re-agglomeration or sedimentation of particles during standing.

* Internal laboratory test data. Actual results vary depending on ink formula and printing process. Contact sales for real customer cases.
