3D Powder Mixer SIE‑HF2L
5L Large Capacity for Higher Single‑batch Throughput · 3D Compound Motion for Dead‑zone‑free Mixing & Batch Consistency
5L Large‑capacity Efficient Mixing + 9KG Heavy‑load Compatibility + Dust‑tight Sealed Design for Stable Batches

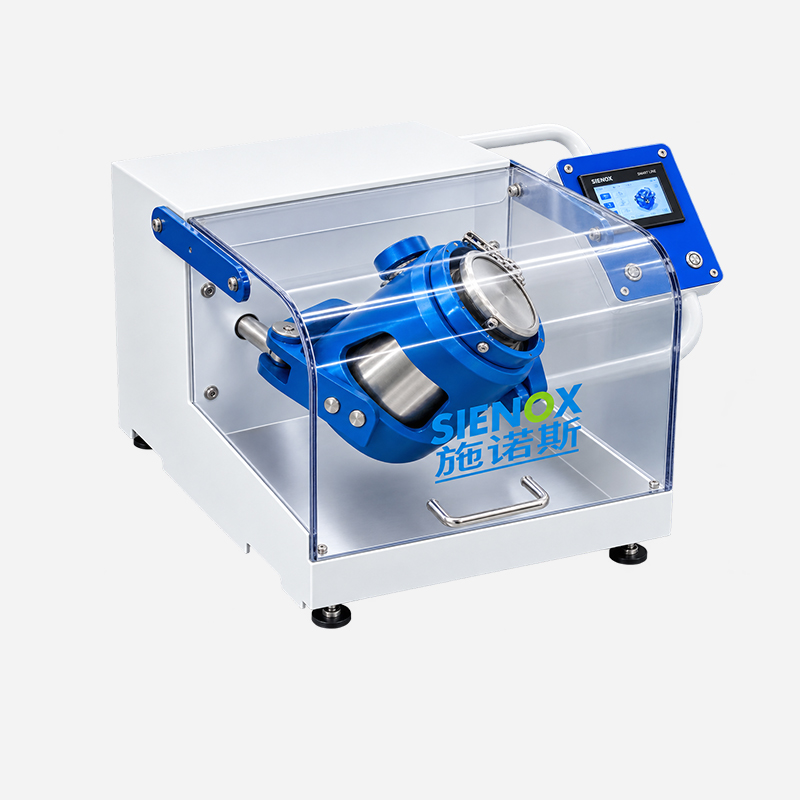

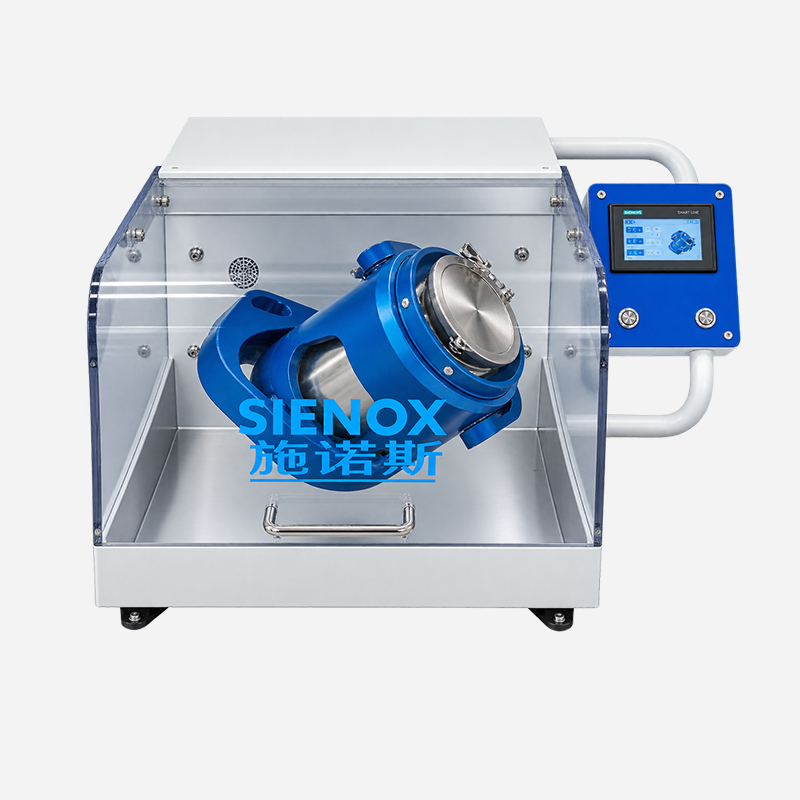

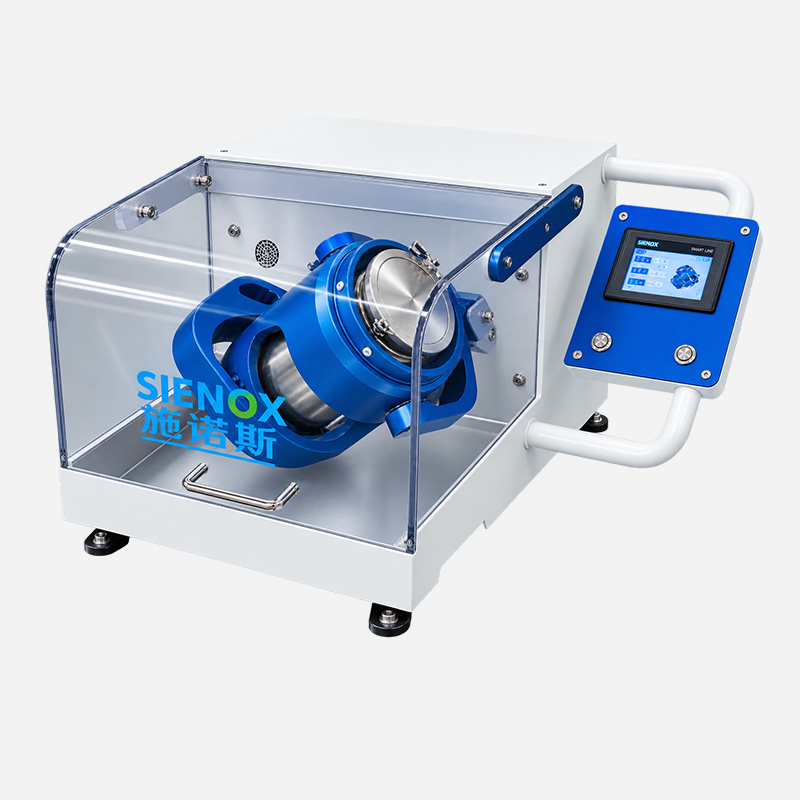

Sienox SIE‑HF5L 3D Powder Mixer, 5L standard vessel (max. capacity 4500ML / load ≤9KG), adjustable speed 20‑60rpm. Micro‑computer control system with touch‑screen operation, forward‑reverse dual‑process timer 0‑50 minutes adjustable, stores 10 recipe sets. Dimension 560×780×520 mm, net weight 67kg, suitable for medium‑small‑batch production and frequent material change‑over.
Non‑contact mixing throughout the process to reduce material contamination risk. Compatible with phosphor powder, epoxy resin, ceramic slurry, photosensitive resin and other common lab‑grade materials.
✓ ISO9001 Quality System ✓ RoHS Compliance ✓ Custom voltage available (110V/220V)
Why Precise Mixing Is Required
Uneven mixing of powder materials directly affects end‑product performance
Ceramic IndustryUneven mixing of components in alumina, zirconia and other ceramic powders causes inconsistent sintered density, cracking and fluctuating mechanical properties. The 3D powder mixer achieves homogeneous blending for ceramic powders of different specific gravities and particle sizes, ensuring consistent composition and stable performance of sintered bodies. It meets quality standards for small‑and‑medium‑batch production and reduces reject rates. | Pharmaceutical IndustryUneven blending of active ingredients and excipients in pharmaceutical powder formulas leads to tablet content deviation, impairing efficacy consistency and pharmaceutical compliance. The 3D powder mixer homogenizes powders in a dust‑proof sealed environment to guarantee uniform content distribution per batch and meet strict mixing‑homogeneity requirements for pharmaceutical production with reliable batch‑to‑batch consistency. | Magnetic Material IndustryPoor mixing of NdFeB and other permanent‑magnet powders results in fluctuating magnetic properties and unsatisfactory batch consistency for customer acceptance. The 3D powder mixer homogenizes magnetic powders of varied particle sizes, delivering consistent magnetic performance and stable batches of sintered magnets. It fulfills quality requirements for small‑and‑medium‑batch production and lowers scrap rates. |
✨ Pain Points of Traditional Powder Mixing Small-capacity equipment suffers from insufficient single-batch throughput, resulting in low efficiency for small and medium-batch orders due to repeated batch mixing. V-type and traditional 3D mixers are difficult to clean and time-consuming for material replacement. Open mixing operation causes flying dust, leading to environmental pollution and raw material loss. In addition, poor batch-to-batch consistency greatly affects product acceptance and delivery.
Why Choose SIE‑HF5L
Solve Core Pain Points of Powder Mixing for Small‑medium‑batch Production
5L Large Capacity for Higher Efficiency5L standard vessel with max. volume of 4500ML. Its single‑batch throughput is more than doubled compared with 2L models, reducing mixing cycles and boosting efficiency for small‑medium‑batch production. The 5000ML chamber fits various standard jars. Adapters and jar stoppers are available for mounting small vessels to meet diverse volume requirements for multi‑purpose use. | 9KG Heavy‑load for Denser MaterialsDesigned for heavy‑duty powder mixing. Heavy‑specific‑gravity materials such as metal and ceramic powders can be mixed stably within 5L volume. 3D compound motion delivers dead‑zone‑free homogeneous blending for materials of different densities. Supports dry‑dry, dry‑wet and wet‑wet sample mixing for broad application scope. | Intelligent Control for Reproducible Batch StabilityMicrocomputer control system with touch‑screen operation, stores up to 10 recipe sets. One‑click parameter recall for frequent material change‑over to eliminate manual setting errors. Forward‑reverse dual‑process operation, adjustable duration from 0‑50 minutes in 1‑second increments with cycle mode. Auto home‑position stop after cycle completion to ensure consistent operation for every batch. Visual protective cover with safety interlock: machine stops immediately once cover is opened for operator safety. |
✨ HF5L is your ideal choice for small‑medium‑batch production requiring high‑capacity efficient mixing, frequent material change‑overs or heavy‑duty material processing

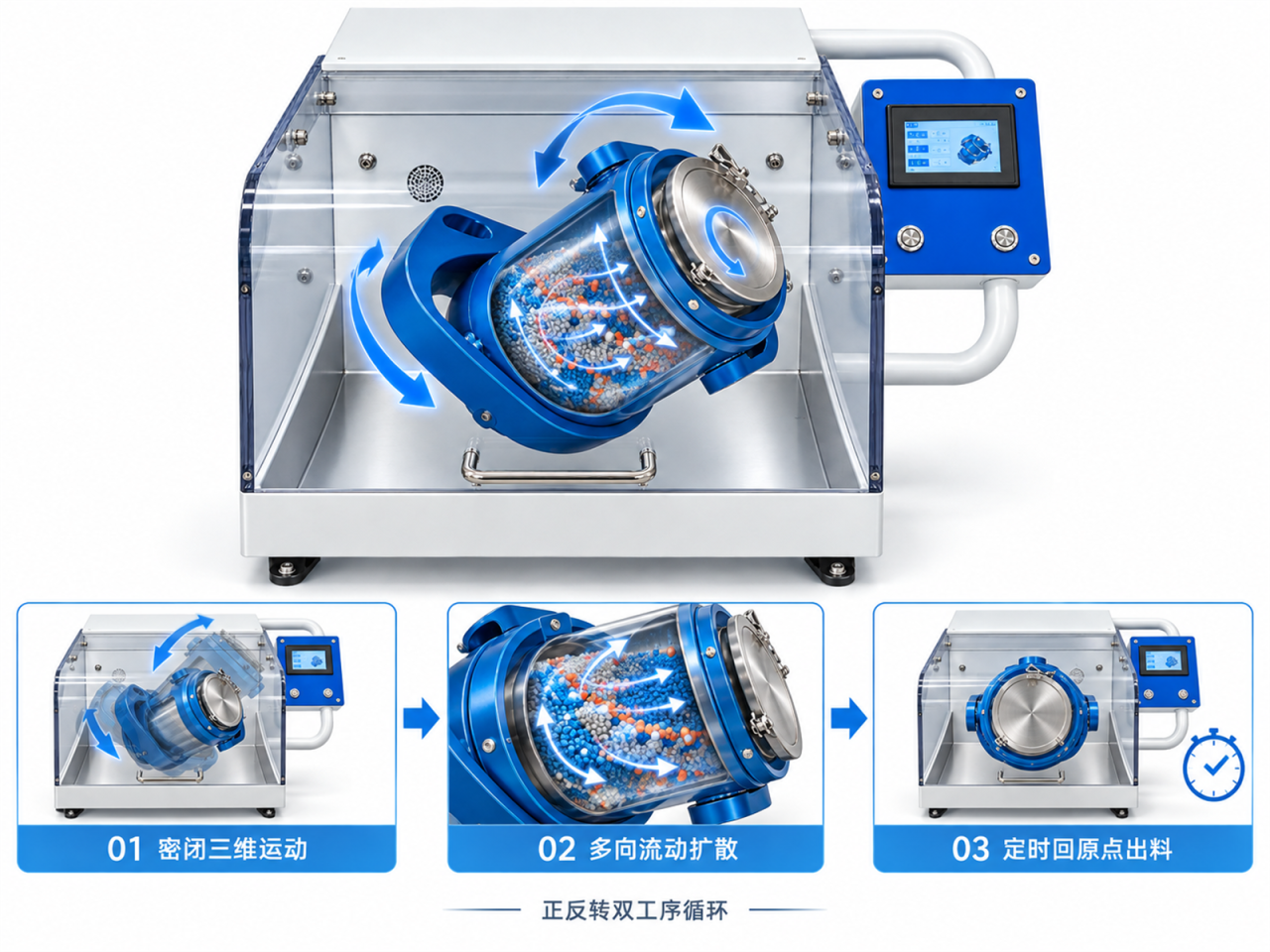

Working Principle
Uniform material mixing is achieved via multi‑dimensional rotational, translational and tumbling movements inside fully sealed vessels
Step 1: 3D Movement in Sealed Vessel Step 2: Uniform Diffusion via Multi‑directional Flow Step 3: Timed Stop & Home‑position Return Three simple steps: Sealed 3D Motion → Multi‑directional Flow & Diffusion → Timed Home‑position Discharge for dead‑zone‑free homogeneous mixing. Forward‑reverse cycle operation is supported for repeated cycles until target homogeneity is reached. |  |
Technical Specifications
Complete Technical Specifications Overview, Customizable on Demand
| Model | SIE‑HF5L |
| Max. Processing Volume | 4500ML (load ≤6KG) |
| Speed Range | 20~60rpm |
| Time Setting | Forward‑reverse dual‑process, 0‑50min adjustable in 1‑s increments, cycle‑run supported |
| Recipe Storage | 10 sets of parameters storable |
| Control System | Microcomputer control with touch‑screen operation |
| Working Principle | Multi‑dimensional motion: rotation, translation and tumbling |
| Home Position Function | Auto home‑position return after natural stop |
| Power Supply | Single‑phase AC220V±5%, 50~60Hz |
| Dimension (W×D×H) | 560×780×520mm |
| Net Weight | Approx. 67 kg |
| Certifications | ISO9001, RoHS Compliance |
Our Partners
Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide
FAQ - Frequently Asked Questions
Answers to common questions about product performance and everyday process selection
-
What is the working principle of a centrifugal defoaming machine?
Principle of centrifugal defoaming machine: The bubbles are released by the downward principle of gravity.
-
How is the after-sales service?
The company has professional after-sales service personnel, 24-hour dedicated service, and one-on-one technical support to solve your worries.
-
Why choose SIENOX?
There are many reasons for choosing SIENOX, and the following are some of the main reasons:
1. Professionalism: Our team consists of a group of professional individuals with rich experience and knowledge in their respective fields. We not only understand industry trends and best practices, but also provide practical and feasible solutions.
2. Service quality: We focus on customer needs and satisfaction, and are always committed to providing high-quality services. We not only respond quickly to customer needs, but also provide customized services according to their requirements.
3. Reliability: We adhere to the principles of integrity and professionalism, always adhering to commitments and agreements. Our work methods and deliverables comply with industry standards and best practices, enabling our clients to trust us.
4. Innovation: We continuously explore new methods and tools to provide better services and meet customer needs. We encourage innovation and experimentation, and are willing to accept challenges and change.
5. Cost effectiveness: We provide cost-effective services that not only help customers save costs, but also improve efficiency and productivity. We always prioritize the interests of our customers and provide them with the best solutions.
6. Teamwork: We believe in the power and value of teamwork, and our team members support, collaborate, and respect each other. We establish close cooperative relationships with customers, partners, and other stakeholders to achieve common goals.
The above are just some of the reasons for choosing us. We believe there are many other advantages and values that can be provided to customers. If you are looking for a professional, reliable, and high-quality service provider, we look forward to working with you.
-
How does the stirring and defoaming machine work?
The SIENOX stirring and defoaming machine performs defoaming through centrifugal force at revolution and stirring through shear force formed by revolution and rotation,
Assisted by a vacuum pump to extract gas and achieve a vacuum state, removing nanoscale tiny bubbles. No contact with materials, no secondary pollution, and no secondary waste.
-
What is the function of a defoaming machine?
A defoaming machine is a device used to remove bubbles from liquids. Its function is to assist in the liquid mixing, reaction, coating, printing, infusion and other process steps in the production process, avoiding the generation of bubbles and their impact on the final product. In many industrial and laboratory environments, removing bubbles is essential as they may have a negative impact on product quality, such as affecting surface tension and stability. Defoaming machines typically use various techniques such as vibration, ultrasound, centrifugation, etc. to achieve effective bubble removal. It has a wide range of applications, including but not limited to semiconductors, solar energy, optics, biotechnology, materials science, etc.
Technical Specification List
Full‑line parameter specifications to assist your accurate process‑model selection
| Model | SIE‑HF2L | SIE‑HF5L |
| Max. Processing Volume | 2000ML (load ≤6KG) | 4500ML (≤9KG) |
| Speed Range | 30~100rpm | 20~60rpm |
| Time Setting | Forward‑reverse dual‑process, 0‑50min adjustable in 1‑s increments, cycle‑run supported | Forward‑reverse dual‑process, 0‑50min adjustable in 1‑s increments, cycle‑run supported |
| Recipe Storage | 10 sets of parameters storable | 10 sets of parameters storable |
| Control System | Microcomputer control with touch‑screen operation | Microcomputer control with touch‑screen operation |
| Working Principle | Multi‑dimensional motion: rotation, translation and tumbling | Multi‑dimensional motion: rotation, translation and tumbling |
| Home Position Function | Auto home‑position return after natural stop | Auto home‑position return after natural stop |
| Power Supply | Single‑phase AC220V±5%, 50~60Hz | Single‑phase AC220V±5%, 50~60Hz |
| Dimension (W×D×H) | 500×660×410mm | 560×780×520mm |
| Net Weight | 43 kg | 67 kg |
Multi‑Industry Solutions
Covers Typical Powder Mixing Applications
Sintered Powder MetalsHard‑alloy powder (WC‑Co), iron‑based powder (Fe‑Cu‑C), stainless‑steel powder, copper‑based powder |
Ceramic IndustryAlumina powder, zirconia powder, silicon carbide powder, silicon nitride powder, ceramic glaze materials |
Pharmaceutical IndustryAPI‑excipient blending, pharmaceutical formula mixing, herbal powder mixing, granule pre‑mixing |
New‑energy MaterialsTernary materials (NCM), lithium iron phosphate (LFP), graphite anode materials, electrolyte powder, conductive agent blending |  Research InstitutesR&D mixing for new materials, nano‑powder blending, functionally‑graded material formulas, battery‑material mixing |
Magnetic MaterialsNdFeB magnetic powder, ferrite powder, bonded magnet powder, magnetic composite materials |
Comprehensive Equipment Operation Demo Videos
Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.
Actual‑test Performance Demonstration
Lab Sample Actual Test Results
AB Glue |
Glue + Powder |
Glass Powder |
Electronic Adhesive + Powder |
Epoxy Resin |
Battery Slurry Powder |
Actual‑test Effect Comparison
Material Defoaming Effect Comparison Before & After
| Material Type | Status Before Treatment | Status After HF5L Treatment |
| Cemented Carbide Powder (WC‑Co) | Cobalt powder agglomerates with clear boundary from tungsten‑carbide powder, uneven color, severe compositional segregation after sintering | Tungsten‑carbide particles evenly coated by cobalt powder, no agglomeration with uniform color. Homogeneous composition and stable mechanical performance after sintering |
| Alumina‑Zirconia Composite Powder | Obvious delamination caused by specific‑gravity difference: alumina on upper layer and zirconia on lower layer. Poor mixing impairs ceramic performance | Homogeneous two‑phase distribution without delamination and uniform color. Improved sintered density and mechanical properties of ceramics |
| Fe‑Cu‑C Mixed Powder | Distinct delamination due to density difference among metal powders: iron powder sinks while copper powder floats, presenting mottled uneven color | Uniform distribution of all metal powders without delamination or segregation. Sintered parts feature consistent composition and stable performance |
* Internal lab test data. Actual improvement varies with material formulas. Contact sales for real‑world customer cases.
Customer Delivery & Application Cases
Rooted in manufacturing frontlines, empowering benchmark production lines and key national research institutions across diverse industries.
