Planetary Mixer SIE‑GX500
Dead‑zone‑free Dual‑Planetary Revolution‑Rotation Mixing · Integrated Vacuum Defoaming & Precise Temperature Control
Dual‑planetary revolution‑rotation mixing + 0~5000rpm high‑speed dispersion + vacuum defoaming & precise temperature control
SIENOX SIE‑GX500 Planetary Mixer, 0.5L effective capacity (1.13L total volume). Revolution 0~60r/min, rotation 0~120r/min, high‑speed 0~5000r/min variable‑frequency speed regulation. Adjustable ‑0.098 MPa vacuum with oil‑free vacuum pump, SUS304 stainless steel wetted parts. 800×650×980mm dimension, 160kg weight, ideal for laboratory operation.
✓ CE Certification ✓ FC Certification ✓ ISO9001 Quality System ✓ RoHS Compliance ✓ Custom voltage available (110V/220V)
Why Planetary Mixing Is Required
Uneven mixing and dispersion of slurry directly impair end‑product performance.
Battery Slurry IndustryUneven mixing of active materials, conductive agents and binders in lithium‑ion battery cathode and anode slurry causes coating areal‑weight fluctuation, increased battery internal resistance and inconsistent cycle life. The planetary mixer generates intense kneading interference for high‑viscosity slurry via compound revolution‑rotation motion, and the high‑speed dispersing disc shears and breaks agglomerated particles, ensuring uniform dispersion of lab sample slurry and reliable formula evaluation data. | Electronic Paste IndustryPoor dispersion between metal powder and organic carrier in electronic pastes such as conductive silver paste and resistance paste leads to sheet resistance deviation, printing open‑circuit defects and non‑dense sintered films. The high‑speed dispersing disc of planetary mixer reaches linear speed up to 15m/s, evenly dispersing micron‑sized metal powder into organic carrier to guarantee sheet resistance consistency and printing performance of electronic paste samples. | Research InstitutesHigh‑viscosity systems are hard to mix in new‑material R&D. Conventional mixers suffer from material climbing & wall adhesion and numerous dead zones, resulting in large batch‑to‑batch deviation. The planetary mixer adopts enhanced helical frame together with wall‑scraping paddles to produce omnidirectional circulating motion inside the vessel without dead zones or material climbing, meeting research requirements for slurry mixing accuracy and batch consistency. |
✨ Traditional Mixing Dilemmas: Conventional single‑shaft mixers feature numerous dead zones. Materials climb and adhere to vessel walls, causing uneven mixing of high‑viscosity slurries. Single mixing mode fails to complete mixing and dispersion simultaneously, leaving agglomerated particles unbroken. Open‑style mixing introduces bubbles and impurities which contaminate slurries and degrade performance. Imprecise temperature control leads to heat rise during mixing and altered rheological properties. Without vacuum function, internal bubbles inside slurry cannot be eliminated.
Why Choose SIE‑GX500
Solve Core Pain Points of Laboratory Sample Slurry Preparation

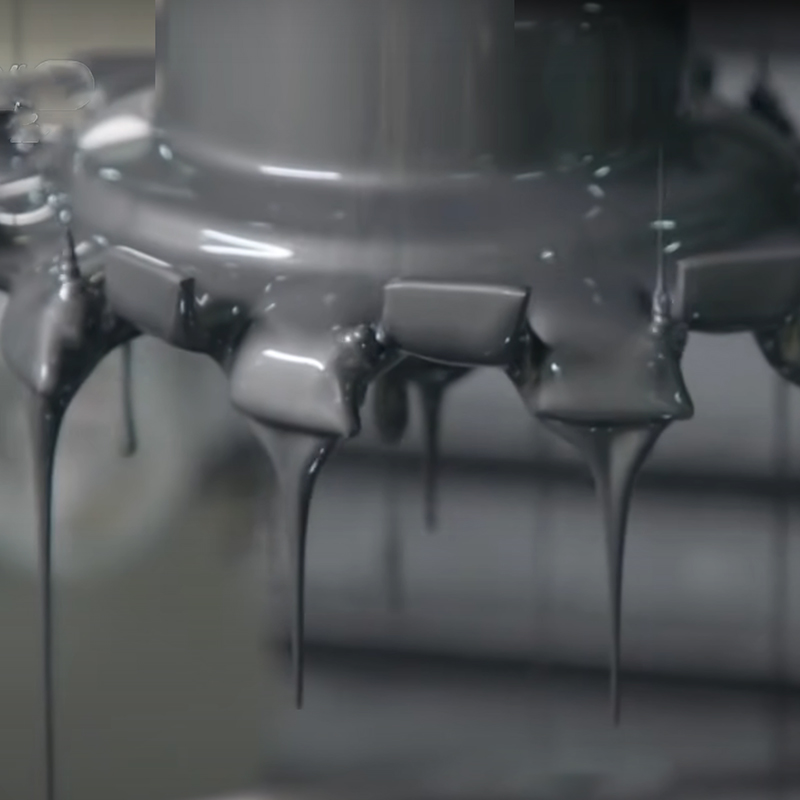

Dead‑zone‑free Dual‑Planetary Revolution‑Rotation MixingLow‑speed mixing paddles revolve clockwise and rotate counter‑clockwise. Wall‑scraping design eliminates dead zones on vessel wall and bottom. The enhanced helical frame handles medium‑high viscosity slurries. Low‑clearance design generates intense kneading interference and omnidirectional circulating motion for materials without material climbing. Cantilever‑type screw lifting vessel enables quick material change and cleaning, suitable for frequent formula switching in laboratories. | Fine Grinding via High‑Speed DispersionHigh‑speed dispersing shaft equipped with serrated dispersing disc, 0~5000r/min variable‑frequency speed regulation with max linear speed up to 15m/s. The disc strongly shears and breaks agglomerated particles for fine material dispersion. Co‑working of low‑speed mixing and high‑speed dispersion completes mixing and dispersion in one step, directly achieving qualified fineness for lab sample slurries. | Integrated Vacuum Defoaming & Precise Temperature ControlEquipped with oil‑free vacuum pump to remove internal slurry bubbles during mixing. Direct‑contact temperature sensor delivers fast response with ±0.5℃ measuring error. Heating and cooling are available to precisely control slurry temperature and prevent rheology change caused by mixing heat. Overall vacuum‑sealed design isolates air and moisture contamination during mixing. |
✨ If your laboratory requires a small‑capacity planetary mixer with high dispersion for simultaneous mixing and defoaming, the GX500 is your ideal choice.
Working Principle
Both low‑speed mixing paddle and high‑speed dispersing disc perform rotation and revolution to realize mixing and dispersion simultaneously.
Step 1: Revolution & Rotation of Low‑Speed Mixing Paddles Step 2: Shearing & Disintegration by High‑Speed Dispersing Disc Step 3: Vacuum Defoaming and Temperature Control Three simple steps: Low‑speed revolution‑rotation mixing → High‑speed shear dispersion → Vacuum defoaming, temperature control & discharge. Mixing, dispersion and defoaming are accomplished in one cycle. | ![]() |
Technical Specifications
Complete Technical Specifications Overview, Customizable on Demand
| Model | SIE‑GX500 |
| Effective Capacity | 0.5L (1.13L total volume) |
| Speed Range | 0~5000r/min (Adjustable) |
| Vessel Dimension | Inner Diameter 130mm × Inner Height 85mm |
| Basic Structure | 1. Cantilever‑type screw lifting vessel; 2. Direct material temperature measurement; 3. Dual mixing shafts + wall‑scraping + single dispersing shaft |
| Lifting Height | 150mm |
| Temperature Control | Heating & Cooling Available |
| High‑Speed Dispersing Linear Speed | Max. 15m/s |
| Power Supply | AC220V/50Hz |
| Overall Dimension(W×D×H) | 800×650×980mm |
| Net Weight | Approx. 160 kg |
| Certifications | CE, FC, ISO9001, RoHS Compliance |
Our Partners
Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide
FAQ - Frequently Asked Questions
Answers to common questions about product performance and everyday process selection
-
脱泡机的作用是什么?
脱泡机是一种用于去除液体中的气泡的设备。它的作用在于帮助生产过程中的液体混合、反应、涂布、印刷、灌注等工艺环节,避免气泡的产生和对最终产品的影响。在许多工业和实验室环境中,去除气泡是非常必要的,因为气泡可能会对产品质量产生负面影响,如影响表面张力和稳定性等问题。脱泡机通常采用各种不同的技术,如振动、超声波、离心等,以实现有效的气泡去除。它的应用领域广泛,包括但不限于半导体、太阳能、光学、生物技术、材料科学等。
-
售后服务怎么样?
公司拥有专业的售后服务人员,24小时专人服务,一对一提供技术支持,解决您的后顾之忧。
-
为什么要选择施诺斯?
选择施诺斯的原因有很多,以下是一些主要的原因:
1. 专业性:我们的团队由一群专业的人士组成,他们在各自的领域拥有丰富的经验和知识。我们不仅了解行业趋势和最佳实践,而且还能提供切实可行的解决方案。
2. 服务质量:我们注重客户的需求和满意度,始终致力于提供高质量的服务。我们不仅快速响应客户需求,而且还能根据客户的要求进行定制化服务。
3. 可靠性:我们以诚信和专业精神为宗旨,始终遵守承诺和协议。我们的工作方法和交付成果均符合行业标准和最佳实践,使得我们的客户能够信任我们。
4. 创新性:我们不断探索新的方法和工具,以提供更好的服务并满足客户的需求。我们鼓励创新和实验,并愿意接受挑战和改变。
5. 成本效益:我们提供高性价比的服务,不仅能够帮助客户节省成本,而且还能提高效率和生产力。我们始终以客户的利益为出发点,为客户提供最优的解决方案。
6. 团队合作:我们相信团队的力量和合作的价值,我们的团队成员之间互相支持、协作和尊重。我们与客户、合作伙伴和其他利益相关者建立紧密的合作关系,以实现共同的目标。
以上只是选择我们的部分原因,我们相信还有很多其他的优点和价值可以为客户提供。如果您正在寻找一家专业、可靠、高质量的服务提供商,我们非常期待与您的合作。
-
搅拌脱泡机的工作原理?
施诺斯搅拌脱泡机通过公转的离心力进行脱泡,通过公转与自转形成的剪切力进行搅拌,
再辅助以真空泵抽取气体以达到真空状态,去除纳米级微小气泡。 不接触物料,无二次污染,无二次浪费。
-
施诺斯能提供工程咨询技术服务吗?
施诺斯能为广大客户提供全面的工程和现代化的咨询服务。施诺斯近二十年的搅拌经验,可以为你提供高效的咨询服务。
想要让搅拌机性能更上一层楼,提升系统的整体效能?我们有全面的咨询、工程以及现代化改造服务,为您量身打造解决方案。 在如今竞争激烈的全球化浪潮中,唯有不断创新、持续优化,才能始终跑在对手前面。您的生产工艺和产品日新月异,我们就为您提供最适配的混合技术。不管是新的产品参数,还是既有的工艺条件,我们都能对现有系统和搅拌设备进行全方位的检查与评估,挖掘其中潜藏的流程优化空间和机械性能提升潜力,并且帮您把这些改进切实落地。 要是您的搅拌设备已经跟不上时代步伐,能耗居高不下,或是维护成本让您头疼不已,那就别犹豫,我们的咨询、工程设计和现代化改造服务,就是为您排忧解难的良方。欢迎随时联系我们,携手开启高效生产新征程!
Technical Specification List
Full‑line parameter specifications to assist your accurate process‑model selection
| Model | SIE‑GX500 | SIE‑GX1L | SIE‑GX5L |
| Effective Capacity | 0.5L | 1L | 5L |
| Speed Range | 0~5000r/min (Adjustable) | 0~5000r/min (Adjustable) | 0~3500r/min (Adjustable) |
| Vessel Dimension | Inner Diameter 130mm × Inner Height 85mm | Inner Diameter 130mm × Inner Height 85mm | Inner Diameter 130mm × Inner Height 85mm |
| Basic Structure | 1. Cantilever‑type screw lifting vessel; 2. Direct material temperature measurement; 3. Dual mixing shafts + wall‑scraping + single dispersing shaft | 1. Cantilever‑type screw lifting vessel; 2. Direct material temperature measurement; 3. Dual mixing shafts + wall‑scraping + single dispersing shaft | 1. Cantilever‑type screw lifting vessel; 2. Direct material temperature measurement; 3. Dual mixing shafts + wall‑scraping + single dispersing shaft |
| Lifting Height | 150mm | 150mm | 200mm |
| Temperature Control | Heating & Cooling Available | Heating & Cooling Available | Heating & Cooling Available |
| High‑Speed Dispersing Linear Speed | Max. 15m/s | Max. 15m/s | Max. 15m/s |
| Power Supply | AC220V/50Hz | AC220V/50Hz | AC380V/50Hz |
| Overall Dimension(W×D×H) | 800×650×980mm | 850×680×1050mm | 1200×1100×1800mm |
| Net Weight | 160 kg | 200 kg | 500 kg |
| Certifications | CE, FC, ISO9001, RoHS Compliance | CE, FC, ISO9001, RoHS Compliance | CE, FC, ISO9001, RoHS Compliance |
Multi‑Industry Solutions
Typical Applications for Slurry Mixing & Dispersion
Battery SlurryCathode slurry (NCM/LFP), anode slurry (graphite), separator coating slurry, solid‑state electrolyte slurry |
Paint & PigmentIndustrial coatings, automotive paints, water‑based pigment pastes, UV coatings |
BiomedicineOintment preparations, biological gels, medical adhesives, pharmaceutical suspensions |
AdhesivesEpoxy glue, polyurethane glue, silicone sealant, hot‑melt adhesive | ![]() Ceramic SlurryAlumina slurry, zirconia slurry, ceramic glaze, electronic ceramic slurry |
Cosmetic PasteCream & lotion, toothpaste, sunscreen, hair‑dye cream |
Comprehensive Equipment Operation Demo Videos
Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.
Actual‑test Performance Demonstration
Lab Sample Actual Test Results
AB Glue |
Glue + Powder |
Glass Powder |
Electronic Adhesive + Powder |
Epoxy Resin |
Battery Slurry Powder |
Actual‑test Effect Comparison
Material Defoaming Effect Comparison Before & After
| Material Type | Condition Before Treatment | After GX500 Treatment |
| Battery Cathode Slurry (NCM) | Uneven distribution of active materials and conductive agents, visible agglomerates, fluctuating viscosity, large areal‑weight variation after coating | Uniform dispersion of all components without agglomerates, stable viscosity, consistent coating areal weight, reduced battery internal resistance and improved cycle life |

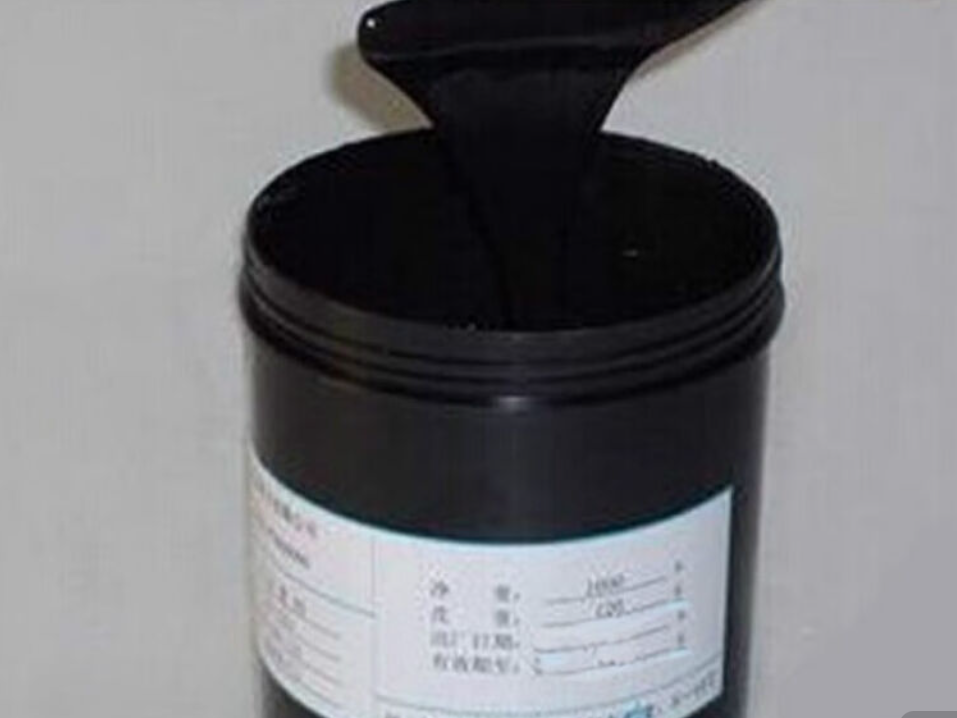

| Conductive Silver Paste | Silver powder agglomeration & sedimentation, delamination from organic carrier, unsatisfactory particle size, open‑circuit defects during printing | Silver powder evenly suspended in carrier, qualified fineness without agglomeration, continuous printing without open‑circuit, consistent sheet resistance after sintering |
| Epoxy Resin Adhesive | Poor mixing of A/B components, uneven color shade, entrapped internal bubbles, unstable strength after curing | Uniform transparent color, fully blended components, no obvious bubbles after vacuum defoaming, stable and consistent curing strength |
* Internal lab test data. Actual improvement varies with material formula. Real customer cases are available upon request from sales.
