Planetary Mixer SIE‑GX10L


Dual‑planetary revolution‑rotation mixing without dead zones · Integrated vacuum defoaming & precise temperature control

Dual‑planetary revolution‑rotation mixing + 0~3500rpm high‑speed dispersion + vacuum defoaming & precise temperature control

SIE‑GX10L planetary mixer by SIENOX features 10L effective capacity, dual‑planetary revolution‑rotation mixing, 0‑3500r/min high‑speed dispersion, ‑0.098 MPa vacuum defoaming and ±0.5 ℃ precise temperature control. It fits medium‑and‑small‑batch standardized production of inks, coatings, silicone rubber and food pastes. 20‑year original manufacturer, free sample testing available.

✓ ISO9001 Quality System ✓ RoHS Compliance ✓ Custom voltage (110V/220V) supported

Online Message Free Sample Testing Engineer Hotline: 189-2512-9293

Why Planetary Mixing Is Required

Uneven mixing and dispersion of slurry directly impair end‑product performance.

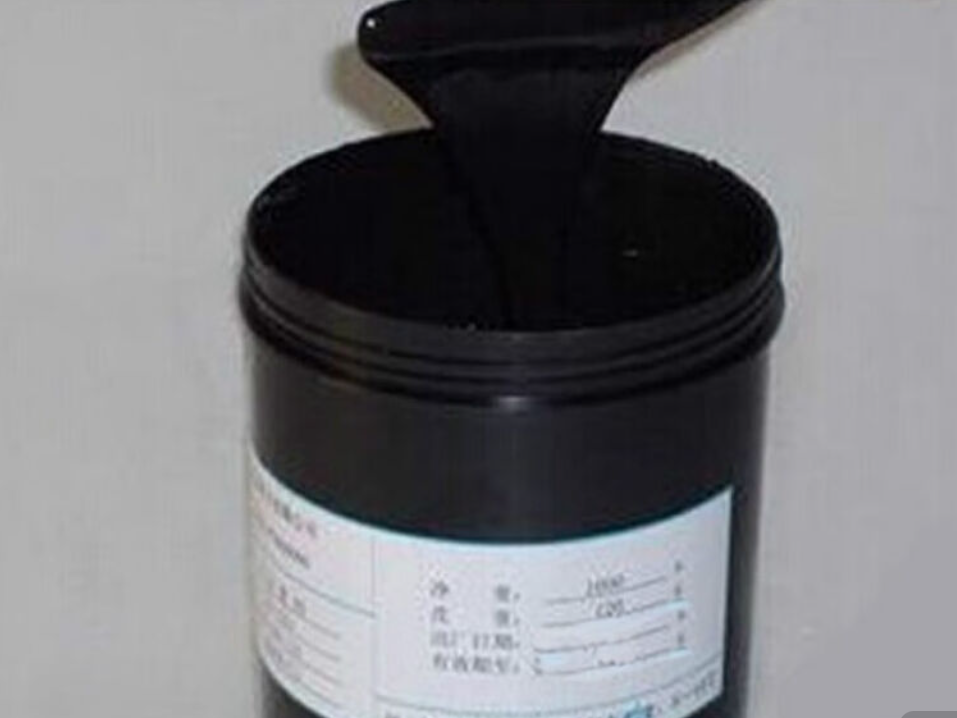

Ink & Coating Industry

Uneven dispersion between pigment and binder in ink causes color deviation, insufficient fineness and poor printing transfer. Through compound revolution‑rotation motion, the planetary mixer generates intense kneading interference for high‑viscosity ink. The high‑speed dispersing disc shears and breaks pigment agglomerates down to micron level. Vacuum defoaming removes internal ink bubbles, ensuring consistent color difference and printing performance for medium‑small‑batch ink, with batch‑to‑batch stability meeting delivery requirements.

Silicone Rubber Industry

Poor dispersion of fillers such as fumed silica in liquid silicone rubber (LSR) and HTV compound leads to fluctuated hardness, inconsistent tensile strength and bubble defects after vulcanization. The enhanced helical frame of planetary mixer handles high‑viscosity silicone rubber systems. Low‑clearance design realizes uniform filler dispersion, and vacuum defoaming eliminates bubbles generated during compounding to guarantee batch‑to‑batch quality consistency of silicone rubber.

Food Paste Industry

Uneven solid‑liquid dispersion in chocolate paste, jam, condiment sauce and other food pastes results in rough texture, inhomogeneous texture and water separation. Material‑contact parts made of SUS304 stainless steel meet food‑grade standards. Low‑speed mixing paddle achieves homogeneous blending for high‑viscosity pastes. Temperature sensor provides precise ±0.5 ℃ temperature control to prevent thermal‑sensitive raw material deterioration. Vacuum defoaming delivers fine texture and ensures quality for standardized food paste production.

✨ Traditional Mixing Dilemmas: Ordinary single‑shaft mixers produce numerous dead zones. For 10L materials, "climbing" and wall‑sticking become severe with poor batch consistency. Single‑mode mixing cannot complete mixing and dispersion simultaneously, making it hard to break agglomerates in high‑viscosity silicone rubber and ink. Open‑type mixing introduces air bubbles and raises bubble defect rates of silicone rubber products. Imprecise temperature control causes deterioration of heat‑sensitive food paste raw materials. Without vacuum function, bubbles inside slurry cannot be removed and degrade finished‑product quality.

Why Choose SIE‑GX10L

Solve core pain points of medium‑small‑batch production

Standardized Medium‑small Batch Production

Enhanced helical frame together with wall‑scraping mixing paddles. The low‑clearance design generates intensive kneading interference and omnidirectional circulating motion for materials. Dead‑zone‑free mixing without "climbing" even under 10L volume. Cantilever‑type screw lifting vessel with sufficient lifting stroke for quick material change and cleaning, suitable for multi‑variety medium‑small‑batch production.

0~3500rpm High‑speed Dispersion + 15m/s Linear Speed

Serrated dispersing disc on high‑speed dispersing shaft adopts variable‑frequency speed regulation from 0~3500r/min with max. linear speed of 15m/s. It strongly shears and disintegrates agglomerated particles to realize fine material dispersion. Low‑speed mixing and high‑speed dispersion work simultaneously. Dispersion fineness of ink, silicone rubber and food paste for medium‑small batches reaches standard directly without secondary treatment.

Vacuum Defoaming & Temperature Control & MES Traceability

Equipped with oil‑free vacuum pump for continuous defoaming during mixing process. Direct‑contact temperature sensor monitors material temperature with ±0.5 ℃ accuracy, supporting heating and cooling. Compatible with MES software for real‑time production data collection and traceable batch process parameters to satisfy quality management system requirements. SUS304 stainless steel wetted parts for food‑grade production.

✨ If your production line requires a 10L‑grade planetary mixer with stable batches and traceability, the GX10L is the ideal choice.

Working Principle

Both low‑speed mixing paddle and high‑speed dispersing disc perform rotation and revolution to realize mixing and dispersion simultaneously.

Step 1: Revolution and Rotation of Low-speed Stirring Paddle
The low-speed stirring paddle revolves clockwise and rotates counterclockwise, cooperating with the wall scraper to eliminate dead zones on the bucket wall. The small-gap design generates intense kneading interference and omnidirectional circulation movement for materials. No "climbing" occurs for high-viscosity slurries, and multi-component materials start homogeneous mixing.

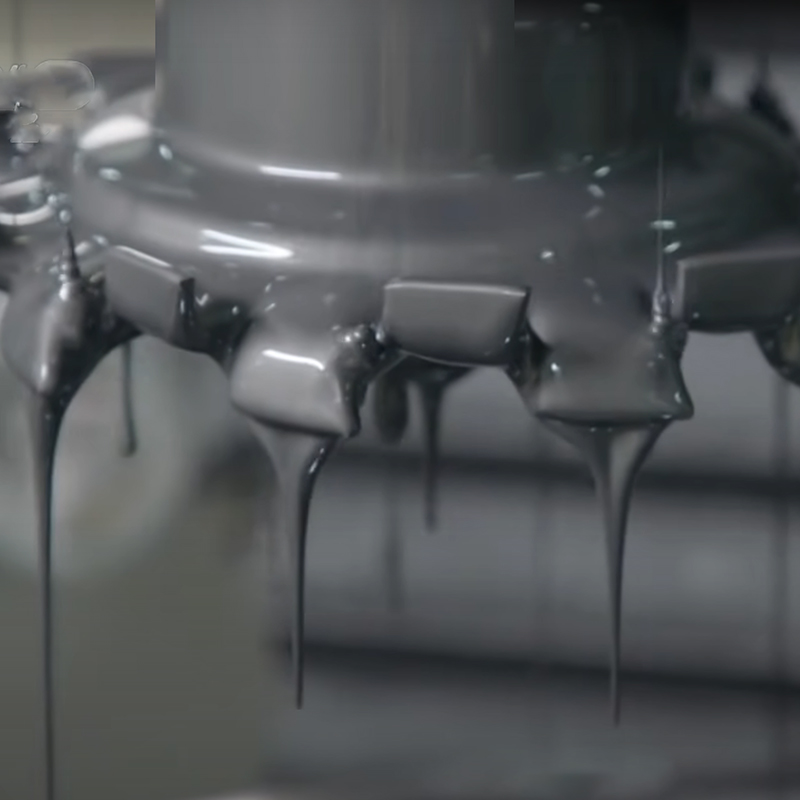

Step 2: Shearing and Dispersion by High-speed Dispersing Disc
The serrated dispersing disc on the high-speed shaft rotates at high speed with a maximum linear speed of 15m/s, strongly shearing and breaking agglomerated particles. Low-speed mixing and high-speed dispersion run simultaneously. Materials are fully dispersed and blended under alternating kneading and shearing effects.

Step 3: Vacuum Defoaming & Temperature Control
Adjustable vacuum up to -0.098MPa for continuous bubble removal during stirring. The temperature sensor directly contacts materials to monitor slurry temperature in real time with ±0.5℃ precision, supporting heating or cooling. After reaching the set time, the screw lowers the material barrel for easy discharging and cleaning.


Three simple steps: Low-speed revolution & rotation mixing → High-speed shear dispersion → Vacuum defoaming, temperature control and discharging. Mixing, dispersion and defoaming are completed in one process.

Working Principle of Vacuum Defoaming Mixer.jpg

Technical Specifications

Complete Technical Specifications Overview, Customizable on Demand

ModelSIE‑GX10L
Effective Capacity10L (Total volume 15L)
Speed Range0~5000r/min (Adjustable)
Vessel DimensionInner Diameter approx.310mm × Inner Height approx.230mm
Basic Structure1. Cantilever‑type screw lifting vessel; 2. Direct material temperature measurement; 3. Dual mixing shafts + wall‑scraping device + single dispersing shaft
Lifting Height280mm
Temperature ControlHeating & Cooling Available
High‑Speed Dispersing Linear SpeedMax.15m/s
Power SupplyAC380V/50Hz
Overall Dimension(W×D×H)1300×1100×2000mm
Net Weightapprox.750 kg
CertificationsISO9001, RoHS Compliance


Our Partners

Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide

Partner Showcase

FAQ - Frequently Asked Questions

Answers to common questions about product performance and everyday process selection

  • What is the working principle of a centrifugal defoaming machine?

    Principle of centrifugal defoaming machine: The bubbles are released by the downward principle of gravity.

  • How is the after-sales service?

    The company has professional after-sales service personnel, 24-hour dedicated service, and one-on-one technical support to solve your worries.

  • Why choose SIENOX?

    There are many reasons for choosing SIENOX, and the following are some of the main reasons:

    1. Professionalism: Our team consists of a group of professional individuals with rich experience and knowledge in their respective fields. We not only understand industry trends and best practices, but also provide practical and feasible solutions.

    2. Service quality: We focus on customer needs and satisfaction, and are always committed to providing high-quality services. We not only respond quickly to customer needs, but also provide customized services according to their requirements.

    3. Reliability: We adhere to the principles of integrity and professionalism, always adhering to commitments and agreements. Our work methods and deliverables comply with industry standards and best practices, enabling our clients to trust us.

    4. Innovation: We continuously explore new methods and tools to provide better services and meet customer needs. We encourage innovation and experimentation, and are willing to accept challenges and change.

    5. Cost effectiveness: We provide cost-effective services that not only help customers save costs, but also improve efficiency and productivity. We always prioritize the interests of our customers and provide them with the best solutions.

    6. Teamwork: We believe in the power and value of teamwork, and our team members support, collaborate, and respect each other. We establish close cooperative relationships with customers, partners, and other stakeholders to achieve common goals.

    The above are just some of the reasons for choosing us. We believe there are many other advantages and values that can be provided to customers. If you are looking for a professional, reliable, and high-quality service provider, we look forward to working with you.


  • How does the stirring and defoaming machine work?

    The SIENOX stirring and defoaming machine performs defoaming through centrifugal force at revolution and stirring through shear force formed by revolution and rotation,

    Assisted by a vacuum pump to extract gas and achieve a vacuum state, removing nanoscale tiny bubbles. No contact with materials, no secondary pollution, and no secondary waste.

  • What is the function of a defoaming machine?

    A defoaming machine is a device used to remove bubbles from liquids. Its function is to assist in the liquid mixing, reaction, coating, printing, infusion and other process steps in the production process, avoiding the generation of bubbles and their impact on the final product. In many industrial and laboratory environments, removing bubbles is essential as they may have a negative impact on product quality, such as affecting surface tension and stability. Defoaming machines typically use various techniques such as vibration, ultrasound, centrifugation, etc. to achieve effective bubble removal. It has a wide range of applications, including but not limited to semiconductors, solar energy, optics, biotechnology, materials science, etc.

Technical Specification List

Full‑line parameter specifications to assist your accurate process‑model selection

ModelSIE‑GX5LSIE‑GX10LSIE‑GX20L
Effective Capacity5L10L20L
Speed Range0~3500r/min (Adjustable)0~3500r/min (Adjustable)0~3500r/min (Adjustable)
Vessel DimensionInner Diameter 130mm × Inner Height 85mmInner Diameter approx.310mm × Inner Height approx.230mmInner Diameter 350mm × Inner Height 270mm
Basic Structure1. Cantilever‑type screw lifting vessel; 2. Direct material temperature measurement; 3. Dual mixing shafts + wall‑scraping device + single dispersing shaft1. Cantilever‑type screw lifting vessel; 2. Direct material temperature measurement; 3. Dual mixing shafts + wall‑scraping device + single dispersing shaft1. Cantilever‑type screw lifting vessel; 2. Direct material temperature measurement; 3. Dual mixing shafts + wall‑scraping device + single dispersing shaft
Lifting Height200mm280mm350mm
Temperature ControlHeating & Cooling AvailableHeating & Cooling AvailableHeating & Cooling Available
High‑Speed Dispersing Linear SpeedMax.15m/sMax.15m/sMax.15m/s
Power SupplyAC380V/50HzAC380V/50HzAC380V/50Hz
Overall Dimension(W×D×H)1200×1100×1800mm1300×1100×2000mm1370×1100×2200mm
Net Weight500 kg750 kg1050 kg

Multi‑Industry Solutions

Typical Applications for Slurry Mixing & Dispersion

University Research.jpg

Battery Slurry

Cathode slurry (NCM/LFP), anode slurry (graphite), separator coating slurry, solid‑state electrolyte slurry


Paint & Pigment

Industrial coatings, automotive paint, water‑based pigment paste, UV coatings

Ink & Coating.jpg

Biomedicine

Ointment preparations, biological gels, medical adhesives, pharmaceutical suspensions

LED Raw Material 02.jpg

Adhesive

Epoxy glue, polyurethane glue, silicone sealant, hot‑melt adhesive


Ceramic Slurry

Alumina slurry, zirconia slurry, ceramic glaze, electronic ceramic slurry

Testing Laboratory.jpg

Cosmetic Paste

Cream & lotion, toothpaste, sunscreen, hair‑dye cream

Comprehensive Equipment Operation Demo Videos

Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.

Actual‑test Performance Demonstration

Lab Sample Actual Test Results

AB Glue Mixing & Defoaming.jpg

AB Glue


Glue + Powder

Glass Powder Mixing & Defoaming.jpg

Glass Powder

Electronic Adhesive & Powder Mixing & Defoaming.jpg

Electronic Adhesive + Powder

Black Epoxy Resin Mixing & Defoaming.jpg

Epoxy Resin

Battery Slurry & Powder Mixing & Defoaming 02.jpg

Battery Slurry Powder


Actual‑test Effect Comparison

Material Defoaming Effect Comparison Before & After

Material TypeState Before TreatmentAfter Treatment by GX10L
Offset Printing Ink (Four-color)Uneven dispersion of pigment and binder, excessive fineness and color difference. Internal bubbles cause pinholes during printing and unstable batch chromatic aberrationUniformly dispersed pigment with qualified fineness. No bubble pinholes after vacuum defoaming, consistent color and stable batches for smooth printing
Liquid Silicone Rubber (LSR)Precipitation and agglomeration of silica, uneven dispersion with silicone base material. Internal bubbles lead to defects of vulcanized productsUniformly dispersed silica without agglomeration, bubble-free after vacuum defoaming. Consistent hardness and defect-free vulcanized parts with stable batch quality
Chocolate PasteSeparation of cocoa powder and grease, rough granular agglomerates, uneven texture and poor taste, unstable water precipitation and stratificationSmooth and delicate without granular agglomerates, uniform texture and silky taste, no water separation, consistent standardized batch quality

* Internal laboratory test data. Actual improvement varies with material formulation. Contact sales for real customer cases.

Customer Delivery & Application Cases

Rooted in manufacturing frontlines, empowering benchmark production lines and key national research institutions across diverse industries.



Stirring‑Defoaming Solution for Glue Materials in Consumer‑Electronics Industry



Vacuum Defoaming Solution for Consumer Electronics Adhesives



Industrial University Solves Bubble Challenges of Coating‑Film Materials with SIENOX Defoaming Machine
