Planetary Mixer SIE‑GX1L


Dual‑planetary revolution‑rotation dead‑zone‑free mixing · Formula optimization & verification for lab‑scale capacity

Dual‑planetary revolution‑rotation mixing + 0~5000rpm high‑speed dispersion + vacuum defoaming & precise temperature control

SIENOX SIE‑GX1L planetary mixer features 1L effective capacity. Low‑speed mixing paddles perform clockwise revolution and counter‑clockwise rotation, combined with powerful shearing de‑agglomeration from high‑speed dispersing disc to realize dead‑zone‑free mixing and fine dispersion for medium‑high viscosity slurry. Adjustable vacuum enables defoaming during mixing. Enhanced helical frame handles high‑viscosity systems. Cantilever screw‑driven lifting vessel supports fast material change and cleaning, ideal for lab‑scale laboratory operation.

✓ CE Certification  ✓ FC Certification ✓ ISO9001 Quality System ✓ RoHS Compliance ✓ Custom voltage (110V/220V) supported


Online Message Free Sample Testing Engineer Hotline: 189-2512-9293

Why Planetary Mixing Is Required

Uneven mixing and dispersion of slurry directly impair end‑product performance.

Paint & Pigment Industry

Uneven dispersion of pigment powder and resin base material in paints and pigments causes color difference, insufficient hiding power and gloss fluctuation. The planetary mixer generates intense kneading interference for medium‑high viscosity color paste via compound revolution‑rotation motion. The high‑speed dispersing disc shears pigment agglomerates down to micron level, ensuring dispersion fineness and color consistency of lab‑scale color paste for reliable and reproducible formula optimization data.

Biomedicine Industry

Uneven mixing of active ingredients and substrates in pharmaceutical systems such as ointment preparations and biological gels results in content deviation and unstable release rate. Kneading interference motion from low‑speed mixing paddles of the planetary mixer achieves homogeneous blending of high‑viscosity ointment substrates. Vacuum environment isolates air and moisture contamination. The temperature sensor delivers ±0.5℃ precise temperature control to prevent thermal‑sensitive components from deactivation and guarantee consistent quality of small‑batch trial products.

Thermal Conductive Material Industry

Poor dispersion between thermal conductive powder and silicone oil in thermal grease and thermal gel leads to thermal conductivity fluctuation and uneven coating thickness. The high‑speed dispersing disc of planetary mixer uniformly disperses high‑loading thermal conductive powder into silicone oil matrix. Low‑clearance design eliminates settling dead zones. Vacuum defoaming removes bubbles introduced during mixing, making thermal performance and coatability of thermal‑material samples meet design requirements.

✨ Traditional mixing challenges: Conventional single‑shaft mixers feature numerous dead zones. Materials climb and adhere to vessel walls, resulting in uneven mixing of high‑viscosity slurry. Single mixing mode cannot realize mixing and dispersion simultaneously, making agglomerated particles hard to break up. Open‑type mixing introduces bubbles and impurities to contaminate slurry and impair performance. Imprecise temperature control causes slurry heat rise during mixing and alters rheological properties. Without vacuum function, internal bubbles inside slurry cannot be eliminated.

Why Choose SIE‑GX1L

Solve Core Pain Points of Lab‑Scale Formula Optimization

Smooth Process Scale‑up for Lab‑Scale Capacity

The enhanced helical frame paired with wall‑scraping paddles and low‑clearance design generates intense material kneading interference and omnidirectional circulating motion, achieving dead‑zone‑free mixing without material climbing even for 1L batches. The cantilever‑type screw lifting vessel enables fast and convenient material replacement and cleaning, ideal for frequent formula switching in lab‑scale R&D.

Fine Polishing via High‑Speed Dispersion

The high‑speed dispersing shaft is equipped with serrated dispersing disc, featuring variable frequency speed from 0 to 5000r/min with maximum linear speed up to 15m/s. The high‑speed dispersing disc powerfully shears and breaks agglomerated particles for fine material dispersion. Low‑speed mixing and high‑speed dispersion work synergistically to complete mixing and dispersion in one step, making lab sample slurry fineness meet requirements directly.

Integrated Vacuum Defoaming & Precise Temperature Control

Equipped with an oil‑free vacuum pump to remove internal slurry bubbles during mixing. The direct‑contact temperature sensor achieves a measurement error of only ±0.5℃ with fast response. Supporting both heating and cooling, it accurately controls slurry temperature and prevents rheological property changes caused by mixing heat. The fully vacuum‑sealed design isolates air and moisture contamination throughout mixing.


✨ If your lab‑scale laboratory needs a planetary mixer with moderate capacity, high dispersion performance for simultaneous mixing and defoaming, the GX1L is your ideal choice.

Working Principle

Both low‑speed mixing paddle and high‑speed dispersing disc perform rotation and revolution to realize mixing and dispersion simultaneously.

Step 1: Revolution‑Rotation of Low‑Speed Mixing Paddle
The low‑speed mixing paddle revolves clockwise and rotates counter‑clockwise, eliminating vessel wall dead zones with wall‑scraping paddles. The low‑clearance design produces intense kneading interference and omnidirectional circulating motion for materials. No "climbing" occurs for high‑viscosity slurry, and multi‑component materials start uniform mixing.

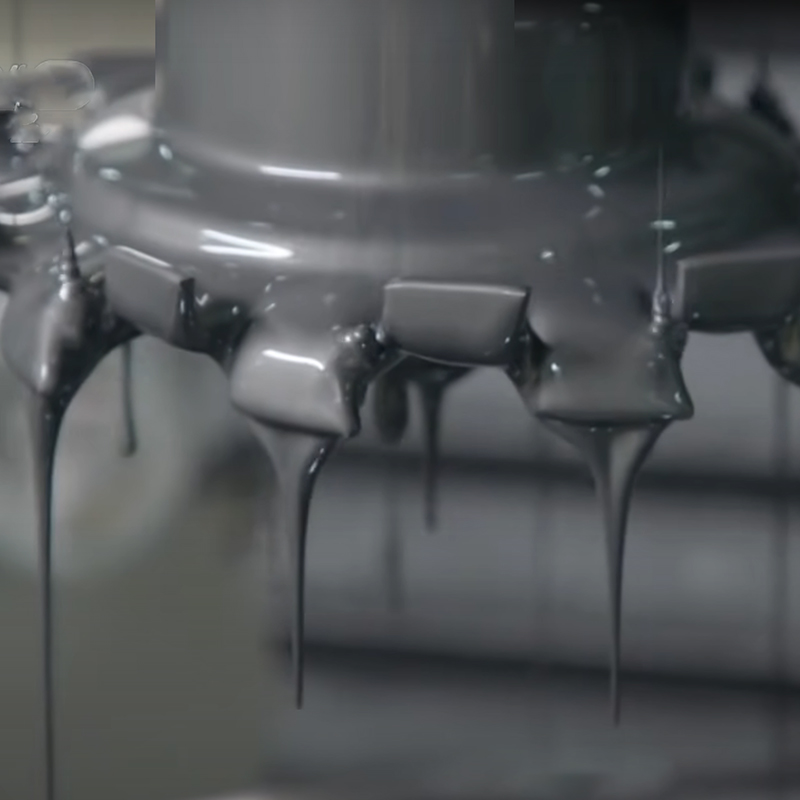

Step 2: Shearing & De‑agglomeration by High‑Speed Dispersing Disc
The serrated dispersing disc on high‑speed dispersing shaft rotates at high speed with max. linear speed of 15m/s to strongly shear and break agglomerated particles. Low‑speed mixing and high‑speed dispersion run simultaneously. Materials obtain sufficient dispersion and uniform blending under alternating kneading and shearing.

Step 3: Vacuum Defoaming & Temperature Control
Adjustable vacuum down to ‑0.098 MPa continuously removes internal slurry bubbles during mixing. Direct‑contact temperature sensor monitors slurry temperature in real‑time with ±0.5 ℃ precision, supporting heating and cooling. Upon completion of set time, screw‑driven vessel descends for easy discharging and cleaning.


Three simple steps: Low‑speed revolution‑rotation mixing → High‑speed shearing dispersion → Vacuum defoaming, temperature control & discharging. Mixing, dispersion and defoaming are completed in one cycle.

Vacuum Defoaming Mixer Working Principle.jpg

Technical Specifications

Complete Technical Specifications Overview, Customizable on Demand

ModelSIE‑GX1L
Effective Capacity1L (Total Volume approx. 2L)
Speed Range0~5000r/min (Adjustable)
Vessel DimensionInner Diameter approx.160mm × Inner Height approx.100mm
Basic Structure1. Cantilever‑type screw lifting vessel; 2. Direct material temperature measurement; 3. Dual mixing shafts + wall‑scraping device + single dispersing shaft
Lifting Height150mm
Temperature ControlHeating & Cooling Available
High‑Speed Dispersing Linear SpeedMax.15m/s
Power SupplyAC220V/50Hz
Overall Dimension(W×D×H)850×680×1050mm
Net Weightapprox.200 kg
Certifications CE, FC, ISO9001, RoHS Compliance


Our Partners

Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide

Partner Showcase

FAQ - Frequently Asked Questions

Answers to common questions about product performance and everyday process selection

  • 脱泡机的作用是什么?

    脱泡机是一种用于去除液体中的气泡的设备。它的作用在于帮助生产过程中的液体混合、反应、涂布、印刷、灌注等工艺环节,避免气泡的产生和对最终产品的影响。在许多工业和实验室环境中,去除气泡是非常必要的,因为气泡可能会对产品质量产生负面影响,如影响表面张力和稳定性等问题。脱泡机通常采用各种不同的技术,如振动、超声波、离心等,以实现有效的气泡去除。它的应用领域广泛,包括但不限于半导体、太阳能、光学、生物技术、材料科学等。

  • 售后服务怎么样?

    公司拥有专业的售后服务人员,24小时专人服务,一对一提供技术支持,解决您的后顾之忧。

  • 为什么要选择施诺斯?

    选择施诺斯的原因有很多,以下是一些主要的原因:

     1. 专业性:我们的团队由一群专业的人士组成,他们在各自的领域拥有丰富的经验和知识。我们不仅了解行业趋势和最佳实践,而且还能提供切实可行的解决方案。

     2. 服务质量:我们注重客户的需求和满意度,始终致力于提供高质量的服务。我们不仅快速响应客户需求,而且还能根据客户的要求进行定制化服务。

    3. 可靠性:我们以诚信和专业精神为宗旨,始终遵守承诺和协议。我们的工作方法和交付成果均符合行业标准和最佳实践,使得我们的客户能够信任我们。

    4. 创新性:我们不断探索新的方法和工具,以提供更好的服务并满足客户的需求。我们鼓励创新和实验,并愿意接受挑战和改变。

    5. 成本效益:我们提供高性价比的服务,不仅能够帮助客户节省成本,而且还能提高效率和生产力。我们始终以客户的利益为出发点,为客户提供最优的解决方案。

     6. 团队合作:我们相信团队的力量和合作的价值,我们的团队成员之间互相支持、协作和尊重。我们与客户、合作伙伴和其他利益相关者建立紧密的合作关系,以实现共同的目标。

    以上只是选择我们的部分原因,我们相信还有很多其他的优点和价值可以为客户提供。如果您正在寻找一家专业、可靠、高质量的服务提供商,我们非常期待与您的合作。

  • 搅拌脱泡机的工作原理?

    施诺斯搅拌脱泡机通过公转的离心力进行脱泡,通过公转与自转形成的剪切力进行搅拌,

    再辅助以真空泵抽取气体以达到真空状态,去除纳米级微小气泡。 不接触物料,无二次污染,无二次浪费。


  • 施诺斯能提供工程咨询技术服务吗?

    施诺斯能为广大客户提供全面的工程和现代化的咨询服务。施诺斯近二十年的搅拌经验,可以为你提供高效的咨询服务。

    想要让搅拌机性能更上一层楼,提升系统的整体效能?我们有全面的咨询、工程以及现代化改造服务,为您量身打造解决方案。 在如今竞争激烈的全球化浪潮中,唯有不断创新、持续优化,才能始终跑在对手前面。您的生产工艺和产品日新月异,我们就为您提供最适配的混合技术。不管是新的产品参数,还是既有的工艺条件,我们都能对现有系统和搅拌设备进行全方位的检查与评估,挖掘其中潜藏的流程优化空间和机械性能提升潜力,并且帮您把这些改进切实落地。 要是您的搅拌设备已经跟不上时代步伐,能耗居高不下,或是维护成本让您头疼不已,那就别犹豫,我们的咨询、工程设计和现代化改造服务,就是为您排忧解难的良方。欢迎随时联系我们,携手开启高效生产新征程!

Technical Specification List

Full‑line parameter specifications to assist your accurate process‑model selection

ModelSIE‑GX500SIE‑GX1LSIE‑GX5L
Effective Capacity0.5L1L5L
Speed Range0~5000r/min (Adjustable)0~5000r/min (Adjustable)0~3500r/min (Adjustable)
Vessel DimensionInner Diameter 130mm × Inner Height 85mmInner Diameter 130mm × Inner Height 85mmInner Diameter 130mm × Inner Height 85mm
Basic Structure1. Cantilever‑type screw lifting vessel; 2. Direct material temperature measurement; 3. Dual mixing shafts + wall‑scraping device + single dispersing shaft1. Cantilever‑type screw lifting vessel; 2. Direct material temperature measurement; 3. Dual mixing shafts + wall‑scraping device + single dispersing shaft1. Cantilever‑type screw lifting vessel; 2. Direct material temperature measurement; 3. Dual mixing shafts + wall‑scraping device + single dispersing shaft
Lifting Height150mm150mm200mm
Temperature ControlHeating & Cooling AvailableHeating & Cooling AvailableHeating & Cooling Available
High‑Speed Dispersing Linear SpeedMax.15m/sMax.15m/sMax.15m/s
Power SupplyAC220V/50HzAC220V/50HzAC380V/50Hz
Overall Dimension(W×D×H)800×650×980mm850×680×1050mm1200×1100×1800mm
Net Weight160 kg200 kg500 kg
Certifications CE, FC, ISO9001, RoHS Compliance CE, FC, ISO9001, RoHS Compliance CE, FC, ISO9001, RoHS Compliance

Multi‑Industry Solutions

Typical Applications for Slurry Mixing & Dispersion

University‑level R&D.jpg

Battery Slurry

Cathode slurry (NCM/LFP), anode slurry (graphite), separator coating slurry, solid‑state electrolyte slurry

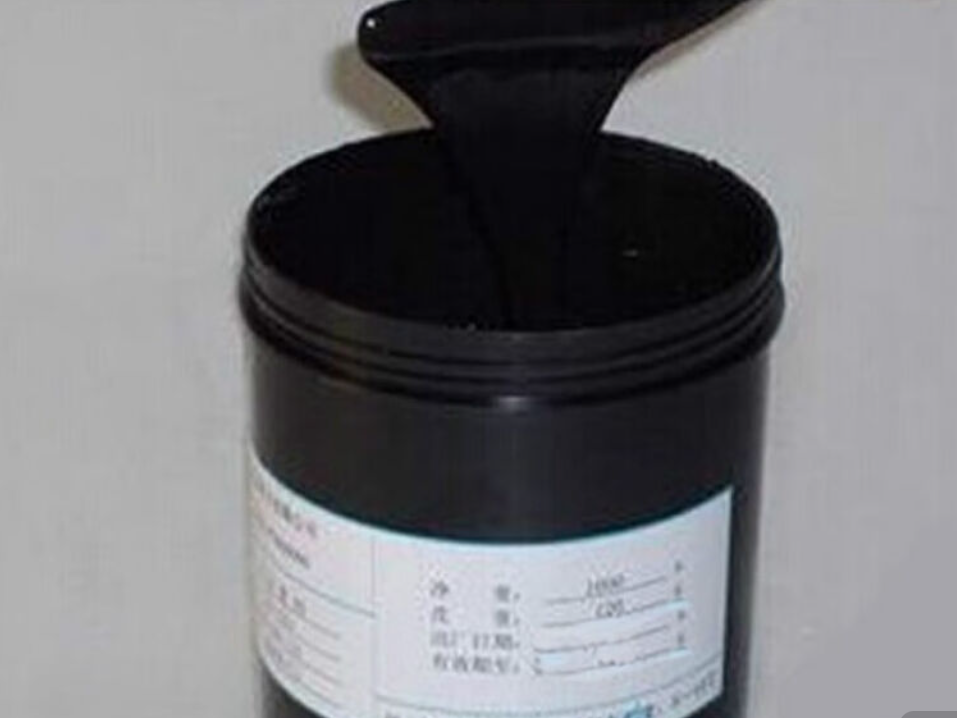

Paint & Pigment

Industrial coatings, automotive paints, water‑based pigment pastes, UV coatings

Ink & Coating.jpg

Biomedicine

Ointment preparations, biological gels, medical adhesives, pharmaceutical suspensions

LED Raw Material 02.jpg

Adhesives

Epoxy glue, polyurethane glue, silicone sealant, hot‑melt adhesive


Ceramic Slurry

Alumina slurry, zirconia slurry, ceramic glaze, electronic ceramic slurry

Testing Institute.jpg

Cosmetic Paste

Cream & lotion, toothpaste, sunscreen, hair‑dye cream

Comprehensive Equipment Operation Demo Videos

Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.

Actual‑test Performance Demonstration

Lab Sample Actual Test Results

AB Glue Mixing & Defoaming.jpg

AB Glue

Glue + Powder Mixing & Defoaming.jpg

Glue + Powder

Glass Powder Mixing & Defoaming.jpg

Glass Powder

Electronic Adhesive + Powder Mixing & Defoaming.jpg

Electronic Adhesive + Powder

Black Epoxy Resin Mixing & Defoaming.jpg

Epoxy Resin

Battery Slurry Mixing & Defoaming 02.jpg

Battery Slurry Powder

Measured Data Comparison

Material Defoaming Effect Comparison Before & After

Material TypeCondition Before TreatmentAfter GX1L Treatment
Battery Cathode Slurry (NCM)Uneven distribution of active materials and conductive agents, visible agglomerates, fluctuating viscosity, large areal‑weight variation after coatingUniform dispersion of all components without agglomerates, stable viscosity, consistent coating areal weight, reduced battery internal resistance and improved cycle life
Conductive Silver PasteSilver powder agglomeration & sedimentation, delamination from organic carrier, unsatisfactory particle size, open‑circuit defects during printingSilver powder evenly suspended in carrier, qualified fineness without agglomeration, continuous printing without open‑circuit, consistent sheet resistance after sintering
Epoxy Resin AdhesivePoor mixing of A/B components, uneven color shade, entrapped internal bubbles, unstable strength after curingUniform transparent color, fully blended components, no obvious bubbles after vacuum defoaming, stable and consistent curing strength

* Internal lab test data. Actual improvement varies with material formula. Real customer cases are available upon request from sales.
