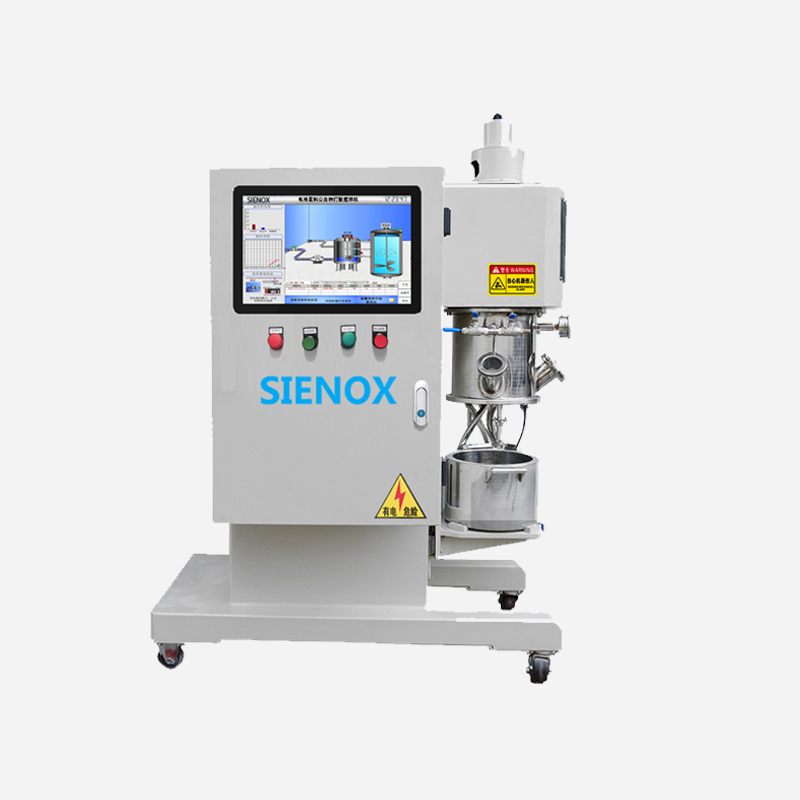

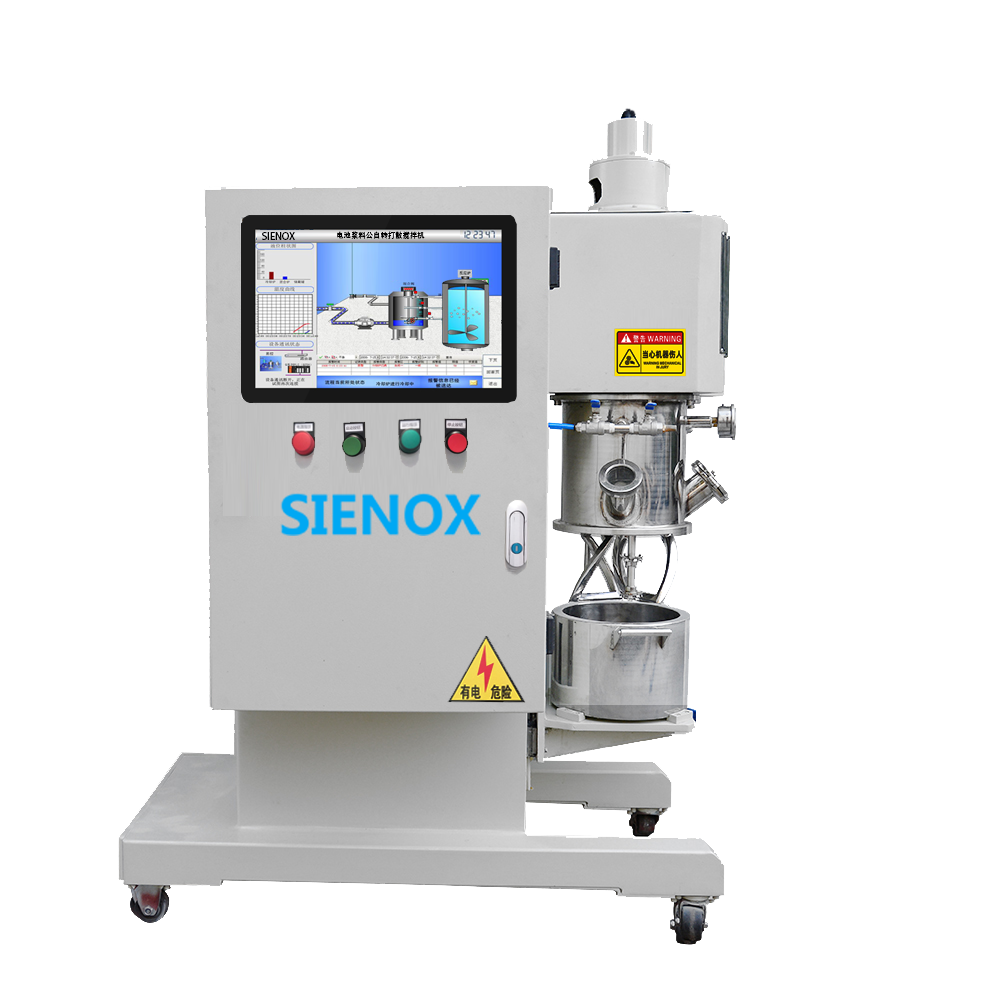

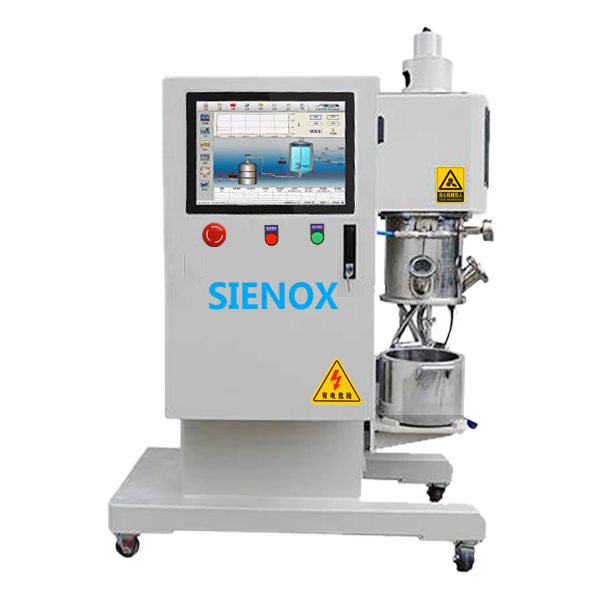

Planetary Mixer SIE‑GX20L


Dual‑planetary Revolution‑rotation Dead‑zone‑free Mixing · Vacuum Defoaming + Precise Temperature Control + MES Remote Monitoring

Dual‑planetary Revolution‑rotation Mixing + 0~3500rpm High‑speed Dispersion + Vacuum Defoaming & Precise Temperature Control

SIENOX SIE‑GX20L planetary mixer, 20L effective capacity, adopts dual‑planetary revolution‑rotation mixing with 0‑3500r/min high‑speed dispersion, ‑0.098 MPa vacuum defoaming, 8KW high power and ±0.5℃ precise temperature control. Suitable for mass production of lithium‑ion battery slurry, paste, gel and structural adhesive. 20‑year original manufacturer, free sample test available.

✓ CE Certification  ✓ FC Certification ✓ ISO9001 Quality System ✓ RoHS Compliance ✓ Custom Voltage Available (110V/220V)

Online Message Free Sample Testing Engineer Hotline: 189-2512-9293

Why Planetary Mixing Is Required

Uneven mixing and dispersion of slurry directly impair end‑product performance.

Lithium‑ion Battery Slurry Industry

Active materials, conductive agents and binders in lithium‑ion cathode & anode slurries tend to be poorly dispersed during large‑volume mixing, resulting in coating areal density fluctuation, increased internal resistance, inconsistent cycle life and lower mass‑production yield. The planetary mixer adopts 8 kW high‑power driven enhanced helical frame to generate intensive kneading interference motion for 20L large‑volume high‑viscosity slurry. High‑speed dispersing disc shears and breaks conductive‑agent agglomerates, and vacuum defoaming eliminates bubbles generated in large‑batch mixing, ensuring dispersion uniformity and batch‑to‑batch consistency of production slurries.

Paste & Gel Industry

High‑loading powders and base materials in pastes & gels such as conductive silver adhesive and thermal conductive gel are difficult to disperse in large‑volume mixing, causing viscosity fluctuation, dense bubbles and unstable thermal/electrical conductivity. Low‑speed mixing paddles together with wall‑scraping design eliminate dead zones inside large vessels. High‑speed dispersing disc evenly distributes high‑loading powders. Vacuum defoaming at ‑0.098 MPa removes massive bubbles from large‑batch mixing and guarantees consistent quality of mass‑produced pastes and gels.

Structural Adhesive Industry

Fillers and resins in epoxy & polyurethane structural adhesives are prone to sedimentation and delamination during large‑volume mixing, which leads to fluctuating cured strength, bubble defects on bonding surfaces and unstable durability. The enhanced helical frame of planetary mixer handles high‑viscosity structural adhesive systems. Small‑clearance design achieves dead‑zone‑free mixing for large‑volume materials. Vacuum defoaming removes bubbles generated during mixing. 350 mm long lifting stroke enables quick vessel change and ensures stable cured strength and bonding consistency of mass‑produced structural adhesives.

✨ Traditional Mixing Challenges: Single‑shaft rotation of ordinary mixers creates numerous dead zones. For 20L large‑volume materials, climbing and wall‑adhesion issues become more severe with larger dead zones inside big vessels. Single mixing mode cannot realize large‑volume mixing and dispersion simultaneously; agglomerates in high‑viscosity slurry are hard to break up. Open‑style mixing brings in abundant bubbles, which grow denser and harder to eliminate for large‑batch materials. Imprecise temperature control causes severe heat generation during large‑volume slurry mixing. Without vacuum function, bubbles in production‑scale slurry cannot be removed, resulting in high finished‑product defect rate.

Why Choose SIE‑GX20L

Solve Core Pain Points in Large‑scale Mass Production

Large‑capacity Mass Production

Meet the requirements of continuous high‑volume production, reduce material change frequency and improve production line efficiency. Enhanced helical frame combined with wall‑scraping mixing paddle, low‑clearance design creates strong kneading interference and omnidirectional circulating motion of materials, realizing dead‑zone‑free and "climbing‑free" mixing even under 20L large capacity. 350 mm long lifting stroke adapts to large‑barrel operation; screw lifting structure enables quick and convenient barrel replacement and material discharging.

0~3500rpm High‑speed Dispersion

Sufficient mixing torque for large‑volume working condition. 0‑3500r/min variable‑frequency speed regulation for high‑speed dispersing shaft, max linear speed up to 15 m/s to strongly shear and break agglomerated particles. Co‑operation of low‑speed mixing and high‑speed dispersion completes mixing and dispersion of 20L large‑volume slurry in one step without compromising dispersion performance for mass production.

Vacuum Defoaming + Precise Temperature Control + MES Remote Monitoring

Equipped with oil‑free vacuum pump to remove internal bubbles of large‑volume slurry during mixing. Temperature sensor contacts materials directly with measurement deviation of ±0.5℃, precise heating & cooling temperature control available. Support MES software connection and remote monitoring, real‑time monitoring of equipment and slurry status, production data collection & traceability to satisfy quality management system requirements. Patented mixing blade design, one‑piece cast & CNC precision‑ground; imported electrical components ensure long‑term stable operation in mass‑production scenarios.

✨ If your production line requires a large‑capacity, high‑power, traceable production‑grade planetary mixer, the GX20L is your ideal choice.

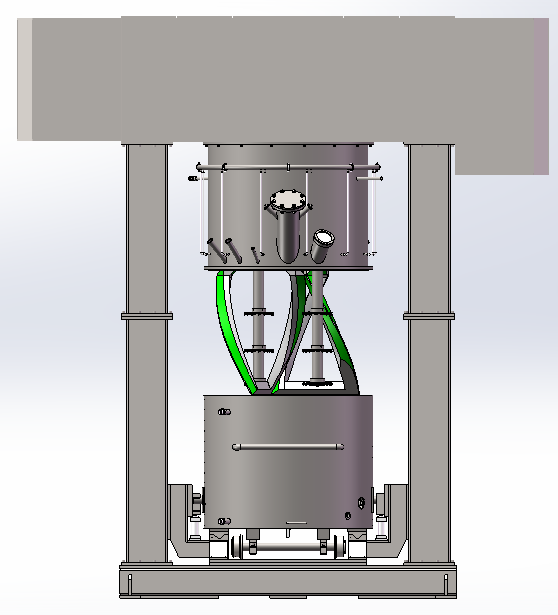

Working Principle

Both low‑speed mixing paddle and high‑speed dispersing disc perform rotation and revolution to realize mixing and dispersion simultaneously.

Step 1: Revolution & Rotation of Low‑speed Mixing Paddle
The low‑speed mixing paddle revolves clockwise and rotates counter‑clockwise, eliminating vessel wall dead zones with wall‑scraping paddles. The low‑clearance design generates intensive kneading interference and omnidirectional circulating motion for materials. No "climbing" occurs for high‑viscosity slurry, and multi‑component materials start homogeneous mixing.

Step 2: Shearing & Disintegration by High‑speed Dispersing Disc
The serrated dispersing disc on high‑speed dispersing shaft rotates at high speed with maximum linear speed of 15 m/s, which strongly shears and breaks agglomerated particles. Low‑speed mixing and high‑speed dispersion run simultaneously. Materials achieve sufficient dispersion and homogeneous blending under alternating kneading and shearing force.

Step 3: Vacuum Defoaming & Temperature Control
Adjustable vacuum at ‑0.098 MPa continuously removes internal slurry bubbles during mixing. Direct‑contact temperature sensor monitors slurry temperature in real‑time with ±0.5 ℃ accuracy, supporting heating or cooling. Upon completion of set time, screw‑driven vessel descends for easy discharging and cleaning.


Three simple steps: Low‑speed revolution‑rotation mixing → High‑speed shearing dispersion → Vacuum defoaming, temperature control & discharging. Complete mixing, dispersion and defoaming in one process.

Vacuum Defoaming Mixer Working Principle.jpg

Technical Specifications

Complete Technical Specifications Overview, Customizable on Demand

ModelSIE‑GX20L
Effective Capacity20L (Total Volume: 27L)
Speed Range0~5000r/min (Adjustable)
Vessel DimensionInner Diameter 350mm × Inner Height 270mm
Basic Structure1. Cantilever‑type screw lifting vessel; 2. Direct material temperature measurement; 3. Dual mixing shafts + wall‑scraping device + single dispersing shaft
Lifting Stroke350mm
Temperature ControlHeating & Cooling Available
High‑speed Dispersing Linear SpeedMax. 15m/s
Power SupplyAC380V/50Hz
Overall Dimension(W×D×H)1370×1100×2200mm
Net WeightApprox. 1050 kg
Certifications CE, FC, ISO9001, RoHS Compliance


Our Partners

Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide

Partner Showcase

FAQ - Frequently Asked Questions

Answers to common questions about product performance and everyday process selection

  • 脱泡机的作用是什么?

    脱泡机是一种用于去除液体中的气泡的设备。它的作用在于帮助生产过程中的液体混合、反应、涂布、印刷、灌注等工艺环节,避免气泡的产生和对最终产品的影响。在许多工业和实验室环境中,去除气泡是非常必要的,因为气泡可能会对产品质量产生负面影响,如影响表面张力和稳定性等问题。脱泡机通常采用各种不同的技术,如振动、超声波、离心等,以实现有效的气泡去除。它的应用领域广泛,包括但不限于半导体、太阳能、光学、生物技术、材料科学等。

  • 售后服务怎么样?

    公司拥有专业的售后服务人员,24小时专人服务,一对一提供技术支持,解决您的后顾之忧。

  • 为什么要选择施诺斯?

    选择施诺斯的原因有很多,以下是一些主要的原因:

     1. 专业性:我们的团队由一群专业的人士组成,他们在各自的领域拥有丰富的经验和知识。我们不仅了解行业趋势和最佳实践,而且还能提供切实可行的解决方案。

     2. 服务质量:我们注重客户的需求和满意度,始终致力于提供高质量的服务。我们不仅快速响应客户需求,而且还能根据客户的要求进行定制化服务。

    3. 可靠性:我们以诚信和专业精神为宗旨,始终遵守承诺和协议。我们的工作方法和交付成果均符合行业标准和最佳实践,使得我们的客户能够信任我们。

    4. 创新性:我们不断探索新的方法和工具,以提供更好的服务并满足客户的需求。我们鼓励创新和实验,并愿意接受挑战和改变。

    5. 成本效益:我们提供高性价比的服务,不仅能够帮助客户节省成本,而且还能提高效率和生产力。我们始终以客户的利益为出发点,为客户提供最优的解决方案。

     6. 团队合作:我们相信团队的力量和合作的价值,我们的团队成员之间互相支持、协作和尊重。我们与客户、合作伙伴和其他利益相关者建立紧密的合作关系,以实现共同的目标。

    以上只是选择我们的部分原因,我们相信还有很多其他的优点和价值可以为客户提供。如果您正在寻找一家专业、可靠、高质量的服务提供商,我们非常期待与您的合作。

  • 搅拌脱泡机的工作原理?

    施诺斯搅拌脱泡机通过公转的离心力进行脱泡,通过公转与自转形成的剪切力进行搅拌,

    再辅助以真空泵抽取气体以达到真空状态,去除纳米级微小气泡。 不接触物料,无二次污染,无二次浪费。


  • 施诺斯能提供工程咨询技术服务吗?

    施诺斯能为广大客户提供全面的工程和现代化的咨询服务。施诺斯近二十年的搅拌经验,可以为你提供高效的咨询服务。

    想要让搅拌机性能更上一层楼,提升系统的整体效能?我们有全面的咨询、工程以及现代化改造服务,为您量身打造解决方案。 在如今竞争激烈的全球化浪潮中,唯有不断创新、持续优化,才能始终跑在对手前面。您的生产工艺和产品日新月异,我们就为您提供最适配的混合技术。不管是新的产品参数,还是既有的工艺条件,我们都能对现有系统和搅拌设备进行全方位的检查与评估,挖掘其中潜藏的流程优化空间和机械性能提升潜力,并且帮您把这些改进切实落地。 要是您的搅拌设备已经跟不上时代步伐,能耗居高不下,或是维护成本让您头疼不已,那就别犹豫,我们的咨询、工程设计和现代化改造服务,就是为您排忧解难的良方。欢迎随时联系我们,携手开启高效生产新征程!

Technical Specification List

Full‑line parameter specifications to assist your accurate process‑model selection

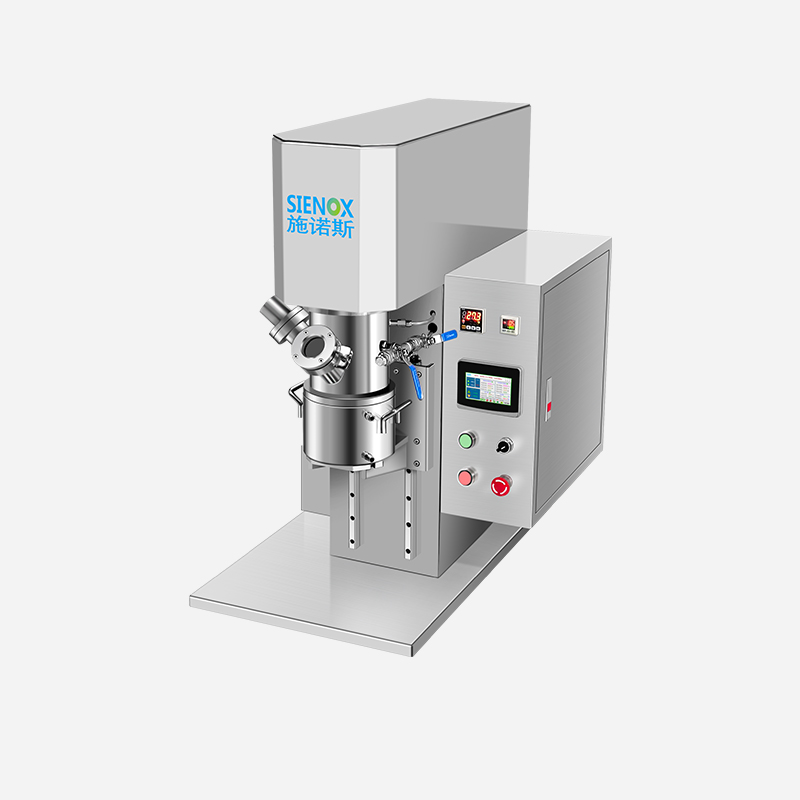

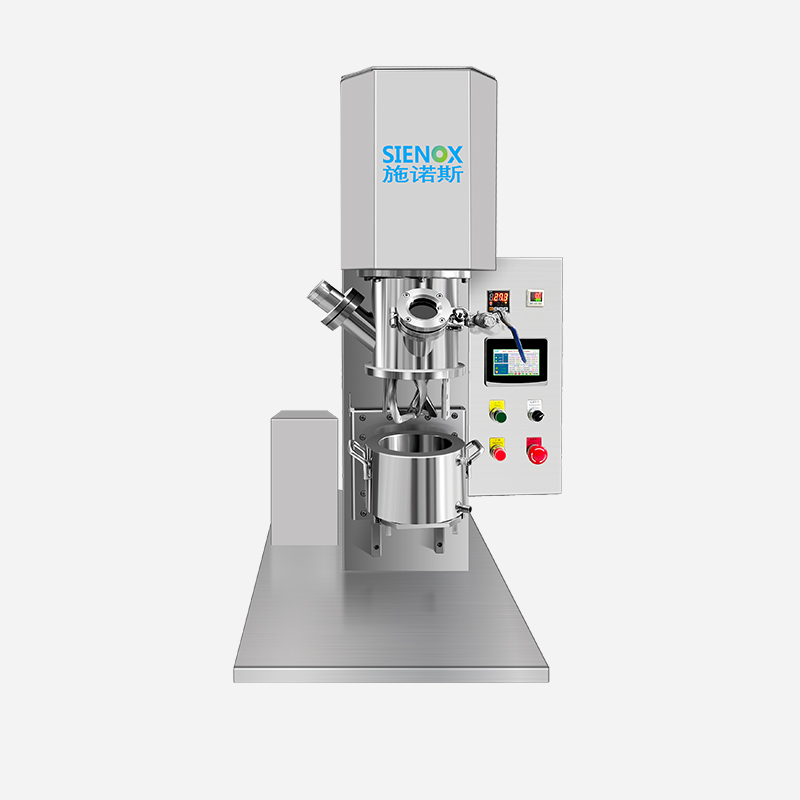

ModelSIE‑GX5LSIE‑GX10LSIE‑GX20L
Effective Capacity5L10L20L
Speed Range0~3500r/min (Adjustable)0~3500r/min (Adjustable)0~3500r/min (Adjustable)
Vessel DimensionInner Diameter 130mm × Inner Height 85mmInner Diameter approx.310mm × Inner Height approx.230mmInner Diameter 350mm × Inner Height 270mm
Basic Structure1. Cantilever‑type screw lifting vessel; 2. Direct material temperature measurement; 3. Dual mixing shafts + wall‑scraping device + single dispersing shaft1. Cantilever‑type screw lifting vessel; 2. Direct material temperature measurement; 3. Dual mixing shafts + wall‑scraping device + single dispersing shaft1. Cantilever‑type screw lifting vessel; 2. Direct material temperature measurement; 3. Dual mixing shafts + wall‑scraping device + single dispersing shaft
Lifting Stroke200mm280mm350mm
Temperature ControlHeating & Cooling AvailableHeating & Cooling AvailableHeating & Cooling Available
High‑speed Dispersing Linear SpeedMax.15m/sMax.15m/sMax.15m/s
Power SupplyAC380V/50HzAC380V/50HzAC380V/50Hz
Overall Dimension(W×D×H)1200×1100×1800mm1300×1100×2000mm1370×1100×2200mm
Net Weight500 kg750 kg1050 kg
Certifications CE, FC, ISO9001, RoHS Compliance CE, FC, ISO9001, RoHS Compliance CE, FC, ISO9001, RoHS Compliance

Multi‑Industry Solutions

Typical Applications for Slurry Mixing & Dispersion

University Research.jpg

Battery Slurry

Cathode slurry (NCM/LFP), Anode slurry (graphite), Separator coating slurry, Solid‑state electrolyte slurry


Paint & Pigment

Industrial coating, Automotive paint, Water‑based pigment paste, UV coating

Ink & Coating.jpg

Biomedicine

Ointment preparation, Biological gel, Medical adhesive, Pharmaceutical suspension

LED Raw Material 02.jpg

Adhesive

Epoxy resin adhesive, Polyurethane adhesive, Silicone sealant, Hot‑melt adhesive


Ceramic Slurry

Alumina slurry, Zirconia slurry, Ceramic glaze, Electronic ceramic slurry

Testing Institution.jpg

Cosmetic Paste

Cream & lotion, Toothpaste, Sunscreen, Hair‑dye cream

Comprehensive Equipment Operation Demo Videos

Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.

Actual‑test Performance Demonstration

Lab Sample Actual Test Results

AB Glue Mixing & Defoaming.jpg

AB Glue

Glue & Powder Mixing & Defoaming.jpg

Glue + Powder

Glass Powder Mixing & Defoaming.jpg

Glass Powder

Electronic Adhesive & Powder Mixing & Defoaming.jpg

Electronic Adhesive + Powder

Black Epoxy Resin Mixing & Defoaming.jpg

Epoxy Resin

Battery Slurry & Powder Mixing & Defoaming 02.jpg

Battery Slurry Powder

Actual‑test Effect Comparison

Material Defoaming Effect Comparison Before & After

Material TypeCondition Before TreatmentAfter GX20L Treatment
Battery Anode Slurry (Graphite)Poor dispersion of graphite powder, conductive agent and binder with agglomerates, unstable viscosity, abundant bubbles and large fluctuation of coating areal densityUniform dispersion of all components without agglomerates, stable consistent viscosity, no obvious bubbles after vacuum defoaming, consistent coating areal density and reduced battery internal resistance
Conductive Silver AdhesiveSilver powder agglomeration & sedimentation, delamination from base material, dense bubbles, large viscosity fluctuation and unstable electrical conductivityEvenly‑dispersed silver powder without agglomeration, bubble‑free after vacuum defoaming, consistent viscosity and stable qualified electrical conductivity
Epoxy Structural AdhesiveSedimentation and delamination between fillers and resin, entrapped internal bubbles, large fluctuation of cured strength and high defect rate on bonding surfacesEvenly‑dispersed fillers without sedimentation, bubble‑free after vacuum defoaming, consistent cured strength and defect‑free bonding surfaces

* Internal lab test data. Actual improvement varies with material formulation. Contact sales for real customer cases.
