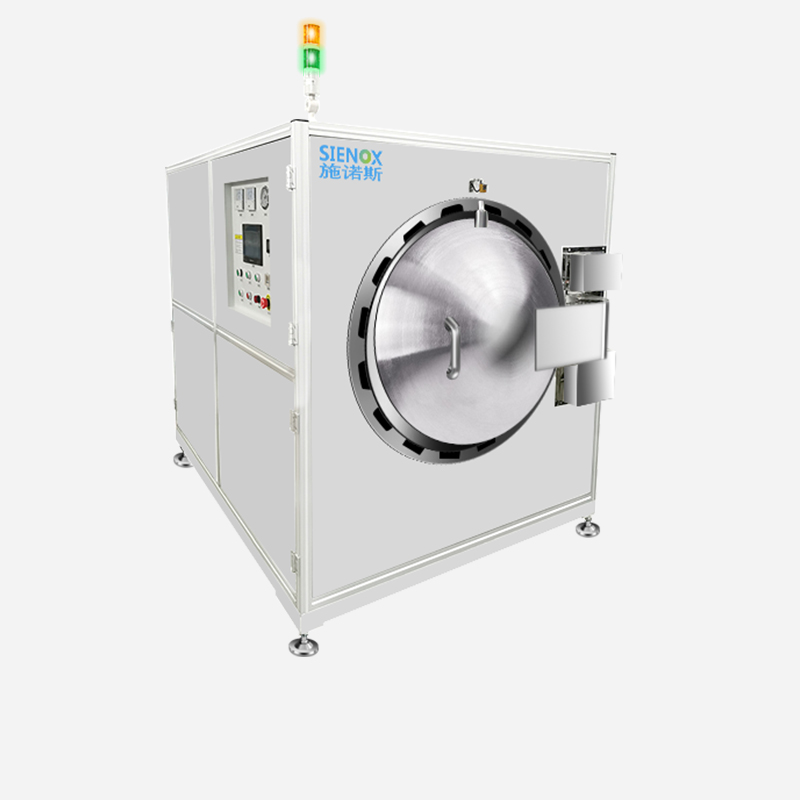

SIE‑RX10‑1200 Pressurized Debubbling Machine


Efficient Turnover for Standard‑volume Production · MES Integration for Traceable Process Parameters

Standard‑size Chamber for Efficient Mass Production + MES Linkage for Traceable Process Data + Three‑mode Operation & Audio‑visual‑light Alarm for Safe Operation

SINOS SIE‑RX10‑1200 Pressurized Debubbling Machine is equipped with φ1000×1200 mm cylindrical chamber of approx.940L and supports MES system connection. Three selectable operation modes. SMC digital pressure gauge reaches ±0.01 MPa accuracy, Omron PID temperature control achieves ±1.0 ℃ precision. Pressure rises to 0.6 MPa within 5 min with a single cycle of 35‑40 min. It removes bubbles generated during lamination by temperature and pressure to enhance interfacial bonding strength.

✓ CE Certification ✓ FC Certification ✓ ISO9001 Quality System ✓ RoHS Compliance ✓ Custom‑voltage support (110V/220V)

Online Message Free Sample Testing Engineer Hotline: 189-2512-9293

Why Must Microbubbles in Materials Be Eliminated?

Residual micro‑bubbles degrade end‑product quality directly

Touch Screen Full Lamination Industry

During touch‑screen full lamination (G+G/G+F/OCA full lamination), residual bubbles inside OCA optical adhesive reduce light transmittance and cause touch failure. Even a 1% drop in yield will bring huge losses for mass production. The 940 L chamber of pressurized debubbler processes multiple touch screens in one batch. SMC precise pressure control ensures consistent lamination quality for each workpiece. Three operation modes adapt to various OCA adhesives and lamination processes, ideal for standard‑mass debubbling of touch‑screen full lamination.

LED Display Module Industry

Bubbles in LED display‑module potting adhesive and drive‑power potting compound lead to dead lamps, dark spots and poor heat dissipation. Stable debubbling is essential to guarantee module quality in mass production. Omron PID temperature control improves the fluidity of potting adhesive for easier bubble removal. The 940 L chamber boosts throughput by processing multiple modules per cycle, and audio‑visual‑light alarm ensures safety for long‑time mass‑production operation.

Electronic Packaging Material Industry

Bubbles in electronic packaging materials such as conductive silver paste, insulating adhesive and underfill cause voids in packaging layers and broken conductive paths, requiring stable batch debubbling for volume manufacturing. Microcomputer control stores and reproduces process parameters, and precision filter prevents secondary contamination of packaging materials. The 940 L chamber fits batch debubbling for standard mass production of electronic packaging materials with full traceable process parameters.

✨ Standard mass production requires connection with production management systems, yet ordinary debubbling devices fail to support MES docking, resulting in untraceable and unmanageable process parameters. Conventional equipment suffers from high failure rates during long‑hour continuous mass operation. Without audio-visual-light alarm systems, operational abnormalities cannot be detected in a timely manner. Insufficient single-batch capacity leads to frequent batch splitting and queuing, disrupting production rhythms and delaying delivery schedules.

Why Choose SIE‑RX10‑1200

Resolve Efficiency, Management and Safety Pain Points for Standard Mass Production

Standard Capacity for High‑efficiency Mass Production

The cylindrical chamber reaches approx. 940L with large single‑batch loading capacity. Each full cycle lasts 35‑40 min including 15‑30 min effective debubbling time for high throughput per unit hour. The 940L chamber suits batch loading of standard‑size workpieces such as touch screens, LED modules and packaging materials. Multiple pieces can be processed in one run to match production‑line tact time requirements.

MES‑System Integration Support

Compatible with MES production‑management system for uploading and tracing process parameters, as well as managing and analyzing production data. Parameters including pressure, temperature and duration of each batch are automatically recorded during mass production. Quality issues can be traced to specific batches and parameter records, meeting factory‑audit and quality‑management requirements.

Three‑mode Operation & Audio‑visual‑light Alarm

Three operation modes adapt to various lamination processes, enabling one machine to serve multiple production‑line demands. The audio‑visual‑light alarm triggers synchronized notifications upon abnormalities, with alarm messages displayed on microcomputer panel. Failures can be detected and handled promptly even during long‑run mass production to lower the risk of batch scrap.

✨ If you need MES‑system integration, high throughput and reliable safety assurance for standard mass production, RX10‑1200’s standard chamber capacity and MES connectivity can satisfy your volume‑manufacturing management requirements

Working Principle

Remove bubbles generated during lamination by pressure and temperature to enhance bonding strength between different materials.

Step 1: Pressurization & Temperature Rise (Three Modes Optional)
Select pressurize‑first‑then‑heat, simultaneous heating‑pressurizing or heat‑first‑then‑pressurize according to material properties. Resistive heating cooperates with pressurization to create debubbling environment.

Step 2: Pressure‑holding Debubbling
Maintain constant pressure and temperature. Pressure compresses and dissolves bubbles on lamination interface, while temperature reduces material viscosity to help bubbles discharge from bonding surface.

Step 3: Pressure Relief & Stabilization
Slowly release pressure to atmospheric pressure. Bonding strength between materials is enhanced and bubbles on lamination interface are eliminated.


Three simple steps: Pressurization & Temperature Rise → Pressure‑holding Debubbling → Pressure Relief & Stabilization, eliminate lamination bubbles and improve bonding strength.


Technical Specifications

Complete Technical Specifications Overview, Customizable on Demand

ModelSIE‑RX10‑1200
Chamber Sizeφ1000×1200mm (Cylindrical)
Effective VolumeApprox. 940L
Working Pressure0~0.8MPa (Standard), 0~2.5MPa (Optional)
Working TemperatureAmbient ~80℃ (Standard), Ambient ~180℃ (Optional)
Heating MethodResistive Heating
Operation ModesA. Pressurize First Then Heat B. Simultaneous Heating & Pressurization C. Heat First Then Pressurize
Control ModeMicrocomputer Control
Vessel MaterialS30408 Stainless Steel or Carbon Steel
Overall Dimension(W×D×H)Approx. 1300×1500×2000mm (Subject to actual product)
Net Weight1500 kg
Certifications CE, FC, ISO9001, RoHS Compliance

Our Partners

Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide

Partner Showcase

FAQ - Frequently Asked Questions

Answers to common questions about product performance and everyday process selection

  • 脱泡机的作用是什么?

    脱泡机是一种用于去除液体中的气泡的设备。它的作用在于帮助生产过程中的液体混合、反应、涂布、印刷、灌注等工艺环节,避免气泡的产生和对最终产品的影响。在许多工业和实验室环境中,去除气泡是非常必要的,因为气泡可能会对产品质量产生负面影响,如影响表面张力和稳定性等问题。脱泡机通常采用各种不同的技术,如振动、超声波、离心等,以实现有效的气泡去除。它的应用领域广泛,包括但不限于半导体、太阳能、光学、生物技术、材料科学等。

  • 售后服务怎么样?

    公司拥有专业的售后服务人员,24小时专人服务,一对一提供技术支持,解决您的后顾之忧。

  • 为什么要选择施诺斯?

    选择施诺斯的原因有很多,以下是一些主要的原因:

     1. 专业性:我们的团队由一群专业的人士组成,他们在各自的领域拥有丰富的经验和知识。我们不仅了解行业趋势和最佳实践,而且还能提供切实可行的解决方案。

     2. 服务质量:我们注重客户的需求和满意度,始终致力于提供高质量的服务。我们不仅快速响应客户需求,而且还能根据客户的要求进行定制化服务。

    3. 可靠性:我们以诚信和专业精神为宗旨,始终遵守承诺和协议。我们的工作方法和交付成果均符合行业标准和最佳实践,使得我们的客户能够信任我们。

    4. 创新性:我们不断探索新的方法和工具,以提供更好的服务并满足客户的需求。我们鼓励创新和实验,并愿意接受挑战和改变。

    5. 成本效益:我们提供高性价比的服务,不仅能够帮助客户节省成本,而且还能提高效率和生产力。我们始终以客户的利益为出发点,为客户提供最优的解决方案。

     6. 团队合作:我们相信团队的力量和合作的价值,我们的团队成员之间互相支持、协作和尊重。我们与客户、合作伙伴和其他利益相关者建立紧密的合作关系,以实现共同的目标。

    以上只是选择我们的部分原因,我们相信还有很多其他的优点和价值可以为客户提供。如果您正在寻找一家专业、可靠、高质量的服务提供商,我们非常期待与您的合作。

  • 搅拌脱泡机的工作原理?

    施诺斯搅拌脱泡机通过公转的离心力进行脱泡,通过公转与自转形成的剪切力进行搅拌,

    再辅助以真空泵抽取气体以达到真空状态,去除纳米级微小气泡。 不接触物料,无二次污染,无二次浪费。


  • 施诺斯能提供工程咨询技术服务吗?

    施诺斯能为广大客户提供全面的工程和现代化的咨询服务。施诺斯近二十年的搅拌经验,可以为你提供高效的咨询服务。

    想要让搅拌机性能更上一层楼,提升系统的整体效能?我们有全面的咨询、工程以及现代化改造服务,为您量身打造解决方案。 在如今竞争激烈的全球化浪潮中,唯有不断创新、持续优化,才能始终跑在对手前面。您的生产工艺和产品日新月异,我们就为您提供最适配的混合技术。不管是新的产品参数,还是既有的工艺条件,我们都能对现有系统和搅拌设备进行全方位的检查与评估,挖掘其中潜藏的流程优化空间和机械性能提升潜力,并且帮您把这些改进切实落地。 要是您的搅拌设备已经跟不上时代步伐,能耗居高不下,或是维护成本让您头疼不已,那就别犹豫,我们的咨询、工程设计和现代化改造服务,就是为您排忧解难的良方。欢迎随时联系我们,携手开启高效生产新征程!

Multi‑Model Specification Comparison Table

Compare Models in the Same Series for Accurate Selection

ModelSIE‑RX6‑900SIE‑RX8‑1200SIE‑RX10‑1200
Chamber Sizeφ600×900mmφ800×1200mmφ1000×1200mm
Effective Volume255L600L940L
Pressure Range0~2.5MPa(Optional)0~2.5MPa(Optional)0~2.5MPa(Optional)
Temperature RangeAmbient ~180℃(Optional)Ambient ~180℃(Optional)Ambient ~180℃(Optional)
Pressure Accuracy±0.01MPa±0.01MPa±0.01MPa
Temperature Control Accuracy±1.0℃±1.0℃±1.0℃
Power Supply220V, 50/60Hz (Customizable for 110V US/JP standard)220V, 50/60Hz (Customizable for 110V US/JP standard)220V, 50/60Hz (Customizable for 110V US/JP standard)
Overall Dimension(W×D×H)610 × 560 × 780 mm610 × 560 × 780 mm1300×1500×2000mm
Net Weight153 kg163 kg1500 kg
CertificationsCE, FCCE, FCCE, FC

***Above are typical models. Customized solutions are available upon customer requirements.

Multi‑Industry Solutions

Covering stirring and debubbling applications of typical materials across six major industries


LCD Polarizer Lamination

Small‑size polarizer OCA optical adhesive, lamination adhesive for LCD glass substrate


Electronic Component Encapsulation

Component encapsulant, chip potting adhesive


Medical Devices

Medical bonding adhesive, medical‑device lamination adhesive


LED Encapsulation

LED encapsulant, phosphor paste


Fine Chemicals

Fine chemical materials, nano‑powders


New Energy Materials

R&D samples of new energy materials, battery paste samples

Comprehensive Equipment Operation Demo Videos

Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.

:Actual‑test Performance Demonstration

Measured Processing Results for Six Typical Materials


Slurry + Powder


Adhesive


Hydrogen Energy Materials


Adhesive


Substrate + Filler


Adhesive + Ceramic Powder

Actual‑test Effect Comparison

Comparison of Material Status Before and After Pressurized Debubbling

Material TypePre‑treatment StatusAfter SIE‑RX10‑1200 Treatment
Polarizer OCA Optical AdhesiveNumerous internal bubbles, uneven light transmission & mottling after laminationBubble‑free transparent adhesive with uniform light transmission after lamination
Component EncapsulantDense inner bubbles, voids formed in encapsulation layer after curingDense void‑free adhesive for complete and reliable encapsulation layer
Medical Bonding AdhesiveInternal bubbles cause bonding‑surface defects and impair biocompatibilityDense adhesive with intact bonding surface and qualified biocompatibility

* Internal laboratory test data. Actual improvement varies with material formulation. Contact sales for real‑world customer cases.
