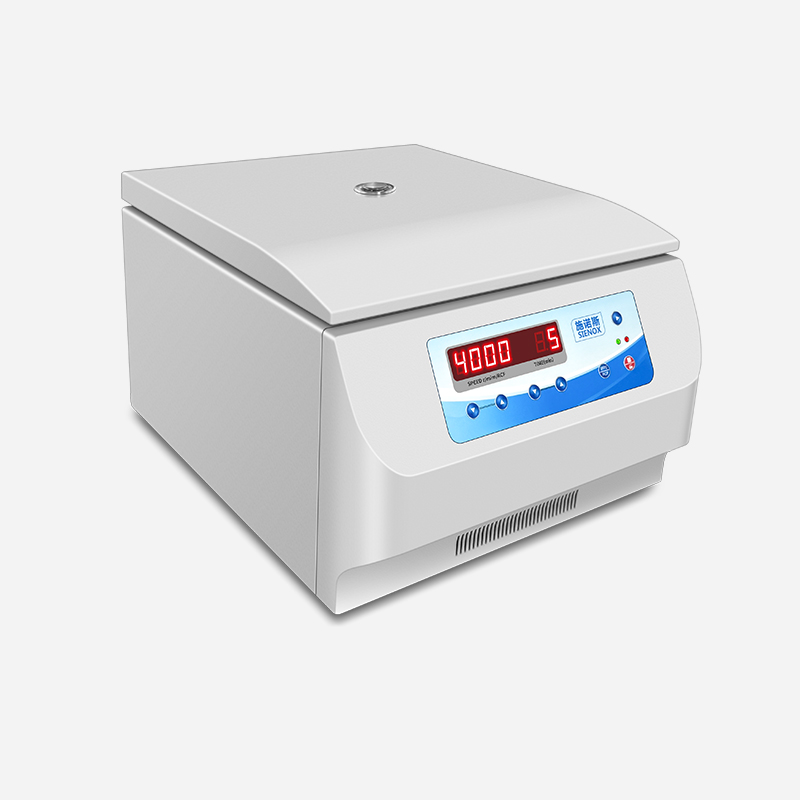

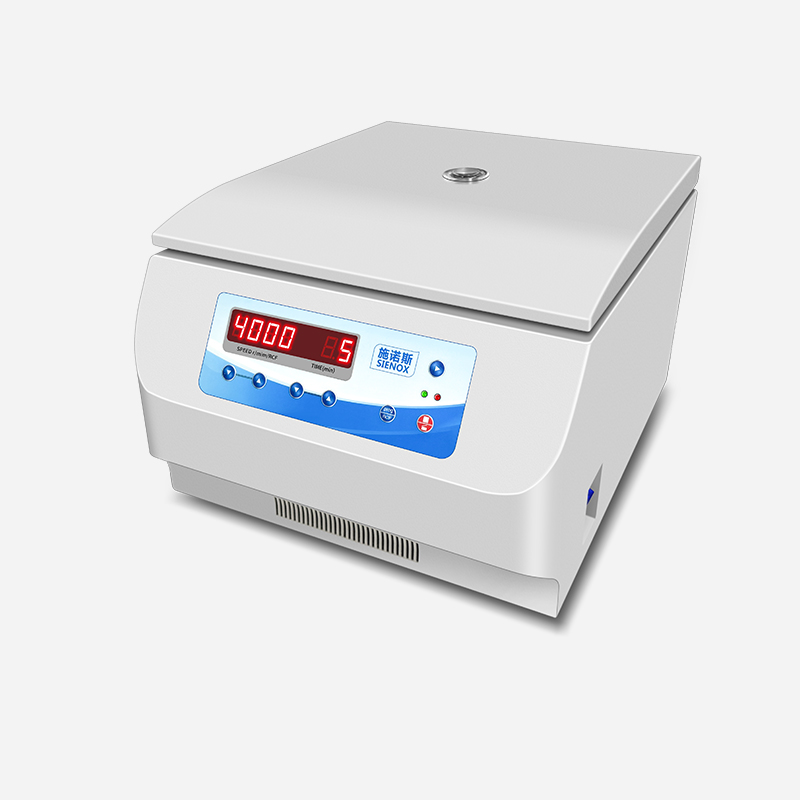

Centrifugal Defoaming Machine SIE‑C006


Compact Silent Centrifugal Defoamer for Glove‑box Use · Non‑contact Gravity Defoaming Preserves Material Properties

Glove‑box compatible operation + 6‑tube simultaneous defoaming without queuing + silent running for undisturbed workflow

SIENOX SIE‑CV200 is a benchtop planetary mixing‑defoaming machine developed for laboratory research and small‑sample tests. It requires no extra floor space and can be placed directly on lab benches. The 200 mL small‑volume capacity matches regular lab consumption and reduces material waste.

SIENOX SIE‑C006 centrifugal defoaming machine fits inside standard glove boxes and processes six small samples simultaneously. Simple intuitive mechanical panel control and patented silent design suit lab and office environments. Non‑contact gravity‑driven defoaming keeps chemical properties unchanged and lowers material contamination risks. It works for phosphor powder, epoxy resin, ceramic slurry, photosensitive resin and other common lab materials.

✓ CE Certification  ✓ FC Certification ✓ ISO9001 Quality System ✓ RoHS Compliance ✓ Customizable voltage (110V/220V)

Online Message Free Sample Testing Engineer Hotline: 189-2512-9293

Why Must Microbubbles in Materials Be Eliminated?

Residual micro‑bubbles in materials directly degrade end‑product quality.

Laboratory R&D

Repeated small‑sample tests in R&D suffer from non‑reproducible data caused by bubbles. Large deviations between duplicate experiments waste precious samples and delay progress. Centrifugal defoaming runs non‑contact inside sealed syringes to keep samples pure for reliable repeatable test results.

Medical Consumables

Bubbles in dental resins and diagnostic reagents reduce product pass rate. Cured voids degrade mechanical properties and cause scrap. High‑cleanliness requirements are met by stirrer‑free centrifugal defoaming which prevents secondary contamination for clean‑room operation.

Touch‑screen Industry

Residual bubbles in silver paste trigger screen‑printing disconnections, pinholes and uneven sheet resistance, lowering yield. Non‑contact centrifugal bubble separation guarantees consistent printing performance and improves production yield.

✨ Limitations of Conventional Methods: Manual stirring or standard agitator paddles draw in air actively and generate more bubbles with stirring. Static defoaming takes long time with limited performance. Laboratories require professional non‑contact planetary mixing‑defoaming equipment, which separates bubbles while mixing via centrifugal force to ensure consistent and reproducible experimental data for every test.

Why Choose SIE‑C006

Three Core Advantages Tailored for Laboratory Research Scenarios

Glove‑box Compatible Operation

Compact footprint fits inside standard glove boxes for direct defoaming under inert‑gas atmosphere. Air‑sensitive materials such as organolithium reagents, metal‑organic compounds and oxidizable polymers can be defoamed without taking them out of the box to prevent air‑induced deterioration.

Multi‑station Simultaneous Defoaming

Processes six samples at one time with six syringes without sequential waiting. Multiple syringe sizes (3/5/10/30cc) are available for different experimental volumes. Tubular containers are ready‑to‑use; one setting completes defoaming for multiple comparative test groups simultaneously.

Patented Silent Design

Unique patented design delivers strong centrifugal force for thorough and efficient defoaming. Low‑noise operation makes it suitable for lab benchtops or office desks without disturbing surrounding work, ideal for noise‑sensitive research and office environments.

✨ If you have limited lab‑bench space, work with air‑sensitive materials, or expect quiet small‑sample defoaming near office areas, the C006 is your ideal choice.

Working Principle

Bubbles escape under downward gravity to efficiently eliminate micro‑bubbles inside materials and improve product quality.

Step 1: High‑speed Centrifugal Separation
Set rotation speed and time via mechanical panel. High‑speed rotation generates centrifugal force to separate bubbles from materials.

Step 2: Gravity‑driven Bubble Escape
Downward gravity drives bubbles to migrate and escape from liquid surface.

Step 3: Non‑contact Purity Protection
Materials rotate inside sealed syringes without stirrer contact, keeping chemical properties unchanged.


Three simple steps: Centrifugal Separation → Gravity‑driven Escape → Non‑contact Purity Protection for one‑step defoaming.

Vacuum Defoaming Mixer Working Principle.jpg

Technical Specifications

Complete Technical Specifications Overview, Customizable on Demand

ModelSIE‑C006
Mixing Capacity3/5/10/30cc* Larger volume customizable
Vessel TypeTest tube (jar optional)
Syringe Quantity6 pcs
Max Rotation Speed100 – 4000 RPM (stepless adjustable)
Standard Accessories6 × tubular syringes
Safety Lock DeviceYes
Control SystemMechanical panel, stores 100 sets of formula parameters
Power Supply220V, 50/60Hz (110V US/JP standard customizable)
Overall Dimension(W×D×H)560×640×370mm
Net WeightApprox.32 kg
Certifications CE, FC, ISO9001, RoHS Compliance



Our Partners

Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide

Partner Showcase

FAQ - Frequently Asked Questions

Answers to common questions about product performance and everyday process selection

  • 脱泡机的作用是什么?

    脱泡机是一种用于去除液体中的气泡的设备。它的作用在于帮助生产过程中的液体混合、反应、涂布、印刷、灌注等工艺环节,避免气泡的产生和对最终产品的影响。在许多工业和实验室环境中,去除气泡是非常必要的,因为气泡可能会对产品质量产生负面影响,如影响表面张力和稳定性等问题。脱泡机通常采用各种不同的技术,如振动、超声波、离心等,以实现有效的气泡去除。它的应用领域广泛,包括但不限于半导体、太阳能、光学、生物技术、材料科学等。

  • 售后服务怎么样?

    公司拥有专业的售后服务人员,24小时专人服务,一对一提供技术支持,解决您的后顾之忧。

  • 为什么要选择施诺斯?

    选择施诺斯的原因有很多,以下是一些主要的原因:

     1. 专业性:我们的团队由一群专业的人士组成,他们在各自的领域拥有丰富的经验和知识。我们不仅了解行业趋势和最佳实践,而且还能提供切实可行的解决方案。

     2. 服务质量:我们注重客户的需求和满意度,始终致力于提供高质量的服务。我们不仅快速响应客户需求,而且还能根据客户的要求进行定制化服务。

    3. 可靠性:我们以诚信和专业精神为宗旨,始终遵守承诺和协议。我们的工作方法和交付成果均符合行业标准和最佳实践,使得我们的客户能够信任我们。

    4. 创新性:我们不断探索新的方法和工具,以提供更好的服务并满足客户的需求。我们鼓励创新和实验,并愿意接受挑战和改变。

    5. 成本效益:我们提供高性价比的服务,不仅能够帮助客户节省成本,而且还能提高效率和生产力。我们始终以客户的利益为出发点,为客户提供最优的解决方案。

     6. 团队合作:我们相信团队的力量和合作的价值,我们的团队成员之间互相支持、协作和尊重。我们与客户、合作伙伴和其他利益相关者建立紧密的合作关系,以实现共同的目标。

    以上只是选择我们的部分原因,我们相信还有很多其他的优点和价值可以为客户提供。如果您正在寻找一家专业、可靠、高质量的服务提供商,我们非常期待与您的合作。

  • 搅拌脱泡机的工作原理?

    施诺斯搅拌脱泡机通过公转的离心力进行脱泡,通过公转与自转形成的剪切力进行搅拌,

    再辅助以真空泵抽取气体以达到真空状态,去除纳米级微小气泡。 不接触物料,无二次污染,无二次浪费。


  • 施诺斯能提供工程咨询技术服务吗?

    施诺斯能为广大客户提供全面的工程和现代化的咨询服务。施诺斯近二十年的搅拌经验,可以为你提供高效的咨询服务。

    想要让搅拌机性能更上一层楼,提升系统的整体效能?我们有全面的咨询、工程以及现代化改造服务,为您量身打造解决方案。 在如今竞争激烈的全球化浪潮中,唯有不断创新、持续优化,才能始终跑在对手前面。您的生产工艺和产品日新月异,我们就为您提供最适配的混合技术。不管是新的产品参数,还是既有的工艺条件,我们都能对现有系统和搅拌设备进行全方位的检查与评估,挖掘其中潜藏的流程优化空间和机械性能提升潜力,并且帮您把这些改进切实落地。 要是您的搅拌设备已经跟不上时代步伐,能耗居高不下,或是维护成本让您头疼不已,那就别犹豫,我们的咨询、工程设计和现代化改造服务,就是为您排忧解难的良方。欢迎随时联系我们,携手开启高效生产新征程!

Multi‑model Comparison Table

Full‑line standardized specifications for accurate process evaluation and equipment selection

ModelSIE‑C006SIE‑C008SIE‑C012
Mixing Capacity3/5/10/30cc* Customizable3/5/10/30cc* Customizable3/5/10/30cc* Customizable
Vessel TypeTest tube (jar optional)Test tube (jar optional)Test tube (jar optional)
Syringe Quantity6 pcs8 pcs12 pcs
Max Rotation Speed100 – 4000 RPM (stepless adjustable)100 – 4500 RPM (stepless adjustable)100 – 4500 RPM (stepless adjustable)
Standard Accessories6 × tubular syringes8 × tubular syringes12 × tubular syringes
Safety Lock DeviceYesYesYes
Control SystemMechanical panel, stores 100 sets of formula parametersMechanical panel, stores 100 sets of formula parametersMechanical panel, stores 100 sets of formula parameters
Power Supply220V, 50/60Hz (110V US/JP standard customizable)220V, 50/60Hz (110V US/JP standard customizable)220V, 50/60Hz (110V US/JP standard customizable)
Overall Dimension(W×D×H)560×640×370mm630×740×380mm660×740×380mm
Net Weight32 kg45 kg65 kg
CertificationsCE, FCCE, FCCE, FC

***Above are typical models only. SIENOX provides customized solutions upon client requirements. Contact sales for model selection: 189‑2512‑9293

Multi‑Industry Solutions

Covers mixing‑defoaming applications for typical R&D and experimental materials across six industries.


University & Research Institutes

New material synthesis, nanomaterial dispersion, polymer research, alumina slurry, functional materials


Biopharmaceuticals

Diagnostic reagents, drug sustained‑release formulations, pharmaceutical gels, vaccine adjuvants, biological adhesives


Fine Chemicals

Coating formulation, pigment dispersion, adhesive R&D, surface treatment agents, catalyst slurries


LED Packaging

Phosphor dispersion, packaging silicone, optical adhesive, color‑matching slurry, reflective adhesive


Aerospace

Conductive adhesive, structural adhesive, composite resin, coating materials, high‑temperature adhesive


Testing Laboratories

Standard sample preparation, reference sample production, incoming material inspection, quality analysis samples

Comprehensive Equipment Operation Demo Videos

Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.

Actual‑test Performance Demonstration

Lab Sample Actual Test Results

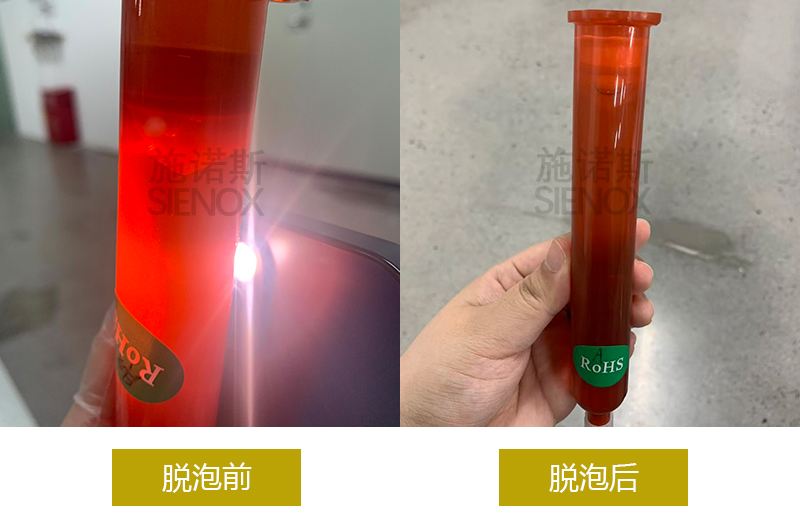

UV Adhesive Defoaming 02.jpg

UV Adhesive

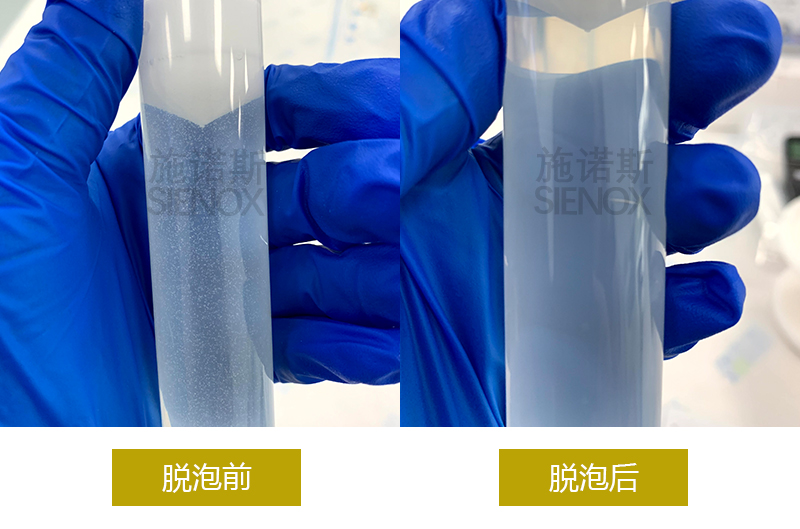

UV Adhesive Defoaming.jpg

UV Adhesive

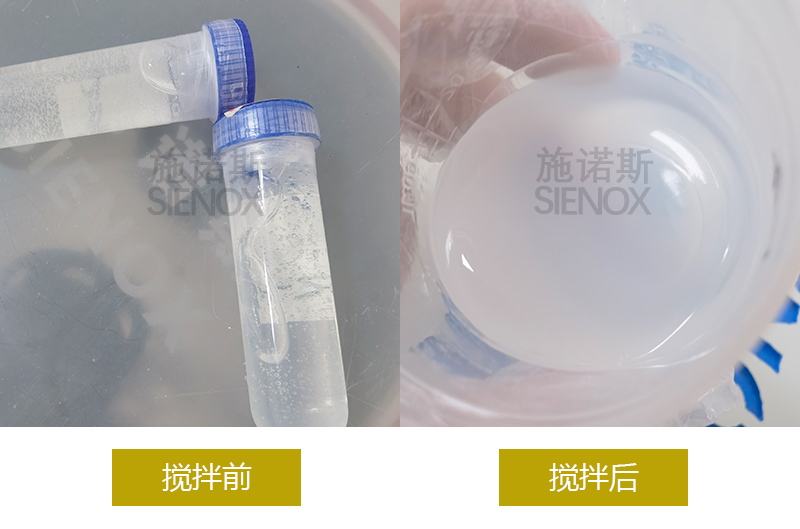

Gel Defoaming 02.jpg

Pharmaceutical Gel

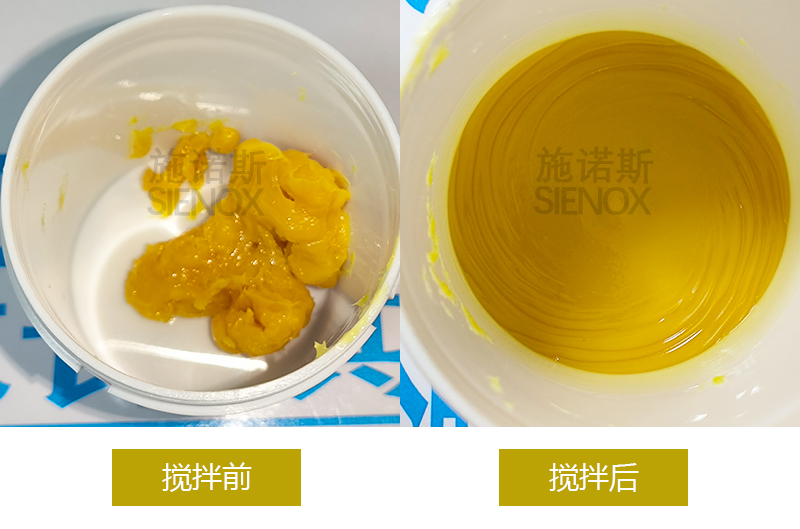

Lubricant Mixing & Defoaming.jpg

Lubricant

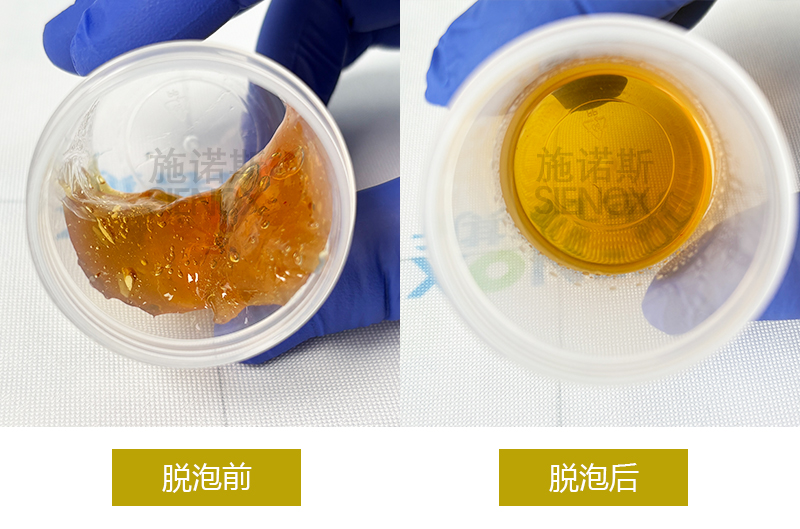

Polymer Material.jpg

Polymer Material

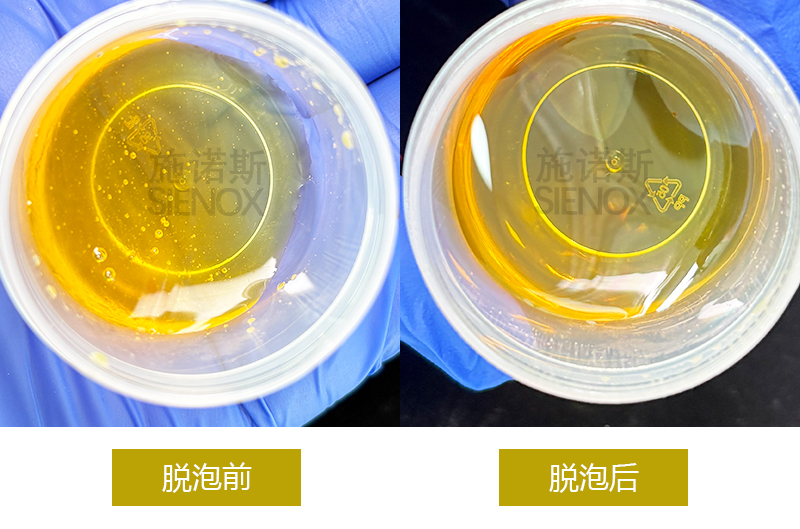

High‑viscosity Glue Before‑after Defoaming 01.jpg

High‑viscosity Glue

Actual‑test Effect Comparison

Material Defoaming Effect Comparison (Before & After)

Material TypePre‑treatment ConditionAfter C006 Treatment
Ceramic SlurryTurbid whitish slurry with thick surface foam after stirring, frequent forming defectsTransparent uniform slurry, foam‑free smooth surface and dense forming
Dental ResinVisible internal bubbles, cured voids and fluctuated mechanical performanceClear transparent resin, void‑free dense curing and stable performance
Touch‑screen Silver PasteInternal bubbles cause printing disconnections, pinholes and uneven sheet resistanceSmooth consistent paste for continuous printing and uniform sheet resistance

* Internal lab test data. Actual improvement varies with material formulas. Contact sales for real customer references.
