Centrifugal Defoaming Machine SIE‑C012


16‑Tube High‑Throughput Batch Defoaming · One Unit Covers Full Range from Small Sample to Pilot‑Scale

16‑tube high‑throughput 100% incoming inspection + full specification coverage 3‑200cc + expandable vacuum & temperature control

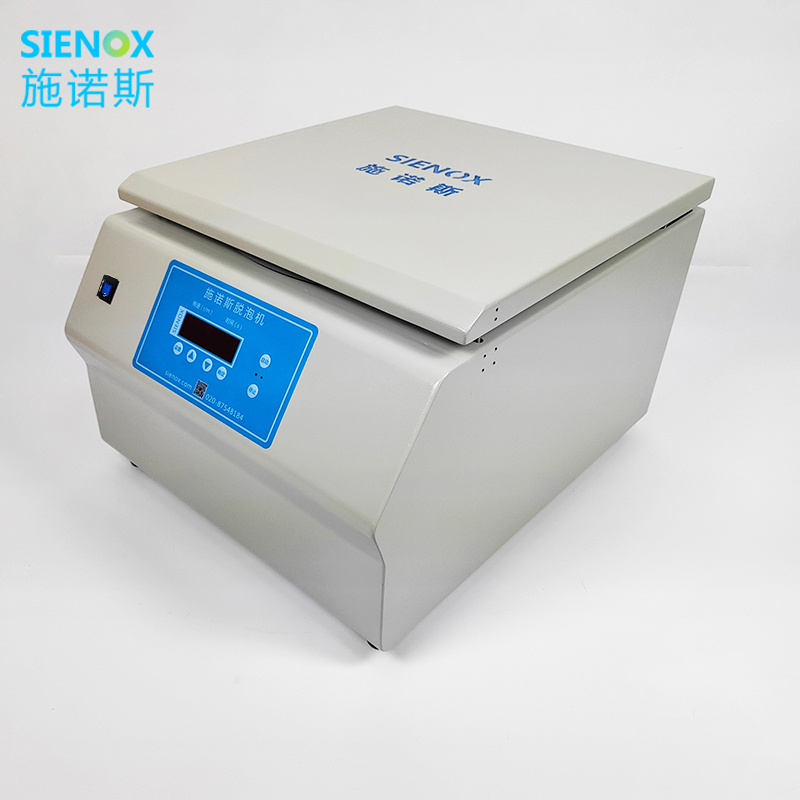

SIENOX SIE‑C012 centrifugal defoaming machine processes 16 syringes simultaneously for 16 samples per batch. Compatible with 3‑200cc syringes, handling both micro‑samples and pilot‑scale production in one device. Optional vacuum and temperature‑control expansions adapt to diverse materials and processes with simple, intuitive mechanical panel operation.

✓ CE Certification  ✓ FC Certification ✓ ISO9001 Quality System ✓ RoHS Compliance ✓ Customizable Voltage (110V/220V)

Online Message Free Sample Testing Engineer Hotline: 189-2512-9293

Why Must Microbubbles in Materials Be Eliminated?

Micro‑bubbles remaining in materials will directly affect the quality of end‑products.

Laboratory R&D Field

Repeated small‑sample tests in R&D suffer from non‑reproducible test data caused by bubbles. Significant result deviations occur between two experiments on the same material, wasting precious samples and delaying R&D progress. Centrifugal defoaming performs non‑contact treatment inside sealed syringes to keep small samples pure and deliver reliable, reproducible data.

Medical Consumables Industry

Bubbles in dental resin and diagnostic reagents directly reduce product qualification rate. Voids after curing degrade mechanical properties and even cause product rejection. Demanding cleanliness requirements in medical industry are satisfied by centrifugal defoaming without stirring paddle contact to avoid secondary contamination, suitable for defoaming in clean‑room environments.

Touch‑Screen Industry

Residual bubbles in touch silver paste cause screen‑printing open circuits and uneven sheet resistance, lowering yield rate. Non‑contact bubble separation via centrifugal defoaming ensures screen‑printing consistency of conductive slurry and improves production yield.

✨ Dilemmas of Conventional Methods: Large number of incoming inspection samples cause long waiting time for tube‑by‑tube processing, leading to severely delayed test reports. Batch R&D experiments require multiple separate runs, making synchronous data comparison impossible. Samples of different specifications demand different devices, resulting in high laboratory equipment investment costs.

Why Choose SIE‑C012

Solve the efficiency bottleneck of laboratory batch testing and R&D defoaming

High‑Centrifugal‑Force Defoaming

Max 4500rpm generates strong centrifugal force for deep defoaming of high‑viscosity materials, while low‑viscosity materials can also be processed rapidly. Starting at 100rpm low‑speed setting for splash‑prone materials. Wide speed range flexibly adapts to various material properties, one machine meets defoaming demands for multiple lab materials.

Multi‑Station Simultaneous Defoaming

16 syringes process 16 samples in one run. Multiple lab samples run in parallel without queuing. Compatible with 3/5/10/30/55/200cc syringe sizes, covering small‑sample tests to medium‑batch pre‑treatment. Tube containers are plug‑and‑play; jar containers are available as option.

Expandable Temperature Control

Optional temperature‑control system (heating / cooling) for temperature‑sensitive material processes. MES network connection supported for production data traceability and recipe parameter management. Full‑process non‑contact design reserves space for future process upgrades.


✨ If your laboratory requires high‑throughput incoming inspection, full‑range coverage from small samples to pilot tests, or potential future vacuum & temperature‑control expansion, the C012 delivers better cost‑performance.

Working Principle

Bubbles escape under downward gravity, efficiently removing micro‑bubbles from materials to improve product quality.

Step 1: High‑speed Centrifugal Separation
Set rotation speed and time via mechanical panel. High‑speed rotation generates centrifugal force to separate bubbles from materials.

Step 2: Gravity‑driven Bubble Escape
Downward gravity drives bubbles to migrate and escape from liquid surface.

Step 3: Non‑contact Purity Preservation
Materials rotate inside sealed syringes without stirrer contact, keeping material chemical properties unchanged.


Simple three‑step workflow: Centrifugal Separation → Gravity‑driven Escape → Non‑contact Purity Preservation, defoaming finished in one cycle.

Vacuum Defoaming Mixer Working Principle.jpg

Technical Specifications

Complete Technical Specifications Overview, Customizable on Demand

ModelSIE‑C012
Mixing Capacity3/5/10/30/55/.../200cc* Larger volume customizable
Vessel TypeTest tube (jar optional)
Syringe Quantity16 pcs
Max Rotation Speed100 – 4500 RPM (stepless adjustable)
Standard Accessories16 × tubular syringes
Safety Lock DeviceYes
Control SystemMechanical panel, stores 100 sets of formula parameters
Power Supply220V, 50/60Hz (110V US/JP standard customizable)
Overall Dimension(W×D×H)660×740×380mm
Net WeightApprox.65 kg
Certifications CE, FC, ISO9001, RoHS Compliance



Our Partners

Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide

Partner Showcase

FAQ - Frequently Asked Questions

Answers to common questions about product performance and everyday process selection

  • 脱泡机的作用是什么?

    脱泡机是一种用于去除液体中的气泡的设备。它的作用在于帮助生产过程中的液体混合、反应、涂布、印刷、灌注等工艺环节,避免气泡的产生和对最终产品的影响。在许多工业和实验室环境中,去除气泡是非常必要的,因为气泡可能会对产品质量产生负面影响,如影响表面张力和稳定性等问题。脱泡机通常采用各种不同的技术,如振动、超声波、离心等,以实现有效的气泡去除。它的应用领域广泛,包括但不限于半导体、太阳能、光学、生物技术、材料科学等。

  • 售后服务怎么样?

    公司拥有专业的售后服务人员,24小时专人服务,一对一提供技术支持,解决您的后顾之忧。

  • 为什么要选择施诺斯?

    选择施诺斯的原因有很多,以下是一些主要的原因:

     1. 专业性:我们的团队由一群专业的人士组成,他们在各自的领域拥有丰富的经验和知识。我们不仅了解行业趋势和最佳实践,而且还能提供切实可行的解决方案。

     2. 服务质量:我们注重客户的需求和满意度,始终致力于提供高质量的服务。我们不仅快速响应客户需求,而且还能根据客户的要求进行定制化服务。

    3. 可靠性:我们以诚信和专业精神为宗旨,始终遵守承诺和协议。我们的工作方法和交付成果均符合行业标准和最佳实践,使得我们的客户能够信任我们。

    4. 创新性:我们不断探索新的方法和工具,以提供更好的服务并满足客户的需求。我们鼓励创新和实验,并愿意接受挑战和改变。

    5. 成本效益:我们提供高性价比的服务,不仅能够帮助客户节省成本,而且还能提高效率和生产力。我们始终以客户的利益为出发点,为客户提供最优的解决方案。

     6. 团队合作:我们相信团队的力量和合作的价值,我们的团队成员之间互相支持、协作和尊重。我们与客户、合作伙伴和其他利益相关者建立紧密的合作关系,以实现共同的目标。

    以上只是选择我们的部分原因,我们相信还有很多其他的优点和价值可以为客户提供。如果您正在寻找一家专业、可靠、高质量的服务提供商,我们非常期待与您的合作。

  • 搅拌脱泡机的工作原理?

    施诺斯搅拌脱泡机通过公转的离心力进行脱泡,通过公转与自转形成的剪切力进行搅拌,

    再辅助以真空泵抽取气体以达到真空状态,去除纳米级微小气泡。 不接触物料,无二次污染,无二次浪费。


  • 施诺斯能提供工程咨询技术服务吗?

    施诺斯能为广大客户提供全面的工程和现代化的咨询服务。施诺斯近二十年的搅拌经验,可以为你提供高效的咨询服务。

    想要让搅拌机性能更上一层楼,提升系统的整体效能?我们有全面的咨询、工程以及现代化改造服务,为您量身打造解决方案。 在如今竞争激烈的全球化浪潮中,唯有不断创新、持续优化,才能始终跑在对手前面。您的生产工艺和产品日新月异,我们就为您提供最适配的混合技术。不管是新的产品参数,还是既有的工艺条件,我们都能对现有系统和搅拌设备进行全方位的检查与评估,挖掘其中潜藏的流程优化空间和机械性能提升潜力,并且帮您把这些改进切实落地。 要是您的搅拌设备已经跟不上时代步伐,能耗居高不下,或是维护成本让您头疼不已,那就别犹豫,我们的咨询、工程设计和现代化改造服务,就是为您排忧解难的良方。欢迎随时联系我们,携手开启高效生产新征程!

Model Comparison Table

Full‑line standardized specifications for accurate process evaluation and equipment selection

ModelSIE‑C006SIE‑C008SIE‑C012
Mixing Capacity3/5/10/30cc* Customizable3/5/10/30cc* Customizable3/5/10/30cc* Customizable
Vessel TypeTest tube (jar optional)Test tube (jar optional)Test tube (jar optional)
Syringe Quantity6 pcs8 pcs12 pcs
Max Rotation Speed100 – 4000 RPM (stepless adjustable)100 – 4500 RPM (stepless adjustable)100 – 4500 RPM (stepless adjustable)
Standard Accessories6 × tubular syringes8 × tubular syringes12 × tubular syringes
Safety Lock DeviceYesYesYes
Control SystemMechanical panel, stores 100 sets of formula parametersMechanical panel, stores 100 sets of formula parametersMechanical panel, stores 100 sets of formula parameters
Power Supply220V, 50/60Hz (110V US/JP standard customizable)220V, 50/60Hz (110V US/JP standard customizable)220V, 50/60Hz (110V US/JP standard customizable)
Overall Dimension(W×D×H)560×640×370mm630×740×380mm660×740×380mm
Net Weight32 kg45 kg65 kg
CertificationsCE, FCCE, FCCE, FC

***Above are typical models only. SIENOX provides customized solutions upon client requirements. Contact sales for model selection: 189‑2512‑9293

Multi‑Industry Solutions

Covers centrifugal defoaming applications for typical materials across six major industries


University & Research Institutes

New material synthesis, nanomaterial dispersion, polymer research, alumina slurry, functional materials


Biopharmaceuticals

Diagnostic reagents, sustained‑release pharmaceutical preparations, pharmaceutical gels, vaccine adjuvants, biological adhesives


Fine Chemicals

Coating formulation, pigment dispersion, adhesive R&D, surface treatment agents, catalyst slurries


LED Packaging

Phosphor dispersion, packaging silicone, optical adhesive, color‑matching slurry, reflective adhesive


Aerospace

Conductive adhesive, structural adhesive, composite resin, coating materials, high‑temperature adhesive


Testing Laboratories

Standard sample preparation, reference sample production, incoming material inspection, quality analysis samples

Comprehensive Equipment Operation Demo Videos

Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.

Actual‑test Performance Demonstration

Lab Sample Actual Test Results

UV Adhesive Defoaming 02.jpg

UV Adhesive

UV Adhesive Defoaming.jpg

UV Adhesive

Gel Defoaming 02.jpg

Pharmaceutical Gel

Lubricant Mixing & Defoaming.jpg

Lubricant

Polymer Material.jpg

Polymer Material

High‑viscosity Adhesive Before‑after Defoaming 01.jpg

High‑viscosity Adhesive

Measured Data Comparison

Comparison of Material Condition Before and After Centrifugal Defoaming

Material TypePre‑treatment ConditionPost‑treatment by C012
Ceramic SlurryTurbid whitish slurry with thick surface foam after stirring, numerous molding defectsTransparent & uniform slurry, foam‑free smooth surface, compact molding
Dental ResinVisible bubbles inside resin, voids after curing and fluctuating mechanical performanceClear transparent resin, void‑free compact curing with stable performance
Touch‑screen Silver PasteInternal bubbles cause screen‑printing open circuits & pinholes, uneven sheet resistanceSmooth uniform paste, continuous screen‑printing and consistent sheet resistance

* Internal lab test data. Actual improvement varies with material formulations. Contact sales for real customer cases.
