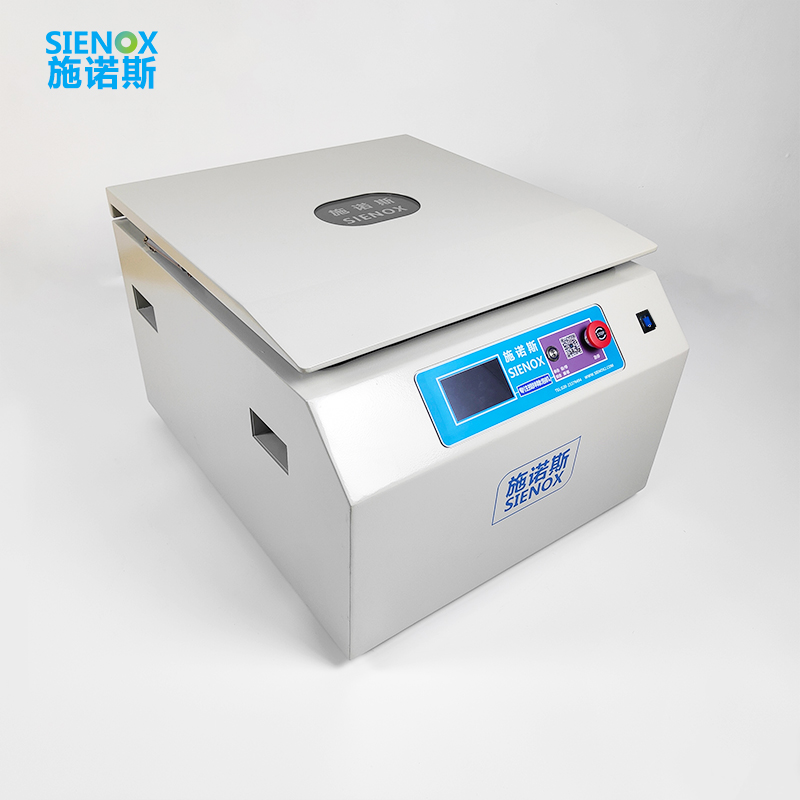

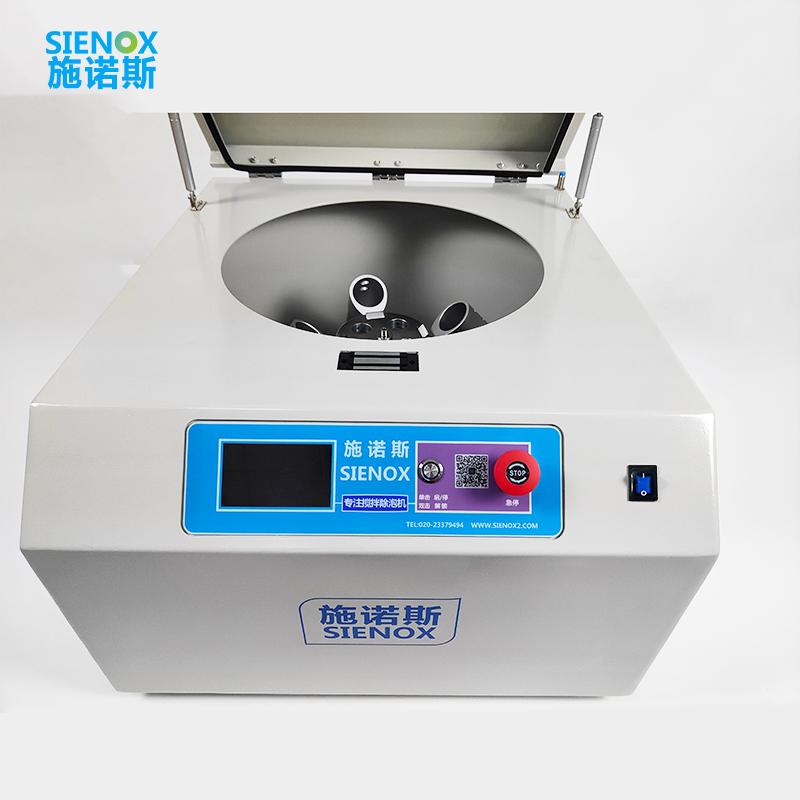

Benchtop Centrifugal Defoamer SIE‑VH350
Compact Body with Multi‑Container Compatibility · One‑Step Non‑Contact Centrifugal Defoaming
Standard 300CC×4 pcs + 0‑2000rpm Stepless Adjustment + Non‑Contact Centrifugal Defoaming
SIE‑VH350 centrifugal defoamer comes with standard 300CC×4‑piece configuration and 0‑2000rpm adjustable speed. Non‑contact centrifugal defoaming keeps material chemical properties unchanged, ideal for small‑batch syringe defoaming in electronics, 3D printing, cosmetics and other industries.
✓ Patented Design ✓ CE Certification ✓ FC Certification ✓ ISO9001 Quality System ✓ 304 Stainless‑Steel Cabinet ✓ 20‑Year Original Manufacturer
Why Must Microbubbles in Materials Be Eliminated?
Residual micro‑bubbles in materials impair end‑product quality.
Electronics IndustryResidual bubbles in conductive silver paste cause dispensing interruption and coating pinholes, resulting in voids and poor insulation after curing. Centrifugal defoaming separates bubbles non‑contact by centrifugal force without introducing impurities, ensuring consistent dispensing performance of conductive paste. | Laboratory & Advanced Material R&DMicro‑bubbles in nano‑dispersion compromise the accuracy of particle size measurement and reliability of dispersion evaluation data. Non‑contact treatment inside sealed containers preserves sample purity, suitable for small‑sample defoaming of test tubes and syringes. | Medical Consumables IndustryBubbles in medical‑grade silicone lead to potting defects, reduced product compactness and fluctuating biocompatibility. No stirrer contact during centrifugal defoaming prevents secondary contamination for clean defoaming of medical consumables. |
✨ Traditional Defoaming Dilemma: Manual stirring entraps air, static defoaming takes long hours, and contact‑type stirring may introduce impurities or modify material properties. The centrifugal defoaming solution separates bubbles via non‑contact centrifugal force without changing material chemical properties, and multi‑tube parallel operation boosts efficiency.
Why Choose SIE‑VH350
Three Core Advantages Cover Small‑Batch Syringe Defoaming Demands
Compact Design with Flexible CompatibilityVH350 occupies small floor space, suitable for laboratory and R&D bench‑top operation. Three container types including tubes, jars and cups are available, covering common syringes and sample tanks within 30‑300mL volume range. | Maximum Expandable Capacity for 16 ContainersComes with four 300CC containers as standard, expandable to 16‑piece parallel defoaming. Multi‑tube parallel processing improves batch efficiency, satisfying both flexible small‑batch operation and multi‑sample simultaneous processing requirements. | Efficient Non‑Contact Defoaming0‑2000rpm stepless adjustment. Centrifugal force separates bubbles without changing material chemical properties. Materials rotate inside sealed containers without direct contact from stirring paddles to prevent secondary contamination. |
✨ VH350 suits small‑batch syringe defoaming requirements for laboratory and R&D scenarios.
Working Principle
High‑speed rotation generates centrifugal force, and gravity assists bubble escape. Materials complete non‑contact defoaming inside sealed containers.
Step 1: High‑Speed Centrifugal Separation Step 2: Gravity‑Assisted Bubble Escape Step 3: Non‑Contact Purity Preservation Inside the sealed container, materials go through the full process of "high‑speed centrifugation → gravity‑driven bubble escape → non‑contact purity preservation" to complete centrifugal defoaming in one single step. |  |
Technical Specifications
Complete Technical Specifications Overview, Customizable on Demand
| Equipment Model | SIE‑VH350 |
| Mixing Capacity | 30 / 55 / 75 / … / 300 cc (Customizable) |
| Standard Configuration | 300CC × 4 pcs |
| Quantity of Containers | 16 pcs (User‑selectable) |
| Max Rotation Speed | 0 – 2000 RPM (Stepless adjustable) |
| Technical Principle | Centrifugal‑Force Defoaming |
| Container Types | Test tubes / jars / cups; adapters for syringes & cartridges supported |
| Control System | Touch screen, stores up to 100 sets of recipe parameters |
| Power Supply | 220V, 50/60Hz (110V US/Japan standard customizable) |
| Overall Dimension(W×D×H) | 700 × 635 × 470 mm |
| Net Weight | Approx. 150 kg |
| Certifications | CE, FC, ISO9001, RoHS Compliance |
Our Partners
Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide
FAQ - Frequently Asked Questions
Answers to common questions about product performance and everyday process selection
-
脱泡机的作用是什么？
脱泡机是一种用于去除液体中的气泡的设备。它的作用在于帮助生产过程中的液体混合、反应、涂布、印刷、灌注等工艺环节，避免气泡的产生和对最终产品的影响。在许多工业和实验室环境中，去除气泡是非常必要的，因为气泡可能会对产品质量产生负面影响，如影响表面张力和稳定性等问题。脱泡机通常采用各种不同的技术，如振动、超声波、离心等，以实现有效的气泡去除。它的应用领域广泛，包括但不限于半导体、太阳能、光学、生物技术、材料科学等。
-
售后服务怎么样？
公司拥有专业的售后服务人员，24小时专人服务，一对一提供技术支持，解决您的后顾之忧。
-
为什么要选择施诺斯？
选择施诺斯的原因有很多，以下是一些主要的原因：
1. 专业性：我们的团队由一群专业的人士组成，他们在各自的领域拥有丰富的经验和知识。我们不仅了解行业趋势和最佳实践，而且还能提供切实可行的解决方案。
2. 服务质量：我们注重客户的需求和满意度，始终致力于提供高质量的服务。我们不仅快速响应客户需求，而且还能根据客户的要求进行定制化服务。
3. 可靠性：我们以诚信和专业精神为宗旨，始终遵守承诺和协议。我们的工作方法和交付成果均符合行业标准和最佳实践，使得我们的客户能够信任我们。
4. 创新性：我们不断探索新的方法和工具，以提供更好的服务并满足客户的需求。我们鼓励创新和实验，并愿意接受挑战和改变。
5. 成本效益：我们提供高性价比的服务，不仅能够帮助客户节省成本，而且还能提高效率和生产力。我们始终以客户的利益为出发点，为客户提供最优的解决方案。
6. 团队合作：我们相信团队的力量和合作的价值，我们的团队成员之间互相支持、协作和尊重。我们与客户、合作伙伴和其他利益相关者建立紧密的合作关系，以实现共同的目标。
以上只是选择我们的部分原因，我们相信还有很多其他的优点和价值可以为客户提供。如果您正在寻找一家专业、可靠、高质量的服务提供商，我们非常期待与您的合作。
-
搅拌脱泡机的工作原理？
施诺斯搅拌脱泡机通过公转的离心力进行脱泡，通过公转与自转形成的剪切力进行搅拌，
再辅助以真空泵抽取气体以达到真空状态，去除纳米级微小气泡。 不接触物料，无二次污染，无二次浪费。
-
施诺斯能提供工程咨询技术服务吗？
施诺斯能为广大客户提供全面的工程和现代化的咨询服务。施诺斯近二十年的搅拌经验，可以为你提供高效的咨询服务。
想要让搅拌机性能更上一层楼，提升系统的整体效能？我们有全面的咨询、工程以及现代化改造服务，为您量身打造解决方案。 在如今竞争激烈的全球化浪潮中，唯有不断创新、持续优化，才能始终跑在对手前面。您的生产工艺和产品日新月异，我们就为您提供最适配的混合技术。不管是新的产品参数，还是既有的工艺条件，我们都能对现有系统和搅拌设备进行全方位的检查与评估，挖掘其中潜藏的流程优化空间和机械性能提升潜力，并且帮您把这些改进切实落地。 要是您的搅拌设备已经跟不上时代步伐，能耗居高不下，或是维护成本让您头疼不已，那就别犹豫，我们的咨询、工程设计和现代化改造服务，就是为您排忧解难的良方。欢迎随时联系我们，携手开启高效生产新征程！
Technical Specifications
Complete Technical Specifications Overview, Customizable on Demand
| Equipment Model | SIE‑VH350 | SIE‑VH600 | SIE‑VH960 |
| Mixing Capacity | 30 / 55 / 75 / … / 300 cc (Customizable) | 30 / 55 / 75 / … / 300 cc (Customizable) | 30 / 55 / 75 / … / 960 cc (Customizable) |
| Standard Configuration | 300CC × 4 pcs | 300CC × 8 pcs | 960mL × 4 pcs |
| Maximum Number of Containers | 16 pcs | 16 pcs | 32 pcs |
| Maximum Rotation Speed | 0 – 2000 RPM (Stepless adjustable) | 0 – 2000 RPM (Stepless adjustable) | 0 – 2000 RPM (Stepless adjustable) |
| Technical Principle | Centrifugal Defoaming | Centrifugal Defoaming | Centrifugal Defoaming |
| Container Type | Tubes / Jars / Cups | Tubes / Jars / Cups | Tubes / Jars / Cups |
| Control System | Touch screen, stores up to 100 sets of recipe parameters | Touch screen, stores up to 100 sets of recipe parameters | Touch screen, stores up to 100 sets of recipe parameters |
| Power Supply | 220V, 50/60Hz (110V US/Japan standard customizable) | 220V, 50/60Hz (110V US/Japan standard customizable) | 220V, 50/60Hz (110V US/Japan standard customizable) |
| Overall Dimension(W×D×H) | 700 × 635 × 470 mm | 700 × 635 × 470 mm | 980 × 735 × 490 mm |
| Net Weight | 150 kg | 180 kg | 235 kg |
| Certifications | CE, FC | CE, FC | CE, FC |
*** The above are typical models only. Customized solutions are available according to customer requirements.
Multi‑Industry Solutions
Covers centrifugal defoaming applications for typical materials across six major industries
Electronic SemiconductorConductive Silver Paste, UV Adhesive, One‑component Epoxy Resin, SMT Red Glue |
Advanced Material R&DNano‑dispersion, Ceramic Slurry, Reagent Gel, Lab‑prepared Resin |
Medical Consumables IndustryMedical‑grade Silicone, Dental Resin, Biological Gel, Diagnostic Reagent Paste |
Optoelectronic DisplayOptical Clear Adhesive, Touch Silver Paste, Frame Sealing Silicone, Backlight Filling Paste |  AdhesivesOne‑component Silicone, Acrylic Adhesive, Polyurethane Sealant, Molding Silicone |
Automotive Electronics IndustryVehicle‑mounted PCB Potting Compound, Headlamp Encapsulation Silicone, Wire Harness Sealant, Vehicle‑use Thermal Conductive Paste |
Comprehensive Equipment Operation Demo Videos
Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.
Actual‑test Performance Demonstration
Lab Sample Actual Test Results

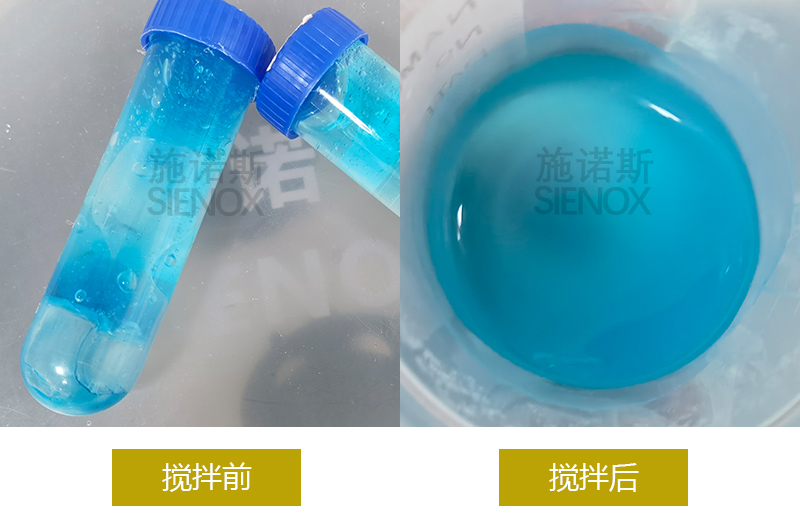

Gel |

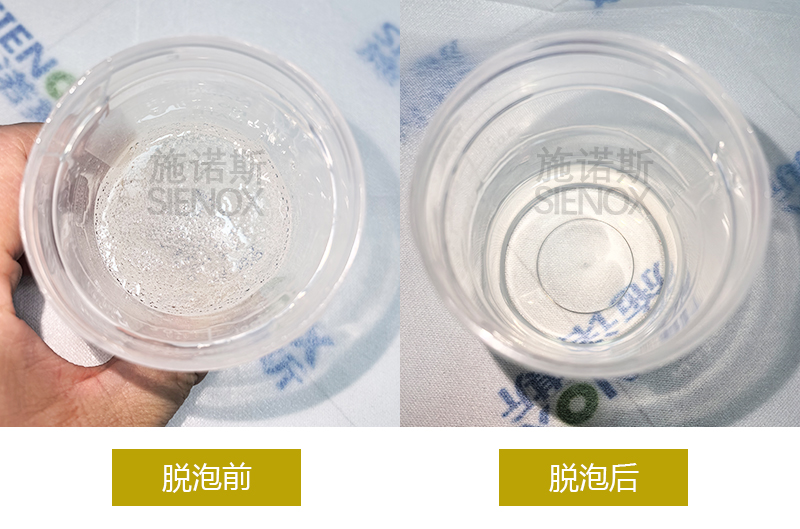

Epoxy Resin |

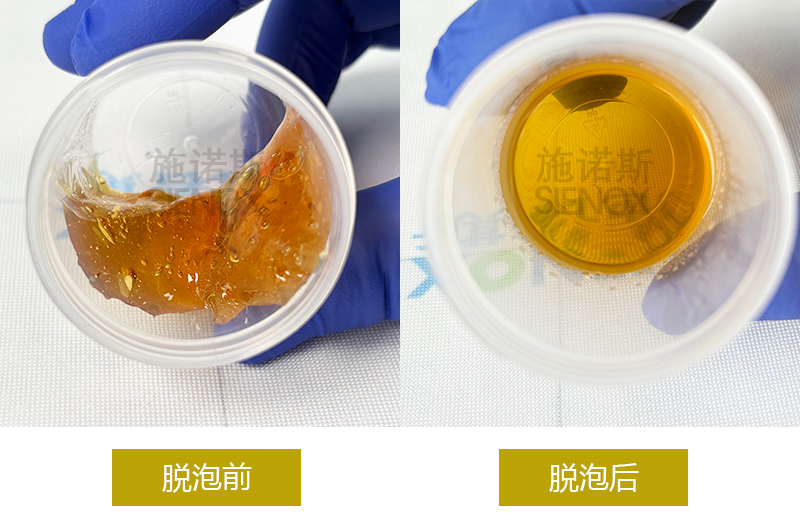

Polymer Materials |

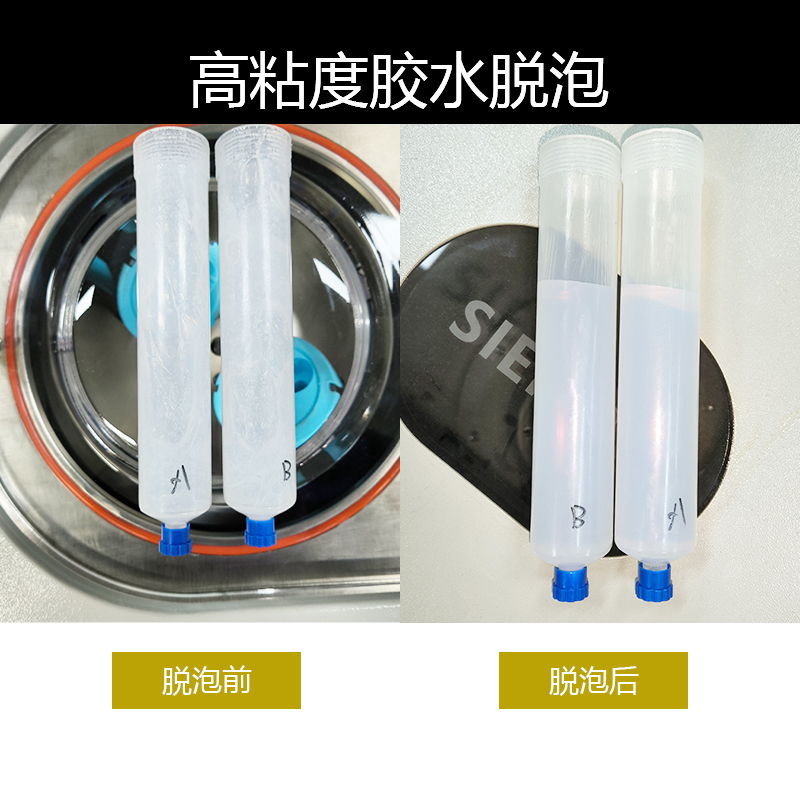

Potting Adhesive |
Silver Paste Materials |
Adhesive |
Actual‑test Effect Comparison
Comparison of Material Condition Before and After Centrifugal Defoaming
Material Type | Condition Before Treatment | After VH350 Treatment |
Conductive Silver Paste | Dense bubbles in paste, dispensing interruption rate approx. 5%, abundant coating pinholes | Bubbles eliminated, dispensing interruption rate below 1%, uniform coating |
Nano‑dispersion | Numerous internal bubbles, particle size test deviation approx. 8%, poor repeatability | Bubbles eliminated, particle size test deviation below 2%, good repeatability |
Medical‑grade Silicone | Plenty of bubbles inside silicone, potting defect rate approx. 6%, poor compactness | Bubbles eliminated, potting defect rate below 1%, stable compactness |
* Internal laboratory test data. Actual improvement varies with material formulation. Real customer cases are available upon contact with sales.
