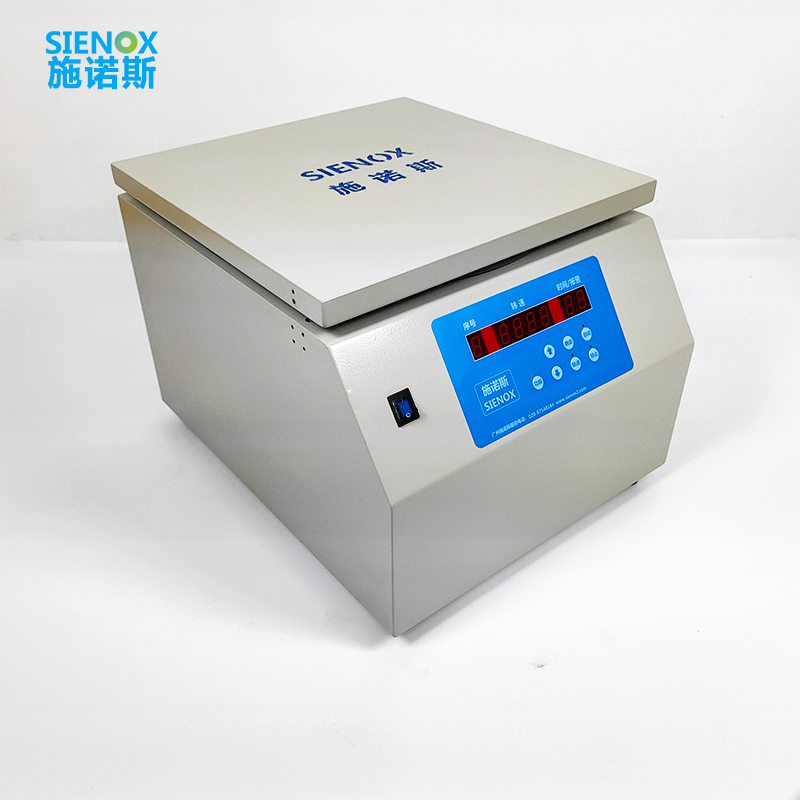

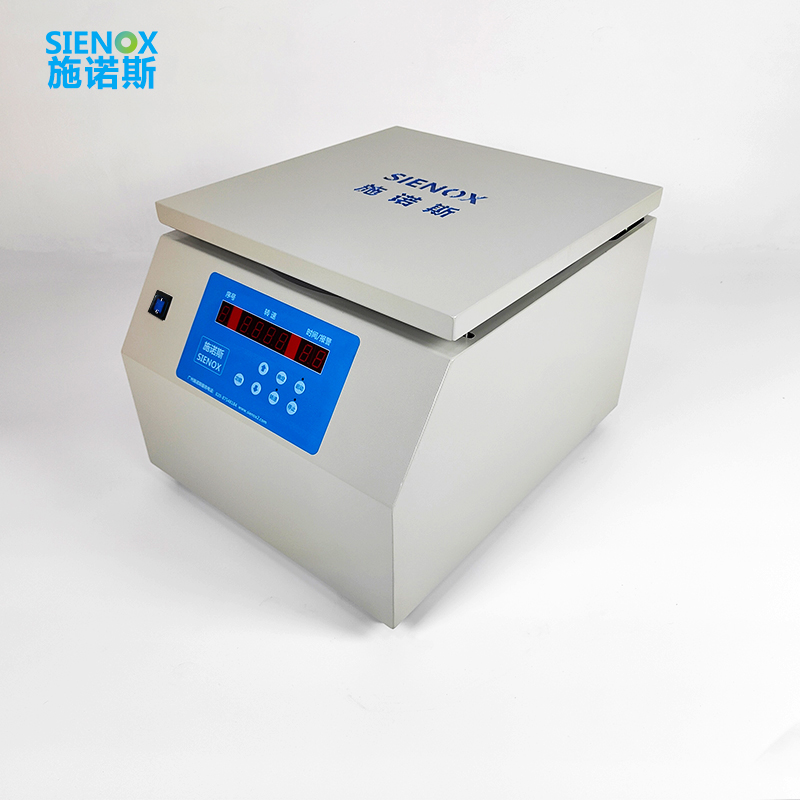

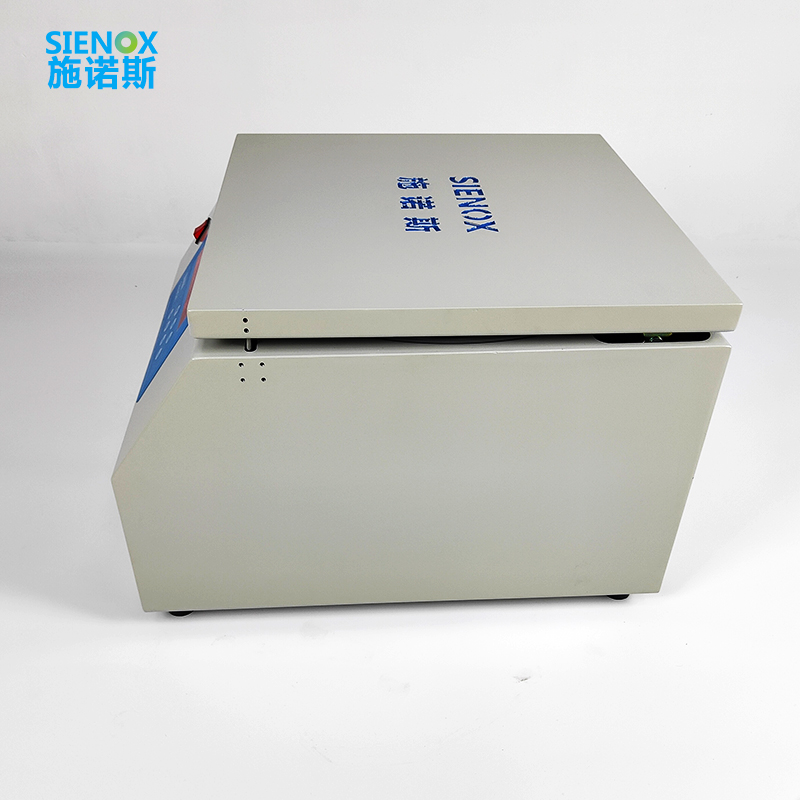

Centrifugal Defoaming Machine SIE‑C008
High‑Centrifugal‑Force Driven Deep Defoaming · 8‑Tube Parallel Processing with Reproducible Recipes
4500rpm high‑centrifugal‑force deep defoaming + 8‑station parallel operation + one‑click recall for 100 recipe sets
SIENOX SIE‑CV200 is a desktop planetary stirring‑defoaming machine developed for laboratory research and small‑sample tests. It requires no extra floor space and can be placed directly on lab benches. The 200mL small‑sample capacity matches regular research‑lab consumption and reduces material waste.
SIENOX SIE‑C008 centrifugal defoaming machine processes 8 syringes simultaneously. Wide speed range 100‑4500rpm adapts to materials of various viscosities. 100‑set recipe storage saves and reproduces process parameters without re‑adjustment during material change. Mechanical panel operation with low‑noise design, ideal for shared lab environments.
✓ CE Certification ✓ FC Certification ✓ ISO9001 Quality System ✓ RoHS Compliance ✓ Customizable Voltage (110V/220V)
Why Must Microbubbles in Materials Be Eliminated?
Residual micro‑bubbles in materials directly affect end‑product quality.
Laboratory R&D FieldRepeated small‑sample tests in R&D suffer from non‑reproducible test data caused by bubbles. Significant result deviations occur between two runs of the same material, wasting valuable samples and delaying R&D progress. Centrifugal defoaming performs non‑contact processing inside sealed syringes to ensure sample purity and reliable, reproducible data. | Medical Consumable IndustryBubbles in dental resins and diagnostic reagents directly reduce product pass rates. Voids after curing degrade mechanical properties and may cause total product rejection. Meeting strict medical cleanliness requirements, centrifugal defoaming avoids secondary contamination without stirrer contact, suitable for defoaming in clean environments. | Touch‑screen IndustryResidual bubbles in touch‑screen silver paste trigger screen‑printing open circuits and uneven sheet resistance, lowering yield rates. Non‑contact bubble separation via centrifugal defoaming guarantees consistent screen‑printing performance for conductive slurries and improves production yield. |
✨ Dilemmas of conventional methods: Manual stirring or ordinary stirrer paddles draw in air actively, generating more bubbles with stirring. Static defoaming takes long time with limited effect. Laboratories need professional non‑contact planetary stirring‑defoaming equipment, which separates bubbles while mixing via centrifugal force to ensure consistency and reproducibility of experimental data for every run.
Why Choose SIE‑C008
Three Core Advantages Built for Laboratory Research Scenarios
High‑centrifugal‑force DefoamingMax 4500 RPM delivers powerful centrifugal force for deep defoaming of high‑viscosity materials, and fast processing for low‑viscosity materials. Starting at 100 RPM for splash‑prone substances, the broad speed range flexibly fits diverse material properties. One unit meets multi‑material defoaming demands for lab teams. | Multi‑station Simultaneous Defoaming8 syringes process 8 samples in one run; multiple lab samples finish in parallel without queuing. Five syringe sizes 3/5/10/30/55 cc available, covering small‑scale tests to medium‑volume pre‑treatment. Tubular containers are ready‑to‑use; jar‑type containers are optional. | Storage for 100 Recipe SetsProcess parameters can be saved and reproduced. One‑click recall of different material recipes eliminates re‑setting speed and time upon material change. It prevents repeated trial‑and‑error from forgotten parameters, cuts material waste, delivers consistent batch results and enables traceable, comparable experimental data. |
✨ If your team processes multi‑variant materials, pursues process reproducibility, or handles hard‑to‑defoam high‑viscosity materials, C008’s 8‑tube parallel processing and recipe storage effectively boost efficiency.
Working Principle
Bubbles escape downward by gravity principle to efficiently eliminate micro‑bubbles and improve product quality.
Step 1: High‑speed Centrifugal Separation Step 2: Gravity‑driven Bubble Escape Step 3: Non‑contact Purity Protection Three simple steps: Centrifugal Separation → Gravity Release → Non‑contact Purity Protection, complete defoaming in one cycle. | ![]() |
Technical Specifications
Complete Technical Specifications Overview, Customizable on Demand
| Model | SIE‑C008 |
| Mixing Capacity | 3/5/10/30/55cc* Larger volume customizable |
| Vessel Type | Test tube (jar optional) |
| Syringe Quantity | 8 pcs |
| Max Rotation Speed | 100 – 4500 RPM (stepless adjustable) |
| Standard Accessories | 8 × tubular syringes |
| Safety Lock Device | Yes |
| Control System | Mechanical panel, stores 100 sets of formula parameters |
| Power Supply | 220V, 50/60Hz (110V US/JP standard customizable) |
| Overall Dimension(W×D×H) | 630×740×380mm |
| Net Weight | Approx.45 kg |
| Certifications | CE, FC, ISO9001, RoHS Compliance |
Our Partners
Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide
FAQ - Frequently Asked Questions
Answers to common questions about product performance and everyday process selection
-
脱泡机的作用是什么?
脱泡机是一种用于去除液体中的气泡的设备。它的作用在于帮助生产过程中的液体混合、反应、涂布、印刷、灌注等工艺环节,避免气泡的产生和对最终产品的影响。在许多工业和实验室环境中,去除气泡是非常必要的,因为气泡可能会对产品质量产生负面影响,如影响表面张力和稳定性等问题。脱泡机通常采用各种不同的技术,如振动、超声波、离心等,以实现有效的气泡去除。它的应用领域广泛,包括但不限于半导体、太阳能、光学、生物技术、材料科学等。
-
售后服务怎么样?
公司拥有专业的售后服务人员,24小时专人服务,一对一提供技术支持,解决您的后顾之忧。
-
为什么要选择施诺斯?
选择施诺斯的原因有很多,以下是一些主要的原因:
1. 专业性:我们的团队由一群专业的人士组成,他们在各自的领域拥有丰富的经验和知识。我们不仅了解行业趋势和最佳实践,而且还能提供切实可行的解决方案。
2. 服务质量:我们注重客户的需求和满意度,始终致力于提供高质量的服务。我们不仅快速响应客户需求,而且还能根据客户的要求进行定制化服务。
3. 可靠性:我们以诚信和专业精神为宗旨,始终遵守承诺和协议。我们的工作方法和交付成果均符合行业标准和最佳实践,使得我们的客户能够信任我们。
4. 创新性:我们不断探索新的方法和工具,以提供更好的服务并满足客户的需求。我们鼓励创新和实验,并愿意接受挑战和改变。
5. 成本效益:我们提供高性价比的服务,不仅能够帮助客户节省成本,而且还能提高效率和生产力。我们始终以客户的利益为出发点,为客户提供最优的解决方案。
6. 团队合作:我们相信团队的力量和合作的价值,我们的团队成员之间互相支持、协作和尊重。我们与客户、合作伙伴和其他利益相关者建立紧密的合作关系,以实现共同的目标。
以上只是选择我们的部分原因,我们相信还有很多其他的优点和价值可以为客户提供。如果您正在寻找一家专业、可靠、高质量的服务提供商,我们非常期待与您的合作。
-
搅拌脱泡机的工作原理?
施诺斯搅拌脱泡机通过公转的离心力进行脱泡,通过公转与自转形成的剪切力进行搅拌,
再辅助以真空泵抽取气体以达到真空状态,去除纳米级微小气泡。 不接触物料,无二次污染,无二次浪费。
-
施诺斯能提供工程咨询技术服务吗?
施诺斯能为广大客户提供全面的工程和现代化的咨询服务。施诺斯近二十年的搅拌经验,可以为你提供高效的咨询服务。
想要让搅拌机性能更上一层楼,提升系统的整体效能?我们有全面的咨询、工程以及现代化改造服务,为您量身打造解决方案。 在如今竞争激烈的全球化浪潮中,唯有不断创新、持续优化,才能始终跑在对手前面。您的生产工艺和产品日新月异,我们就为您提供最适配的混合技术。不管是新的产品参数,还是既有的工艺条件,我们都能对现有系统和搅拌设备进行全方位的检查与评估,挖掘其中潜藏的流程优化空间和机械性能提升潜力,并且帮您把这些改进切实落地。 要是您的搅拌设备已经跟不上时代步伐,能耗居高不下,或是维护成本让您头疼不已,那就别犹豫,我们的咨询、工程设计和现代化改造服务,就是为您排忧解难的良方。欢迎随时联系我们,携手开启高效生产新征程!
Multi‑model Comparison Table
Full‑line standardized specifications for accurate process evaluation and equipment selection
| Model | SIE‑C006 | SIE‑C008 | SIE‑C012 |
| Mixing Capacity | 3/5/10/30cc* Customizable | 3/5/10/30cc* Customizable | 3/5/10/30cc* Customizable |
| Vessel Type | Test tube (jar optional) | Test tube (jar optional) | Test tube (jar optional) |
| Syringe Quantity | 6 pcs | 8 pcs | 12 pcs |
| Max Rotation Speed | 100 – 4000 RPM (stepless adjustable) | 100 – 4500 RPM (stepless adjustable) | 100 – 4500 RPM (stepless adjustable) |
| Standard Accessories | 6 × tubular syringes | 8 × tubular syringes | 12 × tubular syringes |
| Safety Lock Device | Yes | Yes | Yes |
| Control System | Mechanical panel, stores 100 sets of formula parameters | Mechanical panel, stores 100 sets of formula parameters | Mechanical panel, stores 100 sets of formula parameters |
| Power Supply | 220V, 50/60Hz (110V US/JP standard customizable) | 220V, 50/60Hz (110V US/JP standard customizable) | 220V, 50/60Hz (110V US/JP standard customizable) |
| Overall Dimension(W×D×H) | 560×640×370mm | 630×740×380mm | 660×740×380mm |
| Net Weight | 32 kg | 45 kg | 65 kg |
| Certifications | CE, FC | CE, FC | CE, FC |
***Above are typical models only. SIENOX provides customized solutions upon client requirements. Contact sales for model selection: 189‑2512‑9293
Multi‑Industry Solutions
Covers stirring‑defoaming applications for typical R&D and experimental materials across six industries.
University & Research InstitutesNew material synthesis, nanomaterial dispersion, polymer research, alumina slurry, functional materials |
BiopharmaceuticalsDiagnostic reagents, drug sustained‑release formulations, pharmaceutical gels, vaccine adjuvants, biological adhesives |
Fine ChemicalsCoating formulation, pigment dispersion, adhesive R&D, surface treatment agents, catalyst slurries |
LED PackagingPhosphor dispersion, packaging silicone, optical adhesive, color‑matching slurry, reflective adhesive | ![]() AerospaceConductive adhesive, structural adhesive, composite resin, coating materials, high‑temperature adhesive |
Testing LaboratoriesStandard sample preparation, reference sample production, incoming material inspection, quality analysis samples |
Comprehensive Equipment Operation Demo Videos
Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.
Actual‑test Performance Demonstration
Lab Sample Actual Test Results
UV Adhesive |
UV Adhesive |
Pharmaceutical Gel |
Lubricant |
Polymer Material |
High‑viscosity Adhesive |
Actual‑test Effect Comparison
Material Defoaming Effect Comparison (Before & After)
| Material Type | Pre‑treatment Condition | After SIE‑C008 Treatment |
| Ceramic Slurry | Turbid whitish slurry with thick surface foam after stirring, frequent forming defects | Transparent homogeneous slurry, foam‑free smooth surface, dense forming |
| Dental Resin | Visible bubbles inside resin, voids after curing and fluctuating mechanical performance | Clear transparent resin, void‑free dense curing and stable performance |
| Touch‑screen Silver Paste | Internal bubbles cause open circuits and pinholes during screen‑printing with uneven sheet resistance | Smooth uniform paste for continuous screen‑printing and consistent sheet resistance |
* Internal lab test data. Actual improvement varies by material formula. Contact sales for real‑world customer references.
