Centrifugal Degasser

TEL:18925129293

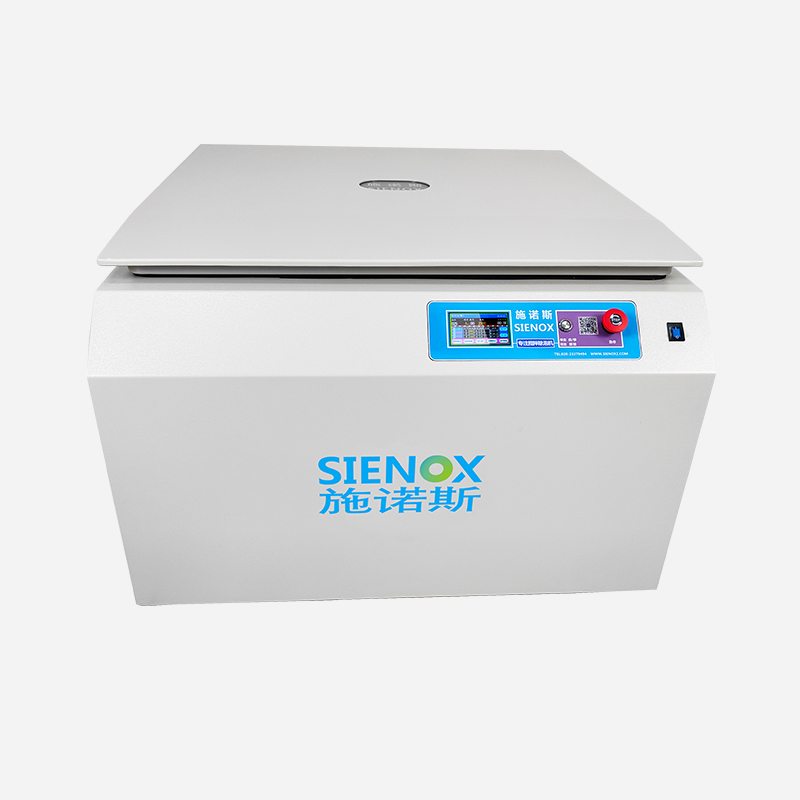

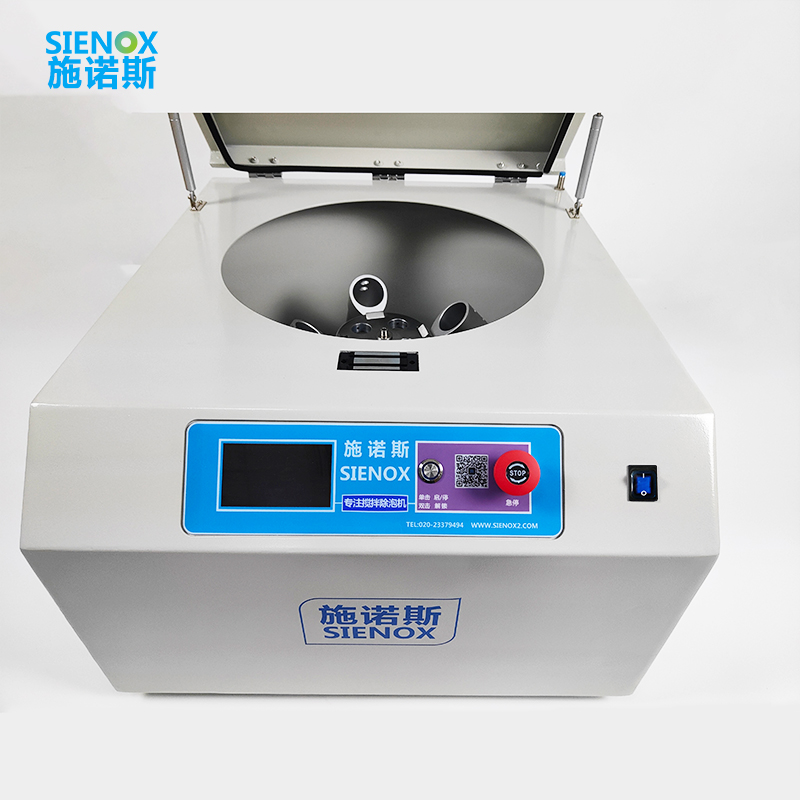

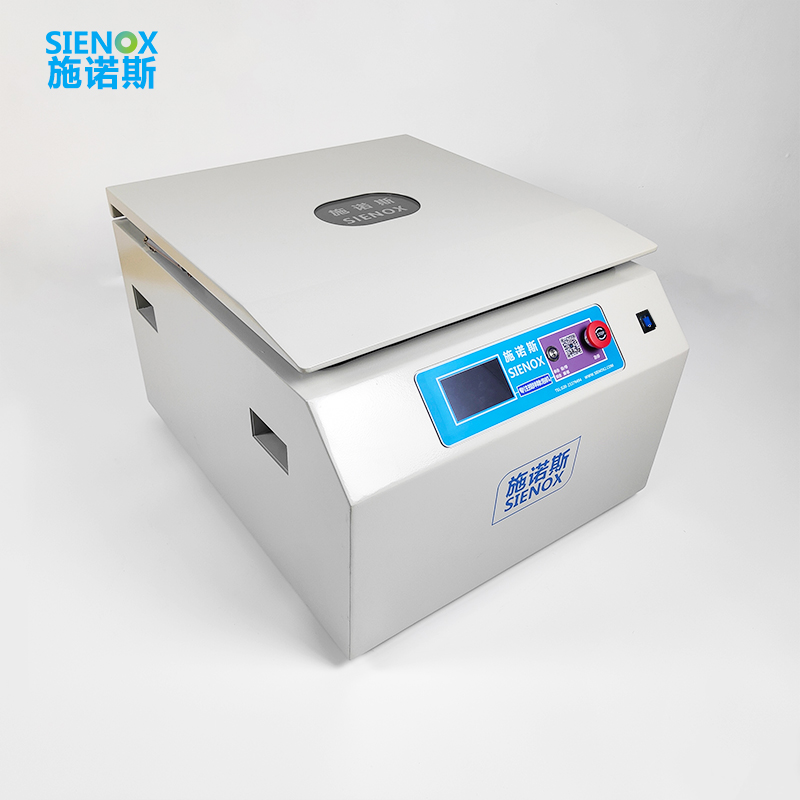

SIENOX Centrifugal Defoamer SIE‑VH2600


2600CC Extra‑large Capacity Low‑speed Heavy‑load · Industrial‑grade Mass‑production Defoaming Platform

Standard with 4 × 2600CC containers + 0‑1500rpm stepless speed adjustment + Non‑contact centrifugal defoaming

Extra‑large 2600CC per‑cup capacity, low‑speed heavy‑load design at 0‑1500rpm for continuous mass‑production defoaming on industrial production lines. Non‑contact centrifugal separation keeps material chemical properties unchanged, suitable for high‑volume processing in new‑energy, adhesive, automotive‑electronics and other industries.

✓ Patented Design ✓ FCC Certification ✓ ISO9001 Quality System ✓ 304 Stainless‑steel Cabinet ✓ 20‑year Original Manufacturer

Online Message Free Sample Testing Engineer Hotline: 189-2512-9293

Why Must Microbubbles in Materials Be Eliminated?

Micro‑bubbles remaining in single materials impair end‑product quality and test accuracy.

Component Packaging Industry

Residual bubbles in underfill adhesive cause chip packaging voids, stress concentration and reduced reliability. Centrifugal defoaming separates bubbles merely by centrifugal force in non‑contact mode without introducing impurities, ideal for defoaming large‑volume single‑cup packaging adhesives.

Automotive Electronics Industry

Bubbles in wire‑harness sealant result in poor sealing, degraded weather resistance and failed harness protection. Non‑contact centrifugal defoaming avoids impurity contamination, and standardized batch configuration ensures consistency among batches.

New Energy Industry

Bubbles in photovoltaic conductive silver paste impair grid‑line printing quality, contact resistance and photoelectric conversion efficiency. Non‑contact centrifugal defoaming preserves paste chemical properties, suitable for defoaming of PV auxiliary materials.

✨ Limitations of traditional defoaming: Batch‑processing for large‑volume adhesives involves cumbersome procedures and frequent material changeovers, leading to low efficiency. Contact mixing paddles may introduce contamination and alter material chemical properties.

Why Choose SIE‑VH2600

Three Core Advantages Cover Large‑Volume Single‑Cup Defoaming Requirements

2600CC Single‑cup to Reduce Batches

With 2600CC single‑cup capacity, the single‑time throughput is 2.7 times that of VH960. Large‑volume adhesives require no batch splitting for defoaming, lowering material‑change frequency and process waiting time.

Low‑speed Splash‑proof Design

The 0‑1500rpm low‑speed range is tailored for 2600CC large capacity. Liquid surface stays stable without splashing while rotating. Dual protection of safety lock and inertia delay ensures stable operation under heavy‑mass load.

Ready for Production‑line Integration

Industrial‑grade frame (estimated value, subject to actual product) fits fixed stations on production lines and supports long‑hour continuous operation. Optional MES networking system realizes data upload of defoaming procedures and production‑line integration.

✨ Heavy‑duty mass‑production platform for continuous industrial‑line manufacturing, large‑volume single‑run defoaming and production‑line integration.

Working Principle

Low‑speed heavy‑load rotation generates synergistic effects of centrifugal force and gravity. Large‑volume materials achieve non‑contact centrifugal defoaming inside sealed containers without altering material chemical properties.

Step 1: High-speed centrifugal separation. Set speed and time via control panel. Centrifugal force generated by high rotation separates bubbles from materials.

Step 2: Gravity-driven escape. Gravity pulls materials downward while bubbles rise to the surface and escape.

Step 3: Non-contact purity preservation. Materials rotate inside sealed syringes without mixing blades contact, leaving chemical properties unchanged.


Three simple steps: Centrifugal Separation → Gravity Escape → Non-contact Purity Preservation. Defoaming finished in one cycle.

Centrifugal Defoaming Machine Working Principle.jpg

Technical Specifications

Complete Technical Specifications Overview, Customizable on Demand

ModelSIE‑VH2600
Mixing Capacity30 / 55 / 75 / … / 2600 cc (customizable)
Standard Configuration4 × 2600CC containers
Number of Containers4 units (user‑selectable)
Max Speed0 – 1500 RPM (stepless adjustable)
Technical PrincipleCentrifugal‑force defoaming
Container TypeTubes / Jars / Cups; adapters for syringes and cartridges available
Control SystemTouch screen, stores up to 100 recipe sets
Power Supply220V, 50/60Hz (110V US/JP standard customizable)
Dimension(W×D×H)980 × 735 × 490 mm
Net WeightApprox. 235 kg
CertificationsFCC, ISO9001, RoHS compliance

Our Partners

Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide

Partner Showcase

FAQ - Frequently Asked Questions

Answers to common questions about product performance and everyday process selection

  • What is the working principle of a centrifugal defoaming machine?

    Principle of centrifugal defoaming machine: The bubbles are released by the downward principle of gravity.

  • How is the after-sales service?

    The company has professional after-sales service personnel, 24-hour dedicated service, and one-on-one technical support to solve your worries.

  • Why choose SIENOX?

    There are many reasons for choosing SIENOX, and the following are some of the main reasons:

    1. Professionalism: Our team consists of a group of professional individuals with rich experience and knowledge in their respective fields. We not only understand industry trends and best practices, but also provide practical and feasible solutions.

    2. Service quality: We focus on customer needs and satisfaction, and are always committed to providing high-quality services. We not only respond quickly to customer needs, but also provide customized services according to their requirements.

    3. Reliability: We adhere to the principles of integrity and professionalism, always adhering to commitments and agreements. Our work methods and deliverables comply with industry standards and best practices, enabling our clients to trust us.

    4. Innovation: We continuously explore new methods and tools to provide better services and meet customer needs. We encourage innovation and experimentation, and are willing to accept challenges and change.

    5. Cost effectiveness: We provide cost-effective services that not only help customers save costs, but also improve efficiency and productivity. We always prioritize the interests of our customers and provide them with the best solutions.

    6. Teamwork: We believe in the power and value of teamwork, and our team members support, collaborate, and respect each other. We establish close cooperative relationships with customers, partners, and other stakeholders to achieve common goals.

    The above are just some of the reasons for choosing us. We believe there are many other advantages and values that can be provided to customers. If you are looking for a professional, reliable, and high-quality service provider, we look forward to working with you.


  • How does the stirring and defoaming machine work?

    The SIENOX stirring and defoaming machine performs defoaming through centrifugal force at revolution and stirring through shear force formed by revolution and rotation,

    Assisted by a vacuum pump to extract gas and achieve a vacuum state, removing nanoscale tiny bubbles. No contact with materials, no secondary pollution, and no secondary waste.

  • What is the function of a defoaming machine?

    A defoaming machine is a device used to remove bubbles from liquids. Its function is to assist in the liquid mixing, reaction, coating, printing, infusion and other process steps in the production process, avoiding the generation of bubbles and their impact on the final product. In many industrial and laboratory environments, removing bubbles is essential as they may have a negative impact on product quality, such as affecting surface tension and stability. Defoaming machines typically use various techniques such as vibration, ultrasound, centrifugation, etc. to achieve effective bubble removal. It has a wide range of applications, including but not limited to semiconductors, solar energy, optics, biotechnology, materials science, etc.

Technical Specification List

Complete Technical Specifications Overview, Customizable on Demand

ModelSIE‑VH960SIE‑VH960‑48SIE‑VH2600
Mixing Capacity30 / 55 / 75 / … / 960 cc (customizable)30 / 55 / 75 / … / 960 cc (customizable)30 / 55 / 75 / … / 2600 cc (customizable)
Standard Configuration4 × 960 mL containers48 × 55 CC containers4 × 2600 CC containers
Maximum Number of Containers32 units48 units4 units
Max Speed0 – 2000 RPM (stepless adjustable)0 – 2000 RPM (stepless adjustable)0 – 1500 RPM (stepless adjustable)
Technical PrincipleCentrifugal‑force defoamingCentrifugal‑force defoamingCentrifugal‑force defoaming
Container TypeTubes / Jars / CupsTubes / Jars / CupsTubes / Jars / Cups
Control SystemTouch screen, stores up to 100 recipe setsTouch screen, stores up to 100 recipe setsTouch screen, stores up to 100 recipe sets
Power Supply220V, 50/60Hz (110V US/JP standard customizable)220V, 50/60Hz (110V US/JP standard customizable)220V, 50/60Hz (110V US/JP standard customizable)
Dimension(W×D×H)980 × 735 × 490 mm980 × 735 × 490 mm980 × 735 × 490 mm
Net Weight235 kg235 kg235 kg
CertificationsFCCFCCFCC

*** The above are typical models only. Customized solutions are available upon customer requirements.


Multi‑Industry Solutions

Covers centrifugal defoaming applications for typical materials across six major industries

Electronic Materials.jpg

Adhesives

Polyurethane sealant, one‑component silicone, acrylic adhesive, mold silicone

University Research.jpg

Advanced Material R&D

Nano‑dispersions, ceramic slurries, reagent gels, lab‑formulated resins

Medical Devices.jpg

Medical Consumables

Medical‑grade silicone, dental resin, biological gel, diagnostic reagent pastes

LED Raw Materials.jpg

Optoelectronic Display

Optical clear adhesive, touch‑screen silver paste, frame sealing silicone, backlight filling paste


New Energy Industry

Cell thermal conductive gel, battery module sealant, PV frame silicone, PV conductive silver paste

Automotive Electronics.jpg

Automotive Electronics

Vehicle PCB potting adhesive, headlamp encapsulation silicone, wire harness sealant, automotive thermal paste

Comprehensive Equipment Operation Demo Videos

Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.

Actual‑test Performance Demonstration

Lab Sample Actual Test Results

Gel Defoaming.jpg

Gels

Epoxy Resin Defoaming.jpg

Epoxy Resins

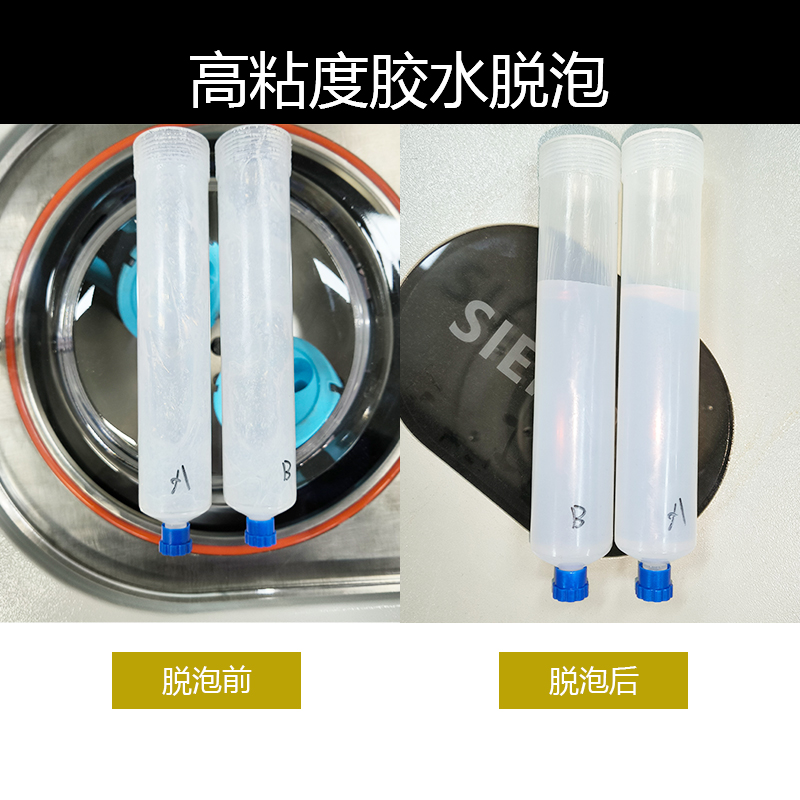

Adhesive Before‑after Defoaming.jpg

Adhesive Materials

Potting Compound Defoaming.jpg

Potting Compounds

Silver Paste Defoaming.jpg

Silver Paste Materials

Adhesive Before‑after Defoaming.jpg

Adhesives


Actual‑test Effect Comparison

Comparison of Material Condition Before and After Centrifugal Defoaming

Material TypeState Before TreatmentAfter Treatment by VH2600
UnderfillDense bubbles inside adhesive, packaging void rate ~6%, poor reliabilityBubbles eliminated, packaging void rate below 1%, improved reliability
Mold SiliconeNumerous bubbles in silicone, vulcanization porosity ~7%, low molding precisionBubbles eliminated, vulcanization porosity below 2%, stable molding precision
PV Conductive Silver PasteMany bubbles in slurry, grid line breakage rate ~5%, fluctuating resistanceBubbles eliminated, grid line breakage rate below 1%, stable resistance

* Internal lab test data. Actual improvement varies with material formulation. Contact sales for real customer cases.

Customer Delivery & Application Cases

Rooted in frontline manufacturing, we empower benchmark production lines and key national research institutions across diverse industries.


BOX Single‑Component Epoxy Adhesive Defoaming Solution: SIENOX Planetary Defoaming Machine


SIENOX Planetary Stirring‑Defoaming Machine Enables High‑reliability Structural‑Adhesive Bonding Solutions


Silicone Rubber Material Stirring & Defoaming Solution
