Centrifugal Degasser

TEL:18925129293

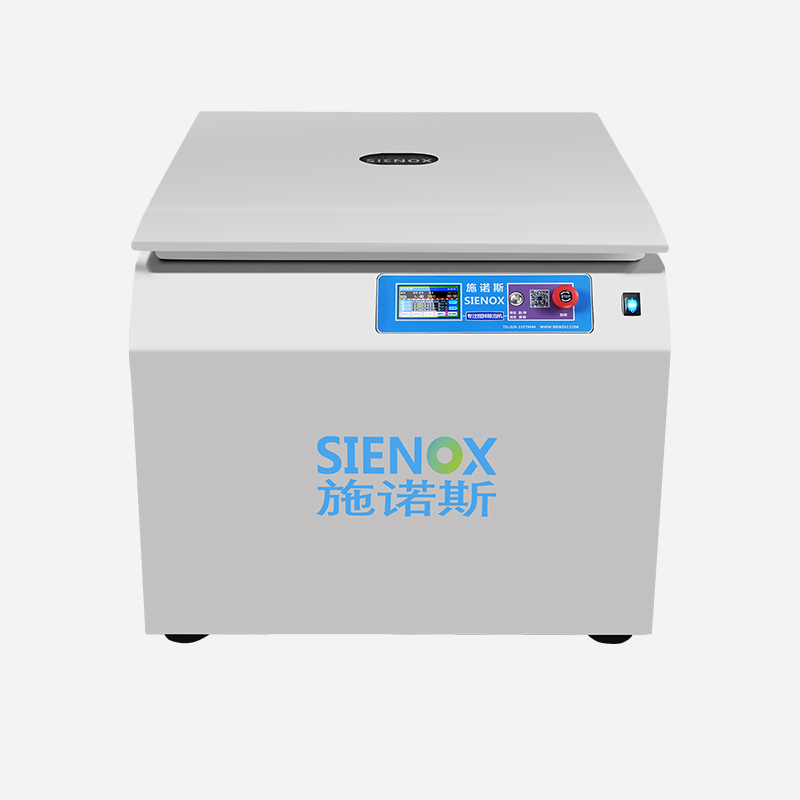

SIENOX Centrifugal Defoamer SIE‑VH55‑36


4000rpm Ultra‑High Speed Special Design for AB Cartridges · Precision Centrifugal Defoaming

Standard for 6 pcs × 490mL AB Cartridges + 0‑4000rpm Stepless Adjustable + Non‑contact Centrifugal Defoaming

Featuring ultra‑high speed of 0‑4000rpm and standard configuration for 6 pcs × 490mL AB cartridges, it is specially designed for high‑viscosity hard‑to‑defoam materials. Non‑contact centrifugal separation keeps material chemical properties unchanged, suitable for precision defoaming scenarios such as electronics & semiconductors, medical consumables and laboratory R&D.

✓ Patented Design ✓ FCC Certification ✓ ISO9001 Quality System ✓ 304 Stainless Steel Cabinet ✓ 20‑Year Original Manufacturer

Online Message Free Sample Testing Engineer Hotline: 189-2512-9293

Why Must Microbubbles in Materials Be Eliminated?

Micro‑bubbles remaining in single material impair end‑product performance and consistency

Component Packaging Industry

Residual bubbles in underfill cause voids, stress concentration and reduced reliability for chip packaging. Centrifugal defoaming separates bubbles merely by centrifugal force in non‑contact mode without introducing impurities, suitable for defoaming large‑volume single‑cup packaging adhesives.

Automotive Electronics Industry

Bubbles in wire‑harness sealant trigger poor sealing, degraded weather resistance and failed harness protection. Non‑contact centrifugal treatment adds no contaminants, and standardized batch configuration ensures consistency across batches.

New Energy Industry

Bubbles in photovoltaic conductive silver paste degrade gate‑line printing quality, contact resistance and photoelectric conversion efficiency. Non‑contact centrifugal defoaming preserves paste chemical properties, ideal for defoaming photovoltaic auxiliary materials.

✨ Traditional Defoaming Pain Points: Batch‑processing large‑volume adhesives involves cumbersome procedures. Frequent material changeovers result in low efficiency. Contact‑type mixing impellers may introduce contamination and alter material chemical properties.

Why Choose SIE‑VH55‑36

Three Dimensions to Meet Precision Defoaming Requirements for High‑Viscosity Materials

High‑Centrifugal‑Force Defoaming

4000 rpm rotating speed generates stronger centrifugal force to separate micro‑bubbles. For hard‑to‑defoam materials such as high‑viscosity silicone and conductive paste, bubbles hardly escape at normal rotating speeds, while ultra‑high speed delivers sufficient separation energy.

In‑Cartridge Defoaming for AB Cartridges

Equipped with dedicated fixtures for AB cartridges as standard. 490 mL dual‑chamber cartridges can be loaded directly for defoaming without material transfer. Pre‑mixed single materials are defoamed inside original cartridges, lowering risks of secondary bubble introduction caused by container transfer.

96‑Cartridge Expansion for Full‑Workflow Coverage

Expandable from standard 6 cartridges up to 96 cartridges, supporting precision defoaming for lab samples and high‑throughput production‑line testing. Wide volume range of 3‑330 mL fits diverse containers from syringes to medium‑sized cans. One single unit covers full workflows from R&D to quality control.

✨ High‑speed precision model for hard‑to‑defoam high‑viscosity materials, in‑cartridge AB cartridge defoaming, and full‑workflow coverage from R&D to quality control.

Working Principle

Low‑speed heavy‑load rotation generates synergistic effects of centrifugal force and gravity. Large‑volume materials achieve non‑contact centrifugal defoaming inside sealed containers without altering material chemical properties.

Step 1: High-speed centrifugal separation. Set speed and time via control panel. Centrifugal force generated by high rotation separates bubbles from materials.

Step 2: Gravity-driven escape. Gravity pulls materials downward while bubbles rise to the surface and escape.

Step 3: Non-contact purity preservation. Materials rotate inside sealed syringes without mixing blades contact, leaving chemical properties unchanged.


Three simple steps: Centrifugal Separation → Gravity Escape → Non-contact Purity Preservation. Defoaming finished in one cycle.

Centrifugal Defoaming Machine Working Principle.jpg

Technical Specifications

Complete Technical Specifications Overview, Customizable on Demand

ModelSIE‑VH55‑36
Mixing Volume30 / 55 / 75 / … / 330 cc (Customizable)
Standard Configuration6 pcs × 490 mL AB Cartridges
Quantity of Vessels4 pcs (User‑selectable)
Max Speed0 – 4000 RPM (Stepless adjustable)
Technical PrincipleCentrifugal Defoaming
Vessel TypeTest tube / can / cup; adapters for syringes and cartridges supported
Control SystemTouch screen, stores 100 sets of recipe parameters
Power Supply220V, 50/60Hz (110V US/JP standard customizable)
Dimension(W×D×H)980 × 735 × 490 mm
Net WeightApprox. 235 kg
CertificationsFCC, ISO9001, RoHS Compliance

Our Partners

Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide

Partner Showcase

FAQ - Frequently Asked Questions

Answers to common questions about product performance and everyday process selection

  • What is the working principle of a centrifugal defoaming machine?

    Principle of centrifugal defoaming machine: The bubbles are released by the downward principle of gravity.

  • How is the after-sales service?

    The company has professional after-sales service personnel, 24-hour dedicated service, and one-on-one technical support to solve your worries.

  • Why choose SIENOX?

    There are many reasons for choosing SIENOX, and the following are some of the main reasons:

    1. Professionalism: Our team consists of a group of professional individuals with rich experience and knowledge in their respective fields. We not only understand industry trends and best practices, but also provide practical and feasible solutions.

    2. Service quality: We focus on customer needs and satisfaction, and are always committed to providing high-quality services. We not only respond quickly to customer needs, but also provide customized services according to their requirements.

    3. Reliability: We adhere to the principles of integrity and professionalism, always adhering to commitments and agreements. Our work methods and deliverables comply with industry standards and best practices, enabling our clients to trust us.

    4. Innovation: We continuously explore new methods and tools to provide better services and meet customer needs. We encourage innovation and experimentation, and are willing to accept challenges and change.

    5. Cost effectiveness: We provide cost-effective services that not only help customers save costs, but also improve efficiency and productivity. We always prioritize the interests of our customers and provide them with the best solutions.

    6. Teamwork: We believe in the power and value of teamwork, and our team members support, collaborate, and respect each other. We establish close cooperative relationships with customers, partners, and other stakeholders to achieve common goals.

    The above are just some of the reasons for choosing us. We believe there are many other advantages and values that can be provided to customers. If you are looking for a professional, reliable, and high-quality service provider, we look forward to working with you.


  • How does the stirring and defoaming machine work?

    The SIENOX stirring and defoaming machine performs defoaming through centrifugal force at revolution and stirring through shear force formed by revolution and rotation,

    Assisted by a vacuum pump to extract gas and achieve a vacuum state, removing nanoscale tiny bubbles. No contact with materials, no secondary pollution, and no secondary waste.

  • What is the function of a defoaming machine?

    A defoaming machine is a device used to remove bubbles from liquids. Its function is to assist in the liquid mixing, reaction, coating, printing, infusion and other process steps in the production process, avoiding the generation of bubbles and their impact on the final product. In many industrial and laboratory environments, removing bubbles is essential as they may have a negative impact on product quality, such as affecting surface tension and stability. Defoaming machines typically use various techniques such as vibration, ultrasound, centrifugation, etc. to achieve effective bubble removal. It has a wide range of applications, including but not limited to semiconductors, solar energy, optics, biotechnology, materials science, etc.

Technical Specification List

Complete Technical Specifications Overview, Customizable on Demand

ModelSIE‑VH960SIE‑VH960‑48SIE‑VH55‑36
Mixing Volume30 / 55 / 75 / … / 960 cc (Customizable)30 / 55 / 75 / … / 960 cc (Customizable)30 / 55 / 75 / … / 330 cc (Customizable)
Standard Configuration4 pcs × 960 mL48 pcs × 55 CC6 pcs × 490 mL AB Cartridges
Maximum Vessel Quantity32 pcs48 pcs4 pcs
Max Speed0 – 2000 RPM (Stepless adjustable)0 – 2000 RPM (Stepless adjustable)0 – 4000 RPM (Stepless adjustable)
Technical PrincipleCentrifugal DefoamingCentrifugal DefoamingCentrifugal Defoaming
Vessel TypeTube / Can / CupTube / Can / CupTube / Can / Cup
Control SystemTouch screen, stores 100 sets of recipe parametersTouch screen, stores 100 sets of recipe parametersTouch screen, stores 100 sets of recipe parameters
Power Supply220V, 50/60Hz (110V US/JP standard customizable)220V, 50/60Hz (110V US/JP standard customizable)220V, 50/60Hz (110V US/JP standard customizable)
Dimension(W×D×H)980 × 735 × 490 mm980 × 735 × 490 mm980 × 735 × 490 mm
Net Weight235 kg235 kg235 kg
CertificationsFCCFCCFCC

*** The above are typical models only. Customized solutions are available according to customer requirements.


Multi‑Industry Solutions

Covers centrifugal defoaming applications for typical materials across six major industries

Electronic Materials.jpg

Adhesives

Polyurethane sealant, one‑component silicone, acrylic adhesive, mold silicone

University Research.jpg

Advanced Material R&D

Nano‑dispersion liquid, ceramic slurry, reagent gel, lab‑formulated resin

Medical Devices.jpg

Medical Consumables

Medical‑grade silicone, dental resin, biological gel, diagnostic reagent paste

LED Raw Materials02.jpg

Optoelectronic Display

Optical clear adhesive, touch‑screen silver paste, frame sealing silicone, backlight filling paste


New Energy Industry

Cell thermal conductive gel, battery module sealant, PV frame silicone, PV conductive silver paste

Automotive Electronics.jpg

Automotive Electronics

On‑board PCB potting adhesive, headlamp encapsulation silicone, wire‑harness sealant, vehicle thermal conductive paste

Comprehensive Equipment Operation Demo Videos

Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.

Actual‑test Performance Demonstration

Lab Sample Actual Test Results

Gel Defoaming02.jpg

Gel

Epoxy Resin Defoaming.jpg

Epoxy Resin

Glue Before‑After Defoaming01.jpg

Glue Materials

Potting Adhesive Defoaming.jpg

Potting Adhesive

Silver Paste Mixing & Defoaming02.jpg

Silver Paste

Glue Before‑After Defoaming02.jpg

Adhesive


Actual‑test Effect Comparison

Comparison of Material Condition Before and After Centrifugal Defoaming

Material TypeState Before TreatmentAfter Treatment by VH55-36
UnderfillDense bubbles inside adhesive, packaging void rate ~6%, poor reliabilityBubbles eliminated, packaging void rate below 1%, improved reliability
Mold SiliconeNumerous bubbles in silicone, vulcanization porosity ~7%, low molding precisionBubbles eliminated, vulcanization porosity below 2%, stable molding precision
PV Conductive Silver PasteMany bubbles in slurry, grid line breakage rate ~5%, fluctuating resistanceBubbles eliminated, grid line breakage rate below 1%, stable resistance

* Internal lab test data. Actual improvement varies with material formulation. Contact sales for real customer cases.

Customer Delivery & Application Cases

Rooted in manufacturing frontlines, empowering benchmark production lines and key national research institutions across diverse industries.


BOX Single‑Component Epoxy Adhesive Defoaming Solution: SIENOX Planetary Defoaming Machine


SIENOX Planetary Stirring‑Defoaming Machine Enables High‑reliability Structural‑Adhesive Bonding Solutions


Silicone Rubber Material Stirring & Defoaming Solution
