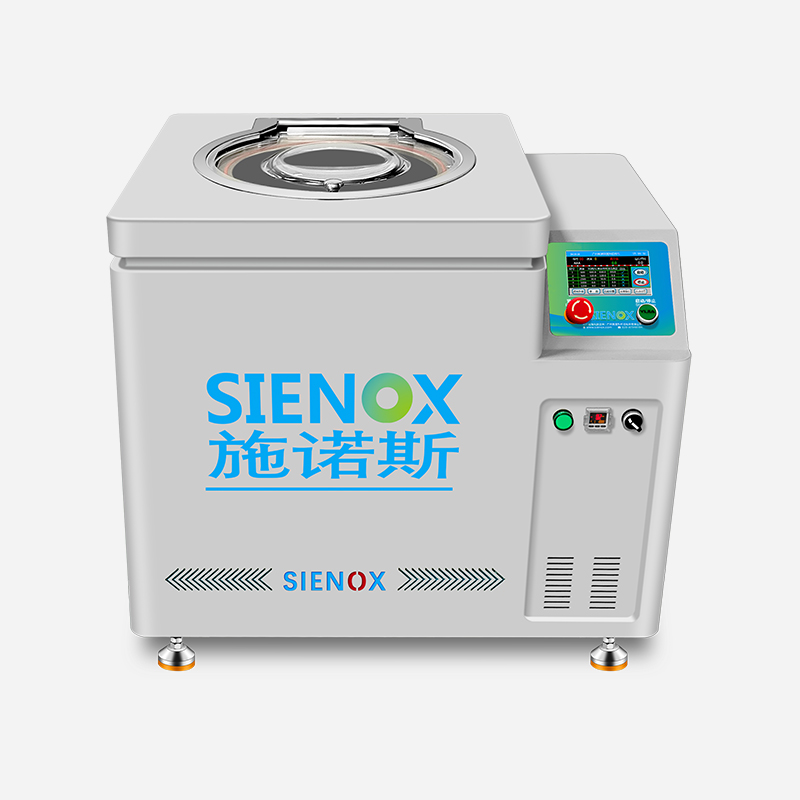

Temperature‑Controlled Vacuum Mixing‑Defoamer SIE‑MIX20LWK


20L Large‑volume For Mass Production · Integrated Mixing & Defoaming Equipment For High‑viscosity Slurries

20L Extra‑large Dual‑cup + Heating & Cooling Temperature Control + ‑98 kPa Vacuum In‑depth Defoaming

SIENOX SIE‑MIX20LWK is a temperature‑controlled vacuum mixing‑defoamer built for heavy‑duty mass production of temperature‑sensitive materials. As the flagship model with 20L dual‑cup capacity, it meets requirements for large‑batch continuous processing. It adjusts material temperature via thermal control, 0‑600 rpm low‑speed heavy‑load design adapts to high‑viscosity substances. Combined with ‑98 kPa vacuum defoaming and dual‑power revolution‑rotation mixing, it completes mixing and defoaming in one cycle.

✓ CE Certification  ✓ FC Certification ✓ ISO9001 Quality System ✓ RoHS Compliance ✓ Custom voltage available (110V/220V)

Online Message Free Sample Testing Engineer Hotline: 189-2512-9293

Why Must Microbubbles in Materials Be Eliminated?

Residual micro‑bubbles in large‑batch high‑viscosity materials directly affect product yield and performance stability.

New Energy Industry

Bubbles in lithium‑ion battery anode slurry affect coating areal density and battery capacity consistency; bubbles in energy‑storage electrode slurry reduce electrode energy density. Large‑volume mixing generates substantial heat, temperature‑controlled defoaming stabilizes slurry temperature window and prevents rheological property changes caused by overheating.

Adhesive Industry

Bubbles in industrial structural adhesives cause fluctuation of bonding strength and cavities on bearing surfaces; bubbles in silicone sealants lead to sealing surface leakage. For large‑batch adhesive processing, temperature control manages curing exothermic reaction and restrains excessive temperature from aggravating bubble generation.

Advanced Material Industry

Bubbles in functional coating liquid trigger coating defects and reduced adhesion; bubbles in ceramic slurry bring pores and unstable density after sintering. Advanced materials have narrow process parameter windows; temperature‑controlled defoaming precisely regulates material temperature and guarantees batch‑to‑batch performance consistency.

✨ Traditional defoaming dilemmas: manual stirring is barely workable for large‑batch high‑viscosity materials; repeated batch processing with small‑capacity devices costs much time on material replacement and cleaning; static defoaming shows limited performance on high‑viscosity substances. Conventional equipment provides no temperature control, and simple heating tends to degrade temperature‑sensitive materials. This solution combines centrifugal mixing, ‑98 kPa vacuum and precise temperature control to finish mixing, thermal regulation and defoaming in one single step for 20L per batch.

Why Choose SIE‑MIX20LWK

Three Core Advantages Cover Full‑range Demands of Temperature‑Controlled Vacuum Mixing & Defoaming

20L Extra‑large Dual‑station

Standard dual‑bucket loading capacity of 20L per batch. Heavy‑duty transmission adapts to ultra‑high‑viscosity materials, expandable up to 50L large volume for all‑day continuous factory mass production.

Stable Long‑term Operation With Vacuum, Temperature Control & Heavy‑load Capacity

Standard ‑98 kPa vacuum system. Centrifugal force removes large bubbles while vacuum negative pressure eliminates deep‑seated micro‑bubbles inside high‑viscosity materials. Vacuum works synchronously with temperature control: heating reduces viscosity to accelerate bubble discharge; vacuum compensates defoaming efficiency under cooling condition. The 950 kg heavy‑duty frame delivers stable and reliable long‑time operation at low speed and high torque.

Full‑process Temperature Control & MES Integration

Dual‑mode temperature control reduces viscosity by heating and suppresses thermal degradation by cooling. Optional fixed / freely adjustable planetary ratio fits diverse material processes. Optional MES integration realizes full‑process data traceability. Micro‑computer control stores 100 recipe sets, built‑in multi‑safety protections for multi‑shift production.

✨ MIX20LWK is the flagship capacity‑range model, ideal for large‑volume temperature‑controlled mass production of temperature‑sensitive materials such as new energy, semiconductors, adhesives and advanced new materials.

Working Principle

SIE‑MIX20LWK adopts synergistic process of planetary revolution, container rotation, sealed vacuum defoaming and temperature control to complete mixing, thermal regulation and defoaming in one step.

Planetary Revolution

The main turntable revolves around the main shaft to generate centrifugal force, spreading large‑volume materials toward the container wall, breaking powder agglomeration and mitigating stratification of high‑viscosity substances. The temperature‑control system runs simultaneously to maintain target temperature.

Container Rotation

Reverse rotation of material cups creates 360° fluid turbulence for full‑range homogeneous mixing. No stirring paddle contacts materials to avoid contamination. Low‑speed high‑torque output adapts to large‑batch high‑viscosity materials.

Sealed Vacuum Defoaming
The sealed chamber draws negative pressure up to ‑98 kPa to expand pressure difference inside and outside materials. Micro‑/nano‑scale bubbles in high‑viscosity materials expand, rise and get removed. Mixing and defoaming are finished within one single process segment.

Precise Temperature Control For Material Condition

Temperature control runs through the whole mixing‑defoaming cycle: heating reduces viscosity to improve fluidity and accelerate bubble release; cooling suppresses thermal degradation and manages exothermic reactions. Temperature control synchronizes with mixing‑defoaming without separate thermal‑regulation procedures.


Synergy of planetary revolution, container rotation, sealed vacuum defoaming and dual‑mode temperature control completes full workflow: mixing → dispersion → vacuum defoaming → thermal adjustment in one step.

Vacuum Defoaming Mixer Working Principle.jpg


Technical Specifications

Complete Technical Specifications Overview, Customizable on Demand

ModelSIE‑MIX20LWK
Mixing Capacity0‑15L (standard container) * Customizable
Container TypeTest tube / Can / Cup; adapters for syringes & cartridges supported
Container Quantity1 or 2 cans (user‑selectable)
Max Speed0‑600 RPM (stepless adjustable)
Temperature ModeHeating / Cooling
Vacuum LevelStandard: ‑98 kPa / Optional: ‑100 kPa
Control SystemTouch screen, stores up to 100 recipe sets
Power Supply220V, 50/60Hz (110V US/JP standard customizable)
Overall Dimension(W×D×H)1735 × 1560 × 965 mm
Net Weight830kg
CertificationsCE, FC, ISO9001, RoHS Compliance


Our Partners

Trusted by leading industrial manufacturing clusters and advanced university laboratories worldwide

Partner Showcase

FAQ - Frequently Asked Questions

Answers to common questions about product performance and everyday process selection

  • 脱泡机的作用是什么?

    脱泡机是一种用于去除液体中的气泡的设备。它的作用在于帮助生产过程中的液体混合、反应、涂布、印刷、灌注等工艺环节,避免气泡的产生和对最终产品的影响。在许多工业和实验室环境中,去除气泡是非常必要的,因为气泡可能会对产品质量产生负面影响,如影响表面张力和稳定性等问题。脱泡机通常采用各种不同的技术,如振动、超声波、离心等,以实现有效的气泡去除。它的应用领域广泛,包括但不限于半导体、太阳能、光学、生物技术、材料科学等。

  • 售后服务怎么样?

    公司拥有专业的售后服务人员,24小时专人服务,一对一提供技术支持,解决您的后顾之忧。

  • 为什么要选择施诺斯?

    选择施诺斯的原因有很多,以下是一些主要的原因:

     1. 专业性:我们的团队由一群专业的人士组成,他们在各自的领域拥有丰富的经验和知识。我们不仅了解行业趋势和最佳实践,而且还能提供切实可行的解决方案。

     2. 服务质量:我们注重客户的需求和满意度,始终致力于提供高质量的服务。我们不仅快速响应客户需求,而且还能根据客户的要求进行定制化服务。

    3. 可靠性:我们以诚信和专业精神为宗旨,始终遵守承诺和协议。我们的工作方法和交付成果均符合行业标准和最佳实践,使得我们的客户能够信任我们。

    4. 创新性:我们不断探索新的方法和工具,以提供更好的服务并满足客户的需求。我们鼓励创新和实验,并愿意接受挑战和改变。

    5. 成本效益:我们提供高性价比的服务,不仅能够帮助客户节省成本,而且还能提高效率和生产力。我们始终以客户的利益为出发点,为客户提供最优的解决方案。

     6. 团队合作:我们相信团队的力量和合作的价值,我们的团队成员之间互相支持、协作和尊重。我们与客户、合作伙伴和其他利益相关者建立紧密的合作关系,以实现共同的目标。

    以上只是选择我们的部分原因,我们相信还有很多其他的优点和价值可以为客户提供。如果您正在寻找一家专业、可靠、高质量的服务提供商,我们非常期待与您的合作。

  • 搅拌脱泡机的工作原理?

    施诺斯搅拌脱泡机通过公转的离心力进行脱泡,通过公转与自转形成的剪切力进行搅拌,

    再辅助以真空泵抽取气体以达到真空状态,去除纳米级微小气泡。 不接触物料,无二次污染,无二次浪费。


  • 施诺斯能提供工程咨询技术服务吗?

    施诺斯能为广大客户提供全面的工程和现代化的咨询服务。施诺斯近二十年的搅拌经验,可以为你提供高效的咨询服务。

    想要让搅拌机性能更上一层楼,提升系统的整体效能?我们有全面的咨询、工程以及现代化改造服务,为您量身打造解决方案。 在如今竞争激烈的全球化浪潮中,唯有不断创新、持续优化,才能始终跑在对手前面。您的生产工艺和产品日新月异,我们就为您提供最适配的混合技术。不管是新的产品参数,还是既有的工艺条件,我们都能对现有系统和搅拌设备进行全方位的检查与评估,挖掘其中潜藏的流程优化空间和机械性能提升潜力,并且帮您把这些改进切实落地。 要是您的搅拌设备已经跟不上时代步伐,能耗居高不下,或是维护成本让您头疼不已,那就别犹豫,我们的咨询、工程设计和现代化改造服务,就是为您排忧解难的良方。欢迎随时联系我们,携手开启高效生产新征程!

Technical Specification List

Full‑line standardized specifications for accurate process evaluation and equipment selection

ModelSIE‑MIX5000WKSIE‑MIX15LWKSIE‑MIX20LWK
Mixing Capacity0‑5000 mL (standard container) * Customizable0‑15L (standard container) * Customizable0‑20L (standard container) * Customizable
Container TypeTest tube / Can / Cup; adapters for syringes & cartridges supportedTest tube / Can / Cup; adapters for syringes & cartridges supportedTest tube / Can / Cup; adapters for syringes & cartridges supported
Container Quantity1 or 2 cans (user‑selectable)1 or 2 cans (user‑selectable)1 or 2 cans (user‑selectable)
Max Speed0‑1200 RPM (stepless adjustable)0‑800 RPM (stepless adjustable)0‑600 RPM (stepless adjustable)
Temperature ModeHeating / CoolingHeating / CoolingHeating / Cooling
Vacuum LevelStandard: ‑98 kPa / Optional: ‑100 kPaStandard: ‑98 kPa / Optional: ‑100 kPaStandard: ‑98 kPa / Optional: ‑100 kPa
Control SystemTouch screen, stores up to 100 recipe setsTouch screen, stores up to 100 recipe setsTouch screen, stores up to 100 recipe sets
Power Supply220V, 50/60Hz (110V US/JP standard customizable)220V, 50/60Hz (110V US/JP standard customizable)220V, 50/60Hz (110V US/JP standard customizable)
Overall Dimension(W×D×H)1370 ×1130 × 965mm1735 × 1560 × 965 mm1870 × 1380 × 1160 mm
Net Weight550kg830 kg900 kg
CertificationsCE, FCCE, FCCE, FC

*** Above are typical models only, customized solutions are available upon customer requirements.


Multi‑Industry Solutions

Provide customized solutions to meet comprehensive demands from cutting‑edge R&D to large‑scale mass production


Battery Industry

Lithium‑ion battery cathode slurry, lithium‑ion battery anode slurry, solid electrolyte slurry, battery diaphragm coating liquid, battery conductive slurry

New Energy.jpg

Energy Industry

Fuel cell catalytic layer slurry, proton exchange membrane slurry, energy‑storage electrode slurry, supercapacitor slurry, electrolyte additives

Polyurethane Structural Adhesive.jpg

Adhesive & Sealant Industry

Industrial structural adhesive, epoxy sealant, polysulfide sealant, silicone structural adhesive, hot‑melt adhesive slurry


Chemical Industry

Chemical slurry, resin intermediate, catalyst slurry, functional coating liquid, reactive adhesive

Thermal‑conductive Silicone Gel.jpg

Electronics Industry

Electronic encapsulation adhesive, conductive silver adhesive, insulating black adhesive, LED phosphor powder, semiconductor encapsulation material

Medical Device 02.jpg

Medical Device Industry

Medical catheter adhesive, medical sensor encapsulation adhesive, dental resin, medical transparent gel, sterile bonding adhesive

Comprehensive Equipment Operation Demo Videos

Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.

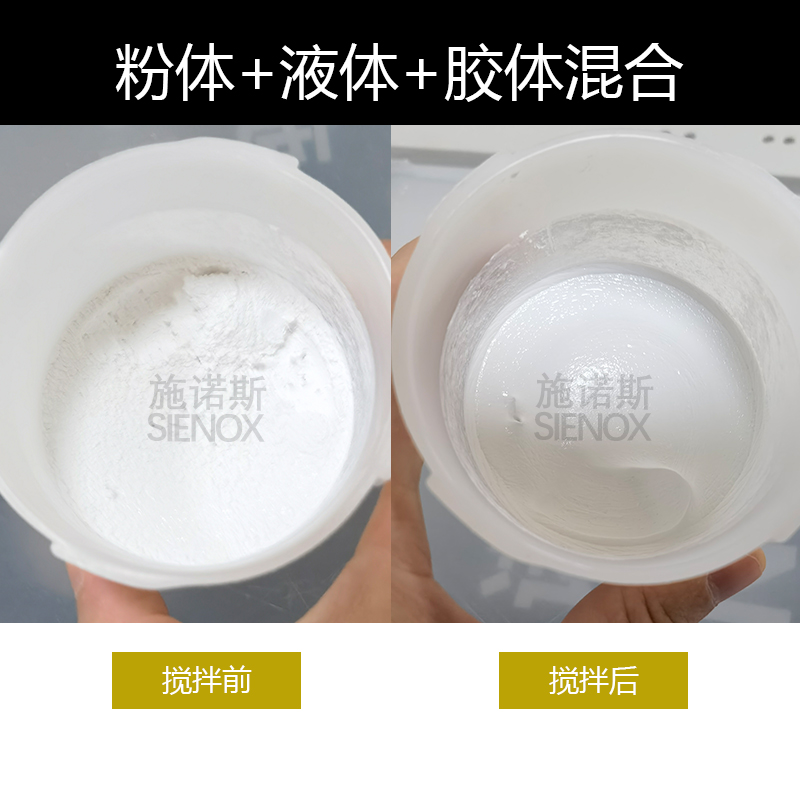

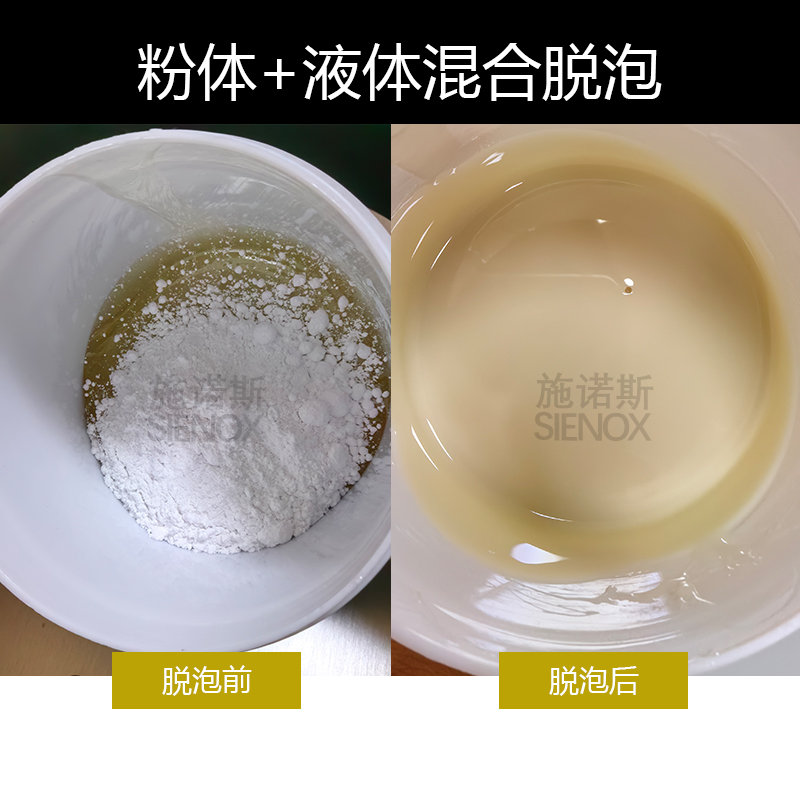

Measured Defoaming‑Process Performance

Thoroughly eliminate material bubbles, voids and stratification

AB Glue Mixing & Defoaming.jpg

AB Glue

Potting Compound Defoaming.jpg

Potting Compound

Battery Slurry + Adhesive Mixing & Defoaming.jpg

Electronic Slurry + Adhesive

Structural Adhesive Defoaming Comparison.jpg

Structural Adhesive

Gel Defoaming 02.jpg

Gel

Biogel Mixing & Defoaming.jpg

Biogel


Measured Data Comparison

Quantifiable Effects Validated by Test Data

Material TypeCondition Before TreatmentAfter MIX20LWK Treatment
Lithium‑ion Battery Anode SlurryAbundant bubbles inside slurry, ±15% deviation of coating areal density, large fluctuation of battery capacityBubbles eliminated, ±3% deviation of coating areal density, improved capacity consistency
Semiconductor Underfill AdhesiveDense bubbles in adhesive, chip stress concentration rate approx.8%, reliability fluctuationBubbles eliminated, stress concentration rate below 1%, stable reliability
Polyurethane Structural AdhesiveDense bubbles in adhesive, ±25% bonding strength deviation, cavities on bearing surfaceBubbles eliminated, ±5% bonding strength deviation, continuous bearing surface

* Internal laboratory test data. Actual improvement varies with material formulation. Contact sales for real customer cases.
